RM-ED054 - Télécommande SONY - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Télécommande infrarouge
Marque	Sony
Modèle	RM-ED054
Utilisation	Téléviseurs Sony BRAVIA compatibles
Alimentation	2 piles AA (LR6) de 1,5 V
Type de piles	Manganèse ou alcaline
Portée infrarouge	Jusqu'à 8-10 mètres (angle optimal)
Dimensions (approx.)	25 cm x 6 cm x 3 cm (L x l x H)
Poids (avec piles)	Environ 120 g
Matière	Plastique ABS
Fonctions principales	Mise en veille, volume, chaînes, menus, EPG, texte, entrées, modes
Touches numériques	0-9, pour sélection directe de chaîne
Touches de navigation	Haut, bas, gauche, droite, OK
Touches colorées	Rouge, vert, jaune, bleu (Fastext, EPG)
Touche INFO	Affichage des informations de programme
Touche RETURN	Retour au menu précédent
Touche MENU	Accès au menu principal
Touche MUTE	Coupure du son
Touche PROG +/-	Sélection de chaîne suivante/précédente
Touche VOL +/-	Réglage du volume
Touche TEXT	Affichage du télétexte
Indicateur tactile	Points en relief sur touches A/B, PROG + et 5
Compatibilité	Téléviseurs Sony BRAVIA (série W2000 et modèles compatibles)

FOIRE AUX QUESTIONS - RM-ED054 SONY

Pourquoi ma télécommande RM-ED054 ne fonctionne-t-elle pas ?

Vérifiez d'abord les piles : remplacez-les par deux piles AA neuves en respectant la polarité. Assurez-vous que le capteur infrarouge du téléviseur n'est pas obstrué. Si le problème persiste, vérifiez que le téléviseur est sous tension et qu'aucun autre obstacle ne bloque le signal.

Comment remplacer les piles de la télécommande ?

Ouvrez le compartiment à piles situé à l'arrière en faisant glisser le couvercle vers le bas. Insérez deux piles AA (LR6) en respectant les marques + et -. Refermez le couvercle jusqu'au clic.

La télécommande fonctionne-t-elle avec tous les téléviseurs Sony ?

Non, la RM-ED054 est conçue pour les téléviseurs Sony BRAVIA des séries compatibles, notamment les modèles mentionnés dans la notice (KDL-46W2000, KDL-40W2000). Pour d'autres modèles, vérifiez la compatibilité.

Comment utiliser les touches colorées de la télécommande ?

Les touches rouge, verte, jaune et bleue servent pour le Fastext (télétexte analogique) et pour naviguer dans le guide électronique des programmes (EPG) en mode numérique. Elles permettent d'accéder rapidement aux options affichées en bas de l'écran.

Que faire si la télécommande fonctionne seulement à courte distance ?

Vérifiez que les piles sont neuves et bien insérées. Nettoyez la fenêtre infrarouge de la télécommande avec un chiffon doux. Évitez toute source de lumière intense (soleil, lampe) qui pourrait interférer avec le signal.

Comment changer la langue du menu avec la télécommande ?

Appuyez sur MENU, utilisez les touches de navigation pour aller dans Réglages puis Langue. Sélectionnez la langue souhaitée avec les touches + et OK.

La touche 'i+/?' ne fonctionne pas, que faire ?

La touche i+/? affiche les informations du programme en cours. Si elle ne répond pas, vérifiez que vous êtes en mode TV (numérique ou analogique) et que le signal est reçu. Redémarrez le téléviseur si nécessaire.

Puis-je utiliser cette télécommande avec une TV d'une autre marque ?

Non, la RM-ED054 utilise des codes infrarouges propriétaires Sony. Elle ne peut pas commander d'autres marques. Utilisez une télécommande universelle pour d'autres appareils.

Comment nettoyer la télécommande sans l'endommager ?

Débranchez les piles. Essuyez la surface avec un chiffon doux légèrement humide (eau claire). N'utilisez pas de solvants, alcool ou produits abrasifs. Séchez soigneusement avant de remettre les piles.

La télécommande émet un signal mais la TV ne réagit pas, que faire ?

Vérifiez que le téléviseur est allumé et que le capteur infrarouge n'est pas masqué. Essayez de pointer la télécommande directement vers le capteur à environ 1 mètre. Si rien ne change, testez les piles avec un multimètre (tension minimale 1,2 V par pile).

MODE D'EMPLOI RM-ED054 SONY

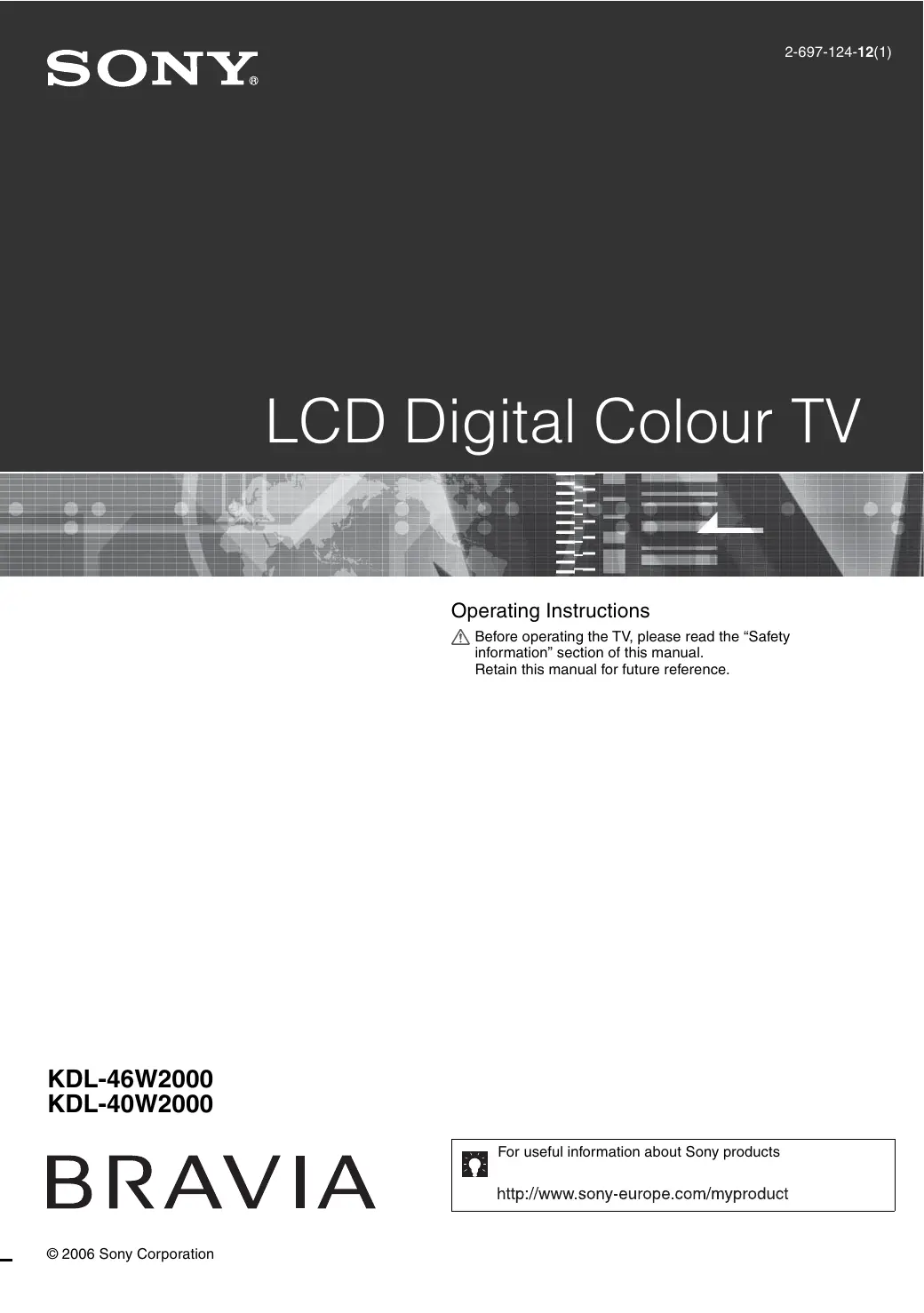

LCD Digital Colour TV

Abstract grayscale graphic with world map, arrows, and grid lines (no readable text or symbols)

Operating Instructions

⚠️ Before operating the TV, please read the “Safety information” section of this manual. Retain this manual for future reference.

KDL-46W2000

KDL-40W2000

BRAVIA

For useful information about Sony products

http://www.sony-europe.com/myproduct

NOTICE FOR CUSTOMERS IN THE UNITED KINGDOM

A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced with the same rating of fuse approved by ASTA or BSI to BS 1362 (i.e., marked with 📂 or 🌐) must be used.

When an alternative type of plug is used it should be fitted with the same rating of fuse, otherwise the circuit should be protected by a 13 AMP FUSE at the distribution board. If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.

FUSE

How to replace the fuse

Open the fuse compartment with a blade screwdriver, and replace the fuse.

Introduction

Thank you for choosing this Sony product. Before operating the TV, please read this manual thoroughly and retain it for future reference.

Notice for Digital TV function

• Any functions related to Digital TV (DVB) will only work in countries or areas where DVB-T (MPEG2) digital terrestrial signals are broadcasted. Please confirm with your local dealer if you can receive a DVB-T signal where you live.
• Although this TV set follows DVB-T specifications, compatibility with future DVB-T digital terrestrial broadcasts cannot be guaranteed.
• Some Digital TV functions may not be available in some countries.

Trademark information

• DVB is a registered trademark of the DVB Project
- Manufactured under license from BBE Sound, Inc. Licensed by BBE Sound, Inc. under one or more of the following US patents: 5510752, 5736897. BBE and BBE symbol are registered trademarks of BBE Sound, Inc.
- TruSurround XT, SRS and (●) symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc.
- HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

- The illustrations used in this manual are of the KDL-40W2000 unless otherwise stated.

Table of Contents

Start-up Guide

4

Safety information 9

Precautions 12

Overview of the remote 13

Overview of the TV buttons and indicators....14

Watching TV

Watching TV....15

Checking the Digital Electronic Programme Guide (EPG) DVB 18

Using the Favourite list DV3 20

Viewing pictures from connected equipment 21

Using MENU Functions

Navigating through menus....22

Picture menu....23

Sound menu....25

Screen menu....27

Set-up menu....28

PC Settings menu 31

Analogue Set-up menu (Analogue mode only) 32

Digital Set-up menu DVB 35

Using Optional Equipment

Connecting optional equipment....37

Additional Information

Specifications 40

Troubleshooting 42

Index 44

DVB : for digital channels only

1: Checking the accessories

Remote RM-ED008 (1)

Size AA batteries (R6 type) (2)

Mains lead (Type BF) (1)

Line drawing of a straight electrical plug with a coiled cable (no text or symbols)

Coaxial cable (1)

Cable holder (1)

Support belt (1) and screws (2)

Stand (1) and screws (4)

Technical illustration of a mechanical component with three cylindrical pins (no text or symbols)

To insert batteries into the remote

Push and slide to open.

Diagram showing a device being processed from a slide to a rear panel, with no visible text or symbols.

Notes

• Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way. Certain regions may regulate disposal of the battery. Please consult your local authority.
• Handle the remote control with care. Do not drop or step on it, or spill liquid of any kind onto it.
• Do not place the remote control in a location near a heat source, or in a place subject to direct sunlight, or in a damp room.

2: Attaching the stand

1

Packaging material Stand

2

Packaging material

Diagram of a device with a checkmark and dashed lines indicating alignment or measurement (no text or symbols present)

Diagram of a mechanical device with a cross mark and paper sheet, no text or symbols present

3

Technical diagram illustrating a device assembly process with labeled components and angle indication

4

Technical diagram of a mechanical assembly with multiple connectors and a central component (no text or symbols visible)

1 Take out the stand, screws, and packaging material to begin stand setup.
2 Set the packaging material as shown.
3 Place the TV directly to the stand as shown.

After placing the TV on the stand, remove the packaging material.

4 Fix the TV to the stand using the supplied screws.

Notes

• This TV is very heavy, so two or more people should place the TV on the stand.
• If using an electric screwdriver, set the tightening torque at approximately 1.5 N·m (15 kgf·cm).

3: Connecting an aerial/VCR

Connecting an aerial only

Connecting an aerial only Coaxial cable (supplied) Mains lead (supplied)

Connecting an aerial and VCR

4: Preventing the TV from toppling over

Diagram showing a device with labeled parts including a switch, cable, and cable clamp, illustrating assembly or repair steps.

5: Bundling the cables

Diagram illustrating cable installation steps with numbered instructions for connecting to a device panel

6: Selecting the language and country/region

2 1 2 1/0 A/B RETURN TOOLS 3,4 3,4

1 Connect the TV to your mains socket (220-240V AC, 50Hz).
2 Press ⏻ on the TV (top side).

When you switch on the TV for the first time, the Language menu appears on the screen.

When the TV is in standby mode (the ⏻ (standby) indicator on the TV (front) is red), press ⚠/⏻ on the remote to switch on the TV.

3 Press ⏻/​/​/​/​/​/​ to select the language displayed on the menu screens, then press ⊕.

Language Select language English Česky Nederlands Magyar Français Rусский Italiano Български Deutsch Suomi Еллэнνικά Dansk Türkçe Svenska Español Norsk Português Slovenčina Polski Română Select:←↑↓→ Set:+

4 Press ⬆/⇨ to select the country/region in which you will operate the TV, then press ⊕.

Country Select country - United Kingdom Ireland Nederland België/Belgique Luxembourg France Italia Schweiz/Suisse/Svizzera Deutschland Select: ↑ ↓ Set: ■ Back: RETURN

If the country/region in which you want to use the TV does not appear in the list, select “-” instead of a country/region.

The message confirming the TV start auto-tuning appears on the screen, then go to “7: Auto-tuning the TV”.

7: Auto-tuning the TV

The TV will now search for and store all available TV channels.

1 / A/B RETURN TOOLS MENU ANALOG 2 4

1 Before you start auto-tuning the TV, insert a pre-recorded tape into the VCR connected to the TV (page 6) and start play back.

The video channel will be located and stored on the TV during auto-tuning.

If no VCR is connected to the TV, this procedure is not required. Go to step 2.

2 Press ⇔/⇨ to select "OK", then press ⊕.

Auto Tuning Do you want to start Auto Tuning? OK Cancel Back: RETURN

The TV starts searching for all available digital channels, followed by all available analogue channels. This may take some time, please be patient and do not press any buttons on the TV or remote.

If a message appears for you to confirm the aerial connections

No digital or analogue channels were found. Check all the aerial connections and press ⊕ to start auto-tuning again.

3 When the Programme Sorting menu appears on the screen, follow the steps of "Programme Sorting" (page 32).

If you do not change the order in which the analogue channels are stored on the TV, go to step 4.

4 Press MENU to exit.

The TV has now tuned in all the available channels.

Note

When a digital broadcast channel cannot be received, or when selecting a region in which there are no digital broadcasts in step 4 under “6: Selecting the language and country/region”, the time must be set from “Clock Set” in the “Set-up” menu (page 29) after performing step 4.

Safety information

Mains lead

- Observe the followings to prevent the mains lead being damaged. If the mains lead is damaged, it may result in a fire or an electric shock.

• Unplug the mains lead when moving the TV set.
• When you disconnect the mains lead, disconnect it from the mains socket first.
• Be sure to grasp the plug when disconnecting the mains lead. Do not pull on the mains lead itself.
• Do not pinch, bend, or twist the mains lead excessively. The core conductors may be exposed or broken.
• Do not modify the mains lead.
• Do not put anything heavy on the mains lead.

• Keep the mains lead away from heat sources.

• If you damage the mains lead, stop using it and ask your dealer or Sony service centre to exchange it.

• Do not use the supplied mains lead on any other equipment.
• Use only an original Sony mains lead, not other brands.

Mains socket

• The TV set with a three-wire grounding type mains plug must be connected to a mains socket with a protective earthing connection.
• Do not use a poor fitting mains socket. Insert the plug fully into the mains socket. A poor fit may cause arcing and result in a fire. Contact your electrician to have the mains socket changed.

Cleaning the mains plug

Unplug the mains plug and clean it regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate and result in a fire.

Overloading

This TV set is designed to operate on a 220–240 V AC supply only. Take care not to connect too many appliances to the same mains socket as this could result in a fire or an elec

When not in use

- If you will not be using the TV set for several days, the TV set should be disconnected from the mains for environmental and safety reasons.

- The TV set is not disconnected from the mains when the TV set is switched off. To disconnect the TV set completely, pull the plug from the mains. However, some TV sets may have features which need the TV set to be left in standby to work correctly.

Carrying

• Before carrying the TV set, disconnect all the cables from the TV set.
• Carrying the large size TV set requires two or more people.
• When you carry the TV set by hand, hold the TV set as illustrated on the right. When lifting the TV set or moving the panel of the TV set, hold it firmly from the bottom. If you do not do so, the TV set may fall and be damaged or cause serious injury.
• When transporting it, do not subject the TV set to jolts or excessive vibration. The TV set may fall and be damaged or cause serious injury.
• If the TV set has been dropped or damaged, have it checked immediately by qualified service personnel.
• When you carry the TV set in for repair or when you move it, pack it using the original carton and packing material.

Placement

• The TV set should be installed near an easily accessible mains socket.
• Place the TV set on a stable, level surface. Do not hang anything on the TV set. If you do, the TV set may fall from the stand, causing damage or serious injury.
• Do not install the TV set in places subject to extreme temperature, for example in direct sunlight, or near a radiator, or heat TV set is exposed to extreme temperature, overheat and cause deformation of the case TV set to malfunction.
• Do not install the TV set in a place exposed to direct air conditioning. If the TV set is installed in such a location, moisture may condense inside and may cause a malfunction.
• Never place the TV set in hot, oily, humid or excessively dusty places.
• Do not install the TV set where insects may enter.
• Do not install the TV set where it may be exposed to mechanical vibration.
• Do not install the TV set in a location where it may protrude, such as on or behind a pillar, or where you might bump your head on it. Otherwise, it may result in injury.
• Do not allow children to climb on the TV set.
• If you use the TV set near the seashore, salt may corrode metal parts of the TV set and cause internal damage or fire.

Diagram illustrating hand positioning and confirmation steps, showing a computer monitor with a magnified view of the screen.

Continued

Ventilation

- Never cover the ventilation holes or insert anything in the cabinet. It may cause overheating and result in a fir

- Unless proper ventilation is provided, the TV set may gather dust and get dirty. For proper ventilation, observe the following:

• Do not install the TV set turned backwards or sideways.
• Do not install the TV set turned over or upside down.
• Do not install the TV set on a shelf or in a closet.
• Do not place the TV set on a rug or bed.
• Do not cover the TV set with cloth, such as curtains, or items such as newspapers, etc.

- Leave some space around the TV set as shown below. Otherwise, air-circulation may be inadequate and cause overheating, which may cause a fire or damage to the TV set.

Installed on the wall

30 cm 10 cm 10 cm 10 cm

Leave at least this space around the set.

Installed with stand

30 cm 10 cm 10 cm 6 cm Leave at least this space around the set.

• Never install the TV set as follows:

Air circulation is blocked. Wall

Air circulation is blocked.

Wall

Optional accessories

Observe the following when installing the TV set using a stand or wall-mount bracket. If you do not do so, the TV set may fall and cause serious injury.

• It is strongly recommended that you use Sony accessories for safety reasons:
• Wall-mount bracket SU-WL51
• It is strongly recommended that you use the official Sony wall-mount bracket to allow adequate air circulation and to avoid accumulated dust on the TV.
• If the TV set is to be installed on a wall, have the installation carried out by qualified service personnel. Improper installation may render the TV set unsafe.
• Secure the TV set properly, following the instructions supplied with your stand when installing the TV set.
• Be sure to attach the brackets supplied with your stand.

Wiring

• When wiring cables, be sure to unplug the mains lead for your safety.
• Take care not to catch your feet on the cables. It may damage the TV set.

Medical institutions

Do not place this TV set in a place where medical equipment is in use. It may cause a malfunction of medical instruments.

Line drawing of a person lying in bed watching a movie on a TV (no text or symbols present)

Outdoor use

• Do not install this TV set outdoors. If the TV set is exposed to rain, it may result in a fire or an electric shock.
• If this TV set is exposed to direct sunlight, the TV set may heat up and it may damage the TV set.

Illustration of a person watching a television under a sun (no text or symbols present)

Vehicle, Ships and other vessels

• Do not install this TV set in a vehicle. The motion of the vehicle may cause the TV set to fall down and cause injury.
• Do not install this TV set on a ship or other vessel. If the TV set is exposed to seawater, it may cause a fire or damage the TV set.

Simple line drawing of a person sitting on a couch watching a TV (no text or symbols present)

Line drawing of a person standing on a boat with a monitor and waves (no text or symbols)

Water and moisture

- Do not use this TV set near water – for example, near a bathtub or shower room. Also do not expose to rain, moisture or smoke. This may result in a fire or an electric s

- Do not touch the mains lead and the TV set with wet hands. Doing so may cause an electric shock or damage to the TV set.

Moisture and flammable objects

- Do not place any objects on the TV set. The TV set shall not be exposed to dripping or splashing and that no objects filled with liquid, such as vases, shall be placed on the TV set.

Illustration of a hand watering a flower on a TV screen with a candle (no text or symbols)

- To prevent fire, keep flammable objects or naked lights (e.g. candles) away from the TV set.

- If any liquid or solid object does fall through openings in the cabinet, do not operate the TV set. It may result in an electric shock or damage to the TV set. Have it checked immediately by qualified service personnel.

Lightning storms

For your own safety, do not touch any part of the TV set, mains lead, or aerial lead during lightning storms.

Broken pieces

- Do not throw anything at the TV set. The screen glass may break by the impact and cause serious injury.

- If the surface of the TV set cracks, do not touch it until you have unplugged the mains lead. Otherwise electric shock may result.

Servicing

Dangerously high voltages are present inside the TV set. Do not open the cabinet. Entrust the TV set to qualified service personnel only.

Small accessories removal and fittable

Keep small accessories out of children's reach.

Precautions

Viewing the TV

• To view the TV comfortably, the recommended viewing position is from four to seven times the screen's vertical length away from the TV set.
• To obtain a clear picture, do not expose the screen to direct illumination or direct sunlight. If possible, use spot lighting directed down from the ceiling.
• View the TV in moderate light, as viewing the TV in poor light or during long period of time, strains your eyes.

Volume adjustment

• Adjust the volume so as not to trouble your neighbours. Sound carries very easily at night time. Therefore, closing the windows or using headphones is suggested.
• When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.

LCD Screen

• Although the LCD screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD screen and is not a malfunction.
• Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the LCD screen may be damaged.
• If this TV set is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.
• Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.
• The screen and cabinet get warm when this TV set is in use. This is not a malfunction.
• The LCD screen contains a small amount of liquid crystal and mercury. The fluorescent tube used in this TV set also contains mercury. Follow your local ordinances and regulations for disposal.

Handling and cleaning the screen surface/cabinet of the TV set

Be sure to unplug the mains lead connected to the TV set from mains socket before cleaning.

To avoid material degradation or screen coating degradation, observe the following precautions.

- Do not push on the screen, scratch it with a hard object, or throw anything at it. The screen may be damaged.

- Do not touch the display panel after operating the TV set continuously for a long period as the display panel becomes hot.

- We recommend that the screen surface be touched as little as possible.

- To remove dust from the screen surface/cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.

- Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.

- The ventilation holes can accumulate dust over time. To ensure proper ventilation, we recommend removing the dust periodically (once a month) using a vacuum cleaner.

- If the angle of the TV set is to be adjusted, steady the base of the stand with your hand to prevent the TV set from becoming separated from the stand. Be careful not to get your fingers caught between the TV set and the stand.

Optional Equipments

• Do not install optional components too close to the TV set. Keep optional components at least 30 cm away from the TV set. If a VCR is installed in front of the TV set or beside the TV set, the picture may become distorted.
• Picture distortion and/or noisy sound may occur if the TV set is positioned in close proximity to any equipment emitting electromagnetic radiation.

Disposal of the TV set

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or labels present)

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling

of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Overview of the remote

20 19 18 17 16 RETURN TOOLS 15 ANALOG DIGITAL 1 2 3 4 5 6 7 8 9 0 14 PROG 13 12 - + -

① I/⏻ – TV standby

Switches the TV on and off from standby mode.

② A/B – Dual Sound (page 26)

③ Coloured buttons

• In digital mode (page 18, 20): Selects the options at the bottom of the Favourite and EPG digital menus.
• In Analogue Text mode (page 16): Used for Fastext.

4 i+/? - Info / Text reveal

• In digital mode: Displays brief details of the programme currently being watched.
• In analogue mode: Displays information such as current channel number and screen format.
• In Analogue Text mode: Reveals hidden information (e.g., answers to a quiz).

⑤ ↗/↓/↔/→/⊕ (page 15, 22)

⑥ TOOLS (page 17, 21, 39)

Enables you to access various viewing options and change/make adjustments according to the source and screen format.

⑦ MENU (page 22)
⑧ DIGITAL – Digital mode (page 15)
9 Number buttons

- In TV mode: Selects channels. For channel numbers 10 and above, enter the second or third digit within two seconds.

- In Analogue Text mode: Enters the three digit page number to select the page.

10 - Previous channel

Returns to the previous channel watched (for more than five seconds).

11 PROG +/- (page 15)

• In TV mode: Selects the next (+) or previous (-) channel.
• In Analogue Text mode: Selects the next (+) or previous (-) page.

12 ∠+/- - Volume

13 ☐ - Mute (page 15)

14 - Text (page 16)

15 ANALOG – Analogue mode (page 15)

16 / RETURN

Returns to the previous screen of any displayed menu.

17 – EPG (Digital Electronic Programme Guide) (page 18)

18 – Picture freeze (page 16)

Freezes the TV picture.

19 - Screen mode (page 16)

Changes the screen format when repeatedly pressed (displays the current screen format when pressed only once).

20 →/÷ - Input select / Text hold

• In TV mode (page 21): Selects the input source from equipment connected to the TV sockets.
• In Analogue Text mode: Holds the current page.

Tip

The A/B, PROG + and number 5 buttons have tactile dots. Use the tactile dots as references when operating the TV.

Overview of the TV buttons and indicators

Diagram of a computer monitor front panel with labeled buttons and indicators for function, display, and control functions.

① MENU (page 22)
② →/→ - Input select/OK

• In TV mode (page 21): Selects the input source from equipment connected to the TV sockets.
• In TV menu: Selects the menu or option, and confirm the setting.

③ ∠+/-/←/→

• Increases (+) or decreases (-) the volume.
• In TV menu: Moves through the options left (←) or right (→).

4 PROG +/-/↑/↓

• In TV mode: Selects the next (+) or previous (-) channel.
• In TV menu: Moves through the options up (↑) or down (↓).

5 ⏻ - Power

Switches the TV on or off.

6 Remote control sensor/Light sensor (page 29)

• Receives IR signals from the remote.
• Do not put anything over the sensor, as its function may be affected.

7 ☒ - Timer REC programme/Picture Off/Timer indicator

• Lights up in orange when the Timer recording is set (page 18, 19).
• Lights up in green when the picture is switched off (page 29).
• Lights up in orange when the timer is set (page 28).

⑧ ⏻ – Standby indicator

Lights up in red when the TV is in standby mode.

⑨ I – Power indicator

Lights up in green when the TV is switched on.

Note

Make sure that the TV is completely switched off before unplugging the mains lead. Unplugging the mains lead while the TV is turned on may cause the indicator to remain lit or may cause the TV to malfunction.

Watching TV

1 2 ANALOG DIGITAL 1 2 3 4 5 6 7 8 9 0 PROG - -

1 Press ⏻ on the TV (top side) to switch on the TV.

When the TV is in standby mode (the ⏻ (standby) indicator on the TV (front) is red), press ⚠/⏻ on the remote to switch on the TV.

2 Press DIGITAL to switch to digital mode or ANALOG to switch to analogue mode.

The channels available vary depending on the mode.

3 Press the number buttons or PROG +/- to select a TV channel.

To select channel numbers 10 and above using the number buttons, enter the second and third digits within two seconds.

To select a digital channel using the Digital Electronic Programme Guide (EPG), see page 18.

In digital mode

An information banner appears briefly. The following icons may be indicated on the banner.

☐: Interactive service is available (Digital Text)

Radio service

: Scrambled/Subscription service

: Multiple audio languages available

: Subtitles available

?: Subtitles available for the hearing impaired

⑱: Recommended minimum age for current programme (from 4 to 18 years)

: Parental Lock

: Current programme is being recorded

Additional operations

To	Do this
Turn off the TV temporarily (Standby mode)	Press I/⏻.
Turn on the TV from Standby mode without sound	Press ☑. Press △+/- to set the volume level.
Turn off the TV	Press ⏻ on the TV (top side).NoteTo disconnect the TV completely, pull the plug from the mains.
Adjust the volume	Press △ + (increase)/- (decrease).
Mute the sound	Press ☑. Press again to restore.
Access the Programme index table (in analogue mode only)	Press ⊕. To select an analogue channel, press ⏻/⏻, then press ⊕.To access the Input signal index table, see page 21.

To access Digital Text

Many broadcasters provide a Digital Text service.

Digital Text offers graphically rich contents, compared to Analogue Text.

Select a digital channel which provides Digital Text, then press ☐.

When a broadcaster provides a dedicated Digital Text channel, select this channel to access Digital Text.

To navigate through Digital Text, follow the instructions on the screen.

To exit Digital Text, press RETURN.

To move around, press ⇧/↙/↙/↙.

To select items, press ⨣ and the number buttons.

To access shortcuts, press the coloured buttons.

To access Analogue Text

In analogue mode, press ☐. Each time you press ☐, the display changes cyclically as follows:

Text → Text over the TV picture (mix mode) → No Text (exit the Text service)

To select a page, press the number buttons or PROG +/-.

To hold a page, press →/÷.

To reveal hidden information, press ⓘ+/? .

Tips

• Ensure that the TV is receiving a good signal, or some text errors may occur.
• Most TV channels broadcast a Text service. For information on the use of the service, select the index page.
• When four coloured items appear at the bottom of the Text page, Fastext is available. Fastext allows you to access pages quickly and easily. Press the corresponding coloured button to access the page.

To freeze the picture

Freezes the TV picture (e.g. to make a note of a telephone number or recipe).

1 Press 🏠.

The frozen picture is displayed on the left of the screen. You can watch a moving picture on the right.

2 Press 🏠 again to return to normal TV mode.

Note

This function is not available for a PC input source.

To change the screen format manually to suit the broadcast

Press H repeatedly to select Smart, 4:3, Wide, Zoom, or 14:9.

Smart\*

Front view of a modern PGA 1998 sports car (no visible text or symbols)

Displays conventional 4:3 broadcasts with an imitation wide screen effect. The 4:3 picture is stretched to fill the screen.

4:3

Front view of a modern sports car with distinctive round design and front grille (no visible text or symbols)

Displays conventional 4:3 broadcasts (e.g., non-wide screen TV) in the correct proportions.

Wide

Black and white illustration of a classic 19th-century sports car (no text or symbols)

Displays wide screen (16:9) broadcasts in the correct proportions.

Zoom\*

Front view illustration of a black sports car with white stripes and large windows (no text or symbols)

Displays cinemascopic (letter box format) broadcasts in the correct proportions.

14:9\*

Black and white illustration of a classic 19th-century PGA Tour car (no text or symbols)

Displays 14:9 broadcasts in the correct proportions. As a result, black border areas are visible on the screen.

* Parts of the top and bottom of the picture may be cut off.

Tips

• Alternatively, you can set “Auto Format” to “On”. The TV will automatically select the best mode to suit the broadcast (page 27).
• You can adjust the position of the picture when selecting Smart (50 Hz), Zoom or 14:9. Press ⬆/▽ to move up or down (e.g., to read subtitles).
• Some characters and/or letters at the top and the bottom of the picture may not be visible in Smart mode. In such a case, you can select “Vertical Size” using the “Screen” menu and adjust vertical size to make it visible.
• Select “Smart” or “Zoom” to adjust for 720p or 1080i source pictures with edge portions cut off.

Using the Tools menu

Press TOOLS to display the following options when viewing the TV programme.

Options	Description
Close	Closes the Tools menu.
Power Saving	See page 29.
Subtitle Setting (in digital mode only)	See page 36.
Digital Favourites (in digital mode only)	See page 20.
Picture Mode	See page 23.
Sound Mode	See page 25.
Auto Clock Set (in analogue mode only)	Allows you to switch to digital mode and obtain the time.
Sleep Timer	See page 28.
Volume	Adjusts the volume of the headphones.

Checking the Digital Electronic Programme Guide (EPG) DVB\*

ALL CATEGORIES Fri 3 Nov 15:39 Today 15:30 16:00 16:30 17:00 001 BBC ONE Lazy T... Pink... The B... Basil Brush... Blue Pet... 002 BBC TWO International Bowls Ready Steady Co... Th... 003 ITV1 Pira... B Disney's T... Harry Hit's... The Paul... 004 Channel 4 Countdown Deal Or No Deal Richard & 005 five Death In Small Doses 006 ITV2 The Ri... Trisha Sally Jessy... 007 BBC THREE This is BBC THREE 009 Teletext No Event Information 010 BBC FOUR This is BBC FOUR 011 Sky Travel Undercove... Luton Airp... Entertainm... Live At Fi... 012 UKTV History Children of... Secret Agent Gunpowd... 013 More 4 ER Carry On Up The Khyber Previous Next 30 min view Category Select: Action list: +/- 1day on/off:

Digital Electronic Programme Guide (EPG)

1 In digital mode, press 📄 to display the Digital Electronic Programme Guide (EPG).
2 Perform the desired operation, as shown in the following table.

Note

Programme information will only be displayed if the TV station is transmitting it.

* This function may not be available in some countries.

To	Do this
Turn off the EPG	Press [IMAGE].
Move through the EPG	Press /// .
Watch a current programme	Press ⊕ while the current programme is selected.
Sort the programme information by category – Category list	1 Press the blue button.2 Press /// to select a category. The category name is displayed on the side.The categories available include:“All Categories”: Contains all available channels.Category name (e.g. “News”): Contains all channels corresponding to the selected category.3 Press ⊕ .The Digital Electronic Programme Guide (EPG) now only displays the current programmes from the category selected.
Set a programme to be recorded – Timer REC	1 Press /// to select the future programme you want to record.2 Press ⊕ .3 Press / to select “Timer REC”.4 Press ⊕ to set the TV and your VCR timers.A [IMAGE] symbol appears by that programme’s information. The ⏻ indicator on the TV (front) lights up in orange.NotesYou can set VCR timer recording on the TV only for Smartlink compatible VCRs. If your VCR is not Smartlink compatible, a message will be displayed to remind you to set your VCR timer.Once a recording has begun, you can switch the TV to standby mode, but do not switch off the TV completely or the recording may be cancelled.If an age restriction for programmes has been selected, a message asking for pin code will appear on the screen. For more details refer to “Parental Lock” on page 36.
Set a programme to be displayed automatically on the screen when it starts – Reminder	1 Press ⇧/⇨/⇨/⇨ to select the future programme you want to display.2 Press ⊕.3 Press ⇧/⇨ to select “Reminder”.4 Press ⊕ to automatically display the selected programme when the programme starts.A ➕ symbol appears by that programme’s information.NoteIf you switch the TV to standby mode, it will automatically turn itself on when the programme is about to start.
Set the time and date of a programme you want to record – Manual timer REC	1 Press ⊕.2 Press ⇧/⇨ to select “Manual timer REC”, then press ⊕.3 Press ⇧/⇨ to select the date, then press ➕.4 Set the start and stop time in the same way as in step 3.5 Press ⇧/⇨ to select the programme, then press ⊕.6 Press ⊕ to set the TV and your VCR timers.A ➕ symbol appears by that programme’s information. The ➕ indicator on the TV (front) lights up in orange.NotesYou can set VCR timer recording on the TV only for Smartlink compatible VCRs. If your VCR is not Smartlink compatible, a message will be displayed to remind you to set your VCR timer.Once a recording has begun, you can switch the TV to standby mode, but do not switch off the TV completely or the recording may be cancelled.If an age restriction for programmes has been selected, a message asking for pin code will appear on the screen. For more details refer to “Parental Lock” on page 36.
Cancel a recording/reminder – Timer list	1 Press ⊕.2 Press ⇧/⇨ to select “Timer list”, then press ⊕.3 Press ⇧/⇨ to select the programme you want to cancel, then press ⊕.4 Press ⇧/⇨ to select “Cancel Timer”, then press ⊕.5 A display appears to confirm that you want to cancel the programme.5 Press ⇧/⇨ to select “Yes”, then press ⊕ to confirm.

Tip

You can also display the Digital Electronic Programme Guide (EPG) by selecting “Digital EPG” in the “MENU” (page 22).

Using the Favourite list DVB\*

001 BBC ONE 002 BBC TWO 003 ITV1 004 Channel 4 005 five Previous Next Set-up Select: ↑ ↓ Exit: +

The Favourite feature allows you to select programmes from a list of up to 20 channels you specify. To display the Favourite list, see “Navigating through menus” (page 22).

Favourite list

* This function may not be available in some countries.

To	Do this
Create your Favourite list for the first time	A message appears asking if you want to add channels to the Favourite list when you select “Digital Favourites” in the “MENU” for the first time.1 Press ⊕ to select “Yes”.2 Press ⇌/⇨ to select the channel you want to add.If you know the channel number, you can use the number buttons to directly select a channel.3 Press ⊕.Channels that are stored in the Favourite list are indicated by a ♥ symbol.
Turn off the Favourite list	Press RETURN.
Watch a channel	Press ⊕ while selecting a channel.
Add or remove channels in the Favourite list	1 Press the blue button.Channels that are stored in the Favourite list are indicated by a ♥ symbol.2 Press ⇌/⇨ to select the channel you want to add or remove.If you know the channel number, you can use the number buttons to directly select a channel.3 Press ⊕.4 Press the blue button to return to the Favourite list.
Remove all channels from the Favourite list	1 Press the blue button.2 Press the yellow button.A display appears to confirm that you want to delete all channels from the Favourite list.3 Press ⇌/⇨ to select “Yes”, then press ⊕ to confirm.

Viewing pictures from connected equipment

Switch on the connected equipment, then perform one of the following operation.

For equipment connected to the scart sockets using a fully-wired 21-pin scart lead (page 38)

Start playback on the connected equipment.

The picture from the connected equipment appears on the screen.

For an auto-tuned VCR (page 8)

In analogue mode, press PROG +/-, or the number buttons, to select the video channel.

For other connected equipment (page 37)

Press →/ repeatedly until the correct input symbol (see below) appears on the screen.

On screen display	Labels of input jacks
AV1/2 or AV1/2	1/2 or 1/2
AV3	3 (Y, P_B/C_B , P_R/C_R ) and 3 (L, R)
AV4	HDMI IN 4 and HDMI IN 4 (L, R)
AV5	HDMI IN 5
S→OV6 or AV6	6 or 6, and 6 (L (MONO), R)
PC	PC and PC

Additional operations

To	Do this
Return to normal TV mode	Press DIGITAL or ANALOG.
Access the Input signal index table (except for PC video input signal)	Press ⊕ to access the Input signal index table. (Then, only in analogue mode, press ↗.) To select an input source, press ↗/▽, then press ⊕.

Using the Tools menu

Press TOOLS to display the following options when viewing pictures from connected equipment other than PC.

Options	Description
Close	Closes the Tools menu.
Power Saving	See page 29.
Picture Mode	See page 23.
Sound Mode	See page 25.
Auto Clock Set (in analogue mode only)	Allows you to switch to digital mode and obtain the time.
Sleep Timer	See page 28.
Volume	Adjusts the volume of the headphones.

Using MENU Functions

Navigating through menus

“MENU” allows you to enjoy various convenient features of this TV. You can easily select channels or inputs sources and change the settings for your TV.

I / A/B 2,3 RETURN TOOLS MENU ANALOG 1

1 Press MENU to display the menu.

MENU Digital Favourites Analogue Digital Digital EPG External Inputs Settings Show your Favourite list Select: ↑ ↓ Set: + Exit: MENU

Icon	Description
	Digital FavouritesDisplays the Favourite list. For details about settings, see page 20.
	AnalogueReturns to the last viewed analogue channel.
	DigitalReturns to the last viewed digital channel.

Icon	Description
	Digital EPGDisplays the Digital Electronic Programme Guide (EPG).For details about settings, see page 18.
	External InputsSelects equipment connected to your TV.To watch the desired external input, select the input source, then press⊕.To assign a label to an external input, select “Edit AV Labels”, then see page 28.
	SettingsDisplays the Settings menu where most of the advanced settings and adjustments are performed.For details about settings, see page 23 to 36.NoteThe options you can adjust vary depending on the situation. Unavailable options are greyed out or not displayed.

2 Press ↩/▽ to select an option.
3 Press ⨀ to confirm a selected option. To exit the menu, press MENU.

Picture menu

Picture Target Inputs Viewing Only Picture Mode Vivid Reset Backlight 5 Contrast 50 Brightness 50 Colour 50 Hue Colour Temperature Cool Sharpness 18 Noise Reduction Off Advanced Settings Select: ↑ ↓ Set: Exit: MENU

You can select the options listed below on the Picture menu.

1 Press ♠/▽ to select "Settings" on MENU, then press ⊕.
2 Press ↩/▽ to select a menu icon, then press ⊕.
3 Press ↩/▽/⇐/⇒ to select an option.

Target Inputs	Selects whether to apply settings made in the Picture menu to all inputs, or only to the input currently being watched.“All”: Applies settings to all inputs.“Viewing Only”: Applies settings only to the current input.
Picture Mode	Selects the picture mode except for PC input source.“Vivid”: For enhanced picture contrast and sharpness.“Standard”: For standard picture. Recommended for home entertainment.“Custom”: Allows you to store your preferred settings.
Display Mode	Selects the display mode for PC input source.“Video”: For video images.“Text”: For text, charts or tables.
Reset	Resets all picture settings except “Target Inputs”, “Picture Mode” and ”Display Mode” to the factory settings.
Backlight	Adjusts the brightness of the backlight.Tip“Backlight” is not available when you set “Power Saving” to “High” (page 29).
Contrast	Increases or decreases picture contrast.
Brightness	Brightens or darkens the picture.
Colour	Increases or decreases colour intensity.
Hue	Increases or decreases the green tones and red tones.Tip“Hue” can only be adjusted for an NTSC colour signal (e.g., U.S.A. video tapes).

Continued

Colour Temperature	Adjusts the whiteness of the picture.“Cool”: Gives the white colours a blue tint.“Neutral”: Gives the white colours a neutral tint.“Warm1”/“Warm2”: Gives the white colours a red tint. “Warm2” gives a redder tint than “Warm1”.Tip“Warm1” and “Warm2” can only be selected when you set “Picture Mode” to “Custom”.
Sharpness	Sharpens or softens the picture.
Noise Reduction	Reduces the picture noise (snowy picture) in a weak broadcast signal.“Auto”: Automatically reduces the picture noise (in analogue mode only).“High”/“Medium”/“Low”: Modifies the effect of the noise reduction.“Off”: Turns off the Noise Reduction feature.
Advanced Settings	Customizes the Picture function in more detail. When you set “Picture Mode” to “Custom”, you can set/change these settings.“Reset”: Resets all the advanced video settings to the factory settings.“Black Corrector”: Enhances black areas of the picture for stronger contrast.“Adv. Contrast Enhancer”: Automatically adjusts “Backlight” and “Contrast” to the most suitable settings judging from the brightness of the screen. This setting is especially effective for dark images scenes. It will increase the contrast distinction of the darker picture scenes.“Gamma”: Adjusts the balance between bright and dark areas of the picture.“Clear White”: Emphasizes white colours.“Live Colour”: Makes colours more vivid and reproduces clear skin tones.“Colour Space”: Changes the colour reproduction gamut. “Wide” reproduces the vivid colour and “Normal” reproduces the standard colour.“MPEG Noise Reduction”: Reduces the picture noise in MPEG-compressed video (in digital mode only).Tip“Live Colour” is not available when “Colour Space” is set to “Normal”.

Sound menu

Sound Target Inputs Viewing Only Sound Mode Dynamic Reset Treble 0 Bass 0 Balance 0 Auto Volume On Volume Offset 0 Surround Off BBE Off Dual Sound Stereo Speaker Link Off Select: ↑ ↓ Set: Exit: MENU

You can select the options listed below on the Sound menu. To select options in “Settings”, refer to “Picture menu” (page 23).

Target Inputs	Selects whether to apply settings made in the Sound menu to all inputs, or only to the input currently being watched.“All”: Applies settings to all inputs.“Viewing Only”: Applies settings only to the current input.
Sound Mode	Selects the sound mode.“Dynamic”: Enhances treble and bass.“Standard”: For standard sound. Recommended for home entertainment.“Custom”: Flat response. Also allows you to store your preferred settings.
Reset	Resets the sound settings except “Sound Mode”, “Dual Sound” and “ speaker Link” to the factory settings.
Treble	Adjusts higher-pitched sounds.
Bass	Adjusts lower-pitched sounds.
Balance	Emphasizes left or right speaker balance.
Auto Volume	Keeps a constant volume level even when volume level gaps occur (e.g., adverts tend to be louder than programmes).
Volume Offset	Adjusts the volume level of the current input relative to other inputs, when “Target Inputs” is set to “Viewing Only”.
Surround	Selects the surround mode.“TruSurround XT”: For surround sound (for stereo programmes only).“Simulated Stereo”: Adds a surround-like effect to mono programs.“Off”: For normal stereo or mono reception.
BBE	Gives sound more impact by compensating for phase effects in speakers using the “BBE High Definition Sound System”.

Continued

Dual Sound	Selects the sound from the speaker for a stereo or bilingual broadcast.“Stereo”, “Mono”: For a stereo broadcast.“A”/“B”/“Mono”: For a bilingual broadcast, select “A” for sound channel 1, “B” for sound channel 2, or “Mono” for a mono channel, if available.TipIf you select other equipment connected to the TV, set “Dual Sound” to “Stereo”, “A” or “B”.
Speaker Link(headphone speaker link)	Switches the TV’s internal speakers on/off when headphones are connected.“On”: Sound is output only from headphones.“Off”: Sound is output from both the TV and headphones.

Tip

“Treble”, “Bass”, “Balance”, “Auto Volume”, “Surround” and “BBE” cannot be used for headphones and audio output sockets.

Screen menu

Screen Target Inputs Viewing Only Screen Format Smart Auto Format On 4:3 Default Smart Display Area Normal Horizontal Shift 0 Vertical Shift 0 Vertical Size 0 Select: ↑ ↓ Set: + Exit: MENU

You can select the options listed below on the Screen menu. To select options in “Settings”, refer to “Picture menu” (page 23).

Target Inputs	Selects whether to apply settings made in the Screen menu to all inputs, or only to the input currently being watched.“All”: Applies settings to all inputs.“Viewing Only”: Applies settings only to the current input.
Screen Format	For details about the screen format, see “To change the screen format manually to suit the broadcast” (page 16).
Auto Format	Automatically changes the screen format according to the broadcast signal. To keep your setting, select “Off”.TipsEven if you have selected “On” or “Off” in “Auto Format”, you can always modify the format of the screen by pressing repeatedly.“Auto Format” is available for PAL and SECAM signals only.
4:3 Default	Selects the default screen format for use with 4:3 broadcasts.“Smart”: Displays conventional 4:3 broadcasts with an imitation wide screen effect.“4:3”: Displays conventional 4:3 broadcasts in the correct proportions.“Off”: Keeps the current “Screen Format” setting when the channel or input is changed.TipThis option is available only if “Auto Format” is set to “On”.
Display Area	Adjusts the screen area displaying the picture.“Full Pixel”: Displays the picture for 1080i or 1080p sources in the original size when parts of the picture are cut off.“Normal”: Displays the picture in the original size.“-1”/“-2”: Enlarges the picture to hide the edge of the picture.
Horizontal Shift	Adjusts the horizontal position of the picture.
Vertical Shift	Adjusts the vertical position of the picture when the screen format is set to “Smart” (50 Hz), “Zoom” or “14:9”.
Vertical Size	Adjusts the vertical size of the picture when the screen format is set to “Smart”, “Zoom” or “14:9”.

Set-up menu

Set-up Auto Start-up Language English AV Preset Auto S Video Timer Settings Power Saving Off Light Sensor Off AV2 Output Auto Quiet Power On Off Speaker Off Audio Out Variable Colour System Product Information All Reset Select: ↑↓ Set Exit: MENU

You can select the options listed below on the Set-up menu. To select options in “Settings”, refer to “Picture menu” (page 23).

Auto Start-up	Starts the “first time operation menu” to select the language and country/region, and tune in all available digital and analogue channels. Usually, you do not need to do this operation because the language and country/region will have been selected and channels already tuned when the TV was first installed (page 7, 8). However, this option allows you to repeat the process (e.g., to retune the TV after moving house, or to search for new channels that have been launched by broadcasters).
Language	Selects the language in which the menus are displayed.
AV Preset	Assigns a name to any equipment connected to the side and rear sockets. The name will be displayed briefly on the screen when the equipment is selected. You can skip an input source that is not necessary.1 Press ↩/▽ to select the desired input source, then press ⊕.2 Press ↩/▽ to select the desired option below, then press ⊕.Equipment labels: Uses one of the preset labels to assign a name to connected equipment.“Edit”: Creates your own label. Follow steps 2 to 4 of “Programme Labels” (page 32).“Skip”: Skips an unnecessary input source when you press → to select the input source.
Auto S Video	Selects the input signal from S video sockets S→○○6 when S→○○/→6 sockets are both connected.
Timer Settings	Sets the timer to turn on/off the TV.Sleep TimerSets a period of time after which the TV automatically switches itself into standby mode.When the Sleep Timer is activated, the ⏻ (Timer) indicator on the TV (front) lights up in orange.TipsIf you switch off the TV and switch it on again, “Sleep Timer” is reset to “Off”.“TV will soon turn off by Sleep Timer” appears on the screen one minute before the TV switches to standby mode.

On Timer

Sets the timer to turn on the TV from standby mode.

“Day”: Selects the day on which you want to activate the On Timer.

“Time”: Sets the time to turn on the TV.

“Duration”: Selects the time period after which the TV automatically switches to standby mode again.

“Volume Set-up”: Sets the volume for when the timer turns on the TV.

Clock Set

Allows you to adjust the clock manually. When the TV is receiving digital channels, the clock cannot be adjusted manually since it is set to the time code of the broadcasted signal.

Power Saving	Selects the power saving mode to reduce the power consumption of the TV.When “Picture Off” is selected, the picture is switched off and the (Picture Off) indicator on the TV (front) lights up in green. The sound remains unchanged.
Light Sensor	“On”: Automatically optimizes the picture settings according to the ambient light in the room.“Off”: Turns off the “Light Sensor” feature.NoteBe sure not to put anything over the sensor, as its function may be affected. See page 14 for further information on the sensor.
AV2 Output	Sets a signal to be output through the socket labelled / 2 on the rear of the TV. If you connect a VCR or other recording equipment to the / 2 socket, you can then record from the equipment connected to other sockets of the TV.“TV”: Outputs a broadcast.“AV1”: Outputs signals from equipment connected to the / 1 socket.“AV6”: Outputs signals from equipment connected to the S- / 6 socket.“Auto”: Outputs whatever is being viewed on the screen (except signals from the / 3 , HDMI IN 4, HDMI IN 5 and PC sockets).
Quiet Power On	Sets the volume control at a low level when the TV is first turned on, gradually increasing the sound to a preset level.
Speaker	Switches on/off the TV’s internal speakers.“On”: The TV speakers are turned on in order to listen to the TV’s sound through TV’s speakers.“Off”: The TV speakers are turned off in order to listen to the TV’s sound only through your external audio equipment connected to the audio output sockets.
Audio Out	“Variable”: The audio output from your audio system can be controlled by the TV’s remote.“Fixed”: The audio output of the TV is fixed. Use your audio receiver’s volume control to adjust the volume (and other audio settings) through your audio system.
Colour System	Selects the colour system (“Auto”, “PAL”, “SECAM”, “NTSC3.58”, “NTSC4.43”, or “PAL60”) according to the input signal from the input source.
Product Information	Displays your TV’s system information.

Continued

All Reset

Resets all settings to the factory settings and then displays the Auto Start-up screen. NoteAll settings, including Digital Favourite list, country, language, auto tuned channels, etc. will be reset.

PC Settings menu

PC Settings Screen Format Normal Reset Auto Adjustment Phase 0 Pitch 0 Horizontal Shift 0 Vertical Shift 0 Power Management On Resolution: 1280x768/60Hz Select: ↑↓ Set: Exit: MENU

You can select the options listed below on the PC Settings menu. To select options in “Settings”, refer to “Picture menu” (page 23).

Screen Format	Selects a screen format for displaying input from your PC.“Normal”: Displays the picture in its original size.“Full1”: Enlarges the picture to fill the display area, keeping its original horizontal-to-vertical aspect ratio.“Full2”: Enlarges the picture to fill the display area.
Reset	Resets the PC settings except “Screen Format” and “Power Management” to the factory settings.
Auto Adjustment	Automatically adjusts the display position and phase of the picture when the TV receives an input signal from the connected PC.TipAuto Adjustment may not work well with certain input signals. In such cases, manually adjust “Phase”, “Pitch”, “Horizontal Shift” and “Vertical Shift”.
Phase	Adjusts the phase when the screen flickers.
Pitch	Adjusts the pitch when the picture has unwanted vertical stripes.
Horizontal Shift	Adjusts the horizontal position of the picture.
Vertical Shift	Adjusts the vertical position of the picture.
Power Management	Switches the TV to standby mode if no signal is received for 30 seconds.

Analogue Set-up menu (Analogue mode only)

Analogue Set-up 1 Digit Direct On Auto Tuning Programme Sorting Programme Labels Manual Programme Preset Select: ↑ ↓ Set: Exit: MENU

You can change/set the analogue settings using the Analogue Set-up menu. To select options in “Settings”, refer to “Picture menu” (page 23).

1 Digit Direct	When “1 Digit Direct” is set to “On”, you can select an analogue channel using one preset number button (0 - 9) on the remote.NoteWhen “1 Digit Direct” is set to “On”, you cannot select channel numbers 10 and above entering two digits using the remote.
Auto Tuning	Tunes in all the available analogue channels.Usually you do not need to do this operation because the channels are already tuned when the TV was first installed (page 8). However, this option allows you to repeat the process (e.g., to retune the TV after moving house, or to search for new channels that have been launched by broadcasters).
Programme Sorting	Changes the order in which the analogue channels are stored on the TV.1 Press ⇧/⇨ to select the channel you want to move to a new position, then press ⊕.2 Press ⇧/⇨ to select the new position for your channel, then press ⊕.
Programme Labels	Assigns a channel name of your choice up to five letters or numbers. The name will be displayed briefly on the screen when the channel is selected. (Names for channels are usually taken automatically from Analogue Text (if available).)1 Press ⇧/⇨ to select the channel you want to name, then press ⊕.2 Press ⇧/⇨ to select the desired letter or number (“_” for a blank space), then press ➔.If you input a wrong characterPress ⇧/⇨ to select the wrong character. Then, press ⇧/⇨ to select the correct character.To delete all the charactersSelect “Reset”, then press ⊕.3 Repeat the procedure in step 2 until the name is complete.4 Select “OK”, then press ⊕.

Manual Programme Preset

Before selecting “Label”/“AFT”/“Audio Filter”/“Skip”/“Decoder”, press PROG +/- to select the programme number with the channel. You cannot select a programme number that is set to skip (page 34).

Programme/System/Channel

Presets programme channels manually.

1 Press ↩/▽ to select "Programme", then press ⊕.
2 Press ↩/▽ to select the programme number you want to manually tune (if tuning a VCR, select channel 00), then press RETURN.
3 Press ↩/▽ to select "System", then press ⊕.
4 Press / to select one of the following TV broadcast systems, then press .
B/G: For western European countries/regions
D/K: For eastern European countries/regions
L: For France
I: For the United Kingdom

5 Press ↑/↓ to select "Channel", then press ⊕.

6 Press ↩/▽ to select "S" (for cable channels) or "C" (for terrestrial channels), then press ↗.

Note

“S” is not available when “United Kingdom” is selected for “Country” (page 7).

7 Tune the channels as follows:

If you do not know the channel number (frequency)

Press / to search for the next available channel. When a channel has been found, the search will stop. To continue searching, press / .

If you know the channel number (frequency)

Press the number buttons to enter the channel number of the broadcast you want or your VCR channel number.

8 Press ⊕ to jump to "Confirm", then press ⊕.

9 Press ↓ to select "OK", then press ⊕.

Repeat the procedure above to preset other channels manually.

Label

Assigns a name of your choice, up to five letters or numbers, to the selected channel. This name will be displayed briefly on the screen when the channel is selected. To input characters, follow steps 2 to 4 of “Programme Labels” (page 32).

AFT

Allows you to fine-tune the selected programme number manually if you feel that a slight tuning adjustment will improve the picture quality.

You can adjust the fine tuning over a range of -15 to +15. When “On” is selected, the fine tuning is performed automatically.

Audio Filter

Improves the sound for individual channels in the case of distortion in mono broadcasts. Sometimes a non-standard broadcast signal can cause sound distortion or intermittent sound muting when watching mono programmes.

If you do not experience any sound distortion, we recommend that you leave this option set to the factory setting “Off”.

Notes

• You cannot receive stereo or dual sound when “Low” or “High” is selected.
• “Audio Filter” is not available when “System” is set to “L”.

Skip

Skips unused analogue channels when you press PROG +/- to select channels. (You can still select a skipped channel using the number buttons.)

Decoder

Views and records the scrambled channel selected when using a decoder connected directly to scart connector / 1 , or to scart connector / 2 via a VCR.

Note

This option is not available when “United Kingdom” is selected for “Country” (page 7).

Confirm

Saves changes made to the “Manual Programme Preset” settings.

Digital Set-up menu DVB

Digital Set-up Digital Set-up Select: ↑ ↓ Set: + Exit: MENU

You can change/set the digital settings using the Digital Set-up menu. Select “Digital Set-up” and press to display the following menus. To select options in “Settings”, refer to “Picture menu” (page 23).

Digital Tuning

Displays the “Digital Tuning” menu.

Digital Auto Tuning

Tunes in all the available digital channels.

Usually you do not need to do this operation because the channels are already tuned when the TV was first installed (page 8). However, this option allows you to repeat the process (e.g., to retune the TV after moving house, or to search for new channels that have been launched by broadcasters).

Programme List Edit

Removes any unwanted digital channels stored on the TV, and changes the order of the digital channels stored on the TV.

1 Press ↩/▽ to select the channel you want to remove or move to a new position.
If you know the programme number (frequency)
Press the number buttons to enter the three-digit programme number of the broadcast you want.
2 Remove or change the order of the digital channels as follows:
To remove the digital channel
Press ⊕. A message that confirms whether the selected digital channel is to be deleted appears. Press ⇔ to select “Yes”, then press ⊕.
To change the order of the digital channels
Press , then press / to select the new position for the channel and press . Repeat the procedure in steps 1 and 2 to move other channels if required.

3 Press RETURN.

Digital Manual Tuning

Tunes the digital channels manually.

1 Press the number button to select the channel number you want to manually tune, then press ☑/☐ to tune the channel.
2 When the available channels are found, press ↩/▽ to select the channel you want to store, then press ⊕.
3 Press ☑/☑ to select the programme number where you want to store the new channel, then press ⏻.

Repeat the procedure above to tune other channels manually.

Digital Set-up

Displays the “Digital Set-up” menu.

Subtitle Setting\*

Displays digital subtitles on the screen.

When “For Hard Of Hearing” is selected, some visual aids may also be displayed with the subtitles (if TV channels broadcast such information).

Subtitle Language\*

Selects which language subtitles are displayed in.

Audio Language\*

Selects the language used for a programme. Some digital channels may broadcast several audio languages for a programme.

Audio Type\*

Increases the sound level when “For Hard Of Hearing” is selected.

Parental Lock\*

Sets an age restriction for programmes. Any programme that exceeds the age restriction can only be watched after a PIN Code is entered correctly.

1 Press the number buttons to enter your existing PIN code.
If you have not previously set a PIN, a PIN code entry screen appears. Follow the instruction of “PIN Code” below.
2 Press ⬇/▽ to select the age restriction or “None” (for unrestricted watching), then press ⊕.
3 Press RETURN.

PIN Code\*

Sets a PIN code for the first time, or allows you to change your PIN code.

1 Enter a PIN as follows:

If you have previously set a PIN

Press the number buttons to enter your existing PIN.

If you have not set a PIN

Press the number buttons to enter the factory setting PIN of 9999.

2 Press the number buttons to enter the new PIN code.

A message appears to inform you that the new PIN has been accepted.

3 Press RETURN.

Tip

PIN code 9999 is always accepted.

Technical Set-up

Displays the Technical Set-up menu.

“Auto Service Update”: Enables the TV to detect and store new digital services as they become available.

“Software Download”: Enables the TV to automatically receive software updates, free through your existing aerial (when issued). Sony recommends that this option is set to “On” at all times. If you do not want your software to be updated, set this option to “Off”.

“System Information”: Displays the current software version and the signal level.

“Time Zone”: Allows you to manually select the time zone you are in, if it is not the same as the default time zone setting for your country.

CA Module Set-up

Allows you to access a Pay Per View service once you obtain a Conditional Access Module (CAM) and a view card. See page 37 for the location of the ☐ (PCMCIA) socket.

Connecting optional equipment

You can connect a wide range of optional equipment to your TV. Connecting cables are not supplied.

Connecting to the TV (side)

S VHS/Hi8/DVC camcorder A L(MONO) B Headphones For service use only C

To connect	Do this
S VHS/Hi8/DVC camcorder A	Connect to the S video socket S→○6 or the composite video socket →6, and the audio L (MONO)/R sockets →6. To avoid picture noise, do not connect the camcorder to the video socket →6 and the S video socket S→○6 at the same time. If you connect mono equipment, connect to the L socket →6.
Headphones B	Connect to the ○ socket to listen to sound from the TV on headphones.
Conditional Access Module (CAM) C	To use Pay Per View services. For details, refer to the instruction manual supplied with your CAM. To use the CAM, remove the rubber cover from the CAM slot. Switch off the TV when inserting your CAM into the CAM slot. When you do not use the CAM, we recommend that you replace the cover on the CAM slot.NoteCAM is not supported in all countries. Please check with your authorized dealer.

Continued

Connecting to the TV (rear)

PC HDMI IN 4 L R 5 D E DVD player Digital satellite receiver F DVD player with component output 1 2 3 (Smart ink) Y Pr/Cb Pr/CR L I R G H DVD recorder VCR Decoder Video game equipment DVD player Decoder I Hi-Fi audio equipment

To connect	Do this
PC D	Connect to the PC →/→ sockets. It is recommended to use a PC cable with ferrites.
Digital satellite receiver or DVD player E	Connect to the HDMI IN 4 or 5 socket if the equipment has a HDMI socket. The digital video and audio signals are input from the equipment. If the equipment has a DVI socket, connect the DVI socket to the HDMI IN 4 socket through a DVI - HDMI adaptor interface (not supplied), and connect the equipment's audio out sockets to the audio in HDMI IN 4 sockets.NotesThe HDMI sockets only support the following video inputs: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p. To connect a PC, please use the PC →/→ socket.Be sure to use only an HDMI cable that bears the HDMI logo.
DVD player with component output F	Connect to the component video sockets and the audio L/R sockets →/→3.
Video game equipment, DVD player or decoder G	Connect to the scart socket ←/→1. When you connect the decoder, the scrambled signal from the TV tuner is output to the decoder, then the unscrambled signal is output from the decoder.
DVD recorder or VCR that supports SmartLink H	Connect to the scart socket ←/→2. SmartLink is a direct link between the TV and a VCR/DVD recorder.
Hi-Fi audio equipment I	Connect to the audio output sockets → to listen to the sound from the TV on Hi-Fi audio equipment.

Using the Tools menu in PC input mode

Press TOOLS to display the following options when viewing pictures input from the connected PC.

Options	Description
Close	Closes the Tools menu.
Power Saving	See page 29.
Display Mode	See page 23.
Sound Mode	See page 25.
Auto Adjustment	See page 31.
Horizontal Shift	See page 31.
Vertical Shift	See page 31.
Auto Clock Set (in analogue mode only)	Allows you to switch to digital mode and obtain the time.
Volume	Adjusts the volume of the headphones.

Specifications

Display Unit

Power Requirements:

220–240 V AC, 50 Hz

Screen Size:

KDL-46W2000:

46 inches (Approx. 116.8 cm measured diagonally)

KDL-40W2000:

40 inches (Approx. 101.6 cm measured diagonally)

Display Resolution:

1,920 dots (horizontal) × 1,080 lines (vertical)

Power Consumption:

KDL-46W2000: 225 W

KDL-40W2000: 185 W

Standby Power Consumption*:

0.3 W

* Specified standby power is reached after the TV finishes necessary internal processes.

Dimensions (w × h × d):

KDL-46W2000:

Approx. 1,120 × 805 × 334 mm (with stand)

Approx. 1,120 × 755 × 118 mm (without stand)

KDL-40W2000:

Approx. 988 × 715 × 266 mm (with stand)

Approx. 988 × 665 × 105 mm (without stand)

Mass:

KDL-46W2000:

Approx. 36.0 kg (with stand)

Approx. 30.0 kg (without stand)

KDL-40W2000:

Approx. 27.5 kg (with stand)

Approx. 23.0 kg (without stand)

Panel System

LCD (Liquid Crystal Display) Panel

TV System

Analogue: Depending on your country/region selection: B/G/H, D/K, L, I

Digital: DVB-T

Colour/Video System

Analogue: PAL, SECAM

NTSC 3.58, 4.43 (only Video In)

Digital: MPEG-2 MP@ML

Aerial

75 ohm external terminal for VHF/UHF

Channel Coverage

Analogue: VHF: E2–E12

UHF: E21–E69

CATV: S1-S20

HYPER: S21–S41

D/K: R1–R12, R21–R69

L: F2–F10, B–Q, F21–F69

I: UHF B21-B69

Digital: VHF/UHF

Terminals

21-pin Scart connector (CENELEC standard) including audio/video input, RGB input, and TV audio/video output.

21-pin Scart connector (CENELEC standard) including audio/video input, RGB input, selectable audio/video output, and SmartLink interface.

Supported formats: 1080i, 720p, 576p, 576i, 480p, 480i

Y: 1 Vp-p, 75 ohms, 0.3V negative sync

P_B / C_B : 0.7 Vp-p, 75 ohms

Pr / Cr : 0.7 Vp-p, 75 ohms

Audio input (phono jacks)

500 mVrms

Impedance: 47 kilohms

HDMI IN 4, 5

Video: 1080p, 1080i, 720p, 576p, 576i, 480p, 480i

Audio: Two channel linear PCM

32, 44.1 and 48kHz , 16, 20 and 24 bits

Analogue audio (phono jacks):

500 mVrms, Impedance 47 kilohms (HDMI IN 4 only)

S→6 S video input (4-pin mini DIN)

→6 Video input (phono jack)

→6 Audio input (phono jacks)

Audio output (phono jacks)

PC → ⬙ PC Input (D-sub 15-pin) (see page 41)

G: 0.7 Vp-p, 75 ohms, non Sync on Green

B: 0.7 Vp-p, 75 ohms

R: 0.7 Vp-p, 75 ohms

HD: 1-5 Vp-p

VD: 1-5 Vp-p

→ PC audio input (minijack)

Headphones jack

CAM (Conditional Access Module) slot

Sound Output

10 W + 10 W

Supplied Accessories

Refer to "1: Checking the accessories" on page 4.

Optional Accessories

• Wall-Mount Bracket SU-WL51

Design and specifications are subject to change without notice.

PC Input Signal Reference Chart

Signals	Horizontal (Pixel)	Vertical (Line)	Horizontal frequency (kHz)	Vertical frequency (Hz)	Standard
VGA	640	480	31.5	60	VGA
	640	480	37.5	75	VESA
	720	400	31.5	70	VGA-T
SVGA	800	600	37.9	60	VESA Guidelines
	800	600	46.9	75	VESA
XGA	1024	768	48.4	60	VESA Guidelines
	1024	768	56.5	70	VESA
	1024	768	60	75	VESA
WXGA	1280	768	47.4	60	VESA
	1280	768	47.8	60	VESA
	1360	768	47.7	60	VESA

• This TV's PC input does not support Sync on Green or Composite Sync.
• This TV's PC input does not support interlaced signals.
• For the best picture quality, it is recommended to use the signals (boldfaced) in the above chart with a 60Hz vertical frequency from a personal computer. In plug and play, signals with a 60Hz vertical frequency will be selected automatically.

Troubleshooting

Check whether the ⏻ (standby) indicator is flashing in red.

When it is flashing

The self-diagnosis function is activated.

1 Count how many ⏻ (standby) indicator flashes between each two second break.
For example, the indicator flashes three times, then there is a two second break, followed by another three flashes, etc.

2 Press ⏻ on the TV (Top side) to switch it off, disconnect the mains lead, and inform your dealer or Sony service centre of how the indicator flashes (number of flashes).

When it is not flashing

1 Check the items in the tables below.

2 If the problem still persists, have your TV serviced by qualified service personnel.


Problem	Cause/Remedy
No picture (screen is dark) and no sound	Check the aerial connection.Connect the TV to the mains, and press ⏻ on the TV (top side).If the ⏻ (standby) indicator lights up in red, press ⏻.
No picture or no menu information from equipment connected to the scart connector	Check that the optional equipment is on and press →/→ repeatedly until the correct input symbol is displayed on the screen.Check the connection between the optional equipment and the TV.
Double images or ghosting	Check aerial/cable connections.Check the aerial location and direction.
Only snow and noise appear on the screen	Check if the aerial is broken or bent.Check if the aerial has reached the end of its serviceable life (three to five years in normal use, one to two years at the seaside).
Distorted picture (dotted lines or stripes)	Keep the TV away from electrical noise sources such as cars, motorcycles, hair-dryers or optical equipment.When installing optional equipment, leave some space between the optional equipment and the TV.Make sure that the aerial is connected using the supplied coaxial cable.Keep the aerial cable away from other connecting cables.
Picture noise when viewing a TV channel	Select “Manual Programme Preset” in the “Analogue Set-up” menu and adjust “AFT” (Automatic Fine Tuning) to obtain better picture reception (page 33).
Some tiny black points and/or bright points on the screen	The picture of a display unit is composed of pixels. Tiny black points and/or bright points (pixels) on the screen do not indicate a malfunction.
No colour on programmes	Select “Reset” in the “Picture” menu to return to the factory settings (page 23).
No colour or irregular colour when viewing a signal from the Y, PB/CB, PR/CR jacks of →3	Check the connection of the Y, PB/CB, PR/CR jacks of →3. Make sure that the Y, PB/CB, PR/CR jacks of →3 are firmly seated in their respective sockets.

Sound

Problem	Cause/Remedy
No sound, but good picture	Press + / - or 呎 × (Mute).Check that “Speaker” is set to “On” in the “Set-up” menu (page 29).
Noisy sound	See the “Picture noise” causes/remedies on page 42.

Channels

Problem	Cause/Remedy
The desired channel cannot be selected	Switch between digital and analogue mode and select the desired digital/ analogue channel.
Some channels are blank	Scrambled/Subscription only channel. Subscribe to the Pay Per View service.Channel is used only for data (no picture or sound).Contact the broadcaster for transmission details.
Digital channel is not displayed	Contact a local installer to find out if digital transmissions are provided in your area.Upgrade to a higher gain aerial.

General

Problem	Cause/Remedy
The TV turns off automatically (the TV enters standby mode)	Check if the “Sleep Timer” is activated, or confirm the “Duration” setting of “On Timer” (page 28).If no signal is received and no operation is performed in the TV mode for 10 minutes, the TV automatically switches to standby mode.
The TV turns on automatically	Check if the “On Timer” is activated (page 29).
Some input sources cannot be selected	Select “AV Preset” in the “Set-up” menu and cancel “Skip” of the input source (page 28).
The remote does not function	Replace the batteries.

Index

Numerics

1 Digit Direct 32

14:9 16

4:3 Default 27

4:3 16

A

Adv. Contrast Enhancer 24

Advanced Settings 24

Aerial, connecting 6

AFT 33

All Reset 30

Analogue Set-up menu 32

Analogue Text 16

Audio Filter 33

Audio Language 36

Audio Out 29

Audio Type 36

Auto Adjustment 31

Auto Clock Set 17, 21, 39

Auto Format 27

Auto S Video 28

Auto Start-up 28

Auto Tuning analogue and digital channels 8 analogue channels only 32 digital channels only 35

Auto Volume 25

AV Preset 28

AV2 Output 29

B

Backlight 23

Balance 25

Bass 25

Batteries, inserting into the remote 4

BBE 25

Black Corrector 24

Brightness 23

C

CA Module Set-up 36

Category list 18

Channels auto-tuning 8 selecting 15 Skip 34

Clear White 24

Clock Set 29

Colour 23

Colour Space 24

Colour System 29

Colour Temperature 24

Confirm 34

Connecting an aerial/VCR 6 optional equipment 37

Contrast 23

Country 7

D

Digital Auto Tuning 35

Digital Manual Tuning 35

Digital Set-up 36

Digital Set-up menu 35

Digital Text 16

Digital Tuning 35

Display Area 27

Display Mode 23

Dual Sound 26

E

EPG (Digital Electronic Programme

Guide) 18

Equipment labels 28

F

Fastext 16

Favourite list 20

G

Gamma 24

H

Headphones connecting 37 Speaker Link 26 Volume 17, 21, 39

Horizontal Shift 27, 31

Hue 23

|

Input signal index table 21

Interactive service 15

L

Label 33

Language 7, 28

Light Sensor 29

Live Colour 24

M

Manual Programme Preset 33

Manual timer REC 19

MENU 22

MPEG Noise Reduction 24

N

Noise Reduction 24

0

On Timer 29

P

Parental Lock 36

PC Settings menu 31

Phase 31

Picture menu 23

Picture Mode 23

Picture Off (☒) indicator 14

PIN Code 36

Pitch 31

Power (I) indicator 14

Power (⏻) switch 14

Power Management 31

Power Saving 29

Product Information 29

Programme index table 15

Programme Labels 32

Programme List Edit 35

Programme Sorting 32

Q

Quiet Power On 29

R

Reminder 19

Remote control inserting batteries 4 overview 13 sensor 14

Reset PC settings 31 picture 23 sound 25

s

Screen format 16

Screen Format 27, 31

Screen menu 27

Set-up menu 28

Sharpness 24

Skip 28, 34

Sleep Timer 28

Smart 16

Sound menu 25

Sound Mode 25

Speaker 29

Specifications 40

Standby (⏻) indicator 14

Subtitle Language 36

Subtitle Setting 36

Surround 25

T

Target Inputs

picture 23

screen 27

sound 25

Technical Set-up 36

Timer (↓) indicator 14

Timer list 19

Timer REC 18

Timer Settings 28

Tools 17, 21, 39

Treble 25

V

VCR

connecting 6

recording 18

Vertical Shift 27, 31

Vertical Size 27

Volume Offset 25

W

Wide 16

Z

Zoom 16

http://www.sony.net/

KDL-46W2000

KDL-40W2000
