Type de produit	Siège auto évolutif PEG PEREGO VIAGGIO SL
Groupes d'utilisation	Groupe 0+ (0 à 13 kg, environ 0-12 mois) et Groupe 1 (9 à 18 kg, environ 9 mois-4 ans)
Installation	Groupe 0+ : dos à la route ; Groupe 1 : face à la route
Fixation	Par ceinture de sécurité 3 points du véhicule (statique ou à enrouleur)
Normes	ECE R44/04, catégorie Universelle
Harnais	Harnais 5 points avec boucle de sanglage, réglable en hauteur (7 positions)
Appuie-tête	Réglable en hauteur (7 positions)
Inclinaison	5 positions d'inclinaison en Groupe 1
Dimensions (environ)	Environ 45 x 45 x 70 cm (L x P x H)
Poids (environ)	Environ 5 kg
Alimentation	Aucune (pas de composant électronique)
Housse amovible	Oui, lavable en machine à 30°C maximum
Nettoyage	Nettoyer les parties plastiques avec un chiffon humide ; ne pas utiliser de solvants
Pièces détachées	Disponibles en différentes couleurs (références : BSAZUS00, BRIZUS00, MUC10082N, BSPDU000)
Réparabilité	Contactez le service après-vente Peg Perego pour toute réparation
Durée de vie	Ne pas utiliser au-delà de 7 ans après la date de production
Accessoires	Steady Fix (dispositif anti-rotation) inclus pour Groupe 1

FOIRE AUX QUESTIONS - VIAGGIO SL PEG PEREGO

Quels sont les groupes de poids pour ce siège auto ?

Le VIAGGIO SL peut être utilisé en Groupe 0+ (0 à 13 kg, dos à la route) et en Groupe 1 (9 à 18 kg, face à la route).

Comment installer le siège en Groupe 0+ ?

Extrayez le socle inclinable sous le siège, puis placez le siège dos à la route. Passez la ceinture de sécurité dans les guides bleu clair et serrez fermement.

Comment installer le siège en Groupe 1 ?

Repoussez le socle, placez le siège face à la route, inclinez-le pour passer la ceinture dans les guides rouges, puis utilisez le dispositif Steady Fix sur la ceinture diagonale et serrez.

Comment attacher mon enfant dans le siège ?

Détachez le harnais en appuyant sur le bouton rouge, placez l'enfant, enfilez les bretelles sur ses épaules, verrouillez les boucles, puis tirez sur la sangle de réglage pour ajuster sans excès (laissez un doigt d'espace).

Comment régler la hauteur de l'appuie-tête ?

Tirez la languette en haut de l'appuie-tête vers le haut pour le monter, ou poussez vers le bas tout en tirant la languette pour le baisser. Il y a 7 positions.

Puis-je incliner le siège ?

Oui, uniquement en Groupe 1. Utilisez le levier sous le siège pour choisir parmi 5 positions d'inclinaison.

Comment entretenir la housse ?

Retirez la housse, enlevez la mousse du coussin, puis lavez-la en machine à 30°C maximum (programme délicat). Ne pas utiliser d'eau de Javel, ne pas sécher en machine, ne pas repasser.

Puis-je utiliser le siège sans la housse ?

Non, la housse fait partie intégrante du système de sécurité. Ne remplacez jamais la housse par une autre non approuvée par le fabricant.

Quels sont les accessoires ou pièces de rechange disponibles ?

Des pièces détachées sont disponibles en différentes couleurs (réf. BSAZUS00, BRIZUS00, MUC10082N, BSPDU000). Contactez le SAV Peg Perego.

Puis-je utiliser ce siège sur le siège avant avec airbag ?

En Groupe 0+, l'airbag passager doit être désactivé. En Groupe 1, reculez le siège au maximum du tableau de bord.

MODE D'EMPLOI VIAGGIO SL PEG PEREGO

VIAGGIO O+1

SWITCHABLE

UNIVERSAL CATEGORY 0-13 Kg

Group 0+

BELTED

OK

EN· "Viaggio 0+1 Switchable" is fastened to the vehicle in a rear-facing position using the vehicle's seatbelt when used as a Group 0+ car seat (from 0 to 13 Kg).
KR·生起自未起13kg加之自动电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电

UNIVERSAL CATEGORY 9-18 Kg

Group 1

BELTED

OK

EN·"Viaggio 0+1 Switchable" is fastened to the vehicle in a forward-facing position using the vehicle's seatbelt when used as a Group 1 car seat (from 9 to 18 Kg).
KR·9~18 kg キリは 车道を ト 刷 ヤリ テリ ビリ ツ 用か 連は 韓は ト 刷 ヤリ テリ ビリ ビリ ツ 用か 連は 韓は ト 刷 ヤリ テリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビリ ビRI L

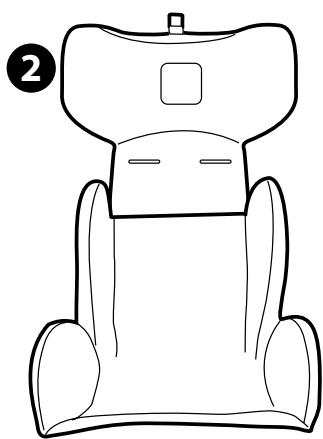

Viaggio 0+1 Switchable

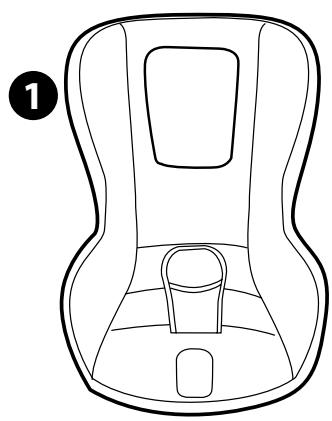

1) BSAZUS00
2) BRIZUS00

3) MUC10082N
4) BSPDU000*

EN·Spare parts available in different colours to be specified when ordering.
KO. ① 1:53

EN_English

Thank you for choosing a Peg-Perego product.

Product characteristics

Features of the product

Car seat, Group 0+, "Universal" category with vehicle seatbelt

• Type-approved under European standard ECE R44/04, for children of weight up to 13kg (from birth to approximately 1 year).
• Suitable for installation on most, but not all vehicle seats.
• The car seat can be correctly installed if the vehicle's use and maintenance manual indicates compatibility with "Universal" Groups 0+ restraint systems.
• This car seat is classified as "Universal" in compliance with stricter type approval criteria than previous models that do not have type approval labels.
• The car seat can only be used in type approved vehicles, fitted with static or inertia-reel three-point seatbelts, approved under regulation UN/ECE no. 16 or equivalent standards.

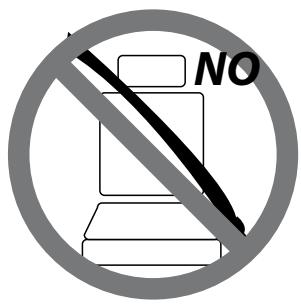

• It must not be used with two-point or lap seatbelts.

Car seat, Group 1, "Universal" category with vehicle seatbelt

• Type approved under European standard ECE R44/04, for children of weight from 9 to 18kg (9 months to 4 years approx).
• Suitable for installation on most, but not all vehicle seats.
• The car seat can be correctly installed if the vehicle's use and maintenance manual indicates compatibility with "Universal" Group 1 restraint systems.
• This car seat is classed as "Universal" in compliance with

stricter type approval criteria than previous models that do not have type approval labels.

IMPORTANT

• "Viaggio 0+1 Switchable" must be installed in a rear-facing position when used as a Group 0+ car seat and in a forward-facing position when used as a Group 1 car seat.

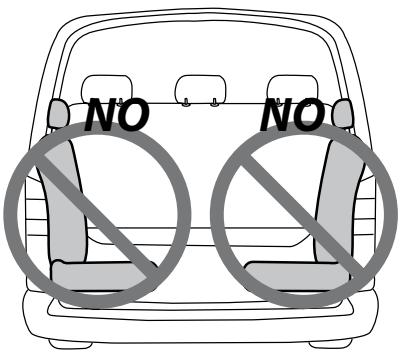

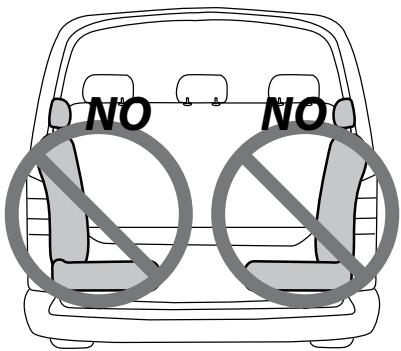

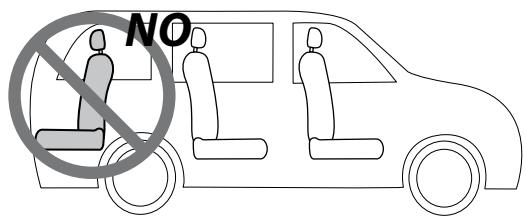

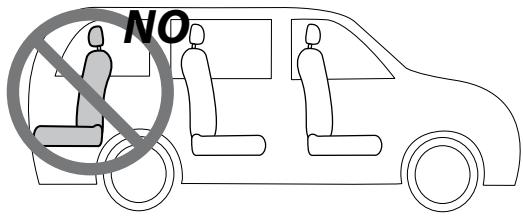

• Do not install "Viaggio 0+1 Switchable" on rear- or sideways-facing vehicle seats.
• When used as a Group 0+ car seat on the vehicle's front seat, the front airbag must be disabled.
• When used as a Group 1 car seat on the vehicle's front seat, the car seat should be positioned as far as possible from the dashboard.

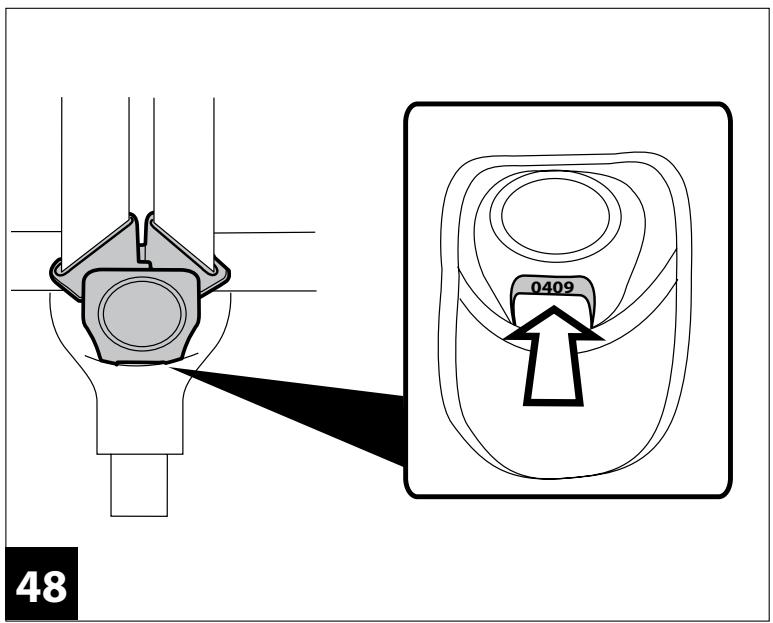

• This item has a progressive serial number.
• If you experience any difficulty fitting "Viaggio 0+1 Switchable", lift up or remove the vehicle's headrests.

WARNING

• Read the instructions carefully before use and keep them in the folder provided for future reference. Failure to closely follow the car seat installation instructions will put your child at risk.
• "Viaggio 0+1 Switchable" must be assembled and installed by adults.
• The car seat must be assembled and installed when the child is not seated in it.
• When travelling in the vehicle, never hold your child in your arms or allow him/her to sit on the vehicle seats. In the event of sudden braking, even at low speeds, the child might easily be flung forward.
• Do not insert fingers into the mechanisms.
• When travelling take special care to make sure that luggage or other objects do not injure the child sitting in the car seat in the case of an accident.
• Do not use installation methods other than those indicated; this would result in the risk of detachment

from the seat in the case of an accident.

• Ensure that the vehicle's three-point seatbelt fixing the car seat is always taut and not twisted. It should be replaced in the case of heavy stress as a result of an accident.
• Never leave your child unattended in the car seat: watch him/her even when s/he is sleeping.
• Never remove the child from the car seat when the vehicle is in motion.
• Make sure that the car seat is not blocked by a mobile part of the vehicle seat or by a door.
• Adjust the height and tension of the shoulder straps, ensuring that they are as snug to the child's body as possible without constricting him/her too much. Check that the harness is not twisted and that the child does not release it.
• This car seat is not intended for prolonged periods of sleeping.
• Do not leave the car seat in the vehicle when exposed to the sun. Some parts might heat up and be harmful to the delicate skin of your child. Check the seat is not too hot before seating your child.
• Do not use the car seat without its fabric cover; this must not be replaced with one not approved by the manufacturer since it is an integral part of the car seat and the safety system.
• If in doubt, contact the manufacturer or retailer of the car seat.
• Do not remove the adhesive and stitched labels since this might make the product not compliant with legal requirements.
• Do not use the car seat if it has signs of breakage or missing parts, if it is second-hand or if it has been subjected to heavy impacts in an accident, because it might have suffered extremely dangerous structural damage.
• Do not alter the product.
• For any repairs, replacement parts and information about the product, contact the after-sales assistance

service. Contact information is provided on the last page of this manual.

• The car seat must always be secured in the vehicle, even when the child is not sitting in it; in the event of sudden braking, it could injure the passengers.
• Do not use this car seat if more than seven years have elapsed from the date of production indicated on the structure; the natural aging of the materials may mean the car seat is no longer compliant with safety standards.
• Do not use accessories that have not been approved by the manufacturer or by the competent authorities.

Instructions for use UNIVERSAL CATEGORY - Belted Group 0+ Fastening with seatbelts

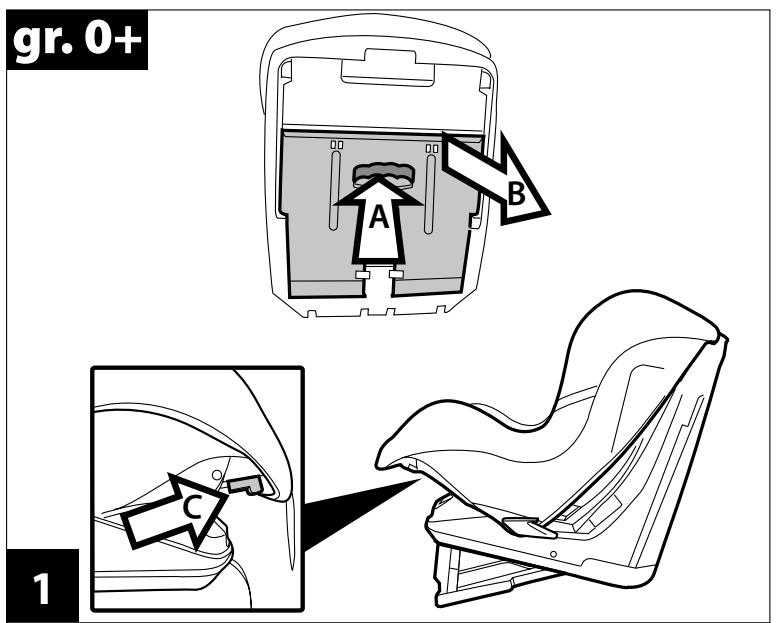

1.IMPORTANT: For the correct use of the "Viaggio 0+1 Switchable" car seat in Group 0+ mode, it is necessary to:
- Extract from under the seat the casing that enables the car seat to be reclined. To extract it, press the handle and pull it towards you, extracting the base (arrows A and B).
- Use the lever (arrow C) to recline the seat to its highest position.

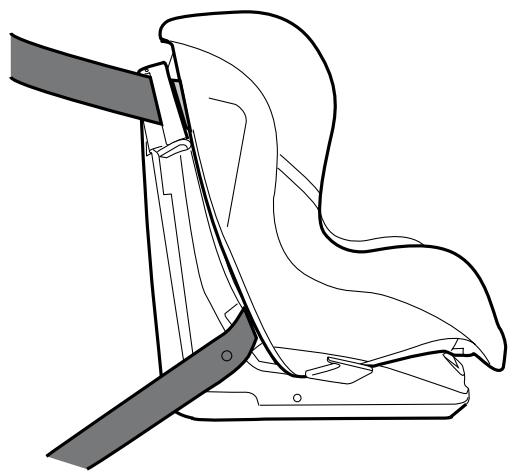

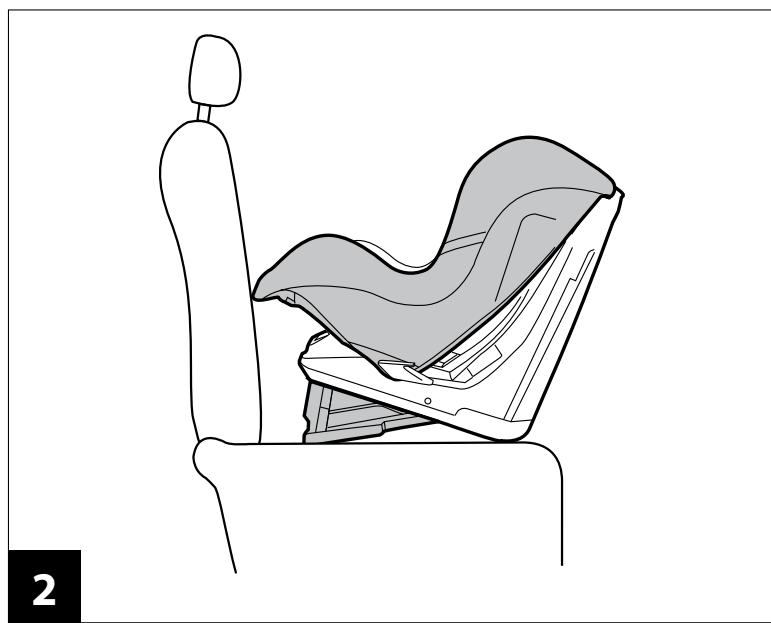

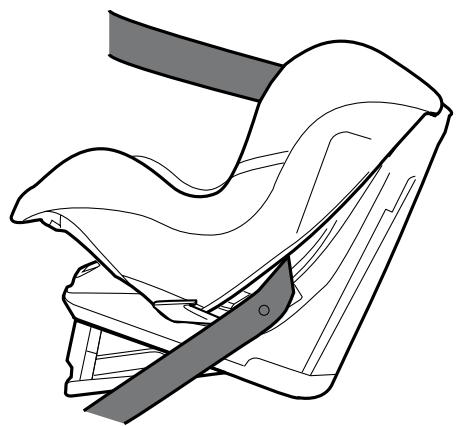

2. "Viaggio 0+1 Switchable" car seat correctly installed to be used as a Group 0+ car seat.

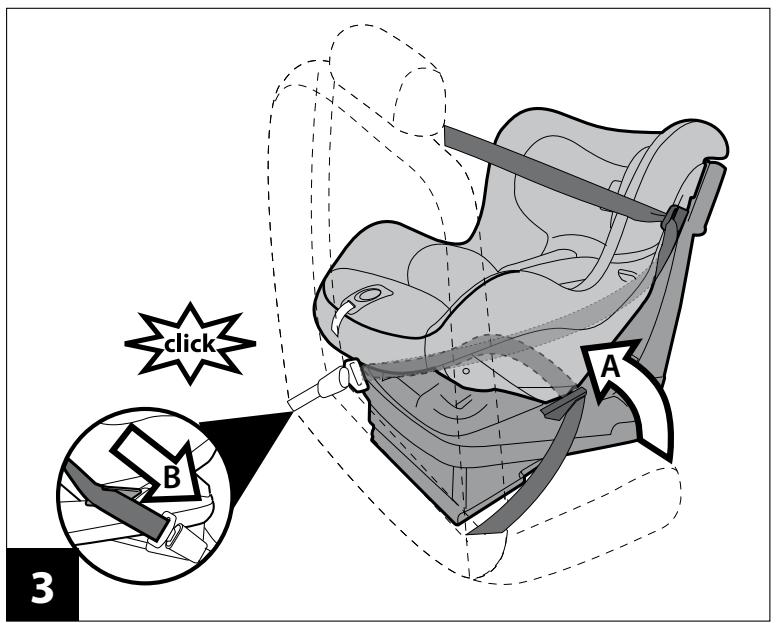

3. Install the "Viaggio 0+1 Switchable" car seat on the vehicle's seat so that it is rear-facing, as shown in the figure. Pass the vehicle seatbelt between the frame and body of the car seat following these steps:
- slip the belt into the light blue belt guides first (arrow A);
- fasten the belt, ensuring that it clicks into place (arrow B);

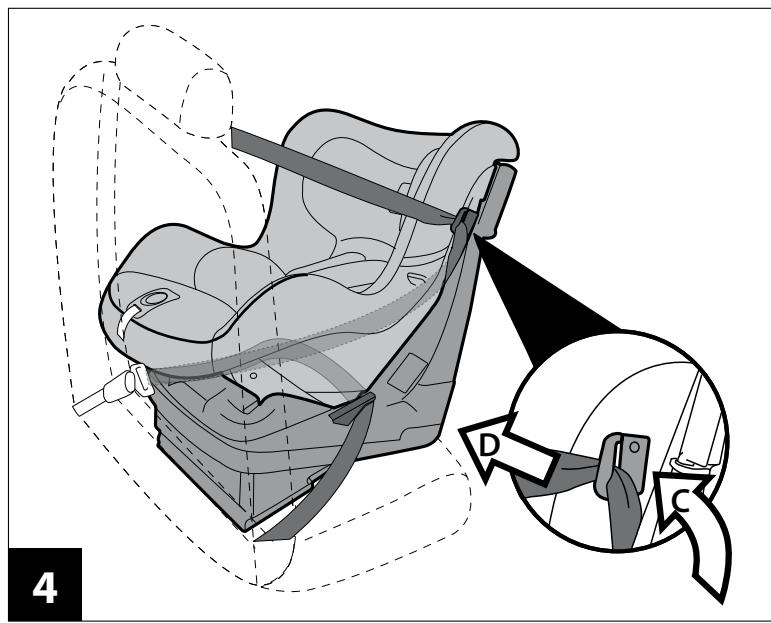

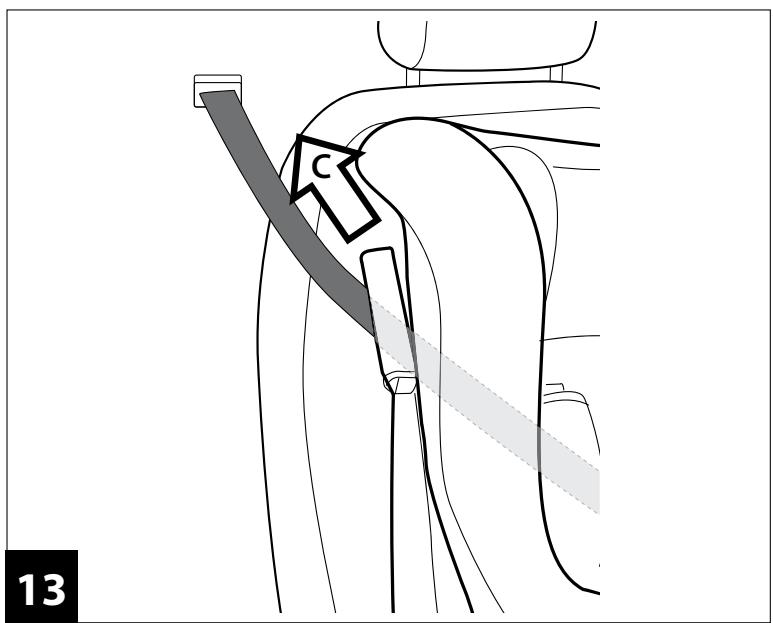

4. Pass the seatbelt through the upper light blue belt slot (arrow C).

IMPORTANT: Take hold of the seatbelt and pull it firmly, so as to ensure that the "Viaggio 0+1 Switchable" fits as close as possible to the vehicle seat (arrow D).

Instructions for use UNIVERSAL CATEGORY - Belted Group 1 Fastening with seatbelts

1. A IMPORTANT: For the correct use of the "Viaggio 0+1 Switchable" car seat in Group 1 mode, it is necessary to:

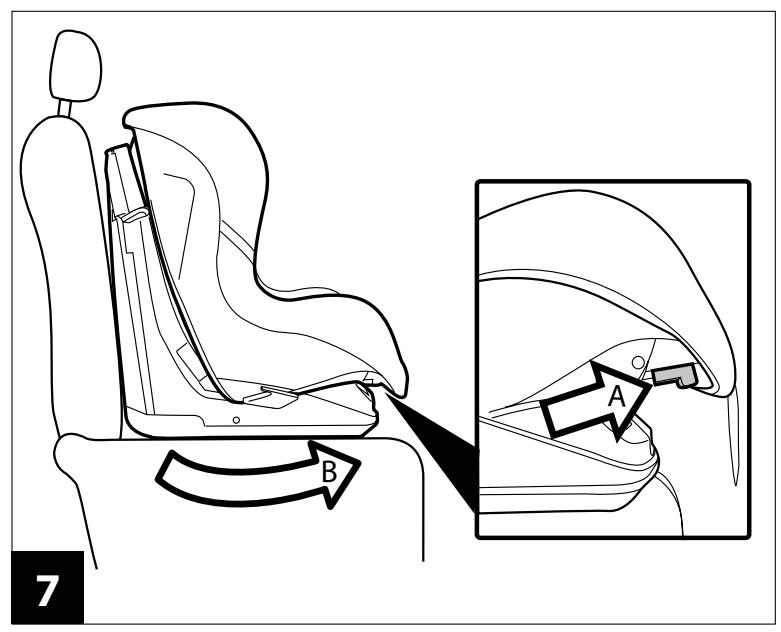

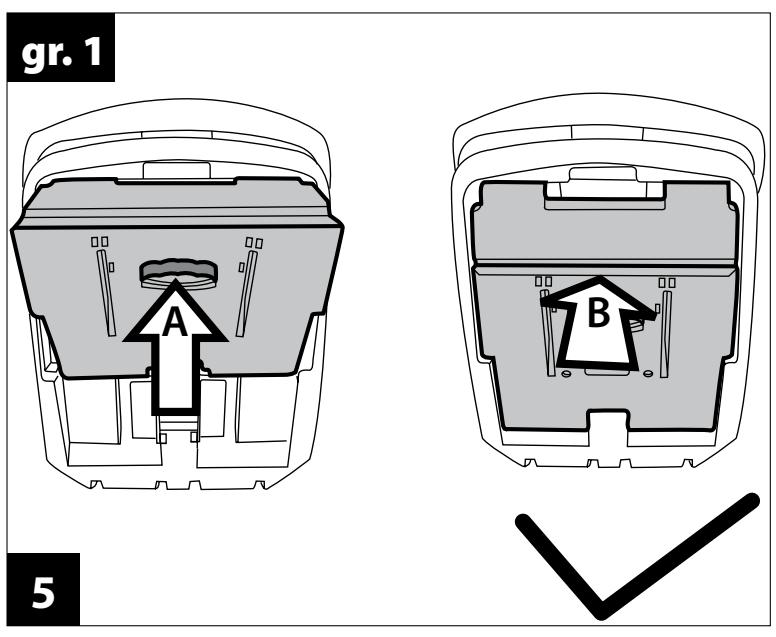

2. Reposition the casing within the base of the car seat. Press the lever and push inwards, as indicated in the figure.

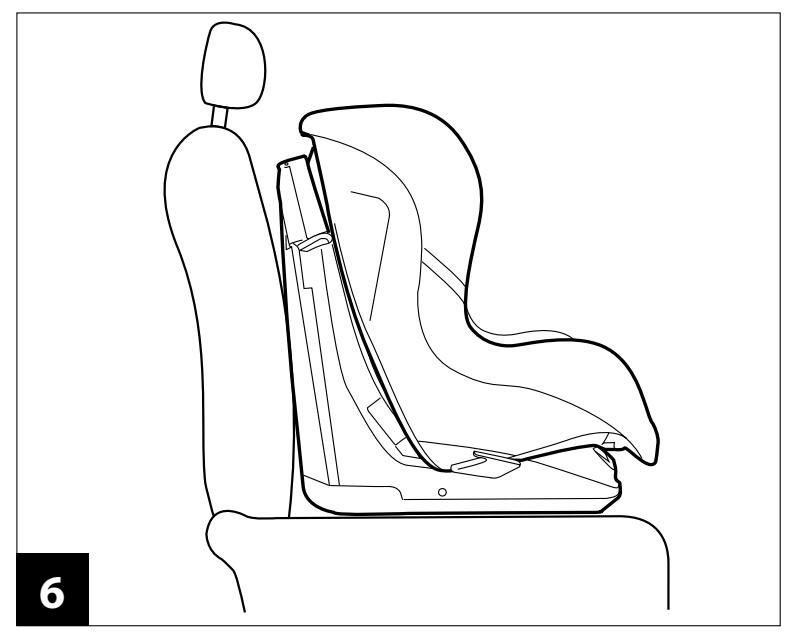

3. Install the "Viaggio 0+1 Switchable" car seat on the vehicle's seat so that it is front-facing, as shown in the figure.
4. To make it easier to pass the vehicle's seatbelts through the back of the car seat, it is necessary to recline the car seat to its lowest position by operating the lever, as shown in the figure.

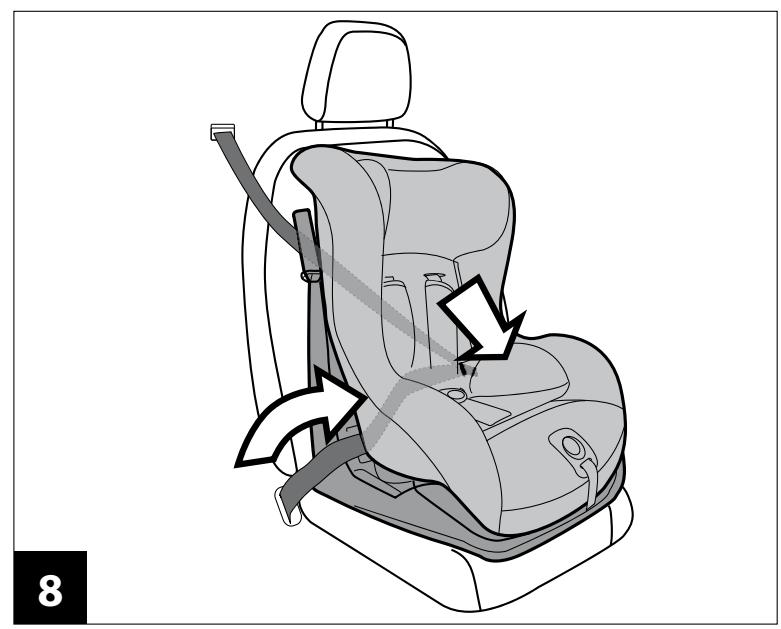

5. Pass the vehicle seatbelt between the frame and body of the car seat.

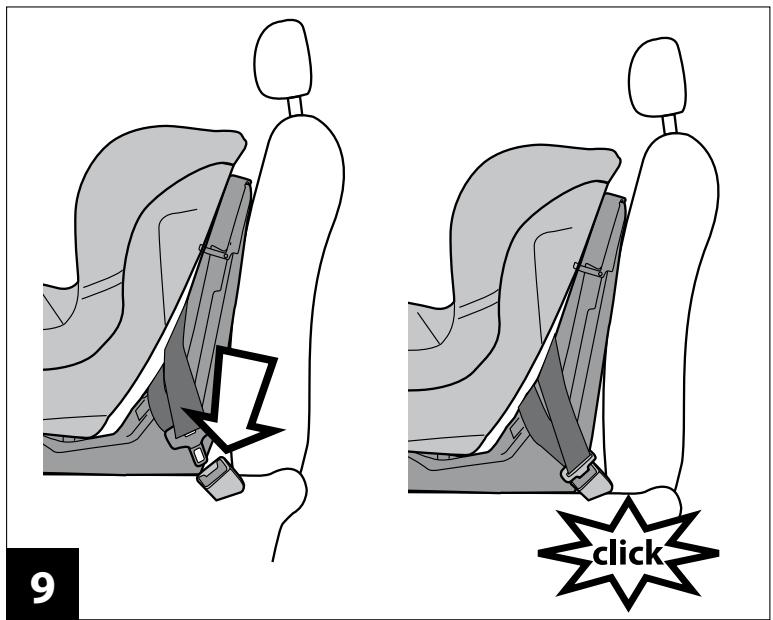

6. The waist strap must pass through the lower guides, marked in red; fasten the belt, ensuring that it clicks into place.
7. Tighten the waist strap, ensuring it has passed through the lower guides, marked in red.

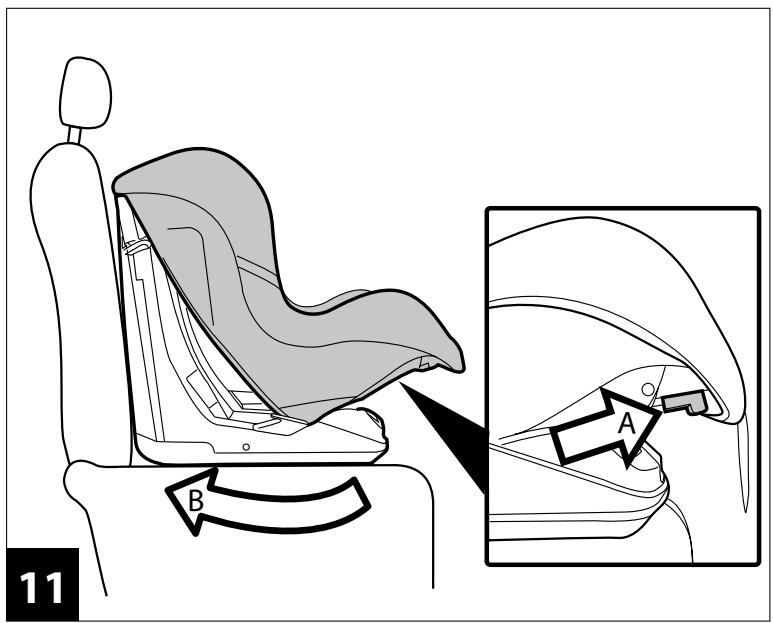

8. Bring the car seat back into the upright position by pulling the handle below the seat (Fig. A) and pushing the car seat as shown in the figure (Fig. B).
9. To complete the installation process, use the Steady Fix device: open the clip and pass the diagonal strap through it, ensuring that it is taut and not twisted (Fig. A). Close the safety tab (Fig. B).

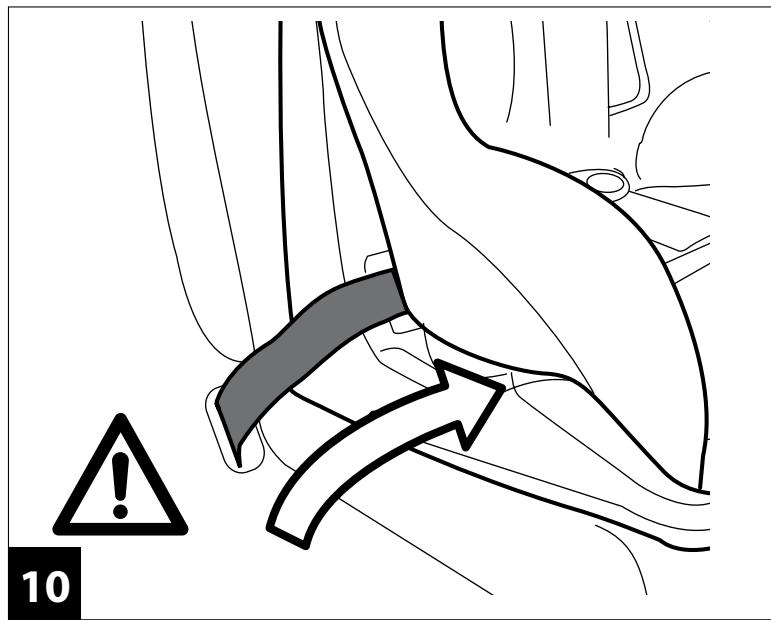

10. 1 important: Take hold of the seatbelt and pull it firmly upwards, so as to ensure that the "Viaggio 0 + 1 Switchable" fits as close as possible to the vehicle seat (Fig. C).

Once installed, the car seat may be reclined to the desired position (See Point 6).

How to secure your child in the "Viaggio 0+1 Switchable" car seat

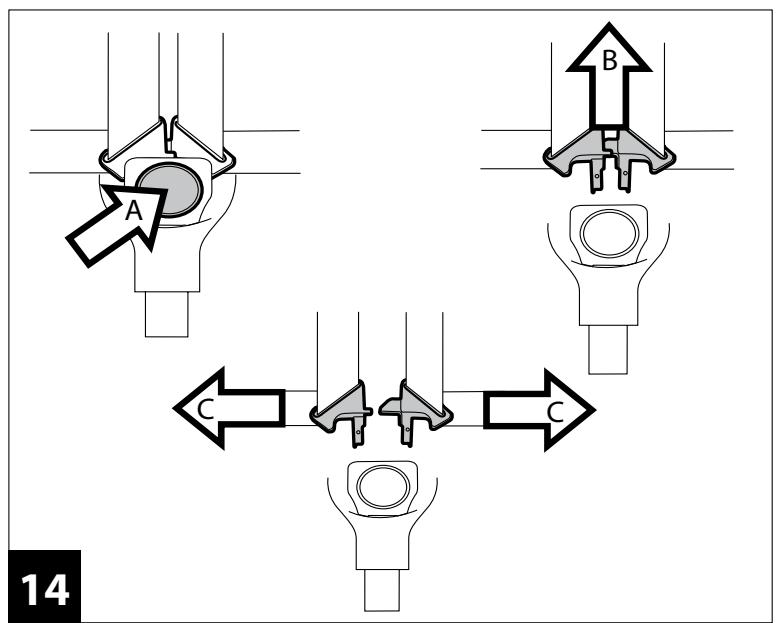

1. Before placing the child in the car seat, release the

harness by pushing the red button on the crotch strap buckle.

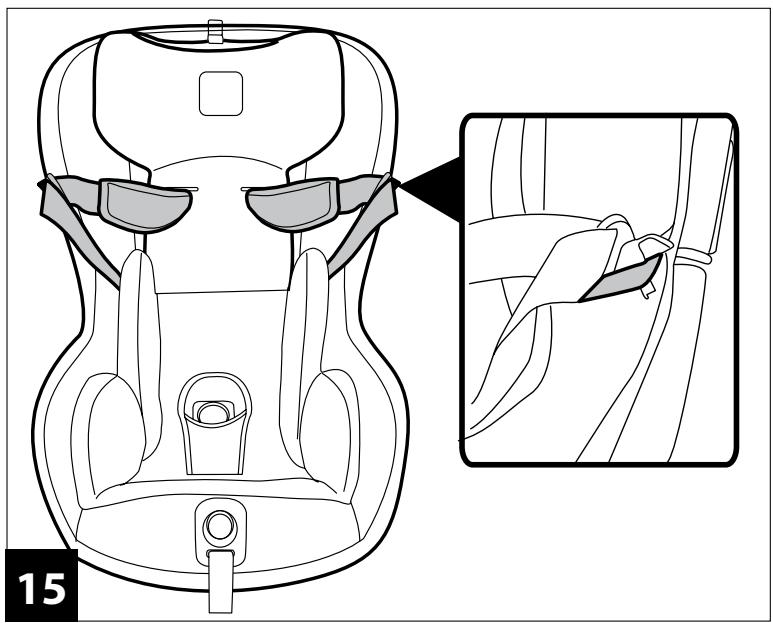

1. Lift the harness and attach the buckles to the elastic bands on the sides.
2. Place the child in the car seat and arrange the harness over the child's shoulders and waist, as shown in the figure.

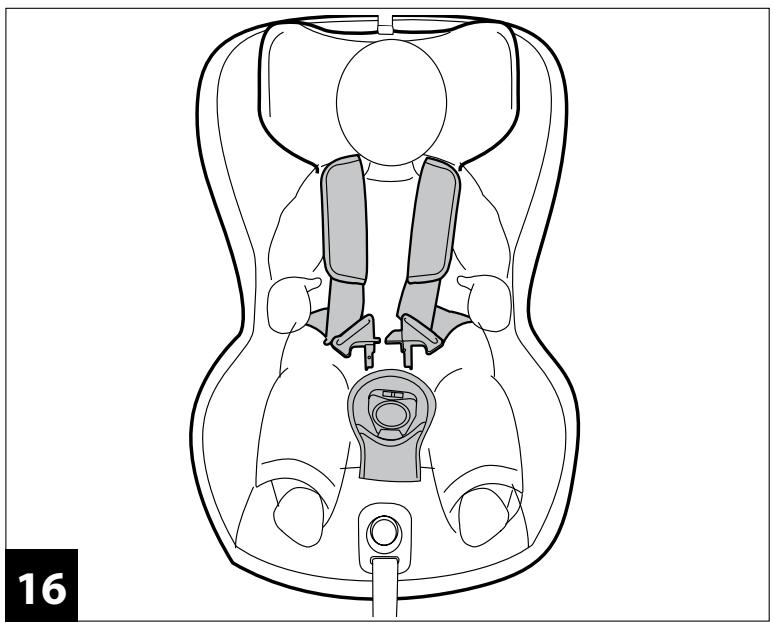

3. Lock the harness by overlapping the tongues and inserting them into the buckle of the crotch strap until they click into place.

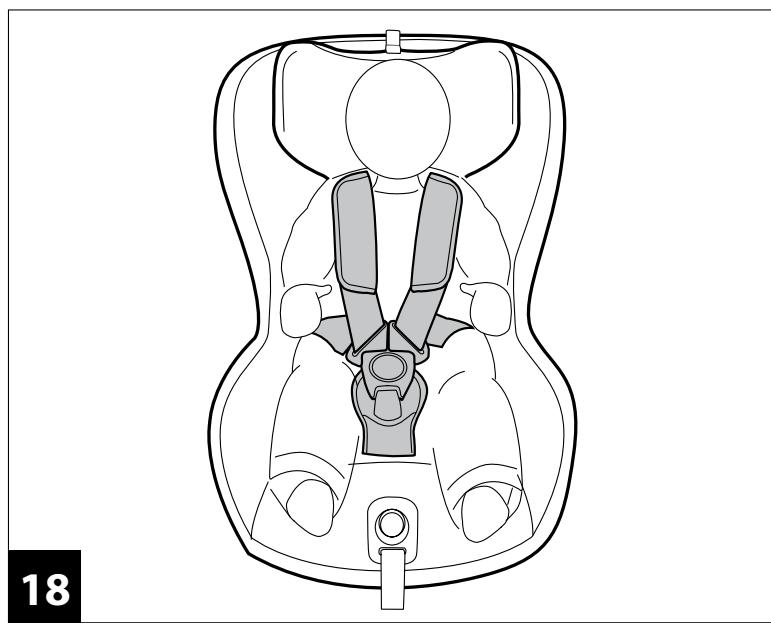

4. The child is now sitting correctly with the harness fastened properly.
5. Finally, tighten the shoulder straps until they are snug to the child's body by pulling the central adjustment strap towards you, as shown in the figure, taking care not to over-tighten the straps.

IMPORTANT: Leave minimal slack (the space of a finger) between the strap and the child's chest.

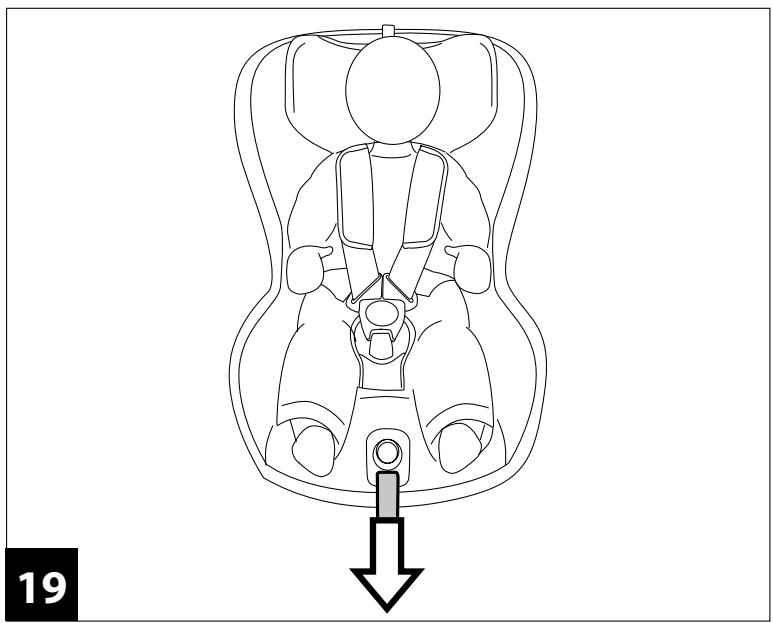

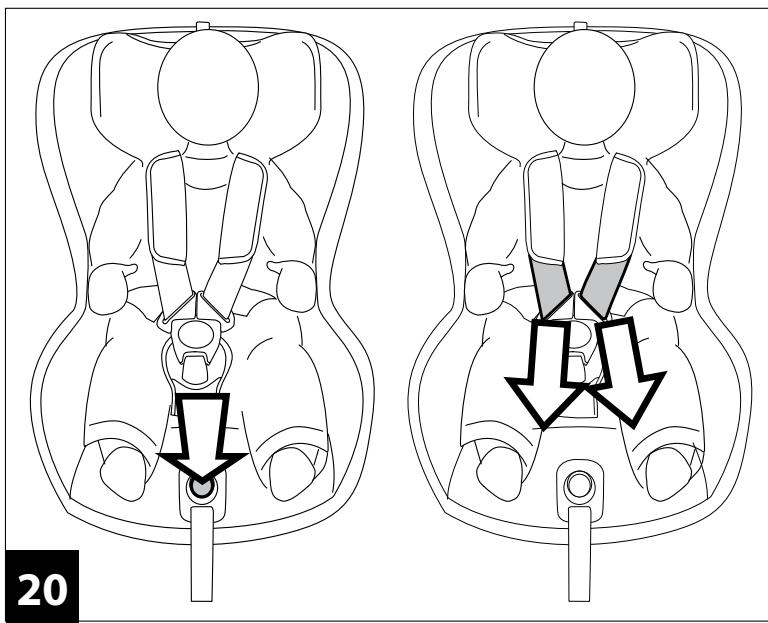

1. To slacken the straps, press the button at the centre of the car seat and at the same time pull the straps towards you.

IMPORTANT: Take hold of the straps under the shoulder pads and pull, as shown in the figure.

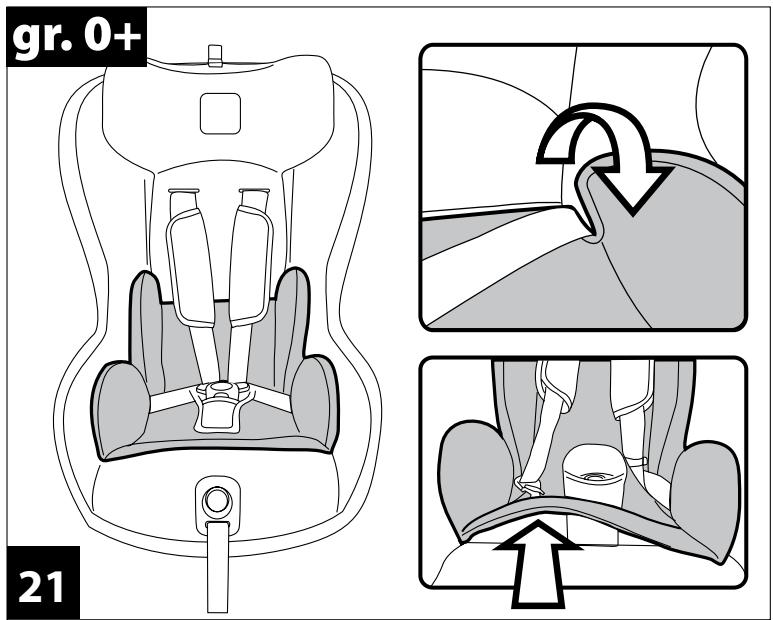

1. The car seat has a booster cushion which is only suitable for small babies. When the child is older, remove the booster cushion.

2. To remove the booster cushion, unfasten the seatbelts, slide them off the booster cushion and slide the crotch strap out through the slot in the booster cushion.

IMPORTANT: The booster cushion must be removed when the "Viaggio 0+1 Switchable" is used as a Group 1 car seat.

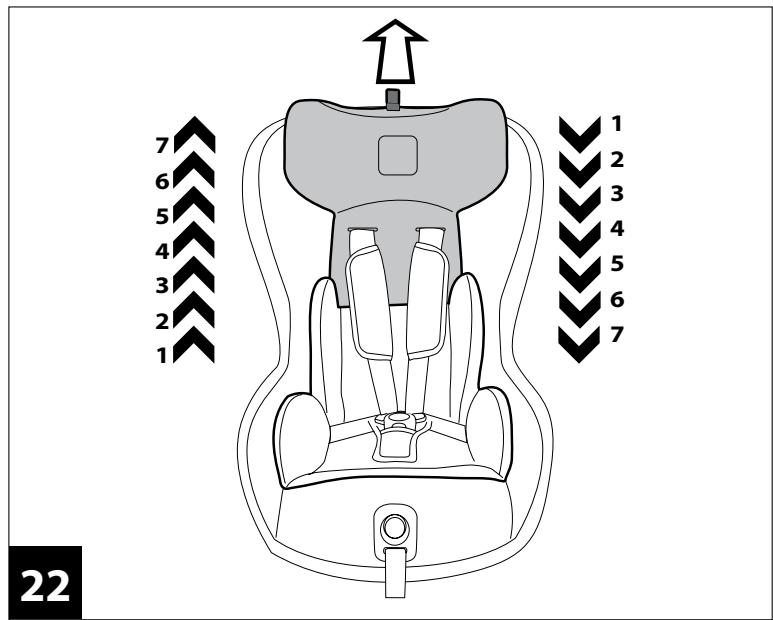

How to adjust the height of the headrest

The headrest must be adjusted to match the child's height. There are 7 positions.

1. To change from a lower position to a higher one: pull the tongue in the upper central part of the headrest upwards. The headrest will move at the same time. To change from a higher position to a lower one: pull the tongue in the upper central part of the headrest upwards and, at the same time, push the headrest

down to the desired position.

When you have finished, try moving the headrest to check it is properly locked into place.

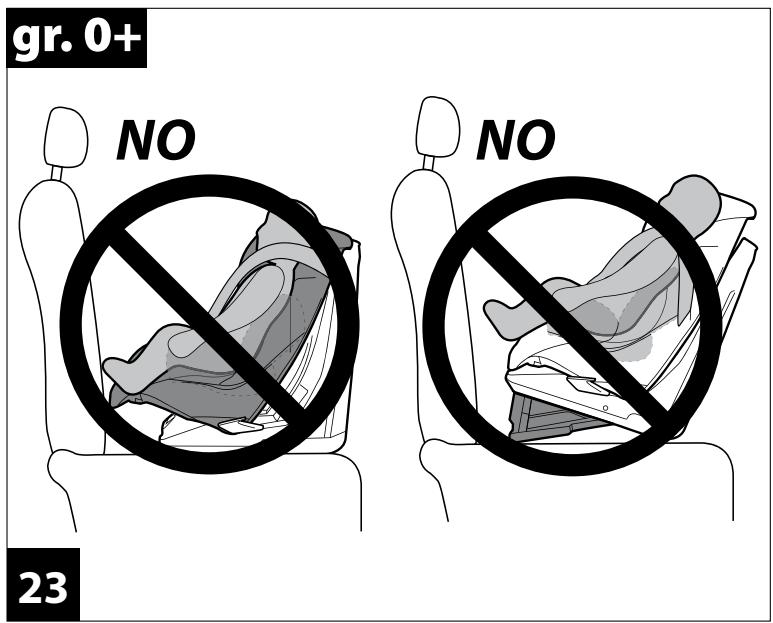

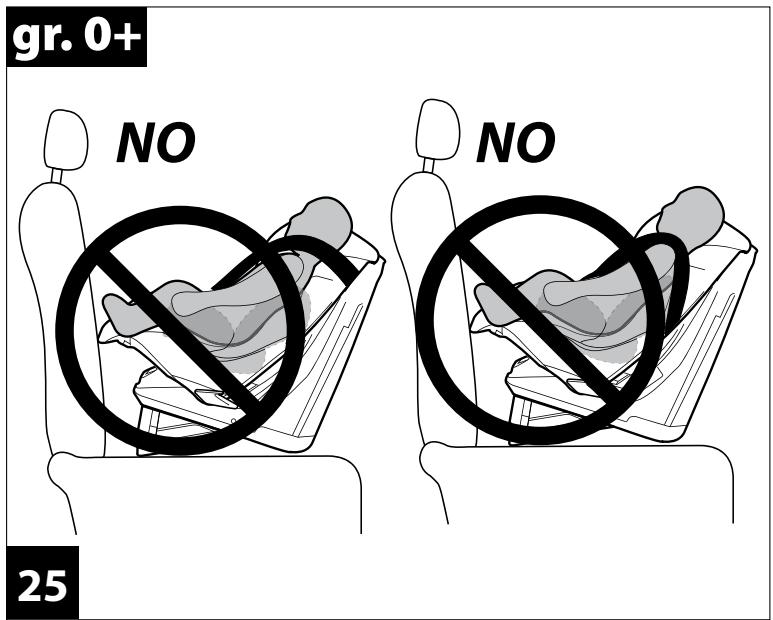

1. WARNING: Do not use the car seat in Group 0+ mode without first extracting the casing, as shown in point 1 A-B (Fig.A).
   WARNING: Do not use the car seat in Group 0+ mode without first reclining the backrest, as shown in point 1C (Fig.B).

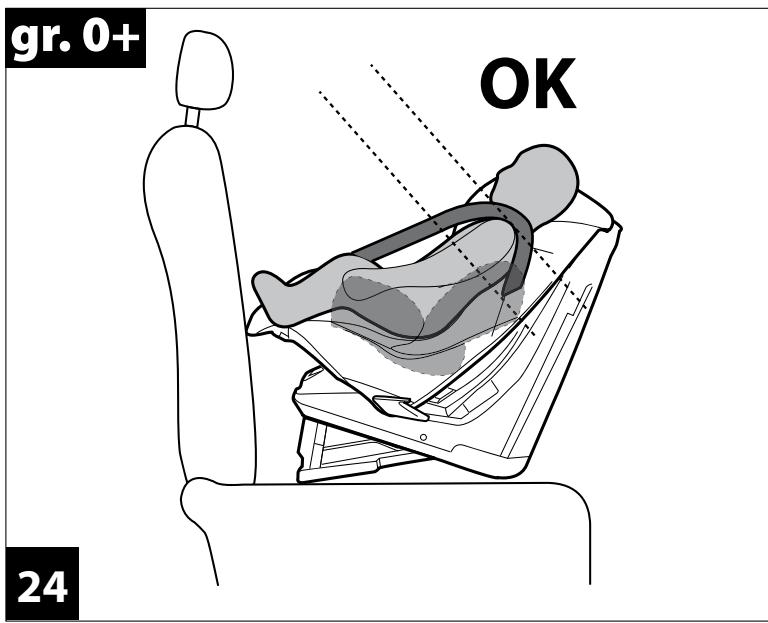

2. Use in Group 0+ mode: To determine the best shoulder strap position, bear in mind that the child's shoulders must be just above the shoulder strap guides.
3. 10 important: The straps must not be too high or too low with respect to the child's shoulders.
4. WARNING: Do not use the car seat in Group 1 mode with the casing extracted.

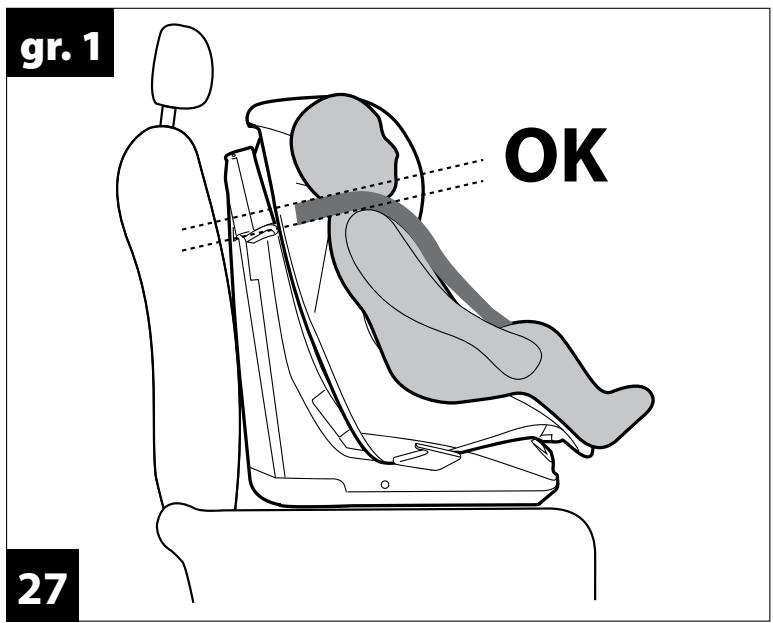

5. Use in Group 1 mode: To determine the best shoulder strap position, bear in mind that the child's shoulders must be just below the shoulder strap guides.

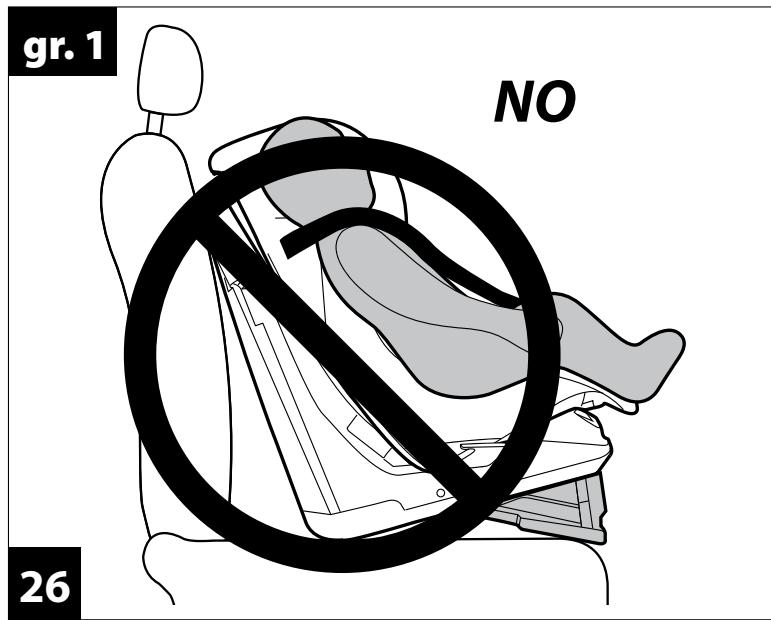

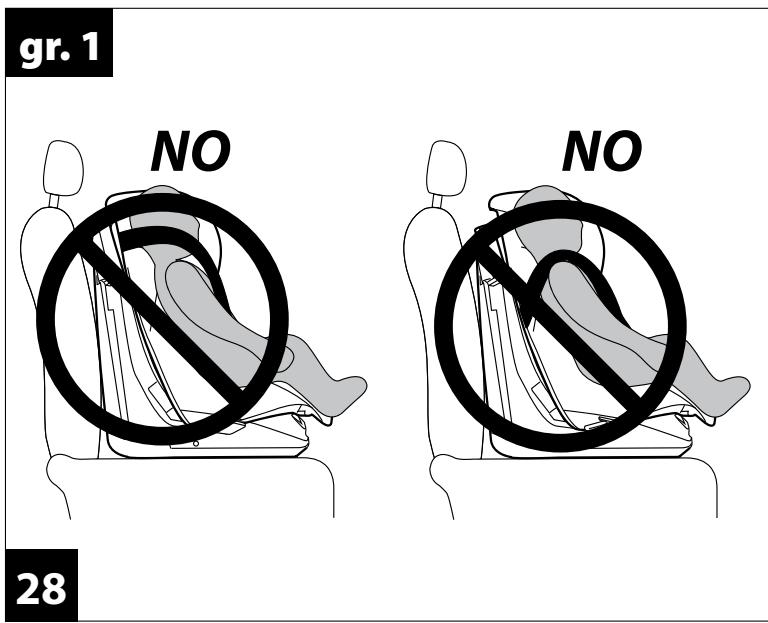

6. 1 important: The straps must not be too high or too low with respect to the child's shoulders.
7. 1 Important: The "Viaggio 0 + 1 Switchable" car seat can be reclined into 5 different positions only when it is used in Group 1 mode.

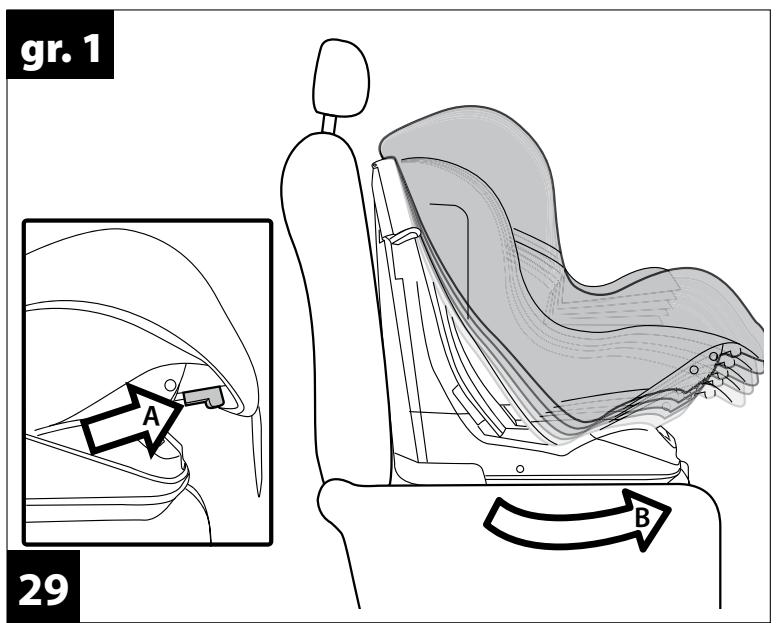

To recline the car seat, press the lever under the seat (Fig.A) and pull to adjust the seat to the desired position (Fig.B).

How to remove the soft cover

To remove the soft cover of the "Viaggio 0+1 Switchable" car seat:

• Remove the booster cushion, where present (point 20).
• Unfasten the harness (point 13).
• Open the rear panel.
• Unfasten the straps from the rear latch plate.
• Unfasten the straps on the rear and slip them out from the front.

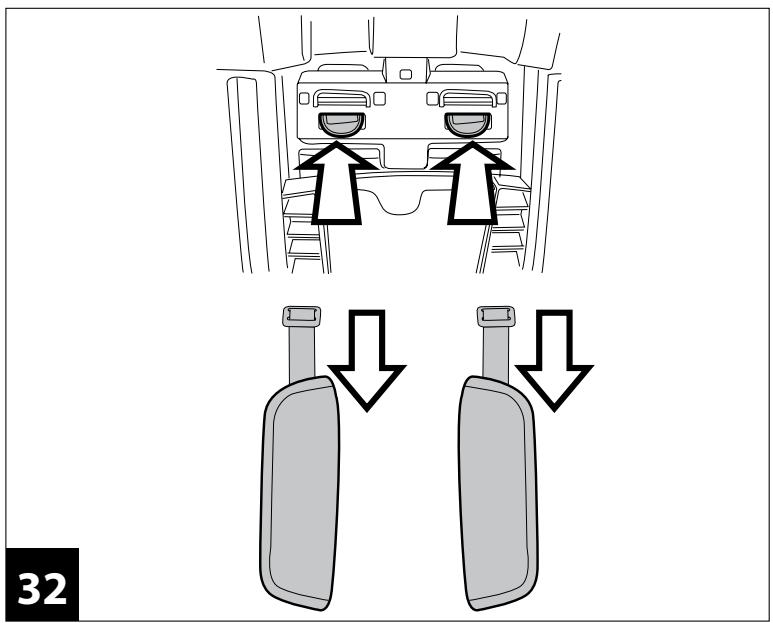

• Unfasten the shoulder pads from the rear and slip them off the straps from the front.

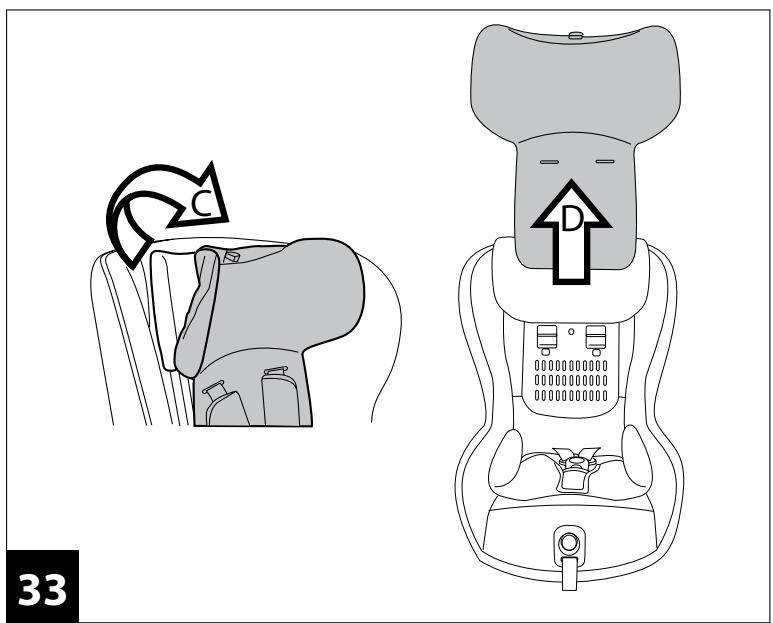

• Slip off the adjuster strap (Fig. C) and then remove the headrest cover from above (Fig. D).

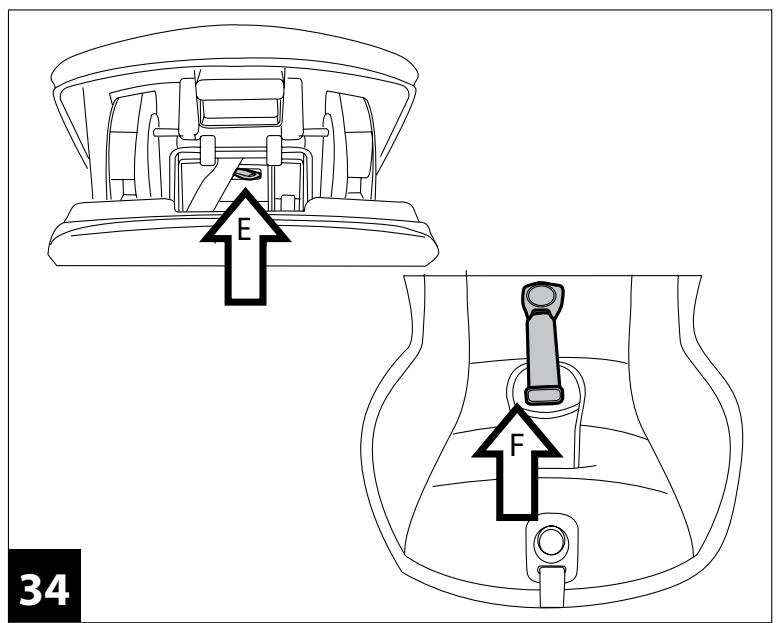

• Release the crotch strap from below the body (Fig. E) and

slide the strap out through the crotch strap cover (Fig. F).

1. Slip the strap out through the opening in the soft cover and remove the soft cover, as shown in the figure.

Soft cover maintenance

Brush the fabric parts to remove dust.

• Before placing the soft cover in the washing machine, slide the foam rubber cushion out of the booster seat from the rear.
• Machine wash at a maximum of 30^ C with a delicate wash setting and short spin cycle.
• Do not use chlorine bleach.
• Do not iron.
• Do not dry clean.
• Do not remove stains with solvents.
• Do not tumble dry.

How to replace the soft cover of the "Viaggio 0+1 Switchable" car seat

To replace the soft cover of the "Viaggio 0+1 Switchable" car seat:

1. From below, slip the straps back in through the opening in the fabric (Fig. A).

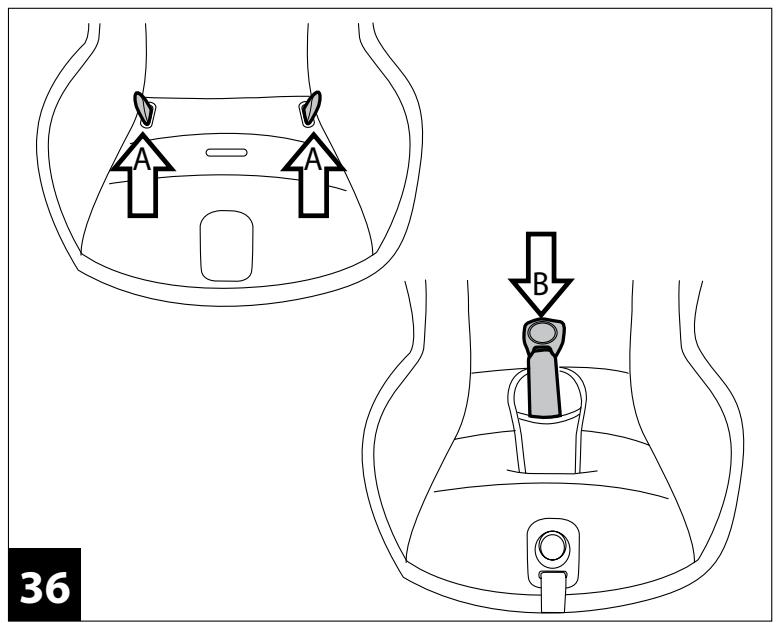

2. Reinsert the crotch strap into the soft cover (Fig. B).
3. Fasten the crotch strap back onto the body.
4. Fasten the tongue to the crotch strap opening.

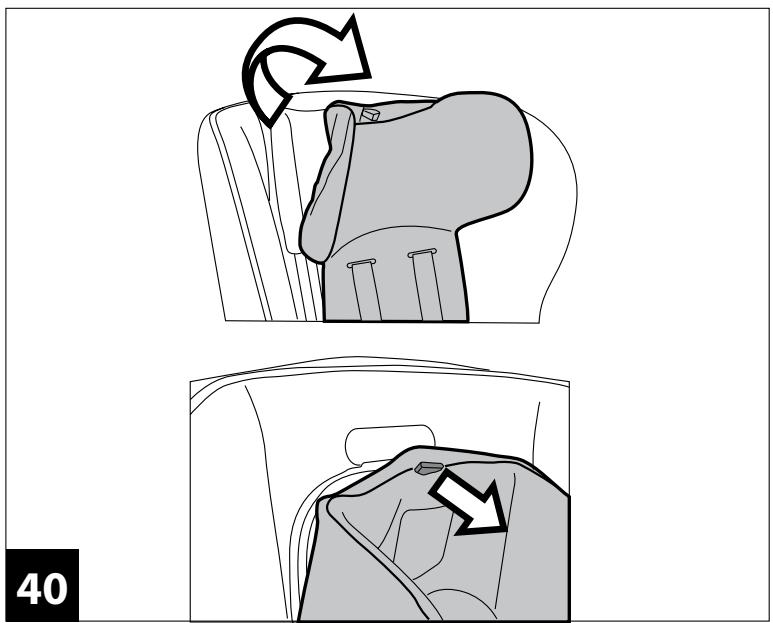

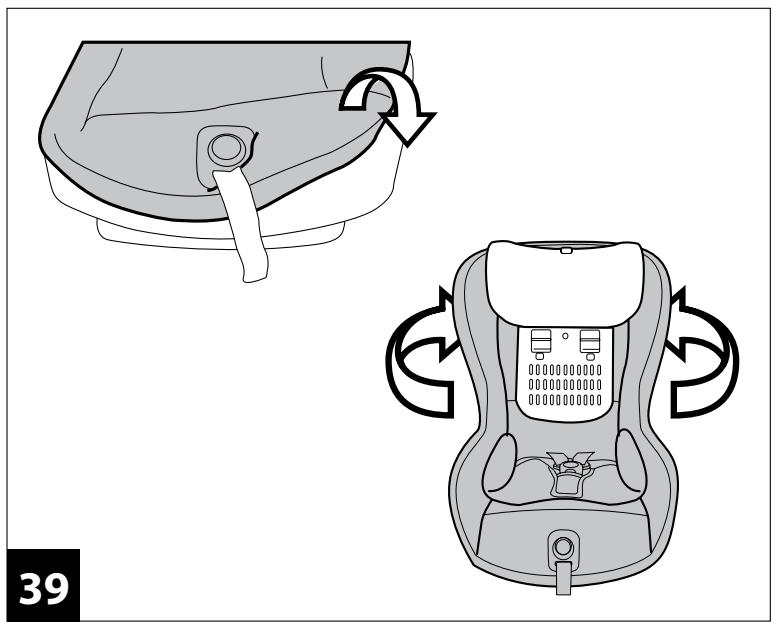

5. Put the soft cover in place, starting at the seat and moving upwards, paying attention to the sides of the backrest.
6. Slip the soft cover over the headrest, ensuring the red tongue passes through the opening in the fabric.

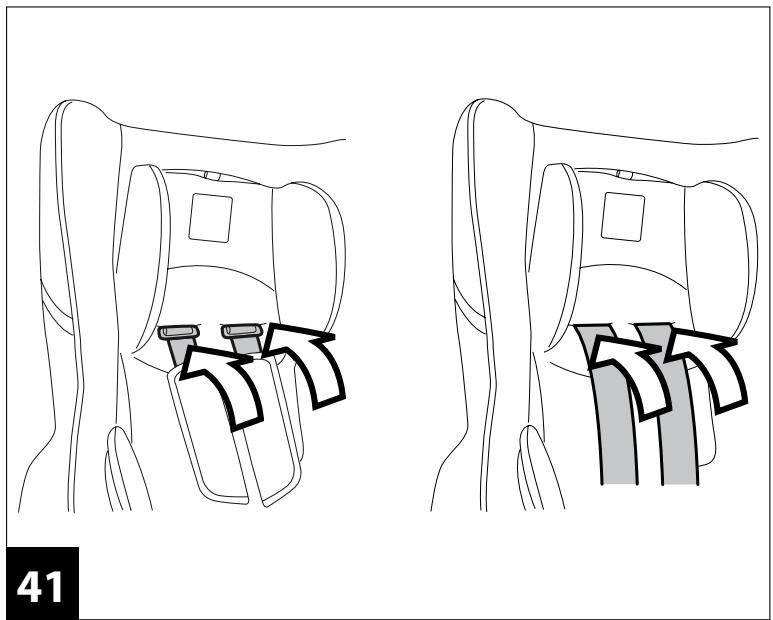

7. Insert the straps through the soft cover, starting with the buckles.
8. Lengthen the straps and insert them through the body of the car seat (the straps in the upper hole and the buckles in the lower one).
9. Fasten them correctly on the rear, as shown in the figure.

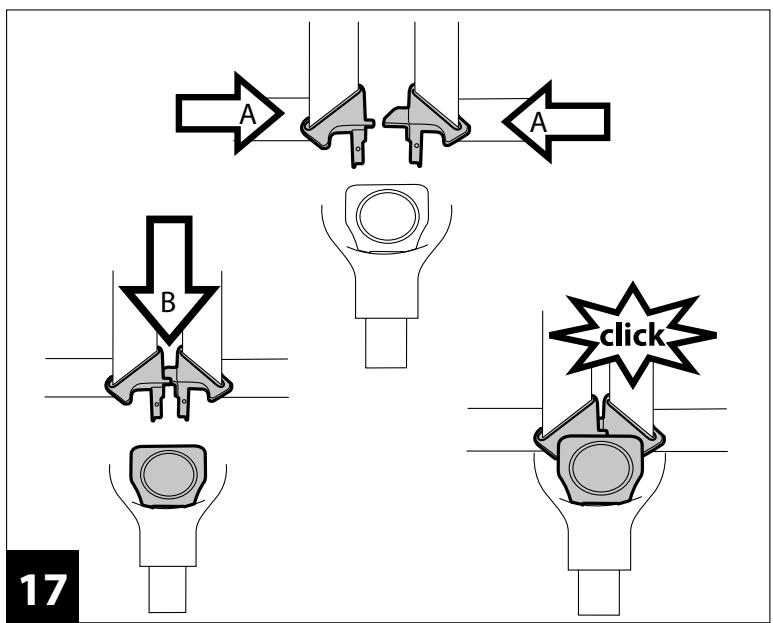

10. Fasten the harness at the front (point 17).

IMPORTANT: The straps must not be twisted.

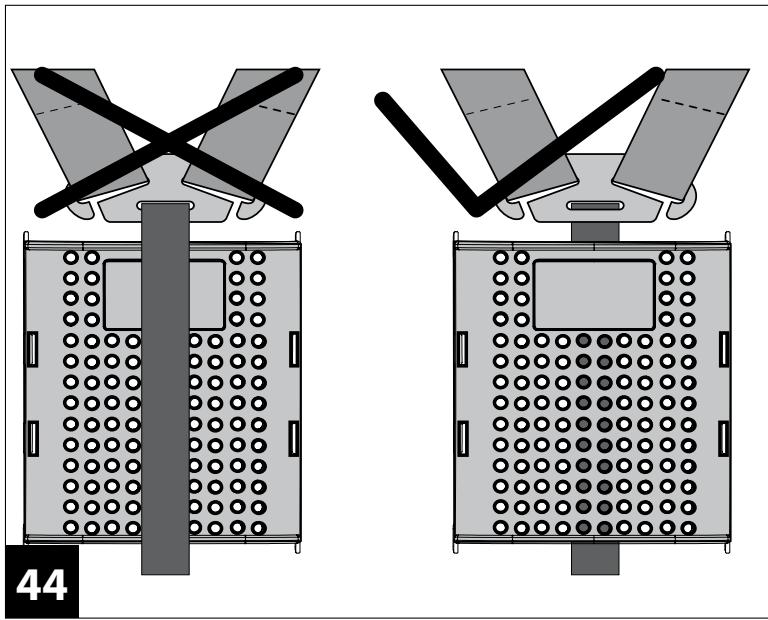

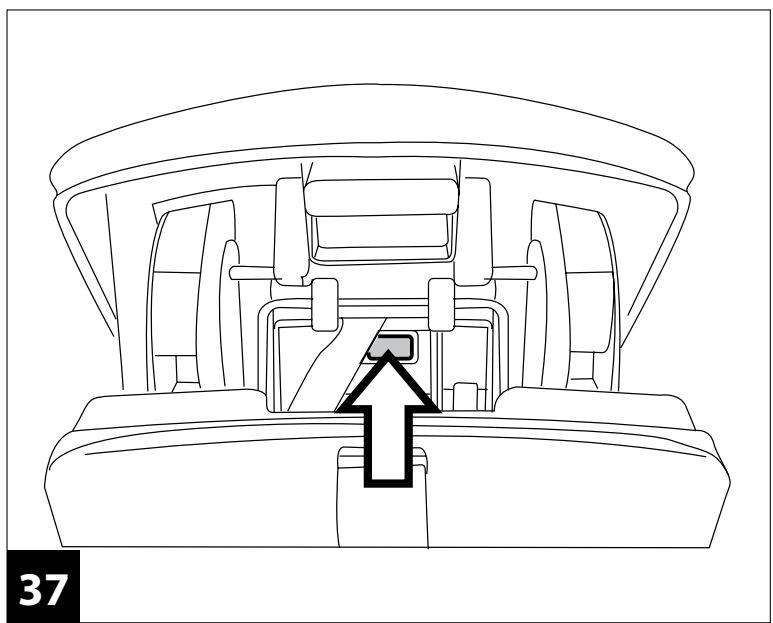

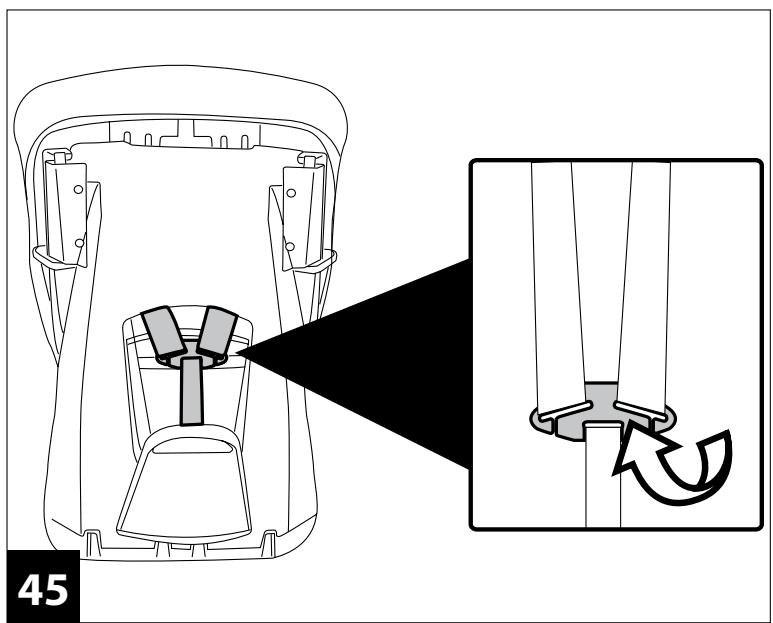

1. ATTENTION: The central adjustment strap must pass between the body and the plastic shield, as shown.

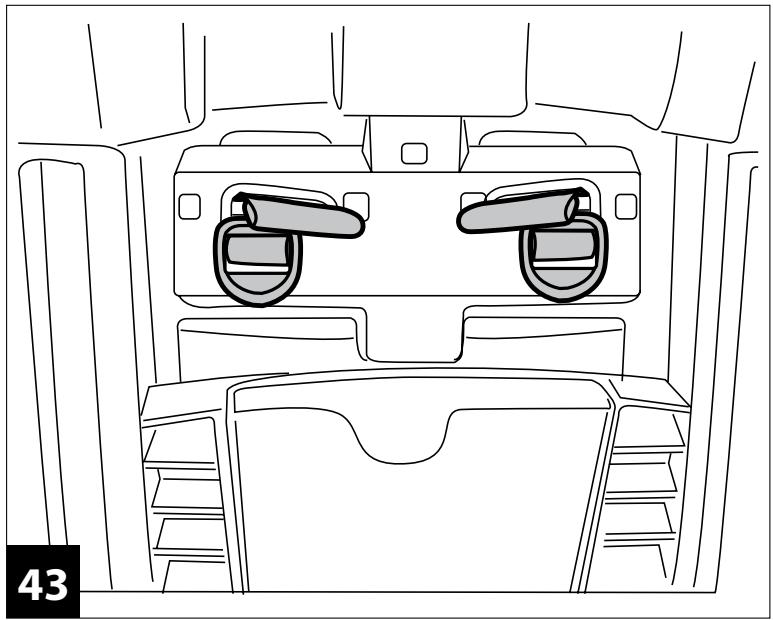

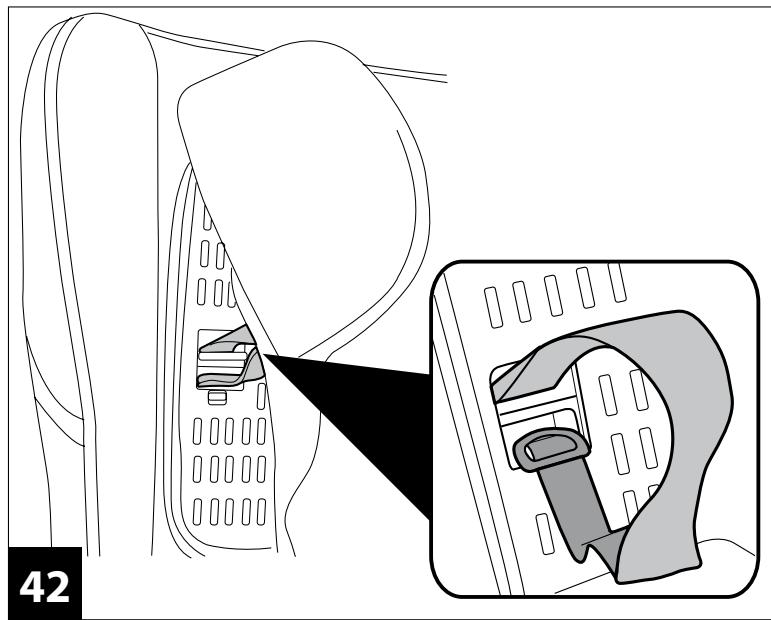

2. Open the rear panel and fasten the straps onto the rear latch plate.

3. Fasten the straps from the front (point 16).

4. For infants and for use in Group 0+ mode, reposition the booster cushion.

Serial numbers

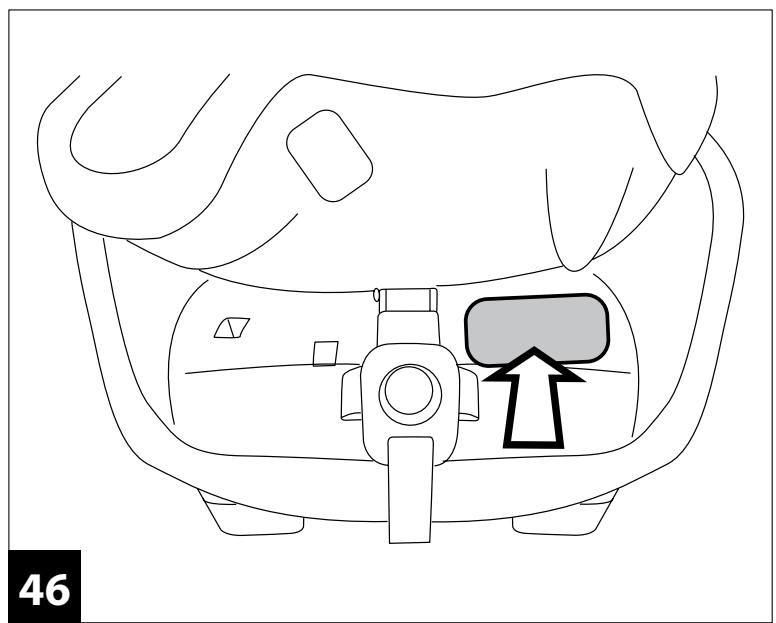

1. The following information can be found under the seat of the "Viaggio 0+1 Switchable": product name, production date and serial number.

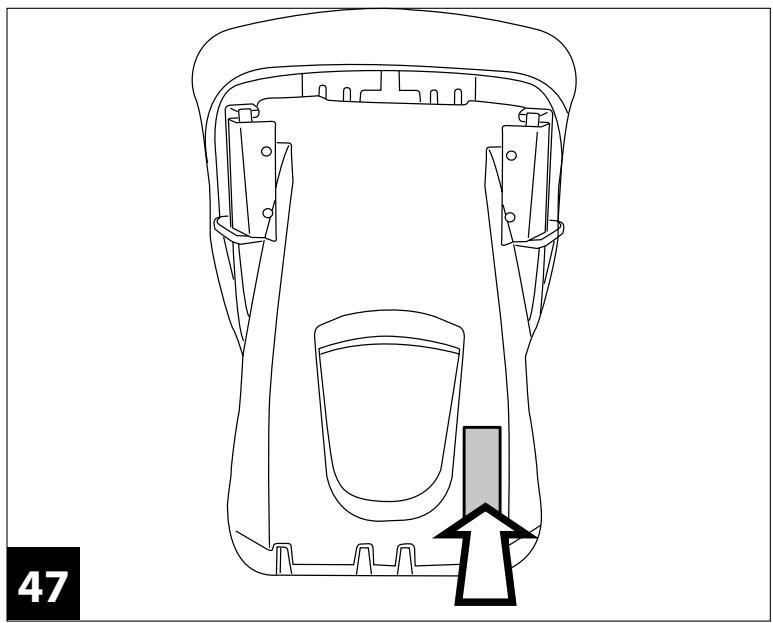

2. The type approval label can be found behind the backrest of the "Viaggio 0+1 Switchable".
3. Harness production date. In the event of problems with the product, these details will be of use to customers.

Product cleaning

• This product requires minimal maintenance. Cleaning and maintenance must only be carried out by adults.
• It is advisable to keep all the moving parts clean.
• Clean the plastic parts periodically with a damp cloth. Do not use solvents or similar substances.
• Brush the fabric parts to remove dust.
• Do not clean the polystyrene shock absorbing device with solvents or other similar products.
• Protect the product from atmospheric agents: humidity, rain or snow. Extended exposure to sunshine can cause colour changes in many materials.
• Store the product in a dry environment.

How to read the type approval label

• This paragraph explains how to interpret the type approval Label (orange label).
• This car seat is type approved for one type of installation in vehicles: attachment system with static or inertia-reel three-point seatbelts (the term UNIVERSAL indicates compatibility of the car seat with vehicles fitted with this type of seatbelt).
• The top of the label displays the trademark of the manufacturing company and the name of the product.
• The letter E in a circle indicates the European type approval mark and the number indicates the country

that issued the type approval (1: Germany, 2: France, 3: Italy, 4: Netherlands, 11: Great Britain, 24: Ireland).

• Type approval number: if it starts with 04, this indicates the fourth amendment (the one currently in force) of Regulation R44.
  Reference standard: UN/ECE R44/04.
• Production serial number: on issue of type approval, each car seat is personalised with its own number.

PEG-PEREGO S.p.A.

Peg-Perego S.p.A. is an ISO 9001 certified company. This certification is a guarantee for customers and consumers of the transparency and trustworthiness of the company's procedures and working methods. Peg Perego can make changes

at any time to the models described in this publication for technical or commercial reasons. Peg Perego is at the disposal of its customers and consumers to ensure that all their demands and queries are fully satisfied. It is a key part of our policy to ensure we are always aware of our customers' views and requirements. We would therefore be very grateful if, after using a Peg Perego product, you take the time to fill in our CUSTOMER SATISFACTION QUESTIONNAIRE, making a note of any comments or suggestions you might have. You can find the questionnaire on the Peg Perego website: www.pegperego.com

Peg-Perego after-sales service

If any parts of the item get lost or damaged, only use genuine Peg Perego spare parts. For any repairs, replacements, information on the products and sales of genuine spare parts and accessories, contact the Peg Perego Assistance Service and state the serial number of the product, if present.

tel. [phone]

fax [phone]

e-mail [e-mail]

website www.pegperegco.com

KO_Korean

删其删比如卡思日将自用，至从者相

Group 0+(0~13kg)

·優勝 `安進 基種 ECE R44/04を協調溝し 13kg(巔12개일)んだuringはngな
·的本的自动，当上
·本卡时是自动的用国，转行，电明者为。0+士斯和有宣在南子
·在中夏拉贝它藏在I前，我多望抱多，多大，美中，其
的就到默默，从“乐”
·UN/ECE No.16 に、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、上、
-2種種に、はリルデリがとて、はうの。

Group 1 "Universal" with vehicle seatbelt

·優勝広貿のECE R44/04を溝徹ngthenあき県むましだ9~18kg( acronym 9개일~4년)應用が通過得很好。
·的本的自动当在当
·사용illum서에서illum에이는 기회려그름1(9~18kg)
지스심에고本身就고有的모자동chaft에
일목제 죽후 기회의 기회
·在同中拉贝尔是不的，且在，多日，多日，多日，多日，多日，多日，多日，多日，多日，多日，多日，多日，多日，多日，多日，多日，多日，

IMPORTANT (購股資訊表請來！！)

·本卡司是 其 _ 0 ^ 一 ( 0 ) （2号 0 + (0 13kg) ）上从人用的士是的
.對音軸用，如：
·當自書就前項背常識到者，皆為不實。請勿對此等人作出任何明示或暗示。
·iJ

·明默i该音将当韵歌云在法动相之的者之用以回信一国

WARNING (艹)

·譯者承認，本章程之内容不時變動，將會對本章程之内容產生影響。請參閱本公司於2014年3月1日刊登的《中國證券報》及《上海证券報》上刊發的公告。
·IiJ.
·.a如]卡司电云时，
·默行中，当有事时，应立即通知对方，以避免发生意外。
·默行中，当有事时，应立即通知对方，以避免发生意外。
·賈吾子莊樂里藏古難到南日
·是行中时，当。
·締明從己の図を説明に、締明令。
- 3plet栖SiTeBelt是高呈DaaHae已定的，且也J时不能在的。
·.加克的阿之为，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，中，
·.自通者运行中日阿在卡思上，
·自通者云目之自通者，而从，有自的，有
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
·卡尼德是阿机的数用到用约当如自
·卡思日有贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝

用
·卡思捷世田はこは産言音音安前，山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山
·.丶的思S。如卡，T 1
·譜譜部卑詠藏部華藥音和韻賊用如內記，馬樂。半默藥而，亦書者，皆不言其言。
·か車連の広広に本音基本也在用は言言者舌馬和歌山中音也。此前，音和时，神的。對上是的，音之。歌山中，音。歌山中，音。歌山中，音。歌山中，音。歌山中，音。歌山中，音。歌山中，音。歌山中，音。歌山中，音。歌山中，音。歌山中，音。歌山中，音。歌山中，音。歌山中，音。歌山中，音。歌山中，音。歌山中，音。歌山中国，音。歌山中国，音。歌山中国，音。歌山中国，音。歌山中国，音。歌山中国，音。歌山中国，音。歌山中国，音。歌山中国，音。歌山中国，音。歌山中国，音。歌山中国，音。歌山中国，音。歌山中国，音。歌山中国，音。歌山中国，音。歌山中国，音。
·. . 1
·卡思德是阿机为承用者不加之的国本
·譯善上面n加之在，之日l07年1我成和法一用
·該正相法の通行はが発言を言之言言言言言言言言言言言言言言言言言言言言言言言言言言言言言言言言言言言

Instructions for use

UNIVERSIAL CATEGORY-Belted

Group 0+

Fastening with seatbelts

Group 0+ 返返到原点，当创建者完成创建（如图1-4所示）时，将返回到原点。

1. A 卡思捷巴默斯就任的杰多夫格莱特加长刘德都用 者从 有 于 以 为 A 和 B 射 里斯到 当 程 谐 那 有 有 有 有

C(各豆主部L)到大一的当越则大一的，

1. 这部0+的用法从上到下都可。

3.그름과 갔이 휸보기로 죽申請사다.자동자서울만 휸지에违法行为을 휸지에 기재고 썼개 기재로 휸과 사물다.
- 从何将此地由远而近的景物与历史的联系起来？（A）如何通过历史的逻辑，让历史与现实之间的关系更加紧密？
- beltei 10
4. フリデルトはウシャの約は広はリドリ(0)を通和に
奎岡：日电贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝贝

Instructions for use

UNIVERSAL CATEGORY - Belted Group 1

Fastening with seatbelts

An anten belte ro jatck hcn bavb (g 5~13bn selmy nni da.)

1. Group 0+ 对于 Group 1 的步骤，首先使用“OK”命令，然后在“开始”选项卡中选择“加载”按钮。
2. 这組里，你与谁一起做？（提前）
   7.자동 chair'sitbetltaKsiTtvoLROBdaIeJTH
   和siriKgWHeHrKaS的同bA)
   8.자동사서트본트를 기재워에 키리지의 퍕류일과 전제 사어를 쓸과시knife다.
3. 赫利 belt 是あら一部本のがい連を通かは奉zeitを當て從者自動車の車上通行と乗務士の必対の状態に
4. ハリデルは効な状態を用む。
5. 친지드 하단에 올는 기다이 퍷드 셐plet 레버(A)를 기고 펑래일을 B체류일만서 친지드가 퍷타로 퉽지 하개목 하SEE요.
6. 暗淡的音楽曲のsteady fix device(決定性を満足)

[当]将 A 从 A 到 B，A 从 B 到 B，B 从 B 到 B，B 从 B 到 A，A 从 A 到 B，B 从 B 到 A，A 从 A 到 B，B 从 B 到 A，A 从 A 到 B，B 从 B 到 A，A 从 A 到 B，B 从 B 到 A，A 从 A 到 B，B 从 B 到 A，A 从 A 到 B，B 从 B 到 A，A 从 A 到 B
13. A SiTbeBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBtBb

How to secure your child in the "Viaggio 0+1 Switchable" car seat

고richnm的 uha to anrtohge tchngtiKn 14~21bn
14. 乌啊到卡时电上歌他之，自起的贝德的
15.고정[beltr]류로울려서양심에 odds고무번호부acht 하neo.
16. 乌古将卡尼德里安的父母在阿卡的家，和哈拉克的家。
17. A 連同隸同，即各一。B 連同，而，也
18. 这段译码法的正确之处是（）
19. 沙日默以或中音自，当国，而为。
A ahii o 100000000000000000000000000000000000000000000000000000000000000000000
20. バルトを乗Hz産むは、は舌の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部的上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の上部の
A
21. 备註單選是あみ眷習はあき広に呂営駅か。承認。
3. 連連連連。
·基本面的变动，即市场波动，如股市下跌、经济衰退、战争等。
- 布克格森是 Group 1 形成的。如果想使用它, 那么请在下面的链接中找到一个链接。

How to adjust the height of the headrest

Merrih

조plet방 jur(그름 22~29선명)머리 갑심개는 사기 퍼이에 출개름조plet(7단계)해해 기다.

1. 啪羅剎乘士從戸向上行，自上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，从上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，從上而下，

町志明部山，用利回信。

1. 絕고：Group 0+ 影式化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化的、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化、自動化
2. 非標準的
3. 非標準的
4. 非標準的
5. 非標準的
6. 非標準的
7. 非標準的
8. 非標準的
9. 非標準的
10. 非標準的
11. 非標準的
12. 非標準的
13. 非標準的
14. 非標準的
15. 非標準的

16. 非標準的

17. Group 0+ 返売사용지 : 채선의 어集群드워지를 죽고 기회원해서 사기의 어集群는 출드지 어集群드가이드

보다 편에 어머 힍을명심하유요

1. ロービートはあきのあらをと舌上用金表かなあ表は広戸に。

2. 絕고 : 전방장recht(Group 1)에서는 퍷드목다가조plet장지를usa용해서는에 odds내.(가시트 ba dac의구조울을时常 기재장서만usa용해서는에 odds내.)

3. Group 1 彼德・サIGH・：「は政の広広を制て」。「は政の広広を制て」。「は政の広広を制て」。

4. ロ連はあきをがては、高さはうせをに状の。

5. A. 原码的首行是 1，所以它的首行是 5。

通回此主将用到，主将R(A)将南B(的）状或

How to remove the soft cover

SITR KUHBI BRII 30~ 35BnKUHBI (20), BILIRu HsHJi. (13.)

1. 虎臥 棋(艹) 章, 用以 电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电
2. 號箏에서 펋트를 썼다고 펋 펙에서 펋트를 当绝eon내고다.
3. 仄仄仄仄図を乗粦あて上沈かごは和き庁あて総部図則当從蔵利山。
   33.C詠嚴主詠総連則號索隸內認和隸隸。
   34.가rch이违法行为E侦法사지违法行为如此遂부터본지후F侦法违法行为如此违法行为，通过者立由
4. 35.35.35.35.35.35.35.35.35.35.35.35.35.35.35.35.35.35.35.35.35.35.35.35.35.35.35.35.35.35.35.35.35.35.

Soft cover maintenance

習得本分的時刻進行，就可

SITR KHTB TREKTHTREKTHTREKTHTREKTHTREKTHTREKTHTREKTHTREKTHTREKTHTREKTHTREKTHTREKTHTREKTHTREKTHTREKTHTREKTHTREKTHTREKTHTREKTHTREKTHTREKTHTREK

1. 陆ACKHJ\~30°C, 首是 100000000000000000000000000000000000000000000000000000000000000000

默斯皆是默斯策印册据到，幸有志于

daii

TrLaIeKRIng hJt MaSeY.

用樂

朝京

How to replace the soft cover of the "Viaggio 0+1 Switchable" car seat

外尼德贝德邦庄部（其36~45版）
36. 知律言者将“能”用到“能”或“能”或“能”或“能”或“能”或“能”或“能”或“能”或“能”或“能”或“能”或“能”或“能”或“能”或“能”或“能”或“能”或“能”或“能”或“能”或“能”或“能”或“能”或“能”或“能”或“能”
가름이 힘드를 썻버(anchok로다시 콀어머에요.(B)
37. 桂隆氏 テルチム フレーヤル バフチリ ユラリ ムフリ ラフリ ヤフリ リフリ ヤフリ チフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ モフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ヨフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフリ ダフリ ヤフRI

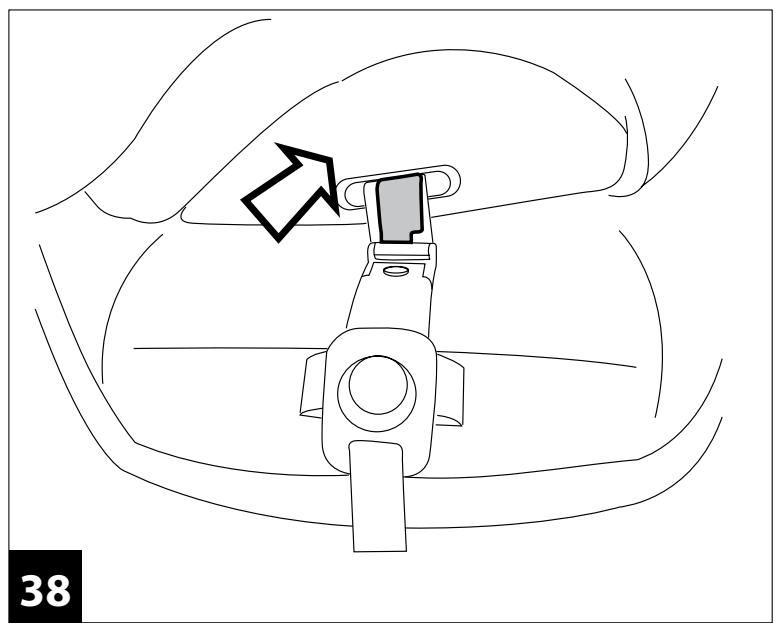

38. 힘부본을 가려이름드通過로 썸고로 기재고정사진다..
39. 虎佰佰朝朝的皇朝歌将君之所以朝从世制词将世制

TRE WOJIOI ROE GAOA MAFN TFEW NLO

1. 普天的格底版要到人，山，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，同，

2. 贝德则将韦格蒙特从尼古斯卡姆勒里拉到维也纳。

3. 莱德将格勒海姆卡恩德本部译为“海事船”（1960年）
   (1960年)

4. 發誌を説乗の説唱た。は令とは、舌歌上

A. 博贝特夫 典氏 用 可 言 阿 唐尼

44.주의：종류 썸개 힘는 키트본체와 헤라스트워 horse만이를 흥과해고 기다.

1. 虎之媒，将一言者，将一言者，将一言者，将一言者，将一言者，将一言者，将一言者，将一言者，将一言者，将一言者，将一言者，将一言者，将一言者，将一言者，将一言者，将一言者，将一言者，将一言者，将一言者，将一言者，将一言。

2. 啤菸丛部末，半夏末。(162)

3. 生成Group0+MoTnToWifHbEBoJQKxRtoJt

Serial numbers

1. 事連あらては制度，産生日日の日月を制成。

2. 呃音は言言音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音音

3. 这首《芭田》的名著《芭田》。该歌《芭田》在《芭田》中，是《芭田》的名著。

Product cleaning

·賈摯専紜貢吉判相引者日，貢對和貢吉判相則是反德士尚在日
·音刻日云在云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云云
·普拉斯提本版在主功具以理，到是朝以同
·鲁贝德卡乌萨普日是萨哈时马
·.日。
·舍豆，比丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丶丝

·增机关怎贝黄多者在远来报本的版集到主
·賛普言建正忘国贝表

How to read the type approval label <|im_start|>assistant How to read the type approval label <|im_start|>assistant <|im_start|>assistant How to read the type approval label

. 01 十陳是的在中化拉(有之)的用到程
.·.本卡司是的，自之，当动，3。此
·拉尅朝日卍樂在 期主歌社和音的上五
·원어에 기는 E는 유류인종마크를,本身就名为在其中報的是 naka列表 扎书面認。(1:복일,2:複讚斯,3:이라리,4:내 elralanr,11:영국,24:아일라드).
.在中回范起：4R 44
·摺止専(五)UN/ECE R44/04
·賊音日，：卡，是的，其，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，，

PEG-PEREGOS.p.A.

删其删放記是ISO9001a.

其他删放記的是能合和通呈的也用

焉其者令同，用之，而有之。

www.pegperego.com 音插贝IZiEe 电子，

Peg-Perego after-sales service

删上删比和A/S本音是本信成的，况上就到时
是反的，当
是，

Tel:[phone]

Email: [e-mail]

website: www.pegperegco.co.kr

www.pegperego.com

FIKR1201165 - 10/12/2012

All of the intellectual property rights for the contents of this instruction manual belong to PEG PEREGO S.p.A. and are protected by the laws in force.

VIAGGIO O+1

SWITCHABLE
