Type de produit	Micro-ondes avec gril
Marque	GORENJE
Modèle	MMO20DGEII
Capacité	17 litres
Puissance micro-ondes	700 W
Puissance gril	1000 W
Consommation électrique	230 V ~ 50 Hz, 1050 W
Dimensions extérieures (L x H x P)	595 mm x 384 mm x 320 mm
Poids net	Environ 14 kg
Fréquence de fonctionnement	2450 MHz
Niveau sonore	Lc < 58 dB(A)
Fonctions	Micro-ondes, Gril, Combinaison 1 (20% MO + 80% Gril), Combinaison 2 (30% MO + 70% Gril), Combinaison 3 (40% MO + 60% Gril), Décongélation
Minuterie	0 à 35 minutes
Sécurité	Verrouillage de sécurité des portes, arrêt automatique à l'ouverture
Nettoyage	Intérieur et extérieur avec chiffon humide ; plateau en verre lavable au lave-vaisselle
Installation	Surface horizontale solide, ne pas obstruer les ouvertures de ventilation
Accessoires fournis	Plateau en verre, anneau rotatif, gril
Réparabilité	Faire appel à un service agréé Gorenje pour toute réparation
Environnement	Ne pas jeter avec les déchets ménagers, recycler dans un point de collecte

FOIRE AUX QUESTIONS - MMO20DGEII GORENJE

Comment installer le micro-ondes MMO20DGEII ?

Placez l'appareil sur une surface horizontale solide capable de supporter son poids (environ 14 kg). Assurez-vous qu'il est éloigné des sources de chaleur et de vapeur. Ne bloquez pas les ouvertures de ventilation. Branchez-le sur une prise de courant mise à la terre (230 V/50 Hz).

Quels ustensiles puis-je utiliser dans ce micro-ondes ?

Utilisez uniquement des récipients adaptés au micro-ondes : verre, céramique, plastique spécial micro-ondes. N'utilisez jamais de récipients métalliques, d'ustensiles avec des parties métalliques, de papier aluminium ou de vaisselle mélaminée. Pour le gril, utilisez la grille fournie.

Comment nettoyer l'intérieur du micro-ondes ?

Nettoyez régulièrement l'intérieur avec un chiffon humide et un détergent doux non abrasif. Pour les odeurs, placez une tasse d'eau avec du jus et de l'écorce de citron et chauffez 5 minutes, puis essuyez. Le plateau en verre et l'anneau rotatif peuvent être lavés au lave-vaisselle.

Que faire si de la fumée sort du micro-ondes ?

Éteignez immédiatement l'appareil ou débranchez-le, mais laissez la porte fermée pour étouffer les flammes. N'ouvrez pas la porte avant que la fumée ne se dissipe. Vérifiez ensuite l'intérieur et retirez tout aliment carbonisé.

Puis-je faire cuire des œufs durs au micro-ondes ?

Non, ne faites jamais chauffer d'œufs dans leur coquille ou des œufs durs entiers, car ils peuvent exploser, même après la cuisson. Pour les œufs brouillés ou pochés, percez le jaune avant de chauffer.

Comment décongeler des aliments avec ce micro-ondes ?

Placez les aliments congelés au centre du four. Tournez le bouton de puissance sur la position DEFROST (décongélation). Réglez le temps de cuisson avec la minuterie. Pour une décongélation homogène, retournez ou remuez les aliments à mi-temps.

Quels sont les différents modes de cuisson disponibles ?

Ce micro-ondes propose : Micro-ondes seul (700 W), Gril (1000 W), et trois modes de Combinaison : Combinaison 1 (20% micro-ondes + 80% gril), Combinaison 2 (30%+70%), Combinaison 3 (40%+60%). La décongélation est également disponible.

Comment régler la minuterie ?

Tournez le bouton de minuterie (0-35 minutes) dans le sens horaire pour sélectionner le temps souhaité. Le four s'allume automatiquement. À la fin du temps, un signal sonore retentit et le four s'arrête. Pour arrêter avant la fin, tournez le bouton sur 0.

Que faire si le micro-ondes ne fonctionne pas ?

Vérifiez d'abord que l'appareil est bien branché et que la prise fonctionne. Assurez-vous que la porte est bien fermée. Vérifiez le fusible ou le disjoncteur. Si rien ne marche, contactez le service après-vente Gorenje.

Comment utiliser la fonction gril ?

Placez les aliments sur la grille fournie, elle-même posée sur le plateau en verre. Tournez le bouton de puissance sur GRILL, réglez la minuterie. Convient pour les steaks, brochettes, saucisses, gratins. Pour des résultats optimaux, retournez les aliments à mi-cuisson.

MODE D'EMPLOI MMO20DGEII GORENJE

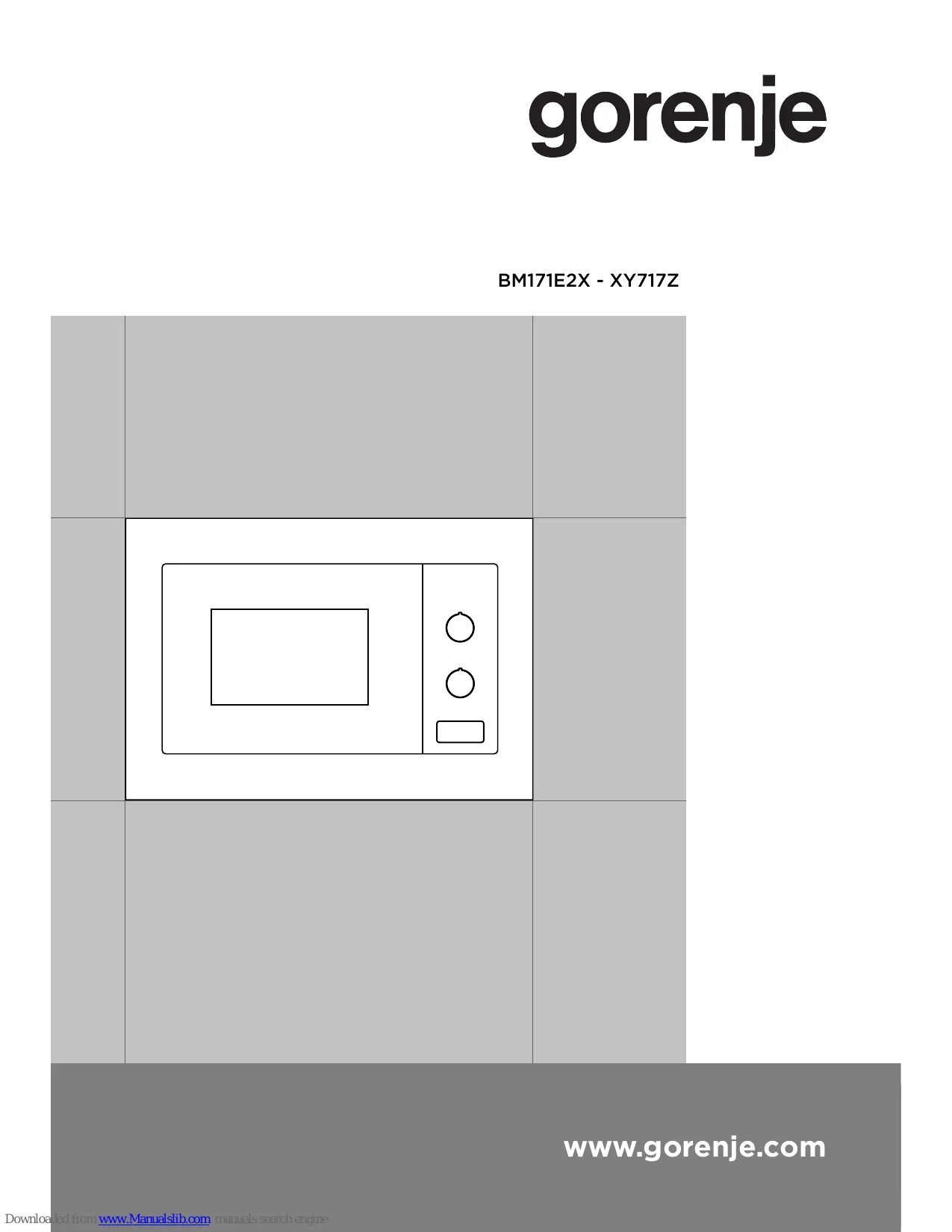

gorenje

BM171E2X - XY717Z

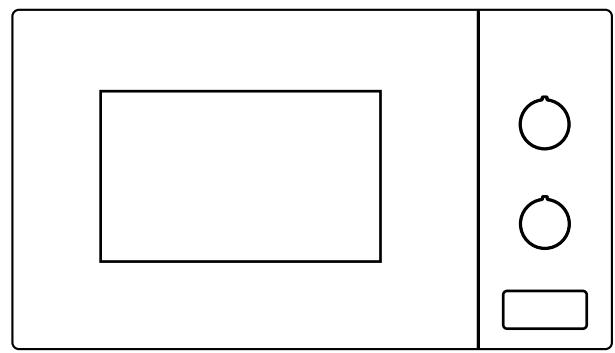

Simple line drawing of a microwave oven with front panel and side control buttons (no text or symbols)

DEAR CUSTOMER

We sincerely thank you for your purchase. We believe you will soon find ample evidence that you can really rely on our products. To make the use of the appliance easier, we attach these comprehensive instruction manual.

The instructions should aid you in getting familiar with your new appliance. Please, read them carefully before using the appliance for the first time.

In any case, please make sure the appliance was supplied to you undamaged. Should you identify and transport damage, contact your sales representative or the regional warehouse from where the product was delivered. You will find the telephone number on the receipt or delivery report.

We wish you a lot of pleasure with your new household appliance.

The appliance for household use for heating food and beverages using electromagnetic energy, for indoor use only.

INSTRUCTIONS FOR USE

These instructions are intended for the user.

They describe the cooker and how to use it. They also apply to different types of appliances, therefore you may find some descriptions of functions that may not apply to your appliance.

Never touch the surfaces of heating or cooking appliances. They will become hot during operation. Keep children at a safe distance. There is a risk of burning!

Microwave energy & High voltage! Do not remove the cover.

WARNING! The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

- WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function)

• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;
• WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;
• WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.
• Children should be supervised to ensure that they do not play with the appliance.
• Don't remove oven's feet, do not block air events of the oven.
• Only use utensils that are suitable for use in microwave ovens.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;

• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;

• When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.

• The oven should be cleaned regularly and any food deposits removed;
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not let the cord hang over the edge of the table or worktop.
• Never connect this appliance to an external timer switch or remote control system in order to avoid a hazardous situation.
• Never replace the light bulb inside the oven. It must always be replaced by Gorenje service.
• Do not clean the appliance with steam cleaners, high-pressure cleaners, sharp objects, abrasive cleaning agents, and abrasive sponges and stain removers.

SAFETY INSTRUCTIONS FOR GENERAL USE

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.
4. Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.
5. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc without first being pierced several times with a fork.
6. Do not insert any object into the openings on the outer case.
7. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.
8. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.

IMPORTANT - COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN

• Do not use metal pans or dishes with metal handles.
• Do not use anything with metal trim.
• Do not use paper covered wire twist-ties on plastic bags.
• Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.
• Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used.
• Do not cook in a container with a restricted opening, such as a pop bottle or sealed oil bottle, as they may explode if heated in a microwave oven.
• Do not use conventional meat or candy thermometers.

• There are the thermometers available specifically for microwave cooking. These may be used.

• Microwave utensils should be used only in accordance with manufacturer's instructions.

• Do not attempt to deep-fry foods in this oven.

• Please remember that a microwave oven only heats the liquid in a container rather than the container itself. Therefore, even though the lid of a container is not

hot to the touch when removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.

1. Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.
2. Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.
3. When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.
4. Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.
5. To reduce the risk of fire in the oven cavity:

a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
b) Remove wire twist-ties from bags before placing bag in oven.
c) If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.

1 - Timer Knob (0-35 Minutes)

Simple circular diagram with water droplet and wave symbols, no text or labels present

2 - Cooking Power Control knob

1. Door Safety Lock System
2. Oven Window
3. Roller Ring
4. Glass Tray
5. Control Panel
6. Wave guide (please do not remove the mica plate covering the wave guide)

Grill rack (Only be used for grill or for combination function and be placed on glass tray

Line drawing of a simple outdoor table with slatted top and legs (no text or symbols)

OPERATION INSTRUCTION

STOPPING THE COOKING

DEFROST COOKING

1. To stop temporarily; Open the door. Result: Cooking stops. To resume cooking close the door.
2. To stop completely: turn the Timer knob to »O«.

The defrost feature enables you to defrost meat, poultry and fish. First place the frozen food in the centre of cavity and close the door.

1. Turn the Cooking Power Control knob to DEFROST.
2. Turn the Timer knob to select the appropriate time. The oven light comes on.

MICROWAVE COOKING

NOTE: The microwave will run through the time set. An acoustic signal sound when the time expires. You can change the cooking time whenever you like.

The following procedure explains how to cook or reheat food. Always check your cooking settings before leaving the oven unattended. First place the food in the centre of cavity and close the door.

1. Set the power level by turning Cooking Power Control knob.
2. Set the time by turning Timer knob. The oven light comes on.

COMBINATION COOKING 1

NOTE: The microwave will run through the time set. An acoustic signal sound when the time expires. You can change the cooking time whenever you like.

20% time for microwave cooking, 80% for grill cooking. Use for fish or au gratin.

Suppose you want to set combination 1 and cooking for 25 minutes. Open the door and place the food into the oven, close it.

1. Set the power level by turning Cooking Power Control knob to COMB 1.
2. Set the time by turning Timer knob to 25min. The oven light comes on.

NOTE: The microwave will run through the time set. An acoustic signal sound when the time expires. You can change the cooking time whenever you like.

COMBINATION COOKING 2

COMBINATION COOKING 3

GRILL

30% time for microwave cooking, 70% for grill cooking. Use for puddings omelettes, baked potatoes and poultry.

Suppose you want to set combination 2 and cooking for 25 minutes. Open the door and place the food into the oven, close it.

1. Set the power level by turning Cooking Power Control knob COMB 2.
2. Set the time by turning Timer knob to 25min. The oven light comes on.

NOTE: The microwave will run through the time set. An acoustic signal sound when the time expires. You can change the cooking time whenever you like.

40% time for microwave cooking, 60% for grill cooking. Use for puddings omelettes, baked potatoes and poultry.

Suppose you want to set combination 3 and cooking for 25 minutes. Open the door and place the food into the oven, close it.

1. Set the power level by turning Cooking Power Control knob to COMB 3.
2. Set the time by turning Timer knob to 25min. The oven light comes on.

NOTE: The microwave will run through the time set. An acoustic signal sound when the time expires. You can change the cooking time whenever you like.

The grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages of piece of chicken. It is also suitable for hot sandwiches and an gratin dishes.

For example, suppose you want to grill for 12 minutes. Open the door and place the food into the oven, close it.

1. Set the power level by turning Cooking Power Control knob to GRILL.
2. Set the time by turning Timer knob to 12min. The oven light comes on.

NOTE: The microwave will run through the time set. An acoustic signal sound when the time expires. You can change the cooking time whenever you like.

1. Turn the oven off and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters of spilled liquids adhere to oven walls, wipe with a damp cloth. The use of harsh detergent or abrasives is not recommended.
3. The outside oven surface should be cleaned with a damp colth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents, abrasives or spray-on cleaners on the control Panel.
5. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.
6. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
7. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be washed in mild sudsy water or dish washer. Cooking vapours collect during repeated use but in no way affect the bottom surface or roller ring wheels. When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.
8. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly and dry with a soft cloth.

ENVIRONMENT

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

INSTALLATION

1. Make sure all the packing materials are removed from the inside of the door.
2. Inspect the oven after unpacking for any visual damage such as:
3. Misaligned Door
4. Damaged Door
5. Dents or Holes in Door Window and Screen

6. Dents in Cavity
   If any of the above are visible, DO NOT use the oven.

7. This Microwave Oven weighs 14 kg and must be placed on a horizontal surface strong enough to support this weight.

8. The oven must be placed away from high temperature and steam.
9. DO NOT place anything on top of the oven.
10. DO NOT remove the turn -table drive shaft.
11. As with any appliance, close supervision is necessary when used by children.
12. Make sure that the AC outlet is easily accessible so that the plug can be removed quickly in an emergency. Otherwise, it should be possible to disconnect the device using a switch from the circuit. In this case, the existing provisions of the electrical safety standards are considered. The product has to be correctly installed on earthed socket with a single-phase AC (230 V/50 Hz). WARNING! THIS APPLIANCE MUST BE EARTHED!
13. This oven requires 1.2 KVA for its input consultation with service engineer is suggested when installing the oven.

CAUTION: This oven is protected internally by a 250V, 10 Amp Fuse.

SPECIFICATIONS

RADIO INTERFERENCE

Power consumption....230V\~50Hz, 1050W

Output power 700W

Grill heater....1000W

Operating Frequency 2450MHz

Outside Dimensions.....595mm(W) x 384mm(H) x 320mm(D)

Oven Capacity....17 litres

Uncrated Weight ....Approx. 14 kg

Noise level.....Lc < 58 dB (A)

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.

a) Clean the door and sealing surface of the oven.
b) Place the radio, TV, etc. as far away from your microwave oven as possible.
c) Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

WE RESERVE THE RIGHT TO MAKE ANY CHANGES THAT DO NOT AFFECT THE FUNCTIONALITY OF THE APPLIANCE.

BUILT-IN CABINET

INSTALL THE OVEN

Diagram showing a device with an open lid and a magnified view of its internal components (no text or symbols)

Diagram showing a device with an open panel and a magnified inset view of its internal components (no text or symbols)

1. If the oven will not perform at all, the information on the display does not appear or the display disappeared:

a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

1. If the microwave power will not function:

a) Check to see whether the timer is set.
b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven.
If none of the above rectify the situation, then contact the nearest authorized service agent.

The appliance for household use for heating food and beverages using electromagnetic energy, for indoor use only.

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

Additional recommendations for cooking with microwave and useful advices can be found on web side:

http://www.gorenje.com

WISHES YOU A LOT OF PLEASURE WHILE USING YOUR APPLIANCE

gorenje

NOTES

NOTES

www.gorenje.com
