Type de produit	Cafetière à dosettes T DISCS
Marque	Bosch
Modèle	TASSIMO MY WAY TAS6504
Dimensions (approx.)	30 x 20 x 35 cm
Poids (approx.)	3 kg
Alimentation	220-240 V, 50-60 Hz, 1500 W
Capacité du réservoir d'eau	1,2 L
Pression	15 bar
Système de dosage	Dosettes T DISC avec code-barres
Fonctions principales	Préparation automatique de café, thé, chocolat chaud et boissons lactées
Réglages	Intensité, température et taille de la boisson selon le type de T DISC
Nettoyage	Cycle de nettoyage avec T DISC de service orange, détartrage automatique avec pastilles
Indicateurs	Niveau d'eau, détartrage, statut de préparation
Sécurité	Arrêt automatique, protection contre les brûlures, verrouillage de l'unité d'infusion
Pièces détachées	Réservoir d'eau, support T DISC, unité de perçage, grille d'égouttage
Réparabilité	Service client Bosch et centres agréés
Accessoires inclus	T DISC de service orange, pastilles de détartrage
Utilisation prévue	Usage domestique uniquement, en intérieur
Garantie	Selon les conditions du pays de vente

FOIRE AUX QUESTIONS - TASSIMO MY WAY TAS6504 BOSCH

Comment utiliser la machine TASSIMO MY WAY ?

Insérez une dosette T DISC dans l'unité d'infusion, fermez le couvercle, placez une tasse, puis appuyez sur le bouton Start/Stop. La machine lit le code-barres et prépare la boisson automatiquement.

Pourquoi la machine ne démarre-t-elle pas ?

Vérifiez que la machine est branchée et que le réservoir d'eau est bien inséré. Assurez-vous qu'une dosette T DISC est présente et que le couvercle est bien fermé.

Que faire si l'eau ne coule pas ?

Si le réservoir est correctement inséré mais que l'eau ne coule pas, il peut y avoir de l'air dans le système. Lancez un cycle de nettoyage avec le T DISC de service orange (voir la notice).

Comment détartrer la machine ?

Utilisez des pastilles de détartrage TASSIMO (réf. TCZ6004). Suivez les instructions dans la notice : remplissez le réservoir d'eau, ajoutez la pastille, puis lancez le programme de détartrage via le bouton 'Descale'.

Que faire si le voyant 'Fill water tank' reste allumé alors que le réservoir est plein ?

Le flotteur dans le réservoir peut être bloqué. Nettoyez le réservoir et vérifiez que le flotteur bouge librement. Réinsérez le réservoir correctement.

Puis-je utiliser n'importe quelle dosette ?

Non, utilisez uniquement des dosettes T DISC originales TASSIMO. Les dosettes non compatibles peuvent endommager la machine.

Comment nettoyer l'unité d'infusion ?

L'unité d'infusion (perceur et support T DISC) est amovible. Nettoyez-la avec un chiffon humide et doux. Ne pas immerger dans l'eau.

La machine affiche 'Descale' même après détartrage, que faire ?

Il se peut que le détartrage n'ait pas été terminé correctement. Refaites un cycle complet. Si le problème persiste, contactez le service client.

La boisson n'a pas assez de créma, pourquoi ?

La sortie boisson peut être obstruée ou la machine a besoin d'être détartrée. Nettoyez la sortie et effectuez un détartrage.

Où puis-je trouver des pièces de rechange et le service après-vente ?

Les pièces détachées et le service client sont disponibles sur www.bosch-home.com ou www.tassimo.com. Contactez le service client Bosch pour une réparation.

MODE D'EMPLOI TASSIMO MY WAY TAS6504 BOSCH

TAS60xxGB

en Instruction manual

1

1 English

en Safety instructions

en At a glance

en Troubleshooting

en Risk of electric shock!

en Risk of burns!

Intended use

This appliance is intended for domestic use only.

Only use the appliance indoors at room temperature and up to 2000 m above sea level.

Important safety information

Please read parts 1 and 2 of these manuals carefully before using the product and keep them for future reference.

Pass them on to all users. This appliance may be used by children aged 8 years and older and by persons with reduced physical, sensory or mental capabilities or who lack experience and/or knowledge if they are supervised or have been given instruction in the safe use of the appliance and have understood the dangers involved. Children may not play with the appliance.

Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance.

For optimum results, fill the tank only with cool, fresh, non-carbonated water each day.

Do not use chemically softened water.

Never leave the appliance unattended while it is in operation!

Risk of electric shock!

• Operate and connect the appliance only in accordance with the instructions given on the nameplate.
  The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic supply has been correctly installed.
  Before cleaning the appliance, pull out the mains plug.
  Only use your TASSIMO appliance if the power cable and appliance show no signs of damage.
• Disconnect the appliance from the mains as soon as a fault is detected.
• Any repairs, such as replacing a damaged power cable, may only be carried out by our Customer Services team in order to avoid potential danger.
• Never immerse the appliance or power cable in water.
• Avoid spillage on the connector.

Risk of burns!

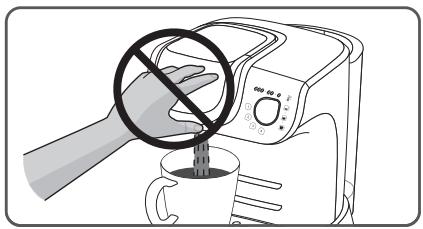

• Never attempt to open the brewing unit during operation. Please note that any escaping liquids will be very hot. The T DISC, the piercing unit and the beverage outlet may be very hot immediately after brewing. Allow to cool first.
• Do not use T DISCs that are damaged.
  Only use each T DISC once.

Risk of injury!

A misuse of the appliance can potentially lead to injury.
Under no circumstances you should drink the descending liquid.

Risk of suffocation!

• Do not allow children to play with packaging material.

Caution!

• Cleaning surfaces which come into contact with foodstuffs! Please note the special information on cleaning in the illustrated instructions.

Before reading on, please unfold the illustrations page at the start of the booklet.

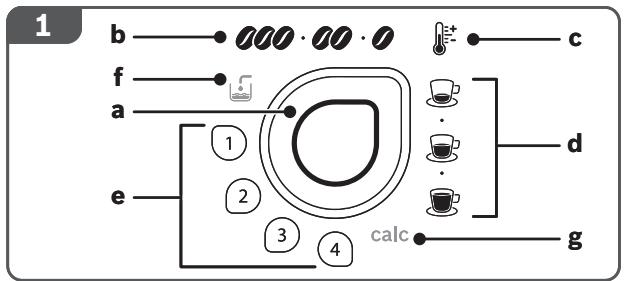

1 Control panel

a Start/Stop button with status display
b Display Buttons for drink intensity 00
c Display因地制宜
d Display/btns for drink size
e Display/btns for saving and calling up individual settings ①
f Display "Fill water tank"
g Display/button „Descale“ calc

2 Removable water tank

a Lid with handle (removable)
b max mark
c "Dscaling" calc mark
d Float

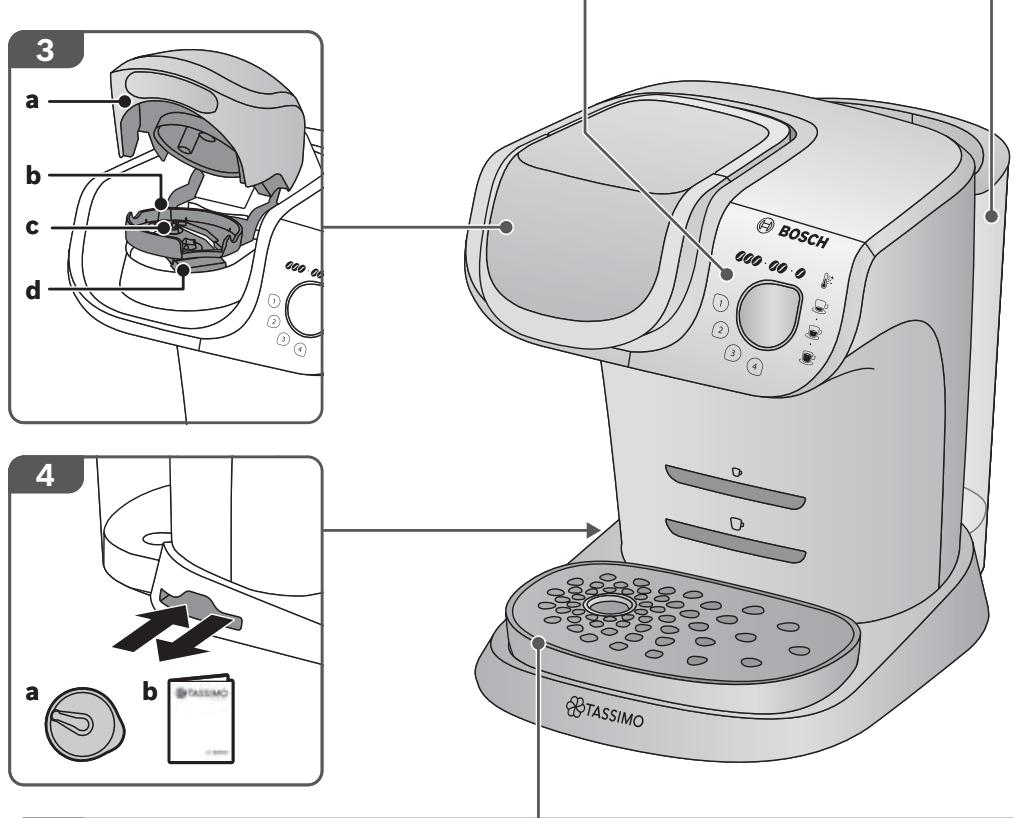

3 Brewing unit

a Lid
b T DISC support (removable)
c T DISC piercing unit with beverage outlet (removable)
d T DISC reading window

4 Storage compartment

a Orange Service T DISC
b Brief cleaning/descaling instructions

5 Cup stand

(removable and height adjustable)

a Drip gate
b Drip tray

Bosch is the manufacturer of the TASSIMO machine. Therefore, it cannot provide any delivery guarantee for the TASSIMO T DISCs.

TASSIMO T DISCs are available from specialist retailers.

Visit www.tassimo.com to discover the large variety of beverages available.

Here you can discover and order the right TASSIMO accessories online.

Accessories

Accessories	Order number
	Retail	Customer service
Descaling tablets	TCZ6004	-
Orange Service T DISC	-	00576837

www.bosch-home.com

www.tassimo.com

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Please ask your specialist retailer about current disposal facilities.

The following table contains solutions to problems or faults which may occur during operation of the appliance and that can be easily rectified at home. If you are not satisfied with the solutions provided here, please contact our Customer Service department.

Further customer service information can also be found online:

www.bosch-home.com

www.tassimo.com

Problem	Cause	Solution
No LED is lit.	The appliance is in idle mode.	Press Start/Stop button.
The controls do not respond to touch.	Technical fault.	Unplug the mains plug. Wait for approx. 5 minutes. Re-insert the mains plug into the socket.
	The control panel is dirty.	Unplug the mains plug. Clean the display elements/controls with a soft, damp cloth. Re-insert the mains plug into the socket.
The appliance is not working and none of the display elements are lighting.	The appliance has no power supply.	Check to see whether the appliance is connected to the mains.
The brewing starts, however there is no beverage dispensed.	The water tank is not inserted correctly.	Check that the water tank is correctly inserted.
	The water tank was removed during the brewing stage or there is air in the system.	Start the cleaning process with the orange Service T DISC. Please refer here to the section First Time Use, Steps 2 - 14.
	The float in the water tank is stuck.	Clean the water tank and free the float.
The brewing will not start.	No T DISC inserted.	Check that a T DISC has been inserted.
	The appliance does not recognise the T DISC bar code. The displays Buttons for drink intensity, drink temperature and drink size are flashing.	Clean the T DISC reading window with a soft, damp cloth.
		Smooth out the foil of the T DISC with your finger so that the bar code can be read.
		Use a new T DISC.
		If the problem persists, contact the TASSIMO careline.
	The brewing unit is not closed properly.	Clean the brewing unit with a soft, damp cloth, paying particular attention to the lid area.
	The appliance was not plugged in when the T DISC was inserted.	Check that the appliance is plugged into the power supply before inserting the T DISC.
The brewing unit cannot be closed.	The piercing unit and/or the T DISC support have not been correctly inserted.	Press the piercing unit into its holder using both thumbs and check the position of the T DISC support.
	The T DISC has not been correctly inserted.	Replace the damaged T DISC with a new one. Place the T DISC with the printed side facing downwards so that the tab is resting in the intended slot.
	The brewing unit is not closed properly.	Clean the brewing unit with a soft, damp cloth, paying particular attention to the lid area. Press the lid down until it audibly clicks into place.

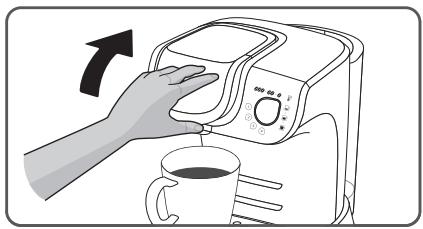

The brewing unit cannot be opened.	The brewing unit is still locked.	Only open the brewing unit when the status display Y has stopped flashing and remains lit continuously. Unplug the mains plug. If the brewing unit stays locked, contact the TASSIMO careline.
Fill water tank lights up.	There is not enough water in the water tank.	Fill the tank with cold, fresh water as far as the max mark. Reinsert the water tank.
Fill water tank lights up even though there is enough water in the water tank.	The float in the water tank is stuck.	Clean the water tank and free the float.
	The water tank is not inserted correctly.	Check that the water tank is correctly inserted.
Fill water tank and Descale calc are flashing simultaneously and it is not possible to prepare drinks.	There is a fault on the machine.	Unplug the mains plug. Please contact the TASSIMO careline.
Descale calc lights up or starts flashing.	The appliance needs to be descaled.	Descale the appliance. Please refer here to the section Descaling.
Descale calc lights up or starts flashing even though decalcified water has been used.	Even decalcified water contains low amounts of calcium carbonate.	Descale the appliance. Please refer here to the section Descaling.
The quality of the crema has deteriorated.	The beverage outlet is sticky or dirty.	Clean the beverage outlet. Please refer here to the section Cleaning. Clean the brewing unit with the orange Service T DISC. Please refer here to the section Cleaning.
	Build-up of limescale in the appliance.	Descale the appliance. Please refer here to the section Descaling.
Water is dripping from the brewing unit.	The T DISC is damaged or leaky. The T DISC has not been pierced correctly.	Do not use T DISCs that are damaged. Only use each T DISC once. Wait until the brewing stage has come to an end and the appliance has cooled down. Remove the T DISC and clean the brewing unit. Please refer here to the section Cleaning.
	The piercing unit has not been inserted correctly.	Press the piercing unit into its holder using both thumbs (until an audible click is heard).
On the surface below the cup stand there is water.	This is condensation.	Condensation may appear and is not caused by any fault with the appliance. Wipe the water away with a cloth.
The beverage quantity does not meet your requirements.	The T DISC bar code provides the recommended volume for every beverage selected. This volume can also be adapted to personal requirements.	Use the drink size buttons (▶-▶-▶) to set your individual drink volume before you begin brewing. Reduced quantity: During the brewing process, press the Start/Stop button to interrupt this stage. Increased quantity: Press and hold the Start/Stop button until the required beverage quantity has been reached.
	Build-up of limescale in the appliance could cause reduced quantity.	Descale the appliance. Please refer here to the section Descaling.
The orange Service T DISC is damaged or lost.		The following accessories can be obtained via Bosch customer service, www.bosch-home.com and www.tassimo.com (see the end of this instruction manual for contact details): Orange Service T DISC (item no. 00576837), descaling tabs (item no. TCZ6004)
Descaling tabs are required.
Not all the settings (drink intensity 100, drink temperature 20 or drink size 20) are available.	There are different setting options depending on the type of drink.

en Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Customer Service

GB Great Britain

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton

Milton Keynes MK12 5PT

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit www.bosch-home.co.uk

Or call

Tel.: [phone]*

• Calls are charged at the basic rate, please check with your telephone service provider for exact charges

GB TASSIMO careline

For information, questions or locations of authorised Bosch service centres nearest you, please contact TASSIMO:

Phone: [phone]

www.tassimo.co.uk
