| Type de produit | Enceinte acoustique 5 voies, 5 haut-parleurs |
| Marque | Kenwood |
| Modèle | KL-999DX |
| Dimensions (L x H x P) | 445 x 680 x 272 mm |
| Poids net | 20,5 kg |
| Impédance | 8 ohms |
| Puissance admissible (crête) | 300 W |
| Puissance nominale | 150 W |
| Sensibilité | 98 dB/W à 1 m |
| Réponse en fréquence | 20 Hz - 22 000 Hz |
| Fréquences de coupure | 1 000 Hz, 4 000 Hz, 8 000 Hz, 15 000 Hz |
| Type d’enceinte | Bass-reflex |
| Haut-parleurs graves | 1 x 406 mm (16 pouces) à cône |
| Haut-parleurs médium | 1 x 160 mm (6,5 pouces) à cône |
| Haut-parleurs médium-aigus | 1 x pavillon sectoriel |
| Haut-parleurs aigus | 1 x pavillon |
| Haut-parleurs super-aigus | 1 x 30 mm (1,25 pouces) à cône |
| Contrôle acoustique | 3 niveaux |
| Finition | Simili noyer (dessus, côtés, dessous) |
| Entretien | Dépoussiérer avec un chiffon doux et sec. Ne pas utiliser de produits abrasifs ou solvants. |
| Sécurité | Ne pas exposer à l’humidité ni aux sources de chaleur. Débrancher avant nettoyage. |
| Pièces détachées | Références disponibles dans le manuel d’entretien (ex: HP, réseau, atténuateur). |
| Fabricant | Trio-Kenwood Corporation, Tokyo, Japon |
FOIRE AUX QUESTIONS - KL-999DX KENWOOD
Questions des utilisateurs sur KL-999DX KENWOOD
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Radio amateur au format PDF gratuitement ! Retrouvez votre notice KL-999DX - KENWOOD et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil KL-999DX de la marque KENWOOD.
MODE D'EMPLOI KL-999DX KENWOOD
KENWOOD
HI/FI STEREO COMPONENTS
SERVICE MANUAL
KL-777X(KL-7070X)
KL-888X(KL-8080X)
KL-999X(KL-9090X)
Photo is KL-999X
SPEAKER SYSTEM
EXTERNAL VIEW/REPAIR
< KL - 777X>
< KL - 888X>
< KL - 999X>
When replacing super tweeter of KL-999X having the serial No. before 961000 remove the screw fixing the super tweeter behind Model name plate.

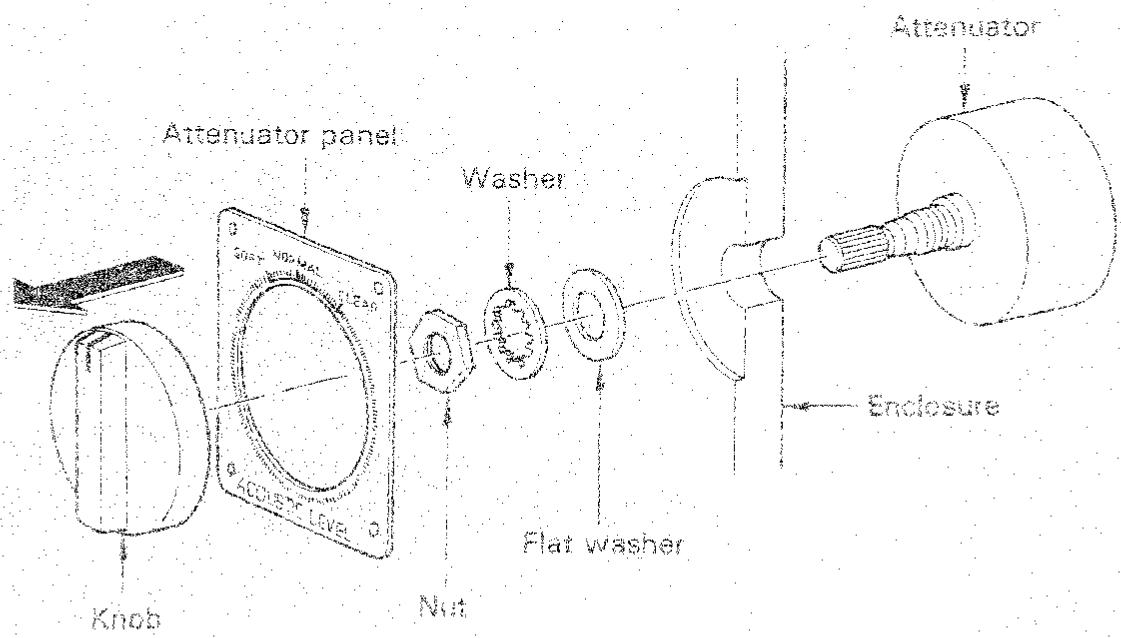

DISASSEMBLY OF ATTENUATOR
PACKING
PARTS LIST
M: other area.
P: Canada U: PX, W: Europe (KLooooX) H: Audio Club (KL-ooooX)
:New Parts.
PARTS LIST
| Ref. No. | Parts Number | Description | Remarks | ||
| KL-777X | KL-888X | KL-999X | |||
| - | A29-0288-05 | A29-0289-05 | A29-0289-05 | Attenuator panel ass'y | ☆ |
| - | B06-0118-02 | B06-0117-01 | B06-0117-01 | Grille ass'y | ☆ |
| - | - | - | B40-1842-00 | Model name plate (P,U,M) | ☆ |
| - | - | - | B40-1843-00 | Model name plate (W,H) | ☆ |
| - | B46-0055-20 | B46-0055-20 | B46-0055-20 | Warranty card (P) | |
| - | B46-0062-20 | B46-0062-20 | B46-0062-20 | Warranty card (U,H) | |
| - | B46-0063-00 | B46-0063-00 | B46-0063-00 | Warranty card (U) | |
| - | B50-2126-00 | B50-2122-00 | B50-2120-00 | Instruction manual (U) | ☆ |
| - | B50-2127-00 | B50-2124-00 | B50-2121-00 | Instruction manual (P,M) | ☆ |
| - | B50-2128-00 | B50-2123-00 | B50-2125-00 | Instruction manual (W,H) | ☆ |
| - | E30-1003-05 | E30-1003-05 | E30-1003-05 | Speaker cord (U,M,H) | |
| - | H01-3510-04 | H01-3515-04 | H01-3520-04 | Carton box (U) | ☆ |
| - | H01-3511-04 | H01-3516-04 | H01-3521-04 | Carton box (M) | |
| - | H01-3512-04 | H01-3517-04 | H01-3522-04 | Carton box (W) | |
| - | H01-3513-04 | H01-3518-04 | H01-3523-04 | Carton box (P) | |
| - | H01-3514-04 | H01-3519-04 | H01-3524-04 | Carton box (H) | |
| - | H10-1978-03 | H10-1978-03 | H10-1978-03 | Polystyrene foamed fixture (R) | ☆ |
| - | H10-1979-03 | H10-1979-03 | H10-1979-03 | Polystyrene foamed fixture (L) | ☆ |
| - | H12-0818-04 | H12-0813-04 | H12-0813-04 | Buffer fixture | ☆ |
| - | H20-0831-04 | H20-0832-04 | H20-0832-04 | Polyethylene cover | |
| - | H21-0481-04 | H21-0482-04 | H21-0482-04 | Polystyrene foamed sheet | ☆ |
| - | K23-0517-05 | K23-0517-05 | K23-0517-05 | Knob | ☆ |
| - | J19-0988-04 | J19-0988-04 | J19-0988-04 | Grille holder | ☆ |
| - | N09-0460-05 | N09-0081-05 | N09-0081-05 | Speaker mounting screw | |
| - | N14-0057-05 | N14-0057-05 | N14-0057-05 | T nut (M4) | |
| - | - | T03-0086-05 | T03-0086-05 | Speaker unit (Super tweeter) | ☆ |
| - | - | T06-0075-05 | T06-0076-05 | Speaker unit (Mid-range) | ☆ |
| - | T10-0104-05 | T10-0105-05 | T10-0105-05 | Speaker unit (Woofer) | ☆ |
| - | T14-0064-05 | T14-0064-05 | T14-0065-05 | Speaker unit (High-mid) | ☆ |
| - | T03-0084-05 | T03-0085-05 | T14-0066-05 | Speaker unit (Tweeter) | ☆ |
| - | X21-2140-80 | X21-2130-80 | X21-2120-80 | Network ass'y (U,M,P) | ☆ |
| - | X21-2142-81 | X21-2132-81 | X21-2122-81 | Network ass'y (W,H) | ☆ |
NETWORK PARTS LIST
| Ref. No. | Parts No. | Description | Re-marks | |
| KL-777X | ||||
| C1 | C23-2015-56 | Non-pole electro 1.5μF 100WV | ||
| C2 | C90-0633-05 | Non-pole electro 3.3μF 100WV | ||
| — | E29-0267-03 | Terminal board ass'y (KL-777X) | ☆ | |
| — | E29-0268-03 | Terminal board ass'y (KL-7070X) | ☆ | |
| L1 | L38-0091-05 | Coil (0.5mH) | ||
| R1 | R44-9703-06 | Wire wound 3Ω ±10% 10W | ||
| R2 | R44-9702-06 | Wire wound 2Ω ±10% 10W | ||
| — | S01-2201-05 | Rotary switch | ||
| KL-888X | ||||
| C1 | C90-0635-05 | Non-pole electro 6.8μF 100WV | ||
| C2 | C90-0634-05 | Non-pole electro 4.7μF 100WV | ||
| C3 | C23-2022-56 | Non-pole electro 2.2μF 100WV | ||
| — | E29-0270-03 | Terminal board ass'y (KL-888X) | ☆ | |
| — | E29-0271-03 | Terminal board ass'y (KL-8080X) | ☆ | |
| L1 | L38-0089-05 | Coil (0.2mH) | ||
| L2 | L38-0091-05 | Coil (0.5mH) | ||
| R1,2 | R44-9703-06 | Wire wound 3Ω ±10% 10W | ||
| Ref. No. | Parts No. | Description | Remarks | ||
| R3 | R44-9701-06 | Wire wound | 1Ω ± 10% | 10W | |
| R4 | R44-9702-06 | Wire wound | 2Ω ± 10% | 10W | |
| - | S01-2201-05 | Rotary switch | |||
| KL-999X | |||||
| C1 | C90-0636-05 | Non-pole electro | 10μF | 100WV | |
| C2 | C23-2022-56 | Non-pole electro | 2.2μF | 100WV | |
| C3 | C90-0633-05 | Non-pole electro | 3.3μF | 100WV | |
| C4 | C23-2022-56 | Non-pole electro | 2.2μF | 100WV | |
| - | E29-0272-03 | Terminal board ass'γ (KL-999X) | ☆ | ||
| - | E29-0273-03 | Terminal board ass'γ (KL-9090X) | ☆ | ||
| L1 | L38-0090-05 | Coil (0.35mH) | |||
| L2 | L38-0091-05 | Coil (0.5mH) | |||
| L3 | L38-0089-05 | Coil (0.2mH) | |||
| R1 | R44-9706-06 | Wire wound | 6Ω ± 10% | 10W | |
| R2,3 | R44-9702-06 | Wire wound | 2Ω ± 10% | 10W | |
| R4 | R44-9704-06 | Wire wound | 4Ω ± 10% | 10W | |
| - | S01-2201-05 | Rotary switch | |||
SCHEMATIC DIAGRAM
KL-777X (KL-7070X)
KL-888X (KL-8080X)

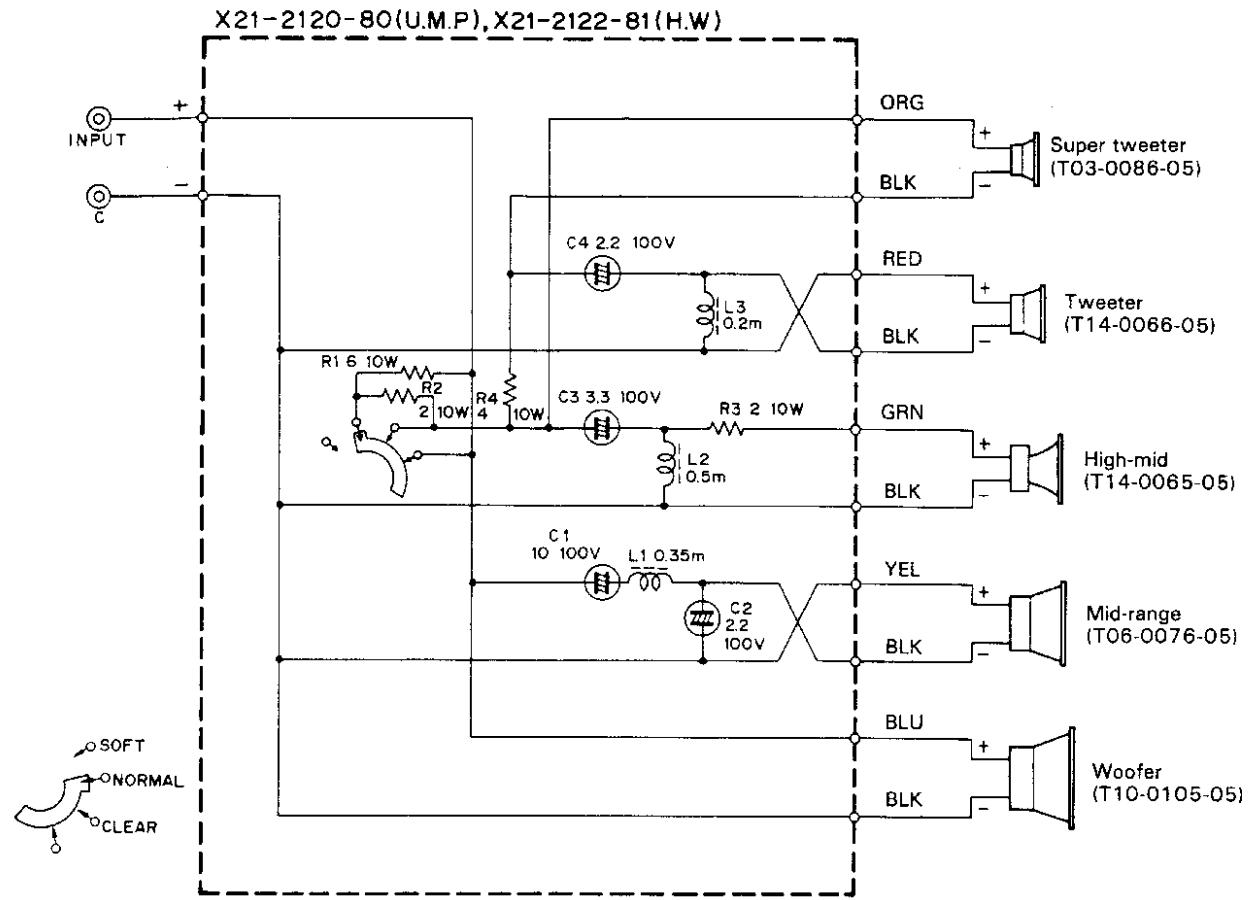

SCHEMATIC DIAGRAM/PACKING
KL-999X (KL-909OX)
EXTERNAL VIEW
Note: Make the system up side down first, and then put the carton box from over it.
SPECIFICATIONS
System 3-Way,4-Speaker System
Mounted Speakers
Woofer 380 mm (15") Cone Type × 1
Mid Range Exponential Horn Type with Diffuser × 1
Tweeter 65 mm (2-1/2") Cone Type × 2
Enclosure. Bass-Reflex Type
Peak Input Power 200 Watts
Nominal Input Power..... 100 Watts
Sensitivity. 96 dB/W at 1 m
Frequency Response. 20 Hz to 21,000 Hz
Crossover Frequencies... 2,000 Hz. 8,000 Hz
Impedance 8 Ohms
Additional Features... 3 Step Acoustics Level Control
Dimensions W: 417 mm (16-13/32")
H: 648 mm (25-1/2")
D: 272 mm (10-23/32")
Weight (Net) 16.5 kg (36.4 lbs.)
Enclosure Finish. Top. Side and Bottom are
in Simulated Walnut-Grain
Finish.
(Kenwood follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.)
System 5-Way. 5-Speaker System
Mounted Speakers
Woofer 406 mm (16") Cone Type × 1
Mid Range 120 mm (5") Cone Type x 1
Mid-High Range Exponential Horn Type with
Diffuser × 1
Tweeter 65 mm (2-1/2") Cone Type × 1
Super Tweeter 30 mm (1-1/4") Cone Type × 1
Enclosure. Bass-Reflex Type
Peak Input Power 250 Watts
Nominal Input Power..... 125 Watts
Sensitivity 98 dB/W at 1m
Frequency Response 20 Hz to 22.000 Hz
Crossover Frequencies ... 3,000 Hz, 5,000 Hz
9.000 Hz, 15.000 Hz
Impedance 8 Ohms
Additional Features... 3 Step Acoustics Level Control
Dimensions W: 445 mm (17-17/32")
H: 680 mm (26-25/32")
D: 272 mm (10-23/32")
Weight (Net) 20.5 kg (45.2 lbs.)
Enclosure Finish. Top. Side and Bottom are
in Simulated Walnut-Grain
Finish.
(Kenwood follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.)
System 5-Way, 5-Speaker System
Mounted Speakers
Woofer 406 mm (16") Cone Type × 1
Mid Range 160 mm (6-1/2") Cone Type × 1
Mid-High Range Sectoral Horn Type × 1
Tweeter . Horn Type × 1
Super Tweeter 30 mm (1-1/4") Cone Type × 1
Enclosure. Bass-Reflex Type
Peak Input Power 300 Watts
Nominal Input Power... 150 Watts
Sensitivity. 98 dB/W at 1 m
Frequency Response. 20 Hz to 22,000 Hz
Crossover Frequencies... 1,000 Hz, 4,000 Hz
8,000 Hz, 15,000 Hz
Impedance 8 Ohms
Additional Features... 3 Step Acoustics Level Control
Dimensions W: 445 mm (17-17/32")
H: 680 mm (26-25/32")
D: 272 mm (10-23/32")
Weight (Net) 20.5 kg (45.2 lbs.)
Enclosure Finish. Top. Side and Bottom are
in Simulated Walnut-Grain
Finish.
(Kenwood follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.)
