Notice ETON SOLARLINK FR600RDS - page 1
Voir la notice : Français FR English EN
Choisissez votre langue et indiquez votre email : nous vous enverrons une version traduite specifiquement.
Type de produit Radio solaire
Marque ETON
Modèle SOLARLINK FR600RDS
Catégorie Radio solaire
Bandes de réception AM, FM, SW (ondes courtes), NOAA Weather (WB), S.A.M.E.
Affichage Numérique avec indicateurs
Alimentation principale 3 piles AA (non incluses) ou batterie Ni-MH interne rechargeable
Piles de rechange 3 piles AA alcalines
Batterie rechargeable Batterie Ni-MH interne (incluse)
Recharge solaire Panneau solaire intégré, charge complète en 8 à 10 heures en plein soleil
Recharge par manivelle Manivelle pour recharge d’urgence : 90 secondes à 2 tours/s donnent ~5 minutes de fonctionnement
Recharge secteur/USB Adaptateur secteur (non inclus) 5-6V/300mA ou câble mini-USB vers USB
Chargeur téléphone Port USB dédié (charge par manivelle ou soleil), 10 minutes de manivelle pour 1-2 appels d’urgence
Lampe torche Lampe LED blanche intégrée
Sirène Sirène d’alarme intégrée
Alarme Alarme sonore avec fonction snooze (5 min)
RDS FM RDS (affichage de texte, PTY, PS, date)
Mémoires stations FM: 20, AM: 10, SW: 10
Entretien et nettoyage Chiffon sec uniquement, pas de détergents
Sécurité Ne pas exposer à l’eau, débrancher en cas d’orage, ne pas ouvrir le boîtier
Pièces détachées Adaptateur secteur (réf. FR500-ACA-US) et câbles USB disponibles séparément
Garantie Garantie limitée, enregistrement sur www.etoncorp.com
Service client États-Unis: 1-800-872-2228, Canada: 1-800-637-1648, international: +1 650-903-3866

FOIRE AUX QUESTIONS - SOLARLINK FR600RDS ETON

Comment recharger la batterie interne avec le panneau solaire ?
Éteignez la radio avec le sélecteur de bande. Placez le commutateur d’alimentation sur SOLAR. Exposez le panneau solaire à la lumière directe du soleil (pas à travers une fenêtre). Après quelques minutes, vous pouvez allumer la radio. Une charge complète prend 8 à 10 heures. Après la charge, remettez le commutateur sur DYNAMO.
Comment régler l’horloge ?
Mettez le sélecteur de bande sur OFF. Appuyez brièvement sur le bouton SELECT pour entrer dans le menu. Utilisez ▲ ou ▼ pour sélectionner 'SET UP---TIME'. Appuyez sur SELECT. Utilisez ▲ ou ▼ pour régler l’heure et les minutes, puis appuyez sur SELECT pour enregistrer. L’horloge est sur 12 heures (AM/PM).
Comment régler l’alarme ?
Mettez le sélecteur de bande sur OFF. Appuyez sur SELECT pour entrer dans le menu. Choisissez 'SET UP ALARM--ALM'. Appuyez sur SELECT, puis réglez l’heure avec ▲ ou ▼. Appuyez sur SELECT pour sauvegarder. Activez ou désactivez l’alarme en appuyant sur le bouton ALARM ON/OFF.
Comment recevoir les alertes météo ?
Sélectionnez la bande WB avec le sélecteur de bande. Utilisez ▲ ou ▼ pour choisir le canal météo le plus fort (CH1 à CH7). Pour activer l’alerte, réglez le sélecteur de bande sur ALERT. Vous pouvez aussi configurer les codes de comté pour les alertes S.A.M.E.
Comment charger un téléphone portable ?
Branchez le câble de charge de votre téléphone sur le port USB PHONE CHARGER à l’arrière de la radio. Mettez le sélecteur d’alimentation sur OFF/PHONE CHARGER. Exposez la radio au soleil ou tournez la manivelle (au moins 2 tours/s) jusqu’à ce que la LED verte/orange s’allume. Arrêtez de tourner si nécessaire et attendez 5 secondes avant de reprendre.
Comment nettoyer la radio ?
Utilisez un chiffon sec uniquement. N’utilisez pas de détergents ni de solvants chimiques, car cela pourrait endommager la finition.
Comment utiliser la manivelle pour recharger la batterie ?
Éteignez la radio avec le sélecteur de bande. Placez le commutateur d’alimentation sur DYNAMO. Tournez la manivelle à environ 2 tours par seconde pendant 90 secondes. Cela fournit environ 5 minutes de lecture à faible volume.
Comment régler la date ?
Mettez le sélecteur de bande sur OFF. Appuyez sur SELECT pour entrer dans le menu. Choisissez 'SET UP--DATE'. Appuyez sur SELECT, puis réglez le mois, le jour et l’année avec ▲ ou ▼. Appuyez sur SELECT pour enregistrer.
Comment enregistrer une station en mémoire ?
Syntonisez la station souhaitée. Appuyez brièvement sur SELECT ; 'MEMORY' s’affiche. Utilisez ▲ ou ▼ pour choisir un emplacement, puis appuyez sur SELECT pour enregistrer. FM peut stocker 20 stations, AM et SW 10 chacune.
Que faire si la radio est mouillée ?
Débranchez immédiatement tout adaptateur et retirez les piles. Ne plongez pas la radio dans l’eau. Séchez-la avec un chiffon doux et laissez-la sécher complètement à l’air libre avant de la réutiliser. Si du liquide a été renversé à l’intérieur, faites-la réviser par un technicien qualifié.

Questions des utilisateurs sur SOLARLINK FR600RDS ETON

0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.

Poser une nouvelle question sur cet appareil

L'email reste privé : il sert seulement à vous prévenir si quelqu'un répond à votre question.

Aucune question pour l'instant. Soyez le premier à en poser une.

Téléchargez la notice de votre Radio solaire au format PDF gratuitement ! Retrouvez votre notice SOLARLINK FR600RDS - ETON et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil SOLARLINK FR600RDS de la marque ETON.

MODE D'EMPLOI SOLARLINK FR600RDS ETON

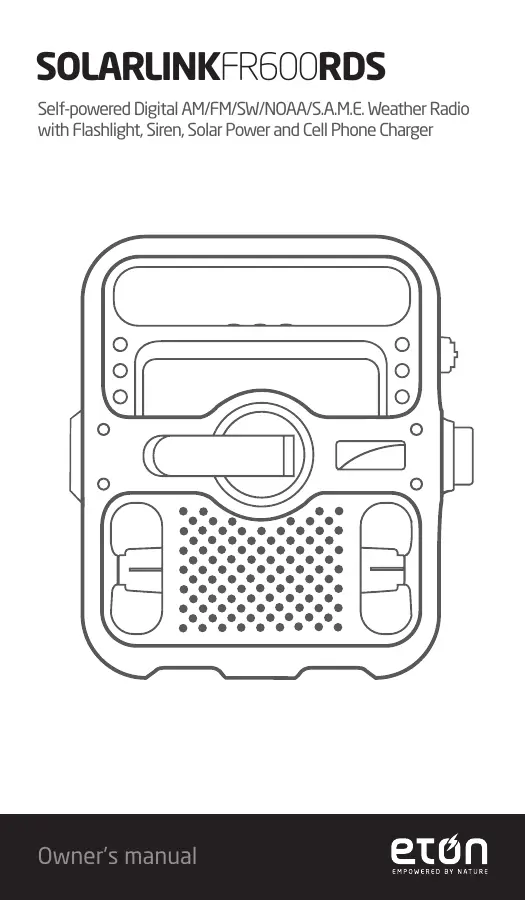

SOLARLINKFR600RDS

Self-powered Digital AM/FM/Sw/NOAA/S.A.M.E. Weather Radio with Flashlight, Siren, Solar Power and Cell Phone Charger

ETON SOLARLINK FR600RDS - SOLARLINKFR600RDS - 1

DO YOU NEED HELP?

If you need help, please contact us, Monday-Friday, 8:00 a.m.-4:30 p.m., North American Pacific Time. 1-800-872-2228 from the U.S; 1-800-637-1648 from Canada; 650-903-3866, worldwide; FAX: 650-903-3867; web site, www.etoncorp.com; Etón Corporation, 1015 Corporation Way, Palo Alto, CA 94303, USA

WARNING

  • Do not expose this appliance to rain or moisture.
  • Do not submerge or expose for extended period to water.
  • Protect from high humidity and rain.
  • Unplug immediately if liquid has been spilled or object have fallen into the apparatus.
  • Clean only with a dry cloth. Do not use detergents or chemical solvents as this might damage the finish.
  • Unplug and disconnect external antennas (not included) during lightning storms.
  • Do not remove cover [or back].
    Refer servicing to qualified service personnel.

Environment

Disposal

According to the European Directive 2002/96/EC all electrical and electronic products must be collected separately by a local collection system. Please act according to your local rules and do not dispose of your old products with your normal household waste.

Please dispose of all types of batteries per your Government, State or Local rules and/or regulations. If you are unsure, please call the appropriate local authority to find out how to dispose of them safely and help protect the environment.

ETON SOLARLINK FR600RDS - Disposal - 1

ETON SOLARLINK FR600RDS - Disposal - 2

LOCATION OF CONTROLS

ETON SOLARLINK FR600RDS - LOCATION OF CONTROLS - 1

1) Snooze: 5 Min Snooze
2) Alarm ON/OFF: activate/deactivate alarm function
3) ALERT ON/OFF:open/close alert bell
4)RDS/Select Button
5) Direction Buttons
6) Flashlight
7) Hand Crank
8) Multifunctional Knob
9) Alert Indicator Light
10) Statement Indicator Light
11) Emergency Indicator Light
12) Watch Indicator Light
13) Warning Indicator Light

14) Power Supply Knob
15) Band Selecting Knob
16) Volume Adjusting Knob
17) Speaker

ETON SOLARLINK FR600RDS - LOCATION OF CONTROLS - 2

18)PHONE CHARGER:USB Jack for Charging the Cellphone
19) DC in:USB Jack for charging the Radio(small)
20) DC in Jack (Adaptor)
21) Earphone Jack
22) Audio Jack
23) Battery Compartment

POWERING THE FR600

The FR600 can be powered in a variety of ways including 3 AA batteries, the internal rechargeable Nickel-Metal-Hydride battery, the solar panel, an AC adapter/charger and a USB cord with a mini-USB plug on one end and a regular USB on the other, plugged in to a computer (turned on) or an AC adapter with a USB socket. These methods are described below.

Note: The Power Supply Knob and the Band Selecting Knob are on the right side of the radio. The Power Supply Knob is on top and the Band Selecting Knob is on the bottom.

The radio is turned OFF with the Band Selecting Knob placed in the OFF position. Turn the radio on by positioning this knob to any band.

USING 3 AA BATTERIES

Install 3 AA alkaline batteries using the polarity diagram inside the battery compartment (on the back of the radio). To turn on the radio using AA batteries, select BATTERY with the Power Supply Knob. It will play for about 4 to 5 hours, at low volume.

USING THE INTERNAL RECHARGABLE Ni-MH BATTERY

The Ni-MH battery comes with the radio. It is in the battery compartment and needs to be plugged into the socket next to it. Once it's plugged in, select the DYNAMO position with the Power Supply Knob. To partially charge the battery, turn OFF the radio with the Band Selecting Knob, select the DYNAMO position with the power selector switch and turn the crank at two turns per second, for 90 seconds; the radio will play at low volume for about 5 minutes, then crank again. Turn the radio on with the Band Selecting Knob.

USING THE SOLAR PANEL TO RECHARGE THE Ni-MH BATTERY

Charging with solar charges the Ni-MH rechargeable battery. Turn the radio OFF with the Band Selecting Knob. Select SOLAR with the Power Supply Knob. Place the radio in direct sunlight (not through a window or in the shade), with the sun shining directly on the solar panel. After a few minutes of charging you may be able to play the radio while it's charging by turning it on with the Band selection Knob; if not, give it a little more time to 3 charge. Leave it in direct

sunlight for 8 to 10 hours to get a full charge. After charging, if you take it out of the sunlight, be sure to select DYNAMO with the Power Supply Knob.

USING AN AC ADAPTER/CHARGER OR USB CORD TO PLAY THE RADIO OR TO RECHARGE THE Ni-MH BATTERY

To purchase an AC adapter/charger (not included), order part# FR500-ACA-US by calling 1-800-793-6542. Generically it has an output of 5 to 6 Volts DC, positive polarity and no more than 300mA current capability.

Turn OFF the radio with the Band Selecting Knob. Plug the AC adapter/charger (not included) into the left socket, labeled 'DC IN 5V', under the right rubber cover on the back of the radio. Select the DYNAMO position with the Power Supply Knob. Turn on the radio by selecting a band with the Band Selecting Knob. The red light above the crank should turn on, noting that the AC adapter is plugged in. If your rechargeable Ni-MH battery is plugged in, it starts charging as long as you select DYNAMO. To get a full charge, charge it for about 8 hours.

If an AC adapter is plugged in with the rechargeable battery connected and DYNAMO selected, if there is an AC power failure, the radio will automatically play using the rechargeable battery. If the AC adapter is plugged in and BATTERY is selected, the rechargeable Ni-MH battery doesn't charge. If both types of batteries are disconnected, the AC adapter will play the radio with DYNAMO or BATTERY selected.

Purchase a USB cord with a mini-USB plug on one end and a regular USB plug on the other end, from a local electronics store or on the Internet. If using a USB cord, plug one end into the mini-USB socket under the left rubber cover on the back of the radio, and

the other end into a computer's USB socket (with the computer turned on) or an AC adapter with a USB socket. Operating from a USB cord has the same characteristics as an AC adapter, with the following exceptions.

If the USB cord is plugged in with the rechargeable battery and/or AA batteries connected, if there is a failure of the USB power source, power will be taken from the rechargeable battery if DY-NAMO is selected or from the AA batteries if BATTERY is selected.

VOLUME CONTROL

Turning the Volume Adjusting Knob (located on the lower right of the radio) clockwise turns up the volume; counterclockwise turns down the volume. Always turn down the volume before using earphones.

CHARGING CELL PHONES (cell phone charging cord not included) If you revolve the Power Supply Knob to the OFF/PHONE CHARGER position the radio will charge cell phones. Plug the cell phone charging cord into the USB PHONE CHARGER jack at the rear of the radio. Plug the cell phone charging adapter tip into the other end of the cord and then into the jack of the cell phone. Then put the radio in the sun or revolve the hand crank to charge the cell phone. About 10 minutes of cranking results in one or two short emergency calls.

To order a cell phone charging cord and tip for your cell phone, please contact www.igo.com on the web and order a cell phone charging cable and a cell phone charging tip for your brand and model of cell phone.

NOTE: When charging a cell phone via the USB cell phone charger, it is important to turn the crank at least 2 revolutions per second, or until you see the green or orange LED above the crank handle turn on. This is an indication that the phone is receiving enough power from

the radio. Continue to crank at this rate until you are satisfied that an appropriate level of charge has been received by your cell phone. If you decide to stop cranking for whatever reason, please wait at least 5 seconds before beginning to crank again. Not following these instructions may cause damage to your cell phone for which Eton disclaims any liability and will not be held liable for any actual or consequential damages related to this matter.

SETTING THE DATE

  1. Revolve the to the "OFF" position.
  2. With the radio turned off press the button shortly to enter the setting menu.
  3. Press <> or <> shortly to select "SET UP--DATE" option.

ETON SOLARLINK FR600RDS - SETTING THE DATE - 1

  1. Press SELECT> shortly once to enter the date setting mode.
  2. Press <> or <> shortly to select "MONTH--DAY--YEAR" option.

ETON SOLARLINK FR600RDS - SETTING THE DATE - 2

  1. Press <> or <> shortly to set "MONTH--DAY--YEAR" option.
  2. After setting, press SELECT> shortly to save.

SETTING THE CLOCK

  1. Revolve the to the "OFF" position.
  2. With the radio turned off press the button shortly to enter the setting menu.
  3. Press <> or <> shortly to select "SET UP---TIME" option.

ETON SOLARLINK FR600RDS - SETTING THE CLOCK - 1

  1. Press SELECT> shortly once to enter the time setting mode.
  2. Press <> or <> shortly to select "HOUR:MINUTE" option.

ETON SOLARLINK FR600RDS - SETTING THE CLOCK - 2

  1. Press < > or < > shortly to set "HOUR:MINUTE" option.
  2. After setting, press SELECT> shortly to save.

Note: The clock is a 12-hour clock, showing "AM" in the display in the morning, and showing "PM" in the display starting at noon.

SETTING THE BEEPER ALARM

This radio's alarm beeps when it activates.

1. SETTING THE ALARM TIME

1) Revolve the to the "OFF" position.
2) Press

button shortly to enter the setting menu.
3) Press <> or <> shortly to select "SET UP ALARM--ALM" option.

ETON SOLARLINK FR600RDS - SETTING THE ALARM TIME - 1

4) Press shortly to save the station. (Note: FM: 20 memories; AM: 10 memories; Sw: 10 memories.)

ETON SOLARLINK FR600RDS - BROADCAST RECEPTION - 1

  1. Recall stations: When listening to the radio, press <> or <> shortly.
  2. Turn off: Revolve the to "OFF" position.

FM RDS (Radio Data System) FUNCTION

When listening to FM stations press/release the RDS button sequentially (front, upper left corner of radio) to see RDS text messages in the display, if your station sends them. This radio supports TEXT, PTY (Program Type), PS (Program Service) and DATE. Many FM stations do not support all of these, may only support some of them or do not support any of them. RDS appears in the upper left corner of the display when it's turned on. If your FR600 lacks this feature, please ignore this section of the instructions.

SHORTWAVE LISTENING

To learn about shortwave we recommend the two publications below, published yearly and available from major booksellers. Additionally, the Internet is a great resource for learning about shortwave. Type 'shortwave reception' into your favorite search engine.

PASSPORT TO WORLD BAND RADIO Published by International Broadcasting Services (IBS); IBS North America, Box 300, Penn's Park PA 18943. Phone: (215) 598-9018. www.passband.com.

WORLD RADIO TV HANDBOOK Published in the USA by Watson-Guptill Publications, 770 Broadway, 7th Floor, New York, NY 10003-9595. www.watsonguptill.com.

OPTIMIZING SHORTWAVE RECEPTION

Shortwave enables listening to broadcasts over vast distances including other countries and continents. The following information will help you get the best results.

  • During the day, frequencies above 13 MHz are usually best.
  • At night, frequencies below 13 MHz are usually best.
  • Around sunset and sunrise, the entire shortwave range may be good.
  • Getting very close to a window and holding the radio improves shortwave reception.

Use the frequency ranges (Bands) below for shortwave broadcast reception:

BANDEMEGAHERTZ (MHz)KILOHERTZ (KHz)
120 m2.300-2.495 MHz2300- 2495 KHz
90 m3.20-3.40 MHz3200- 3400 KHz
75 m3.90-4.05 MHz3900- 4050 KHz
60 m4.750-5.1 MHz4750- 5100 KHz
49 m5.8-6.2 MHz5730- 6300 KHz
41 m7.1-7.60 MHz6890-7600 KHz
31 m9.4-10 MHz9250-9995 KHz
25 m11.5-12.2 MHz11500-12200 KHz
22 m13.57-13.87 MHz13570-13870 KHz
19 m15.000-15.800 MHz15005-15825 KHz
16 m17.55-18 MHz17480-17900 KHz
15 m18.9-19.02 MHz18900-19020 KHz
13 m21.45-21.85 MHz21450-21850 KHz

RECEPTION OF WEATHER FREQUENCIES

To hear your local weather station, pull up the antenna, turn on the radio and select WB with the band selector. Turn up the volume and press the buttons to hear all 7 weather channels. You'll probably only hear one channel, but if you hear a weather broadcast on more than one, select the strongest. The strongest one will usually be your local weather station. Below are the frequencies that correspond to the radio's channels:

Channel 1 162.400 MHz

Channel 2 162.425 MHz

Channel 3 162.450 MHz

Channel 4 162.475 MHz

Channel 5 162.500 MHz

Channel 6 162.525 MHz

Channel 7 162.550 MHz

SETTING TO RECEIVE WEATHER ALERTS

Weather alerts are received in three ways:

  1. Alert indicator light is on.
  2. Alert forecast appears in the display.
  3. Alert bell rings.

To set the channel for receiving alerts, use the method below and set it to your strongest channel.

1) Revolve the to "OFF" position.
2) Press

button shortly to enter the setting menu.
3) Press < > or < > shortly to select "WEATHER" option.

ETON SOLARLINK FR600RDS - SETTING TO RECEIVE WEATHER ALERTS - 1

4) Press shortly once to enter the county code setting mode (MULTI, SINGLE or ALL), which blinks in the display.
5) If you don't know your county code, select ALL with or and press SELECT and then MENU TO EXIT. If you know your code, don't press SELECT and go to the next section.
6) Press or shortly to select MULTI or SINGL and press again and the first digit of six starts flashing. Press ▲or ▼ to set the first digit and then press ▷ to go to the second digit, doing this again and again until all six digits are entered.
9) If you're in SINGL, press .
11) 01 flashes. Press or to go to another code setting number (1-23 flashes) and press SELECT>.
12) The first digit of six flashes, use ▲or ▼to set it and press ▷to enter the next number, doing this again and again until all six digits are entered.
13) Press and then MENU to exit.

RECEPTION OF EVENT CODES

Your radio can receive 'event code' information during weather alerts. These codes are identified at http://www.nws.noaa.gov/os/eas_codes.shtml.

Canadian Weather Alerts are addressed at: http://www.msc-smc.ec.gc.ca/cd/brochures/warning_e.cfm#top.

SELECTING DISABLE/ENABLE

Alert modes can be selected to not appear by selecting DISABLE or to appear by selecting ENABLE.

1) Revolve the to "OFF" position.
2) Press

button shortly to enter the setting menu.
3) Press < > or < > shortly to select "DEFEAT" option.

ETON SOLARLINK FR600RDS - SELECTING DISABLE/ENABLE - 1

4) Press
