| Type de produit | Laveuse frontale |
| Capacité totale (IEC) | 4,2 pi³ (119 L) |
| Hauteur | 91,4 cm (36") |
| Largeur | 68,6 cm (27") |
| Profondeur | 77,0 cm (30-5/16") |
| Poids (expédition) | 101 kg (222 lb) |
| Alimentation électrique | 120 V, 60 Hz, 15 A |
| Puissance totale connectée | 1,4 kW |
| Chauffage intégré | 1000 W |
| Vitesse d'essorage max | 1200 tr/min |
| Tambour | Acier inoxydable |
| Programmes de lavage | 10 cycles |
| Fonction vapeur | Ready Steam™ |
| Technologie TimeWise™ | Oui |
| Contrôle des vibrations | Système avancé de contrôle des vibrations |
| Rinçage eau fraîche | Oui |
| Cycle anti-allergènes certifié | Élimine jusqu'à 95% des allergènes |
| Lavage rapide | 25 minutes (charge complète) |
| Option économie d'énergie | Réduit la consommation jusqu'à 60% |
| Joint antimicrobien Stay-Fresh | Oui |
| Verrouillage enfants | Oui |
| Certifications | ENERGY STAR® et NSF® (Sanitize/Allergen) |
| Pièces détachées optionnelles | Kit de superposition, socle SpaceWise™, rallonge de vidange |
FOIRE AUX QUESTIONS - FAFS4272L FRIGIDAIRE
Questions des utilisateurs sur FAFS4272L FRIGIDAIRE
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Laveuse au format PDF gratuitement ! Retrouvez votre notice FAFS4272L - FRIGIDAIRE et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil FAFS4272L de la marque FRIGIDAIRE.
MODE D'EMPLOI FAFS4272L FRIGIDAIRE

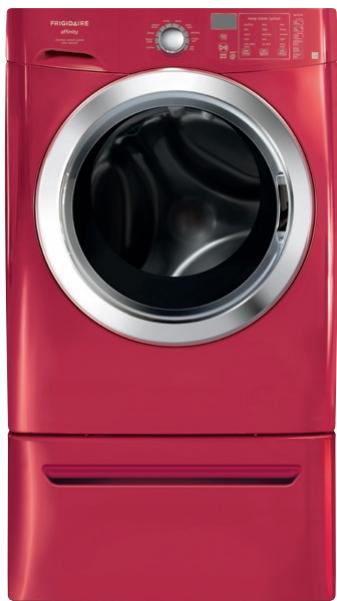

Front Load Washers
FAFS4272L R/N/A/W
10 Wash Cycles
4.2 Cu.Ft.
Optional SpaceWiseTM Pedestal Analyzer Shown
Signature Features
Ready Steam™
Ensures cleaner clothes with improved stain removal.
TimeWiseTM
Wash time equals dry time - so you don't wait for clothes to dry.
Vibration Control System
Advanced vibration control technology keeps even oversized loads balanced for smooth, quiet operation. Ideal for second floor installation.
Fresh Water Rinse
Our Advanced Rinse Technology reduces the amount of detergents and additives that may cause allergies.
Product Dimensions
| Height | 36" |
| Width | 27" |
| Depth | 30-5/16" |
More Easy To Use Features
Certified Allergen Cycle
Removes up to 95% of allergens.
Quick Wash
Wash a full load in just 25 minutes.
Quick Laundry
Wash and dry a full load in just 50 minutes.
Energy Saver Option
Further reduces energy use up to 60% .
SilentDesign™ Ultra
for quiet operation.
Stay-Fresh Antimicrobial Seal
Optional SpaceWiseTM
PedestalDrawer
ENERGY STAR
NSF* International Certification
Available in:
Classic Red (R)
Class: Blue (N)
Classic Silver (A)
Classic White (W)
Based on a 15.8 lb. load as tested per DOE Protocol 10CFR430,subpart B,App.J,cl.3.1.
| Features | |
| Total Capacity I.E.C. (Cu.Ft.) | 4.2 |
| Controls | Express-SelectTM |
| Washer Drum Interior | Stainless Steel |
| Interior Light/Door Trim | Yes/Chrome |
| Vibration Control System | Yes |
| Wash System | Tumble Action |
| Advanced Rinse Technology | Yes |
| TimeWiseTM Technology | Yes |
| Ready CleanTM/Ready SteamTM | No/Yes |
| Freshwater Rinse | Yes |
| Stay-Fresh Antimicrobial Seal | Yes |
| Automatic Temperature Control | Yes |
| Automatic Water Level Adjustments | Yes |
| Auto Prewash Detergent Dispenser | Yes |
| Auto Bleach Dispenser | Yes |
| Auto Detergent Dispenser | Yes |
| Auto Fabric Softener Dispenser | Yes |
| Time Remaining Indicator | Yes |
| Cycle Status Lights | Yes |
| Cycle Signal Cycle Signal "On/Off" | Chime/Yes |
| Cycle Signal Volume Control | Yes |
| Door Lock Indicator Light | Yes |
| Control Lock/Stay-Put Door | Yes/Yes |
| Start/Pause/Cancel Buttons | Yes |
| Energy Saver Option | Yes |
| Delay Start | 1 to 16 Hours |
| Integral Water Heater | Yes, 1000 Watts |
| Tumble Speed (RPM) | 33/47 |
| Spin Speed (Maximum RPM) | 1200 |
| Reversible Door | |
| Sound Package | SilentDesignTM Ultra |
| Adjustable Leveling Legs | Yes |
| Cycles | |
| Wash Cycles/Specialty Cycles | 10/0 |
| Options | |
| Water Temperature Selections | 5 |
| Water Levels | Automatic/Max Fill |
| Spin Speed/Soil Level Selections | 5/5 |
| Allergen | Yes |
| Optional Accessories | |
| Dryer Stacking Kit | PN# STACKIT4X |
| 15" Frigidaire Affinity® Pedestal Drawers | |
| Classic Red (R) | (R) PN# CFPWD15R |
| Classic Blue (N) | (N) PN# CFPWD15N |
| Classic Silver (A) | (A) PN# CFPWD15A |
| Classic Black (B) | |
| Classic White (W) | (W) PN# CFPWD15W |
| Mobile Home Installation Kit | PN# 137067200 |
| Drain Hose Extension Kit | PN# 137098000 |
| Certifications | |
| ENERGY STAR® | Yes |
| NSF® Certified Sanitize/Allergen | Yes/Yes |
| Specifications | |
| Power Supply Connection Location | Right Top Rear |
| Water Inlet Connection Location | Left Top Rear |
| Voltage Rating | 120V/60Hz/15A |
| Connected Load (kW Rating) @ 120 Volts1 | 1.4 |
| Watts @ 120 Volts/Amps @ 120 Volts | 1,000/8 |
| Minimum Circuit Required (Amps) | 20 |
| Shipping Weight (Approx.) | 222 Lbs. |
For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate ground wire. Appliance must be grounded for safe operation.
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

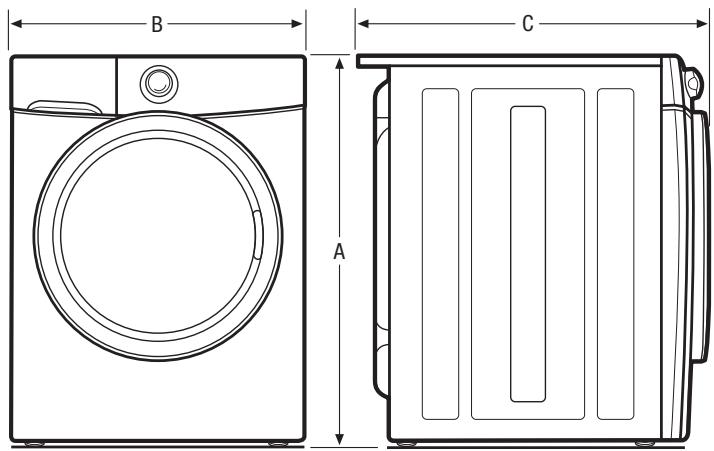

| Product Dimensions | |
| A - Height (Single) | 36" |
| Height (Stacked) | 71-1/2" |
| B - Width | 27" |
| C - Depth | 30-5/16" |
| Depth with Door Open 90° | 51-7/16" |

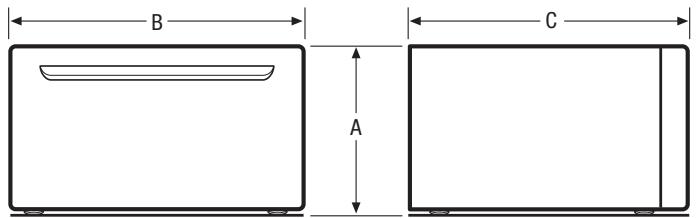

| Pedestal Dimensions | |
| A - Height | 15-1/4" |
| B - Width | 27" |
| C - Depth | 26-1/4" |
Accessories information available on the web at frigidaire.com
Marque : FRIGIDAIRE
Modèle : FAFS4272L
Catégorie : Laveuse
