SD12 - Haut-parleur audio DUAL - Notice d'utilisation et mode d'emploi gratuit

Marque	DUAL
Modèle	SD12
Type de produit	Subwoofer passif pour autoradio
Taille du haut-parleur	12 pouces (30,5 cm)
Impédance nominale	4 ohms
Puissance RMS	175 watts
Puissance crête	500 watts
Sensibilité	88 dB
Réponse en fréquence	28 Hz - 125 Hz
Taille de la bobine mobile	2 pouces
Poids de l'aimant	38,2 oz (environ 1,08 kg)
Types d'enceinte recommandés	Scellée, Éventée, Passe-bande
Volume d'enceinte scellée recommandé	0,75 pi³ à 1,25 pi³
Volume d'enceinte éventée recommandé	1,0 pi³ à 1,5 pi³
Garantie	1 an limitée
Utilisation	Intérieur véhicule (autoradio)
Alimentation	Amplificateur externe requis
Calibre de fil recommandé	14 AWG ou plus gros
Précautions d'installation	Déconnecter la batterie, éviter les bords tranchants

FOIRE AUX QUESTIONS - SD12 DUAL

Comment installer un subwoofer DUAL SD12 ?

Avant l'installation, déconnectez la borne négative de la batterie. Choisissez un emplacement sécurisé, loin des pièces mobiles. Utilisez un fil de calibre 14 ou plus pour le branchement. Respectez la polarité (+ et -). Pour plus de sécurité, faites appel à un professionnel si nécessaire.

Quelle puissance d'amplificateur dois-je utiliser ?

Le SD12 a une puissance RMS de 175 W et une puissance crête de 500 W. Choisissez un amplificateur délivrant entre 175 et 350 W RMS sous 4 ohms pour un fonctionnement optimal.

Quel type d'enceinte choisir : scellée ou éventée ?

L'enceinte scellée offre une réponse plus contrôlée et précise, tandis que l'éventée produit plus de niveau dans les basses fréquences. Le choix dépend de vos préférences sonores et de l'espace disponible. Consultez les volumes recommandés dans la notice.

Comment construire une enceinte pour le SD12 ?

Utilisez du MDF ou du contreplaqué de bouleau d'au moins 3/4 pouce d'épaisseur. Assemblez avec de la colle et des vis tous les 4 pouces. Scellez les joints avec du silicone. Suivez les dimensions externes et volumes indiqués dans la notice pour les enceintes scellées, éventées ou passe-bande.

Quel calibre de fil utiliser pour le branchement ?

Utilisez un fil de calibre 14 AWG ou plus gros pour garantir une puissance suffisante et minimiser les pertes. Isolez les fils des sources de bruit électrique du véhicule.

Que faire si le son est faible ou distordu ?

Vérifiez la polarité des connexions : un câblage inversé réduit le niveau de basses. Assurez-vous que l'amplificateur fournit assez de puissance et que l'enceinte n'est pas endommagée. Consultez le guide de dépannage de la notice.

Comment nettoyer le subwoofer ?

Dépoussiérez délicatement avec un chiffon sec et doux. Évitez tout liquide ou produit chimique. Ne touchez pas le cône avec des objets pointus.

La garantie couvre-t-elle les dommages d'installation ?

Non, la garantie limitée d'un an ne couvre pas les dommages résultant d'une mauvaise installation, d'une utilisation abusive ou d'une modification du produit. Conservez votre preuve d'achat.

Où puis-je obtenir des pièces de rechange ou un service de réparation ?

Contactez le service client DUAL au 1-866-382-5476 ou par email à [e-mail] pour connaître le centre de service agréé le plus proche.

Comment contacter le support DUAL ?

Appelez gratuitement le 1-866-382-5476 ou envoyez un email à [e-mail]. Vous pouvez aussi consulter le site www.dualav.com pour plus d'informations.

MODE D'EMPLOI SD12 DUAL

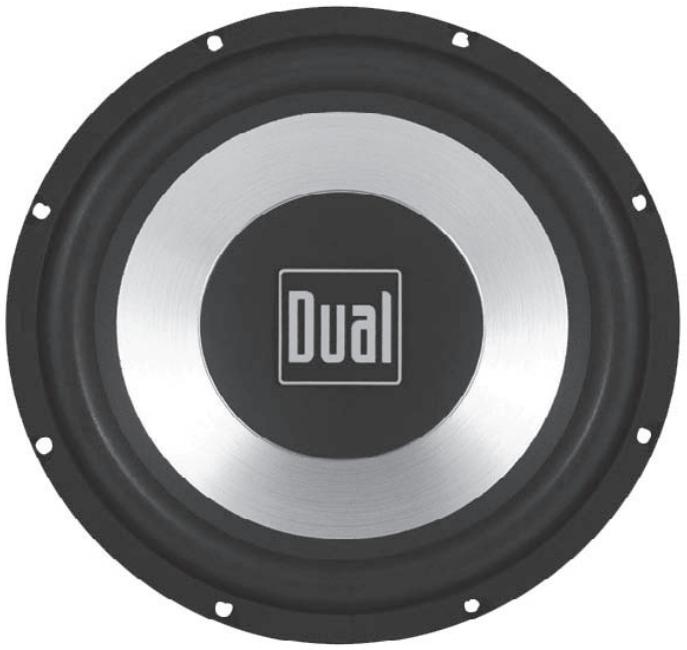

SD12

INSTALLATION/OWNERS MANUAL

Car Audio Subwoofer

DUAL AUDIO

LOUD & CLEAR

Getting Started

Thank you for purchasing a Dual SD12 subwoofer. Although Dual has attempted to make sure all of the information contained within this manual is accurate, please be aware that any part of it is subject to change without notice.

Safety

CAUTION

This symbol is intended to alert the user to the presence of important instructions. Failure to heed the instructions can result in injury or unit damage.

CAUTION

To prevent injury and damage to the unit, please read and follow the instructions in this manual.

CAUTION

If you feel unsure about installing this system yourself, have it installed by a qualified audio technician.

CAUTION

Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

Installation

CAUTION

The following installation instructions are very basic. If you feel unsure about personally installing this speaker system. Dual recommends acquiring the services of a professional car audio installation center.

Before installation, please follow the following rules:

1. Be sure to carefully read and understand the instructions before attempting to install this product.
2. For safety, disconnect the negative terminal from the battery prior to beginning the installation.
3. For easier assembly: If additional wiring is required, we recommend running all wires prior to mounting your speaker in place.
4. Use the highest quality connectors for a reliable installation and to minimize signal or power loss.
5. Use caution before you drill or cut! Be careful not to cut or drill into gas tanks, fuel lines, brake or hydraulic lines, vacuum lines or electrical wiring when working on any vehicle.
6. Never run speaker wires underneath your vehicle. Running speaker wires inside the vehicle provides the best protection from exhaust heat and environmental elements.
7. Avoid running wires over, near, or through sharp edged surfaces. We suggest you also use rubber grommets to protect any wires routed through metal, especially the firewall.

Specifications

Sensitivity: 88dB

Freq. Response: 28Hz-125Hz

Nominal Impedance: 4 ohms

Peak Power: 500 watts

RMS: 175 watts

Voice Coil Size: 2"

Magnet Size: 38.2oz.

Note: All specifications are subject to change without notice.

Enclosure Guidelines

To achieve the best possible sound from this subwoofer enclosure, Dual recommends acquiring the services of a professional car audio installation center.

If you feel confident in your ability to install this product without the assistance of a professional, please read this section thoroughly. We have provided a number of placement recommendations and installation tips to assist you. Keep in mind these are provided as a guideline and you may find that other placements specific to your vehicle may provide better results.

• Make sure all moving parts and factory electrical wires are out of the way and will not interfere after installation.
• Ensure the wire is of sufficient length to avoid pulling or stretching. This is even more important if the wires will be run under or through the factory interior.
• Use electrical tape and wire ties to ensure all wires are properly secured.
• Avoid installing speakers or electronics where they can be subject to moisture.
• Ensure the speaker wires are connected using correct polarity. The positive polarity is marked by a (+) sign. Incorrectly connected subwoofoers will result in limited bass output.
• Speaker wire should be isolated from the vehicle's electrical system to avoid noise being picked up by the amplifiers.
• We recommend using 14 gauge or larger sized speaker wire to ensure your subwoofer receives the full power output of your amplifier.
• Remember to listen responsibly and respect your ears. Being exposed to sounds over 125dB for even short periods of time can create permanent hearing loss!

Enclosure Guidelines

To work properly, the walls of your enclosure must be free from flexing during high sound pressure generated by your subwoofer(s).

For best performance, always use MDF (Medium Density Fiberboard) or Baltic Birch Plywood to build your enclosure. We highly recommend that your wood be at least 3/4'' in thickness. The enclosure should be sealed internally with silicon or glue and secured with screws every 4'' .

Assemble the box before cutting the subwoofer hole(s). If the box will be mounted in a vehicle, it should be fastened securely using metal "L" shaped brackets.

To build an enclosure, calculations will need to be made using the information found on the following 3 pages.

Remember:

• Use 3/4 MDF or Baltic Birch Plywood
• Use silicon or glue in joints
  Use screws every 4 inches

CAUTION

We at Dual are diligent in checking the dimensions provided. The engineers, staff and installers provide this information to make your installation go as smoothly as possible. Errors do occasionally occur. We highly recommend that you personally measure your subwoofer prior to installation to avoid any damage. Please follow the rule "Measure twice, cut once".

Sealed Enclosure

Good Bass Performance

Mini-Enclosure

(Vb) Box Volume=.75 Cu. Ft.

Example

Dimensions: 14"W x 14"H x 11.5" D

Better Bass Performance

Small Enclosure

(Vb) Box Volume=1.00 Cu. Ft.

Example

Dimensions: 15"W x 14"H x 13" D

Best Bass Performance

Medium Enclosure

(Vb) Box Volume=1.25 Cu. Ft.

Example

Dimensions: 17^ × 15^ × 13^

Note: All specifications are subject to change without notice.

Attention/Notice:

Dimensions are external.

Vented Enclosure

Good Bass Performance

Mini-Enclosure

(Vb) Box Volume=1 Cu. Ft.

Example

Dimensions: 14.25" W x 17" H x 12" D

(P) Port=3" ID x 9.7" Long

Better Bass Performance

Small Enclosure

(Vb) Box Volume=1.25 Cu. Ft.

Example

Dimensions: 14.50"W x 17"H x 14" D

(P) Port=3" ID x 10.25" Long

Best Bass Performance

Medium Enclosure

(Vb) Box Volume=1.5 Cu. Ft.

Example

Dimensions: 14" W x 20.25" H x 14" D

(P) Port=3" ID x 11.75" Long

Note: All specifications are subject to change without notice.

Attention/Notice:

Dimensions are external.

Bandpass Enclosure

Good Bass Performance/Mini-Enclosure

(Vf) Box Volume .84 Cu. Ft.
(Vr) Box Volume .47 Cu. Ft.
(P) Port 4" ID x 1.0" Long
(Sb) Speaker baffle location/outside front: 9.25"

Example Dimensions: 15^ W x 16.5" H x 15" D

Better Bass Performance/Small Enclosure

(Vf) Box Volume .84 Cu. Ft.
(Vr) Box Volume .69 Cu. Ft.
(P) Port 4" ID x 2.625" Long
(Sb) Speaker baffle location/outside front: 9.25"

Example Dimensions: 15^ × 18.5^ × 15^

Best Bass Performance/Medium Enclosure

(Vf) Box Volume .84 Cu. Ft.
(Vr) Box Volume .91 Cu. Ft.
(P) Port 4" ID x 4.25" Long
(Sb) Speaker baffle location/outside front: 9.25"

Example Dimensions: 15^ W x 20.75" H x 15" D

Note: All specifications are subject to change without notice.

Attention/Notice:

Dimensions are external.

Limited One-Year Warranty

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase.

Dual Electronics Corp. agrees, at our option, during the warranty period, to repair any defect in material or workmanship or to furnish an equal new, renewed or comparable product (whichever is deemed necessary) in exchange without charges, subject to verification of the defect or malfunction and proof of the date of purchase. Subsequent replacement products are warranted for the balance of the original warranty period.

Who is covered? This warranty is extended to the original retail purchaser for products purchased and used in the U.S.A.

What is covered? This warranty covers all defects in material and workmanship in this product. The following are not covered: installation/removal costs, damage resulting from accident, misuse, abuse, neglect, product modification, improper installation, incorrect line voltage, unauthorized repair or failure to follow instructions supplied with the product, or damage occurring during return shipment of the product.

What to do?

1. Before you call for service, check the troubleshooting guide in your owner's manual. A slight adjustment of any custom controls may save you a service call.
2. If you require service during the warranty period, you must carefully pack the product (preferably in the original package) and ship it by prepaid transportation with a copy of the original receipt from the retailer to an authorized service center.
3. Please describe your problem in writing and include your name, a return UPS shipping address (P.O. Box not acceptable), and a daytime phone number with your shipment.
4. For more information and for the location of the nearest authorized service center please contact us by one of the following methods:

Call us toll-free at 1-866-382-5476
E-mail us at [e-mail]

Exclusion of Certain Damages: This warranty is exclusive and in lieu of any and all other warranties, expressed or implied, including without limitation the implied warranties of merchantability and fitness for a particular purpose and any obligation, liability, right, claim or remedy in contract or tort, whether or not arising from the company's negligence, actual or imputed. No person or representative is authorized to assume for the company any other liability in connection with the sale of this product. In no event shall the company be liable for indirect, incidental or consequential damages.

Dual Electronics Corporation

Toll Free: 1-866-382-5476

www.dualav.com

©2009 Dual Electronics Corp. All rights reserved.

NSA1208-V01.1
