MODE D'EMPLOI GRABSTERAV250 TERRATEC
GRABSTER AV250
Movie Creating Solution
Manual (English)
Version: 2/18/2005
CE Declaration
We:
TerraTec Electronic GmbH, Herrenpfad 38, D-41334 Nettetal, Germany
hereby declare that the product:
VideoSystem Grabster AV 250
to which this declaration refers is in compliance with the following standards or standardizing documents:
- EN 55022 Class B
- EN 55024
The following are the stipulated operating and environmental conditions for said compliance:
residential, business and commercial environments and small-company environments.
This declaration is based on:
Test report(s) of the EMC testing laboratory
H. C.
The information in this document is subject to change without notice and shall not be deemed as a warranty by the seller. No warranties, express or implied, are made with regard to the quality, suitability or accuracy of this document. The manufacturer reserves the right to change the contents of this document and/or the associated products at any time without the provision of prior notice to specific persons or organizations. The manufacturer shall not be held liable for damages of any kind arising from the use, or the inability to use this product or its documentation, even if the possibility of such damage is known. The information in this document is subject to copyright. All rights are reserved. No part of this manual may be reproduced or transmitted in any form or for any purpose without the express written permission of the copyright holders. Product and brand names contained in this document are used for identification purposes only. All registered trademarks, product designations or brand names used in this document are the registered property of their respective owners.
©TerraTec® Electronic GmbH, 1994 - 2005. All rights reserved (2/18/2005).
Contents
Preface 5
Scope of delivery 5
Product description.. 6
Product illustration 6
Setting up your Grabster AV 250
Driver installation under Windows XP 7
Installing the Ulead video/DVD authoring software 7
Service at TerraTec. 8
Hotline, Internet. 8
Broken?! 8
General terms and conditions of service 9
Glossary. 10
Preface
Thank you for choosing a TerraTec product. Congratulations on your decision to buy this sophisticated piece of state-of-the-art technology, the Grabster AV 250. This is one of the most powerful products for video applications. We are convinced that the Grabster AV 250 will be both very useful and a lot of fun for you for a long time to come.
Scope of delivery
- Grabster AV 250
USB cable - Composite cable
- S video cable
- Stereo audio cinch cable
Scart-composite/S video/audio cinch (RCA) adapter - Software CD
- Hardware and software manual
- Registration card with the serial number
Product description

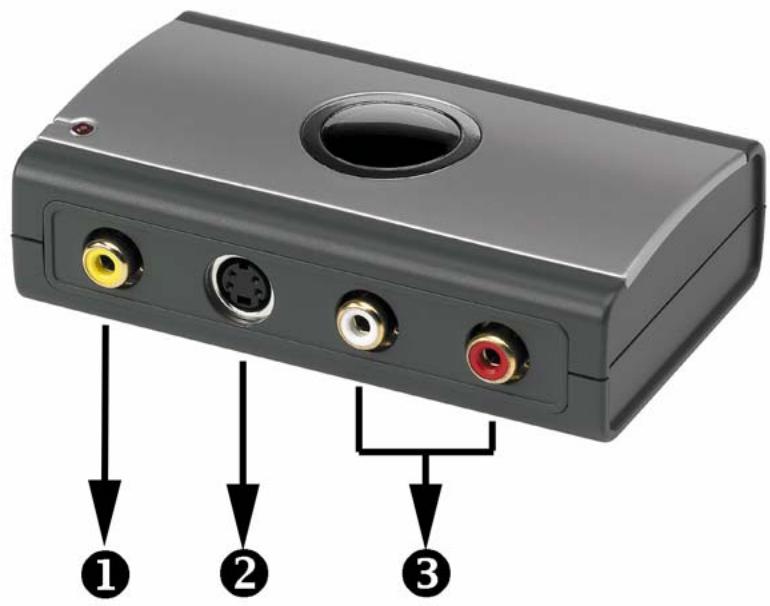

Product illustration
Composite video input
This input is used to connect external devices like video recorders and satellite receivers. We recommend using this input if your device features an S video output.
S video input
This input is used to connect analog video sources such as video recorders and satellite receivers. We recommend using this input if your device features an S video output. Audio is not transferred via this connection, only video data.
3 Stereo audio output
If you are connecting analog video sources using the Composite or S-video input terminal, you also have to establish an audio connection. Use this connector to do so.
Setting up your Grabster AV 250
The Grabster is extremely simple to install. The installation can be completed without shutting down your computer. Connect the USB cable to the Grabster AV 250. Insert the included installation CD into your CD drive. Connect the Grabster AV 250 to a free USB port on your computer with the USB cable. Your computer will recognize the new hardware and launch the installation wizard.
Driver installation under Windows XP
-
The next time you start your computer, Windows XP will recognize the Grabster AV 250 and will launch the hardware installation wizard. Select "Install the software automatically (Recommended)" and continue by clicking "Next".
-
Windows XP will automatically find the correct driver on the installation CD.
- Conclude the installation by clicking "Finish".
This completes the installation of the drivers and you can now start installing the application programs.
Installing the Ulead video/DVD authoring software
Install VideoStudio and DVD MovieFactory from the installation CD. Simply follow the instructions provided.
A detailed, printed software manual is included in the package.
Service at TerraTec.
"Rien ne va plus—Nothing's working" can happen to the best systems. If this happens to you, the TerraTec team is happy to offer its service and support.
Hotline, Internet.
Your first move should be to check our website http://www.terratec.com/ for current answers to frequently asked questions and the latest drivers.
If these options do not provide the necessary help, please contact our phone helpline or contact us online at http://supporten.terratec.net/. In either case, please have the following information handy:
- your registration number,
- this documentation,
- the manual of your motherboard, and
- a screen shot of your BIOS configuration (if possible).
In addition, it would be helpful to our technicians if you are at your computer during the phone call so that you can carry out our tips and tricks directly. Please do not forget to write down the name of the respective support technician if you contact our Support Team.
You will need this name if a defect is present and your card needs to be mailed to us.
Broken?!
Before you send your card back, be sure to contact us! Make a note of the name of your support contact and follow these simple instructions:
- Please fill out the service request form provided with your card clearly and completely. The more clearly and detailed you describe the problem, the faster we will be able to help. Cards sent in without a description of the problem cannot be processed and will be returned to you at your expense.
- Be sure to include a copy of your purchase receipt (not the original) with the package. If we do not receive a copy of a receipt, we will assume that the warranty for the product has expired and will bill you for the repair.
- Please use a sufficiently strong and padded mailing package. We recommend using the original package. Remember that the card is a sensitive electronic component.
- Be sure to include enough postage—we will cover for the postage for the return to you.
;）
General terms and conditions of service
1. General
By purchasing and receiving the goods, you accept our general terms and conditions of service.
2. Proof of guarantee
You will require a copy of the purchase receipt or delivery slip as proof of warranty. If you do not supply proof of warranty, we will charge for repairing the goods.
3. Description of problem
Shipments that do not include a description of the fault or an insufficient description ('defective' or 'for repair' is insufficient) will be returned for a processing fee, because this makes repair more difficult and could have been avoided.
4. Invalid returns
In the event of an unfounded complaint (no fault could be detected, probable operating error), we will return the goods and a processing fee will be charged.
5. Packaging
If possible, please use the original packaging for return shipment. Any warranty claim will be jeopardized by improper packaging. The warranty will not apply to damage caused by improper packaging.
6. Foreign manufactured products
Devices that are not manufactured or distributed by TerraTec Electronic GmbH will be returned and a processing fee will be charged.
7. Repairs liable to your expense
Repairs out of the warranty period are liable to your expense.
8. Transportation costs
The dispatcher pays all costs associated with shipping and insurance for the goods for repair to TerraTec Electronic GmbH. If the goods are covered by warranty, TerraTec Electronic GmbH will pay the shipping costs for returning repaired goods. COD shipments will not be accepted for organizational reasons.
9. Final regulation
TerraTec Electronic GmbH reserves the right to change or supplement the general terms and conditions of service at any time.
Otherwise the General Terms and Conditions of Business of TerraTec Electronic GmbH are considered to be accepted.
Glossary
AVI-A Windows video format.
