Type de produit	Ventilateur tour (Tour Fan)
Modèle	BT150R
Marque	BIONAIRE
Alimentation	220-240 V ~ 50 Hz (prise 13A BS1363)
Vitesses	3 vitesses : faible, moyen, élevé
Oscillation	Oui, activation/désactivation par bouton
Modes spéciaux	Mode brise (cyclage aléatoire) et mode sommeil (cyclage ordonné)
Minuterie	Arrêt automatique réglable : 1, 2, 4 ou 8 heures
Télécommande	Oui, nécessite 2 piles AAA (non incluses)
Stockage télécommande	Emplacement prévu à l'arrière de l'appareil
Assemblage	Base à assembler par glissement et fixation avec 4 vis
Nettoyage	Chiffon doux avec solution savonneuse douce ; éviter essence, diluant ou benzène
Sécurité	Débrancher avant nettoyage ou entretien ; ne pas immerger
Garantie	3 ans (sous conditions)
Service client (UK)	0800 052 3615 (ligne gratuite)
Email support	[e-mail]
Site web	www.bionaire.com
Fabricant	Holmes Products (Europe) Ltd., London SW19 4DT, UK
Usage	Intérieur, usage domestique uniquement
Puissance	Non spécifiée (estimation 40-60 W)
Dimensions (hauteur)	Environ 1 m (estimation)
Poids	Non spécifié (estimation 3-5 kg)

FOIRE AUX QUESTIONS - BT150R BIONAIRE

Comment assembler la base du ventilateur ?

Faites glisser les deux moitiés de la base en alignant les quatre parties mâles avec les quatre parties femelles, le cordon d'alimentation passant par la fente centrale. Fixez la base au boîtier à l'aide des quatre vis fournies (voir Fig. 5). Ensuite, fixez le cordon d'alimentation au bas de l'appareil (voir Fig. 6).

Comment nettoyer le ventilateur ?

Utilisez un chiffon doux humidifié avec une solution savonneuse douce. N'utilisez pas d'essence, de diluant ou de benzène. Débranchez toujours l'appareil avant le nettoyage et ne laissez pas l'eau pénétrer dans le moteur.

Comment utiliser la télécommande ?

Insérez deux piles AAA (non incluses) dans la télécommande. Les boutons permettent de mettre en marche/arrêt, régler la vitesse, l'oscillation, le mode brise/sommeil et la minuterie. Rangez la télécommande dans l'emplacement prévu à l'arrière de l'appareil lorsqu'elle n'est pas utilisée.

Que faire si le ventilateur ne fonctionne plus ?

Vérifiez d'abord le fusible de la prise (au Royaume-Uni) ou le disjoncteur du tableau électrique. Si cela ne résout pas le problème, contactez le service client au 0800 052 3615 (UK) ou par email à [e-mail].

Comment régler la minuterie ?

Appuyez sur le bouton de minuterie pour sélectionner la durée souhaitée : 1, 2, 4 ou 8 heures. Le voyant correspondant s'allume. L'appareil s'éteindra automatiquement à la fin du temps choisi. Pour annuler, appuyez jusqu'à ce qu'aucun voyant ne soit allumé.

Quels sont les modes de ventilation disponibles ?

Le ventilateur propose trois modes : vitesse constante (3 niveaux), mode brise (cyclage aléatoire des vitesses pour simuler une brise naturelle, voyant bleu) et mode sommeil (cyclage ordonné des vitesses, voyant ambre). Appuyez sur le bouton approprié pour les activer.

Puis-je utiliser le ventilateur à l'extérieur ?

Non, ce ventilateur est conçu pour un usage intérieur uniquement. Ne l'utilisez pas à l'extérieur ou dans des environnements humides.

Comment ranger le ventilateur ?

Vous pouvez le ranger assemblé ou partiellement démonté. Placez-le dans un endroit sec et sûr. Si démonté, utilisez la boîte d'origine. Si assemblé, protégez la tête du ventilateur de la poussière.

Le ventilateur est garantie combien de temps ?

Ce produit est garanti 3 ans à compter de la date d'achat. Conservez votre ticket de caisse. La garantie couvre les défauts de conception ou de fabrication, mais pas l'usure normale, les dommages dus à une mauvaise utilisation ou à une réparation non autorisée.

Comment nettoyer la télécommande ?

Utilisez un chiffon doux légèrement humide. N'utilisez pas de produits chimiques agressifs. Retirez les piles avant de nettoyer et assurez-vous que la télécommande est sèche avant de les remettre.

MODE D'EMPLOI BT150R BIONAIRE

• Be sure to use a soft cloth, moistened with a mild soap solution.
• Do not use any of the following as a cleaner: petrol, thinners or benzene.

FAN STORAGE

Your fan can be stored either partially disassembled or assembled.

It is important to keep it in a safe, dry location.

• If stored disassembled, we recommend using the original (or appropriately sized) box.
• If stored assembled or partially assembled, remember to protect the fan head from dust.

FOR U.K. AND IRELAND ONLY

If the plug is not suitable for the socket outlets in your home, it can be removed and replaced by a plug of the correct type. Please refer to "Installation of a plug" below.

Installation of a plug applicable to U.K. and Ireland

NOTE: If the terminals in the plug are not marked or if you are unsure or in doubt about the installation of the plug please contact a qualified electrician. If a 13A 3-pin plug is fitted, it must be an ASTA approved plug, conforming to BS1363 standard. Replacement 3A fuses must be BSI or ASTABS1362 approved.

This product is fitted with a 13A plug complying to BS1363. If this plug is unsuitable or needs to be replaced, please note the following: The wires in the mains lead are coloured as such:

BROWN - LIVE

BLUE - NEUTRAL

Please note that the colour of these mains wires may not correspond with the colour markings that identify the terminals in your plug. Please proceed as follows:

The BROWN coloured wire must be connected to the terminal, which is marked with the letter ČLČ or is coloured RED.

The BLUE coloured wire must be connected to the terminal, which is marked with the letter "N" or is coloured BLACK.

DO NOT CONNECT either of these wires to the earth terminal in the plug. The earth terminal plug is marked with the letter "E", or with the earth symbol ⊕, or coloured GREEN, or GREEN and YELLOW.

GUARANTEE

Please keep your receipt as this will be required for any claims under this guarantee.

This appliance is guaranteed for 3 years after your purchase as described in this document.

During this guaranteed period, if in the unlikely event the appliance no longer functions due to a design or manufacturing fault, please take it back to the place of purchase, with your till receipt and a copy of this guarantee.

The rights and benefits under this guarantee are additional to your statutory rights, which are not affected by this guarantee. Only Holmes

Products (Europe) Ltd. ("Holmes") has the right to change these terms.

Holmes undertakes within the guarantee period to repair or replace the appliance, or any part of appliance found to be not working properly free of charge provided that:

• you promptly notify the place of purchase or Holmes of the problem; and
• the appliance has not been altered in any way or subjected to damage, misuse, abuse, repair or alteration by a person other than a person authorised by Holmes

Faults that occur through, improper use, damage, abuse, use with incorrect voltage, acts of nature, events beyond the control of Holmes, repair or alteration by a person other than a person authorised by Holmes or failure to follow instructions for use are not covered by this guarantee. Additionally, normal wear and tear, including, but not limited to, minor discoloration and scratches are not covered by this guarantee.

The rights under this guarantee shall only apply to the original purchaser and shall not extend to commercial or communal use.

If your appliance includes a country-specific guarantee or warranty insert please refer to the terms and conditions of such guarantee or warranty in place of this guarantee or contact your local authorized dealer for more information.

Waste electrical products should not be disposed of with Household waste. Please recycle where facilities exist. E-mail us at [e-mail] for further recycling and WEEE information.

Holmes Products (Europe) Limited

1 Francis Grove

London

SW19 4DT

UK

BIONAIRE™

Holmes Products (Europe) Ltd.

1 Francis Grove

London SW19 4DT

England

Fax: [phone]

Email: [e-mail]

UK - Filter Sales Order Line - 0870 759 9000

Website address: www.bionaire.com

UK - Free phone Customer Service Helpline - 0800 052 3615

CE

© 2009 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All rights reserved. Distributed by Holmes Products (Europe) Ltd., 1 Francis Grove, London SW19 4DT, United Kingdom. Printed in PRC
© 2009 Sunbeam Products, Inc. faisant affaires sous le nom de Jarden Consumer Solutions. Tous droits réservés. Distribué par Holmes Products (Europe) Ltd., 1 Francis Grove, London SW19 4DT, United Kingdom. Imprimé en PRC

BIONAIRE™

pure indoor living

SLIM Tower Fan MODEL# BT150R

INSTRUCTION MANUAL

BT150R

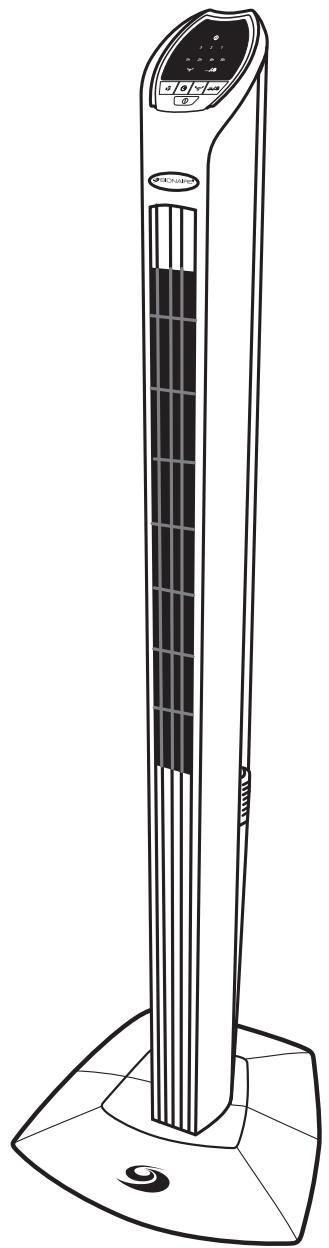

Fig. 1

Line drawing of a tall vertical air conditioner tower with cooling fins and a digital display (no text or symbols)

Fig. 2

Line drawing of a hand holding a BICNARS mobile phone, no text or symbols present

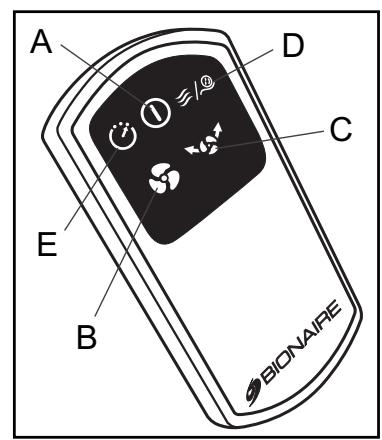

Fig. 4

A D C E B BIONAIRE

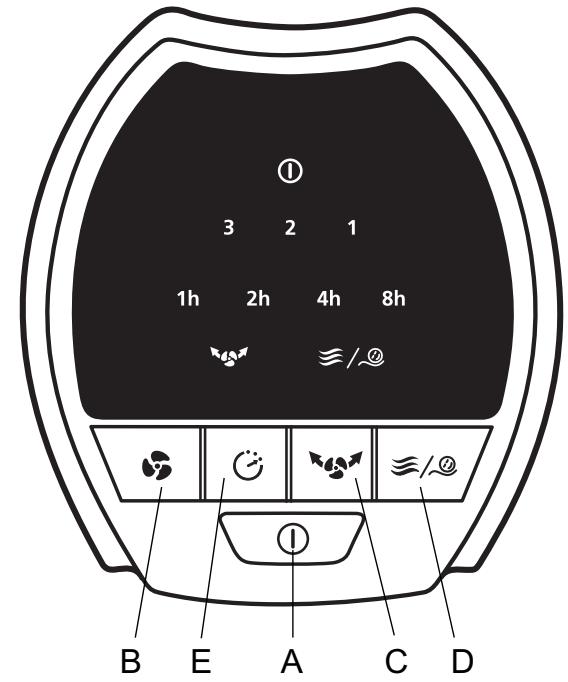

Fig. 3

① 3 2 1 1h 2h 4h 8h +/@ B E A C D

Fig. 5

Fig. 5 F G

Fig. 6

H

ENGLISH

PLEASE READ AND SAVE THESE INSTRUCTIONS

IMPORTANT INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken including the following:-

• Use the fan only for purposes described in the instruction manual.
• To protect against electrical shock, do not immerse the fan, plug or cord in water or spray with liquids.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from the electrical outlet when not in use, when moving the fan from one location to another, before putting on or taking off parts and before cleaning.
• Avoid contact with any moving parts.
• Do not operate in the presence of explosive and/or flammable fumes.
• Do not operate fan until fully assembled with all parts properly in place.
• To avoid fire hazard, NEVER place the cord under rugs or any parts near an open flame, cooking or other heating appliance.
• Ensure that the fan is switched off from the supply mains before removing the guard.
• Do not operate any appliance with a damaged cord, plug, after the appliance malfunctions, or has been dropped/damaged in any manner.
• The use of attachments not recommended or sold by the appliance manufacturer may cause hazards.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or come into contact with hot surfaces.
• To disconnect from the electrical supply, grip the plug and pull from the wall outlet. DO NOT pull on the cord.
  • Always use on a dry, level surface.
• Do not operate without the fan grills properly in place.
• This product is intended for household use ONLY and not for commercial or industrial applications.
• Should the fan stop working, first check the fuse in the plug (UK only) or fuse/circuit breaker at the distribution board is operating, before contacting the manufacturer or service agent.
• If the supply cord or plug is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or

lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

MISSING A PART FOR YOUR FAN?

Please call 0800 052 3615 for assistance.

ASSEMBLY INSTRUCTIONS

(See Fig. 5, 6)

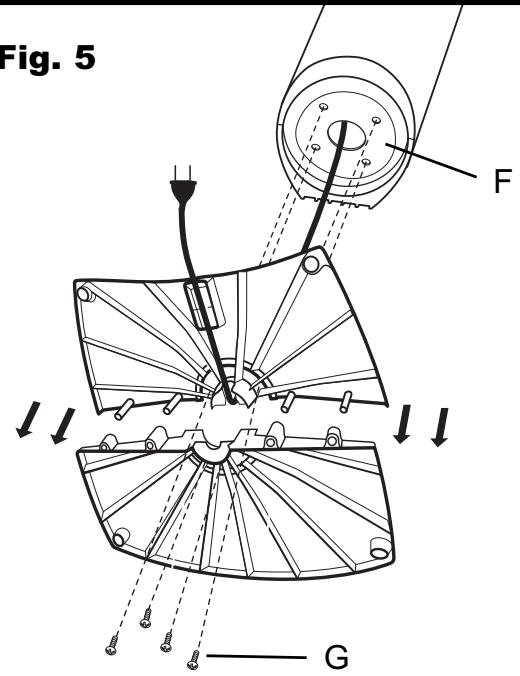

1. Assemble Base Halves with cord running through the middle slot, by sliding them together, aligning the 4 male parts with the 4 female parts as seen in Fig. 5.
2. Secure assembled base to the fan housing (F) with 4 securing screws (G) as seen in Fig. 5.

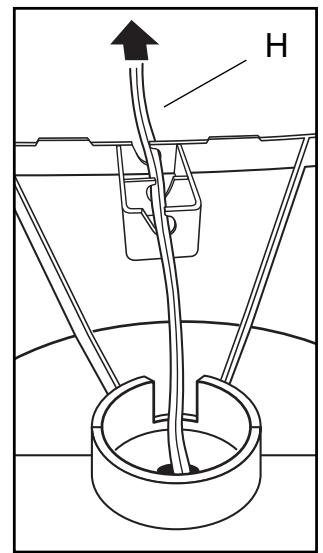

3. Secure power cord (H) to the bottom of the unit as seen in Fig. 6.

OPERATING INSTRUCTIONS

(See Fig. 2, 3, 4)

Remote Control: Remote Control requires 2 AAA batteries for operation (no batteries included).

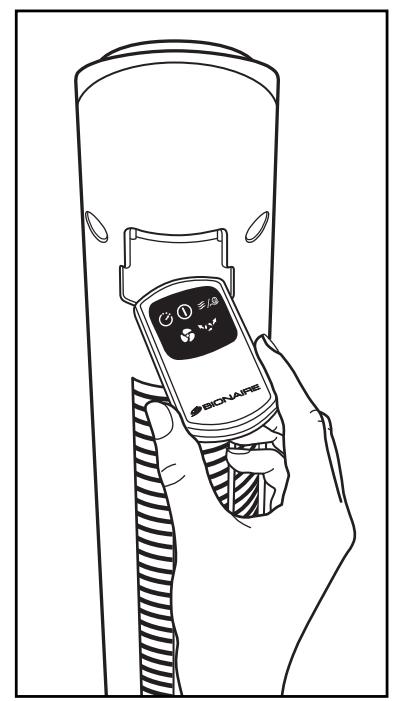

There is a slot on the back of the unit (Refer to Fig. 2) to store the remote when not in use.

A. Power Button ①

Press Ⓐ = on (light on) off (no light)

B. Speed Settings

Press 🚙 = 1 low speed, 2 medium speed, 3 high speed

C. Oscillation Control

Press 🏠 = on (light on) off (no light)

D. Breeze Mode ≈/∅

Press ⚫/@ with blue light = Breeze Mode: randomly cycles through the speed settings to simulate a natural breeze

Press ⚫/@ with amber light = Sleep Mode: cycles through the speed settings in order Press ⚫/@ no light = off

E. Timer Control

Press ⚙ = light on 1, 2, 4 or 8 = hours unit will shut-off automatically.

No light = no timer and unit stays on until you turn unit off with the ①

CLEANING AND MAINTENANCE

Follow these instructions to correctly and safely care for your Bionaire™ fan. Please remember:-

• Always unplug the fan before cleaning or assembly.
• Do not allow water to drip on or into the fan motor housing.
