| Type de produit | Imprimante numérique professionnelle couleur console |
| Marque | KONICA MINOLTA |
| Modèle | BIZHUB PRO C6501 |
| Dimensions (L x P x H) | 78,7 x 99,3 x 105,7 cm (machine seule) |
| Poids | Environ 360 kg |
| Alimentation électrique | 208-240 V, 60 Hz, 16 A (ligne dédiée) |
| Consommation électrique | Non spécifiée |
| Vitesse d'impression | 65 ppm en couleur et en noir et blanc (format A4/8,5" x 11") |
| Résolution d'impression | 600 x 600 dpi, 256 niveaux (8 bits) par couleur CMJN |
| Cycle de service mensuel | 300 000 pages |
| Capacité papier maximale | 7 500 feuilles (avec options) |
| Grammage papier supporté | Jusqu'à 300 g/m² (170 lb index) en bac optionnel |
| Formats papier | De 5,5" x 8,5" à 13" x 19,2" (tous les bacs) |
| Types de supports | Papier ordinaire, couché, étiquettes, transparents, jusqu'à 300 g/m² |
| Fonctions principales | Impression, copie, numérisation, finition en ligne |
| Options de finition | Agrafage, pliage, piqûre à cheval, reliure parfaite, perforation, insertion de tab, etc. |
| Contrôleurs image | Fiery® ou Creo® externes ou Fiery® interne |
| Mémoire vive | 1 Go (standard) |
| Disque dur | Jusqu'à 250 Go (selon contrôleur) |
| Interface réseau | Ethernet 10/100/1000 Base-T |
| Protocoles réseau | TCP/IP, IPX/SPX, AppleTalk, NetBEUI |
| Langages de description de page | Adobe PostScript 3, PDF natif, PCL (via option) |
| Température de fonctionnement | Non spécifiée |
| Niveau sonore | Non spécifié |
| Entretien et nettoyage | Nettoyage régulier des rouleaux et capteurs recommandé. Utiliser des produits non abrasifs. |
| Sécurité | Effacement sécurisé des données (ISO 15408 EAL-3), gestion des utilisateurs, SSL/TLS |
| Pièces détachées et réparabilité | Pièces disponibles auprès des revendeurs agréés ; nombreuses options de finition et contrôleurs |
| Informations générales | Année de lancement : 2009 environ ; fabricant : KONICA MINOLTA BUSINESS SOLUTIONS U.S.A., Inc. |
FOIRE AUX QUESTIONS - BIZHUB PRO C6501 KONICA
Questions des utilisateurs sur BIZHUB PRO C6501 KONICA
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Imprimante numérique professionnelle au format PDF gratuitement ! Retrouvez votre notice BIZHUB PRO C6501 - KONICA et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil BIZHUB PRO C6501 de la marque KONICA.
MODE D'EMPLOI BIZHUB PRO C6501 KONICA

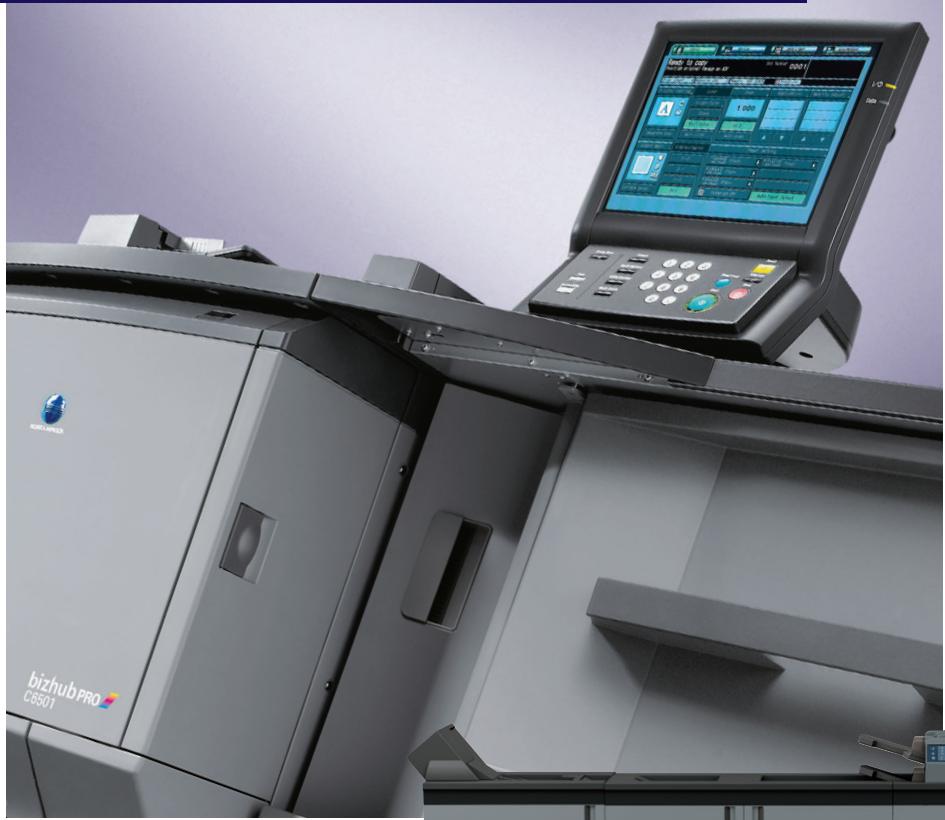

bizhub PRO C6501 FULL COLOR_PRODUCTION_PRINTER_COPIER_SCANNER
FAST, HIGH-QUALITY DIGITAL COLOR PRODUCTION. With 65ppm output in both color and B&W, the Kona Minolta bizhub® PRO C6501 really gets the job done – and makes on-demand production print runs cost-effective for any sized business. You'll have short-run, right-sized digital color printing far below the cost of offset printing. Setup is fast and simple, with Creo® and Fiery® image controllers and on-board LCD touch-screen control. Variable printing lets you customize audience-of-one documents for customers and mailing lists. Purpose-built design gives you workhorse production printing and inline finishing performance that ordinary printer/copiers can't match – and superb image quality makes all your work look more professional. Finally, you'll have scalable options for a total solution that fits every production need – including corporate CRDs, data centers, print-for-pay services and commercial printers.
65 PPM PRINT/COPY SPEED IN BOTH COLOR AND B&W
SIMITRI® HD TONER FOR PRECISE IMAGE DENSITY AND FIDELITY
HIGH-VOLUME 300,000-PAGE MONTHLY DUTY CYCLE
7,500-SHEET CAPACITY, 5.5'' X 8.5" TO 13" X 19.2" PAPER
HANDLES HEAVY AND COATED STOCK - MAX. 300 GSM
AIR-ASSIST PAPER FEED, BUILT-IN HEATING UNIT
SCALEABLE, FLEXIBLE OPTIONS FOR IN-HOUSE, INLINE FINISHING
200-PAGE FACE-TRIMMED SADDLE-STITCHED BOOKLETS
600-PAGE PERFECT-BOUND BOOKS WITH COVERS
INLINE FOLDING OPTION WITH PRECISE STACKING ALIGNMENT
5,000-SHEET STACKER OPTION WITH TAB PAPER SUPPORT
INLINE GBC PUNCHING WITH SELECTABLE DIE SETS
POWERFUL FIERY® AND CREO® IMAGE CONTROLLER OPTIONS
FIERY® SOFTWARE FOR ADVANCED COLOR MANAGEMENT
PAGESCOPE® SOFTWARE FOR JOB, QUEUE AND DEVICE CONTROL
BIZHUB PRO C6501 GENERAL SPECIFICATIONS:
| TYPE: | CONSOLE TYPE |
| PRINT/COPY PROCESS: | LASER ELECTROSTATIC TRANSFER METHOD |
| DEVELOPMENT SYSTEM: | DRY-TYPE DUAL COMPONENT MAGNETIC BRUSH DEVELOPING |
| PRINT/COPY (SPEED + DUTY CYCLE): | SPEED (COLOR AND B&W): 65 PPM (8.5" X 11"), MAXIMUM MONTHLY DUTY CYCLE: 300,000 PAGES |
| RESOLUTION/GRADATION: | 600 X 600 DPI / 256 (8 BITS) CMYK |
| MEMORY: | 1 GB |
| FIRST COPY/WARM-UP TIME: | APPROX. 6.5 SECONDS (COLOR), APPROX. 5.0 SECONDS (B&W) / APPROX. 6.5 MINUTES |
| COPY QUANTITY: | 1 - 9,999 COPIES (COUNTDOWN, INTERRUPT CAPABILITY) |
| MAGNIFICATION: | ZOOM RANGE: 25 - 400%, 0.001% INCREMENTS |
| COLOR MODES/EXPOSURE MODES: | AUTO, FULL COLOR, BLACK & WHITE, SINGLE COLOR / TEXT (LEGIBLE TEXT), TEXT/PHOTO (CLEAR TEXT & HALFTONES), PHOTO IMAGE (OPTIMIZED FOR GRADATIONS), MAP (FINE EDGES, LEGIBLE TEXT) |
| ORIGINAL SIZE: | UP TO 11" X 17" MAXIMUM |
| PAPER SIZE/PAPER WEIGHT: | UP TO 13" X 19.2" MAXIMUM (ALL TRAYS) / UP TO 140 LB. INDEX/256 GSM, UP TO 170 LB. INDEX/300 GSM (PF-601 TRAY 5) |
| PAPER SUPPLY: | STANDARD: 500-SHEET UNIVERSAL PAPER DRAWERS (3) / OPTIONAL: 6,000-SHEET PAPER FEED UNIT (PF-601), 2,500-SHEET LARGE CAPACITY TRAY (LU-202) |
| MAXIMUM PAPER CAPACITY: | 7,500 SHEETS (TOTAL, WITH OPTIONS) |
| DOCUMENT FEEDER (optional): | DF-609 REVERSING DULEXING DOCUMENT FEEDER, CAPACITY: 100 SHEETS, ORIGINAL SIZE: UP TO 11" X 17", 1-SIDED, 2-SIDED ORIGINALS, MIXED ORIGINAL DETECTION |
| POWER REQUIREMENTS: | 208V - 240V, 60HZ, 16A, (DEDICATED LINE) |
| DIMENSIONS (W X D X H)/WEIGHT: | 31" X 39.1" X 41.63" (MACHINE ONLY) / 794 LBS. |
| OPTIONS: | FD-503 MULTI-FOLDING UNIT, FS-520 STAPLER FINISHER, FS-521 STAPLE FINISHER, FS-607 BOOKLET FINISHER, GP-501 PUNCHING UNIT (DIE SET OPTIONS: DS-501 3-HOLE DIE PUNCH, DS-502 12-HOLE CERLOX PUNCH DIE, DS-503 32-HOLE WIREBIND PUNCH DIE, DS-504 21-HOLE WIREBIND PUNCH DIE, DS-505 44-HOLE COLOR COIL PUNCH DIE, DS-506 11-HOLD VEOBIND PUNCH DIE, HD-506 HARD DISK DRIVE, HT-503 HEATER/DEHUMIDIFIER, HT-504 HEATER/DEHUMIDIFIER, IC-304 PLUS EXTERNAL CREO® IMAGE CONTROLLER, IC-305 EXTERNAL FIERY® IMAGE CONTROLLER, IC-408 INTERNAL FIERY® IMAGE CONTROLLER, LS-505 LARGE CAPACITY STACKER, LU-202 LARGE CAPACITY UNIT, OC-506 PLATEN COVER, OT-502 OUTPUT TRAY, PB-502 PERFECT BINDER, PF-602 PAPER FEEDER UNIT, PI-502 POST INSERTER, PK-512 PUNCH KIT, RU-504 RELAY UNIT, RU-506 RELAY UNIT*, SD-506 SADDLE-STITCH FINISHER, 1GB MEMORY, 2 GB MEMORY |
| AVAILABLE FUNCTIONS: | AUTO ZOOM, AUTO PAPER SELECT, AUTO LOW POWER, AUTO RESET, AUTO SHUT-OFF, BOOK COPY, BOOKLLET PAGINATION, CHAPTERS, COLOR MODE, COLLATE, COMBINE ORIGINALS, COPY DENSITY, COVER SHEET FEEDING, CUSTOM SIZE IN ORIGINAL SETTING, CUSTOM SIZE PAPER SETTING, FOLDING, FRAME CENTER ERASURE, IMAGE CENTERING, IMAGE OVERLAY, IMAGE REPEAT, INSERT IMAGE, INSERT SHEET, INTERRUPT COPIYING, JOB LIST, JOB LOG, MANUAL SHUT-OFF, MIXED-IN ORIGINAL SETTING, MODE MEMORY, MULTI-PAGE ENLARGEMENT, NEG./POS, REVERSE, NON-IMAGE AREA ERASE, NON-SORT, PAGE MARGIN, PROGRAM OVERLAY, POWER SAVE, PROGRAM JOB, PROOF COPY, PUNCH, REMOTE MONITOR (THUMBNAL DISPLAY OF OPERATION PANEL), RESERVE JOB, ROTATION, SAVE PRINT HISTORY ON HDD, SEPARATE SCAN MODE, SIMPLEX/DUPEX, STAMP, STAPLE, TAB PAPER, TRIMMING, UNCOLLATE, WEEKLY TIMER, Z-FOLDED IN ORIGINAL SETTING, ZOOM |
IC-304 PLUS EXTERNAL CREO© IMAGE CONTROLLER:
| OPERATING SYSTEM: | MICROSOFT WINDOWS XP PROFESSIONAL SP2, ADOBE ACROBAT 7.0 STANDARD (PDF 1.6) |
| HARDWARE: | INTEL CORE2 DUO PROCESSOR (3.0 GHZ, 1333 MHz, 6MB Cache), FUSIONIN BOARD, 1 GB SYSTEM MEMORY, 1 GB IMAGE MEMORY, 250 GB SATA SYSTEM AND USER DISK, 2 X 250 GB SATA IMAGE DISK SPACE, 10/100/1000 ETHERNET NETWORK ADAPTER, DVD RW, X-RITE DTP34 DENSITOMETER, KEYBOARD AND MOUSE, 17" TFT LCD MONITOR, CREO COLOR SERVER STAND, GRETAGMACBETH EYE-ON SPECTROPHOTOMETER |
| PROTOCOLS SUPPORTED: | APPLETALK, NETBEUI, TCP/IP, IPX/SPX |
| SERVICES SUPPORTED: | APPLESHARE: FILE SHARING, PAP: FILE PRINTING, NETBIOS: PRINTING AND FILE SHARING, OVER TCP/IP/NETBEUI/IPX, TCP/IP: PRINTING LPR/LPD, NOVELL: NDS AND BINDERY, (NOVELL CERTIFIED CLIENT), NFS (OPTION) FILE SHARING |
| PAGE DESCRIPTION LANGUAGES (PDLs): | ADOBE POSTSCRIPT 3, NATVE PDF, EPS, Tiff, Tiff/IT, JPEG;CT/LW |
| VARIABLE DATA FILE FORMATS: | CREO VARIABLE PRINT SPECIFICATION (VPS) |
| ELECTRICAL: | AC INPUT VOLTAGE: 100 TO 127 VAC/127/200-240 VAC@ 50 TO 60 HZ, AMPERE RATING: 100-127 VAC/2 A, 200-240 VAC/1 A |
| DIMENSIONS/WEIGHT: | FOOTPRINT: 27.6" X 41.4" X 28.4" (INCLUDING STAND AND PALLET), WEIGHT 116 LB. |
IC-305 EXTERNAL FIERY© IMAGE CONTROLLER:
| HARDWARE: | PROCESSOR: INTEL® CORE 2 DUO 2 X 2.13 GHZ FSB, MEMORY: STANDARD: 1 GB, MAXIMUM: 3 GB, HARD DRIVE: 160 GB |
| SYSTEM SOFTWARE: | FIERY® SYSTEM 8 RELEASE 2 |
| PDL/PRINT DRIVERS: | ADOBE POSTSCRIPT 3 / WINDOWS 2000, XP, 2003, VISTA 32-BIT |
| FONTS: | 136 FONTS, VARIABLE DATA: FREEFORM V1/V2.1, PPML, V2.2 COMPLIANCE, POD: CERTIFICATION |
| NETWORKING/INTERFACE: | ETHERNET, APPLETALK (ETHERTALK), IPX/SPX / 10/100/1000 BASET |
| PROTOCOL: | NDS NETWORK 6.5 COMPLIANCE (INCLUDES IPRINT), NOVELL YES CERTIFICATION, SSL/TLS FOR HARMONY, HTT PS AND USER AUTHENTICATION, TCP/IP (STATIC IP, AUTO IP, DHCP, BOOTIP) [WITH IPV4/V6 SUPPORT], SNMP V3, SMB, PORT 9100 (BI-DIRECTIONAL SUPPORT), KERBEROS V5, NTLM V2.0, IPP, LDAP V3, GSSAPI, LPR-RTC, HOST RESOURCE MIB/PRINTER MIB/MIB-2, EMAIL FORMAT RFC822, SMTP-RFC821, POP3, IMAP, HTTP, HTTPS, FTP, EFI SDKV1.0, IP FILTERING, PORT BLOCKING, BONJOUR SUPPORT (V1.1 AND LATER), LDAP USER AUTHENTICATION |
| SCANNING: | SCAN RESOLUTION: 600 DPI, SCAN-T-O-HOLD QUEUE (FOR USE WITH JOB MERGE/EDIT), SCAN-T-MAIL, SCAN-T-FTP, SCAN-T-HDD, SCAN-T-SMB |
| SECURITY: | ISO 15408 EAL-3 FOR SECURE ERASE |
| UTILITIES: | COMMAND WORKSTATION™ WINDOWS EDITION V4.6, COMMAND WORKSTATION™ MACINTOSH EDITION V1.5, FIERY® COLORWISE® PROTOOLS V3.8, FIERY® EMAIL PORT MONITOR V1.0, FIERY® VDP RESOURCE MANAGER V1.2, FIERY® PRINTER DELETE UTILITY V2.0, FIERY® REMOTE SCAN V5.5, EFI HOT FOLDERS V2.4, FIERY® WEBTOOLS™ V3.0, SPOT ON AUTO TRAPPING |
| OPTIONS: | FIERY® GRAPHIC ARTS PACKAGE (GA1), FIERY® GRAPHIC ARTS PACKAGE, PREMIUM EDITION (GA2), EFI COLOR PROFILER™, EFI IMPOSE V2.7, EFI COMPOSE V2.0, HDD SECURITY KIT, FACI KIT WITH 19" WIDSCREEN OPTION, EFI SPECTROPHOTOMETER V2.0 |
IC-408 EMBEDDED FIERY* IMAGE CONTROLLER:
| HARDWARE: | PROCESSOR: INTEL® CELERON-D®, 2.8GHZ FSB 533 MHZ, MEMORY: STANDARD: 512 MB, MAXIMUM: 1 GB, HARD DRIVE: 80 GB |
| SYSTEM SOFTWARE: | FIERY® SYSTEM 8E |
| PDL/PRINT DRIVERS: | ADOBE® POSTSCRIPT 3 / WINDOWS 2000, XP, 2003 |
| FONTS: | 136 POSTSCRIPT FONTS |
| NETWORKING/INTERFACE: | ETHERNET, APPLETALK (ETHERTALK), IPX/SPX (NDS), TCP/IP (STATIC IP, AUTO IP), SNMP V3, SMB, PORT 9100 (BI-DIRECTIONAL SUPPORT), KERBEROS V5, NTLM V2.0, IPP, LDAP V3, GSSAPI, LPR-RFC, HOST |
| RESOURCE MIB/PRINTER MIB/MIB-2, EMAIL FORMAT RFC822, SMTPRFC821, POP3, IMAP, HTTP, HTTPS, FTP, EFI SDK V1.0, IP FILTERING, PORT BLOCKING, LDAP USER AUTHENTICATION / 10/100/1000 BASET | |
| SCANNING: | SCAN RESOLUTION: 600 DPI, SCAN-TO-MAIL, SCAN-TO-FTP, SCAN-TO-HDD (MAILBOX), SCAN-TO-HOLD QUEUE |
| UTILITIES: | COMMAND WORKSTATION™ WINDOWS EDITION V4.5, COMMAND WORKSTATION™ MACintosh EDITION V1.3-V.4, FIERY® COLORWISE® PROTOOLS V3.7-V3.8, FIERY® EMAIL PORT MONITOR, FIERY® VDP |
| RESOURCE MANAGER V1.2, FIERY® PRINTER DELETE UTILITY, FIERY® REMOTE SCAN V5.4-V5.5, FIERY® WEBTools™ SPOT ON | |
| OPTIONAL SOFTWARE APPLICATIONS: | FIERY® GRAPHIC ARTS FEATURES: AUTO TRAPPING, HOT FOLDERS WITH VIRTUAL PRINTERS, EFI COLOR PROFILER™ SUITE V2.0, EFI IMPOSE V2.6, EFI SECURE ERASE |
- Required for all configurations that include the GP-501
KONICA MINOLTA
KONICA MINOLTA
BUSINESS SOLUTIONS U.S.A., INC.
100 Williams Drive
Ramsey, NJ 07446
www.kmbs.konicaminolta.us
www.konicaminolta.us/solutions
bizhubPRO
© 2009 KONICA MINOLTA BUSINESS SOLUTIONS U.S.A., INC. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Konica Minolta and The essentials of imaging are trademarks of KONICA MINOLTA HOLDINGS, INC. bizhub PRO is a registered trademark of KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. Simitri is a registered trademark of KONICA MINOLTA BUSINESS SOLUTIONS. Fiery is a trademark of EFI. Creo is a trademark of Creo. All other brands and product names are registered trademarks or trademarks of their respective owners.
Design & specifications are subject to change without notice.
Some functions may require options, which may or may not be available at time of launch.
