| Intitulé | Description |
|---|---|
| Type de produit | Imprimante multifonction couleur |
| Caractéristiques techniques principales | Impression, copie, numérisation et fax |
| Résolution d'impression | 1200 x 1200 dpi |
| Vitesse d'impression | 55 pages par minute en noir et blanc et couleur |
| Alimentation électrique | 220-240 V, 50/60 Hz |
| Dimensions approximatives | 600 x 700 x 800 mm |
| Poids | Environ 100 kg |
| Compatibilités | Windows, Mac OS, Linux |
| Type de batterie | Non applicable |
| Tension | 220-240 V |
| Puissance | Environ 1,5 kW |
| Fonctions principales | Impression recto verso automatique, numérisation vers e-mail, impression depuis mobile |
| Entretien et nettoyage | Nettoyage régulier des rouleaux et des surfaces, remplacement des toners |
| Pièces détachées et réparabilité | Disponibilité de toners, tambours et pièces de maintenance |
| Sécurité | Fonctions de sécurité intégrées, telles que le chiffrement des données et l'authentification utilisateur |
| Informations générales utiles | Idéale pour les bureaux de taille moyenne à grande, avec des besoins d'impression élevés |
FOIRE AUX QUESTIONS - BIZHUB PRO C5501 KONICA
Questions des utilisateurs sur BIZHUB PRO C5501 KONICA
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Imprimante multifonction professionnelle au format PDF gratuitement ! Retrouvez votre notice BIZHUB PRO C5501 - KONICA et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil BIZHUB PRO C5501 de la marque KONICA.
MODE D'EMPLOI BIZHUB PRO C5501 KONICA

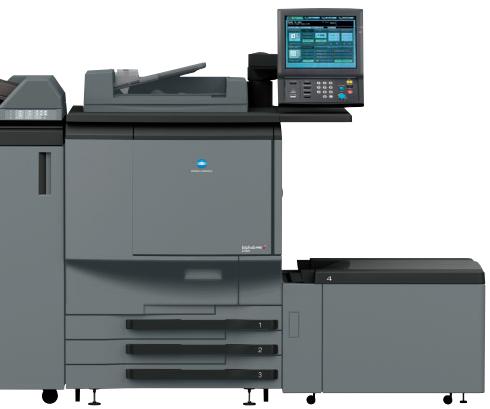

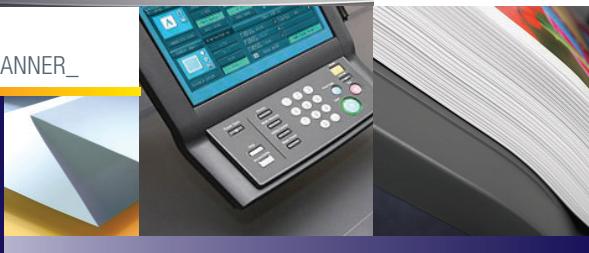

bizhub PRO C5501 FULL COLOR_PRODUCTION_PRINTER_COPIER_SCANNER
DIGITAL COLOR PRODUCTION, AFFORDABLE COST. At last, high-quality on-demand production printing can be cost-effective for any sized business. The Konica Minolta bizhub® PRO C5501 delivers fast, 55ppm output in both color and B&W – and delivers short-run, right-sized digital color printing at far below the cost of offset printing. Setup is fast and simple, with Creo® and Fiery® image controllers and on-board LCD touch-screen control. Variable printing lets you customize audience-of-one documents for customers and mailing lists. Purpose-built design gives you workhorse production printing and inline finishing performance that ordinary printer/copiers can't match. With full print/copy/scan functionality and powerful, scalable options, you can configure a solution that fits every production need – including corporate in-plant facilities, data centers, print-for-pay services and commercial printers.
55 PPM PRINT/COPY SPEED IN BOTH COLOR AND B&W
SIMITRI® HD TONER FOR PRECISE IMAGE DENSITY AND FIDELITY
HIGH-VOLUME 250,000-PAGE MONTHLY DUTY CYCLE
4,250-SHEET CAPACITY, 5.5'' X 8.5'' TO 13.6'' X 19.2'' PAPER
HANDLES HEAVY AND COATED STOCK—MAX. 300 GSM
BUILT-IN HEATING UNIT FOR SMOOTH PAPER FEED
SCALEABLE, FLEXIBLE OPTIONS FOR IN-HOUSE, INLINE FINISHING
80-PAGE BOOKLETS, LONG-LIFE STAPLES
INLINE FOLDING OPTION WITH PRECISE STACKING ALIGNMENT
POWERFUL FIERY® AND CREO® IMAGE CONTROLLER OPTIONS
FiERY® SOFTWARE FOR ADVANCED COLOR MANAGEMENT
PAGESCOPE® SOFTWARE FOR JOB, QUEUE AND DEVICE CONTROL
bizhub PRO C5501
FULL COLOR PRODUCTION_PRINTER_COPIER_SCANNER
CONNECTCOMMUNICATE_CONTROL
BIZHUB PRO C5501 GENERAL SPECIFICATIONS:
| TYPE: | CONSOLE TYPE |
| PRINT PROCESS: | LASER ELECTROSTATIC TRANSFER METHOD |
| DEVELOPMENT SYSTEM: | DRY-TYPE DUAL COMPONENT MAGNETIC BRUSH DEVELOPING |
| PRINT/COPY (SPEED + DUTY CYCLE): | SPEED (COLOR AND B&W): 55 PPM (8.5" X 11"), MAXIMUM MONTHLY DUTY CYCLE: 250,000 PAGES |
| RESOLUTION/GRADATION: | 600 X 600 DPI / 256 (8 BITS) CMYK |
| MEMORY: | 1 GB |
| FIRST PRINT/WARM-UP TIME: | APPROX. 6.5 SECONDS (COLOR), APPROX. 5.0 SECONDS (B&W) / APPROX. 6.5 MINUTES |
| COPY QUANTITY: | 1 - 9,999 COPIES (COUNTDOWN, INTERRUPT CAPABILITY) |
| MAGNIFICATION: | ZOOM RANGE: 25 - 400%, 0.001% INCREMENTS |
| COLOR MODES/EXPOSURE MODES: | AUTO, FULL COLOR, BLACK & WHITE, SINGLE COLOR / TEXT (LEGIBLE TEXT), TEXT/PHOTO (CLEAR TEXT & HALFTONES), PHOTO IMAGE (OPTIMIZED FOR GRADATIONS), MAP (FINE EDGES, LEGIBLE TEXT) |
| ORIGINAL SIZE: | UP TO 11" X 17" MAXIMUM |
| PAPER SIZE/PAPER WEIGHT: | UP TO 13" X 19.2" MAXIMUM (ALL TRAYS) / UP TO 140 LB. INDEX/256 GSM, UP TO 170 LB. INDEX/300 GSM (LU-202 AND BYPASS TRAY) |
| PAPER SUPPLY: | STANDARD: 500-SHEET UNIVERSAL PAPER DRAWERS (3) / OPTIONAL: 2,500-SHEET LARGE CAPACITY TRAY (LU-202) |
| MAXIMUM PAPER CAPACITY: | 4,250 SHEETS (TOTAL, WITH OPTIONS) |
| DOCUMENT FEEDER (OPTIONAL): | DF-609 REVERSING DUPLEXING DOCUMENT FEEDER, CAPACITY: 100 SHEETS, ORIGINAL SIZE: UP TO 11" X 17", 1-SIDED, 2-SIDED ORIGINALS, MIXED ORIGINAL DETECTION |
| POWER REQUIREMENTS: | 208V - 240V, 60HZ, 16A, (DEDICATED LINE) |
| DIMENSIONS (W X D X H)/WEIGHT: | 31" X 39.1" X 41.63" (MACHINE ONLY) / 794 LBS. |
| OPTIONS: | FS-520 STAPLER FINISHER, FS-607 BOOKLET FINISHER, HD-506 HARD DISK DRIVE, HT-503 HEATER/DEHUMIDIFIER, IC-304 PLUS EXTERNAL CREO® IMAGE CONTROLLER, IC-305 EXTERNAL FIERY® IMAGE CONTROLLER, IC-408 INTERNAL FIERY® IMAGE CONTROLLER, LU-202 LARGE CAPACITY UNIT, OC-506 PLATEN COVER, OT-502 OUTPUT TRAY, PI-502 POST INSERTER, PK-512 PUNCH KIT, 1 GB MEMORY, 2 GB MEMORY |
| AVAILABLE FUNCTIONS: | AUTO ZOOM, AUTO PAPER SELECT, AUTO LOW POWER, AUTO RESET, AUTO SHUT-OFF, BOOK COPY, BOOKLET PAGINATION, CHAPTERS, COLOR MODE, COLLATE, COMBINE ORIGINALS, COPY DENSITY, COVER SHEET FEEDING, CUSTOM SIZE IN ORIGINAL SETTING, CUSTOM SIZE PAPER SETTING, FOLDING, FRAME CENTER ERASURE, IMAGE CENTERING, IMAGE OVERLAY, IMAGE REPEAT, INSERT IMAGE, INSERT SHEET, INTERRUPT COPIYG, JOB LIST, JOB LOG, MANUAL SHUT-OFF, MIXED IN ORIGINAL SETTING, MODE MEMORY, MULTI-PAGE ENLARGEMENT, NEG/POS, REVERSE, NON-IMAGE AREA ERASE, NON-SORT, PAGE MARGIN, PROGRAM OVERLAY, POWER SAVE, PROGRAM JOB, PROOF COPY, PUNCH, REMOTE MONITOR (THUMBNAL DISPLAY OF OPERATION PANEL), RESERVE JOB, ROTATION, SAVE PRINT HISTORY ON HDD, SEPARATE SCAN MODE, SIMPLEX/DUPEX, STAMP, STAPLE, TAB PAPER, TRIMMING, UNCOLLATE, WEEKLY TIMER, ZOOM |
IC-304 PLUS EXTERNAL CREO© IMAGE CONTROLLER:
| OPERATING SYSTEM: | MICROSOFT WINDOWS XP PROFESSIONAL SP2, ADOBE ACROBAT 7.0 STANDARD (PDF 1.6) |
| HARDWARE: | INTEL CORE2 PROCESSOR (3.0 GHZ, 1333 MHz, 6MB Cache), FUSIONIN BOARD, 1GB SYSTEM MEMORY, 1GB IMAGE MEMORY, 250 GB SATA SYSTEM AND USER DISK, 2X250 GB SATA IMAGE DISK SPACE, 10/100/1000 ETHERNET NETWORK ADAPTER, DVD RW, X-RITE DTP34 DENSITOMETER, KEYBOARD AND MOUSE, 17" TFT LCD Monitor, CREO COLOR SERVER STAND, GRETAGMACBETH EYE-ON SPECTRAPHOTOMETER |
| PROTOCOLS SUPPORTED: | APPLETALK, NETBEUI, TCP/IP, IPX/SPX |
| SERVICES SUPPORTED: | APPLESHARE: FILE SHARING, PAP: FILE PRINTING, NETBIOS: PRINTING AND FILE SHARING, OVER TCP/IP/NETBEUI/IPX, TCP/IP: PRINTING LPR/LPD, NOVELL: NDS AND BINDERY, (NOVELL CERTIFIED CLIENT), NFS (OPTION) FILE SHARING |
| PAGE DESCRIPTION LANGUAGES (PDLs): | ADOBE POSTSCRIPT 3, NATIVE PDF, EPS, Tiff, Tiff/IT, JPEG;CT/LW |
| VARIABLE DATA FILE FORMATS: | CREO VARIABLE PRINT SPECIFICATION (VPS) |
| ELECTRICAL: | AC INPUT VOLTAGE: 100 TO 127 VAC/127/200-240 VAC@ 50 TO 60 Hz, AMPERE RATING: 100-127 VAC/2 A, 200-240 VAC/1 A |
| DIMENSIONS/WEIGHT: | FOOTPRINT: 27.6" X 41.4" X 28.4" (INCLUDING STAND AND PALLET), WEIGHT 116 LB. |
IC-305 EXTERNAL FIERY© IMAGE CONTROLLER:
| HARDWARE: | PROCESSOR: INTEL® CORE 2 DUO 2 X 2.13 GHZ FSB, MEMORY: STANDARD: 1 GB, MAXIMUM: 3 GB, HARD DRIVE: 160 GB |
| SYSTEM SOFTWARE: | FIERY® SYSTEM 8 RELEASE 2 |
| PDL/PRINT DRIVERS: | ADOBE POSTSCRIPT 3 / WINDOWS 2000, XP, 2003, VISTA 32-BIT |
| FONTS: | 136 FONTS, VARIABLE DATA: FREEFORM V1/V2.1, PPML, V2.2 COMPLIANCE, POD: CERTIFICATION |
| NETWORKING/INTERFACE: | ETHERNET, APPLETALK (ETHERTALK), IPX/SPX / 10/100/1000 BASET |
| PROTOCOL: | NDS NETWORK 6.5 COMPLIANCE (INCLUDES IPRINT), NOVEL YES CERTIFICATION, SSL/TLS FOR HARMONY, HTT PS AND USER AUTHENTICATION, TCP/IP (STATIC IP, AUTO IP, DHCP, BOOTP) [WITH IPV4/V6 SUPPORT], SNMP V3, SMB, PORT 9100 (BI-DIRECTIONAL SUPPORT), KERBEROS V5, NTLM V2.0, IPP, LDAP V3, GSSAPI, LPR-RFC, HOST RESOURCE MIB/PRINTER MIB/MIB-2, EMAIL FORMAT RFC822, SMTP-RFC821, POP3, IMAP, HTTP, HTTPS, FTP, EFI SDK V1.0, IP FILTERING, PORT BLOCKING, BONJOUR SUPPORT (V1.1 AND LATER), LDAP USER AUTHENTICATION |
| SCANNING: | SCAN RESOLUTION: 600 DPI, SCAN-T-O-HOLD QUEE (FOR USE WITH JOB MERGE/EDIT), SCAN-T-MAIL, SCAN-T-FTP, SCAN-T-HDD, SCAN-T-SMB |
| SECURITY: | ISO 15408 EAL-3 FOR SECURE ERASE |
| UTILITIES: | COMMAND WORKSTATION™ Windows EDITION V4.6, COMMAND WORKSTATION™ MACINTOSH EDITION V1.5, FIERY® COLORWISE® PROTOOLS V3.8, FIERY® EMAIL PORT MONITOR V1.0, FIERY® VDP RESOURCE MANAGER V1.2, FIERY® PRINTER DELETE UTILITY V2.0, FIERY® REMOTE SCAN V5.5, EFI HOT FOLDERS V2.4, FIERY® WEBTOOLS™ V3.0, SPOT ON AUTO TRAPPING |
| OPTIONS: | FIERY® GRAPHIC ARTS PACKAGE (GA1), FIERY® GRAPHIC ARTS PACKAGE, PREMIUM EDITION (GA2), EFI COLOR PROFILER™, EFI IMPOSE V2.7, EFI COMPOSE V2.0, HDD SECURITY KIT, FACI KJT WITH 19" WIDSCREEN OPTION, EFI SPECTROPHOTOMETER V2.0 |
IC-408 EMBEDDED FIERY* IMAGE CONTROLLER:
| HARDWARE: | PROCESSOR: INTEL® CELERON-D®, 2.8GHZ FSB 533 MHz, MEMORY: STANDARD: 512 MB, MAXIMUM: 1 GB, HARD DRIVE: 80 GB |
| SYSTEM SOFTWARE: | FIERY® SYSTEM 8E |
| PDL/PRINT DRIVERS: | ADOBE® POSTSCRIPT 3 / WINDOWS 2000, XP, 2003 |
| FONTS: | 136 POSTSCRIPT FONTS |
| NETWORKING/INTERFACE: | ETHERNET, APPLETALK (ETHERTALK), IPX/SPX (NDS), TCP/IP (STATIC IP, AUTO IP), SNMP V3, SMB, PORT 9100 (BI-DIRECTIONAL SUPPORT), KERBEROS V5, NTLM V2.0, IPP, LDAP V3, GSSAPI, LPR-RFC, HOST RESOURCE MIB/PRINTER MIB/MIB-2, EMAIL FORMAT RFC822, SMTPRFC821, POP3, IMAP, HTTP, HTTPS, FTP, EFI SDK V1.0, IP FILTERING, PORT BLOCKING, LDAP USER AUTHENTICATION / 10/100/1000 BASET |
| SCANNING: | SCAN RESOLUTION: 600 DPI, SCAN-TO-MAIL, SCAN-TO-FTP, SCAN-TO-HDD (MAILBOX), SCAN-TO-HOLD QUEUE |
| UTILITIES: | COMMAND WORKSTATION™ WINDOWS EDITION V4.5, COMMAND WORKSTATION™ MACINTOSH EDITION V1.3-V1.4, FIERY® COLORWISE® PROTOOLS V3.7-V3.8, FIERY® EMAIL PORT MONITOR, FIERY® VDP RESOURCE MANAGER V1.2, FIERY® PRINTER DELETE UTILITY, FIERY® REMOTE SCAN V5.4-V5.5, FIERY® WEBTOOLS™ SPOT ON |
| OPTIONAL SOFTWARE APPLICATIONS: | FIERY® GRAPHIC ARTS FEATURES: AUTO TRAPPING, HOT FOLDERS WITH VIRTUAL PRINTERS, EFI COLOR PROFILER™ SUITE V2.0, EFI IMPOSE V2.6, EFI SECURE ERASE |
KONICA MINOLTA
KONICA MINOLTA
BUSINESS SOLUTIONS U.S.A., INC.
100 Williams Drive
Ramsey, NJ 07446
www.kmbs.konicaminolta.us
www.konicaminolta.us/solutions
© 2008 KONICA MINOLTA BUSINESS SOLUTIONS U.S.A., INC. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Konica Minolta and The essentials of imaging are trademarks of KONICA MINOLTA HOLDINGS, INC. bizhub PRO is a registered trademark of KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. Simitri is a registered trademark of KONICA MINOLTA BUSINESS SOLUTIONS. Fiery is a trademark of EFI. Creo is a trademark of Creo. All other brands and product names are registered trademarks or trademarks of their respective owners.
Design & specifications are subject to change without notice.
*Some functions may require options, which may or may not be available at time of launch.
