Intitulé	Description
Type de produit	Écran LCD 32 pouces
Résolution	1366 x 768 pixels
Technologie d'affichage	LCD avec rétroéclairage LED
Rapport de contraste	3000:1
Luminosité	300 cd/m²
Temps de réponse	8 ms
Angles de vision	178° horizontal et vertical
Connectivité	HDMI, VGA, Composite
Alimentation électrique	100-240V, 50/60Hz
Dimensions approximatives	73.7 x 48.6 x 8.5 cm
Poids	10.5 kg
Fonctions principales	Affichage multimédia, mode éco, réglage de la luminosité
Entretien et nettoyage	Utiliser un chiffon doux et sec, éviter les produits chimiques agressifs
Pièces détachées et réparabilité	Disponibilité limitée des pièces, consulter un professionnel pour les réparations
Garantie	1 an

FOIRE AUX QUESTIONS - N3246W VIEWSONIC

Comment puis-je résoudre les problèmes de qualité d'image sur mon VIEWSONIC N3246W ?

Vérifiez d'abord les connexions de votre câble et assurez-vous qu'il est correctement branché. Accédez au menu de l'écran pour ajuster les paramètres de luminosité, de contraste et de couleur. Si le problème persiste, essayez de brancher l'écran sur un autre appareil pour déterminer si le problème vient de l'écran ou de la source.

Mon écran VIEWSONIC N3246W ne s'allume pas. Que faire ?

Vérifiez que l'écran est correctement branché à une prise de courant fonctionnelle. Assurez-vous que le câble d'alimentation est en bon état. Essayez d'utiliser une autre prise pour voir si le problème persiste. Si l'écran ne s'allume toujours pas, il pourrait nécessiter une assistance technique.

Comment réinitialiser les paramètres d'usine de mon VIEWSONIC N3246W ?

Accédez au menu OSD (On-Screen Display) de votre écran. Naviguez jusqu'à l'option 'Réinitialiser' ou 'Paramètres d'usine' et confirmez votre choix. Cela rétablira les paramètres par défaut de l'écran.

Pourquoi le son de mon VIEWSONIC N3246W est-il faible ou absent ?

Vérifiez que le volume de l'écran est réglé correctement. Assurez-vous que les câbles audio sont bien connectés si vous utilisez des haut-parleurs externes. Testez l'écran avec un autre appareil pour voir si le problème provient de la source audio.

Comment connecter mon VIEWSONIC N3246W à un ordinateur ?

Utilisez un câble HDMI ou VGA pour connecter l'écran à votre ordinateur. Branchez une extrémité du câble à l'écran et l'autre à la sortie vidéo de votre ordinateur. Sélectionnez la source appropriée sur l'écran pour afficher le contenu de votre ordinateur.

Mon écran VIEWSONIC N3246W affiche des lignes ou des pixels morts. Que faire ?

Essayez de redémarrer l'écran et l'appareil connecté. Si le problème persiste, vérifiez les câbles pour des dommages. Si le problème est toujours là après ces vérifications, il peut être nécessaire de contacter le support technique pour une réparation ou un remplacement.

Comment régler la luminosité de mon VIEWSONIC N3246W ?

Utilisez le bouton Menu sur l'écran pour accéder aux paramètres. Naviguez jusqu'à 'Luminosité' et ajustez le niveau selon vos préférences. Vous pouvez également ajuster le contraste pour améliorer la qualité de l'image.

Où puis-je trouver le manuel d'utilisation du VIEWSONIC N3246W ?

Le manuel d'utilisation est généralement disponible sur le site Web de VIEWSONIC dans la section Assistance ou Téléchargements. Vous pouvez également trouver une version papier incluse dans l'emballage de l'écran.

MODE D'EMPLOI N3246W VIEWSONIC

ViewSonic®

N3246w/N3746w

LCD TV

-User Guide
-Bedienungsanleitung
- Guida dell'utente
- Guide de l'utilisateur
- Guía del usuario
- Podręcznik uzytkownikka
- Kayttoopa
- Gebruiker Gids
-08nyocxpnotuw
- Brugervejledning
- Användarhandbok
- Kullanici kilavuzu
-PykoBOIDCTBO NOJb3OBaTeJIa

Contents

Compliance Information 1
Important Safety Instructions 2
Declaration of RoHS Compliance 3
Copyright Information 4
Product Registration 4
Antenna Installation Instructions 5
Cleaning the LCD TV 5

Getting Started

Package Contents. 6
Front View of the Product. 7
Signal Source Interface Presentation from Rear View 8
Preparation. 13

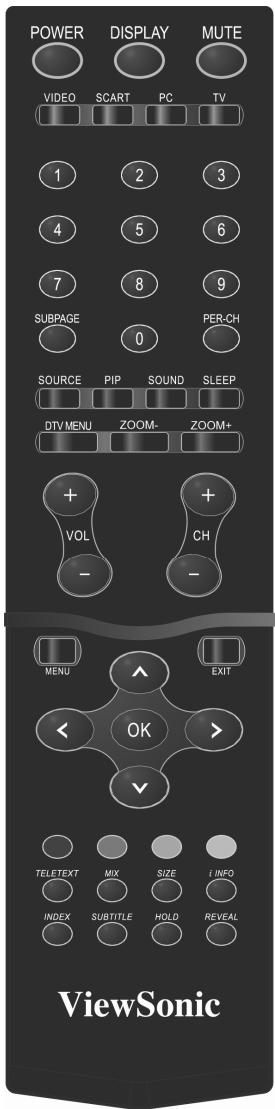

Remote Control 15
Teletext 16

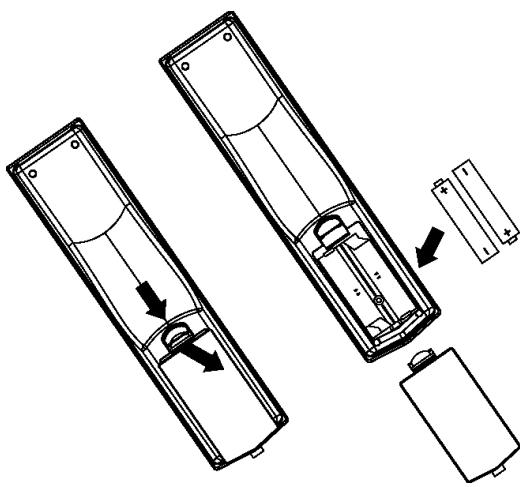

Remote Control Battery Installation. 17

OSD Function

Analog OSD Functions. 18
Digital OSD Functions 25

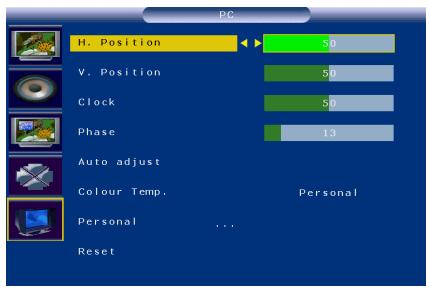

PC Mode OSD Instruction. 32

Appendix

Tips 33
Product Specification. 34
Preset Timing Mode 35
Troubleshooting 36
Glossary 37
Customer Support 38
Limited Warranty 39

Compliance Information

CE Conformity for European Countries

The device complies with the requirements of the EEC directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to "Electromagnetic compatibility", and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to "Safety."

Following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE).

The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

SRS and () are registered trademarks of SRS Labs, Inc.

This product is designed using SRS technology with permission from SRS Labs, Inc.

A46

Important Safety Instructions

1. Read these instructions completely before using the equipment.

2. Keep these instructions in a safe place.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this equipment near water. Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

6. Clean with a soft, dry cloth. If further cleaning is required, see "Cleaning the LCD TV" in this guide for further instructions.

7. Do not block any ventilation openings. Install the equipment in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that produce heat.

9. Do not attempt to circumvent the safety provisions of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade and the third prong are provided for your safety. If the plug does not fit into your outlet, consult an electrician for replacement of the outlet.

10. Protect the power cord from being tread upon or pinched, particularly at the plug, and the point where if emerges from the equipment. Be sure that the power outlet is located near the equipment so that it is easily accessible.

11. Only use attachments/accessories specified by the manufacturer.

12.

Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug this equipment when it will be unused for long periods of time.
2. Refer all servicing to qualified service personnel. Service is required when the unit has been damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid is spilled onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if the unit does not operate normally or has been dropped.
3. This product is only to perform the useful function of entertainment and visual display tasks are excluded.

Declaration of RoHS Compliance

This product has been designed and manufactured in compliance with Directive 2002/95/EC of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance	Proposed Maximum Concentration	Actual Concentration
Lead (Pb)	0.1%	< 0.1%
Mercury (Hg)	0.1%	< 0.1%
Cadmium (Cd)	0.01%	< 0.01%
Hexavalent Chromium (Cr6+)	0.1%	< 0.1%
Polybrominated biphenyls (PBB)	0.1%	< 0.1%
Polybrominated diphenyl ethers (PBDE)	0.1%	< 0.1%

Certain components of products as stated above are exempted under the Annex of the RoHS Directives as noted below:

Examples of exempted components are:

1. Mercury in compact fluorescent lamps not exceeding 5mg per lamp and in other lamps not specifically mentioned in the Annex of RoHS Directive.
2. Lead in glass of cathode ray tubes, electronic components, fluorescent tubes, and electronic ceramic parts (e.g. piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight.

Copyright Information

Copyright © ViewSonic® Corporation, 2007. All rights reserved.

ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic Corporation.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes available, please register your product on the Internet at: www.viewsonic.com.

For Your Records

Product Name: N3246w / N3746w

ViewSonic LCD TV

Model Number: VS11457-1E / VS11709-2E

Document Number: N3246w_N3746w_UG_ENG Rev.1C 03-30-07

Serial Number:

Purchase Date:

Product disposal at end of product life

ViewSonic is concerned about the preservation of our environment. Please dispose of this product properly at the end of its useful life. Your local waste disposal company may provide information about proper disposal.

The lamp in this product contains mercury. Please dispose of properly in accordance with environmental laws of your location.

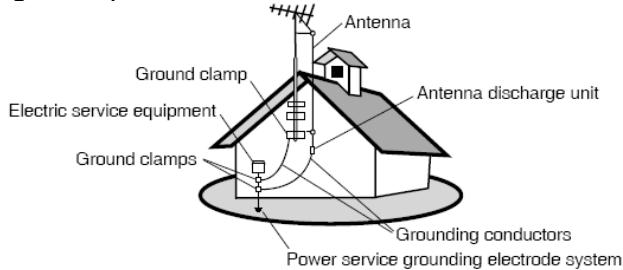

Antenna Installation Instructions

1. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the product be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges, Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

2.Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges. Do not disconnect the antenna or the power cord during a heavy storm lighting may strike while you are holding the cable cord, causing serious injury; turn off your LCD TV and wait for the weather to improve.

3. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

Cleaning the LCD Display

• Make sure the LCD TV is turned off.
• Never spray or pour any Liquid directly onto the screen or case.

To clean the screen:

1. Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles.
2. If still not clean, apply a small amount of non-ammonia, non-alcohol based glass cleaner onto a clean, soft, lint-free cloth, and wipe the screen.

To clean the case:

1. Use a soft, dry cloth.
2. If still not clean, apply a small amount of a non-ammonia, non-alcohol based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then wipe the surface.

Disclaimer

ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the LCD TV screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD TV. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.

Getting Started

Congratulations on your purchase of a ViewSonic LCD TV display. Important! Save the original box and all packaging material for future shipping needs.

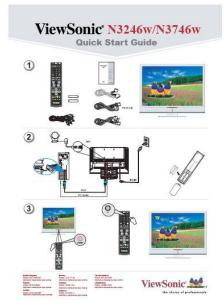

Package Contents

SCART cable

AV cable

Power cord (For UK use)

Power cord- (For Pan Europe use)

QSG

UG

Remote Control

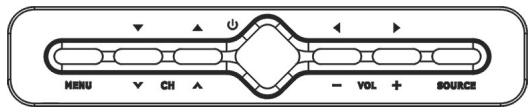

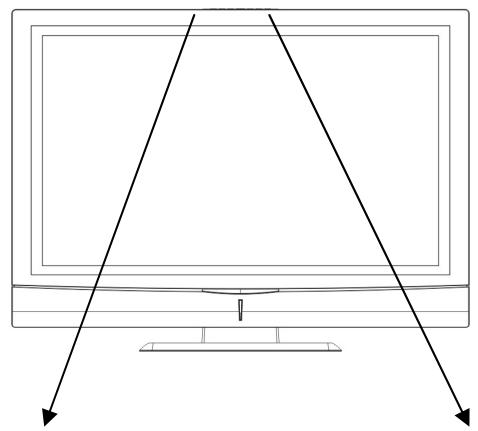

Front View of the Product

Power : Press this button to turn on the TV or allow the TV to enter standby mode. It is located on the top middle corner of the TV. If the TV is in standby mode, the indicator at the front will illuminate amber.

Menu : Press this button to display or exit the OSD menu.

CH(▲▼): When the OSD menu appears, press these two buttons to select the item you want to execute; when no OSD menu appears, use to change channels in TV mode.

Vol(+ - ) : When the OSD menu appears, press these two buttons to confirm the selected item; when no OSD menu appears, use to adjust the volume.

Source: Press this button to display selected source, press button to select.

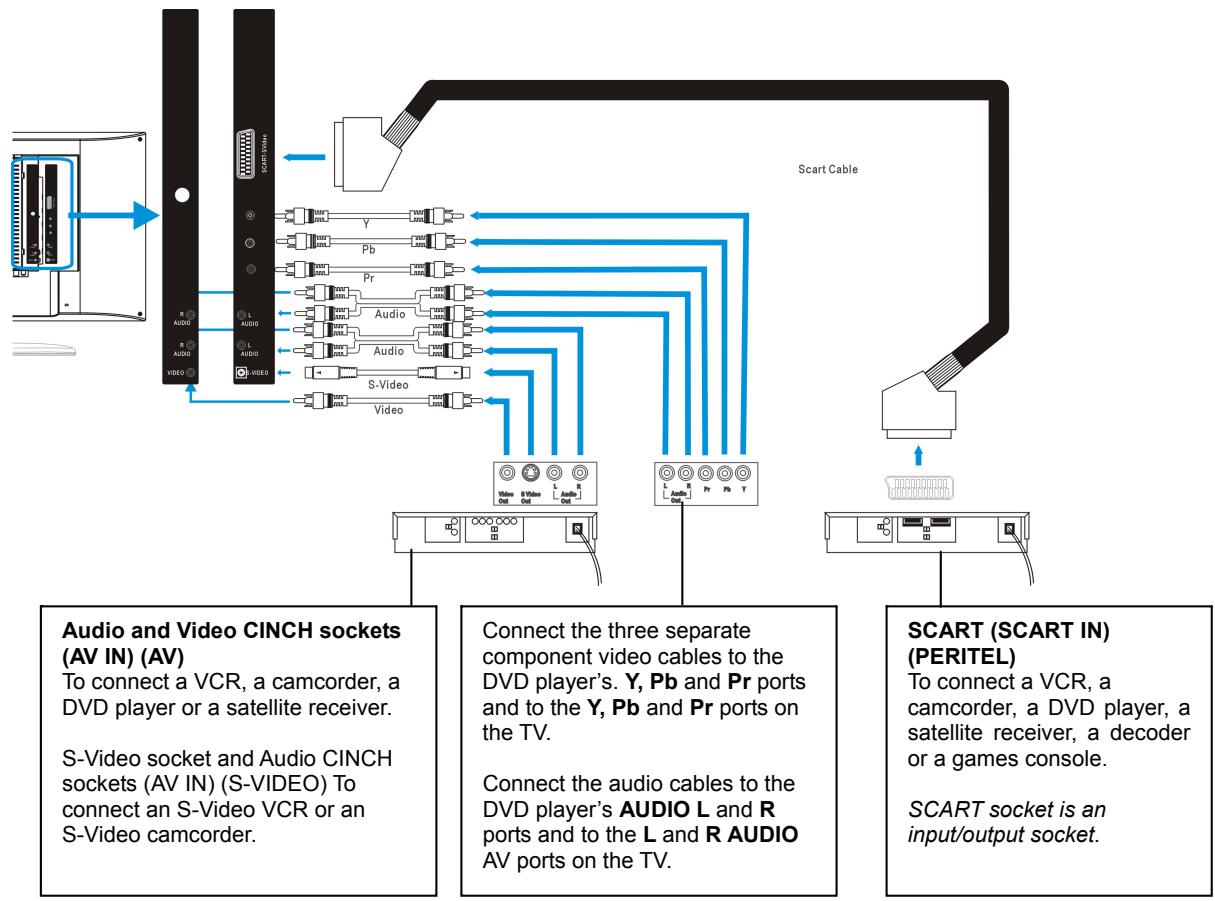

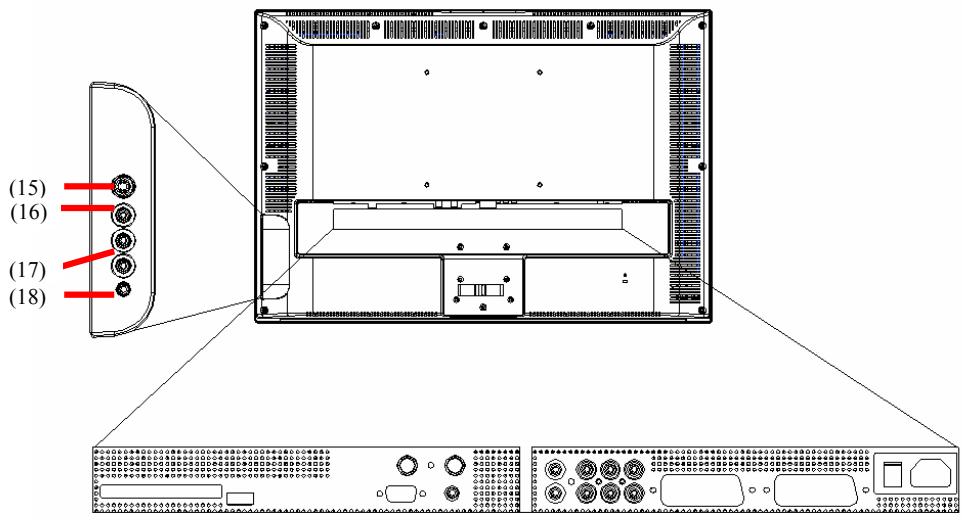

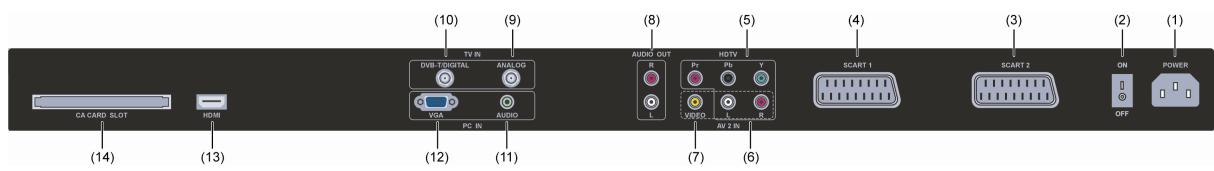

Signal Source Interface Presentation from Rear View

There is a wide range of video and audio equipment that can be connected to your TV. The following connection diagrams show you how to connect them.

(1) Power: Plug one end of the power cord to the "AC Input" jack in the rear of the TV, and the other end to the 220V power socket.
(2)Power switch: on/off TV.
(3)SCART 2: CVBS+S-Video.
(4)SCART 1: CVBS+RGB.

Notes:

1. Additional equipment and cables shown are not supplied with this TV set.
2. The 21pin SCART socket can also be used as an output to Audio/Video equipment.
3. Select the desired VIDEO source input position by pushing the TV/VIDEO button on remote controller.
4. In TV mode, when you switch on the VIDEO source which is connected to SCART socket, the TV should automatically display the video signal. If it does not, press the TV/VIDEO button on remote controller in order to select the appropriate source.
5. The AUDIO OUT (SCART) terminal provides a fixed level output only. (The menu settings and remote control volume controls have no effect.)

(5) HDTV: Connect the component signal source of audio and video (DVD player, Laser Disc player, videocassette recorder or camcorder) to the Component Input port. The following will illustrate how to set a DVD player outputting component signal. (1) How to connect:

1. Use three component signal cables ① to connect the high definition signal Y, Pb, Pr or the component signal Y, Cb, Cr the DVD player outputs to the high definition signal Y, Pb, Pr Input of the TV.

1. Use the audio cable ② to connect the audio output of the DVD player to the TV's Component Input.

(2) How to use:

1. Select high definition signal (HDTV) input.
2. Turn on the DVD player, then press the PLAY button.

(6)Audio 2 in: Connect the audio signal source (PC, DVD player, Laser Disc player, videocassette recorder or camcorder) to the video.
(7) Video in: Connect the video signal source (PC, DVD player, Laser Disc player, videocassette recorder or camcorder) to the audio Input ports (left and right). (HDTV and AV2 in share this audio )
(8)Audio output: User can use this connector to output other audio dives.
(9)Analog RF Tuner: Connect the antenna or CATV cable to this 75 coaxial cable input.
(10)Digital RF Tuner: Connect the antenna cable of digital signal.
(11)Audio: Input the audio signal from a PC through this interface.
(12)VGA: Use the VGA signal cable to connect signals from a PC to the TV Input.

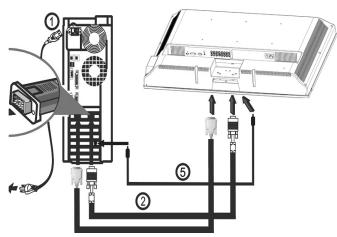

Note: For the connection between the PC and the TV, (see Figure 1) below.

(Figure 1)

(1) How to connect to the PC mainframe:

VGA interface - Connect the VGA signal cable supplied with the TV to the D-sub interface at the rear of the TV as in. (Figure 1)

Digital interface – Connect the DVI signal cable to the digital interface at the rear of the TV as in. (Figure 1)

(2) How to connect the audio cable:

Connect the PC audio cable supplied with the TV to the TV's PC Audio Input as in. (Figure 1)

Note: If no signal is present on the VGA or DVI screen, the TV will enter into standby mode automatically after 1 minute.

(13)HDMI: HDMI is the leading new standard for Digital video and audio interconnection. To the HDMI connector you can connect HDMI devices such as a Set Top Box or compatible DVD-R or DVD player with HDMI export, or DVI-equipped devices like a computer. So you can display high-definition pictures on this TV in the digital form.

(1)How to use HDMI:

1. Connect one HDMI to the "HDMI" port and connect the other HDMI to device with HDMI export as left figure Select the T-Line button
2. Press Video button 5 times to select HDMI in the remote control (see right figure) Left figure
3. The HDMI connectors allow the following TV and monitor display mod:

SDTV 720x576i, 50Hz /720x480i, 60Hz

EDTV 720x576p 50Hz /640x480p 60Hz

HDTV 1920x1080i 50/60Hz

1280x720p 50/60Hz

VGA 640x480 60Hz

Notes:

1. Your TV supports HDCP(High-bandwidth Digital Content Protection). This is a system for protecting DVD content outputted via DVI from being copied. It provides a secure digital link between a video source (DVD, PC, etc.) and your TV. Content is encrypted at the source device to prevent unauthorized copies from being made.
   2.Digital devices from different manufacturers have the possibility of differing output standards which may cause difficulties for the television to properly display.
2. In case no signal is detected from your HDMI device, turn off the HDMI device and then on again.
3. To get an optimal viewing, it is advised to turn your DVD player to one of the following TV display standards: 1280x720p 50hz.
   (14)CA Card slot: Use for Digital pay card and updated firmware.
   (15)S-Video Input: Connect the S-Video cable to DVD player, Laser Disc player, videocassette recorder or camcorder.
   (16)Video Input: Connect the video signal source. (PC, DVD player, Laser Disc player, videocassette recorder or camcorder) (The audio is for S-Video and Video 1)
   (17)Audio Input: Connect the audio signal source. (PC, DVD player, Laser Disc player, videocassette recorder or camcorder) to the Audio Input ports.

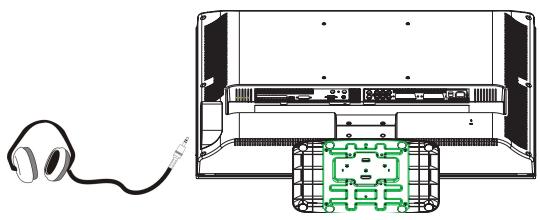

(18)Ear phone: User can plug ear phone jack in this connector.

(1) How to connector HEADPHONE:

1. When headphones are connected, the sound of TV set will be cut. The VOL keys are used to adjust the volume level.
2. Press the key on the remote control to switch off the sound from the headphone. Note: When a TV channel or external AV source is blocked because of a rating set via the Parental control menu, also the headphone is muted.

Preparation

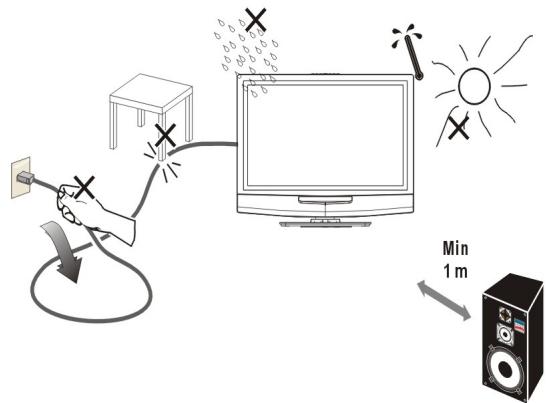

1. Please put your TV on a surface place.

Ensure that the TV is placed in an adequately ventilated location, and do not block any of the ventilation openings on the back cover.

Do not place open flames (such as burning candles) near the TV.

Avoid high temperatures, direct sunlight and exposure to rain. Do not spray or splash liquids on the TV.

Note: If you want to wall mount the TV, for the safe of you and the appliance, please use the original hanging brackets and have it installed by qualified service personnel.

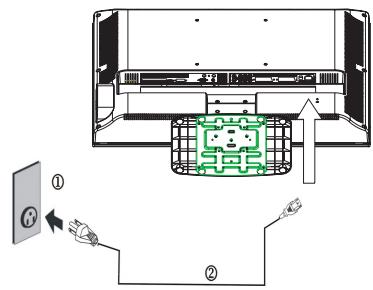

2. Power Connection

Plug one end of the power cord to the "AC Input" jack in the rear of the TV, and the other end to the 220V power socket.

If you have not turned off the power and leave TV in standby mode, the TV will continue to consume a residual amount of power.

When unused for long periods of time, it is best to turn off the power switch on the side of the TV and unplug the power cord from the socket.

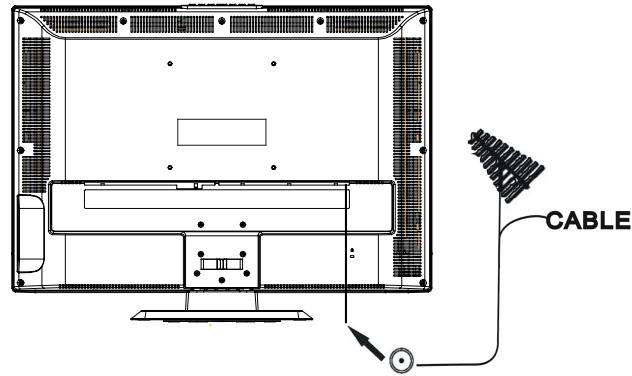

3. Insert the aerial plug

Firmly into the aerial socket ANT IN 75 at the back of the TV.

4. Power:

Insert the power cord in the wall socket having an AC power supply.

5. Turn the TV on:

Press the power button of the TV to turn it on. When the TV is ON, the indicator turns Blue.

If the TV is in power off, the indicator in front of the TV illuminates amber.

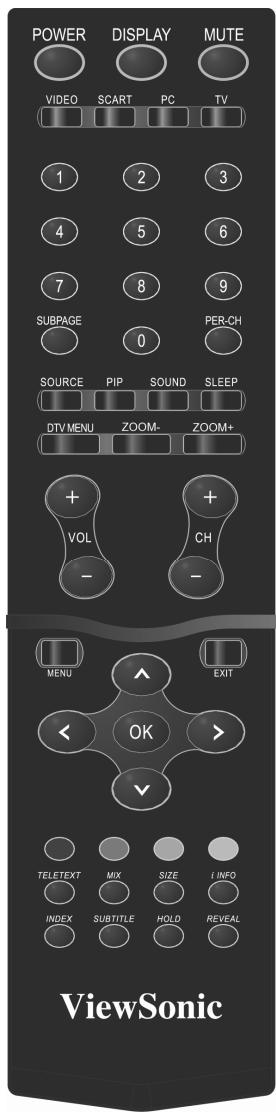

Remote Control

POWER:

Press to turn on/off the TV. The TV is never completely powered off unless it is physically unplugged.

VIDEO

Press this key you could select AV1, AV2, S-VIDEO, HDTV and HDMI.

SCART

Press this key you could select SCART 1, SCART2-AV, and SCART 2-S.

0~9 DIGIT BUTTONS

To select a TV channel.

SUBPAGE

Teletext Sub-page function.

Source

Select your input source: press repeatedly to select TV, PC, SCART, S-VIDEO or HDMI mode, according to where you connected your external source.

SOUND

To select Mono/ Stereo/Dual from TV RF input.

DTV MENU

Press this key to display DTV menu.

Zoom ^+ -

Press these key to select desired picture format. (4:3, CINERAMA,16:9)

VOL

Press + or - (or MENU or button) to increase or decrease the volume.

MENU

Press this key to display main menu.

< >button

Use this button to confirm selection or adjust the desired parameter; otherwise, to increase /decrease the volume.

A v button

When in menu mode, use this button to select to the up/down; otherwise, to change TV channels.

DISPLAY

Press this key to display:

(1) the channel number when watching a TV program.
(2) the input source when watching an AV program.

MUTE

Temporarily interrupt the sound or restore it.

PC

Display PC mode

TV

Display TV mode

PRE-CH

To display the previously selected TV channel.

PIP

Press this key to display
PIP/POP screen.

SLEEP

With this key you can set a time period after which the TV should switch itself to standby. Press the key repeatedly to select the number of minutes. The counter runs from 0, 30, 60, 90, 120 minutes. The timer begins to count down from the number of minutes selected after the display has disappeared.

CH

Press or (or MENU / button) buttons to scroll through the channels.

EXIT

Press this key to exit main menu.

OK

Press this KEY to validate your selected.

Teletext function and buttons will be described on next page.

TELETEXT

Teletext is an information service organized like a magazine, which is provided by some TV stations in addition to regular television broadcasting.

TELETEXT

Press TELETEXT. The Teletext screen appears. To turn off the Teletext mode, press TELETEXT again.

MIX

Press MIX to superimpose the Teletext over a normal broadcast picture. Press again to return to Teletext mode.

SIZE

Press SIZE repeatedly to display the upper Teletext part, the lower Teletext part and then to return to the normal.

RED / GREEN / YELLOW / BLUE

Use the COLOURED BUTTONS to operate the Teletext screen.

i INFO

Press i-INFO to show DTV information.

INDEX

Press INDEX to return to the main index page.

SUBTITLE

Press SUBTITLE to select the next page marked as a subtitle page and request it as the display page.

HOLD

Press HOLD to hold the Teletext page when viewing information. Press again to return to automatic page update.

REVEAL

Press REVEAL to display reveal hidden words e.g. quiz page answers. Press again to hide.

PAGE SELECTION

Page can be selected in two ways.

a. Press or to increase or decrease the page number by one.
b. By entering the page number, using digit buttons 0~9.

SUBPAGE ACCESS

When Teletext information exceeds more than one page, press SUBPAGE first then select the required page number using digit buttons 0~9.

Remote Control Battery Installation

Follow the steps below to insert the batteries.

1. Open the remote control's rear battery compartment cover.
2. Insert two AA (1.5v) batteries. Ensure that the positive and negative ends match as indicated on the bottom of the battery compartment.
3. Replace the battery compartment cover.

CAUTION

• Only use the specified AA batteries.
• Do not mix new and old batteries. This may result in cracking or leakage, which may pose a fire risk or lead to personal injury.
• Insert batteries according to the (+) and (-) markings. Inserting the batteries incorrectly may result in cracking or leakage, which may pose a fire risk or lead to personal injury.
• Dispose of batteries in accordance with local laws and regulations.
• Keep batteries away from children and pets.
• If the remote control will not be used for an extended period of time, remove the batteries.

OSD Function

Analog OSD Functions

To use the menus

1. Press the MENU button repeatedly to display each menu.
2. Use the cursor up/down to select a menu item or adjust the setting of Menu item.
3. Use the cursor left/right to enter a submenu or enable the function.
4. Press the MENU button to exit the menu.

MAIN MENU

Press the MENU button to display the Main menu. It offers the following options: Picture adjustments, Audio adjustments, PIP/POP adjustments, TV channels search menu (only in TV mode) and PC adjustments (only in PC mode). It also allows to define your preferences in the Setup menu.

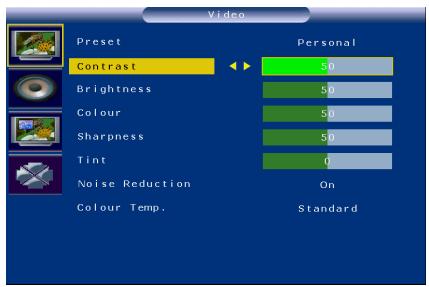

Video Adjustments

Display the Main menu by pressing MENU button.

Select the Video menu using the / buttons.

Press the OK button to confirm.

Use the / buttons to select each option.

Preset: choose Personal, Vivid, Standard or Mild.

Personal gives access to following adjustments.

Contrast, Brightness, Colour and Sharpness: adjust these settings as required using the / buttons.

Tint: This option is only available for NTSC audio-visual sources.

Adjust the tint of the picture using the / buttons.

Noise Reduction: When the signal is poor, you can turn on the noise reduction function

Color Temp: Choose Standard, Warm or Cold.

Press the EXIT button to exit the Video menu.

Note: This menu is removed automatically after a few seconds without using the remote control.

Contrast

0

When you adjust a menu option (Contrast for example), the menu is replaced by a sub-menu as illustrated. Press the OK button to return to the Video menu.

Sound Adjustments

Display the Main menu by pressing MENU button.

Select the Sound menu using the button.

Press the OK button to confirm.

Use the / buttons to select each option.

Balance: Adjust the balance between left/right channels as required using the / buttons.

Bass: Adjust the bass level as required using the / buttons.

Treble: Adjust the treble level as required using the / buttons.

SRS WOW: Using / , activate (On) or deactivate (Off) SRS function.

SRS is an audio technology which improves the sound quality.

Press the EXIT button to exit the Sound menu.

Note: This menu is removed automatically after a few seconds without using the remote control.

Balance

0

When you adjust a menu option (Balance for example), the menu is replaced by a sub-menu as illustrated. Press the OK button to return to the Sound menu

SRS WOW, SRS and () are registered trademarks of SRS Labs, Inc.

This product is designed using SRS technology with permission from SRS Labs, Inc.

PIP Adjustments

Press the MENU button to display the Main menu

Select the PIP menu using the button.

Press the OK button to confirm.

Use the / buttons to select each option.

Dual Mode: Using / buttons activate (PIP/POP) or deactivate (Off) the PIP/POP function.

Following options are available if you have selected PIP or POP at the PIP line.

Position: use the / buttons to change the position of the PIP frame on the screen.

Source: to select video source of the PIP/POP, use the / buttons to select video source of the picture in the PIP/POP frame (TV or AV).

You can insert a TV picture while you are viewing an AV program or insert an AV picture while you are viewing a TV program.

Video source can also be selected without the menu, using AV button on the remote control.

Audio select: to select audio source: MAIN (Main picture) or SUB (PIP/POP picture), use the / buttons to select audio source.

Press the EXIT button to exit the PIP menu.

Note: This menu is removed automatically after a few seconds without using the remote control.

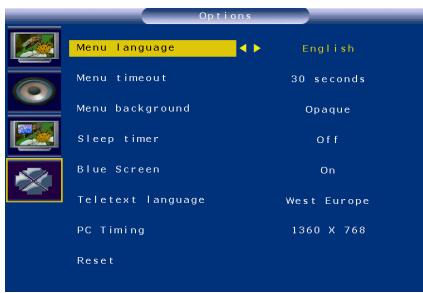

Options

This menu allows to select the language for the menus as well as the colour of the screen when there is no video input. It also allows to set an automatic shut-off time.

Display the Main menu by pressing MENU button.

Select the Options menu using the button.

Press the OK button to confirm

Use the / buttons to select each option.

Menu language: To select the language for the menu. Total have English, German, Italian, French, Spanish, Portuguese, Swedish, Finnish and Dutch.

Menu timeout: To set an automatic shut-off time for Menu. Using / buttons select 5 > 10 > 20 > 30 > 40 > 50 seconds.

Menu background: Select Opaque or Transparent type.

Sleep Timer: To set an automatic shut-off time. Using / buttons select Off > 15 > 30 > 45 > 60 > 90 > 120 minutes.

Once the time is ended, TV set automatically switch on standby mode.

If you turn the TV on standby mode after setting the sleep timer, setting will be erased. Set it again.

Note: You can display the remaining time before the automatic shut-off. To do that, press the sleep button.

To cancel the automatic shut-off, press several times the sleep button to display Sleep timer Off.

Blue Screen: To have a blue screen when there is no video input.

Using the / buttons select On.

Select Off if you do not want the blue screen.

Teletext Language: Using / buttons, select the character set that will be used for Teletext on this channel.

The following character sets are available: West Europe, East Europe, Cyrillic (Russia), Greek, Arabic, Persian.

The character set determines how characters are displayed on Teletext screen.

PC Timing: Select PC Timing to 1360x768 or 1280x768.

Reset: Reset to default, except the OSD language, video and audio adjustment by personal.

Press the EXIT button to exit the Options menu.

Note: This menu is removed automatically after a few seconds without using the remote control.

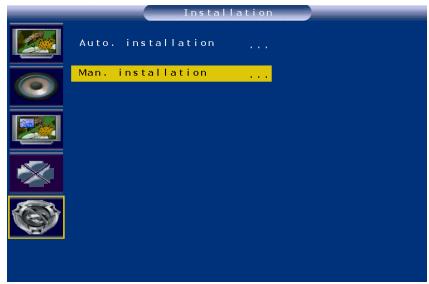

TV Set Up

Channels search involves selecting all the settings required to be able to search for and store all the channels you can receive.

Make sure that the television is switched on and follow all the steps in turn specified on this page.

Display the Main menu by pressing MENU button.

Select the TV set up menu using the button..

Press the OK button to confirm.

Use the / buttons to select each option.

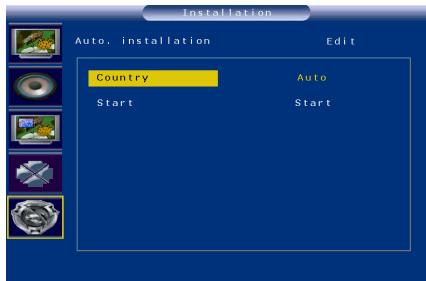

Auto Search

Select Auto Search using the button.

Press the OK button to display the Auto Search menu.

Use the / buttons to select each option.

Country: Select the relevant country using the / buttons.

This is the country you are in, or the country whose channels you want to receive if you live near its borders. If you do not find your country, select Auto.

Start: Press OK button to start channels searching

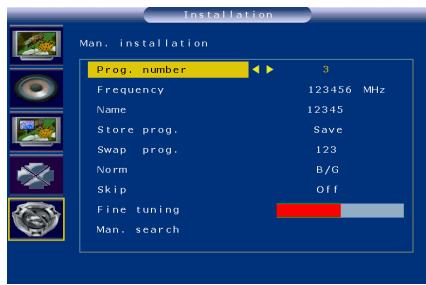

Manual set-up

Select Manual search using the button.

Press the OK button to display the Manual search menu.

Use the / buttons to select each option.

Prog. number: Allows to select the program on which you want save a new channel or a program you want to modify.

Using the / buttons, select the program.

Frequency: Allows to enter a specific frequency for tuning.

Using the button, select the Frequency option and press the OK button.

Using the 0 9 digit and / buttons, enter desire frequency and press the OK button.

Name: Allows to edit the channel name.

Using the button, select the Name option.

Using the button select the first letter field.

By pressing the 0~9 digit repeatedly and using the following table select the first character.

Repeat the procedure for each letter field.

BUTTON	AVAILABLE CHARACTERS
1	1	Space	—	•	!
2	2	a	b	c	@
3	3	d	e	f	#
4	4	g	h	i	$
5	5	j	k	l	%
6	6	m	n	o	^
7	7	p	q	r	&
8	8	s	t	u	v
9	9	w	x	y	z
0	0	*	#	(	)

Store prog.: Allows to Save a channel on a new Program No. or to Insert a channel on an already existing Program No. (The channel previously saved on this program No. will be shifted to the upper program.).

Once a channel has been found and named, use the button to select the Store prog. option.

Using the / buttons, select Save or Insert and press the OK button to confirm.

System: Allows to change the audio norm.

Using the button, select the System option.

Using the / buttons, select the norm.

The audio norm change will also change broadcasting system. Not suggest to change the audio norm if you are not sure the audio system.

Skip: Allows to skip a channel.

Using the button, select the Skip option.

Using the / buttons, select On, the channel will be skip.

Repeat this procedure to skip other channels.

Fine tuning: If the picture is not clear, you can adjust the setting.

Using the button, select the Fine Tuning option.

Use the / buttons to find the good tuning point.

Manual search: Allows to launch a manual search.

Using the button, select the Manual search option.

Using the / buttons, start the search in decreasing or increasing order.

The menu is replaced by a sub-menu showing the progression of the search.

The search will stop at the first channel found, Manual search menu is displayed again (within 3 seconds).

If you wish to memorize the channel, select Store Program option using button and proceed as indicated in previous page. Otherwise, continue the search using < /> buttons.

If you have modified System, Skip, Fine tuning options or if you have launch a Manual Search, select Store Prog. option using A / V buttons and proceed as indicated above to save your modification.

Press the EXIT button to exit the TV set up menu.

Note: This menu is removed automatically after a few seconds without using the remote control.

Digital OSD Functions

This product has Digital TV of UK/Pan Europe DVB-T, The use Pay Per View services. For details, refer to the instruction manual supplied with your CAM. To use the CAM, press the eject button and remove the "dummy" card. When you do not use the CAM, we recommend that the "dummy" card be inserted and kept in the CAM slot.

The following is Digital TV OSD menu. And if you don't know how to use all OSD function, you can press i button in Remote control for more detail instruction.

First-Time Installation

When the system is first switched on, the Reference Application attempts to configure itself for the first time. This is called "First Time Installation".

The user is then asked if they wish to perform an automatic tune for services. Automatic tuning functionality is described later in this document. When the automatic tune finishes and services have been found, the lowest number service is selected and a banner describing that service is shown. A user may have chosen not to perform an automatic tune or no services may have been found by an automatic scan. In this instance the user may use the "Main Menu" to automatically scan again or perform a manual scan. The Reference Application also provides the facility for the user to force to trigger a "First Time Installation". This facility can be found in the "Main Menu" under the "Installation" option.

Main Menu

Channel list

Favourites

Guides

Settings

Common Interface

A "Main Menu" is provided to enable the user to configure elements of the Reference Application. In "normal viewing" operation a user can access the "Main Menu" by pressing the "DTVMENU" key. The "Main Menu" is hierarchically organized into categories in order to fit on the screen.

Channel List

A user may configure the Reference Application to use exclusively TV, Radio or Data services, this feature is know as channel List Model.

A user can select a channel List Mode using the configuration dialog, it is permitted to select a channel List Mode that contains no services.

When the channel list mode is enabled the program up and down buttons on the remote control will only select those services in the current channel List Mode. And all EPGs will only show those services in the current Channel List Mode. It is still possible to select a service using the service's even if it is not a member of the currently selected channel List Mode. Note that if the user has selected a favourites list then the Channel List Mode acts as a filter on top of the selected favourites list.

Please press the SELECT button on your remote control to tune to the highlighted channel. Press MENU to exit this screen.

Edit Favourites Lists

A favourites list enables the user to select a subset of services they consider favourite. The Reference Application allows the user to have up to five different favourites lists. Favourites lists are defined in the favourites dialog that can be accessed by selecting the favourites button on the channel list dialog and via the Main Menu.

Press the SELECT button on your remote control to add the channel to the highlighted favourites list. An icon indicates which favourites list a channel is in.

Guides

Now/Next EPG

List Schedule EPG

Time line schedule EPG

Now/Next EPG

An EPG dialog is provided that allows the user to view the current and next programme playing on each service.

In this dialog a list of channels and the corresponding current and next programmes is displayed. The user can navigate up and down the list of channels and highlight either the now or next programme. Information for the highlighted programmes can be displayed by pressing "Info". This information includes the start/end time of the programme, the programme genre in brackets, and a synopsis of the programme content.

A user may select a service by highlighting a program in the 'now' list and pressing the "SELECT" key.

Pressing the "SUBTITLE" key the user may select a genre to highlight events with the selected genre in the EPG.

The Now/Next Electronic Program Guide cannot be accessed if there are no services available.

List schedule EPG

User can set up Program schedule list

Time Line Schedule EPG

Extended Schedule EPG information is presented using a list format, either on a banner for the current service, or as a full screen dialog showing multiple services.

Settings

Configuration

Language

Installation

Configuration

Time Zone: Press RIGHT/LEFT to select the time zone you are in. Press MENU to exit this screen. (Inc.GMT/CET)

DST: Press RIGHT/LEFT to select or deselect DST mode, Press MENU to exit this screen.

Subtitle: Press RIGHT/LEFT to select subtitle On or Off, Press MENU to exit this screen.

Banner: 2/4 seconds.

Favorite Mode: Press RIGHT/LEFT then select to choose favourite mode. Press MENU to exit this screen. Please remember that at least one favourite channel be selected before turning favourites on.

Channel List: Press RIGHT/LEFT then select to choose channel list mode, you can select show all channel, TV only, Radio only and Text only, Press MENU to exit this screen.

Parental Settings: Press SELECT to enter the parental lock menu. Press MENU to exit this screen.

If you don't know how to use above function, you can select i info button in remote control for get information, press i info button again will exit.

Language Settings

System: To change the system languages, this changes the language used in all menus and dialogs.

Noted : Pan Europe system language include: English, German, French, Italian, Spanish, Danish, Norwegian, Swedish, Finish, Portuguese, Polish and Dutch.

Audio: Displays a dialog enabling the preferred language to be set, this is the language to be used for all channels if it is available.

Subtitle: Displays a dialog enabling the preferred language to be set, this is the language to be used for all channels if it is available.

Current: Displays a dialog enabling the current language to be set, this is the language to be used for the current selected channel, please note that only languages available with the currently selected channel will be displayed.

Installation

Automatic Search

Manual Search

First Time Installation

Automatic Search

Automatic search is the ability for the reference application to scan each other (Frequency) for services.

Whilst performing an automatic tune no service will be selected. A dialog is displayed during automatic tuning that shows the progress of the scan through the channels.

Automatic tuning may be cancelled by the user. If the previous list already stored, the lowest number from the service list, it will return to "normal viewing" operation.

The Reference Application can support up to 70 services at any one time.

When you select Automatic search, press OK button in remote control, and will start to automatic search.

Do you want to start automatic search? Your Previous channel list will be replaced.

YES

No

Manual Search

Manual tuning:

Channel Number:

Signal Quality: Signal Level

Manual search allows the user to scan an individual channel (frequency) for services. The user can perform a manual tune by selecting an option on the "Main Menu". Whilst performing a manual tune no service will be selected. The user enters the channel number to be scanned; only those channels supported by the tuner may be entered.

The Manual tuning dialog displays a bar indicating the quality and strength of the signal of the currently selected channel. The user can then choose to scan the selected channel for services; a separate dialog is displayed showing the service found whilst scanning is taking place. Newly discovered services are merged with the current list of services. Manual tuning may be cancelled by the user, in such cases any newly discovered services are disregarded.

When a manual tune is complete the application will attempt to select the previously selected service and return to "normal viewing" operation. In cases were there was not a previously selected service the application will attempt to select the service with the lowest number.

The Reference Application can support up to 70 services at any one time.

Press 0 to 9 to select a channel number, select to start searching for channels, MENU to exit this screen.

First time installation

Choose this will return to the original condition, you can choose country as first time in installation. And search channel again. When you select it, you will see as following:

Are you sure your want to delete all channels and settings for first time installation?

YES

No

Common Interface

If no CA module is inserted, then the system display "No common interface mode detected".

If a CA module without a smartcard is inserted. Then the system displays "Please insert your smartcard.

If a CA module with a smartcard is inserted. Then the CI menu is displayed .Using this menu. The user can read the smartcard contents. The data shown depends on CA vendor and CA smartcard version.

Input Selection

To select AV source:

To select desire input source, press the SOURCE button to display the selection menu.

Use the / buttons to select each input sources.

Press the OK button to display the desire input source.

To select input source in PIP/POP mode

Select

MP source

PIP source

To select desire input source in PIP/POP mode, press the SOURCE button to display the selection menu.

Use the / buttons to select either MP source (to modify Main picture source) or PIP source (to modify PIP source).

Press the OK button to display the selection menu in PIP mode.

PIP source

TV

SCART1

SCART2-AV

SCART2-S

AV1

S-VIDEO

AV2

Use the / buttons to select the input source.

Press the OK button to display the desire input source.

PC Mode OSD Instruction

In PC mode, main menu is different from the one in TV mode. Please select PC as main input.

PC Settings

Display the Main menu by pressing MENU button. Select the PC menu using the button. Press the OK button to confirm. Use the / buttons to select each option.

H. position: Use the / buttons to move the picture horizontally on the screen.
V. position: Use the / buttons to move the picture vertically on the screen.

Focus: Adjust as required to improve the picture quality.

Auto adjust: this function is used to automatically adjust the VGA input. Press the /> buttons to start the adjustment process.

Tone: To adjust the colour temperature at your convenience.

Reset: Return to default settings. Press OK button to return to default settings.

Appendix

Tips

Display Protection

To avoid permanent damage to the screen, do not use anything abrasive to scratch the display.

Unplug the appliance before you clean the screen. Use a clean, soft cloth to wipe the screen and the enclosure to remove the dust from the TV. If you want the screen to be cleaner, you can use a clean, wet cloth to wipe. A cleanser especially designed for LCD screens is recommended. Do not use liquid or spray cleaner.

Warning for Mobile Phones

Since the electromagnetic wave of mobile phones may cause the picture and the sound to become distorted, please keep away from the TV when using a mobile phone.

Waste Disposal Instructions

We pay great attention to environmental protection. This appliance contains reusable materials.

After you discard the appliance, professional companies can dismantle the discarded appliance to extract any recyclable materials and minimize the amount of material that has to be disposed of.

Be sure to dispose of the old appliance according to the local regulations.

Product Specification

Feature	32” / 37” Wide Screen LCD TV
Items		Specification
LCD Panel	Screen Size	32” / 37” TFT-LCD Panel
	Aspect Ratio	16:9
	Resolution	1366 x 768 (WXGA)
TV Function	TV Tuning System	PAL B/G,D/K,I and SECAM L/L'(Multi-Europe)
	Sound System	Nicam/a2
Video Inputs	SCART	(RGB+CVBS)x1,(S-Video + CVBS)x1
	AV1	RCA(Composite)x 1	Audio L/R x 1 (Share)
	S-Video	S-Video x 1
	HDTV	YPbPr x 1	Audio L/R x 1 (Share)
	AV 2	RCA(Composite)x1
PC card slot	PCMCIA x 1
PC mode	Signal input	Analog: D-Sub 15 pins (separate)
	Plug and play compatible	DDC 2B
	Input frequency	Analog: FH:31.5kHz to 50kHz, FV:60Hz to 75H
	Recommended	Analog: 1360x768 (60Hz)
	Audio input	Used as a stereo earphone mini jack (3.5ø)
Audio Output	Audio output: L/R	Speaker (built-in):2*10 watt speakers
		Headphone: Mini-jack for stereo (3.5ø)
		Line Output (RCA L/R)
Wall Mount dimension	VESA 32”:200*200 mm 37”: (200+200)*200 mm
Power	Power supply	AC100V~240V, 50/60Hz
	Power Consumption	32”: <180W 37”: <250W
Dimension	W x H x D (with stand)	32”: 810*605*237 (mm) 37”: 951x694x285 (mm)
Weight	KG(W/O Accessories)	32”: 16.6 kg 37”: 23.5 kg
Regulations	CE, SASO, Gost-R
Accessories	Remote control with batteries(AAX2),AC power cord, UG, QSG, Scart cable, AV cable

Preset Timing Mode

(Pre-adjusted to VESA)

MODE	ASPECT RATIO HANDLING
STANDARD	RESOLUTION	FS*Full-Screen	AR Aspect Ratio
	720x400 @ 70Hz	1366x 768	1366x 768
	640x480 @ 60Hz	1366 x 768	1024 x 768
	640x480 @ 75Hz	1366 x 768	1024 x 768
VESA	800x600 @ 75Hz	1366 x 768	1024 x 768
VESA	800x600 @ 60Hz	1366 x 768	1024 x 768
VESA	800x600 @ 75Hz	1366 x 768	1024 x 768
MAC	832x624 @ 75Hz	1366 x 768	1024 x 768
VESA	1024x768 @ 60Hz	1366 x 768	1024 x 768
VESA	1024x768 @ 75Hz	1366 x 768	1024 x 768
VESA	1280x768 @ 60Hz	1366 x 768	1280 x 768
	1360x768@ 60Hz	1366 x 768	1360x768
NTSC	480l(60Hz)	1366 x 768	1024 x 768*
DVD	480p(60Hz)	1366 x 768	1024 x 768*
PAL	576l(50Hz)	1366 x 768	1024 x 768*
DVD	576p(50Hz)	1366 x 768	1024 x 768*
	720p(50/60Hz)	1366 x 768	1366 x 768
	1080i (50/60Hz)	1366 x 768	1366 x 768

Warning: Do not set the graphics card in you computer to exceed these refresh rates.

Doing so may result in permanent damage to the LCD.

Note: Product Specification is subject to change without further notice.

Troubleshooting

Please make these simple checks before calling service. These tips may save you time and money since charges for receiver installation and adjustments of customer controls are not covered under your warranty.

Symptoms	Items to Check and Actions to follow
"Ghost" or double image	*This may be caused by obstruction to the antenna due to high rise buildings or hills. Using a highly directional antenna may improve the picture.
No power	*Check that the TV's AC power cord is plugged into the mains socket. *Unplug the TV, wait for 60 seconds. Then re-insert plug into the mains socket and turn on the TV again.
No picture	*Check antenna connections at the rear of the TV to see if it is properly connected to the TV. *Possible broadcast station trouble. Try another channel. *Adjust the contrast and brightness settings. *Check the Closed Captions control. Some TEXT modes could block the screen.
Good picture but no sound	*Increase the VOLUME. *Check that the TV is not muted; press the button on the remote control.
Good sound but poor color	*Adjust the contrast, color and brightness settings.
Poor picture	*Sometimes, poor picture quality occurs when having activated an S-VHS camera or camcorder connected and having connected another peripheral at the same time. In this case switch off one of the other peripherals.
Snowy picture and noise	*Check the antenna connection
Horizontal dotted line	*This may be caused by electrical interference (e.g. hairdryer, nearby neon lights, etc.) *Turn off the equipment.
Television not responding to remote control	*Check whether the batteries are working. Replace if necessary *Clean the remote control sensor lens on the TV. *You can still use the buttons at the front of your TV. *Select the TV mode to be sure your remote control is in the TV mode.

Glossary

Audio / Video Inputs

Located on the rear and the front of the receiver these connectors (RCA phono type plug) are used for the input of audio and video signals. Designed for use with VCRs (or other accessories) in order to receive higher picture resolution and offer sound connection options.

S-Video Input

Allows direct connection of high-resolution video sources, such as a Super VHS videocassette recorder, Laser Disc player, etc. Provides improved picture resolution, sharpness, and clarity.

HDTV input

Allow user connect Height definition input, such as DVD player, HDTV TV of component input, provide better performance and sharpness.

Video outputs

Provide audio output, to use external speaker for Higher voice quality.

Menu

An on-screen listing of feature controls shown on the TV screen that are made available for user adjustments.

RF

Radio Frequency or modulated signal design used as the carrier for television broadcasts.

Sleep Timer

Function with which you can set a time period after which the TV should turn itself off.

Customer Support

For technical support or product service, see the table below or contact your reseller.

Note: You will need the product serial number

Country/Region	Web Site	Telephone
Austria	www.viewsoniceurope.com.au/	1800 800 818
Belgium	www.viewsoniceurope.com/befl/ www.viewsoniceurope.com/befr/	02 256 6642
Denmark	www.viewsoniceurope.com.dk/	35 25 65 12
Finland	www.viewsoniceurope.com-fi/	09 2311 3413
France	www.viewsoniceurope.com/fr/	03 8717 1616
Germany	www.viewsoniceurope.com/de/	0696 630 8051
Republic of Ireland	www.viewsoniceurope.com/uk/	01 411 8936
Italy	www.viewsoniceurope.com/it/	02 4527 9033
Luxembourg	www.viewsoniceurope.com/lu/	40 6661 5618
The Netherlands	www.viewsoniceurope.com/nl/	053 484 9308
Norway	www.viewsoniceurope.com/no/	22 57 77 38
Portugal	www.viewsoniceurope.com/uk/	21359 1423
Russia	www.viewsoniceurope.com/ru/	800 200 8439
Spain	www.viewsoniceurope.com/es/	913 496 534
Sweden	www.viewsoniceurope.com/se/	08 5792 9045
United Kingdom	www.viewsoniceurope.com/uk/	0207 949 0307

Limited Warranty VIEWSONIC LCD TV

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will at its sole option repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.

How long the warranty is effective:

ViewSonic LCD TVs are warranted for one (1) year for all parts excluding the light source and one (1) year for labor from the date of the first customer purchase.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.
2. Damage, deterioration or malfunction resulting from:

a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by ViewSonic.
c. Any damage of the product due to shipment.
d. Removal or installation of the product.
e. Causes external to the product, such as electric power fluctuations or failure.
f. Use of supplies or parts not meeting ViewSonic's specifications.
g. Normal wear and tear.
h. Any other cause which does not relate to a product defect.

1. Any product exhibiting a condition commonly known as "image burn-in" which results when a static image is displayed on the product for an extended period of time.

2. Removal, installation, and set-up service charges.

3. When you mount it on the wall, the following must be noticed:

a. The accessories attached with this product are applicable for this product only.
b. When the product is mounted on the wall, holes and fixed screws will remain in the wall body.
c. Wall face may discolor when this product has been mounted on the wall for a long time.

How to get service:

1. For information about receiving service under warranty, contact ViewSonic Customer Support at 800-888-8583. You will need to provide your product's serial number.
2. To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic.
4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
2. Any other damages, whether incidental, consequential or otherwise.
3. Any claim against the customer by any other party.

Effect of state law:

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada, contact ViewSonic or your local ViewSonic dealer.

The warranty period for this product in mainland China (Hong Kong, Macao and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card.

4.3: ViewSonic LCD TV Warranty

LTV_LW01 Rev. 1B 06-30-06

ViewSonic®
