MODE D'EMPLOI SPLASH KETTLER
KETTLER toys
Assembly Instructions
"SPLASH"
Item # 08838-390
USA
F
E
Printed on 100% recycled paper.！
FREIZEIT MARKE KETTLER
KETTLER® International Inc. · PO Box 2747 · Virginia Beach, VA 23450 USA
www.kettlerusa.com
info@kettlerusa.com
USA
Assembly Instructions
Read these instructions carefully before assembling the product or using it for the first time. They contain important information for your safety and for the correct use and maintenance of this KETTLER product. Keep the instructions in a safe place for information or for ordering spare parts.
This KETTLER product has been designed in accordance with the latest standards of safety and subjected to constant quality monitoring. The data gained from this quality process is then incorporated in the development of our products. For this reason, we reserve the right to make changes in design and technology in order to offer our customers products of the highest standard of quality at all times. In spite of this, should you have any ground for complaint, please contact your KETTLER International Inc.
For your safety
This toy vehicle should be used for its intended purpose only, i.e. one (1) child only. It should not be used in any other way, as this may be dangerous. The manufacturer cannot be held liable for damage or injury caused by incorrect use.
This product is a toy and is not suitable for use in traffic or on public roads.
Always keep a watchful eye on your child in order to avoid risks by thoughtless and hasty movements.
Please care for the fact that the tricycle is only used on safe ground.
The tricycle is an unlighted play implement. Its use in the dark is dangerous.
In case of a sudden and/or strong turn of the handlebar the tricycle could be caused to tip. Danger of injuries!
The tricycle must not be connected with other vehicles, sports or similar devices and not be driven/pulled by them. Never subject your child on the tricycle to speeds exceeding walking pace!
We recommend that a child using the tricycle should wear a child's bicycle helmet.
Damaged components may endanger the safety of your child or shorten the lifespan of the product. Inspect it at regular intervals to ensure that none of the components are damaged and that none of the bolts or other joints have worked loose.
- Replace worn or damaged parts immediately and ensure that the product is not used again until this has been done. If any parts require replacement, use only original spares manufactured by KETTLER.
This child's wheeled toy conforms to the stipulated safety regulations European standard EN 71-1/3 (Safety regulations for children's toys). Incorrect repairs or alterations (removal of original parts or addition of other parts etc.) may be a source of danger to the user.
Use of the Toy
■ WARNING: Adult supervision is required. Never use near steps, slopes, driveways, hills, roadways, alleys or swimming pool areas. Always wear shoes. Never allow more than one rider (without a tandem seat). The use of protective gear and a Safety Helmet is highly recommended.
Ensure that the toy vehicle is not used until it has been properly assembled and checked by an adult person.
In case of tricycles without a freewheel consider the fact that the pedals will rotate even when the tricycle is pushed.
- Do not transport any objects on the tricycle.
Always adjust the use of the tricycle to the conditions encountered.
Tricycles do not possess a continuously effective brake system. Therefore, safeguard the tricycle against rolling away
Never draw the tricycle behind you as long as a child is seated on it.
Instruct your child how to use the vehicle correctly and draw attention to possible sources of danger.
Although dangerous situations are unlikely to occur if the toy is used correctly, children at play should, if possible, be supervised.
Please keep original packaging of this article, so that it may be used for transport at a later date, if necessary.
■ Please bear in mind that there is always a danger of children injuring themselves while using swings, climbing frames, toy vehicles or similar equipment.
■ When using the toy vehicle, the user should always wear strong shoes.
Instruct your child how to use the vehicle correctly and draw attention to possible sources of danger.
■ When children are at play, situations may arise which cannot be predicted by the manufacturer and for which he cannot be held responsible.
Before use, always check all screws and plug-in connections as well as respective safety devices fit correctly.
- Never use corrosive or abrasive substances to clean the toy. Never use substances which may cause pollution of the environment.
Lubricate the bearing sleeves of the wheels and the handlebars with a few drops of oil every two or three months.
Due to the nature of materials used in pneumatic tires on KETTLER toys, it is not recommended for the product to be left in any one place for too long where solvents or other chemicals, i. e. petrol, may lie. This may result in a chemical reaction, which could cause the tires to mark the surface such as a vinyl flooring. If in doubt put something underneath the wheels to cover the floor
Assembly of the toy vehicle

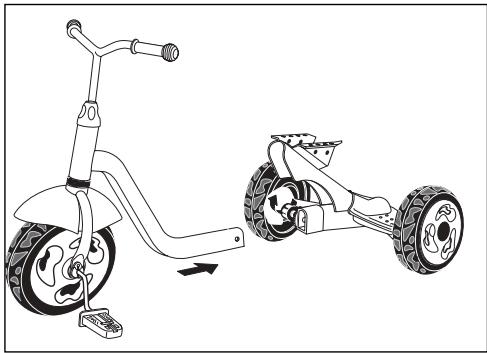

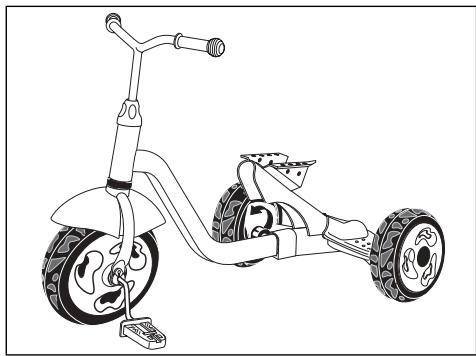

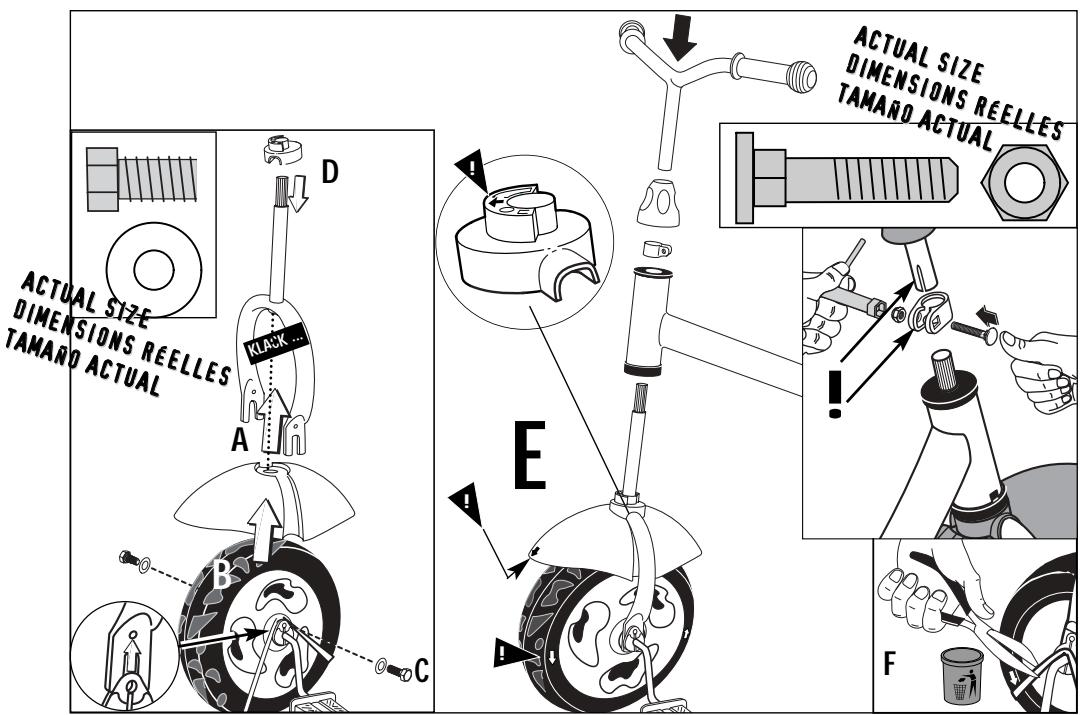

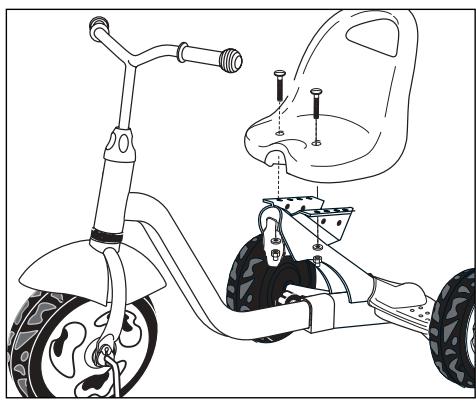

The toy vehicle must be assembled carefully by an adult person. Study the assembly instructions carefully before beginning work. Assemble the vehicle in the exact sequence shown by the letters in the diagrams. This is essential for the safe function and use of the tricycle.
Please note that there is always a danger of injury when working with tools or doing manual work. Therefore please be careful when assembling this machine.
■ Ensure that your working area is free of possible sources of danger, for example don't leave any tools lying around. Always dispose packaging material in such a way that it may not cause any danger. There is always a risk of suffocation if children play with plastic bags!

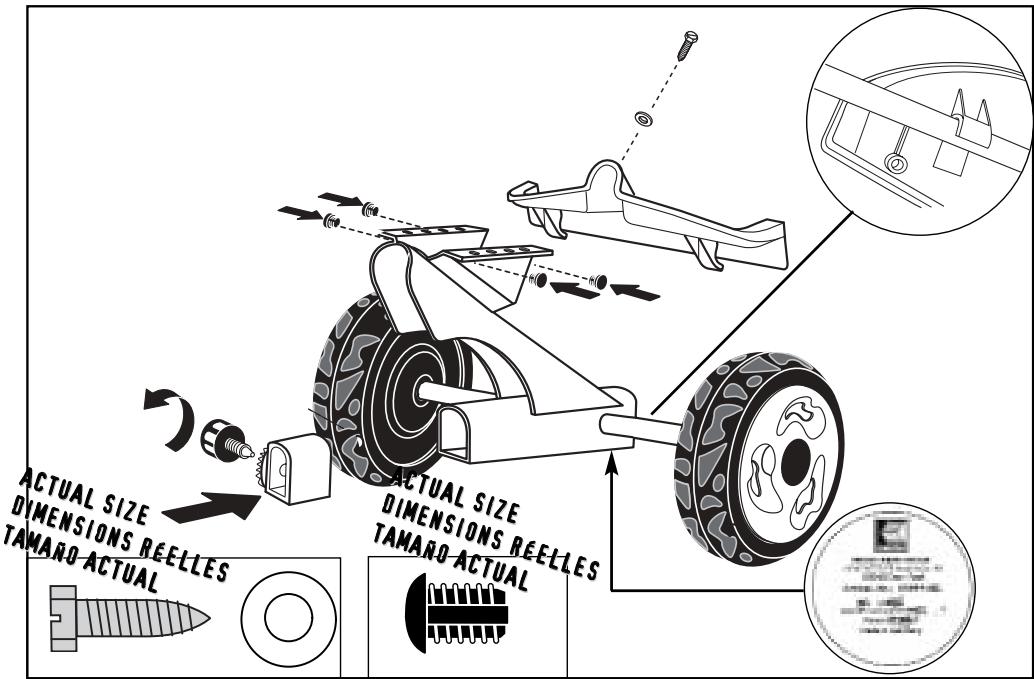

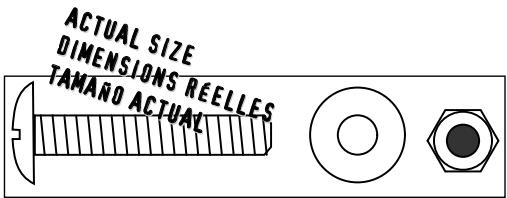

Bolt all the parts together loosely at first, and check that they have been assembled correctly. Tighten the locknuts by hand until resistance is felt, then use spanner to finally tighten nuts completely against resistance (locking device). Then check that all screw connections have been tightened firmly. Attention: once locknuts have been unscrewed they no longer function correctly (the locking device is destroyed), and must be replaced.
The grips can be pushed onto the handlebars more easily if they are first soaked in warm water.
Please keep original packaging of this article, so that it may be used for transport at a later date, if necessary.
■ For technical reasons, we reserve the right to carry out preliminary assembly work (e.g. addition of tubing plugs).
■ When ordering spare parts, always state the full article number, spare-part number, the quantity required and the inspection number stamped on the back or the serial number of the product..
Example order: item # 08838-390 / spare part no. 12802003 / 1 piece / inspection no./ S/N
Important: spare part prices do not include fastening material; if fastening material (bolts, nuts, washers etc.)
is required, this should be clearly stated on the order by adding the words „with fastening material".
Warranty
3 Year Residential Warranty and a 1 Year Institutional Warranty.
The warranty begins with the date of purchase by the consumer. Please address all warranty questions to KETTLER headquarters at the following address:
KETTLER® International Inc., P.O. Box 2747, Virginia Beach, VA 23450-2747, USA
For parts or service ONLY call 1-866-804-0440 or send e-mail to:
parts@kettlerusa.com
call (866) 804-0440 fax (757) 563-9273.
www.kettlerusa.com
info@kettlerusa.com
The manufacturer reserves the right to make changes reflecting product or other technical advances. The content of these instructions is accurate at the date of printing.
Checklist
Liste de contrôle
Lista de verificacion
| 1/1 | ✓ | |
| 1 | ||
| 1 | ||
| 1 | ||
| 1 | ||
| 1 |
| 1 | ||
| 1 | ||
| 1 | ||
| M12 | 1 | |
| M6x25mm | 1 | |
| M5x30mm | 2 | |
| ∅ 6 mm | 4 | |
| 4,8x16 mm | 1 | |
| 2 | ||
| 1 |
1
2
3
4

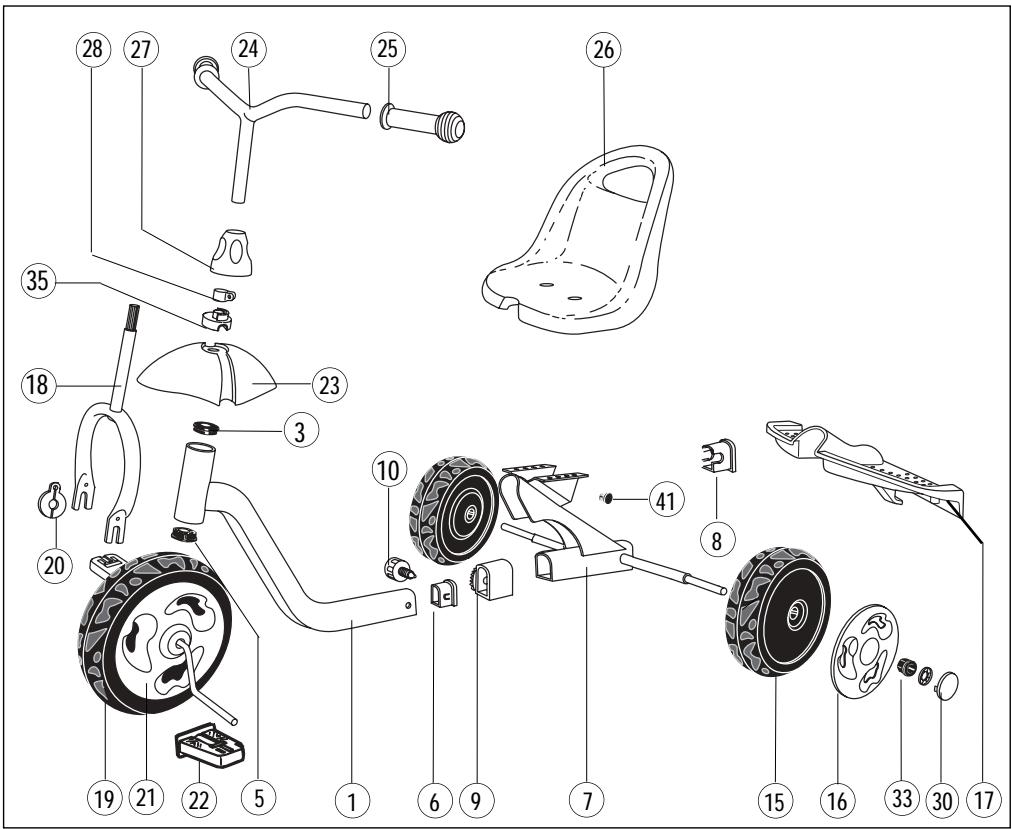

Spare parts drawing
Dessin des pieces de rechange
Designación de las piezas de recambio
pos. description
part no.
1 front frame complete 1 91610855
3 handlebar bushing (2046) 1 70122051
5 guide bushing for 042mm (2969) 1 70121560
6 front frame plug for 35× 41mm (2995) 1 70128425
7 rear frame 1 91611009
8 rear frame plug for 40x46~mm (3535) 1 70121432
9 adjustment sleeve (3064) 1 70121435
10 quick release knob M12 1 91670058
15 rear wheel 2 15170087
16 wheel screen for rear wheel (3487) 2 70121845
17 footplate (3104) 1 70122022
18 wheel fork 1 91620324
19 front wheel 1 15170088
20 front wheel bearing for 8 mm (3217) 2 10122010
21 wheel screen for front wheel (3491) 2 70121856
22 pedal for 8 mm (1848) 2 70121541
23 mudguard (4031) 1 70121472
24 handlebar with grips 1 91650251
25 grips 22mm 2 10111023
26 molded seat (3534) 1 70120245
27 covering (3497) 1 70121811
28 handlebar clamp 1 97201280
30 caphub (2042) 2 70121820
33 hexagon bushings 013 mm 4 70121470
34 hardware bag 1 91680308
35 handlebar limiter (3536) 1 70121417
41 plug 8x6,5x12 mm 4 10100169
