SBE 705 - Perceuse à percussion METABO - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Perceuse à percussion
Caractéristiques techniques principales	Perceuse à percussion avec fonction de rotation à droite et à gauche
Alimentation électrique	230 V / 50 Hz
Dimensions approximatives	Longueur : 300 mm, Largeur : 80 mm, Hauteur : 250 mm
Poids	2,2 kg
Compatibilités	Forets de différents diamètres, accessoires de vissage
Tension	230 V
Puissance	705 W
Fonctions principales	Perçage, vissage, percussion
Entretien et nettoyage	Nettoyer régulièrement le filtre à air et vérifier les charbons
Pièces détachées et réparabilité	Disponibilité de pièces détachées via le service après-vente Metabo
Sécurité	Protection contre les surcharges, interrupteur de sécurité
Informations générales	Garantie de 3 ans sur les outils Metabo, conception ergonomique

FOIRE AUX QUESTIONS - SBE 705 METABO

Comment puis-je changer le foret sur la METABO SBE 705 ?

Pour changer le foret, assurez-vous que la perceuse est éteinte et débranchée. Utilisez la clé de mandrin fournie pour desserrer le mandrin dans le sens inverse des aiguilles d'une montre, retirez le foret usagé et insérez le nouveau foret. Serrez ensuite le mandrin en tournant dans le sens des aiguilles d'une montre.

Que faire si la perceuse ne démarre pas ?

Vérifiez si la perceuse est correctement branchée et si l'interrupteur marche/arrêt est en position 'ON'. Si la perceuse ne fonctionne toujours pas, vérifiez le câble d'alimentation pour des dommages et assurez-vous que la prise électrique fonctionne.

Comment régler la vitesse de la METABO SBE 705 ?

La METABO SBE 705 est équipée d'un variateur de vitesse. Tournez le bouton de vitesse situé sur le dessus de la perceuse pour ajuster la vitesse en fonction du matériau à percer.

Est-il normal que la perceuse chauffe pendant l'utilisation ?

Un léger échauffement est normal lors d'une utilisation prolongée. Cependant, si la perceuse devient excessivement chaude, cela peut indiquer un problème. Arrêtez l'utilisation, laissez-la refroidir et vérifiez si le foret est endommagé ou encrassé.

Comment puis-je nettoyer ma METABO SBE 705 ?

Débranchez la perceuse avant de la nettoyer. Utilisez un chiffon sec pour enlever la poussière et les débris. Évitez l'utilisation de produits chimiques agressifs. Pour les parties rotatives, assurez-vous qu'aucun débris ne bloque le mécanisme.

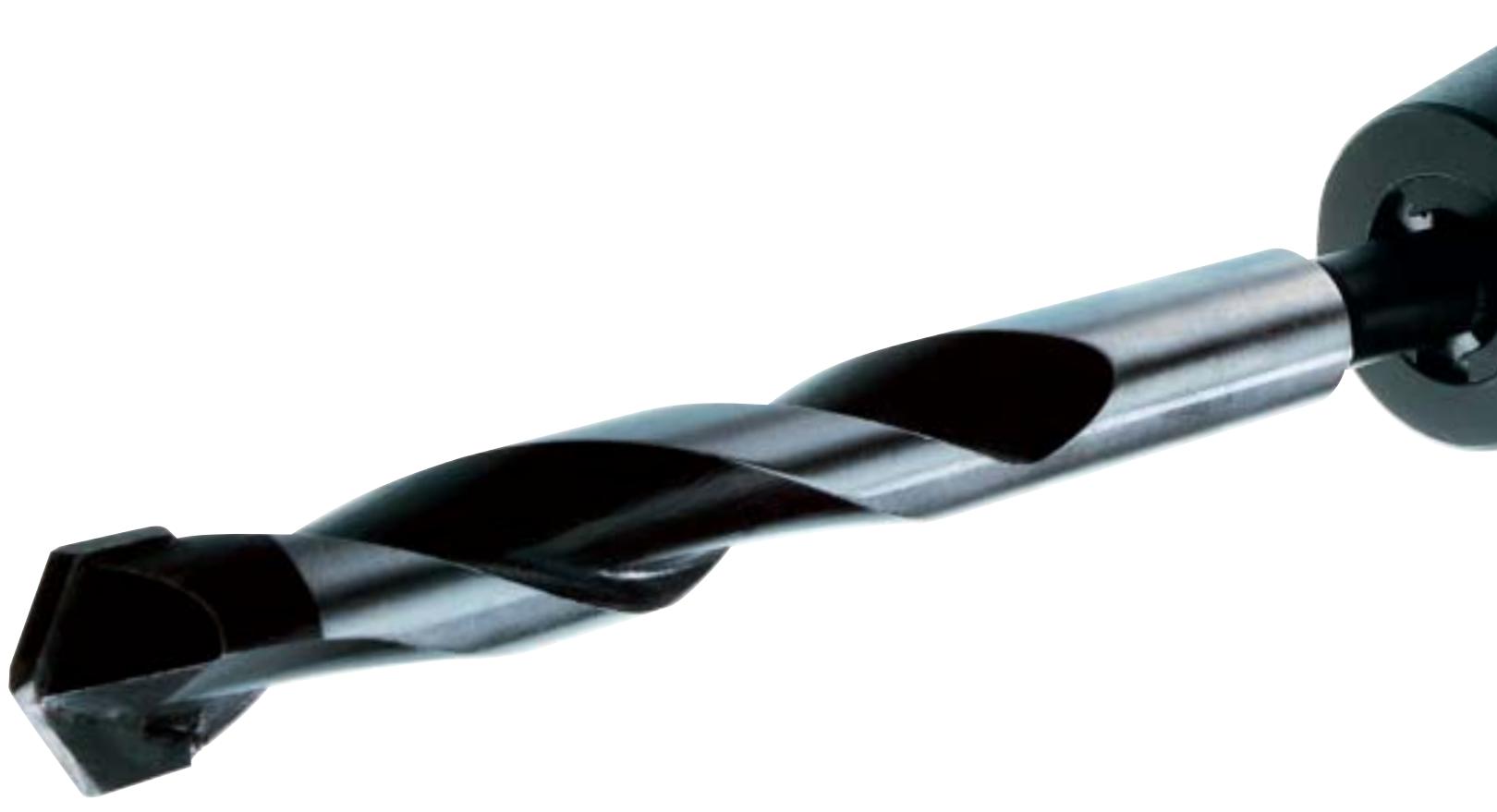

Quels types de forets puis-je utiliser avec la METABO SBE 705 ?

La METABO SBE 705 est compatible avec différents types de forets, y compris les forets en acier, les forets à béton et les forets à bois. Assurez-vous que le diamètre du foret est adapté au mandrin de la perceuse.

Comment puis-je lubrifier ma perceuse METABO SBE 705 ?

Pour lubrifier la perceuse, appliquez une petite quantité d'huile de machine sur les parties mobiles, comme le mandrin et les engrenages, en suivant les recommandations du manuel d'utilisation.

Où puis-je trouver des pièces de rechange pour la METABO SBE 705 ?

Les pièces de rechange pour la METABO SBE 705 peuvent être commandées auprès de revendeurs agréés METABO ou directement sur le site officiel de METABO.

MODE D'EMPLOI SBE 705 METABO

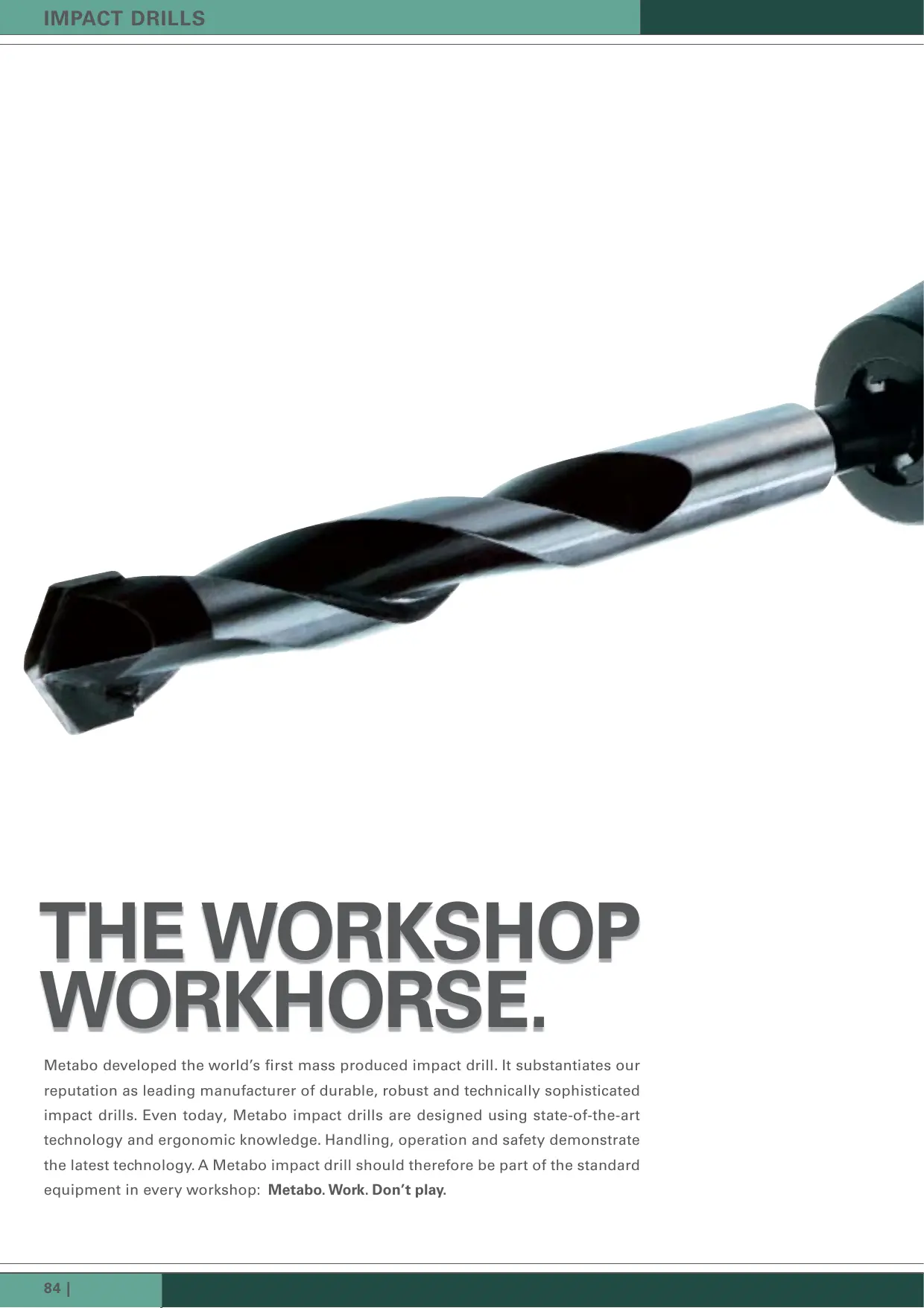

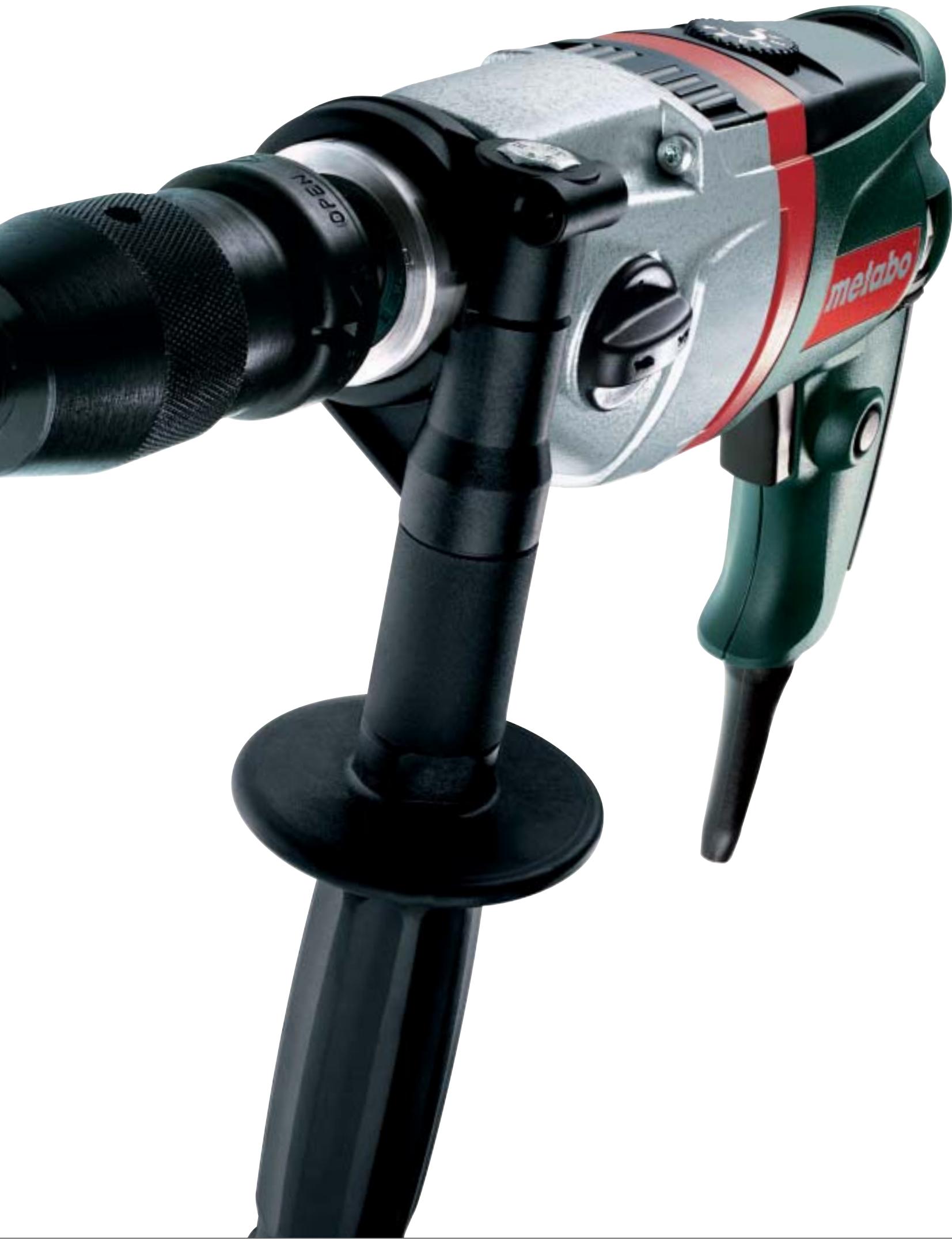

THE WORKSHOP WORKHORSE.

Metabo developed the world's first mass produced impact drill. It substantiates our reputation as leading manufacturer of durable, robust and technically sophisticated impact drills. Even today, Metabo impact drills are designed using state-of-the-art technology and ergonomic knowledge. Handling, operation and safety demonstrate the latest technology. A Metabo impact drill should therefore be part of the standard equipment in every workshop: Metabo. Work. Don't play.

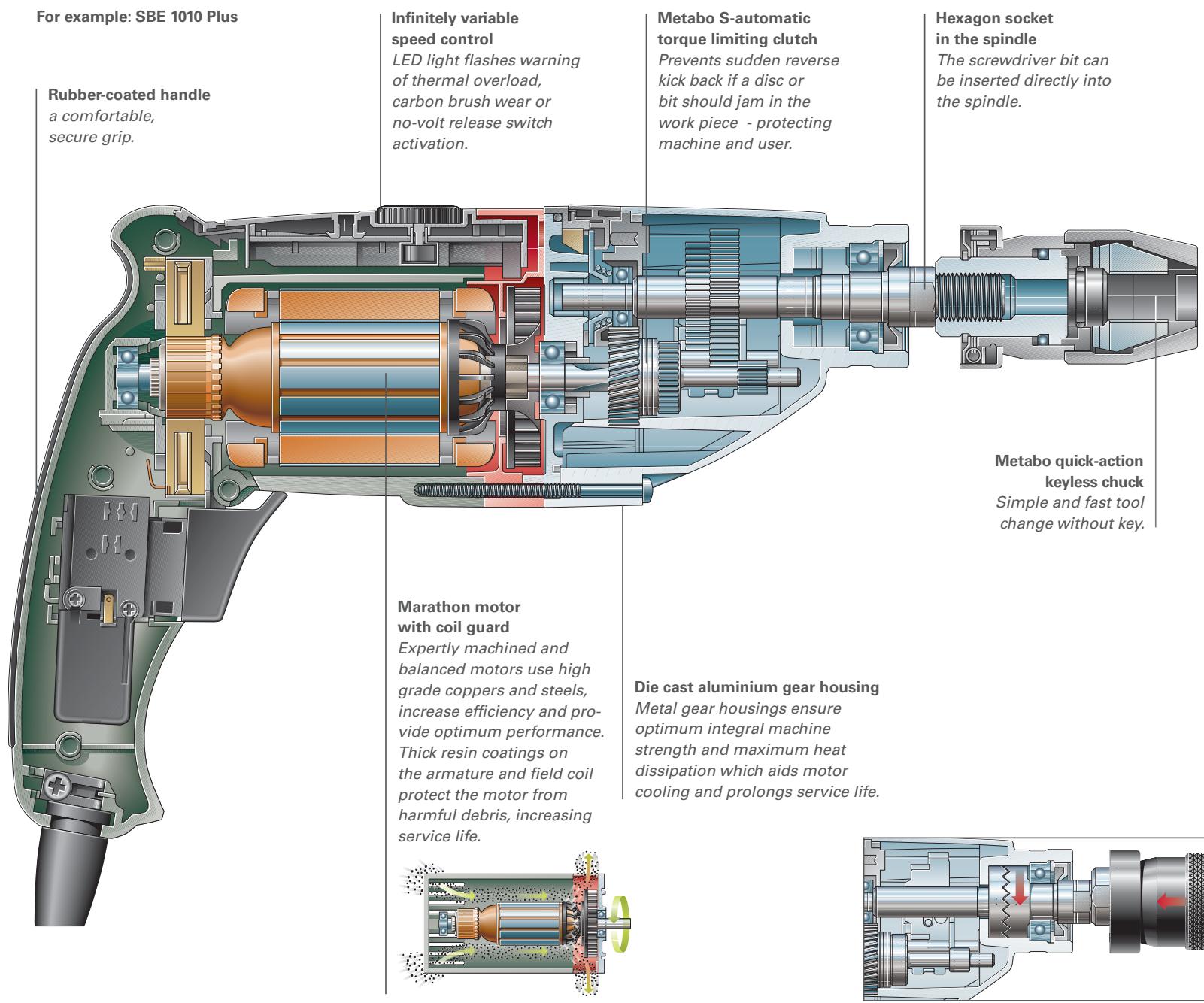

THE WORKSHOP ALL-ROUNDERS.

Impact drills have a number of uses. In hammer mode they come into their own when drilling ≤ 12 mm Ø bits into stone, concrete or brick. In rotary only mode they are ideal for drilling into wood, metal, plastics and even glass.

With the right attachments they can be used for driving in screws, stirring paint/plaster/mortor, polishing, sanding, grinding metal or removing rust. Metabo – Designed for Life.

More intelligent drilling with Metabo "Contact"

The tool stops automatically as soon as the drill tip touches conductive, earthed material (only in SBE 850 Contact).

Protection against theft by Metabo CODE!

The electronic security system protects against theft and unauthorised use (only in SBE 1010 Plus).

Metabo "Impulse" technology

No more problems with tight-fitting or damaged screw heads. Perfect spot-drilling on smooth surfaces (only with SBE 610 impulse and SBE 850 impulse).

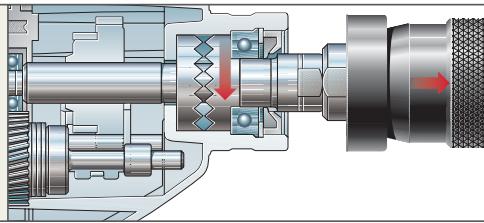

Optimised hammer mechanism

Perfectly adapted to the powerful Marathon motor with up to 57,000 impacts per minute.

Which application? Which impact drill?

Hammer drilling in concrete/stone (Ø mm)
4	5	6	8	10	12	14	16	18	20	metal	Drilling inmax. Ø mm	wood	Type and output	Page
Cordless impact drills
										NEW 12	30	SBZ 14.4 Impuls14.4 Volts	88
										NEW 12	30	SBZ 18 Impuls18 Volts	88
										13	40	SBP 18 Plus18 Volts	88
Impact drills
										NEW 10	20	SB 561560 W	89
										NEW 10	20	SBE 561560 W	89
										NEW 10	20	SBE 610610 W	89
										NEW 10	20	SBE 610 Impuls610 W	89
										13	30	SB 660660 W	90
										13	30	SBE 660660 W	90
										13	40	SBE 705705 W	90
										13	40	SBE 750750 W	90
										13	40	SBE 850 Impuls850 W	91
										13	40	SBE 850 Contact850 W	91
										16	40	SBE 1010 Plus1,010 W	91

For larger diameters you should choose a Metabo multihammer, rotary hammer or combination hammer: see pages 66-74

ideal range

possible range

COMMON FEATURES

• Selectable impulse mode
  Variospeed (V) electronics
  5-level adjustable torque, plus drilling level, plus impact drilling level
  Clockwise and anticlockwise rotation
  Quick stop
• Quick-action keyless chuck and spindle stop gear for convenient one-hand tool change: Metabo "Quick"
  T-handle for optimum centre of gravity

Fatigue-free operation due to perfect ergonomy
Rubber-coated handle
3-level planetary metal gears
Gentle gear change
Built-in collector fan to prevent overheating
Bit case for two bits
Maximum system flexibility through free combination of chargers and battery packs (within a voltage class)
Easy and quick change of battery pack

... 40 % more output with 40 % less weight

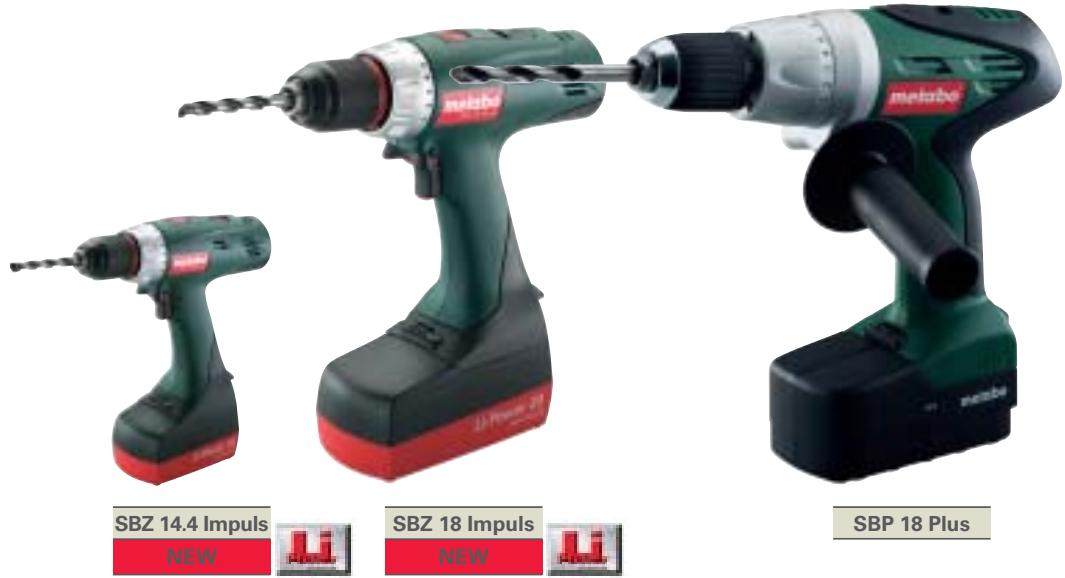

		14.4 Volt Cordless Impact Drill SBZ 14.4 Impuls	18 Volt Cordless Impact Drill SBZ 18 Impuls	18 Volt Cordless Impact Drill SBP 18 Plus
Special advantages
■ Sturdy quick-action keyless chuck with metal sleeve		●	●
■ Spindle with hexagon recess for screwdriver bits				●
■ Side handle				●
■ Die cast aluminium gear housing				●
Comparative device characteristics
Maximum torque, soft		24 Nm	28 Nm	30 Nm
Pulse torque		28 Nm	32 Nm	32 Nm
Maximum torque, hard		55 Nm	62 Nm	65 Nm
Drilling capacity in
- Concrete		8 mm	10 mm	16 mm
- Steel		12 mm/5 mm	12 mm/6 mm	13 mm/8 mm
- Wood		30 mm/22 mm	30 mm/22 mm	50 mm/25 mm
No load speed		0 - 400 / 0 - 1,400 /min	0 - 450 / 0 - 1,450 /min	0 - 400 / 0 - 1,400 /min
Maximum impact rate		24.800 /min	26.800 /min	22.400 /min
Drilling spindle thread		1/2" - 20 UNF	1/2" - 20 UNF	1/2" - 20 UNF
Chuck capacity		1,5 - 13 mm	1,5 - 13 mm	1,5 - 13 mm
Weight (including battery pack)		1,9 kg	2 kg	3 kg
Standard equipment		Quick-action keyless chuck	Quick-action keyless chuck	Quick-action keyless chuck
		Futuro Plus with metal sleeve, 2 battery packs, charger "AIR COOLED", carry case	Futuro Plus with metal sleeve, 2 battery packs, charger "AIR COOLED", carry case	Futuro Plus, side handle, 2 battery packs, charger "AIR COOLED", carry case
Battery packs and recharger are found on pages 137/139
1) at nominal voltage, maximal voltage 16 Volts
2) at nominal voltage, maximal voltage 20 Volts
Type Order no. Machine with Battery pack Charger		SBZ 14.4 Impuls	SBZ 18 Impuls	SBP 18 Plus
- NiCd (18 V/2 Ah)	AC 30	-	-	6.02422.50
- NiCd (18 V/2 Ah)	ACS 15	-	-	6.02422.51
- Li-Ion (14,4 V 1/2,2Ah)	AC 30 Plus	6.01442.50	-	-
- Li-Ion (18 V 2/2,2 Ah)	AC 30 Plus	-	6.01443.50	-

COMMON FEATURES

Long-life motor
Spindle with hexagon recess for screwdriver bits
Lightweight design prevents fatigue
Ergonomic housing design for ideal handling

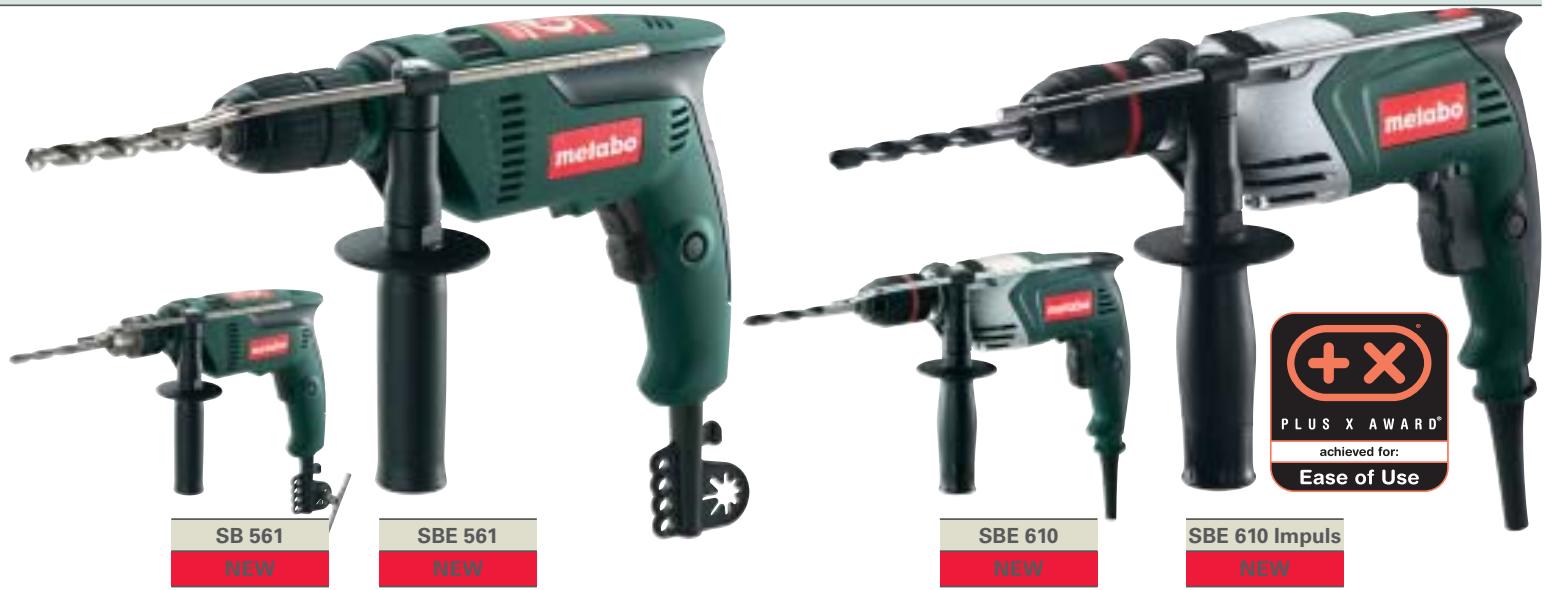

	560 Watt Impact Drill SB 561	560 Watt Electronic Impact Drill SBE 561	610 Watt Electronic Impact Drill SBE 610	610 Watt Electronic Impact Drill SBE 610 Impuls
Special advantages
■ Selectable impulse mode				●
■ Variospeed (V) electronics		●	●	●
■ Thumbwheel for preselection of speed		●	●	●
■ Die cast aluminium gear housing			●	●
■ User-friendly guidance of machine exhaust in all working situations			●	●
■ Clockwise and anticlockwise rotation		●	●	●
■ Rubber-coated handle	●	●		●
■ Auto-stop carbon brushes			●	●
Comparative device characteristics
Torque	5 Nm	5 Nm	5 Nm	5 Nm
Drilling capacity in
- Concrete	12 mm	12 mm	12 mm	12 mm
- Steel	10 mm	10 mm	10 mm	10 mm
- Softwood	20 mm	20 mm	20 mm	20 mm
No load speed	2.800 /min	0 - 2.800 /min	0 - 3.100 /min	0 - 3.100 /min
Rated input power	560 W	560 W	610 W	610 W
Output power	320 W	320 W	360 W	360 W
Rated load speed	1.700 /min	1.700 /min	1.900 /min	1.900 /min
Maximum impact rate	50.000 /min	50.000 /min	62.000 /min	62.000 /min
Collar diameter	43 mm	43 mm	43 mm	43 mm
Drilling spindle thread	1/2" - 20 UNF	1/2" - 20 UNF	1/2" - 20 UNF	1/2" - 20 UNF
Chuck capacity	1,5 - 13 mm	1,5 - 13 mm	1,5 - 13 mm	1,5 - 13 mm
Standard equipment	Geared chuck, chuck key, side handle, drilling depth guide	Quick-action keyless chuck Futuro Plus, side handle, drilling depth guide, carry case	Quick-action keyless chuck Futuro Plus, side handle, drilling depth guide, carry case	Quick-action keyless chuck Futuro Plus, side handle, drilling depth guide, carry case
Type Order no.	SB 561 6.01159.00	SBE 561 6.01160.50	SBE 610 6.06101.50	SBE 610 Impuls 6.06102.50

COMMON FEATURES

Die cast aluminium gear housing
Optimal cooling by axial/radial fan
Two-speed gear unit
- Robust Metabo Marathon motor
Metabo S-automatic torque limiting clutch
Metabo winding protection grid
Spindle with hexagon recess for screwdriver bits

Ergonomic housing design for ideal handling
Auto-stop carbon brushes

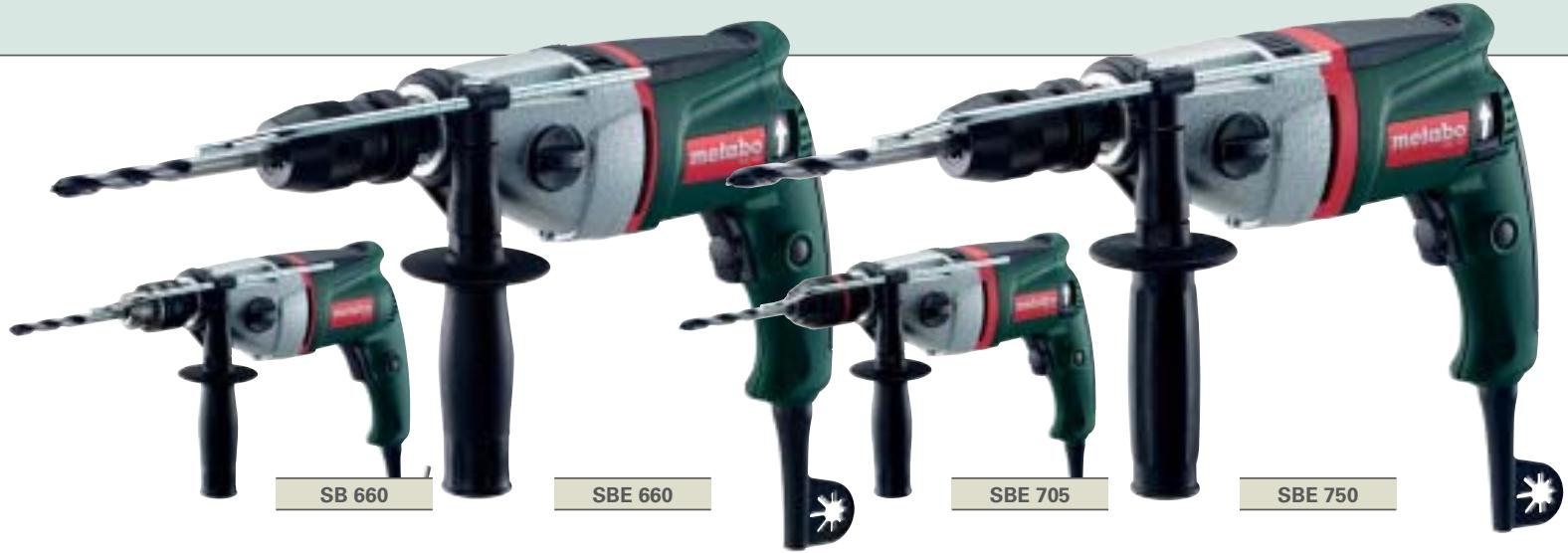

	660 Watt Two-Speed Impact Drill SB 660	660 Watt Electronic Two-Speed Impact Drill SBE 660	705 Watt Electronic Two-Speed Impact Drill SBE 705	750 Watt Electronic Two-Speed Impact Drill SBE 750
Special advantages
■ Variospeed (V) electronics		●	●	●
■ Thumbscrew for preselection of speed		●	●	●
■ Clockwise and anticlockwise rotation		●	●	●
■ Robust Metabo geared chuck	●
■ Quick-action keyless chuck Futuro Plus			●
■ Quick-action keyless chuck Futuro Top		●		●
■ Rubber-coated handle		●	●	●
Comparative device characteristics
Torque	16 Nm/6 Nm	16 Nm/6 Nm	16 Nm/6 Nm	18 Nm/6 Nm
Drilling capacity in
- Concrete	16 mm	16 mm	20 mm	20 mm
- Steel	13 mm/8 mm	13 mm/8 mm	13 mm/8 mm	13 mm/8 mm
- Softwood	30 mm/20 mm	30 mm/20 mm	40 mm/25 mm	40 mm/25 mm
No load speed	1.000/3.000 /min	0 - 1.000 / 0 - 3.000 /min	0 - 1.000 / 0 - 3.000 /min	0 - 1.000 / 0 - 3.000 /min
Rated input power	660 W	660 W	705 W	750 W
Output power	380 W	380 W	410 W	440 W
Rated load speed	610/1.850 /min	610/1.850 /min	560/1.700 /min	530/1.600 /min
Maximum impact rate	57.000 /min	57.000 /min	57.000 /min	57.000 /min
Collar diameter	43 mm	43 mm	43 mm	43 mm
Drilling spindle thread	1/2" - 20 UNF	1/2" - 20 UNF	1/2" - 20 UNF	1/2" - 20 UNF
Chuck capacity	1,5 - 13 mm	1 - 13 mm	1,5 - 13 mm	1 - 13 mm
Drilling spindle with hexagon recess	1/4" (6,35 mm)	1/4" (6,35 mm)	1/4" (6,35 mm)	1/4" (6,35 mm)
Weight (without mains cable)	2,1 kg	2,1 kg	2,3 kg	2,3 kg
Standard equipment	Geared chuck, chuck key, side handle, drilling depth guide, carry case	Quick-action keyless chuck Futuro Top, side handle, drilling depth guide, carry case	Quick-action keyless chuck Futuro Plus, side handle, drilling depth guide, carry case	Quick-action keyless chuck Futuro Top, rubber-coated side handle, drilling depth guide, carry case

COMMON FEATURES

• Thumbwheel for preselection of speed
  Die cast aluminium gear housing
  Optimal cooling by axial/radial fan
  Two-speed gear unit
  Robust Metabo Marathon motor
  Metabo S-automatic torque limiting clutch
  Metabo winding protection grid

Clockwise and anticlockwise rotation
Spindle with hexagon recess for screwdriver bits
Ergonomic housing design for ideal handling
Rubber-coated handle
Auto-stop carbon brushes

... with the Metabo CODE! The electronic security system protects against theft and unauthorised use.

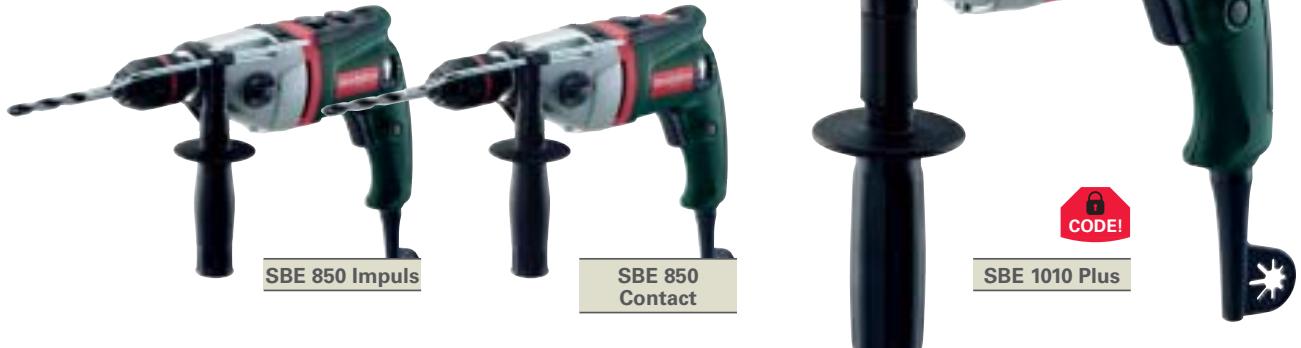

	850 Watt Electronic Two-Speed Impact Drill SBE 850 Impuls	850 Watt Electronic Two-Speed Impact Drill SBE 850 Contact	1010 Watt Electronic Two-Speed Impact Drill SBE 1010 Plus
Special advantages
■ Selectable impulse mode	●
■ Metabo "Contact" Technology		●
■ Metabo CODE! system: electro- nic anti-thief system, activated by CODE! key (accessory)			●
■ Vario Constamatic (VC) full-wave electronics	●	●
■ Vario Tacho Constamatic (VTC) full-wave electronics			●
■ Thumbwheel for setting the torque	●
■ Quick-action keyless chuck	●	●	●
■ Overload protection			●
■ No-volt release switch			●
■ Brush wear indicator			●
Comparative device characteristics
Torque	22 Nm/9 Nm	22 Nm/9 Nm	28 Nm/10 Nm
Drilling capacity in
- Concrete	20 mm	20 mm	20 mm
- Steel	13 mm/8 mm	13 mm/8 mm	16 mm/8 mm
- Softwood	40 mm/25 mm	40 mm/25 mm	40 mm/25 mm
No load speed	0 - 1.000 / 0 - 3.000 /min	0 - 1.000 / 0 - 3.000 /min	0 - 900 / 0 - 2.600 /min
Rated input power	850 W	850 W	1.010 W
Output power	480 W	480 W	610 W
Rated load speed	760/2.300 /min	760/2.300 /min	900/2.600 /min
Maximum impact rate	57.000 /min	57.000 /min	50.000 /min
Collar diameter	43 mm	43 mm	43 mm
Drilling spindle thread	1/2" - 20 UNF	1/2" - 20 UNF	1/2" - 20 UNF
Chuck capacity	1,5 - 13 mm	1,5 - 13 mm	1 - 13 mm
Drilling spindle with hexagon recess	1/4" (6,35 mm)	1/4" (6,35 mm)	1/4" (6,35 mm)
Weight (without mains cable)	2,4 kg	2,4 kg	2,4 kg
Standard equipment	Quick-action keyless chuck, side handle, drilling depth guide, carry case	Quick-action keyless chuck, side handle, drilling depth guide, carry case	Quick-action keyless chuck, long side handle, drilling depth guide, carry case
Type Order no. Machine with	SBE 850 Impuls	SBE 850 Contact	SBE 1010 Plus
- Quick-action keyless chuck Futuro Plus	6.00849.50	6.00860.50	6.01108.51
- Quick-action keyless chuck Futuro Top	6.00849.51	6.00860.51	6.01108.50
