| Type de produit | Taille-haies électrique |
| Marque | METABO |
| Modèle | HS 45 |
| Puissance nominale | 450 W |
| Longueur de coupe | 450 mm |
| Capacité de coupe max. | 18 mm |
| Nombre de coupes à vide | 3 100 /min |
| Écartement des lames | 28 mm |
| Poids (sans câble) | 3,4 kg |
| Système de sécurité | Double commande à deux mains et frein mécanique breveté (arrêt en 0,05 s) |
| Lame inférieure de sécurité | Oui (zone de sécurité de 8 mm) |
| Affûtage des dents | Double meulage à 30° et meulage diamant |
| Poignée | Poignée ergonomique avec pare-main |
| Embrayage | Embrayage de limitation de couple Metabo S-automatic |
| Protection de câble | Détendeur de câble intégré |
| Contenu de la livraison | Taille-haies, pare-main, conteneur de rangement |
| N° de commande | 6.20016 |
| Entretien | Huile de maintenance à base végétale recommandée |
| Accessoires disponibles | Huile spray (6.30475), huile 1L (6.30474), détendeur de câble (6.31070), lunettes de protection (6.31071) |
FOIRE AUX QUESTIONS - HS 45 METABO
Questions des utilisateurs sur HS 45 METABO
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Taille-haies électrique au format PDF gratuitement ! Retrouvez votre notice HS 45 - METABO et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil HS 45 de la marque METABO.
MODE D'EMPLOI HS 45 METABO

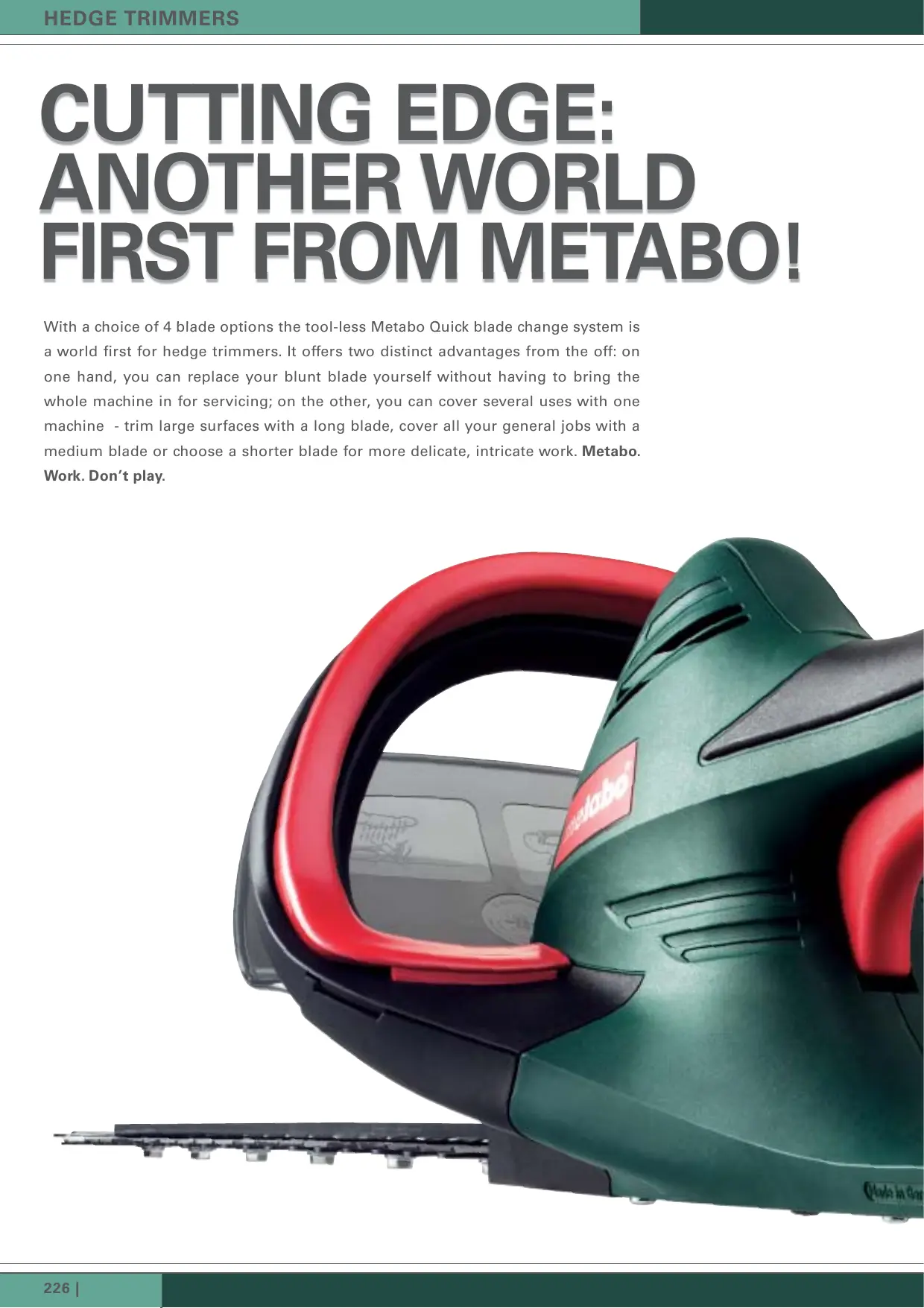

CUTTING EDGE: ANOTHER WORLD FIRST FROM METABO!
With a choice of 4 blade options the tool-less Metabo Quick blade change system is a world first for hedge trimmers. It offers two distinct advantages from the off: on one hand, you can replace your blunt blade yourself without having to bring the whole machine in for servicing; on the other, you can cover several uses with one machine - trim large surfaces with a long blade, cover all your general jobs with a medium blade or choose a shorter blade for more delicate, intricate work. Metabo. Work. Don't play.
METABO IS SIMPLY A CUT ABOVE THE REST.
Once again Metabo are setting new standards in hedge trimming. In order to meet the varying demands of the hedge trimmer market we have divided our new models into three classes - a top, middle and standard class. The top class boasts a world first with its toolless "Quick" blade change system. The middle class incorporates the patented Metabo handle which increases the cutting reach by up to 50% compared to conventional designs (as does the
top class). Where as the standard class provides a compact light weight solution, while still retaining some the features and benefits of the upper classes. In essence Metabo hedge trimmers stand out in all three classes by virtue of their performance, ergonomics and innovation. Robust motors, laser cut diamond-ground blades and excellent features are just some of the reasons why they are the first choice for many professionals the world over.
The patented Metabo handle
system(top&middleclass)
offers 50% more reach by means of an extra switch on the back handle. You can reach higher without having to abandon the safe two-hand operation.
Safety lower blade
The 8-mm safety zone of the lower blade makes cutting even safer.
Safe two-hand operation and patented
mechanical quick braking
This kicks in when one of the two hand switches are not depressed. This makes it virtually impossible for you to accidentally reach into the blade while it is running.
COMMON FEATURES
- Safety two-handed operation and patented mechanical quick braking (blade quick stop in 0.05 seconds)
Safety lower blade
Cleaner cut due to double ground blade teeth at 30^ angle
Especially sharp diamond-ground blade teeth
Large hand guard
Metabo S-automatic torque limiting clutch
Quiet running and very good ergonomy
Cable strain relief
Trigger-guard with twig feed
| 450 Watt Hedge Trimmer HS 45 | 450 Watt Hedge Trimmer HS 55 | 450 Watt Hedge Trimmer HS 65 | |
| Comparative device characteristics | |||
| Cutting strength | 18 mm | 18 mm | 18 mm |
| Cutting length | 450 mm | 550 mm | 650 mm |
| Blade clearance | 28 mm | 28 mm | 28 mm |
| Number of cuts at no load | 3.100 /min | 3.100 /min | 3.100 /min |
| Rated input power | 450 W | 450 W | 450 W |
| Weight (without mains cable) | 3,4 kg | 3,6 kg | 3,8 kg |
| Standard equipment | Trigger guard, container | Trigger guard, container | Trigger guard, container |
| Type | HS 45 | HS 55 | HS 65 |
| Order no. | 6.20016 | 6.20017 | 6.20018 |
| Accessories | ||
| Order no. | ||
| Hedge trimmer maintenance oil spray ■ Vegetable-based ■ Also suitable for the cordless hedge trimmer Hs A 8043 Maintenance, pump-spray-can, with 0.3 litre capacity | 6.30475 | |
| Hedge trimmer maintenance oil, 1 litre ■ Vegetable-based ■ Also suitable for the cordless hedge trimmer Hs A 8043 | 6.30474 | |
| Order no. | ||
| Cable strain relief ■ For attaching between the machine power plug and the extension lead socket (prevents the plug of the power tool from accidentally being pulled out of the socket) | 6.31070 | |
| Full-view safety goggles ■ Very comfortable full-view safety goggles. UV protection 2-1, coating on the lens: scratch-free on the outside and mist-free on the inside. | 6.31071 | |
COMMON FEATURES
Up to 50% range increase due to patented Metabo handle system
- Safety two-handed operation and patented mechanical quick braking (blade quick stop in 0.05 seconds)
Safety lower blade
- Cleaner cut due to double ground blade teeth at 30^ angle
Fatigue-proof operation due to ergonomic full grip bow-type handle design and optimum centre of gravity position
Large hand guard
- Quite running due to shear blades running in opposite direction
Metabo S-automatic torque limiting clutch
Quiet running and very good ergonomy
- User-friendly guidance of machine exhaust in all working situations
Cable strain relief
Trigger-guard with twig feed
| 550 Watt Hedge Trimmer HS 8545 | 550 Watt Hedge Trimmer HS 8555 | 550 Watt Hedge Trimmer HS 8565 | ||
| Comparative device characteristics | ||||
| Cutting strength | 20 mm | 20 mm | 20 mm | |
| Cutting length | 450 mm | 550 mm | 650 mm | |
| Blade clearance | 26 mm | 26 mm | 26 mm | |
| Number of cuts at no load | 3.200 /min | 3.200 /min | 3.200 /min | |
| Rated input power | 550 W | 550 W | 550 W | |
| Weight (without mains cable) | 3,6 kg | 3,8 kg | 4 kg | |
| Standard equipment | Trigger guard, container | Trigger guard, container | Trigger guard, container | |
| Type | HS 8545 | HS 8555 | HS 8565 | |
| Order no. | 6.08545 | 6.08555 | 6.08565 | |
| Accessories | ||
| Order no. | ||
| Hedge trimmer maintenance oil spray ■ Vegetable-based ■ Also suitable for the cordless hedge trimmer Hs A 8043 Maintenance, pump-spray-can, with 0.3 litre capacity | 6.30475 | |
| Hedge trimmer maintenance oil, 1 litre ■ Vegetable-based ■ Also suitable for the cordless hedge trimmer Hs A 8043 | 6.30474 | |
| Order no. | ||
| Cable strain relief ■ For attaching between the machine power plug and the extension lead socket (prevents the plug of the power tool from accidentally being pulled out of the socket) | 6.31070 | |
| Full-view safety goggles ■ Very comfortable full-view safety goggles. UV protection 2-1, coating on the lens: scratch-free on the outside and mist-free on the inside. | 6.31071 | |
COMMON FEATURES
Metabo "Quick": patented quick change of cutter bar without tools
Up to 50% range increase due to patented Metabo handle system
Especially high cutting output due to two-level reduced gear
- Safety two-handed operation and patented mechanical quick braking (blade quick stop in 0.05 seconds)
Safety lower blade
Cleaner cut due to double ground blade teeth at 30^ angle
Especially sharp diamond-ground blade teeth
Fatigue-proof operation due to ergonomic full grip bow-type handle design and optimum centre of gravity position
Large hand guard
- Quite running due to shear blades running in opposite direction
Metabo S-automatic torque limiting clutch
Quiet running and very good ergonomy - User-friendly guidance of machine exhaust in all working situations
Cable strain relief
Trigger-guard with twig feed
| 650 Watt Hedge Trimmer HS 8655 Quick | 650 Watt Hedge Trimmer HS 8665 Quick | 650 Watt Hedge Trimmer HS 8675 Quick | |
| Comparative device characteristics | |||
| Cutting strength | 26 mm | 26 mm | 26 mm |
| Cutting length | 460 mm | 560 mm | 660 mm |
| Blade clearance | 26 mm | 26 mm | 26 mm |
| Number of cuts at no load | 3.000 /min | 3.000 /min | 3.000 /min |
| Rated input power | 650 W | 650 W | 650 W |
| Weight (without mains cable) | 4,2 kg | 4,4 kg | 4,6 kg |
| Standard equipment | Trigger guard, container | Trigger guard, container | Trigger guard, container |
| Type | HS 8655 Quick | HS 8665 Quick | HS 8675 Quick |
| Order no. | 6.08655 | 6.08665 | 6.08675 |
Hedge trimming blade
For quick replacement of blunt blades with sharp blades
- For trimming hedges with different blade lengths: large surfaces with long cutter bars; filigree profile cuts with short cutter bars
- All cutter bars fit on all hedge trimmers with "Quick" blade change
| Blade length mm | Order no. | ||
| NEW | 450 | 6.24575 | |
| NEW | 550 | 6.24576 | |
| NEW | 650 | 6.24577 | |
| NEW | 750 | 6.24578 |
COMMON FEATURES
- Unique safety by the patented Metabo wrap spring chain brake (stop in 0.1 sec.)
Saw chain with safety driving links
Sturdy motor with high capacity reserve - Break-proof housing made of reinforced fibre glass and heat-resistant polyamide
Large hand guard - Switch with safety lock lock to protect against unintentional start of the chain saw
Bracing with support star
Automatic chain lubrication
Solid interchangeable stop clutch
- Chain catch pin in case the chain breaks
Large surface for safe operation
Easy chain change
Auto-stop carbon brushes
Combo-spanner in spanner case
Kt 1441
| 1400 Watt Chain Saw Kt 1441 | |
| Comparative device characteristics | |
| Torque | 10 Nm |
| Cutting length | 400 mm |
| Rated input power | 1.400 W |
| Output power | 800 W |
| Saw chain | |
| - Division | 9,35 mm |
| - Cutter shape | Low profile, Semi-chisel |
| - Thickness of drive links | 1,3 mm |
| - Number of drive links | 57 |
| No load chain speed | 10 m/s |
| Oil delivery rate adjustable | 5 - 10 cm³/min |
| Oil container volume | 0,2 l |
| Weight (without mains cable) | 4,2 kg |
| Standard equipment | Bracing, saw chain, contact safety device, 0.2 l chain saw adhesive oil, cable strain relief strap, combo-spanner |
| Kt 1441 | |
| Order no. | 6.01441 |
Accessories
| Order no. | ||
| saw chain For Kt 1440 A; division: 3/8"; drive links; (as spare) | 6.31670 | |
| Precision guide rail (as spare) | 6.31671 | |
| Saw chain sharpening kit Consisting of file holder with Ø 4-mm round file (6.31438), flat file, depth gauge and brace cleaner | 6.31437 | |
| File holder with file File holder with Ø 4-mm round file (spare) | 6.31439 | |
| Chain saw adhesive oil | ||
| 1 litre, bio-degradable | 6.31433 | |
| 5 litre, bio-degradable | 6.31434 | |
| Universal saw horse • Stable construction made from galvanized, chromed steel • Suitable for sawing with electric and motor chain saws. The machines can be attached on the right or left side of the saw horse. • Safe working conditions - thanks to the restricted guidance of the chain-saw • The distance between the saw's bracing and the wood to be sawn can be adjusted to suit the wood's thickness • Suitable for cutting through logs up to 300 mm in diameter • Adjustable length guide Working height: 75 cm Dimensions (folded): 87x82x6 cm Weight: 11 kg | 6.31430 | |
| Full-view safety goggles • Very comfortable full-view safety goggles. UV protection 2-1, coating on the lens: scratch-free on the outside and mist-free on the inside. | 6.31071 | |
