Type de produit	Perceuse visseuse sans fil
Marque	METABO
Modèle	BSZ 18
Tension nominale	18 V (max 20 V)
Capacité de la batterie	2,2 Ah (Li-Ion)
Couple maximal (mou)	28 Nm
Couple maximal (dur)	62 Nm
Vitesse à vide (1ère vitesse)	0 - 450 tr/min
Vitesse à vide (2e vitesse)	0 - 1 450 tr/min
Capacité de perçage acier	12 mm / 6 mm
Capacité de perçage bois	30 mm / 22 mm
Capacité du mandrin	1,5 - 13 mm
Filetage de broche	1/2" - 20 UNF
Poids (avec batterie)	2,2 kg
Poignée	Recouverte de caoutchouc
Carter	Aluminium moulé sous pression
Engrenages	3 étages planétaires métal
Éclairage intégré	Oui
Arrêt rapide	Oui
Blocage de broche	Oui
Électronique Variospeed	Oui
Réglage de couple	20 niveaux + mode perçage
Sens de rotation	Horaire/Antihoraire
Système Quick (changement d'outil sans clé)	Oui
Flexibilité des accumulateurs	Compatible avec chargeurs AC30, ACS15 et leurs variantes Plus
Entretien et nettoyage	Nettoyer avec un chiffon humide, sans solvants. Vérifier régulièrement les aérations.
Sécurité	Porter des lunettes de protection. Ne pas immerger dans l'eau.
Pièces détachées disponibles	Batterie (réf. 6.25484), chargeur, mandrin, balais
Informations générales	Fabriqué par Metabowerke GmbH, Nürtingen, Allemagne

FOIRE AUX QUESTIONS - BSZ 18 METABO

Comment changer la batterie sur la BSZ 18 ?

Pour changer la batterie, appuyez sur le bouton de déverrouillage situé sur la batterie et faites glisser la batterie vers l'avant pour la retirer. Insérez la nouvelle batterie en l'encliquant jusqu'à ce qu'elle se verrouille. La flexibilité du système permet d'utiliser différentes batteries Metabo de la même tension.

Comment régler le couple de serrage ?

Tournez la bague de réglage de couple située derrière le mandrin. Vous disposez de 20 niveaux de couple pour le vissage et d'un niveau supplémentaire pour le perçage. Choisissez le niveau adapté à la vis et au matériau pour éviter de les endommager.

Comment passer en mode perçage ?

Pour percer, tournez la bague de réglage de couple sur le symbole de foret (dernier cran après les 20 niveaux). Cela désactive la limitation de couple et permet à la perceuse de fournir toute sa puissance pour le perçage.

Quelle est la différence entre les deux vitesses ?

La première vitesse (0-450 tr/min) offre un couple élevé pour le vissage de grosses vis ou le perçage dans des matériaux durs. La deuxième vitesse (0-1 450 tr/min) est plus rapide pour le perçage dans le bois ou le métal. Utilisez le sélecteur de vitesse sur le dessus de l'appareil.

Comment nettoyer la perceuse visseuse ?

Débranchez la batterie. Nettoyez le boîtier avec un chiffon humide et un détergent doux. N'utilisez pas de solvants ou de produits agressifs. Les fentes de ventilation doivent être exemptes de poussière pour éviter la surchauffe.

Comment changer un embout de vissage ?

La BSZ 18 est équipée du système Metabo Quick. Tenez la bague avant du mandrin et tournez la bague arrière dans le sens inverse des aiguilles d'une montre pour ouvrir. Insérez l'embout, puis serrez à la main. Le blocage de broche facilite le changement.

La batterie se décharge rapidement, que faire ?

Vérifiez que la batterie est complètement chargée. Les batteries Li-Ion n'ont pas d'effet mémoire. Si la batterie est ancienne, elle peut avoir perdu de sa capacité. Utilisez un chargeur AIR COOLED pour une charge rapide et optimale. Si le problème persiste, remplacez la batterie.

Puis-je utiliser des batteries d'autres marques ?

Il est recommandé d'utiliser uniquement des batteries Metabo d'origine. Les batteries d'autres marques peuvent ne pas être compatibles en termes de tension, de conception ou de sécurité. Utiliser des batteries non homologuées peut endommager l'outil ou présenter des risques.

Comment savoir si la batterie est chargée ?

Les chargeurs Metabo disposent d'un indicateur LED. Le voyant vert fixe indique une charge complète. Certaines batteries sont équipées d'un affichage multifonction qui montre le niveau de charge. Consultez le manuel du chargeur pour plus de détails.

Où trouver des pièces de rechange pour la BSZ 18 ?

Les pièces de rechange (batterie, chargeur, mandrin, balais) sont disponibles chez les revendeurs Metabo agréés ou sur le site officiel. Utilisez les numéros de référence mentionnés dans la notice, par exemple batterie Li-Ion 18V/2,2Ah réf. 6.25484.

MODE D'EMPLOI BSZ 18 METABO

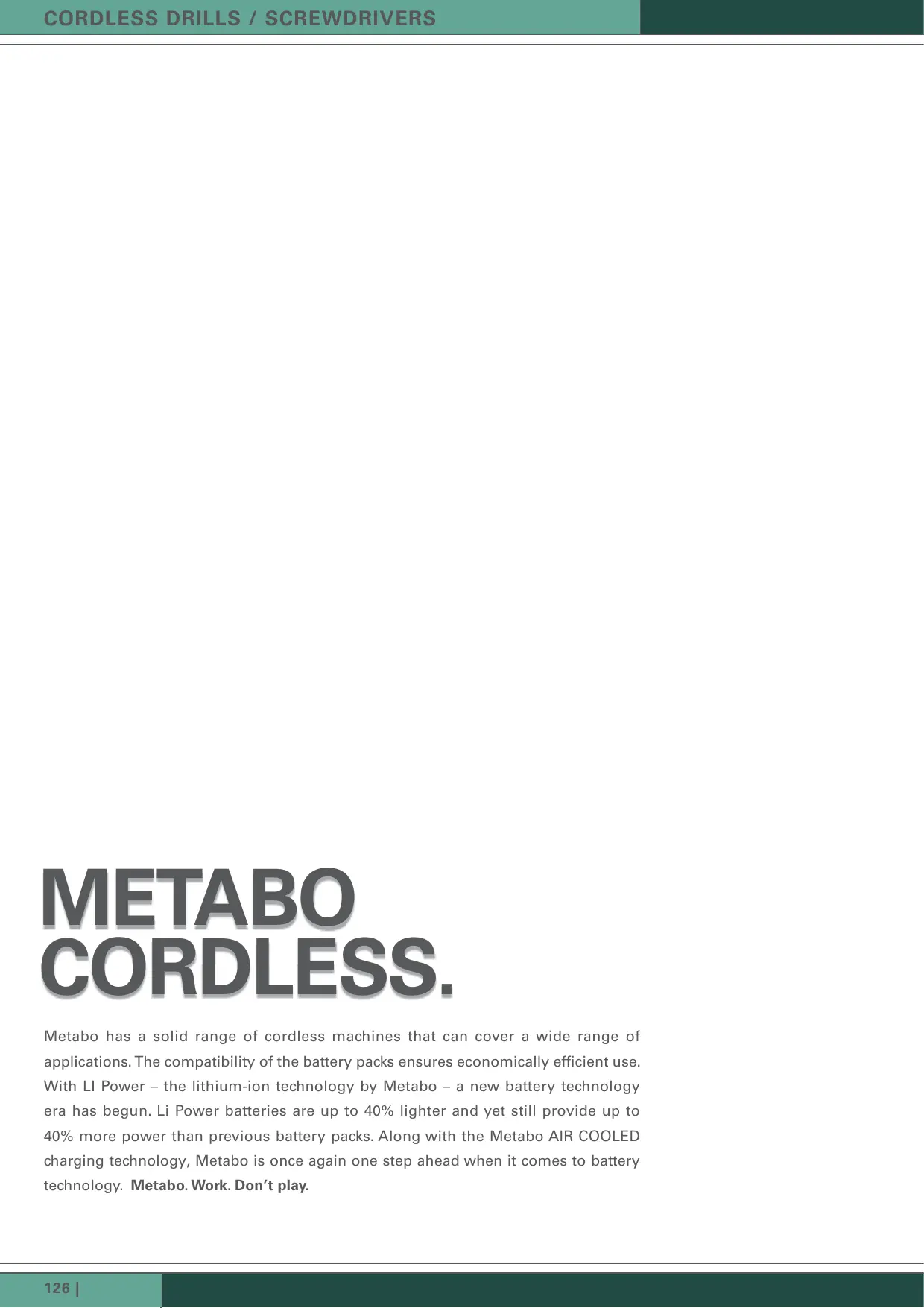

METABO CORDLESS.

Metabo has a solid range of cordless machines that can cover a wide range of applications. The compatibility of the battery packs ensures economically efficient use. With LI Power – the lithium-ion technology by Metabo – a new battery technology era has begun. Li Power batteries are up to 40% lighter and yet still provide up to 40% more power than previous battery packs. Along with the Metabo AIR COOLED charging technology, Metabo is once again one step ahead when it comes to battery technology. Metabo. Work. Don't play.

Close-up of a green and black electric drill bit with a red grip, showing blade and handle (no text or symbols visible)

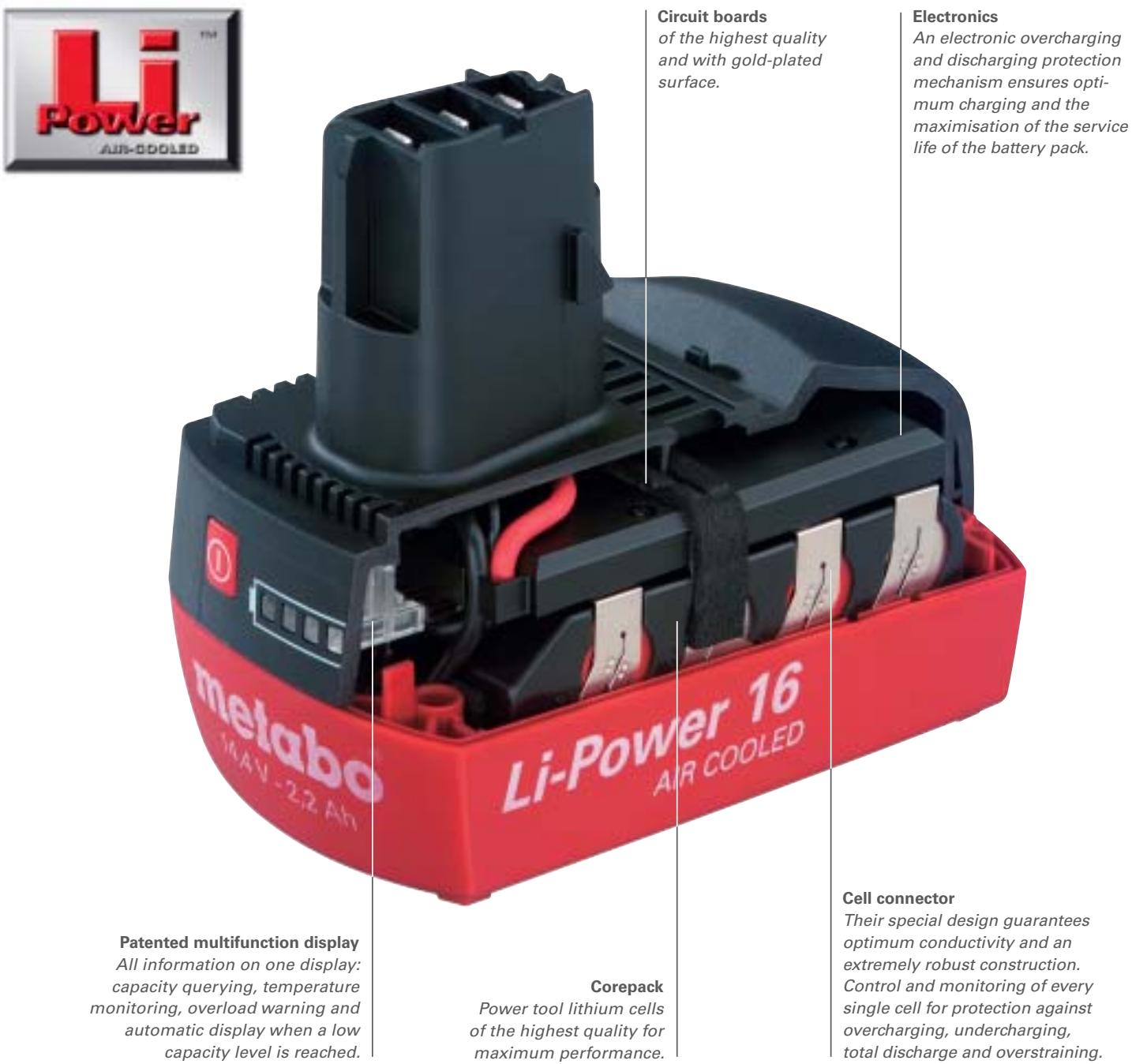

Li Power battery packs
are up to 40% lighter and still provide up to 40% more power than NiCd battery packs.

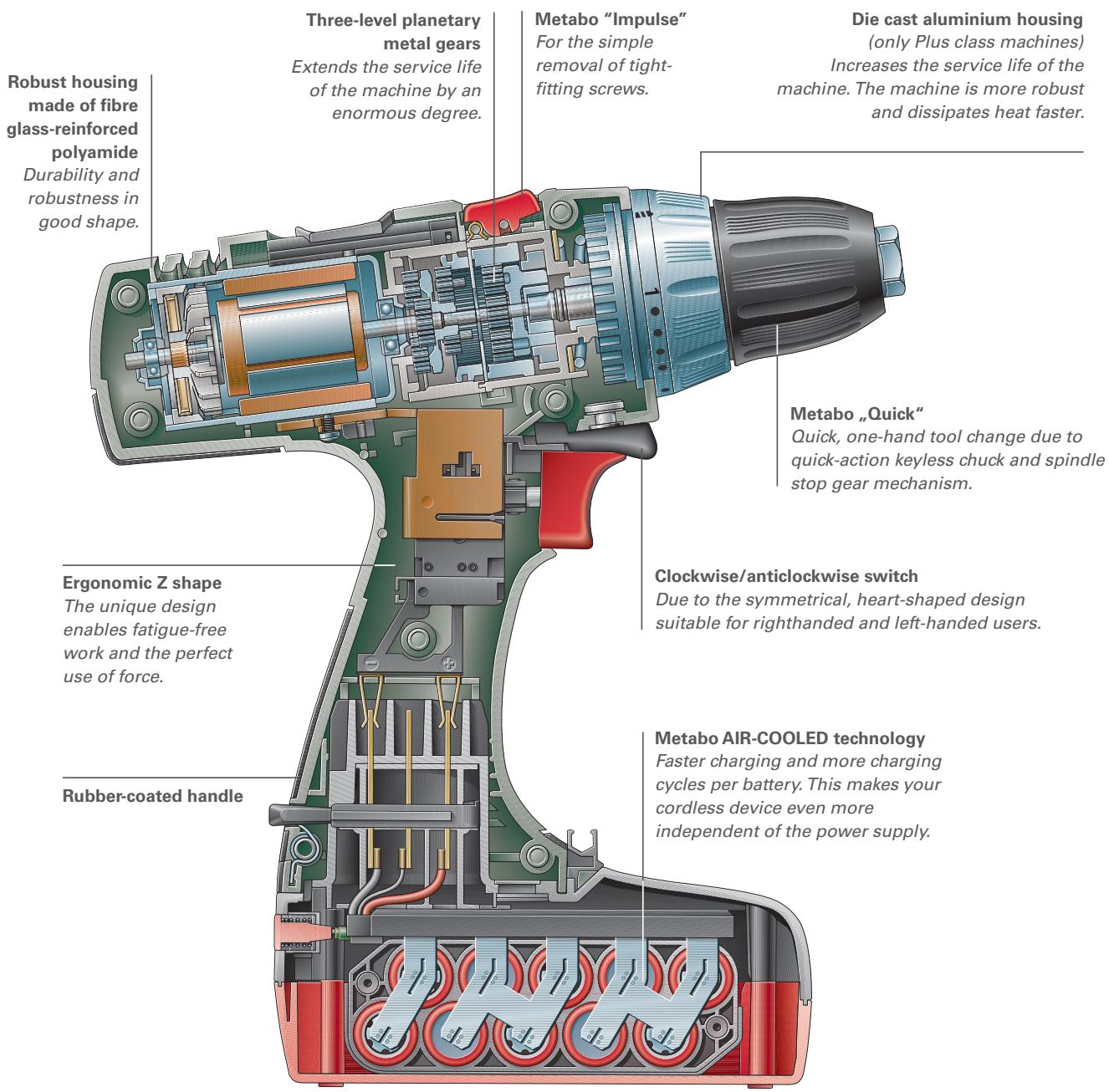

TRUE PROS GET EVERYWHERE.

For professional users, mobility is essential. They still want to screw, drill, cut and saw even without electrical power supply. They need power, for as long as possible. Therefore, besides the torque and speed criteria, the battery capacity and the charging system also plays an important role.

Robust housing made of fibre glass-reinforced polyamide Durability and robustness in good shape. Three-level planetary metal gears Extends the service life of the machine by an enormous degree. Metabo "Impulse" For the simple removal of tight-fitting screws. Die cast aluminium housing (only Plus class machines) Increases the service life of the machine. The machine is more robust and dissipates heat faster. Ergonomic Z shape The unique design enables fatigue-free work and the perfect use of force. Rubber-coated handle Metabo „Quick“ Quick, one-hand tool change due to quick-action keyless chuck and spindle stop gear mechanism. Clockwise/anticlockwise switch Due to the symmetrical, heart-shaped design suitable for righthanded and left-handed users. Metabo AIR-COOLED technology Faster charging and more charging cycles per battery. This makes your cordless device even more independent of the power supply.

Close-up of a mechanical component with red curved arrows indicating motion or direction (no text or symbols visible)

Two red and black handheld electrical enclosures with cables, no visible text or symbols

Three black and red cylindrical batteries with three leads, no visible text or symbols

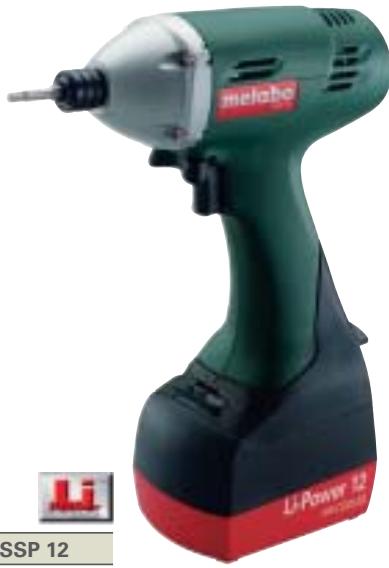

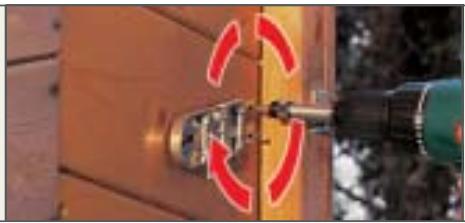

Metabo "Impulse" technology

Tight-fitting screws or damaged screw heads can be easily removed using this "start-up aid."

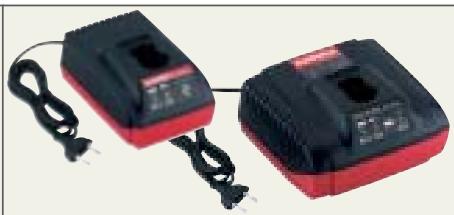

Gentle and faster charging

The new Metabo quick re-charging devices are suited to re-charge old and new Metabo NiCd- and NiMH-battery packs. With the „Plus” devices, Li-power battery-packs can also be re-charged

System flexibility

Battery packs that always fit. Regardless of the charger you use.

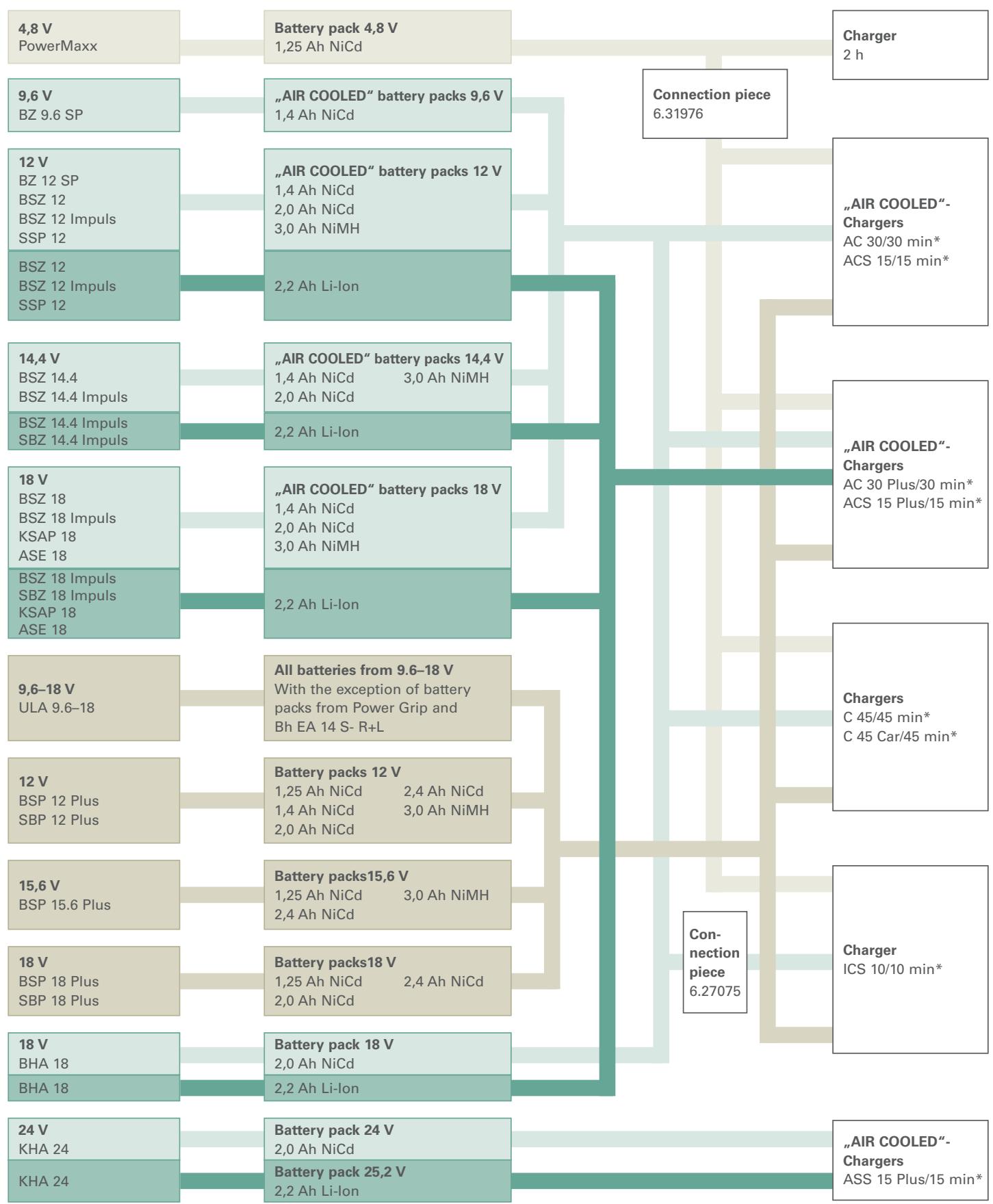

THE METABO RANGE OF BATTERIES WITH HIGH SYSTEM FLEXIBILITY.

For charging your battery packs, you can choose between the universal quick chargers C 45, the pulse computer quick charger ICS 10 and the air-cooled chargers AC 30, AC 30 Plus, ACS 15 and ACS 15 Plus. You can even charge battery packs of the first generation with our latest chargers and thus enjoy shorter charging times. When the charging process is finished, the charger automatically switches to trickle charging. The battery pack can therefore remain in the charger, is not overcharged and is always fully ready for use.

*charging time at 9,6 V/1,4 Ah

EQUIPMENT FEATURES

■ Lightweight for fatigue-free work
■ Variospeed (V) electronics
■ Motor with integrated air cooling
Quick stop
■ Spindle stop
■ Integrated working light
■ Sturdy die cast gear housing
■ Pistol grip for optimum power transmission in direction of drilling
■ Rubber-coated handle
■ With LC 60 charger, charging time approx. 30 mins (for 1.1 Ah)

... 40% more output with 40% less weight

output with mass weight PowerGrip Li NEW

EQUIPMENT FEATURES

■ Lightweight for fatigue-free work
■ Variospeed (V) electronics
■ 20-level adjustable torque, plus drilling level
■ Clockwise and anticlockwise rotation
Quick stop
■ Spindle stop
■ Spindle with hexagon recess for screwdriver bits
■ Pistol grip for optimum power transmission in direction of drilling
■ Sturdy die cast gear housing
■ Easy and quick change of battery pack
■ Charger (charge time approx. 2 hours)

Green power drill with multiple bullet holes and a labeled 'PowerMaxx' (no other text or symbols visible)

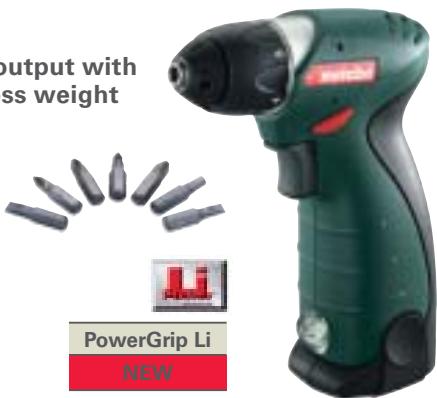

	7.2 Volt Cordless Screwdriver Power Grip Li
Comparative device characteristics
Type of battery pack	Li-Ion
Battery pack voltage	7,2 V ^1)
Capacity of battery pack	1,1 Ah
Maximum torque, soft	7 Nm
Maximum torque, hard	13 Nm
No load speed	0 - 250 /min
Adjustable torque	0,3 - 3,5 Nm
Weight (including battery pack)	0,6 kg
Standard equipment	Li-Ion battery pack(7.2 V/1.1 Ah), charger,charger LC 60, bit assortment(7-piece)
^1) at nominal voltage,maximum voltage 8 Volts
Type	PowerGrip Li
Order no.	6.00077.50

ACCESSORIES FOR THE CORDLESS SCREWDRIVER POWERGRIP LI

		Order no.
	Rechargeable battery pack 7.2 V, 2.2 Ah, Li-lon	6.25487
	NEW Rechargeable battery pack 7.2 V, 1.1 Ah, Li-lon (as spare)	6.25485

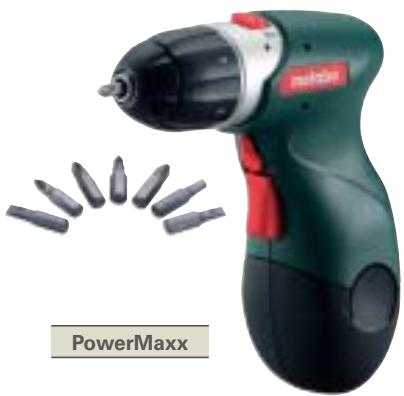

	4,8 Volt Cordless Drill / Screwdriver PowerMaxx
Comparative device characteristics
Type of battery pack	NiCd
Battery pack voltage	4,8 V
Capacity of battery pack	1,25 Ah
Maximum torque, soft	5 Nm
Maximum torque, hard	9 Nm
No-load speeds	0 - 200 / 0 - 600 /min
Weight (including battery pack)	0,66 kg
Standard equipment	NiCd battery pack (4.8 V/1.25 Ah), charger, carry case, bit assortment (7-piece)
Type Order no.	PowerMaxx6.00059.51

ACCESSORIES FOR THE CORDLESS DRILL / SCREWDRIVER POWERMAXX

		Order no.
	Battery charger 2 h, 4.8 V, EUMains voltage: 230 - 240 VMains frequency: 50/60 Hz	6.27270
	Battery pack 4.8 V, 1.25 Ah, NiCd	6.31858
-
	Accessories for PowerGrip/PowerMaxx rechargeable batteryFor using the 4.8 Volt battery pack in the current Metabo chargers	6.31976
-

COMMON FEATURES

■ Lightweight for fatigue-free work
■ Variospeed (V) electronics
■ 20-level adjustable torque, plus drilling level
■ Motor with integrated air cooling
■ Clockwise and anticlockwise rotation
Quick stop
■ Spindle stop
■ Spindle with hexagon recess for screwdriver bits

■ Pistol grip for optimum power transmission
in direction of drilling
■ Rubber-coated handle
■ 3-level planetary metal gears
■ Sturdy die cast gear housing
■ Powerful Li-Ion battery pack. No memory effect!
■ Charger (charge time approx. 1 hours)

... 40% more output with 40% less weight

PLUS X AWARD®
achieved for:
Design
Ease of Use
Ergonomics

product
design

award
2017年1月1日
2008

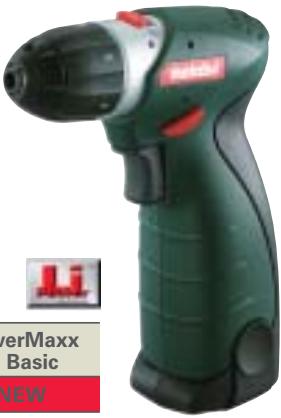

PowerMaxx

Li Basic
NEW

Green handheld electrical tool with black handle and red buttons (no visible text or symbols)

Green handheld electric drill putter with red buttons and black handle, no visible text or symbols on the device itself.

PowerMaxx
Li Basic
NEW

	7.2 VoltCordless Drill / ScrewdriverPowerMaxx Li Basic	7.2 VoltCordless Drill / ScrewdriverPowerMaxx Li Pro
Comparative device characteristics
Maximum torque, soft	9 Nm	9 Nm
Maximum torque, hard	16 Nm	16 Nm
Drilling capacity in
- Steel	3 mm	3 mm
- Wood	6,5 mm	6,5 mm
No-load speeds	0 - 250 / 0 - 750 /min	0 - 250 / 0 - 750 /min
Drilling spindle thread	1/2" - 20 UNF	1/2" - 20 UNF
Chuck capacity	-	0,8 - 6,5 mm
Weight (including battery pack)	0,73 kg	0,73 kg
Standard equipment	2 Li-lon battery packs (7.2 V 1)/2.2 Ah),charger LC 60, carry case,bit assortment (20-piece)	Quick-action keyless chuck Futuro Plus,screw-type angle attachment, 2 Li-lon batterypacks (7.2 V 1)/2.2 Ah), charger LC 60,carry case, bit assortment (20-piece)
1) at nominal voltage,maximum voltage 8 Volts
Type	PowerMaxx Li Basic	PowerMaxx Li Pro
Order no.	6.00068.50	6.00069.50

ACCESSORIES FOR THE CORDLESS DRILL / SCREWDRIVER POWERMAXX

		Order no.
	Quick-action keyless chuck Futuro Plus H1 M Clamping width: 0,8 - 6,5 mm	6.36623 ^1)
	Screw-type angle attachment for PowerMaxx For fixing screws more easily at locations difficult to reach Specially for PowerMaxx■ Magnetic bit holder with 1/4" (6.35mm) hexagonal shank■ Gears made of special steel■ Suitable for clockwise and anticlockwise rotation	6.30650 ^1)

1) Standard equipment with power Maxx Li Pro

ACCESSORIES FOR

THE CORDLESS DRILL /

SCREWDRIVER POWERMAXX

		Order no.
	Battery charger LC 60, 7.2 V, EU	6.27306

ACCESSORIES FOR THE CORDLESS SCREWDRIVER POWERMAXX LI BASIC / PRO

		Order no.
	Rechargeable battery pack7.2 V, 2.2 Ah, Li-Ion(as spare)	6.25487

COMMON FEATURES

■ Variospeed (V) electronics
■ 20-level adjustable torque, plus drilling level
■ Clockwise and anticlockwise rotation
Quick stop
■ Quick-action keyless chuck and spindle stop gear for convenient one-hand tool change: Metabo "Quick"
■ T-handle for optimum centre of gravity
■ Fatigue-free operation due to perfect ergonomy

■ 3-level planetary metal gears
■ Gentle gear change
■ Built-in collector fan to prevent overheating
■ Bit case for two bits
■ Maximum system flexibility through free combination of chargers and battery packs (within a voltage class)
■ Easy and quick change of battery pack

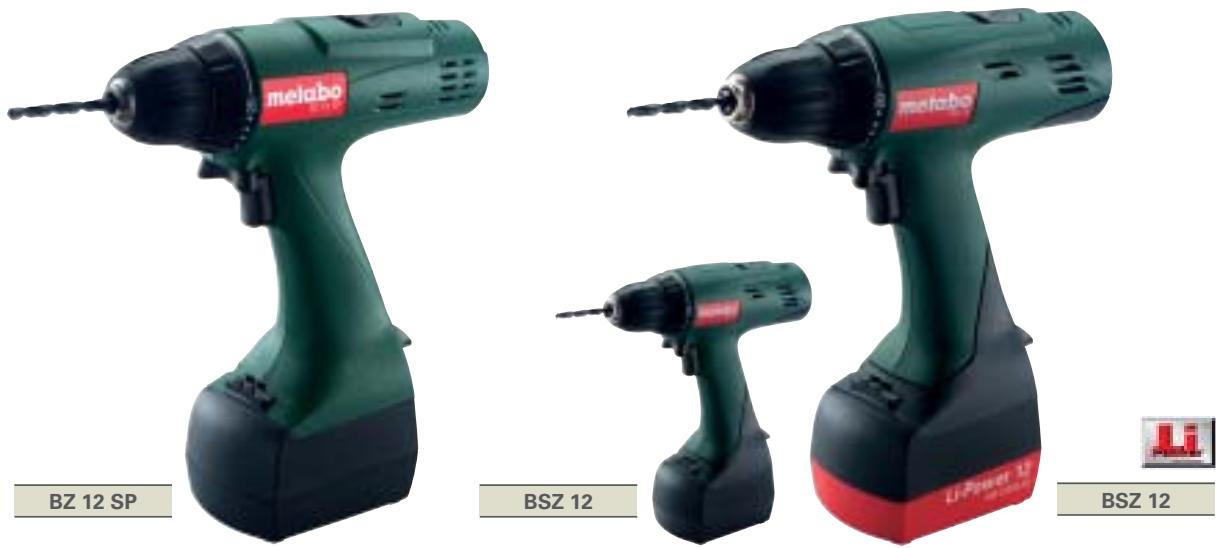

Three green Meleabo electric drill putters labeled BZ 12 SP, BSZ 12, and BSZ 12, shown without any text or symbols on the devices themselves.

	12 Volt Cordless Drill / Screwdriver BZ 12 SP	12 Volt Cordless Drill / Screwdriver BSZ 12	12 Volt Cordless Drill / Screwdriver BSZ 12
Special advantages
■ Rubber-coated handle		•	•
■ Li-lon battery packs for up to 40% more power with up to 40% less weight. No memory effect!			•
Comparative device characteristics
Maximum torque, soft	18 Nm	22 Nm	22 Nm
Maximum torque, hard	35 Nm	52 Nm	52 Nm
Drilling capacity in
- Steel	10 mm/5 mm	10 mm/5 mm	10 mm/5 mm
- Wood	20 mm/16 mm	25 mm/20 mm	25 mm/20 mm
No-load speeds	0 - 400 / 0 - 1.450 /min	0 - 400 / 0 - 1.350 /min	0 - 400 / 0 - 1.350 /min
Drilling spindle thread	1/2" - 20 UNF	1/2" - 20 UNF	1/2" - 20 UNF
Chuck capacity	1 - 10 mm	1,5 - 13 mm	1,5 - 13 mm
Weight (including battery pack)	1,7 kg	2 kg	1,7 kg
Standard equipment	2 battery packs, charger, carry case	2 battery packs, charger, carry case	2 battery packs, charger, carry case
^1) at maximum voltage, nominal voltage 10,8 Volts
TypeOrder no. Machine withBattery pack Charger		BZ 12 SP	BSZ 12	BSZ 12
-NiCd (12 V / 2 Ah) AC 30		6.02151.50	6.02153.51	-
-Li-lon ( 12V^1) /2,2 Ah) AC 30 Plus		-	-	6.02161.50

COMMON FEATURES

■ Selectable impulse mode
■ Variospeed (V) electronics
■ 20-level adjustable torque, plus drilling level
■ Clockwise and anticlockwise rotation
Quick stop
■ Quick-action keyless chuck and spindle stop gear for convenient one-hand tool change: Metabo "Quick"
■ T-handle for optimum centre of gravity
■ Fatigue-free operation due to perfect ergonomy

■ Rubber-coated handle
■ 3-level planetary metal gears
■ Gentle gear change
■ Built-in collector fan to prevent overheating
■ Bit case for two bits
■ Maximum system flexibility through free combination of chargers and battery packs (within a voltage class)
■ Easy and quick change of battery pack

... 40% more output with 40% less weight

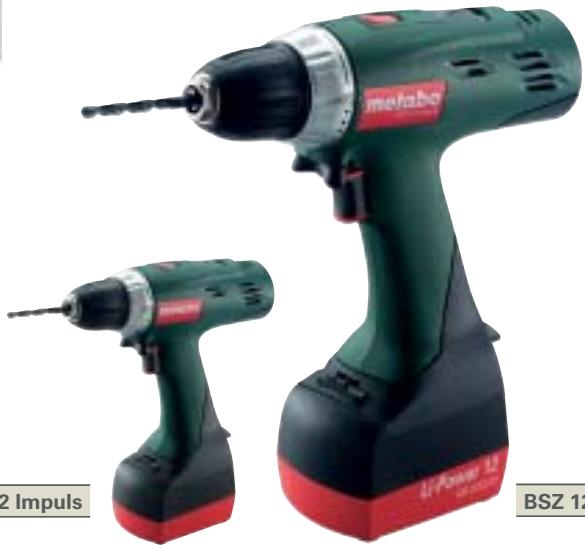

Two green Metabo electric drillers with red branding, displayed side by side (no text or symbols on the devices themselves)

Green Melebo electric drill with black handle and model number 12 visible (no text or symbols on the device itself)

BSZ 12 Impuls

BSZ 12 Impuls

		12 Volt Cordless Drill / Screwdriver BSZ 12 Impuls	12 Volt Cordless Drill / Screwdriver BSZ 12 Impuls	12 Volt Cordless Drill / Screwdriver BSP 12 Plus
Special advantages
■ Side handle				•
■ Die cast aluminium gear housing				•
■ Li-Ion battery packs for up to 40% more power with up to 40% less weight. No memory effect!			•
Comparative device characteristics
Maximum torque, soft		22 Nm	22 Nm	20 Nm
Maximum torque, hard		52 Nm	52 Nm	55 Nm
Drilling capacity in
- Steel		10 mm/5 mm	10 mm/5 mm	13 mm/8 mm
- Wood		25 mm/20 mm	25 mm/20 mm	40 mm/20 mm
No-load speeds		0 - 400 / 0 - 1.350 /min	0 - 400 / 0 - 1.350 /min	0 - 400 / 0 - 1.400 /min
Drilling spindle thread		1/2" - 20 UNF	1/2" - 20 UNF	1/2" - 20 UNF
Chuck capacity		1,5 - 13 mm	1,5 - 13 mm	1,5 - 13 mm
Weight (including battery pack)		2 kg	1,7 kg	2,5 kg
Standard equipment		2 battery packs, charger, carry case	2 battery packs, charger, carry case	Quick-action keyless chuck Futuro Plus, additional handle, 2 battery packs, charger, carry case
^1) at maximum voltage, nominal voltage 10,8 Volts

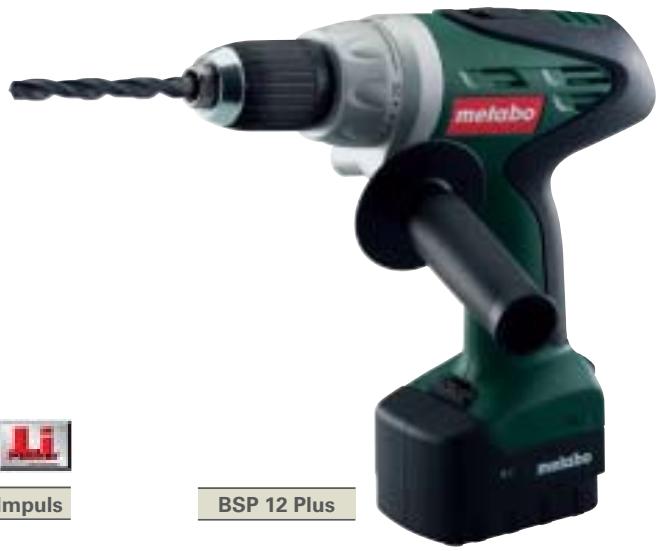

Type		BSZ 12 Impuls	BSZ 12 Impuls	BSP 12 Plus
Order no. Machine with
Battery pack	Charger
- NiCd (12 V / 2 Ah)	AC 30	6.02157.51	-	6.02419.50
- NiCd (12 V / 2 Ah)	ACS 15	-	-	6.02419.51
- NiMH (12 V / 3 Ah)	AC 30	6.02157.60	-	-
- Li-Ion ( 12 V ^1) / 2,2 Ah)	AC 30 Plus	-	6.02164.51	-
- Li-Ion ( 12 V ^1) / 2,2 Ah)	ACS 15 Plus	-	6.02164.50	-

COMMON FEATURES

■ Variospeed (V) electronics
■ 20-level adjustable torque, plus drilling level
■ Clockwise and anticlockwise rotation
Quick stop
■ Quick-action keyless chuck and spindle stop gear for convenient one-hand tool change: Metabo "Quick"
■ T-handle for optimum centre of gravity
■ Fatigue-free operation due to perfect ergonomy
■ Rubber-coated handle

■ 3-level planetary metal gears
■ Gentle gear change
■ Built-in collector fan to prevent overheating
■ Bit case for two bits
■ Maximum system flexibility through free combination of chargers and battery packs (within a voltage class)
■ Easy and quick change of battery pack

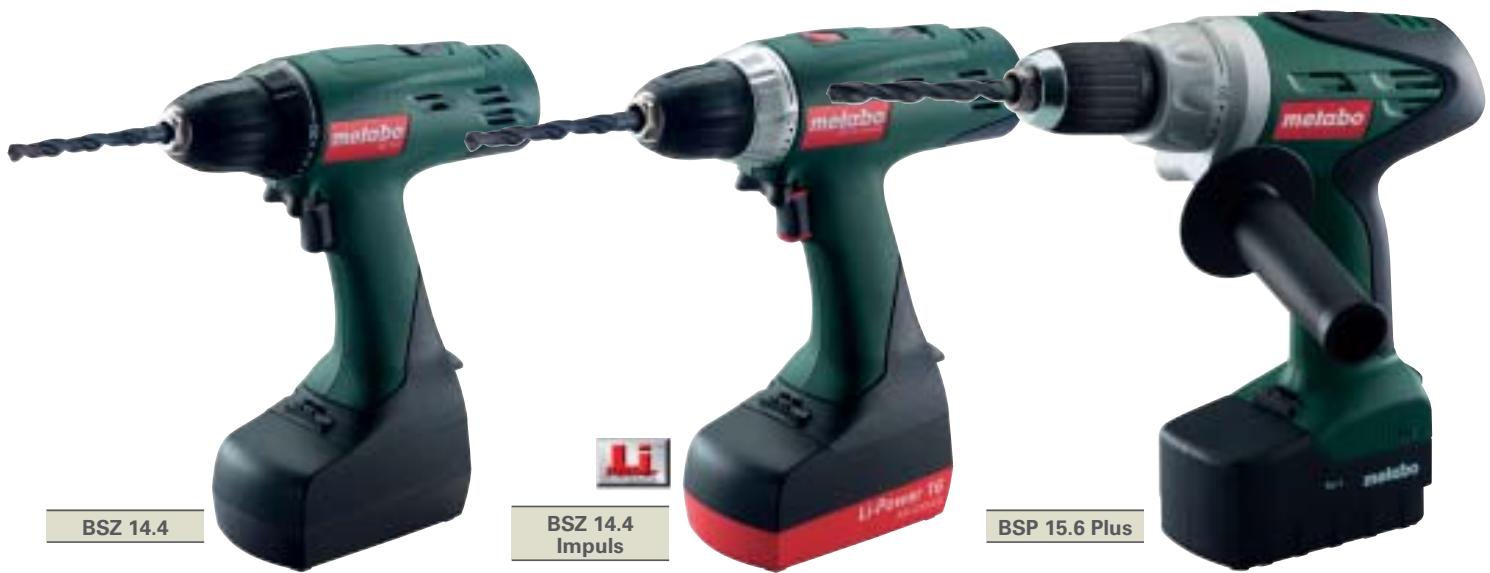

metabo BSZ 14.4 BSZ 14.4 Impuls metabo Li-Power 10 BSP 15.6 Plus metabo

	14,4 VoltCordless Drill / ScrewdriverBSZ 14.4	14.4 VoltCordless Drill / ScrewdriverBSZ 14.4 Impuls	15,6 VoltCordless Drill / ScrewdriverBSP 15.6 Plus
Special advantages
■ Selectable impulse mode		•	•
■ Side handle			•
■ Die cast aluminium gear housing			•
Comparative device characteristics
Maximum torque, soft	24 Nm	24 Nm	26 Nm
Pulse torque	-	28 Nm	28 Nm
Maximum torque, hard	55 Nm	55 Nm	60 Nm
Drilling capacity in
- Steel	12 mm/5 mm	12 mm/5 mm	13 mm/8 mm
- Wood	30 mm/22 mm	30 mm/22 mm	45 mm/25 mm
No-load speeds	0 - 400 / 0 - 1.400 /min	0 - 400 / 0 - 1.400 /min	0 - 400 / 0 - 1.400 /min
Drilling spindle thread	1/2" - 20 UNF	1/2" - 20 UNF	1/2" - 20 UNF
Chuck capacity	1,5 - 13 mm	1,5 - 13 mm	1,5 - 13 mm
Weight (including battery pack)	2,1 kg	2,1 kg	2,6 kg
Standard equipment
	2 battery packs,charger, carry case	2 battery packs,charger, carry case	Quick-action keyless chuckFuturo Plus, additional handle,2 battery packs, charger,carry case
2) at nominal voltage, maximum voltage 16 Volts
TypeOrder no. Machine withBattery pack Charger		BSZ 14.4	BSZ 14.4 Impuls	BSP 15.6 Plus
-NiCd (14,4 V / 2 Ah)	AC 30	6.02154.51	6.02158.53	-
-NiMH (14,4 V / 3 Ah)	AC 30	-	6.02158.60	-
-Li-Ion (14,4 V 2) / 2,2 Ah)	AC 30	-	6.02165.51	-
-Li-Ion (14,4 V 2) / 2,2 Ah)	ACS 15	-	6.02165.50	-
-NiCd (15,6 V / 1,25Ah)	AC 30	-	-	6.02420.50
-NiCd (15,6 V / 2,4 Ah)	AC 30	-	-	6.02420.51
-NiCd (15,6 V / 2,4 Ah)	ACS 15	-	-	6.02420.60

COMMON FEATURES

■ Variospeed (V) electronics
■ 20-level adjustable torque, plus drilling level
■ Clockwise and anticlockwise rotation
Quick stop
■ Quick-action keyless chuck and spindle stop gear for convenient one-hand tool change: Metabo "Quick"
■ T-handle for optimum centre of gravity
■ Fatigue-free operation due to perfect ergonomy
■ Rubber-coated handle

■ 3-level planetary metal gears
■ Gentle gear change
■ Built-in collector fan to prevent overheating
■ Bit case for two bits
■ Maximum system flexibility through free combination of chargers and battery packs (within a voltage class)
■ Easy and quick change of battery pack

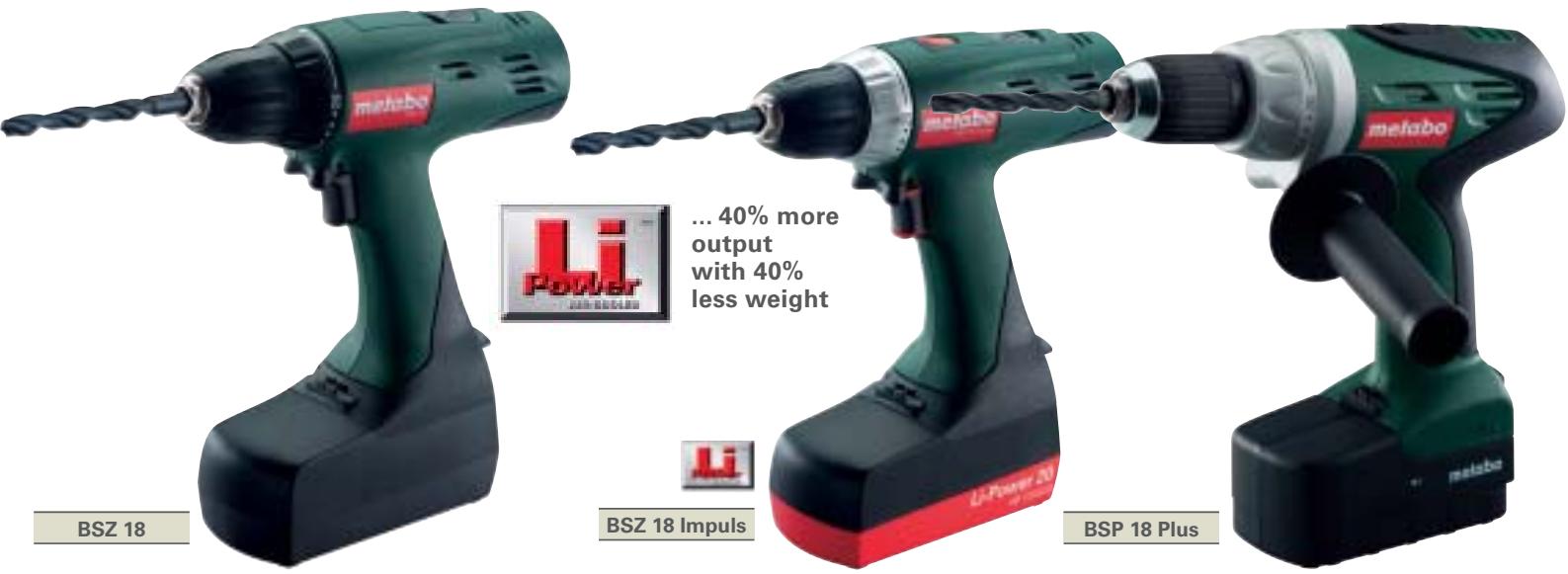

metabo ... 40% more output with 40% less weight Li Power BSZ 18 BSZ 18 Impuls Li Power Li-Power 21 BSP 18 Plus metabo

	18 Volt Cordless Drill / Screwdriver BSZ 18	18 Volt Cordless Drill / Screwdriver BSZ 18 Impuls	18 Volt Cordless Drill / Screwdriver BSP 18 Plus
Special advantages
■ Selectable impulse mode		•	•
■ Side handle			•
■ Die cast aluminium gear housing			•
■ Li-Ion battery packs for up to 40% more power with up to 40% less weight. No memory effect!		•
Comparative device characteristics
Maximum torque, soft	28 Nm	28 Nm	30 Nm
Pulse torque	-	32 Nm	32 Nm
Maximum torque, hard	62 Nm	62 Nm	65 Nm
Drilling capacity in
- Steel	12 mm/6 mm	12 mm/6 mm	13 mm/8 mm
- Wood	30 mm/22 mm	30 mm/22 mm	50 mm/25 mm
No-load speeds	0 - 450 / 0 - 1.450 /min	0 - 450 / 0 - 1.450 /min	0 - 400 / 0 - 1.400 /min
Drilling spindle thread	1/2" - 20 UNF	1/2" - 20 UNF	1/2" - 20 UNF
Chuck capacity	1,5 - 13 mm	1,5 - 13 mm	1,5 - 13 mm
Weight (including battery pack)	2,2 kg	1,9 kg	2,8 kg
Standard equipment
	2 battery packs, charger, carry case	2 battery packs, charger, carry case	Quick-action keyless chuck Futuro Plus, additional handle, 2 battery packs, charger, carry case
^3) at nominal voltage, maximum voltage 20 Volts
TypeOrder no. Machine withBattery pack Charger		BSZ 18	BSZ 18 Impuls	BSP 18 Plus
- NiCd (18 V / 1,25 Ah) AC 30		-	-	6.02421.50
- NiCd (18 V / 2 Ah) AC 30		6.02155.60	6.02159.53	-
- NiCd (18 V / 2,4 Ah) AC 30		-	-	6.02421.60
- NiCd (18 V / 2,4 Ah) ACS 15		-	-	6.02421.51
- NiMH (18 V / 3 Ah) AC 30		-	6.02159.61	-
- Li-Ion (18 V ^3) / 2,2 Ah) AC 30		-	6.02166.51	-
- Li-Ion (18 V ^3) / 2,2 Ah) ACS 15		-	6.02166.50	-

EQUIPMENT FEATURES

■ Compact cordless impact screwdriver for tough applications
■ High torque machine with low kick-back torque
■ T-handle for optimum centre of gravity
■ Rubber-coated handle
■ Variospeed (V) electronics
■ Ergonomic clockw./anticl. switch for comfortable, hassle free operation
■ Die cast aluminium gear housing
Bit case
■ Maximum system flexibility through free combination of chargers and battery packs (within a voltage class)
■ Easy and quick change of battery pack
■ Li-Ion battery packs for up to 40% more power with up to 40% less weight. No memory effect!

... 40% more output with 40% less weight

Green and black Li-Power power tool with red base, no visible text or symbols on the device body

SSP 12

	12 Volt Cordless Impact Screwdriver SSP 12
Comparative device characteristics
Type of battery pack	Li-Ion
Battery voltage	12 V 1)
Capacity of battery pack	2,2 Ah
No load speed	0 - 2.500 /min
Maximum impact rate	3.000 /min
Maximum tightening torque	100 Nm
Bit retainer	Hexagon recess 1/4" (6.35 mm)
Weight (including battery pack)	1,6 kg
Standard equipment	2 Li-Ion battery packs (12 V/2.2 Ah), "AIR COOLED" quick charger AC 30 Plus, carry case
	1) at maximum voltage, nominal voltage 10,8 Volts
Type	SSP 12
Order no.	6.02167

ACCESSORIES FOR CORDLESS SCREWDRIVERS

Screwdriver bit assortments1/4" (6.35 mm) hexagonal shank
		Order no.
NEW	Bit box with stainless steel bits(10-piece)Small plastic caseConsisting of a "rapid in/easy out" bit holder and the bits mostly commonly used in woodwork.Sizes: PH2, PZ2x2, PZ1, TX10, TX15, TX20, TX25, TX30Bits and holders are made from stainless steel.	6.25388
NEW	Bit box with stainless steel bits(10-piece)Small plastic caseConsisting of a "rapid in/easy out" bit holder and the bits most commonly used in metal-working.Sizes: PH1x2, PH2x2, PH3,Allen 2.5,3.0,4.0,5.0.Bits and holders are made from stainless steel.	6.25389
	Bit box torsion (10-piece)Small plastic caseConsisting of:Phillips bits, sizes 1, 2, 3 (1 each size)Pozidriv bits, sizes 1, 2, 3 (1 each size)each with one bit for slotted-head screws 0.8 x 5.5 mm, 1.0 x 5.5 mm and 1.2 x 6.5 mmBit holder "Rapid in/easy out"	6.25390
	Bit box Torx + Pozidriv (10-piece)Small plastic caseConsisting of:Pozidriv bits sizes 1, 2,3 (torsion bits, 1 each size)Torx bits sizes TX 10, 15, 20,25, 30 and 40 (1 each)Bit holder "Rapid in/easy out"	6.25391
NEW	Bit box torsion Universal (10-piece)Small plastic caseConsisting of:Phillips bits, sizes 1, 2,3 (1 each size)Pozidriv bits, sizes 1, 2,3 (1 each size)bits for slotted-head screws 0.8x5.5 mm, 1.0x5.5 mm and 1.2x6.5 mm (1 each)Bit holder "Rapid in/easy out"	6.25396
	Bit box diamond Pozidriv (7-piece)Small plastic caseConsisting of:Pozidriv bits 2 x size 1, 3 x size 2,1 x size 3 (diamond)Bit holder "Rapid in/easy out"	6.25393
NEW	Bit box torsion Torx (7-piece)Small plastic caseConsisting of:Torx bits 8, 9, 10, 15, 20, 25, 27,30 and 40 (1 each)Bit holder "Rapid in/easy out"	6.25394
NEW	Bit box diamond Universal (7-piece)Small plastic caseConsisting of:Phillips bits, sizes 1, 2, 3 (1 each size)Pozidriv bits, sizes 1, 2, 3 (1 each size)bits for slotted-head screws 0.8x5.5 mm, 1.0x5.5 mm and 1.2x6.5 mm (1 each)Bit holder "Rapid in/easy out"	6.25397

Further accessories for the cordless screwdrivers can be found on pages 147–149.

Universal fast-action charger

	Order no.
Universal quick charger AC 30For charging all old (with 6.27075 adapter) and new Metabo NiCd and NiMH battery packs of 4.8 V -18 VMonitored charging with microcontrollerBattery diagnosisCharge time approx. 30 minutes at 1.4 Ah"AIR COOLED" functionFor connecting to 230/240 V, 50-60 Hz (EU)to 230/240 V, 50-60 Hz (GB)to 230/240 V, 50-60 Hz (AUS/NZ)to 110/120 V, 50-60 Hz (USA/CDN)	6.273006.273036.273056.27304
Universal quick charger AC 30 PlusFor charging all old (with adapter 6.27075) and new Metabo NiCd and NiMH battery packs of 4.8 V -18 V, as well as the new Li-Ion battery packs of 12 V-18 VMonitored charging with microcontrollerBattery diagnosisCharge time approx. 30 minutes at 1.4 Ah"AIR COOLED" functionFor connecting to 230/240V, 50-60 Hz (EU)to 230/240V, 50-60 Hz (GB)to 230/240V, 50-60 Hz (AUS/NZ)to 110/120V, 50-60 Hz (USA/CDN)	6.272756.272766.272786.27277

Fast-action charger

	Order no.
Super quick charger ACS 15■ For charging all old (with 6.27075 adapter) and new Metabo NiCd and NiMH battery packs of 4.8 V -18 V■ Monitored charging with microcontroller■ Battery diagnosis■ Charge time approx. 15 minutes at 1.4 Ah■ "AIR COOLED" function■ For connecting to 230/240 V, 50-60 Hz (EU) to 230/240 V, 50-60 Hz (GB) to 230/240 V, 50-60 Hz (AUS/NZ) to 110/120 V, 50-60 Hz (USA/CDN)	6.270896.270906.270926.27091
Super quick charger ACS 15 Plus■ For charging all old (with adapter 6.27075) and new Metabo NiCd and NiMH battery packs of 4.8 V -18 V, as well as the new Li-Ion battery packs of 12 V-18 V■ Monitored charging with microcontroller■ Battery diagnosis■ Charge time approx. 15 minutes at 1.4 Ah■ "AIR COOLED" function■ "Refresh" function for maintenance of batteries for NiCd and NiMH battery packs■ For connecting to 230/240 V, 50-60 Hz (EU) to 230/240 V, 50-60 Hz (GB) to 230/240 V, 50-60 Hz (AUS/NZ) to 110/120 V, 50-60 Hz (USA/CDN)	6.270606.270616.270636.27062
Super quick charger ASS 15 Plus■ For charging Metabo NiCd battery packs of 24 V, as well as Li-Ion battery packs of 25.2 V.■ The battery packs must be suitable for being pushed on to the charger. (slide in design)■ Monitored charging with microcontroller■ Battery diagnosis■ Charge time approx. 15 minutes at 1.4 Ah■ "AIR COOLED" function■ "Refresh" function for maintenance of batteries for NiCd battery packs■ For connecting to 230/240 V, 50-60 Hz (EU) to 230/240 V, 50-60 Hz (GB) to 230/240 V, 50-60 Hz (AUS/NZ) to 110/120 V, 50-60 Hz (USA/CDN)	6.22836.272846.272866.27285

YOU WON'T FIND A BETTER PERCENTAGE ANYWHERE!

Greater efficiency with more power at considerably less weight: That's Metabo Li-Power! A Metabo Li-power lithium battery supplies around 96% efficiency, 16% more than NiCd or NiMH, as a result it can provide approximately 40% more energy the NiCd & NiMH batteries. At the same time it is around 40% lighter. A 18 V 2.2 Ah Li-ion pack weighs in at approx 700g where as a normal NiMH battery pack comes in at just over 1kg! This is not all Li-Power has to offer. Thanks to its lower self discharge rate, Li-ion packs can be used immediately at full power even after long period of non use. When you charge the battery, neither the memory nor the lazy battery effect arises. And unlike NiMH batteries, Li-ion batteries work from -20 °C to 50 °C without any problems (just like NiCd).

Li Power AIR-COOLED Circuit boards of the highest quality and with gold-plated surface. Electronics An electronic overcharging and discharging protection mechanism ensures opti- mum charging and the maximisation of the service life of the battery pack. Patented multifunction display All information on one display: capacity querying, temperature monitoring, overload warning and automatic display when a low capacity level is reached. Corepack Power tool lithium cells of the highest quality for maximum performance. Cell connector Their special design guarantees optimum conductivity and an extremely robust construction. Control and monitoring of every single cell for protection against overcharging, undercharging, total discharge and overstraining.

METABO AIR COOLED CHARGING TECHNOLOGY: THE QUICKEST CHARGERS.

"AIR COOLED" is a technology that only Metabo has to offer. In combination with Li Power, it forms what is possibly the most effective battery system on the market.

The cooler the battery is while charging the faster it can be used again. Every battery heats up when used, which impedes an immediate, effective recharge. The new, patented AIR COOLED charging technology takes this problem out of the equation, since the battery is cooled down before and during the charging process. The charging process thus becomes around 30% quicker, the batteries last longer and

you save yourself the hassle of hanging around waiting for batteries to charge. Another outstanding new feature is the refresh function (only with ACS 15 PLUS). This feature brings the performance impairing unbalanced charge levels of the cells back into line. This 'cell balancing' process should be activated at the end of the charging process once every month on NiCd and NiMH batteries only.

NiCd battery packs

	Battery pack voltage V	Capacity of battery pack Ah	Order no.
	NiCd battery packs series 1
	7,2	1,4	6.30069
	9,6	1,4	6.30070
	9,6	1,7	6.30072
	12	1,7	6.30073
	12	2	6.31723
	NiCd battery packs series 2
	9,6	1,7	6.30065
	12	2	6.31724
	14,4	2	6.31725
	NiCd battery packs series 3
	9,6	1,4	6.31746
	9,6	2	6.31728
	12	1,25	6.31737
	12	1,4	6.31747
	12	2	6.31729
	12	2,4	6.31748
	15,6	1,25	6.31738
	15,6	2,4	6.31749
	18	1,25	6.31739
	18	2	6.31857
	18	2,4	6.31740
	"AIR COOLED" NiCd battery packs
	9,6	1,4	6.25470
	9,6	2	6.25471
	12	1,4	6.25473
	12	2	6.25474
	14,4	1,4	6.25475
	14,4	2	6.25476
	18	1,4	6.25477
	18	2	6.25478
	"AIR COOLED" NiCd battery packs
	24	2	6.25488

NiMH battery packs

	Battery pack voltage V	Capacity of battery pack Ah	Order no.
	NiMH battery packs series 1
	12	3	6.31776
	15,6	3	6.31777
	"AIR COOLED" NiMH battery packs
	12	3	6.25479
	14,4	3	6.25480
	18	3	6.25481

"AIR COOLED" Li-Ion battery packs

	Battery pack voltage 1)V	Capacity of battery pack Ah	Order no.
	"AIR COOLED" Li-Ion battery packs
	10.8 / 12	2,2	6.25486
	14.4 / 16	2,2	6.25482
	18 / 20	2,2	6.25484
	"AIR COOLED" Li-Ion battery packs
	25,2 / 28	2,2	6.25489

^1) Nominal voltage / max. voltage

NiCd battery pack for Bh EA 14 S - R+L

	Battery pack voltage V	Capacity of battery pack Ah	Order no.
	14,4	4	6.31727

Adapter for older Metabo chargers

		Order no.
	For inserting older battery packs (starting 1981, models 1 and 2) into the new "AIR COOLED" chargers. Also for inserting "AIR COOLED" batteries into older chargers	6.27075

Carry case

	Order no.
Carry case SBT/BSP/SBPFor BSP 12 Plus, BSP 15.6 Plus, BSP 18 Plus and chargers ACS 15, AC 30, ICS 10, C 45For SBP 12 Plus, SBP 18 Plus and chargers ACS 15, AC 30, ICS 10, C 45	6.25441
