ADVANTIX 3800IX - Appareil photo argentique KODAK - Notice d'utilisation et mode d'emploi gratuit

Intitulé	Description
Type de produit	Appareil photo argentique compact
Caractéristiques techniques principales	Capteur 35 mm, zoom 38-80 mm, mode automatique
Alimentation électrique	Batterie 2CR5
Dimensions approximatives	Dimensions : 135 x 70 x 50 mm
Poids	Environ 300 g (sans batterie)
Compatibilités	Films KODAK ADVANTIX uniquement
Type de batterie	Batterie lithium 2CR5
Tension	6 V
Puissance	Consommation faible en mode veille
Fonctions principales	Zoom automatique, flash intégré, mise au point automatique
Entretien et nettoyage	Nettoyer l'objectif avec un chiffon doux, éviter l'humidité
Pièces détachées et réparabilité	Disponibilité limitée des pièces, réparation recommandée par un professionnel
Sécurité	Éviter l'exposition à des températures extrêmes, ne pas démonter l'appareil
Informations générales	Appareil idéal pour les photographes amateurs souhaitant un usage simple et rapide

FOIRE AUX QUESTIONS - ADVANTIX 3800IX KODAK

Comment charger le film dans le KODAK ADVANTIX 3800IX ?

Ouvrez le couvercle du boîtier, insérez le film dans le compartiment prévu à cet effet en vous assurant que le côté sensible est orienté vers l'intérieur, puis tirez sur le film jusqu'à ce qu'il s'enclenche dans le mécanisme.

Pourquoi ma photo est-elle floue ?

Une photo floue peut être due à un mouvement de l'appareil pendant la prise de vue. Assurez-vous de tenir l'appareil stable et d'utiliser un trépied si nécessaire. Vérifiez également que l'objectif est propre.

Comment changer la batterie du KODAK ADVANTIX 3800IX ?

Localisez le compartiment de la batterie à l'arrière de l'appareil. Retirez le couvercle et remplacez l'ancienne batterie par une nouvelle en vous assurant de respecter la polarité.

Que faire si l'appareil ne s'allume pas ?

Vérifiez que la batterie est correctement installée et qu'elle est chargée. Si l'appareil ne s'allume toujours pas, essayez avec une batterie neuve.

Comment régler la date et l'heure sur mon KODAK ADVANTIX 3800IX ?

Accédez au menu des réglages, sélectionnez l'option 'Date et Heure', puis utilisez les boutons pour ajuster les valeurs. Confirmez vos modifications avant de quitter le menu.

Mon appareil indique une erreur de film, que faire ?

Assurez-vous que le film est correctement installé et qu'il n'est pas coincé. Si le problème persiste, ouvrez le compartiment du film et réinsérez le film.

Comment transférer mes photos vers un ordinateur ?

Utilisez un câble USB pour connecter l'appareil à votre ordinateur. Une fois connecté, allumez l'appareil et suivez les instructions de votre système d'exploitation pour importer les photos.

Pourquoi mes photos sont-elles trop sombres ?

Des photos sombres peuvent être le résultat d'un mauvais éclairage. Essayez de photographier dans des conditions de lumière plus favorables ou utilisez le flash si nécessaire.

Comment nettoyer l'objectif de mon KODAK ADVANTIX 3800IX ?

Utilisez un chiffon en microfibre propre et sec pour essuyer délicatement l'objectif. Évitez d'utiliser des produits chimiques qui pourraient endommager la lentille.

Est-ce que le KODAK ADVANTIX 3800IX est compatible avec tous les types de films ?

Le KODAK ADVANTIX 3800IX est conçu pour fonctionner uniquement avec des films KODAK ADVANTIX. Assurez-vous d'utiliser le bon type de film pour éviter des problèmes de fonctionnement.

Comment savoir si mon film est terminé ?

L'appareil indiquera généralement un message ou un symbole lorsque le film est terminé. Vous pouvez également vérifier le compteur de vues sur l'appareil.

MODE D'EMPLOI ADVANTIX 3800IX KODAK

Kodak

ADVANTIX

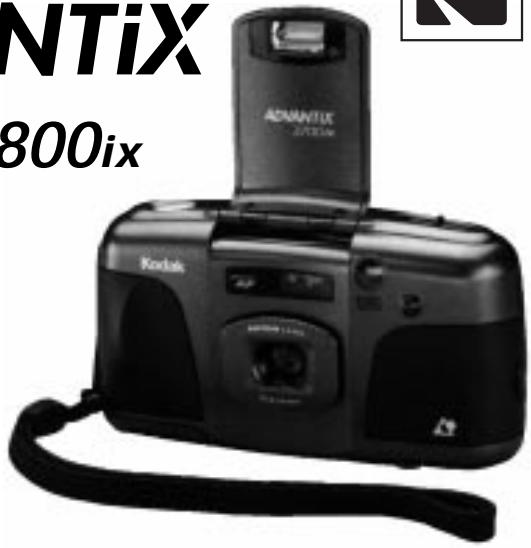

3700ix/3800ix Camera

ADVANCED PHOTO SYSTEM

Look for this logo to be certain that the film you buy is made for this camera.

Look for this logo to select a certified photofinisher for developing your film and to assure that you get all the features of the Advanced Photo System.

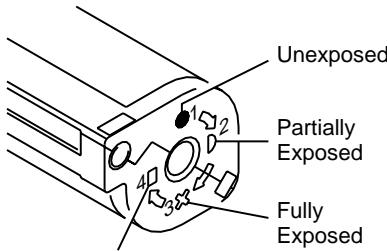

Film Status Indicator (FSI)

A highlighted indicator advances from one symbol to another to identify the status of the film inside the cassette.

Processed Negatives

LCD
(a)

(b)

(c)

LCD

(d)

Need help with your camera or more information about the new Advanced Photo System? Call Kodak (United States only) toll free from 8:00 a.m. to 8:00 p.m. (Eastern time) Monday through Friday at 1 [phone]. The toll free number (in Canada only) from 8:30 a.m. to 5:00 p.m. (Eastern time) Monday through Friday is 1 [phone]; please ask for ext. 36100.

For warranty purposes, please keep your sales receipt as proof of the date of purchase.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: Your model camera has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits provide reasonable protection against interference in residential use. The camera generates, uses and can radiate radio frequency energy and, if not used in accordance with the instructions, may cause interference to radio communications. There is no guarantee that interference will not occur. If this camera does cause interference to radio or television reception, which can be determined by turning the camera off and on, you may reduce the interference by the following:

Reorient or relocate the receiving antenna.
— Increase the separation between the camera and the receiver.
— Consult the dealer or an experienced radio/television technician for help.

Changes or modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

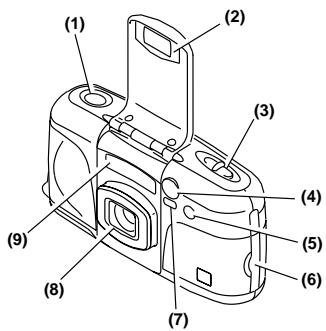

CAMERA IDENTIFICATION

See inside cover flaps of manual for camera diagrams.

(1) Shutter Button
(2) Lens Cover/Flash
(3) Print-Size Selector
(4) Self-Timer/Focus-Ranging Assist
(5) Meter-Cell Window
(6) Battery Door
(7) Viewfinder
(8) Lens
(9) Focus-Ranging Sensors

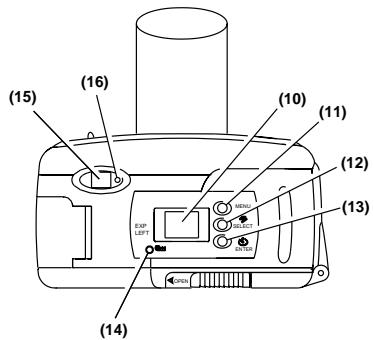

(10) LCD Panel
(11) Menu Button
(12) Select/Flash Button
(13) Enter/Self-Timer Button
(14) Rewind Button
(15) Viewfinder Eyepiece

(16) Focus/Flash Lamp
(17) Tripod Socket
(18) Film-Door Latch
(19) Film Door
(20) Strap Post

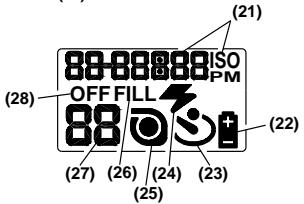

(21) Date & Time/ISO Film-Speed Display
(22) Battery Symbol
(23) Self-Timer Indicator
(24) Auto-Flash Indicator
(25) Film-Presence Indicator
(26) Fill-Flash Indicator
(27) Frame Counter/No Film in Camera Indicator
(28) Off-Flash Indicator

BATTERY

This camera uses a 3-volt lithium KODAK KCR 2 (or equivalent) Battery that supplies power for all camera operations. This camera automatically turns off after 1 minute.

Battery Indicator

When the battery symbol (22) "blinks," you will need to replace the battery soon. When the battery symbol is solid (non-blinking) and the shutter button does not operate, replace the battery immediately.

Battery Tips:

• Keep a spare battery with you at all times. Lithium batteries perform consistently until they suddenly die.
• Read and follow all warnings and instructions supplied by the battery manufacturer.
• Keep battery away from children.
• Do not attempt to disassemble, recharge or short circuit the battery, or subject it to high temperature or fire.
• Store battery in its original packaging prior to use.

LOADING THE FILM

1. Slide the film-door latch (18) and insert the film cassette completely into the film chamber ③. Do not force the film cassette into the film chamber.
2. Close the film door (19) to start the auto-film advance. The LCD panel (10) will show the total number of exposures (b). After you close the safety-interlock film door, you cannot open the film door until the film is completely rewound into the film cassette.

SETTING THE DATE AND TIME

With this camera, you can record the date and time of each exposure directly onto the film. The information appears on the back of your prints when processed. It features a clock and automatic calendar that includes leap years.

1. Press the menu button (11) to choose date. You must press this button to activate the date and time function.
2. Press the hold the select/flash button (12) to view and change the "blinking" month (d).
3. Press the enter/self-timer button (13) to store the selected month and move to the next blinking date option (follow steps 2 and 3 to complete your selection.)
4. Repeat steps 1-3 to choose and set time.

NOTE: If you don't press the select/flash button within a minute, the camera turns off and returns to the picture-taking mode.

Choosing Optional Date and Time Formats (mm, dd, yy / dd, mm, yy, / yy, mm, dd and 12/24 hour)

1. Press the menu button (11) to choose date. You must press this button to activate the date and time function.
2. Press and hold for 3 seconds the enter/self-timer button (13) until desired date format appears. (See SETTING THE DATE AND TIME, steps 2-3 above to set date.)
3. Press the menu button (11) to choose time.
4. Press and hold the enter/self-timer button (13) until desired time format appears. (See SETTING THE DATE AND TIME, steps 2-3 above to set time.)

NOTE: If you don't press the select/flash button within a minute, the camera turns off and returns to the picture-taking mode.

TAKING PICTURES

You can take Classic (C), HDTV (H), and Panoramic (P) pictures on the same film cassette (see following table for Typical Print Sizes). Your photo-processing cost will be based on the format size(s) that you use to expose the film.

1. Lift the lens cover/flash (2), 4 completely up.
2. Move the print-size selector (3), 5 to desired format.
3. Look through the viewfinder eyepiece (15) and place the auto-focus circle (f) on the subject. For a sharp picture, stand at least 2 ft (0.60m) from your subject.
4. Press the shutter button (1), ⑥ to take a picture.

Typical Print Sizes

C	H	P
Classic	Group & Wide (HDTV)	Panoramic
31/2 x 5" or 4 x 6"	31/2 x 6" or 4 x 7"	31/2 x 10" to 4 x 11 1/2"
(88.9 x 127 mm or 102 x 152 mm)	(88.9 x 152 mm or 102 x 178 mm)	(88.9 x 254 mm to 102 x 292.7 mm)

Using the Focus Lock

This camera automatically focuses on whatever is within the auto-focus circle of the viewfinder eyepiece (15). To get a sharp photograph, make sure the auto-focus circle is on your main subject. If you want to take a picture with the subject positioned outside of the auto-focus circle, use the focus lock as follows:

1. Place the auto-focus circle (f) on the subject that you want focused in the picture.
2. Partially depress and hold the shutter button (1) until the focus/flash lamp (16) glows green to lock in the focus position.
3. While still depressing the shutter button, move the camera until your subject is where you want it within the viewfinder.
4. Press the shutter button completely down to take the picture.

Special Focusing Situations

Some subjects or scenes, such as those described below, are difficult for the autofocus system to detect correctly; even though the focus lamp may glow green, the focus/exposure may not be correct. To insure proper focus in the following situations, first lock the focus on another object at the same distance from you as your main subject, then recompose your picture and press the shutter button.

• Subject is near a very bright area or object such as a table lamp(s).
• A very bright- or low-contrast area fills the center of the auto-focus circle of the viewfinder.

Using the Self-Timer

1. Use a tripod (tripod socket [17]) or place the camera on another firm support.
2. Lift the lens cover/flash (2), 4 completely up.
3. Press the enter/self-timer button (13) to the self-timer (23) position.
4. Press the shutter button (1). The self-timer lamp (4) will "blink" 10 seconds before the picture is taken.

NOTE: If you want to stop the self-timer operation before the picture is taken, press the self-timer button again or close the lens cover/flash.

Tips for Better Pictures

• Hold the camera steady when taking pictures
• Keep your pictures simple. Move close enough to your subject so it fills the viewfinder but not closer than 2 ft (0.60 m).
• Take pictures at the subject's level. Kneel down to take pictures of children and pets.
• Hold your camera vertically to capture tall, narrow subjects, such as a waterfall, skyscraper, or single person.
• Add interest to your picture by framing it with a tree branch, window, or even the rails of a fence.
• Keep the sun behind you for best subject illumination.

TAKING FLASH PICTURES

In dim light, such as indoors or outdoors in heavy shade or on dark overcast days, you need flash. Your camera features automatic flash that fires when you need it. It also provides automatic daylight fill flash under certain bright-light conditions where shadows may exist. If the focus/flash lamp (16) "blinks" red, the flash is not fully charged. Wait for the light to turn green before you take a picture.

Focus/Flash Lamp Operation

Lamp Indicator	Situation
Glows green	Auto-focus operation complete and flash fully charged. (Okay to take a picture.)
"Blinks" red	Warning signal for flash needed or not ready, flash out of range, or unable to focus. (Okay to take a picture but picture may be under-exposed or out of focus.)
Glows red	Shutter button locks when subject is closer than 2 ft (0.60 m) from camera. (You cannot take a picture until subject is beyond 2 ft [0.60 m]).

Flash-to-Subject Distance

ISO Film Speed	Flash-to-Subject Distance
25	2 to 5.6 ft (0.60 to 1.7 m)
50	2 to 8 ft (0.60 to 2.0 m)
100	2 to 11.3 ft (0.60 to 3.5 m)
200	2 to 16 ft (0.60 to 5 m)
400	2 to 22.6 ft (0.60 to 6.8 m)
800	2 to 32 ft (0.60 to 10 m)
1600	2 to 45 ft (0.60 to 14 m)

Flash Tips

• Turn on room lights and have the subject face the lights to minimize red eyes in pictures.
• Stand at an angle to shiny surfaces like windows or mirrors to avoid flash reflection and bright spots in your pictures.
• Keep your fingers and other objects away from the picture-taking lens, flash, and meter-cell window to avoid dark or light pictures.

Using Fill Flash and Off Flash

Fill Flash — Bright light indoors or outdoors from backlit subjects can create dark shadows (especially on faces) in high-contrast scenes. Use fill flash to lighten the shadows.

Off Flash — When you do not want to use the flash, especially indoors where flash is prohibited, such as in theaters and museums, or in dim lighting situations, use off flash. Use a tripod (tripod socket [17]) or place the camera on another firm support.

1. Lift the lens cover/flash (2), 4 completely up.
2. Press the select/flash button (12) to select fill flash (26) or off flash (28).
3. Press the shutter button (1) to take a picture.
4. Press the select/flash button to return to the auto-flash/start position (24).

UNLOADING THE FILM

After you take the last picture on the film cassette, the film automatically starts to rewind. When the film is fully rewound, the LCD panel (10) displays "0" and an empty film cassette (c). When you remove the cassette from the camera, the LCD panel displays "E," (a).

Using the Rewind Button

If you don't want to take pictures on the entire film cassette, you can automatically rewind the film by pressing the rewind button (14). Once you've used this feature, you cannot reload the same film cassette into the camera.

TROUBLESHOOTING

What happened	Probable cause	Solution
Camera will not operate	There are no more pictures remaining	Remove the film
	Battery weak, dead, missing, or improperly loaded	Replace or reload the battery
	Subject closer than 2 ft (0.60 m)	Stand beyond 2 ft (0.60 m) from your subject
Focus/flash lamp glows red and shutter button locks	Subject closer than 2 ft (0.60 m) from camera	Move beyond 2 ft (0.60 m) until red light disappears
Film does not advance or rewind	Battery weak, dead, missing, or improperly inserted	Replace or reload the battery
LCD panel is blank (Flash may fire inadvertently)	(See Probable cause above)	(See Solution above)
Film door does not close	Loaded exposed, partially exposed, or processed film in the camera	Load only unexposed film into the camera
All LCD indicators "blink"	Camera mechanism problem	Press shutter button or close and open the lens cover/flash, or replace or reload the battery

SPECIFICATIONS

Film Type: KODAK ADVANTIX Film for color prints

Lens: 24mm f/3.6 KODAK EKTON Lens

Focus System: 200 plus zones, passive auto focus with focus lock

Viewfinder: Real image with C, H, and P format display; auto-focus indicator

Film-Speed Range: DXIX (ISO) 25, 50, 100, 200, 400, 800 &1600 for color print films

Flash Unit: KODAK SENSALITE™ Flash

Focus Range: Daylight: 2 ft (0.60 m) to infinity

Apertures: f/3.6, f/7.2, f/14.4

Shutter: Programmed electronic; speeds from 1/2 to 1/250 sec.

Power Source: one 3-volt lithium KODAK KCR 2 (or equivalent) Battery; auto power off after 1 minute

Dimensions: Approx. 1.5 × 2.5 × 4.7 in (38 x 63 x 119 mm)

Weight: Approx. 7 oz (195 g) with battery and film
