SR6011 - Récepteur A/V MARANTZ - Notice d'utilisation et mode d'emploi gratuit

Intitulé	Description
Type de produit	Récepteur AV 9.2 canaux
Caractéristiques techniques principales	Dolby Atmos, DTS:X, IMAX Enhanced, Auro-3D
Alimentation électrique	AC 230V, 50/60Hz
Dimensions approximatives	440 x 151 x 411 mm

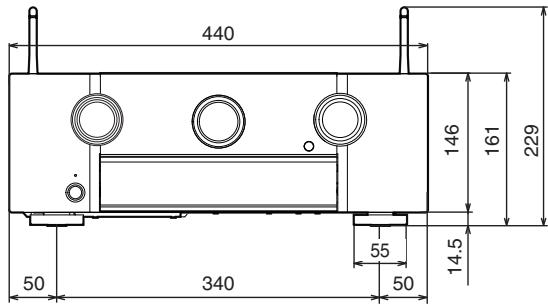

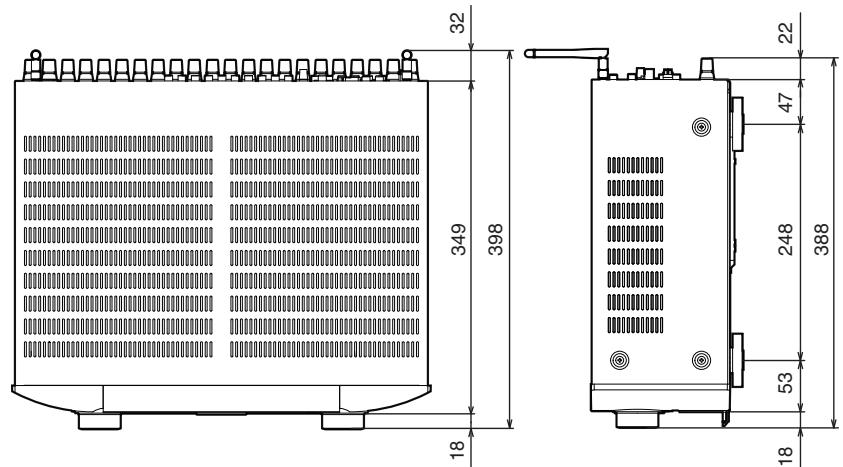

Poids	10.8 kg
Compatibilités	Compatible avec les formats audio haute résolution, Bluetooth, Wi-Fi, AirPlay 2
Puissance de sortie	185 W par canal (6 ohms, 1 kHz, 0.9% THD)
Fonctions principales	Streaming audio, multiroom, calibration automatique Audyssey MultEQ XT32
Entretien et nettoyage	Nettoyer avec un chiffon doux, éviter les produits chimiques agressifs
Pièces détachées et réparabilité	Disponibilité variable, consulter un réparateur agréé Marantz
Sécurité	Ne pas exposer à l'humidité, utiliser sur une surface stable, respecter les instructions de sécurité
Informations générales utiles	Vérifier la compatibilité avec les enceintes et autres équipements audio avant l'achat

FOIRE AUX QUESTIONS - SR6011 MARANTZ

Comment configurer le Marantz SR6011 pour la première fois ?

Pour configurer le Marantz SR6011 pour la première fois, commencez par le brancher à votre téléviseur et à vos enceintes. Allumez l'appareil, puis utilisez l'assistant de configuration à l'écran pour sélectionner votre langue, configurer les haut-parleurs et ajuster les paramètres audio.

Que faire si le son ne sort pas des enceintes ?

Vérifiez d'abord que les câbles des enceintes sont correctement connectés et que les enceintes sont alimentées. Assurez-vous également que le mode d'écoute est correctement sélectionné sur le récepteur. Vérifiez les réglages de volume et la source audio choisie.

Comment mettre à jour le firmware du Marantz SR6011 ?

Pour mettre à jour le firmware, allez dans le menu 'Réglages' puis 'Mise à jour du firmware'. Connectez-vous à Internet via un câble Ethernet ou Wi-Fi, puis suivez les instructions à l'écran pour télécharger et installer la mise à jour.

Le Marantz SR6011 ne se connecte pas au Wi-Fi, que faire ?

Assurez-vous que le réseau Wi-Fi est opérationnel et que le mot de passe est correct. Dans le menu 'Réglages', vérifiez les paramètres de réseau et essayez de reconnecter le récepteur au réseau. Vous pouvez également redémarrer le routeur.

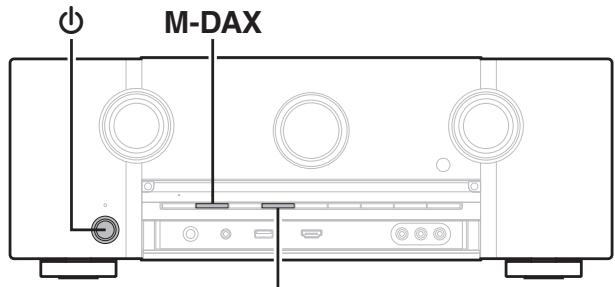

Comment réinitialiser le Marantz SR6011 aux paramètres d'usine ?

Pour réinitialiser le Marantz SR6011, éteignez l'appareil, puis maintenez enfoncées les touches 'Power' et 'Source' pendant que vous le rallumez. Continuez à maintenir les touches enfoncées jusqu'à ce que le message de réinitialisation apparaisse à l'écran.

Y a-t-il des problèmes connus avec le Marantz SR6011 ?

Certains utilisateurs ont signalé des problèmes de connectivité HDMI intermittente. Assurez-vous que tous les câbles sont de bonne qualité et essayez de changer de port HDMI. Consultez également le site Web de Marantz pour les mises à jour concernant les problèmes connus.

Comment activer le mode Atmos sur le Marantz SR6011 ?

Pour activer le mode Atmos, assurez-vous que vos enceintes sont correctement configurées pour le son surround. Accédez au menu 'Réglages', puis à 'Configuration des haut-parleurs' et sélectionnez 'Dolby Atmos' dans le menu des options audio.

Le Marantz SR6011 est trop chaud, que faire ?

Assurez-vous que le récepteur est placé dans un endroit bien ventilé et qu'il n'est pas obstrué. Évitez de le placer dans un meuble fermé. Si la surchauffe persiste, envisagez de diminuer le volume ou de réduire la durée d'utilisation continue.

MODE D'EMPLOI SR6011 MARANTZ

marantz

AV Surround Receiver SR6011

Owner's Manual

7

Inserting the batteries 8

Operating range of the remote control unit 8

Features 9

High quality sound 9

High performance 10

Easy operation 13

Part names and functions 14

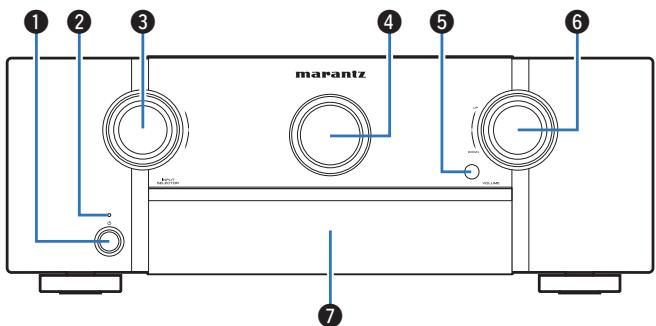

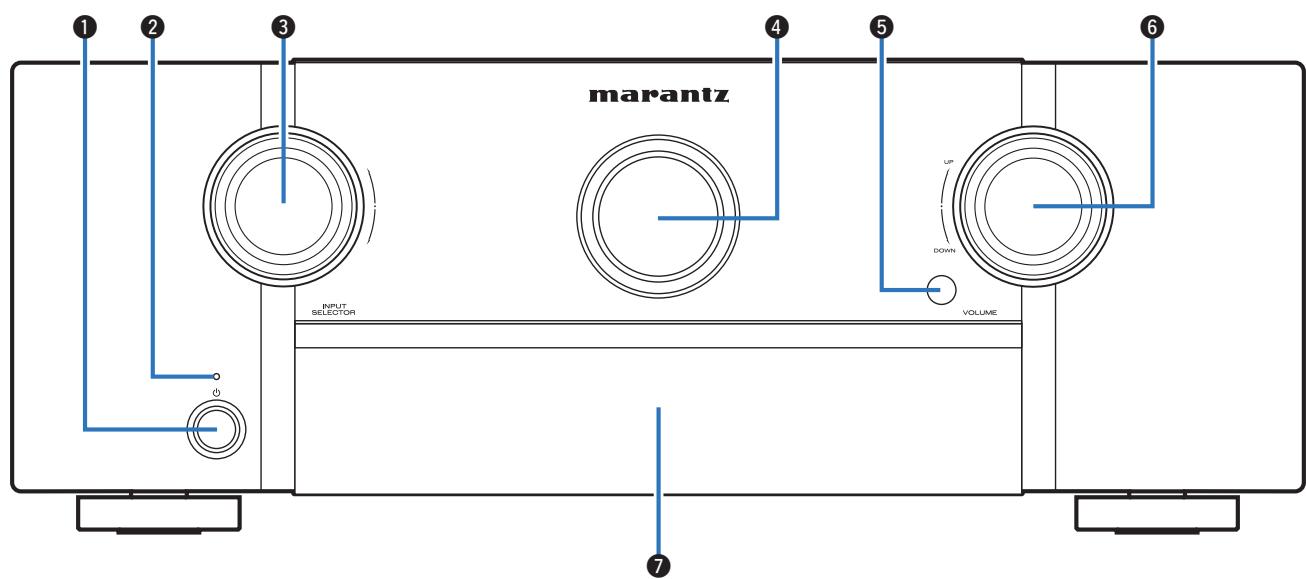

Front panel 14

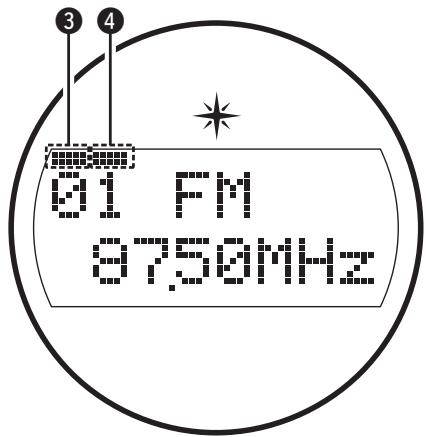

Display 18

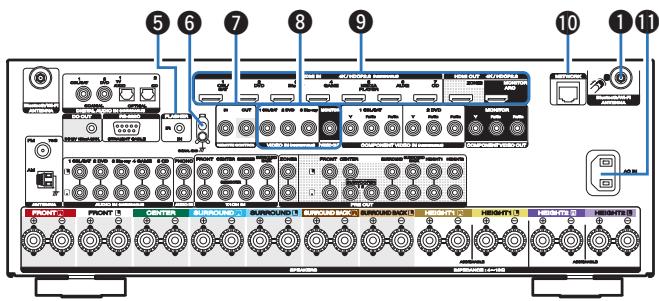

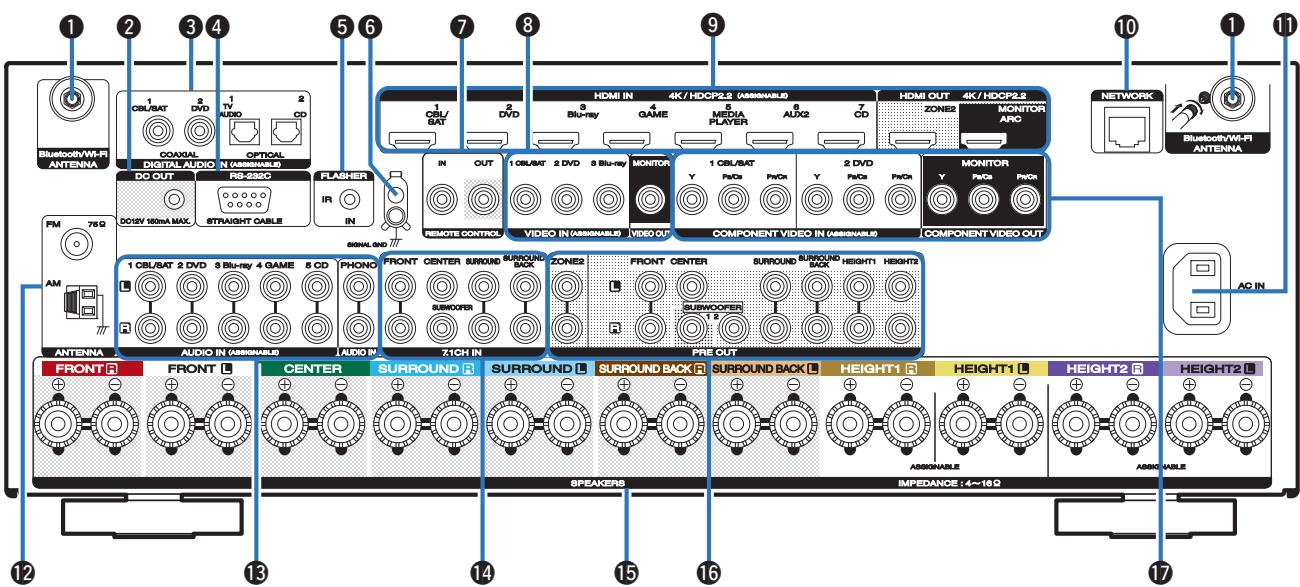

Rear panel 20

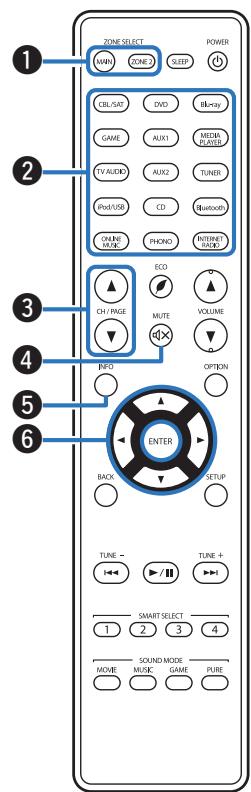

Remote control unit 24

Connections

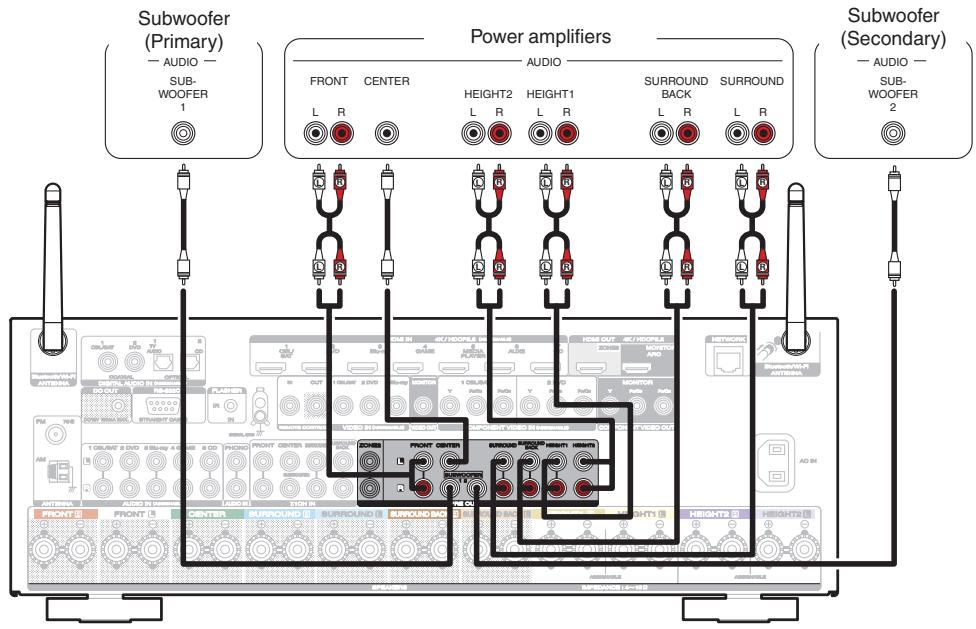

Connecting speakers 28

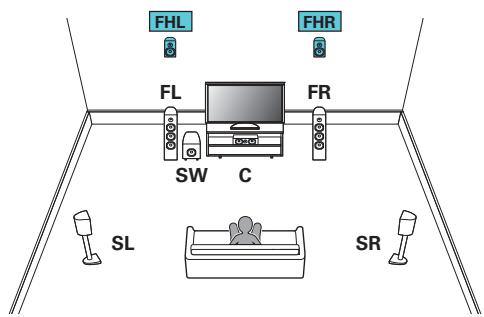

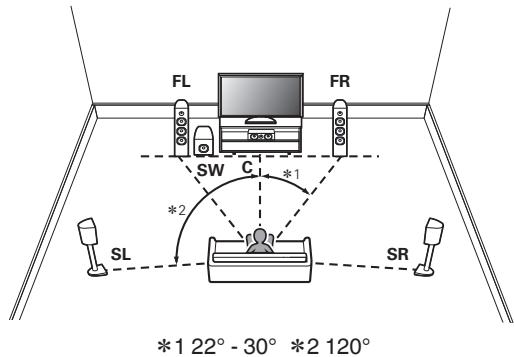

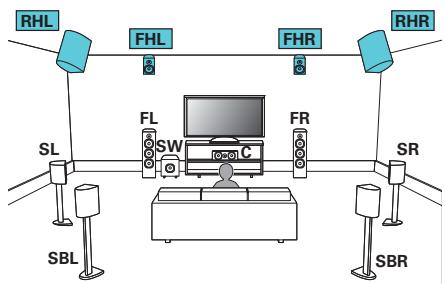

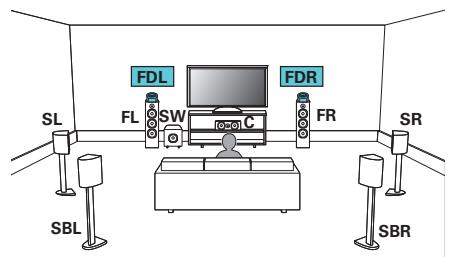

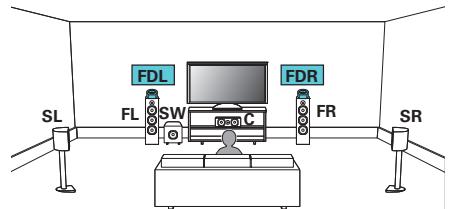

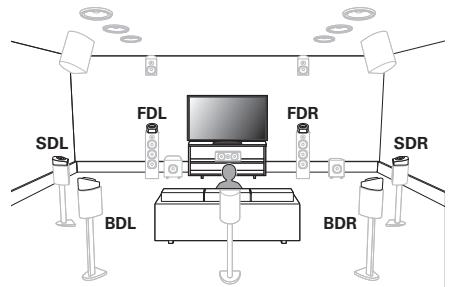

Speaker installation 28

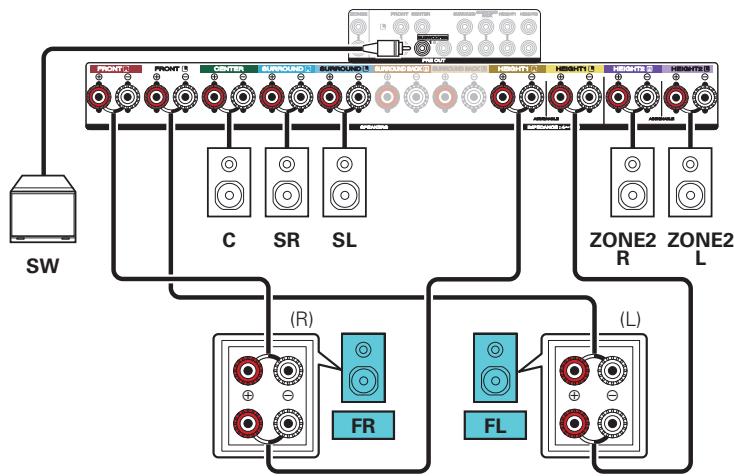

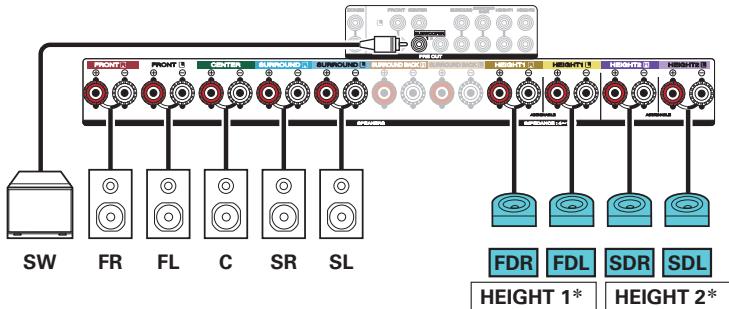

Speaker connection 35

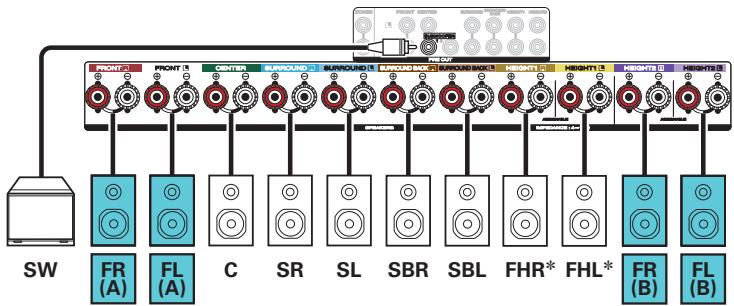

Speaker configuration and "Amp Assign" settings 39

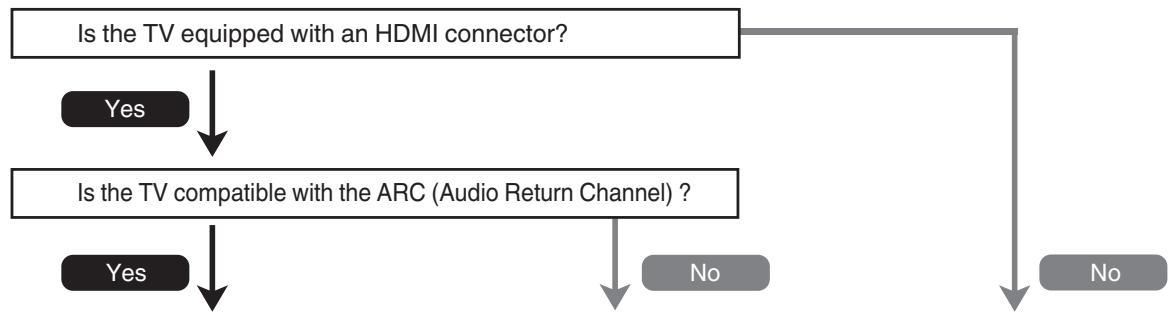

Connecting a TV 62

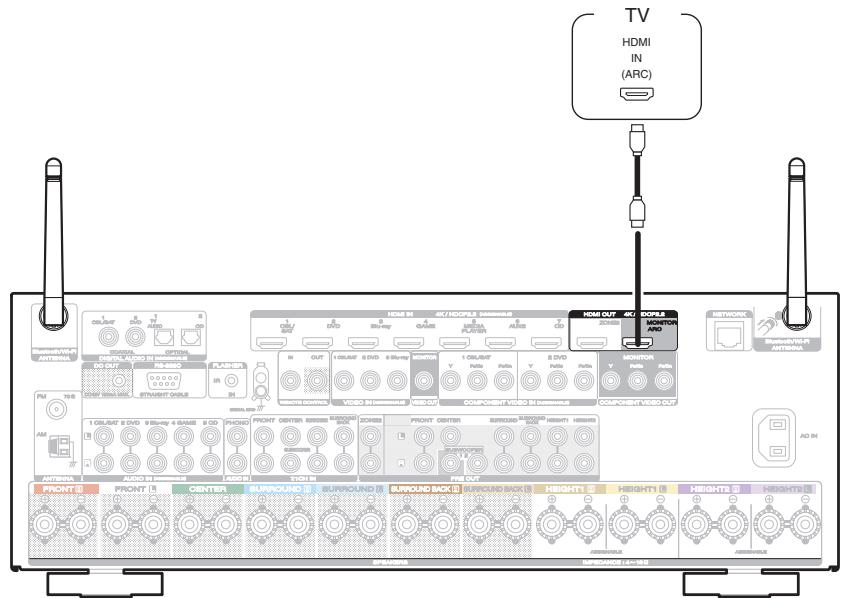

Connection 1 : TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel) 63

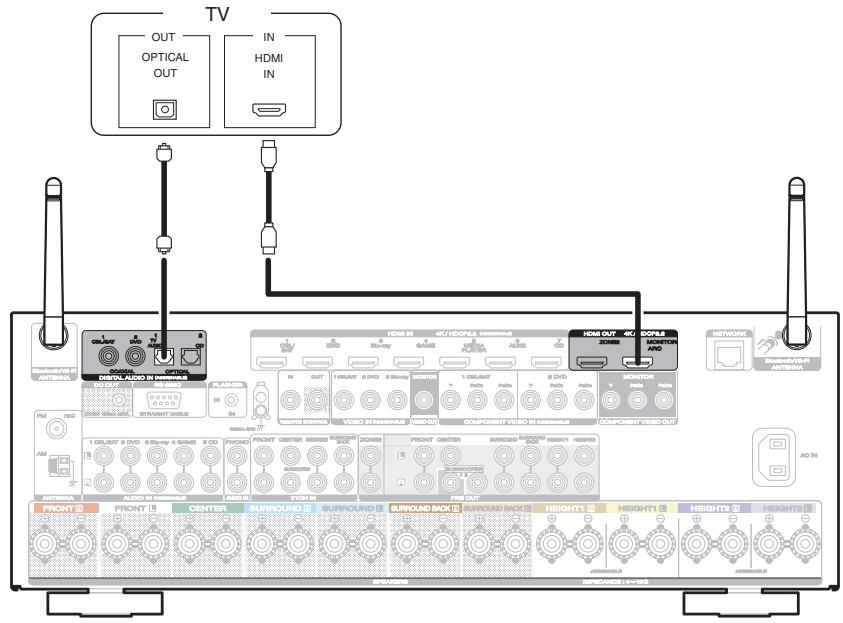

Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel) 64

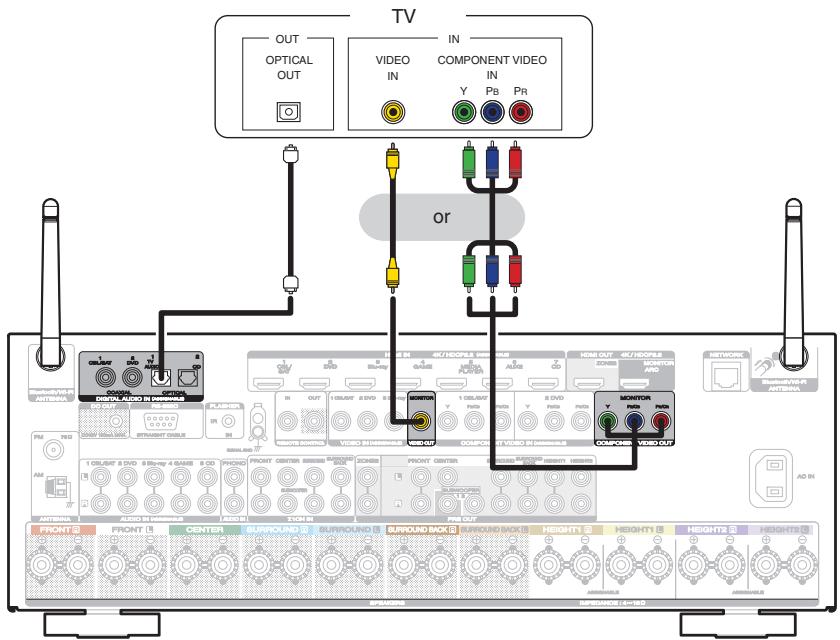

Connection 3 : TV equipped without an HDMI connector 65

Connecting a playback device 66

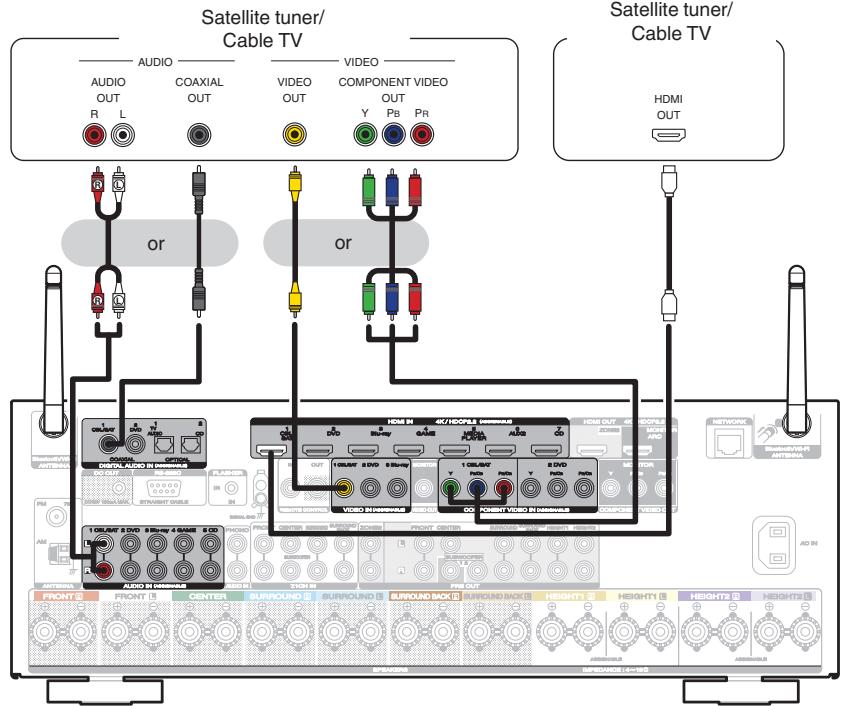

Connecting a set-top box (Satellite tuner/cable TV) 67

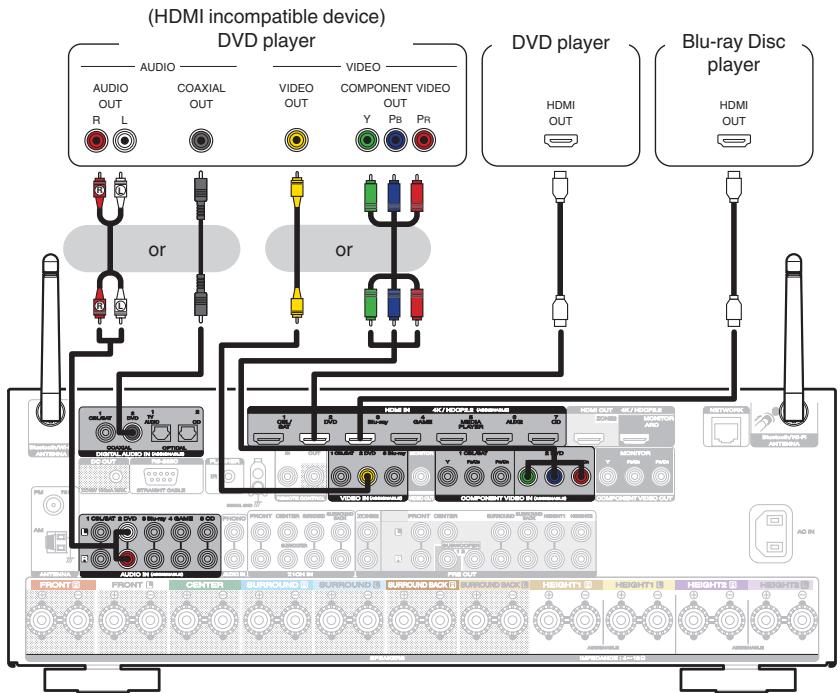

Connecting a DVD player or Blu-ray Disc player 68

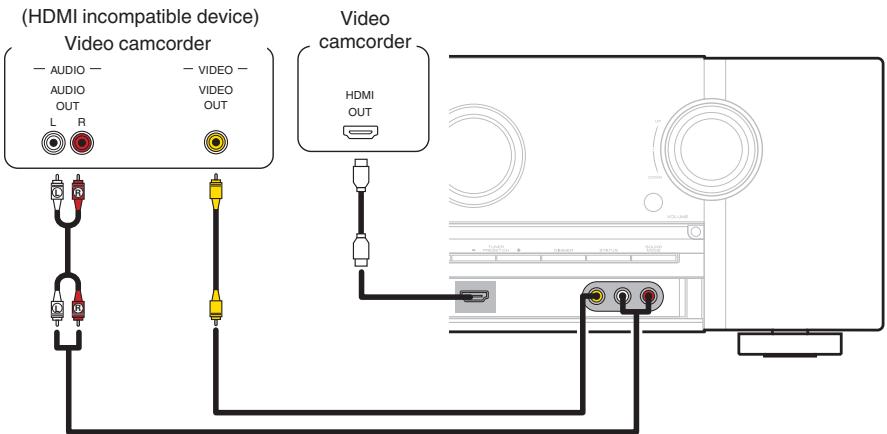

Connecting a video camcorder or game console 69

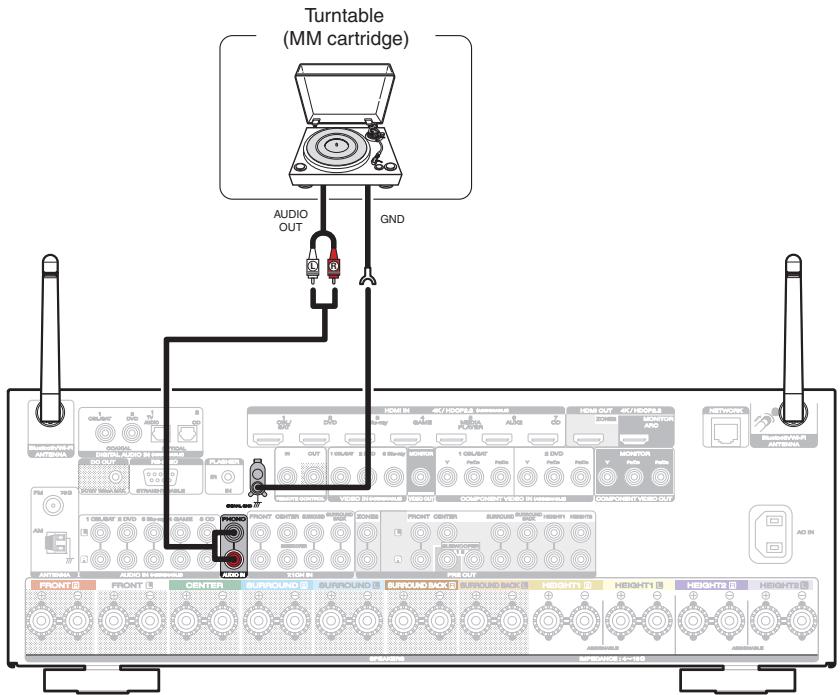

Connecting a turntable 70

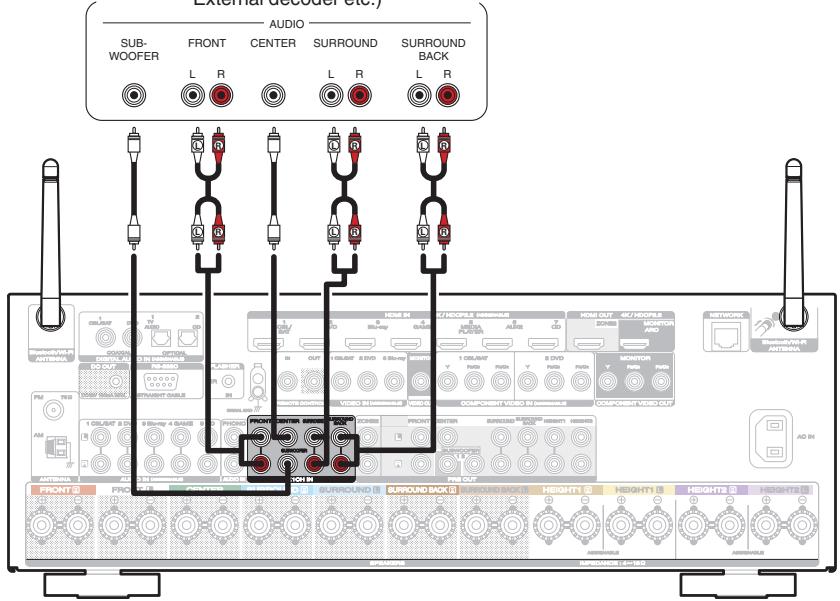

Connecting a device with a multi-channel output connector 71

Connecting an iPod or USB memory device to the USB port 72

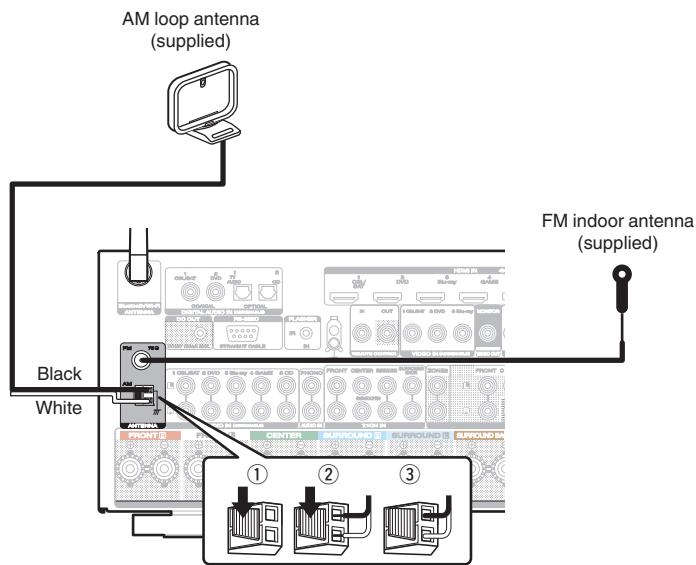

Connecting an FM/AM antenna 74

Connecting to a home network (LAN) 76

Wired LAN 76

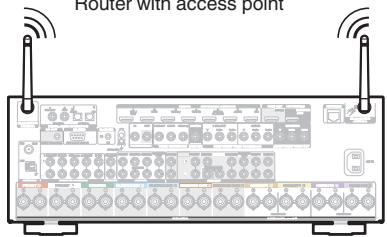

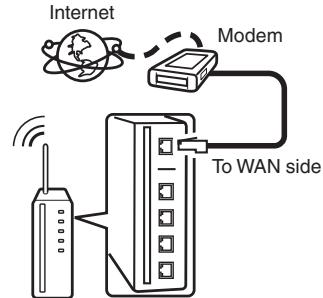

Wireless LAN 77

Connecting an external control device 78

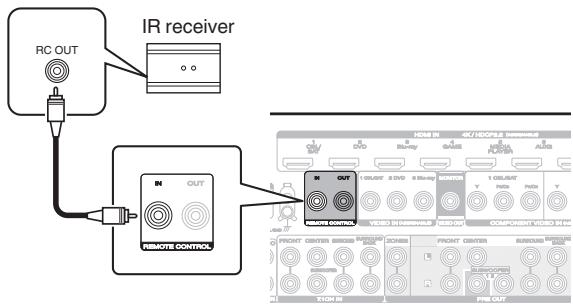

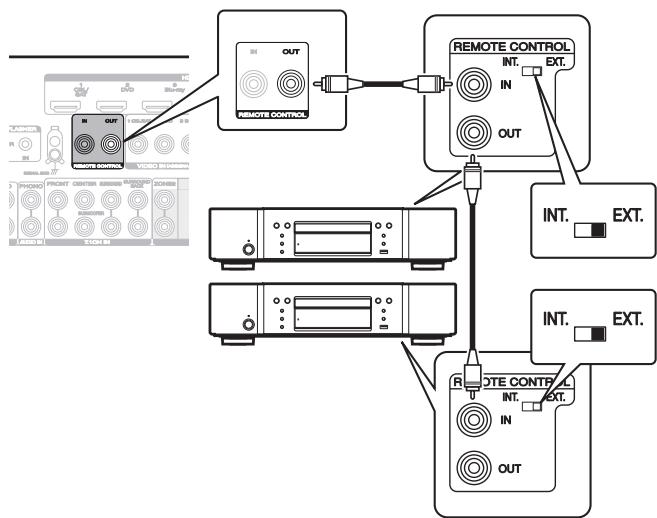

REMOTE CONTROL jacks 78

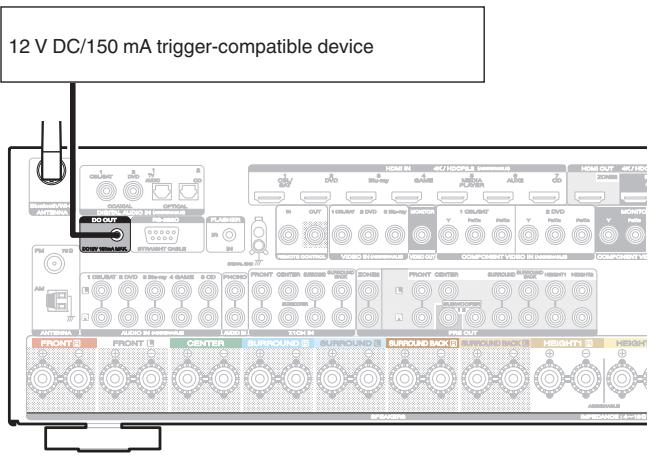

DC OUT jack 79

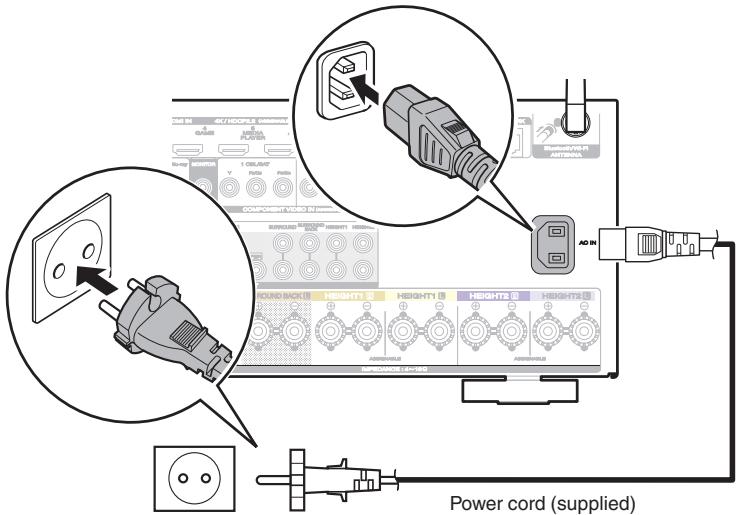

Connecting the power cord 80

Playback

Basic operation 82

Turning the power on 82

Selecting the input source 82

Adjusting the volume 83

Turning off the sound temporarily (Muting) 83

Playback a DVD player/Blu-ray Disc player 83

Playing an iPod 84

Listening to music on an iPod 85

iPodBrowseMode settings 86

Performing repeat playback 88

Performing random playback 88

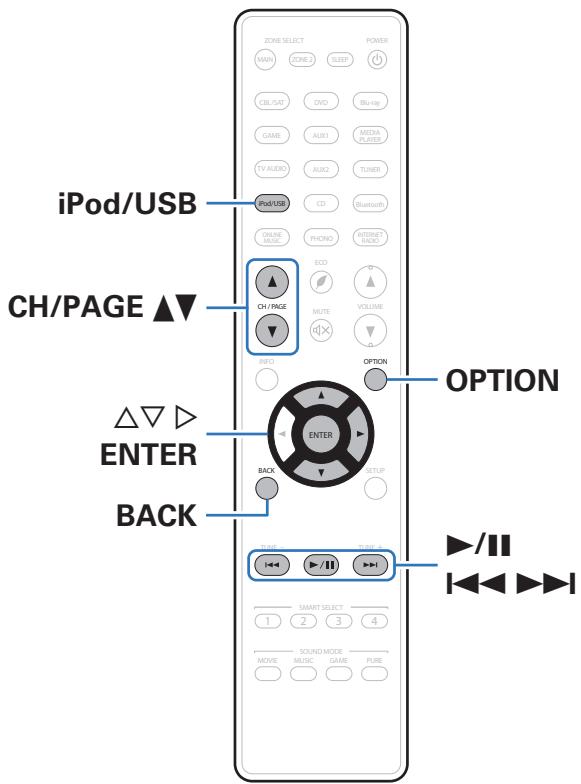

Playing a USB memory device 89

Playing files stored on USB memory devices 90

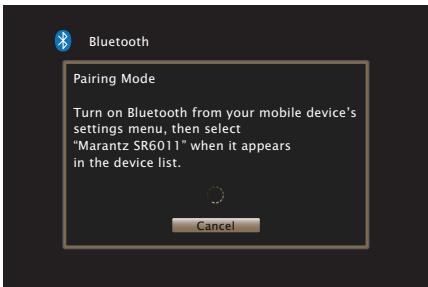

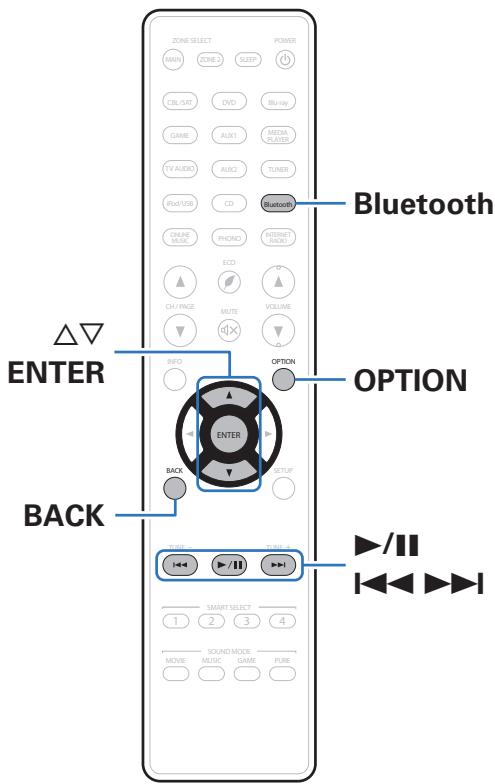

Listening to music on a Bluetooth device 92

Playing music from Bluetooth device 93

95

Reconnecting to this unit from a Bluetooth device 96

Listening to FM/AM broadcasts 97

Listening to FM/AM broadcasts 98

Tuning in by entering the frequency (Direct Tune) 100

RDS search 100

PTY search 101

TP search 102

Radio Text 102

Changing the tune mode (Tune Mode) 103

Tuning in to stations and presetting them automatically (Auto Preset Memory) 103

Presetting the current broadcast station (Preset Memory) 104

Listening to preset stations 104

Specify a name for the preset broadcast station (Preset Name) 105

Skipping preset broadcast stations (Preset Skip) 106

Cancelling Preset Skip 107

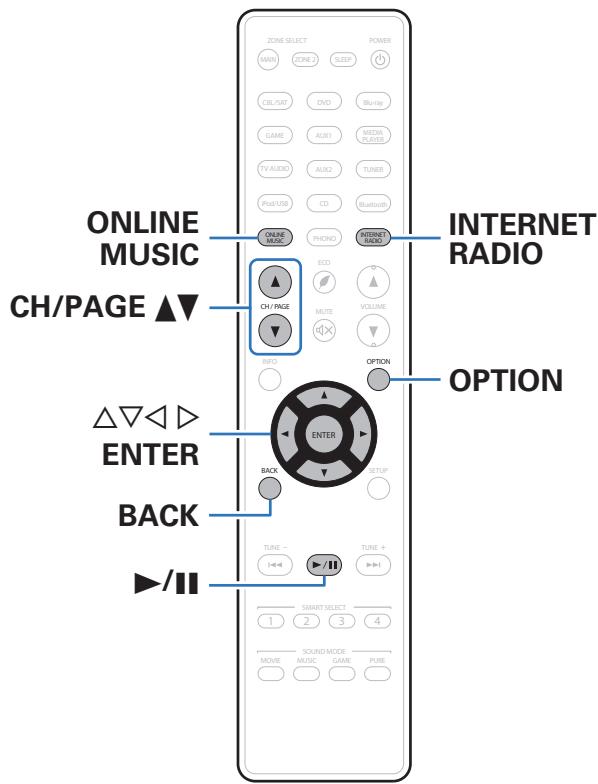

Listening to Internet Radio 108

Listening to Internet Radio 109

Playing the last played Internet Radio station 110

Using vTuner to add Internet Radio stations to favorites 111

Playing back files stored on a PC or NAS 112

Applying media sharing settings 113

Playing back files stored on a PC or NAS 114

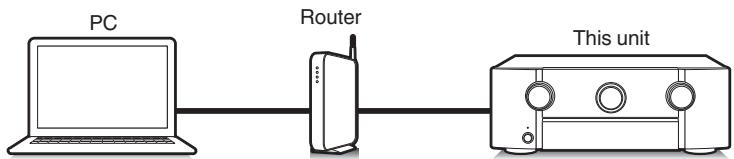

AirPlay function 116

Playing songs from your iPhone, iPod touch or iPad 117

PlayingiTunesmusicwiththisunit 117

Selecting multiple speakers (devices) 118

Perform iTunes playback operations with the remote control unit of this unit 118

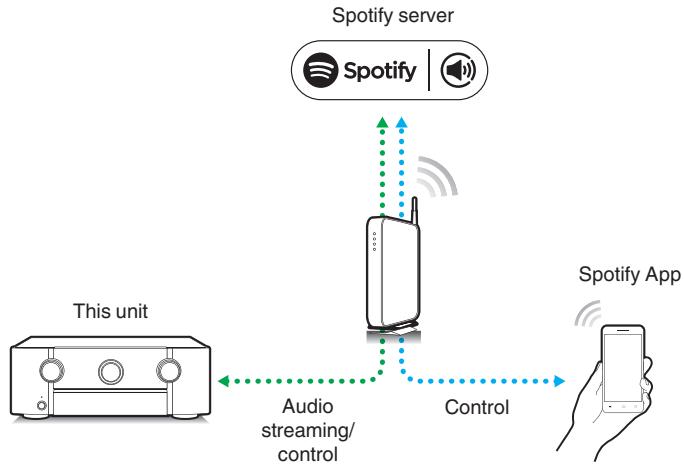

Spotify Connect function 119

Playing Spotify music with this unit 119

Convenience functions 120

Performing repeat playback 121

Performing random playback 121

Registering to Favorites (Save to Favorites) 122

Playing back content added to Favorites 122

Deleting content added to favorites 123

Searching content with keywords (Text Search) 123

Playing back music and a favorite picture at the same time (Slideshow) 124

Setting the Slideshow Interval 125

Adjusting the volume of each channel to match the input source (Channel Level Adjust) 126

Adjusting the tone (Tone) 127

Displaying your desired video during audio playback (Video Select) 128

Adjusting the picture quality for your viewing environment (Picture Mode) 129

Playing the same music in all zones (All Zone Stereo) 130

Selecting a sound mode 131

Selecting a sound mode 132

Direct playback 133

Pure Direct playback 133

Auto surround playback 134

HDMI control function 143

Setting procedure 143

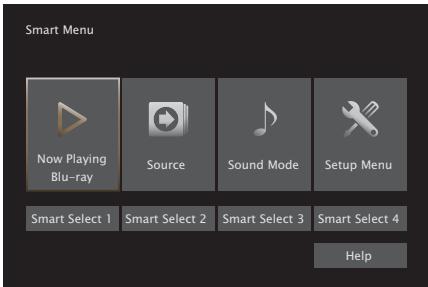

Smart Menu function 144

Sleep timer function 146

Using the sleep timer 147

Smart select function 148

Calling up the settings 149

Changing the settings 150

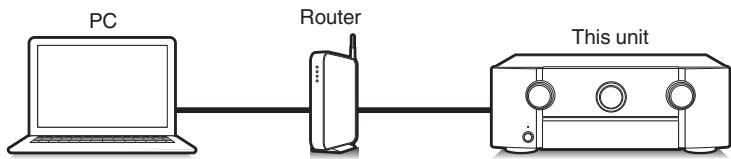

Web control function 151

Controlling the unit from a web control 151

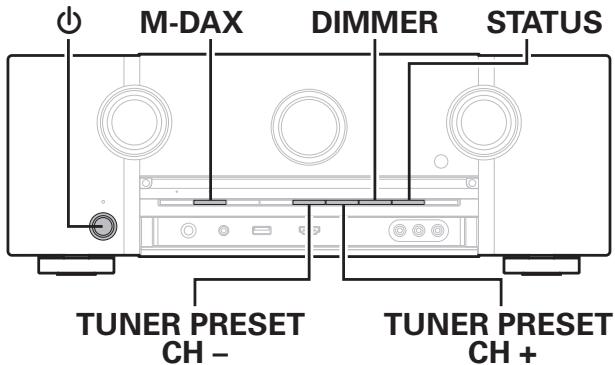

Panel lock function 153

Disabling all key button operations 153

Disabling all button operations except VOLUME 153

Canceling the Panel lock function 154

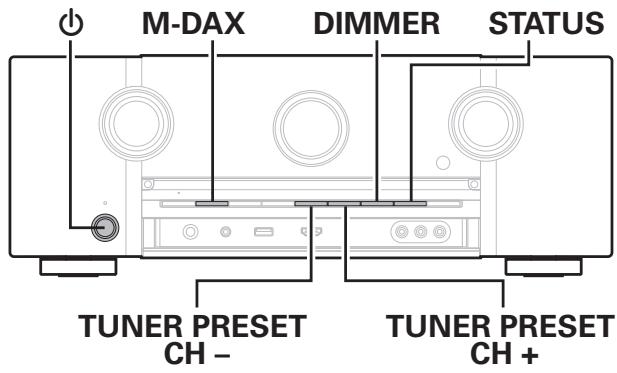

Remote lock function 155

Disabling the sensor function of the remote control unit 155

Enabling the remote sensor function 155

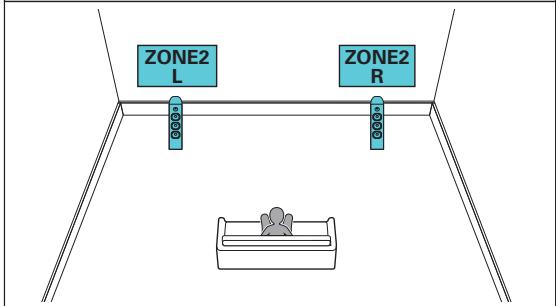

Playback in ZONE2 (Separate room) 156

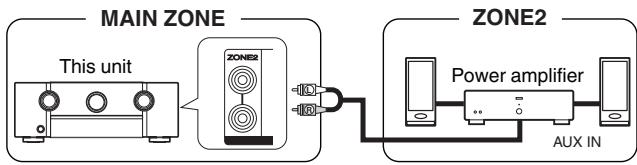

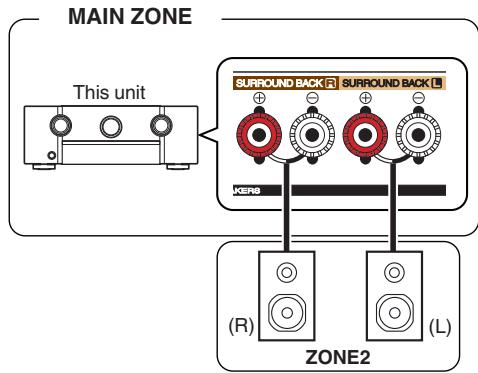

Connecting ZONE2 156

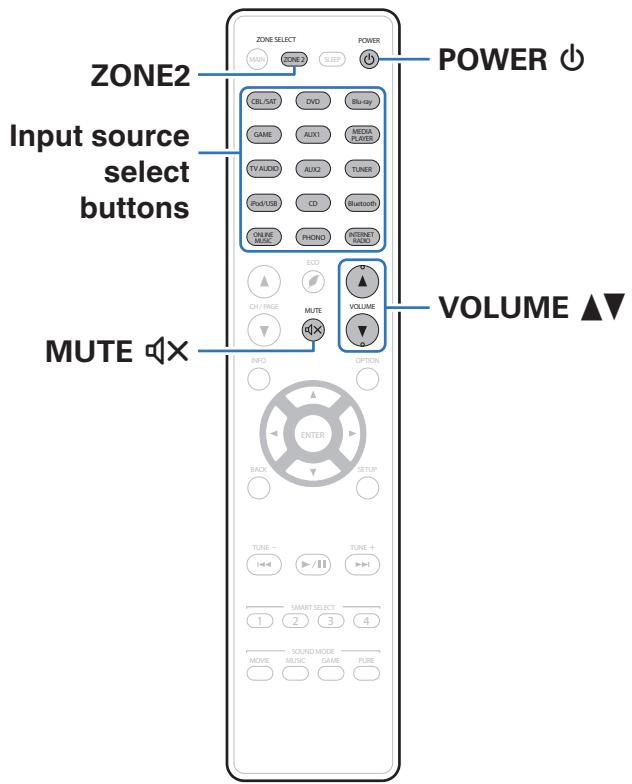

Playback in ZONE2 158

Settings

Menu map	160
Menu operations	163
Inputting characters	164
Using the keyboard screen	165
Audio	166
Dialog Level Adjust	166
Subwoofer Level Adjust	166
Surround Parameter	167
M-DAX	171
Audio Delay	172
Volume	173
Audyssey®	174
Graphic EQ	177
Video	179
Picture Adjust	179
HDMI Setup	181
Output Settings	187
On Screen Display	191
TV Format	192

Inputs	193
Input Assign	193
Source Rename	195
Hide Sources	196
Source Level	196
Input Select	197
Speakers	198

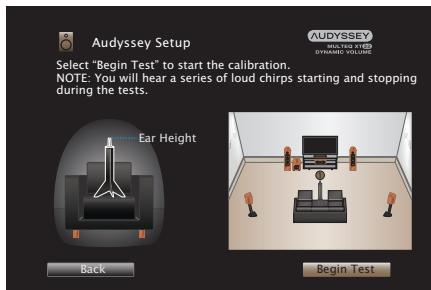

Audyssey® Setup	198

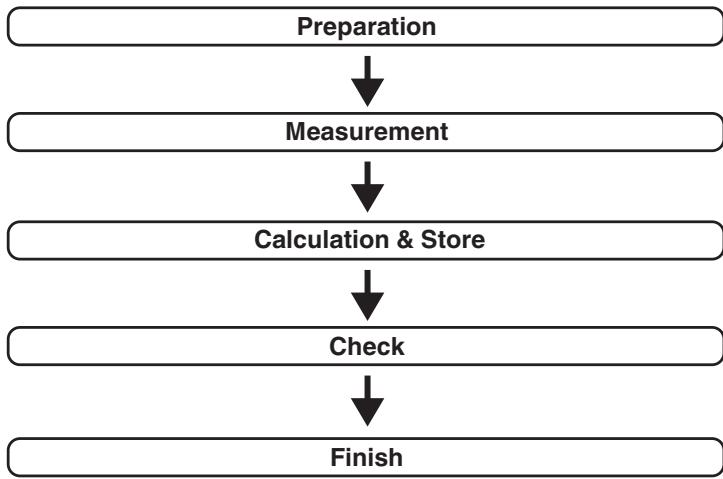

Procedure for speaker settings (Audyssey® Setup)	200

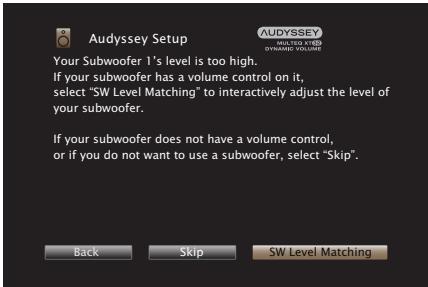

Error messages	206
Retrieving Odyssey® Setup settings	208
Manual Setup	209

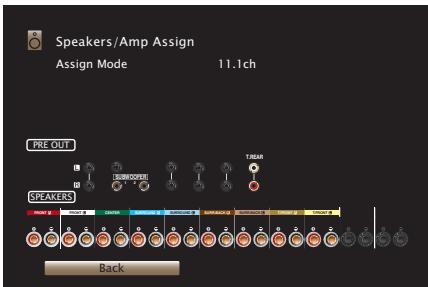

Amp Assign	209
Speaker Config.	214
Distances	218
Levels	220
Crossovers	221
Bass	222
Front Speaker	223

Network 224

Information 224

Connection 224

Wi-Fi Setup 225

Settings 228

Network Control 230

Friendly Name 230

Diagnostics 231

General 232

Language 232

ECO 232

ZONE2 Setup 235

Zone Rename 237

Smart Select Names 238

Trigger Out 238

Front Display 239

Firmware 240

Information 242

Usage Data 244

Setup Lock 244

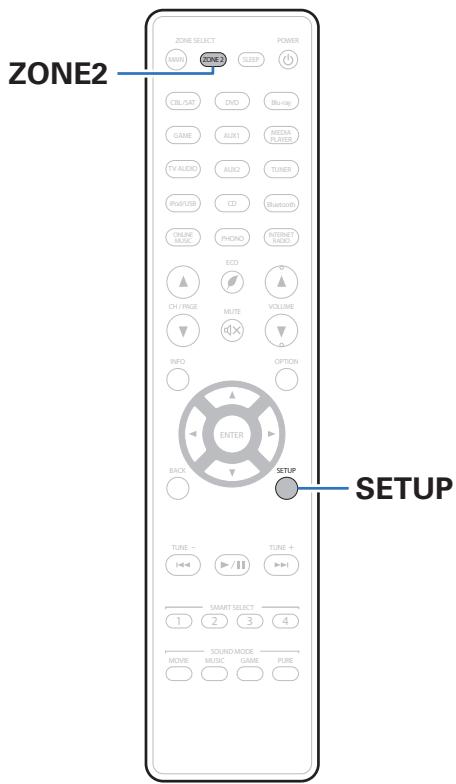

Limiting the operating zone with the remote control 245

Tips

Tips 247

Troubleshooting 249

Resetting factory settings 267

Appendix

AboutHDMI 268

Video conversion function 271

Playing back a USB memory devices 273

Playing back a Bluetooth device 274

Playing back a file saved on a PC or NAS 275

Playing back Internet Radio 276

Personal memory plus function 276

Last function memory 276

Sound modes and channel output 277

Sound modes and surround parameters 279

Types of input signals, and corresponding sound modes 282

Explanation of terms 285

Trademark information 294

Specifications 296

Index 302

License 305

Thank you for purchasing this Marantz product.

To ensure proper operation, please read this owner's manual carefully before using the product.

After reading this manual, be sure to keep it for future reference.

Accessories

Check that the following parts are supplied with the product.

Quick Start Guide	Safety Instructions	Cautions on Using Batteries	Notes on radio	Cable labels
Power cord	FM indoor antenna	AM loop antenna	Sound calibration microphone	Sound calibration microphone stand
Remote control unit	R03/AAA batteries	External antennas for Bluetooth/wireless connectivity

Inserting the batteries

1 Remove the rear lid in the direction of the arrow and remove it.

2 Insert two batteries correctly into the battery compartment as indicated.

3 Put the rear cover back on.

NOTE

• To prevent damage or leakage of battery fluid:
• Do not use a new battery together with an old one.
• Do not use two different types of batteries.
• Remove the batteries from the remote control unit if it will not be in use for long periods.
• If the battery fluid should leak, carefully wipe the fluid off the inside of the battery compartment and insert new batteries.

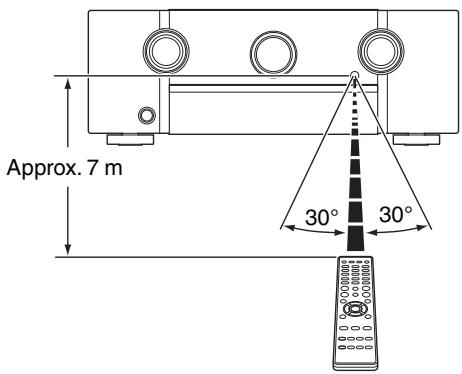

Operating range of the remote control unit

Point the remote control unit at the remote sensor when operating it.

Features

High quality sound

• With discrete circuit technology, the power amplifier provides identical quality for all 9-channels (150 Watts x 9-channels)

For optimum realism and stunning dynamic range, the power amplifier section features discrete power devices (not integrated circuitry).

By using high current, high power discrete power devices, the amplifier is able to easily drive high quality speakers.

• Current feedback amplifier

This unit uses a high-speed current feedback amplifier circuit for its preamplifier so that signals from a Blu-ray Disc player and other equipment that support high-definition audio formats can be amplified with high fidelity. The high-speed current feedback amplifier also reproduces a natural sound space.

Dolby Atmos (p. 286)

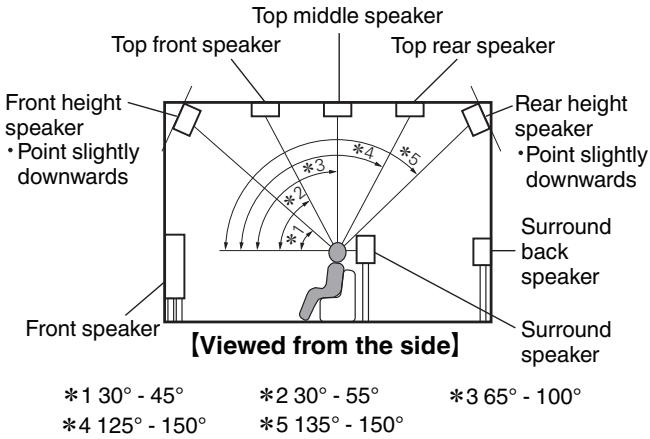

This unit is equipped with a decoder that supports Dolby Atmos audio format. The placement or movement of sound is accurately reproduced by the addition of overhead speakers, enabling you to experience an incredibly natural and realistic surround sound field.

DTS:X

This unit is equipped with the DTS:X decoder technology. DTS:X brings the home theater experience to new heights with its immersive object based audio technology which removes the bounds of channels. The flexibility of objects allows for sound to be scaled large or small and moved around the room with greater accuracy than ever before leading to a richer immersive audio experience.

Audyssey LFC™ (Low Frequency Containment) (p. 176)

Audyssey LFCTM solves the problem of low frequency sounds disturbing people in neighboring rooms or apartments. Audyssey LFCTM dynamically monitors the audio content and removes the low frequencies that pass through walls, floors and ceilings. It then applies psychoacoustic processing to restore the perception of low bass for listeners in the room. The result is great sound that no longer disturbs the neighbors.

• Discrete subwoofoers and Audyssey Sub EQ HT™ (p. 199)

The unit has two subwoofer output capability and can adjust the level and delay for each subwoofer individually.

Audyssey Sub EQ HT™ makes the integration seamless by first compensating for any level and delay differences between the two subwoofer and then applying Audyssey MultEQ® XT32 to both subwoofer together for improved deep bass response and detail.

High performance

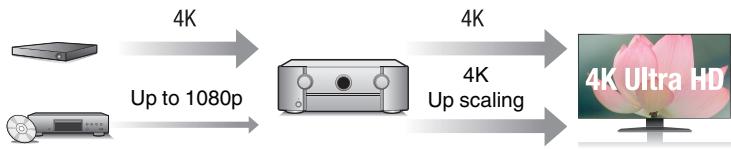

• 4K 60Hz input/output supported

4K 60p

4:4:4

4K 60p

4:4:4

When 4K Ultra HD (High Definition) is used, an input/output speed of 60 frames per second (60p) is achieved for video signals. When connected to 4K Ultra HD and 60p video signal input compatible TV, you can enjoy the sense of realism only available from high-definition images, even when viewing fast-moving video.

This unit also supports image processing for 4K 60p, 4:4:4 and 24-bit videos. By processing the video at the original resolution, this unit lets you enjoy flawless, high-definition picture quality.

• HDCP 2.2

This unit is compatible with HDCP 2.2 copyright protection standard.

• Digital video processor upscales analog video signals (SD resolution) to HD (720p/1080p) and 4K (k p. 189)

This unit is equipped with a 4K video upscaling function that allows analog video or SD (Standard Definition) video to be output via HDMI at 4K (3840 × 2160 pixels) resolution. This function enables the device to be connected to a TV using a single HDMI cable, and produces high definition images for any video source.

• Equipped with HDMI ZONE2 output (p. 156)

The ZONE2 multi-room output includes an HDMI output that lets you enjoy a different A/V source in that room, with another program playing in the main room.

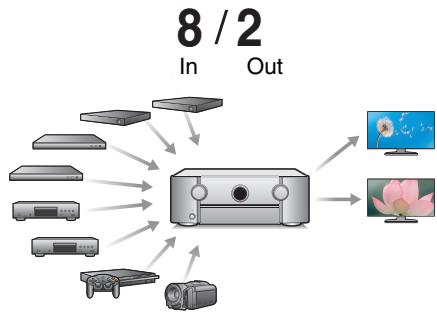

• HDMI connections enable connection to various digital AV devices (8 inputs, 2 outputs)

For connection to a broad range of digital sources, this unit features 8 HDMI inputs, including 1 on the front panel that lets you quickly and conveniently connect a camcorder, game console or other HDMI-equipped device. There's an HDMI output for the MAIN ZONE, and a second HDMI output for ZONE2.

• The device is equipped with a AirPlay® function in addition to network functions such as Internet radio etc. (p. 116)

You can enjoy a wide variety of content, including listening to Internet Radio, playing audio files stored on your PC, and displaying photographs stored on your PC on our television.

This unit also supports Apple AirPlay which lets you stream your music library from an iPhone®, iPad®, iPod touch® or iTunes®.

• Playback of DSD and FLAC files via USB and networks

This unit supports the playback of high resolution audio formats such as DSD (5.6 MHz) and FLAC 192 kHz files. It provides high quality playback of high resolution files.

• Wireless connection with Bluetooth devices can be carried out easily (p. 92)

You can enjoy music simply by connecting wirelessly with your smartphone, tablet, PC, etc.

• Compatible with the "Marantz 2016 AVR Remote App"* for performing basic operations of the unit with an iPad, iPhone or Android™ devices (Google, Amazon Kindle Fire)

"Marantz 2016 AVR Remote App" is application software that allows you to perform basic operations with an iPad, iPhone, Android smartphone or Android tablet such as turning the unit ON/OFF, controlling the volume, and switching the source.

• Download the appropriate "Marantz 2016 AVR Remote App" for your iOS or Android devices. This unit needs to be connected to the same LAN or Wi-Fi (wireless LAN) network that the iPhone or iPod touch is connected to.

Multi-Room audio (p. 130)

【MAIN ZONE】

[ZONE2]

You can select and play back the respective inputs in MAIN ZONE and ZONE2.

In addition, when the All Zone Stereo function is used, the music being played back in MAIN ZONE can be enjoyed in all the zones at the same time. This is useful when you want to let the BGM propagate throughout the whole house.

• Energy-saving design

This unit is equipped with an ECO Mode function that allows you to enjoy music and movies while reducing the power consumption during use, and also an auto-standby function that automatically turns off the power supply when the unit is not in use. This helps reduce unnecessary power use.

Easy operation

• "Setup Assistant" provides easy-to-follow setup instructions
  First select the language when prompted. Then simply follow the instructions displayed on the TV screen to set up the speakers, network, etc.
• Easy to use Graphical User Interface
  This unit is equipped with a Graphical User Interface for improved operability.

Part names and functions

Front panel

For details, see the next page.

1 Power operation button (b)

Used to turn the power of the MAIN ZONE (room where this unit is located) on/off (standby). (p. 82)

Power indicator

This is lit as follows according to the power status:

• Off: Power on
  Red: Normal standby
  Orange:

• When "HDMI Control" is set to "On" (p. 183)

• When "HDMI Pass Through" is set to "On" (p. 182)
• When "Network Control" is set to "Always On" (p. 230)

3 INPUT SELECTOR knob

This selects the input source. (p. 82)

Display

This displays various pieces of information. (p. 18)

Remote control sensor

This receives signals from the remote control unit. (p.8)

6 VOLUME knob

This adjusts the volume level. (p. 83)

Door

When you are using buttons and/or connectors behind the door, press the bottom of the door to open it. Be careful not to catch your fingers when closing the door.

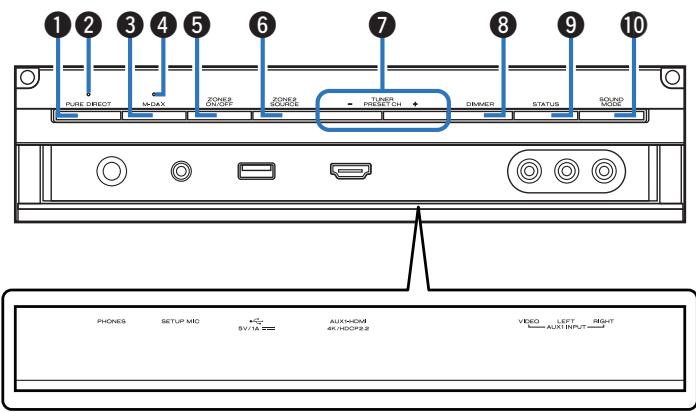

With the door open

PURE DIRECT button

This switches the sound mode between Direct, Pure Direct and Auto surround.

"Direct playback" (p. 133)
-Pure Direct playback" (p.133)
"Auto surround playback" (p. 134)

PURE DIRECT indicator

This lights when the "Pure Direct" mode is selected as the sound mode. (p. 133)

M-DAX button

This switches the M-DAX mode. (p. 171)

M-DAX indicator

This lights when the M-DAX mode is selected. (p. 171)

5 ZONE2 ON/OFF button

This turns the ZONE2 (separate room) on/off. (p. 158)

ZONE2 SOURCE button

This selects the input source for ZONE2. (p. 158)

7 Tuner preset channel buttons (TUNER PRESET CH +, -)

These select preset broadcast stations. (p. 104)

DIMMER button

Each press of this switches the brightness of the display. (p. 239)

STATUS button

Each press of this switches the status information that is shown on the display.

10 SOUND MODE button

Switching the sound mode. (p. 131)

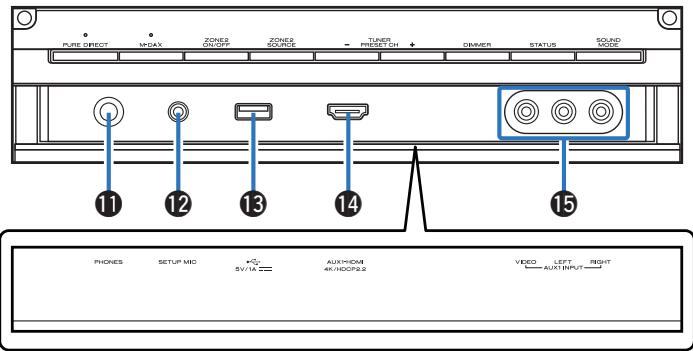

1 Headphones jack (PHONES)

This is used to connect headphones.

When the headphones are plugged into this jack, audio will no longer be output from the connected speakers or from the PRE OUT connectors.

NOTE

• To prevent hearing loss, do not raise the volume level excessively when using headphones.

12 SETUP MIC jack

This is used to connect the supplied Sound calibration microphone. (p. 201)

USB port (←)

This is used to connect USB storages (such as USB memory devices) and the USB cable supplied with iPod. (p. 72)

AUX1-HDMI connector

This is used to connect HDMI output compatible devices such as video camcorders and game consoles. (p. 69)

15 AUX1 INPUT connectors

Used to connect analog output compatible devices such as video camcorders and game consoles. (p.69)

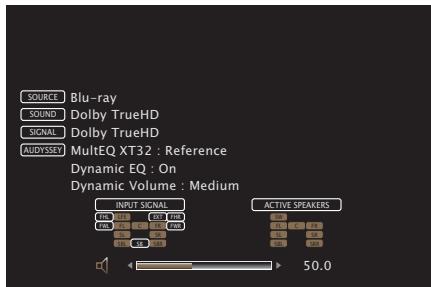

Display

The input source name, sound mode, setting values and other information are displayed here.

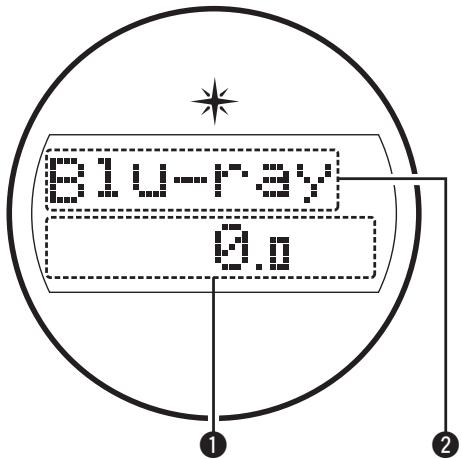

Standard display

Volume indicator
2 Input source indicator

The currently selected input source name is displayed. If the input source name has been changed using "Source Rename" in the menu, the input source name after the change is displayed. (p. 195)

Tuner display

These light up according to the reception conditions when the input source is set to "Tuner".

3 Lights up when the broadcast is properly tuned in.
In the FM mode, this lights up when receiving stereo broadcasts.

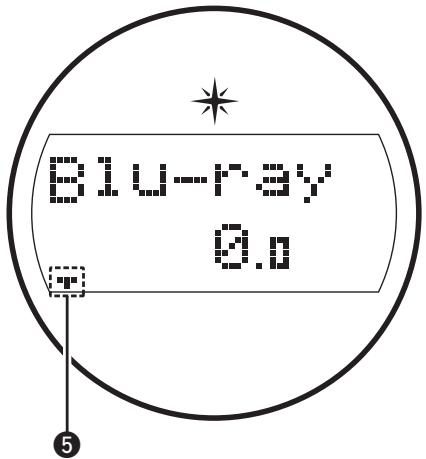

Sleep timer indicator

This lights when the sleep mode is selected. (p. 146)

■ ZONE2 power on display

This lights up when ZONE2 (separate room) power is turned on.

(p.158)

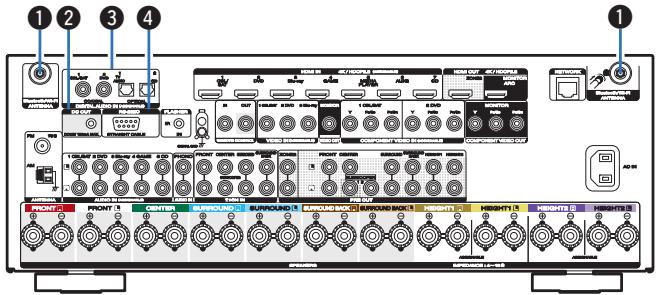

Rear panel

For details, see the next page.

Bluetooth/wireless LAN antenna connectors

Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. (p. 77)

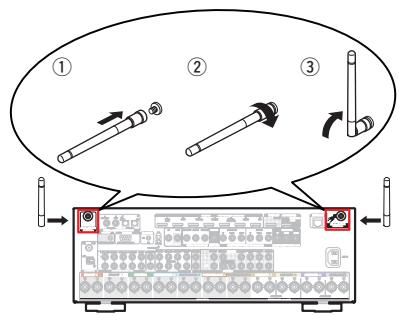

① Place the external antennas for Bluetooth/wireless connectivity evenly over the screw terminal of rear.
② Turn clockwise until the antennas is fully connected.
③ Rotate the antenna upwards for best reception.

DC OUT jack

Used to connect devices equipped with the trigger function. (p. 79)

Digital audio connectors (DIGITAL AUDIO)

Used to connect devices equipped with digital audio connectors.

• "Connection 2: TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel)" (p. 64)
  "Connection 3: TV equipped without an HDMI connector" (p. 65)
• "Connecting a set-top box (Satellite tuner/cable TV)" (p. 67)
• "Connecting a DVD player or Blu-ray Disc player" (p. 68)

RS-232C connector

Used to connect home automation controller devices fitted with RS-232C connectors. Consult the owner's manual of the home automation controller for more information about serial control of this unit.

Perform the operation below beforehand.

① Turn on the power of this unit.
② Turn off the power of this unit from the external controller.
③ Check that the unit is in the standby mode.

5 FLASHER IN jack

Used when using a control BOX or other such control devices to control this unit.

6 SIGNAL GND terminal

Used to connect a ground wire for the turntable. (p. 70)

7 REMOTE CONTROL jacks

Used to connect infrared receivers/transmitters in order to operate this unit and external devices from a different room. (p. 78)

3 Video connectors (VIDEO)

Used to connect devices equipped with video connectors.

"Connection 3: TV equipped without an HDMI connector" (p. 65)
- Connecting a set-top box (Satellite tuner/cable TV) (p.67)
- Connecting a DVD player or Blu-ray Disc player" (p. 68)

9 HDMI connectors

Used to connect devices equipped with HDMI connectors.

• "Connection 1: TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel)" (p. 63)
• "Connection 2: TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel)" (p. 64)
• "Connecting a set-top box (Satellite tuner/cable TV)" (p. 67)
• "Connecting a DVD player or Blu-ray Disc player" (p. 68)

10 NETWORK connector

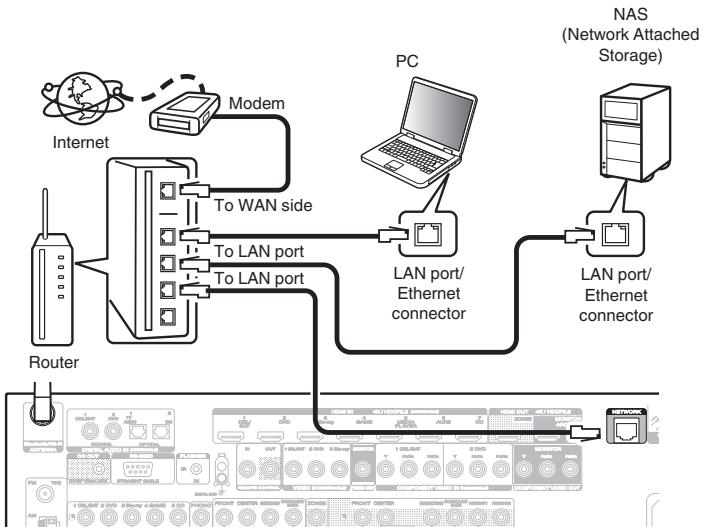

Used to connect to a LAN cable when connecting to a wired LAN network. (p. 76)

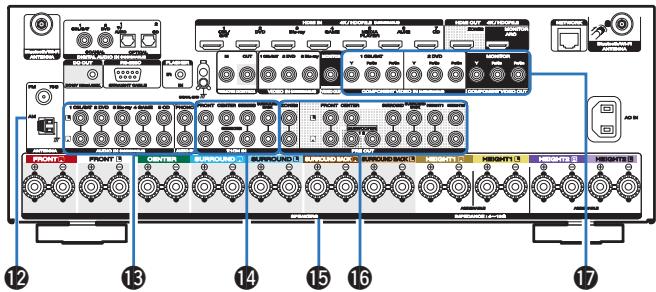

1 AC inlet (AC IN)

Used to connect the power cord. (p. 80)

FM/AM antenna terminals (ANTENNA)

Used to connect FM antennas and AM loop antennas. (p. 74)

3 Analog audio connectors (AUDIO)

Used to connect devices equipped with analog audio connectors.

• "Connecting a set-top box (Satellite tuner/cable TV)" (p.67)
• "Connecting a DVD player or Blu-ray Disc player" (p. 68)

7.1-channel input connectors (7.1CH IN)

Used to connect to a device that has multi-channel audio output connectors. (p. 71)

15 Speaker terminals (SPEAKERS)

Used to connect speakers. (p. 35)

PRE OUT connectors

Used to connect a subwoofer with built-in amplifier or an external power amplifier.

"Connecting the subwoofer" (p. 36)
- "Connection 3: Connection using an external amplifier (ZONE2)" (p.157)

Component video connectors (COMPONENTVIDEO)

Used to connect devices equipped with component video connectors.

"Connection 3: TV equipped without an HDMI connector" (p. 65)
- Connecting a set-top box (Satellite tuner/cable TV) (p.67)
- Connecting a DVD player or Blu-ray Disc player" (p. 68)

NOTE

• Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.

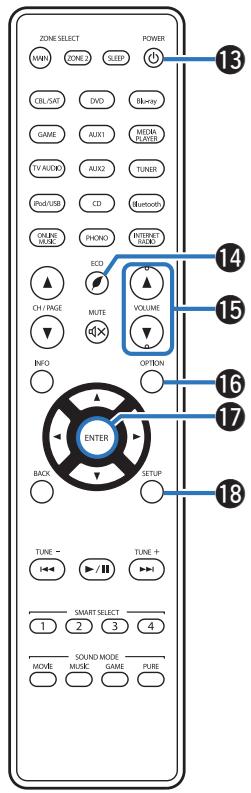

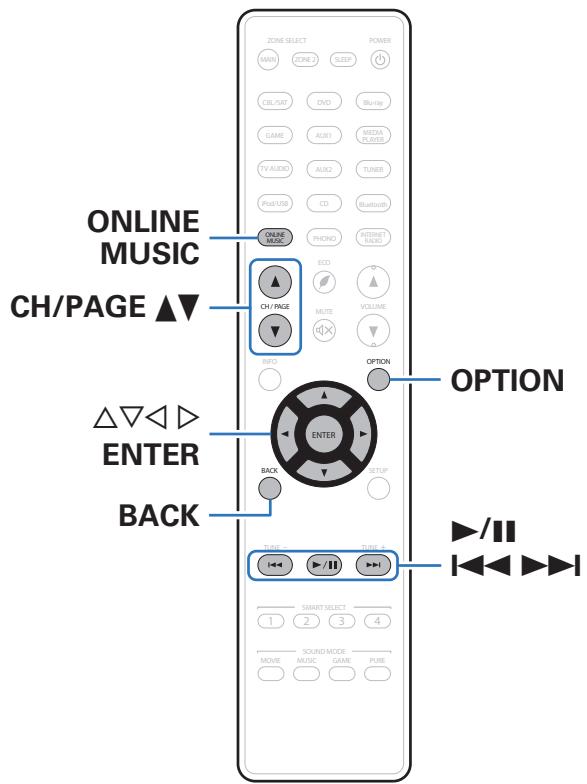

Remote control unit

ZONE SELECT buttons

These switch the zone (MAIN ZONE, ZONE2) that is operated through the remote control unit.

"Playback in ZONE2" (p. 158)
"Menu operations" (p. 163)

2 Input source select buttons

These selects the input source.

"Selecting the input source" (p. 82)
"Playback in ZONE2" (p. 158)

3 Channel/page search buttons (CH/PAGE ▲V)

These select radio stations registered to preset or switch pages. (p. 104)

MUTE button (x)

This mutes the output audio.

• "Turning off the sound temporarily (Muting)" (R8 p. 83)
• "Turning off the sound temporarily (Muting) (ZONE2)" (p. 159)

Information button (INFO)

This displays the status information on the TV screen. (p. 243)

6 Cursor buttons ( )

These select items.

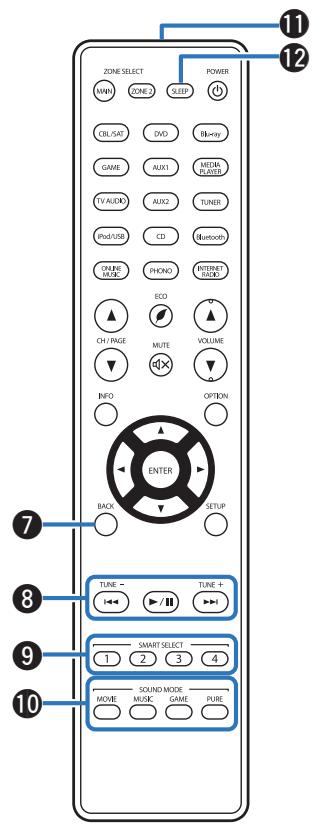

7 BACK button

This returns to the previous screen.

System buttons

These perform playback related operations.

Tuning up / Tuning down buttons (TUNE +, -)

These select either FM broadcast or AM broadcast. (p.98)

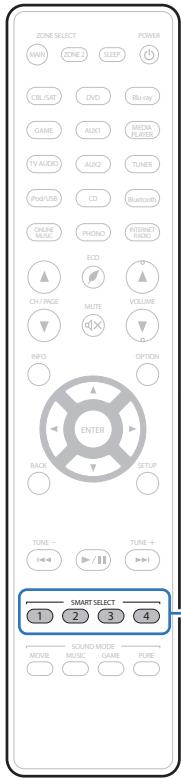

SMART SELECT buttons (1-4)

These call up settings registered to each button, such as input source, volume level and sound mode settings. (p. 148)

10 SOUND MODE buttons

Theseselectsoundmode.（p.131)

Remote control signal transmitter

This transmits signals from the remote control unit. (p.8)

12 SLEEP button

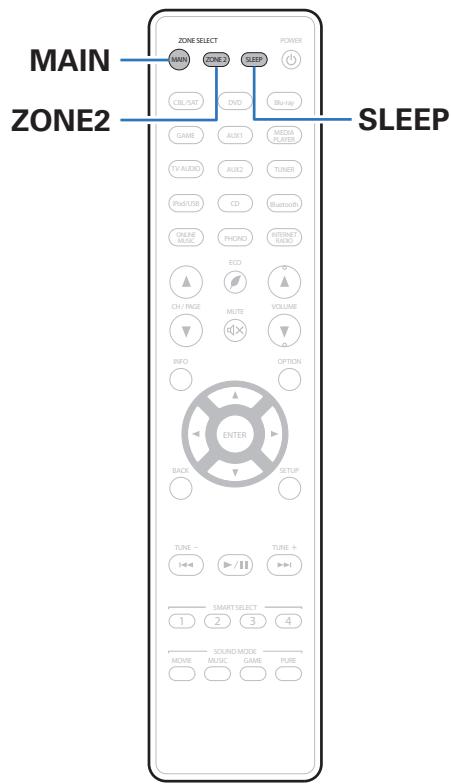

This sets the sleep timer. (p. 146)

13 POWER button (B)

This turns the power on/off.

• "Turning the power on" (p. 82)
  "Playback in ZONE2" (p. 158)

ECO Mode button (f)

This switches to ECO Mode. (p. 232)

15 VOLUME buttons (▲V)

These adjuststhe volume level.

• "Adjusting the volume" (p. 83)
• "Adjusting the volume (ZONE2)" (p. 159)

16 OPTION button

This displays the option menu on the TV screen.

ENTER button

This determines the selection.

18 SETUP button

This displays the menu on the TV screen. (p. 163)

Contents

Connecting speakers 28

Connecting a TV 62

Connecting a playback device 66

Connecting an iPod or USB memory device to the USB port 72

Connecting an FM/AM antenna 74

Connecting to a home network (LAN) 76

Connecting an external control device 78

Connecting the power cord 80

NOTE

• Do not plug in the power cord until all connections have been completed. However, when the "Setup Assistant" is running, follow the instructions in the "Setup Assistant" (page 9 in the separate "Quick Start Guide") screen for making connections. (During "Setup Assistant" operation, the input/output connectors do not conduct current.)
• Do not bundle power cords together with connection cables. Doing so can result in noise.

Cables used for connections

Provide necessary cables according to the devices you want to connect.

Speaker cable

+ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∱ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∈ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∵ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∴ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∱ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∱ ∍ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∹ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∲ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∼ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∪ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∀ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∸ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∻ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∷ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∧ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∰ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∮ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∟ ∿ ∔

Connecting speakers

Install speakers and connect them to this unit. ("Speaker installation" (p. 28), "Speaker connection" (p. 35))

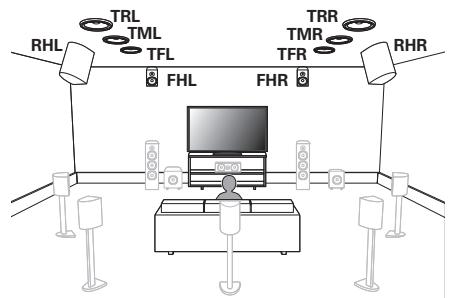

Speaker installation

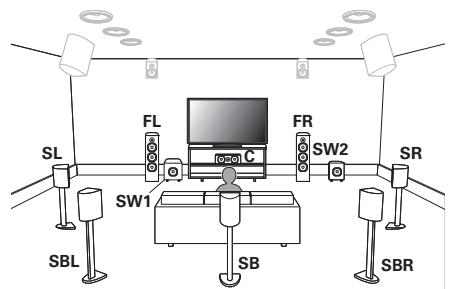

Determine the speaker system depending on the number of speakers you are using and install each speaker and subwoofer in the room.

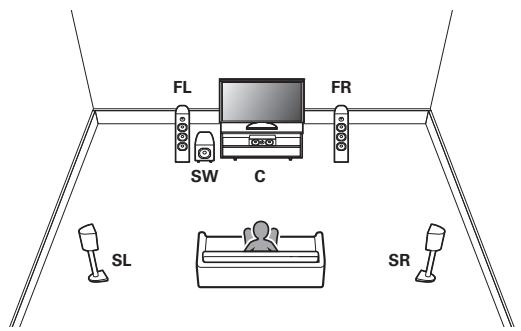

Speaker installation is explained using this example of a typical installation.

FL/FR (Front speaker left/right):	Place the FRONT left and right speakers an equal distance from the main listening position. The distance between each speaker and your TV should also be the same.
C (Center speaker):	Place the CENTER speaker in between the front speakers and above or below your TV.
SL/SR (Surround speaker left/right):	Place the SURROUND left and right speakers an equal distance to the left and right sides of the main listening position. If you don’t have surround back speakers, move the surround speakers slightly behind your listening position.
SBL/SBR (Surround back speaker left/right):	Place the SURROUND BACK left and right speakers an equal distance from the main listening position and directly behind the main listening position. When using a single surround back speaker (SB), place it directly behind the listening position.

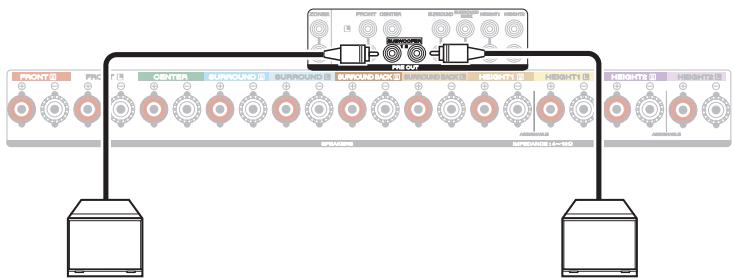

SW 1/2 (Subwoofer):	Place the SUBWOOFER at a convenient location near the front speakers. If you have two subwoofer, place them asymmetrically across the front of your room.

FHL/FHR (Front height speaker left/right):	Place the FRONT HEIGHT left and right speakers directly above the front speakers. Mount them as close to the ceiling as possible and aim them towards the main listening position.
TFL/TFR (Top front speaker left/right):	Mount the TOP FRONT left and right speakers on the ceiling slightly in front of your main listening position and aligned with the left and right front speakers.
TML/TMR (Top middle speaker left/right):	Mount the TOP MIDDLE left and right speakers directly above the main listening position and aligned with the left and right front speakers.
TRL/TRR (Top rear speaker left/right):	Mount the TOP REAR left and right speakers on the ceiling slightly behind your main listening position and aligned with the left and right front speakers.
RHL/RHR (Rear height speaker left/right):	Place the REAR HEIGHT left and right speakers directly behind the main listening position. Mount them as close to the ceiling as possible and aligned with the left and right front speakers.

FDL/FDR (Front Dolby speaker left/right):	Place the FRONT Dolby Atmos Enabled speaker on the front speaker. For a Dolby Atmos Enabled integrated with a front speaker, place the Dolby Atmos Enabled speaker instead of the front speaker.
SDL/SDR (Surround Dolby speaker left/right):	Place the SURROUND Dolby Atmos Enabled speaker on the surround speaker. For a Dolby Atmos Enabled speaker integrated with a surround speaker, place the Dolby Atmos Enabled speaker instead of the surround speaker.
BDL/BDR (Back Dolby speaker left/right):	Place the BACK Dolby Atmos Enabled speaker on the surround back speaker. For a Dolby Atmos Enabled speaker integrated with a surround back speaker, place the Dolby Atmos Enabled speaker instead of the surround back speaker.

About Dolby Atmos Enabled speakers

Dolby Atmos Enabled speakers reflect the sound off the ceiling to allow the sound to come from over your head by using a special upward-pointing speaker that is placed on the floor.

You can enjoy the Dolby Atmos 3D sound even in an environment where speakers cannot be installed on the ceiling.

• This unit is compatible with Dolby Atmos and DTS:X which offers an even wider and deeper surround sensation.
• Dolby Atmos is not supported in a 5.1ch or less speaker configuration.
• DTS:X can be selected regardless of the speaker configuration.
• Use the illustration below as a guide for how high each speaker should be installed. The height does not need to be exactly the same.

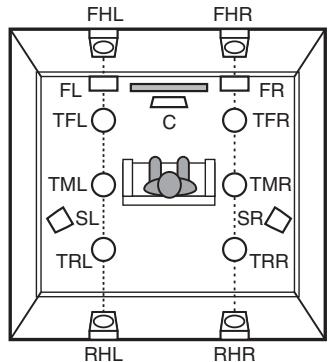

Height speakers layout
[Viewed from the top]

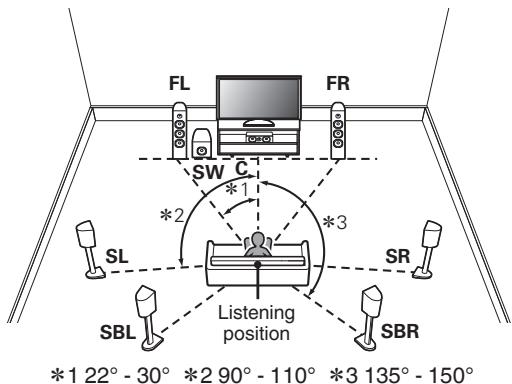

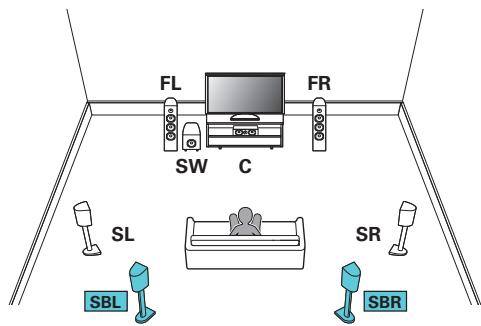

■ When 7.1-channel speakers are installed using surround back speakers

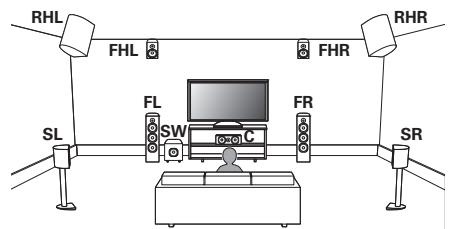

When 5.1-channel speakers are installed

• When using a single surround back speaker, place it directly behind the listening position.

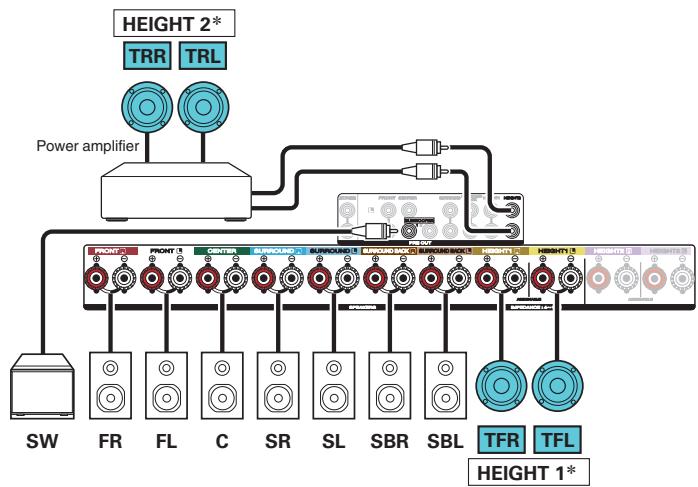

■ Layout including height speakers and ceiling speakers

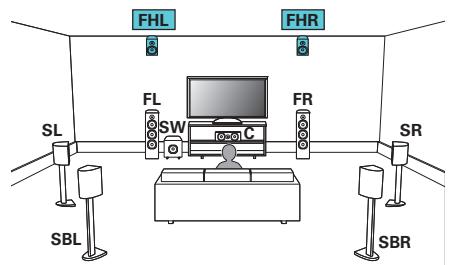

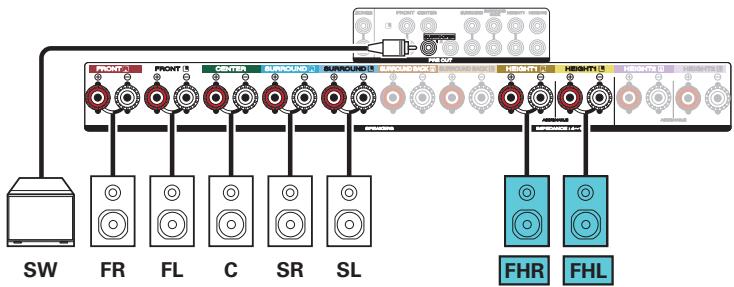

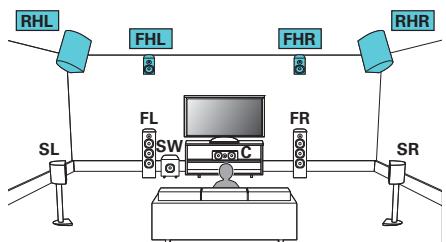

Height speaker layout example

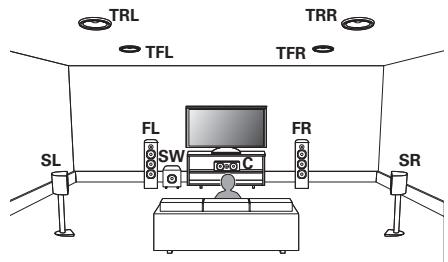

Combination of 5.1-channel layout and front height/rear height speakers.

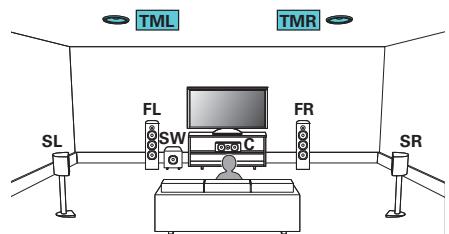

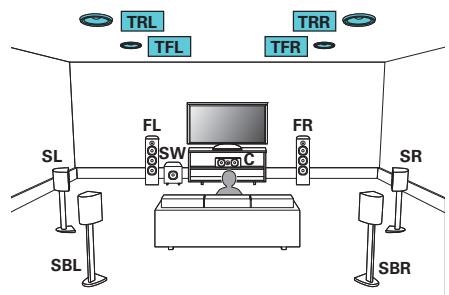

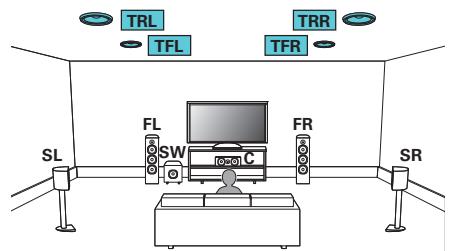

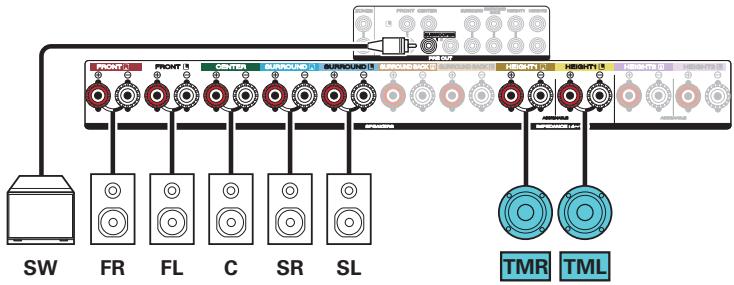

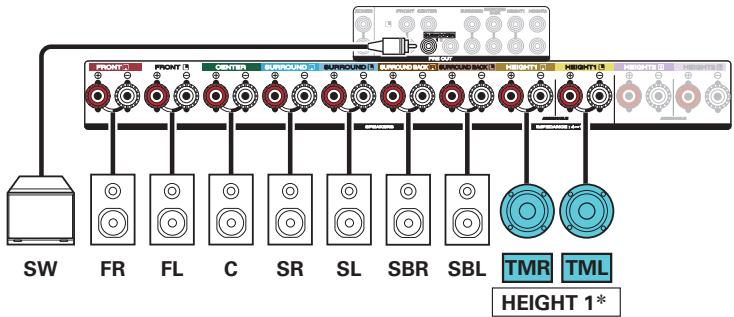

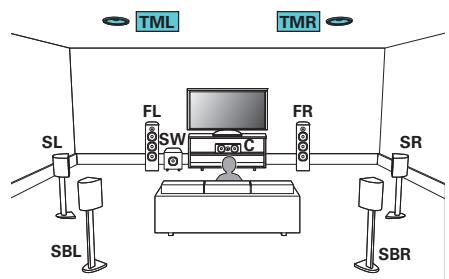

Ceiling speaker layout example

Combination of 5.1-channel layout and top front/top rear speakers.

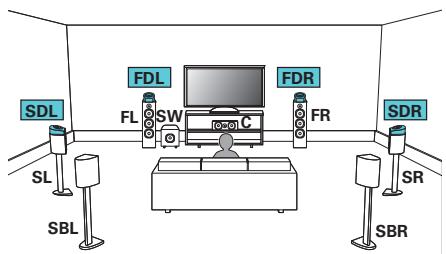

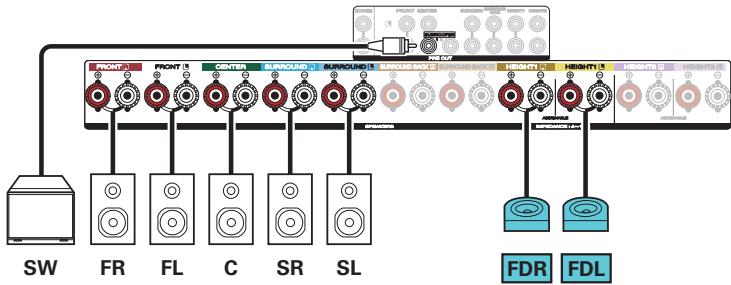

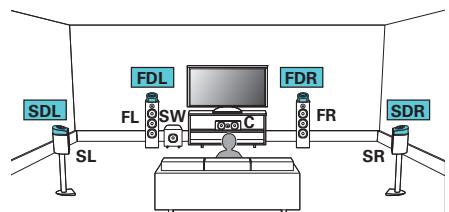

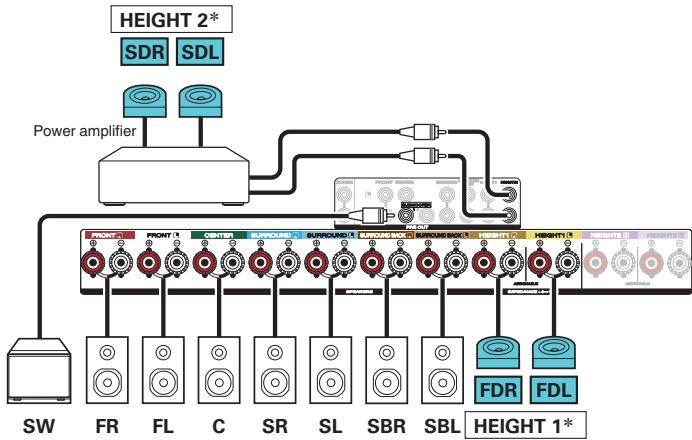

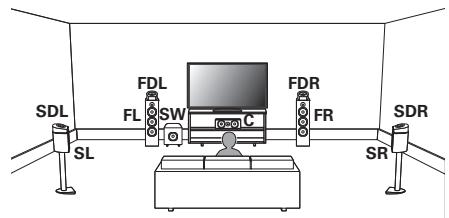

Dolby Atmos Enabled speaker layout example

Combination of 5.1-channel layout and front Dolby/surround Dolby speakers.

Speaker connection

Here we connect the speakers in the room to this unit.

This section explains how to connect them using typical examples.

NOTE

• Disconnect this unit's power plug from the power outlet before connecting the speakers. Also, turn off the subwoofer.
• Connect so that the speaker cable core wires do not protrude from the speaker terminal. The protection circuit may be activated if the core wires touch the rear panel or if the + and - sides touch each other. ("Protection circuit" (p. 293))
• Never touch the speaker terminals while the power cord is connected. Doing so could result in electric shock. When the "Setup Assistant" (page 9 in the separate "Quick Start Guide") is running, follow the instructions in the "Setup Assistant" screen for making connections. (Power is not supplied to the speaker terminals while the "Setup Assistant" is running.)
• Use speakers with an impedance of 4 - 16 Ω/ohms.

NOTE

• Carry out the following settings when using a speaker with an impedance of 4 - 6 / ohms.

• Press and hold the main unit's ZONE2 SOURCE and STATUS at the same time for at least 3 seconds.

"Video Format < PAL>" appears on the display.

1. Press DIMMER on the main unit twice.
   "Sp.lmp. <8ohms>" appears on the display.
2. Press TUNER PRESET CH + or TUNER PRESET CH - on the main unit to select the impedance.

6ohms:	Select when the impedance for any of the connected speakers is 6 Ω/ohms.
4ohms:	Select when the impedance for any of the connected speakers is 4 Ω/ohms.

1. Press the main unit's STATUS to complete the setting.

- Connecting the speaker cables

Carefully check the left (L) and right (R) channels and + (red) and - (black) polarities on the speakers being connected to this unit, and be sure to connect the channels and polarities correctly.

Peel off about 10mm of sheathing from the tip of the speaker cable, then either twist the core wire tightly or terminate it.

2 Turn the speaker terminal counterclockwise to loosen it.

3 Insert the speaker cable's core wire to the hilt into the speaker terminal.

4 Turn the speaker terminal clockwise to tighten it.

- Connecting the subwoofer

Use a subwoofer cable to connect the subwoofer. Two subwoofer can be connected to this unit.

To use two subwoofoers, set "Subwoofer" to "2 spkrs" in the "Speaker Config." setting. (p. 215)

The level and distance can be set separately for Subwoofer 1 and Subwoofer 2.

SW1
SW2

About the cable label (supplied) for channel identification

The channel display section for speaker terminals on the rear panel is color-coded for each channel to be identifiable.

Attach the cable label corresponding to each speaker to each speaker cable.

This makes it easy to connect the correct cable to the speaker terminals on the rear panel.

Speaker terminals	Color
FRONT L	White
FRONT R	Red
CENTER	Green
SURROUND L	Light blue
SURROUND R	Blue
SURROUND BACK L	Beige
SURROUND BACK R	Brown
FRONT HEIGHT L	Light Yellow
FRONT HEIGHT R	Yellow
TOP FRONT L	Light Yellow
TOP FRONT R	Yellow
TOP MIDDLE L	Light Purple
TOP MIDDLE R	Purple
TOP REAR L	Light Purple
TOP REAR R	Purple
REAR HEIGHT L	Light Purple
REAR HEIGHT R	Purple
FRONT DOLBY L	Light Yellow
FRONT DOLBY R	Yellow
SURROUND DOLBY L	Light Purple
SURROUND DOLBY R	Purple
BACK DOLBY L	Light Purple
BACK DOLBY R	Purple
SUBWOOFER	Black

Attach the cable label for each channel to its speaker cable as shown in the diagram.

Refer to the table and attach the label to each speaker cable.

Then, make connection so that the color of the speaker terminal matches that of the cable label.

【How to attach the cable label】
Speaker

This unit

Speaker configuration and "Amp Assign" settings

This unit has a built-in 9-channel power amplifier. In addition to the basic 5.1-channel system, a variety of speaker systems can be configured by changing the "Amp Assign" settings to suit the application, such as 7.1-channel systems, bi-amp connections and 2-channel systems for multi-zone playback.

(20 p. 209)

Perform "Amp Assign" settings to suit the number of rooms and speaker configuration to be installed. (p. 209)

Playback speaker in each zone		“Amp Assign” settings	Connection page
MAIN ZONE	ZONE2
5.1-channel playback	2-channel (Pre-out)	Can be set in all “Amp Assign” modes.	41
7.1-channel playback		7.1ch + ZONE2	42
9.1-channel playback		9.1ch (Default)	46
11.1-channel playback		11.1ch	53
7.1-channel playback (bi-amp connection of front speakers)		7.1ch (Bi-Amp)	57
Second front speakers		7.1ch + Front B	58
7.1-channel playback	2-channel (Speaker out)	7.1ch + ZONE2	59
5.1-channel playback (bi-amp connection of front speakers)	2-channel (Speaker out)	5.1ch (Bi-Amp) + ZONE2	60

The sound mode that can be selected varies according to the speaker configuration. See "Relationship between sound modes and channel output" (p. 277) for the sound modes that are supported.

The following pages provide basic connection examples.

• In addition to the connections described in p.41 - 60, this unit allows for various speaker connections with the "Amp Assign" setting.

Also refer to the menu screen in "View Terminal Config." on the "Amp Assign" setting screen, which shows how to make connections in your environment.

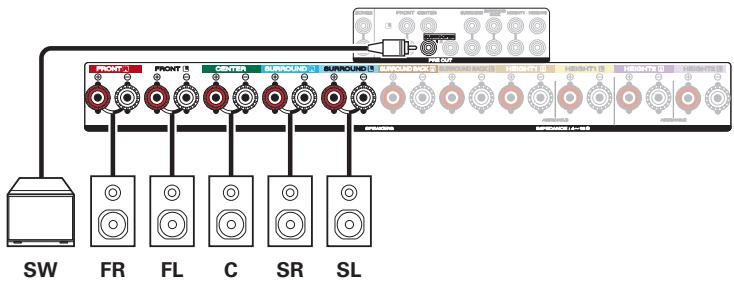

5.1-channel playback

This serves as a basic 5.1-channel surround system.

7.1-channel playback

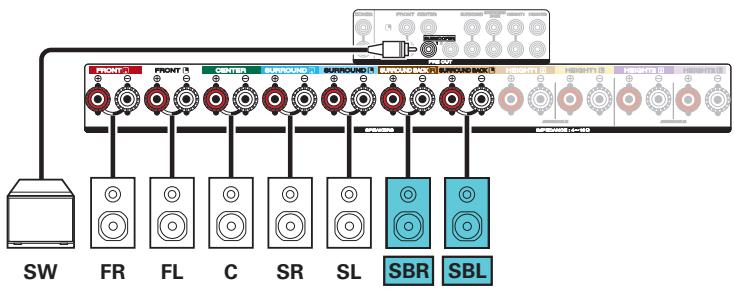

Example connections when using surround back speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround back speakers.

• Set "Floor" - "Layout" to "5ch & SB" in the menu when connecting in this configuration. (p. 211)

• When using a single surround back speaker, connect it to the SURROUND BACK L terminal.

Example connections when using ceiling speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with ceiling speakers.

• Set "Floor" - "Layout" to "5ch" and "Height Sp" to "2ch" in the menu when connecting in this configuration. (p. 211)
• The top front or top rear speakers can be connected instead of the top middle speakers. In this case, set the ceiling speakers to be connected under "Height" - "Layout" in the menu. (p. 212)

Example connections when using height speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with front height speakers.

• Set "Floor" - "Layout" to "5ch" and "Height Sp" to "2ch" in the menu when connecting in this configuration. (p.211)
  The rear height speakers can be connected instead of the front height speakers. In this case, set the height speakers to be connected under "Height" - "Layout" in the menu. (p. 212)

Example connections when using Dolby Atmos Enabled speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with front Dolby speakers.

• Set "Floor" - "Layout" to "5ch" and "Dolby Sp" to "2ch" in the menu when connecting in this configuration. (p. 211)
• The surround Dolby speakers can be connected instead of the front Dolby speakers. In this case, set the Dolby Atmos Enabled speakers to be connected under "Height" - "Layout" in the menu. (p. 212)

9.1-channel playback

This system, which is based on a 5.1-channel system, plays back up to 9.1-channels at the same time.

You can connect speakers for up to 11-channels for MAIN ZONE. When you connect speakers for 10 or more channels, the output speakers automatically switch according to the input signal and sound mode.

Example connection when using one set of ceiling speakers

• Set "Height" - "Height Sp" to "2ch" in the menu when connecting in this configuration. (p. 211)

• The top front or top rear speakers can be connected instead of the top middle speakers. In this case, set the ceiling speakers to be connected under "Height" - "Layout" in the menu. (p. 212)

Example connection when using two sets of ceiling speakers

• Set "Height" - "Height Sp" to "4ch" in the menu when connecting in this configuration. (p. 211)

• You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. (i .52)

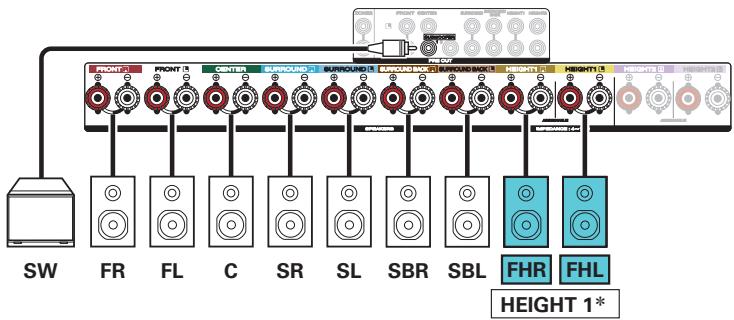

Example connection when using one set of height speakers

• Set "Height" - "Height Sp" to "2ch" in the menu when connecting in this configuration. (p. 211)

• The rear height speakers can be connected instead of the front height speakers. In this case, set the height speakers to be connected under "Height" - "Layout" in the menu. (p. 212)

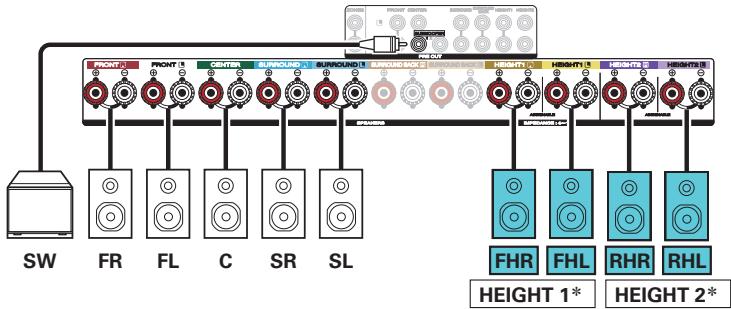

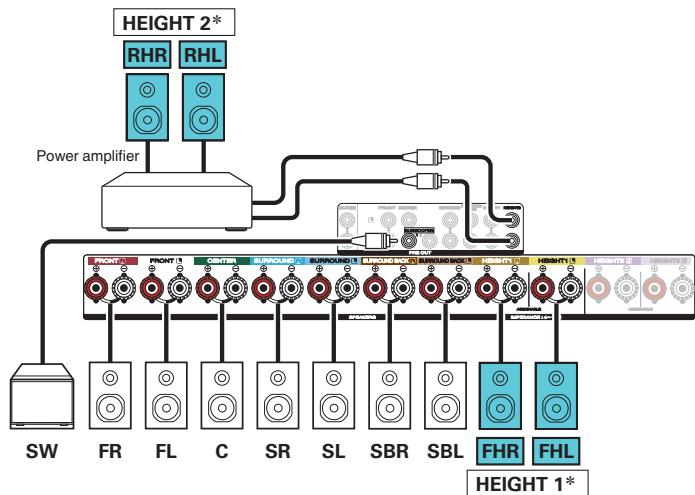

Example connection when using two sets of height speakers

• Set "Height" - "Height Sp" to "4ch" in the menu when connecting in this configuration. (p. 211)

• You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. (IC p. 52)

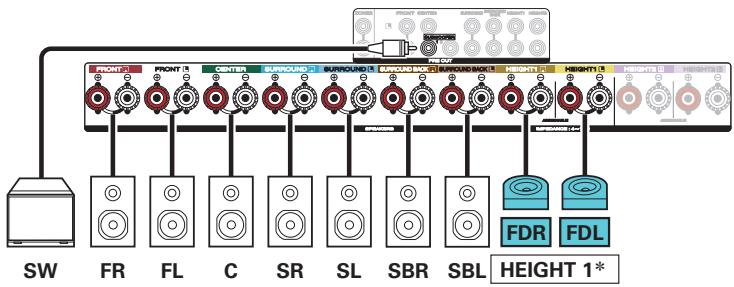

Example connection when using one set of Dolby Atmos Enabled speakers

• Set "Height" - "Dolby Sp" to "2ch" in the menu when connecting in this configuration. (p. 211)

• The surround Dolby speakers can be connected instead of the front Dolby speakers. In this case, set the Dolby Atmos Enabled speakers to be connected under "Height" - "Layout" in the menu. (i p. 212)

Example connection when using two sets of Dolby Atmos Enabled speakers

• Set "Height" - "Dolby Sp" to "4ch" in the menu when connecting in this configuration. (p.211)

• You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. (i .52)

• Channels output from the HEIGHT1 and HEIGHT2 speaker terminals can be changed to the following patterns according to the speaker systems being used.

Set this from "Amp Assign" in the menu. (p. 209)

Combination of height speakers to be used			Connected terminals
Number of height/ceiling speakers	Number of Dolby Speakers	Combination pattern	HEIGHT1 SPEAKER	HEIGHT2 SPEAKER
2 speakers	None	Front Height	Front Height	-
		Top Front	Top Front	-
		Top Middle	Top Middle	-
		Top Rear	Top Rear	-
		Rear Height	Rear Height	-
None	2 speakers	Front Dolby	Front Dolby	-
		Surround Dolby	Surround Dolby	-
		Back Dolby	Back Dolby	-
4 speakers	None	Front Height & Top Middle	Front Height	Top Middle
		Front Height & Top Rear	Front Height	Top Rear
		Front Height & Rear Height	Front Height	Rear Height
		Top Front & Top Rear	Top Front	Top Rear
		Top Front & Rear Height	Top Front	Rear Height
		Top Middle & Rear Height	Top Middle	Rear Height
2 speakers	2 speakers	Front Dolby & Top Rear	Front Dolby	Top Rear
		Front Dolby & Rear Height	Front Dolby	Rear Height
		Front Height & Surr. Dolby	Front Height	Surround Dolby
		Top Front & Surround Dolby	Top Front	Surround Dolby
None	4 speakers	Front Dolby & Surround Dolby	Front Dolby	Surround Dolby

11.1-channel playback

This system, which is based on a 5.1-channel system, plays back up to 11.1-channels at the same time.

You can connect speakers for 11-channels for MAIN ZONE by using an external power amplifier.

Example connection when using two sets of ceiling speakers

• Set "Height" - "Height Sp" to "4ch" in the menu when connecting in this configuration. (p. 211)

• You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. (ICP.p.56)

Example connection when using two sets of height speakers

• Set "Height" - "Height Sp" to "4ch" in the menu when connecting in this configuration. (p. 211)

• You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. (i .56)

Example connection when using two sets of Dolby Atmos Enabled speakers

• Set "Height" - "Dolby Sp" to "4ch" in the menu when connecting in this configuration. (p.211)

• You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. (ICP.p.56)

• The combination of the HEIGHT1 and HEIGHT2 channels can be changed to the following patterns according to the speaker system being used.

Set this from "Amp Assign" in the menu. (p. 209)

Combination of height speakers to be used			Connected terminals
Number of height/ceiling speakers	Number of Dolby Speakers	Combination pattern	HEIGHT1 SPEAKER	HEIGHT2 PRE OUT
2 speakers	None	Front Height	Front Height	-
		Top Front	Top Front	-
		Top Middle	Top Middle	-
		Top Rear	Top Rear	-
		Rear Height	Rear Height	-
4 speakers	None	Front Height & Top Middle	Front Height	Top Middle
		Front Height & Top Rear	Front Height	Top Rear
		Front Height & Rear Height	Front Height	Rear Height
		Top Front & Top Rear	Top Front	Top Rear
		Top Front & Rear Height	Top Front	Rear Height
		Top Middle & Rear Height	Top Middle	Rear Height
None	2 speakers	Front Dolby	Front Dolby	-
		Surround Dolby	Surround Dolby	-
		Back Dolby	Back Dolby	-
2 speakers	2 speakers	Front Dolby & Top Rear	Front Dolby	Top Rear
		Front Dolby & Rear Height	Front Dolby	Rear Height
		Front Height & Surr. Dolby	Front Height	Surround Dolby
		Front Height & Back Dolby	Front Height	Back Dolby
		Top Front & Surround Dolby	Top Front	Surround Dolby
		Top Front & Back Dolby	Top Front	Back Dolby
None	4 speakers	Front Dolby & Surround Dolby	Front Dolby	Surround Dolby
		Front Dolby & Back Dolby	Front Dolby	Back Dolby

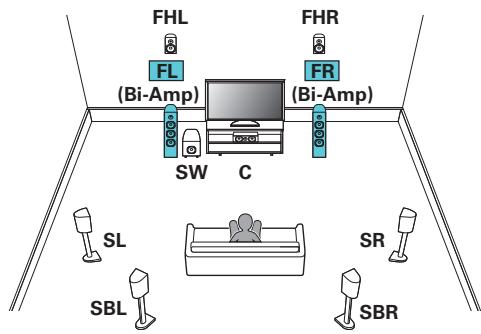

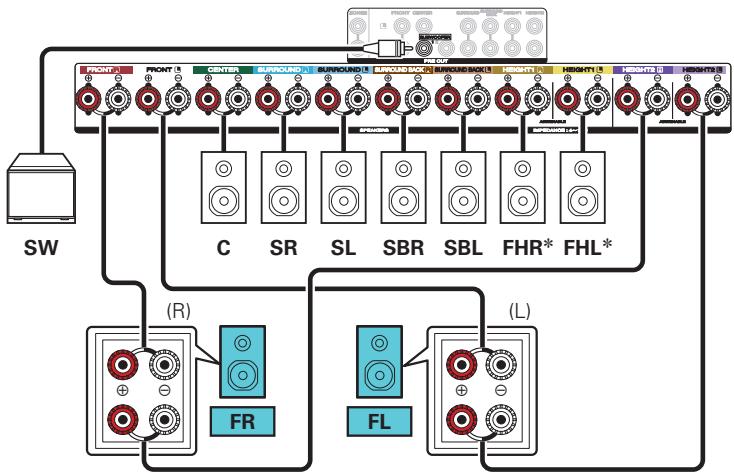

7.1-channel playback (bi-amp connection of front speakers)

This system plays back 7.1-channels. You can use the bi-amp connection for front speakers. Bi-amp connection is a method to connect separate amplifiers to the tweeter terminal and woofer terminal of a speaker that supports bi-amplification. This connection enables back EMF (power returned without being output) from the woofer to flow into the tweeter without affecting the sound quality, producing a higher sound quality.

You can connect speakers for up to 9-channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers automatically switch according to the input signal and sound mode.

NOTE

• When making bi-amp connections, be sure to remove the short-circuiting plate or wire between the speaker's woofer and tweeter terminals.

• The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1 speaker terminals. Set the speaker to be connected from "Height" - "Layout" in the menu. (© p. 212)

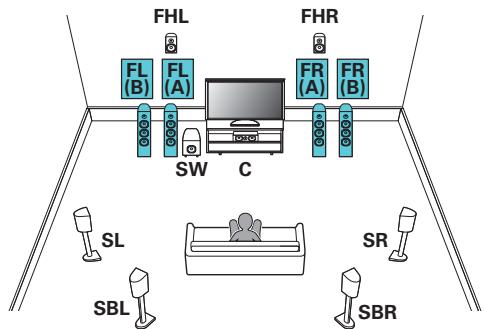

7.1-channel playback + second pair of front speakers

This system enables switching playback between front speakers A and B as desired.

You can connect speakers for up to 9-channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers automatically switch according to the input signal and sound mode.

* The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1 speaker terminals. Set the speaker to be connected from “Height” - “Layout” in the menu. (p. 212)

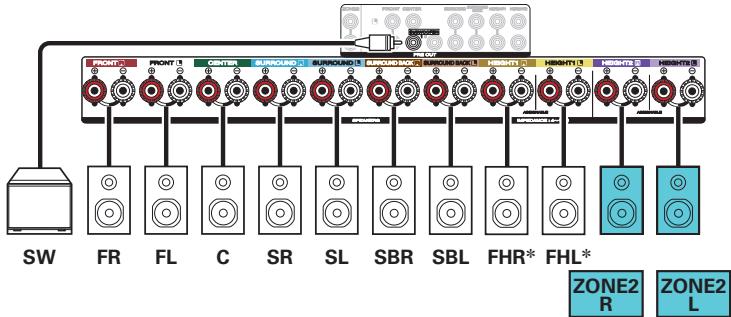

7.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2)

This type of configuration plays back 7.1-channels in MAIN ZONE and 2-channels in ZONE2.

You can connect speakers for up to 9-channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers automatically switch according to the input signal and sound mode.

ZONE2

* The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1 speaker terminals. Set the speaker to be connected from “Height” - “Layout” in the menu. (p. 212)

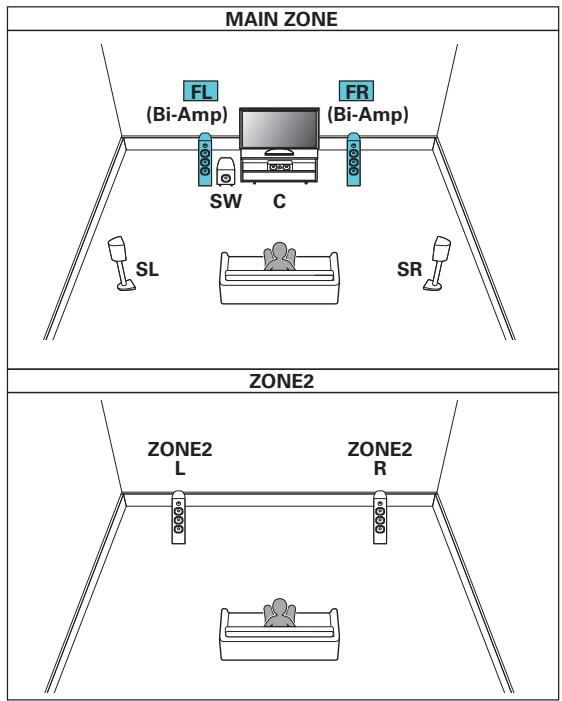

5.1-channel playback (bi-amp connection of front speakers: MAIN ZONE) + 2-channel playback (ZONE2)

This type of configuration plays back 5.1-channels in MAIN ZONE and 2-channels in ZONE2. You can use the bi-amp connection for front speakers in MAIN ZONE.

- Connecting an external power amplifier

You can use this unit as a pre-amp by connecting an external power amplifier to the PRE OUT connectors. By adding a power amplifier to each channel, the realness of the sound can be further enhanced.

Select the terminal to use and connect the device.

• When using just one surround back speaker, connect it to the left channel (L) terminal.

Connecting a TV

Connect a TV to this unit so that the input video is output to the TV. You can also enjoy audio from the TV on this unit.

How to connect a TV depends on the connectors and functions equipped on the TV.

ARC (Audio Return Channel) function plays TV audio on this unit by sending the TV audio signal to this unit via HDMI cable.

"Connection 1: TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel)" (p.63)

"Connection 2: TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel)" (p.64)

"Connection 3: TV equipped without an HDMI connector" (p. 65)

Connection 1 : TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel)

Use an HDMI cable to connect a TV that is compatible with the ARC function to this unit.

Set "HDMI Control" to "On" when using a TV that supports the ARC function. (p. 183)

• When using the ARC function, connect to the HDMI MONITOR connector.

Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel)

Use an HDMI cable to connect the TV to this unit.

To listen to audio from TV on this unit, use an optical cable to connect the TV to this unit.

Connection 3 : TV equipped without an HDMI connector

Use a component video or a video cable to connect the TV to this unit.

To listen to audio from TV on this unit, use an optical cable to connect the TV to this unit.

Connecting a playback device

This unit is equipped with three types of video input connectors (HDMI, component video and composite video) and three types of audio input connectors (HDMI, digital audio and audio).

Select input connectors on this unit according to the connectors equipped on the device you want to connect.

If the device connected to this unit is equipped with an HDMI connector, it is recommended to use HDMI connections.

In the HDMI connection, audio and video signals can be transmitted through a single HDMI cable.

• Connecting a set-top box (Satellite tuner/cable TV) (R 67
• Connecting a DVD player or Blu-ray Disc player" (p. 68)
• "Connecting a video camcorder or game console" (19 p. 69)
  "Connecting a turntable" (p. 70)

• Connect devices to this unit as indicated by the input sources printed on the audio/video input connectors of this unit.
  The source that is assigned to the HDMI IN, DIGITAL AUDIO IN, COMPONENT VIDEO IN,VIDEO IN and AUDIO IN connectors can be changed. See "Input Assign" on how to change the input source assigned to the input connectors. (p. 193)
  To play back audio signals that are input to this unit on a TV connected via HDMI, set in the menu "HDMI Audio Out" to "TV". (p. 181)
  To enjoy content that is copyright protected by HDCP 2.2, use a playback device and TV compatible with HDCP 2.2 only.

Connecting a set-top box (Satellite tuner/cable TV)

This explanation uses the connection with a satellite tuner/cable TV STB as an example.

Select the input connectors on this unit to match the connectors on the device that you want to connect to.

(HDMI incompatible device)

Connecting a DVD player or Blu-ray Disc player

This explanation uses the connection with a DVD player or Blu-ray Disc player as an example. Select the input connectors on this unit to match the connectors on the device that you want to connect to.

Connecting a video camcorder or game console

This explanation uses the connection with a video camcorders as an example.

Connect a playback device to this unit, such as a video camcorder or game console.

Connecting a turntable

This unit is compatible with turntables equipped with a moving magnet (MM) phono cartridge. When you connect to a turntable with a low output moving coil (MC) cartridge, use a commercially available MC head amp or a step-up transformer.

If you set this unit's input source to "Phono" and you accidentally increase the volume without having a turntable connected, you may hear a hum noise from the speakers.

NOTE

• The earth terminal (SIGNAL GND) of this unit is not for safety grounding purposes. If this terminal is connected when there is a lot of noise, the noise can be reduced. Note that depending on the turntable, connecting the ground line may have the reverse effect of increasing noise. In this case, it is not necessary to connect the ground line.

Connecting a device with a multi-channel output connector

You can connect this unit to an external device fitted with multi-channel sound audio output connectors to enjoy music and video.

To play analog signals input from 7.1CH IN connectors, set "Input Mode" to "7.1CH IN". (p. 197)

Devices with a multi-channel output connector (Blu-ray Disc player, DVD player, External decoder etc.)

The video signal can be connected in the same way as a Blu-ray Disc player/DVD player. "Connecting a DVD player or Blu-ray Disc player" (p. 68)

Connecting an iPod or USB memory device to the USB port

To connect an iPod to this unit, use the USB adapter cable that was supplied with the iPod.

For operating instructions see "Playing an iPod" (1p. 84) or "Playing a USB memory device" (1p. 89).

• Marantz does not guarantee that all USB memory devices will operate or receive power. When using a portable USB hard disk drive (HDD) which came with an AC adapter, use that device's supplied AC adapter.

NOTE

• USB memory devices will not work via a USB hub.
• It is not possible to use this unit by connecting the unit's USB port to a PC via a USB cable.
• Do not use an extension cable when connecting a USB memory device. This may cause radio interference with other devices.

Supported iPod/iPhone models

- iPod classic

iPod classic 80GB

Pod classic 160GB (2007)

Pod classic 160GB (2009)

- iPod nano

iPod nano 3rd generation (video) 4GB 8GB

iPod nano 4th generation (video) 8GB 16GB

iPod nano 5th generation (video camera) 8GB 16GB

iPod nano 6th generation 8GB 16GB

iPod nano 7th generation 16GB

- iPod touch

iPod touch 2nd generation 8GB 16GB 32GB

iPod touch 3rd generation 32GB 64GB

iPod touch 4th generation 8GB 16GB 32GB 64GB

iPod touch 5th generation 16GB 32GB 64GB

iPhone

iPhone 3G 8GB 16GB

iPhone 3GS 8GB 16GB 32GB

iPhone 4
8GB 16GB 32GB

iPhone 4S 16GB 32GB 64GB

iPhone 5
iPhone 5c iPhone 5s
16GB 32GB 64GB

Connecting an FM/AM antenna

Connect the antenna, tune in to a broadcast and then move the antenna to the location where there is least noise. Then use tape, etc. to fix the antenna in this location. ("Listening to FM/AM broadcasts" (p. 97))

• If you are unable to receive a good broadcast signal, we recommend installing an outdoor antenna. For details, inquire at the retail store where you purchased the unit.

NOTE

• Make sure the AM loop antenna lead terminals do not touch metal parts of the panel.

Using the AM loop antenna

Suspending on a wall

Suspend directly on a wall without assembling.

Nail, tack, etc.

Standing alone

Use the procedure shown above to assemble.

When assembling, refer to "AM loop antenna assembly".

AM loop antenna assembly

1 Put the stand section through the bottom of the loop antenna from the rear and bend it forward.
2 Insert the projecting part into the square hole in the stand.

Connecting to a home network (LAN)

This unit can connect to a network using a wired LAN or wireless LAN. You can connect this unit to your home network (LAN) to enable various types of playback and operations as described below.

• Playback of network audio such as Internet Radio and from your media server(s)
  Using the Apple AirPlay function

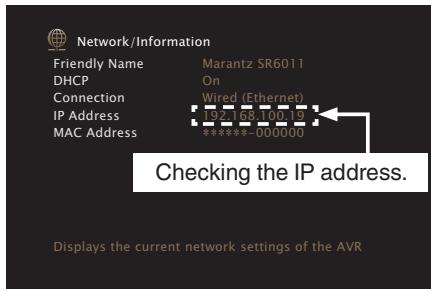

  Operation on this unit via the network
• Firmware Update

For connections to the Internet, contact an ISP (Internet Service Provider) or a computer shop.

Wired LAN

To make connections via wired LAN, use a LAN cable to connect the router to this unit as shown in the figure below.

Wireless LAN

When connecting to the network via wireless LAN, connect the external antennas for Bluetooth/wireless connectivity connection to the rear panel and stand them upright.

See "Wi-Fi Setup" on how to connect to a wireless LAN router.

(20 p. 225)

Router with access point

• When using this unit, we recommend you use a router equipped with the following functions:

Built-in DHCP server

This function automatically assigns IP addresses on the LAN.

Built-in 100BASE-TX switch

When connecting multiple devices, we recommend a switching hub with a speed of 100 Mbps or greater.

• Only use a shielded STP or ScTP LAN cable (readily available at electronics stores). (CAT-5 or greater recommended)
• The normal shielded-type LAN cable is recommended.

If a flat-type cable or unshielded-type cable is used, other devices could be affected by noise.

• When using a router that supports the WPS (Wi-Fi Protected Setup) function, Wi-Fi connection can be carried out easily.
• When using this unit connected to a network with no DHCP function, configure the IP address, etc. in "Network". (12 p. 224)

NOTE

• The types of routers that can be used depend on the ISP. Contact your ISP or a computer shop for details.
• This unit is not compatible with PPPoE. A PPPoE compatible router is required if your contracted line is not set using PPPoE.
• Do not connect a NETWORK connector directly to the LAN port / Ethernet connector on your computer.
• Various online services may be discontinued without prior notice.

Connecting an external control device

REMOTE CONTROL jacks

Performing operations by RC on this unit without visual contact

You can connect an external IR receiver to the REMOTE CONTROL connectors to perform operations on this unit with the supplied remote control unit without visual contact. This might be necessary if the unit is hidden in a cupboard or corner, so you can't directly point with the remote control unit to the device.

To do this, disable the remote control signal receiving function ("Remote lock function" (p. 155)).

NOTE

• When the remote control signal receiving function is disabled, you can not perform operations with the remote control unit.

Remotely connecting Marantz devices

When you are using a Marantz device other than this unit that supports remote connection, you can transmit remote control signals just by connecting the device to the REMOTE CONTROL IN/OUT connector with a monaural cable.

Set the remote control switch located on the rear panel of the connected audio component to "EXTERNAL" or "EXT." to use this feature.

DC OUT jack

When a device with DC IN jack is connected, the connected device's power on/standby can be controlled through linked operation to this unit. The DC OUT jack outputs a maximum 12 V DC/150 mA electrical signal.

NOTE

• Use a monaural mini-plug cable for connecting the DC OUT jack. Do not use a stereo mini-plug cable.
• If the permissible trigger input level for the connected device is larger than 12VDC / 150mA , or has shorted, the DC OUT jack cannot be used. In this case, turn off the power to the unit, and disconnect it.

Connecting the power cord

After completing all the connections, insert the power plug into the power outlet.

To household power outlet (AC 230 V, 50/60 Hz)

Contents

Basic operation

Turning the power on	82
Selecting the input source	82
Adjusting the volume	83
Turning off the sound temporarily (Muting)	83
Selecting a sound mode	131

Playback a device

Playing a DVD player/Blu-ray Disc player	83
Playing an iPod	84
Playing a USB memory device	89
Listening to music on a Bluetooth device	92
Listening to FM/AM broadcasts	97

Playback network audio/service

Listening to Internet Radio	108
Playing back files stored on a PC or NAS	112
AirPlay function	116
Spotify Connect function	119

Convenience functions

Convenience functions	120
HDMI Control function	143
Smart Menu function	144
Sleep timer function	146
Smart select function	148
Panel lock function	153
Remote lock function	155

Other functions

Web control function	151
Playback in ZONE2 (Separate room)	156

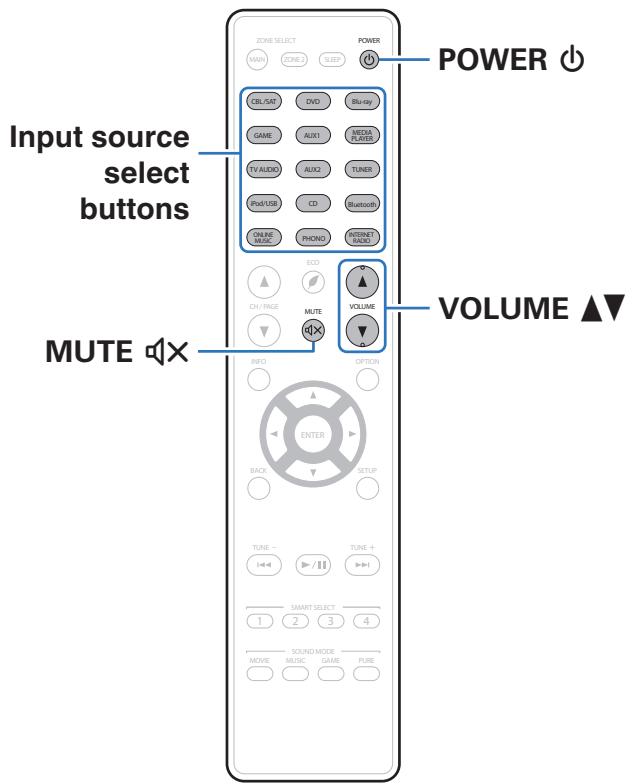

Basic operation

Turning the power on

1 Press POWER to turn on power to the unit.

• You can press the input source select button when the unit is in standby mode to turn on the power.
• You can also switch the power to standby by pressing on the main unit.

Selecting the input source

1 Press the input source select button to be played back. The desired input source can be selected directly.

• You can also select the input source by turning INPUT SELECTOR on the main unit.

Adjusting the volume

1 Use VOLUME to adjust the volume.

• The variable range differs according to the input signal and channel level setting.
• You can also adjust the master volume by turning VOLUME on the main unit.

Turning off the sound temporarily (Muting)

1 Press MUTE x

"MUTE" appears on the display.
- × appears on the TV screen.

• The sound is reduced to the level set at "Mute Level" in the menu. (p. 173)
• To cancel mute, either adjust the sound volume or press MUTE × again.

Playback a DVD player/Blu-ray Disc player

The following describes the procedure for playing DVD player/Blu-ray Disc player.

1 Prepare for playback.

① Turn on the power of the TV, subwoofer and player.
② Change the TV input to the input of this unit.

2 Press POWER to turn on power to the unit.

3 Press DVD or Blu-ray to switch an input source for a player used for playback.

4 Play the DVD player or Blu-ray Disc player.

Surround playback (p. 131)

Playing an iPod

• You can use the USB cable provided with the iPod to connect the iPod with the unit's USB port and enjoy music stored on the iPod.
• For information on the iPod models that can be played back with this unit, see "Supported iPod/iPhone models" (p. 73).
• See "AirPlay function" (p. 116) on how to play a music file saved on an iPhone, iPod touch, iPad or iTunes on this unit via the network.

Listening to music on an iPod

1 Connect the iPod to the USB port. (p. 72)
2 Press iPod/USB to switch the input source to "iPod/USB".

"Browse from iPod" is displayed on the display of this unit.

• Nothing is displayed on the TV screen.

3 Operate iPod itself while seeing the iPod screen to play back music.

• "iPod Browse Mode" has two modes, "From iPod" and "On-Screen". The default setting is "From iPod" that operates the iPod itself while looking at the iPod screen.
• To change to "On-Screen", where you perform operations while having the iPod information displayed on the TV screen, see "iPod Browse Mode settings" (10 p. 86).

NOTE

• Depending on the type of iPod and the software version, some functions may not operate.
• Note that Marantz will accept no responsibility whatsoever for any problems arising with the data on an iPod when using this unit in conjunction with the iPod.

Operations accessible through the option menu

This can be operated when the "iPod Browse Mode" is set to "From iPod". (p. 86)

-iPodBrowseMode settings" (p.86)
- "Adjusting the volume of each channel to match the input source (Channel Level Adjust)" (p. 126)
- "Adjusting the tone (Tone)" (p. 127)
"Displaying your desired video during audio playback (Video Select)" (p. 128)
- "Adjusting the picture quality for your viewing environment (Picture Mode)" (p. 129)
- "Playing the same music in all zones (All Zone Stereo)" (p. 130)

iPod Browse Mode settings

In this mode, various lists and screens during playback on the iPod are displayed on the TV screen.

This section describes the steps up to playing back tracks on the iPod in "On-Screen".

1 Press OPTION when the input source is "iPod/USB".

The option menu screen is displayed.

2 Select "iPod Browse Mode", then press ENTER.

The "iPod Browse Mode" screen is displayed.

3 Use to select "On-Screen", then press ENTER.

• Operations available for "On-Screen" and "From iPod" are listed below.

iPod Browse Mode		From iPod	On-Screen
Playable files	Music file	✓	✓
	Video file	*
Active buttons	Remote control unit (This unit)	✓	✓
	iPod	✓

*Only the sound is played.

4 Use to select the file to be played, then press ENTER.

Playback starts.

Operation buttons	Function
►III	Playback / Pause
►►	Skip to previous track / Skip to next track
	(Press and hold) Fast-reverse/Fast-forward
ENTER	Playback / Pause
	(Press and hold) Stop
Δ∇	Skip to previous track / Skip to next track
	(Press and hold) Fast-reverse / Fast-forward
CH/PAGE▲▼	Switch to the previous page/next page in the list display

• The actions of the operation buttons may differ.

• The display switches between track title, artist name, and album title etc. each time the main unit's STATUS is pressed during playback with "iPod Browse Mode" set to "On-Screen".
• English letters, numbers and certain symbols are displayed. Incompatible characters are displayed as “.” (period).

Operations accessible through the option menu

This can be operated when the "iPod Browse Mode" is set to "On-Screen". (p. 86)

-iPodBrowseMode settings" (p.86)
- "Performing repeat playback" (p. 88)
"Performing random playback" (p. 88)
- "Adjusting the volume of each channel to match the input source (Channel Level Adjust)" (p. 126)
- "Adjusting the tone (Tone)" (p. 127)
"Displaying your desired video during audio playback (Video Select)" (p. 128)
- "Adjusting the picture quality for your viewing environment (Picture Mode)" (p. 129)
- "Playing the same music in all zones (All Zone Stereo)" (p. 130)

Performing repeat playback

1 Press OPTION with "iPod Browse Mode" set to "On-Screen".

The option menu screen is displayed.

2 Use to select "Repeat", then press ENTER.
3 Use to select repeat playback mode.

Off

(Default) :

Repeat playback mode is canceled.

One:

A file being played is played repeatedly.

All:

All files in the folder currently being played are played repeatedly.

4 Press ENTER.

The display returns to the playback screen.

• "Repeat" settings are stored for each input source.

Performing random playback

1 Press OPTION with "iPod Browse Mode" set to "On-Screen".

The option menu screen is displayed.

2 Use to select "Random", then press ENTER.
3 Use to select random playback mode.

Off

(Default):

Disable random playback.

On:

Randomly play back all tracks in the current playback folder.

4 Press ENTER.

The display returns to the playback screen.

• During random playback, each time playback of a track is completed, another track is randomly selected for playback from tracks in the folder. Therefore, it's possible that you may hear a track played back more than once during random playback.
• "Random" settings are stored for each input source.

Playing a USB memory device

• Playing back music or viewing still picture (JPEG) files stored on a USB memory device.
• Only USB memory devices conforming to mass storage class standards can be played on this unit.
• This unit is compatible with USB memory devices in "FAT16" or "FAT32" format.
• The audio/video format types and specifications supported by this unit for playback are as follows.

See "Playing back a USB memory devices" (p. 273) for details.

WMA
MP3
WAV
- MPEG-4 AAC
- FLAC
Apple Lossless
AIFF
DSD
JPEG

Playing files stored on USB memory devices

1 Connect the USB memory device to the USB port. (p. 72)
2 Press iPod/USB to switch the input source to "iPod/USB".

3 Use to select the file to be played, then press ENTER.

Playback starts.

Operation buttons	Function
►/■	Playback / Pause
←►→	Skip to previous track / Skip to next track
	(Press and hold) Fast-reverse / Fast-forward
ENTER	Playback / Pause
	(Press and hold) Stop
Δ∇	Skip to previous track / Skip to next track
	(Press and hold) Fast-reverse / Fast-forward
CH/PAGE▲▼	Switch to the previous page/next page in the list display

• When an MP3 music file includes album art data, the album art can be displayed while playing the file.
• This unit plays back picture (JPEG) files in the order in which they are stored in the folder.

NOTE

• Note that Marantz will accept no responsibility whatsoever for any problems arising with the data on a USB memory device when using this unit in conjunction with the USB memory device.

Operations accessible through the option menu

"Performing repeat playback" (p. 121)
"Performing random playback" (p. 121)
- Searching content with keywords (Text Search) (p. 123)
- "Playing back music and a favorite picture at the same time (Slideshow)" (p. 124)
- Setting the Slideshow Interval (p. 125)
- "Adjusting the volume of each channel to match the input source (Channel Level Adjust)" (p. 126)
- "Adjusting the tone (Tone)" (p. 127)
"Displaying your desired video during audio playback (Video Select)" (p. 128)
- "Adjusting the picture quality for your viewing environment (Picture Mode)" (p. 129)
- "Playing the same music in all zones (All Zone Stereo)" (p. 130)

Listening to music on a Bluetooth device

Music files stored on Bluetooth devices such as smartphones, digital music players, etc. can be enjoyed on this unit by pairing and connecting this unit with the Bluetooth device.

Communication is possible up to a range of about 10m

NOTE

• To play back music from a Bluetooth device, the Bluetooth device needs to support the A2DP profile.

Playing music from Bluetooth device

In order to enjoy music from a Bluetooth device on this unit, the Bluetooth device must first be paired with this unit.

Once the Bluetooth device has been paired, it does not need to be paired again.

1 Prepare for playback.

① Connect the supplied external antennas for Bluetooth/wireless connectivity to the Bluetooth/wireless LAN antenna connectors on the rear panel. (p. 21)
② Press POWER to turn on power to the unit.

2 Press Bluetooth to switch the input source to "Bluetooth".

When using for the first time, the unit will go into the pairing mode automatically and "Pairing..." will appear on the display of the unit.

3 Activate the Bluetooth settings on your mobile device.

4 Select this unit when its name appears in the list of devices displayed on the screen of the Bluetooth device.

Connect to the Bluetooth device while "Pairing" is being displayed on the display of the unit.

Perform the connection with the Bluetooth device close to the unit (about 1 m).

5 When a number appears on the display of this unit, check that it is the same number as that shown on the screen of the Bluetooth device and then select "Pair" for both the Bluetooth device and the unit.

At the end of the pairing, the device name appears on the display of this unit.

6 Play music using any app on your Bluetooth device.

• The Bluetooth device can also be operated with the remote control of this unit.
• The next time the input source is switched to Bluetooth, this unit automatically connects to the last Bluetooth device that was connected.

• Enter "0000" when the password is requested on the screen of the Bluetooth device.

Operation buttons	Function
►/■	Playback / Pause
►	Skip to previous track / Skip to next track
(Press and hold) Fast-reverse / Fast-forward
ENTER	Playback / Pause
(Press and hold) Stop
Δ▼	Skip to previous track / Skip to next track
	(Press and hold) Fast-reverse / Fast-forward

• Press STATUS on this unit during playback to switch the display between Title name, Artist name, Album name, etc.
• English letters, numbers and certain symbols are displayed. Incompatible characters are displayed as " ." (period).

NOTE

• To operate the Bluetooth device with the remote control of this unit, the Bluetooth device needs to support the AVRCP profile.
• The remote control of this unit is not guaranteed to work with all Bluetooth devices.
• Depending on the type of Bluetooth device, this unit outputs audio that is coupled to the volume setting on the Bluetooth device.

Operations accessible through the option menu

• "Pairing with other Bluetooth devices" (p. 95)
• "Performing repeat playback" (p. 121)
• "Performing random playback" (附 p. 121)
• "Adjusting the volume of each channel to match the input source (Channel Level Adjust)" (p. 126)
• "Adjusting the tone (Tone)" (p. 127)
• "Displaying your desired video during audio playback (Video Select)" (R2 p. 128)
• "Playing the same music in all zones (All Zone Stereo)" (p. 130)

Pairing with other Bluetooth devices

Pair a Bluetooth device with this unit.

1 Activate the Bluetooth settings on your mobile device.
2 Press OPTION when the input source is "Bluetooth".

The option menu screen is displayed.

3 Use to select "Pairing Mode", then press ENTER.

The device will go into the pairing mode.

4 Select this unit when its name appears in the list of devices displayed on the screen of the Bluetooth device.
5 When a number appears on the display of this unit, check that it is the same number as that shown on the screen of the Bluetooth device and then select "Pair" for both the Bluetooth device and the unit.

At the end of the pairing, the device name appears on the display of this unit.

• This unit can be paired with a maximum of 8 Bluetooth devices. When a 9th Bluetooth device is paired, it will be registered in place of the oldest registered device.
• Enter "0000" when the password is requested on the screen of the Bluetooth device.
• Press and hold the Bluetooth on the remote control for at least 3 seconds to go into pairing mode.

Reconnecting to this unit from a Bluetooth device

After pairing is completed, the Bluetooth device can be connected without performing any operations on this unit.

This operation also needs to be performed when switching the Bluetooth device for playback.

If a Bluetooth device is currently connected, deactivate the Bluetooth setting of that device to disconnect it.
2 Activate the Bluetooth setting of the Bluetooth device to be connected.
3 Select this unit from the Bluetooth device list on your Bluetooth device.
4 Play music using any app on your Bluetooth device.

• When the power of this unit is turned on, the input source will be automatically switched to "Bluetooth" if a Bluetooth device is connected.
• When the "Network Control" setting of this unit is set to "Always On" and a Bluetooth device is connected with the unit in the standby state, the power of the unit will be turned on automatically. (t2 p. 230)

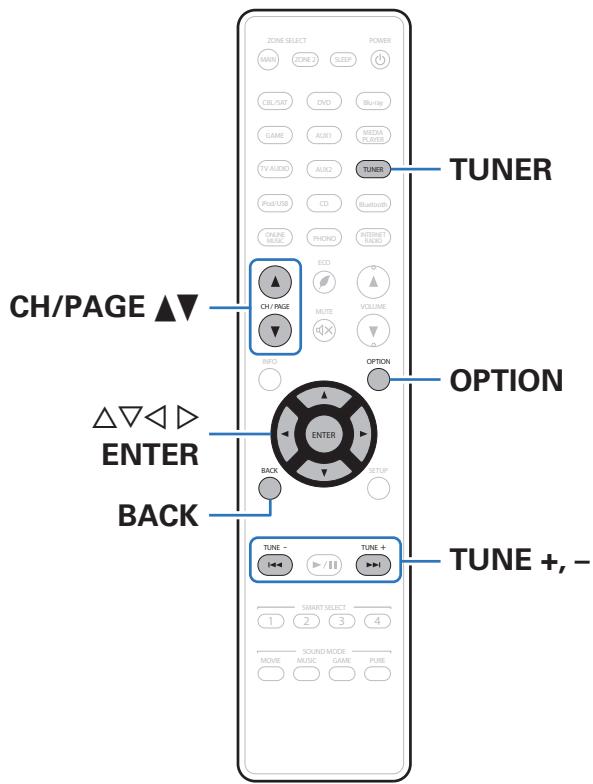

Listening to FM/AM broadcasts

You can use the built-in tuner of this unit to listen to FM broadcasts and AM broadcasts.

Make sure the FM antenna and AM loop antenna are connected to this unit first.

Listening to FM/AM broadcasts

1 Connect the antenna. ("Connecting an FM/AM antenna" (p. 74))
2 Press TUNER to switch the input source to "Tuner".

【TV screen】

【Display of this unit】

01 FM 975MHz

3 Press OPTION.

The option menu screen is displayed.

4 Use to select "FM/AM", then press ENTER.

This displays the reception band input screen.

Use to select "FM" or "AM", then press ENTER.

FM:	When listening to an FM broadcast.
AM:	When listening to an AM broadcast.

6 Press TUNE + or TUNE - to select the station you want listen to.

Scanning is performed until it finds an available radio station. When it finds a radio station, it stops the scan automatically and tunes in.

• The modes for receiving FM broadcasts consists of "Auto" mode that automatically searches available broadcast stations and "Manual" mode that lets you tune in using buttons to change the frequency. The default setting is "Auto". You can also use "Direct Tune" to tune in by entering the frequency directly.

In "Auto" mode, you cannot tune in to radio stations if the reception is not good. If this is the case, then use the "Manual" mode or "Direct Tune" mode to tune in.

Operation buttons	Function
TUNE +, -	Selects the radio station (up/down)
CH/PAGE ▲▼	Selects preset radio stations
△▼	Selects the radio station (up/down)
◁▷	Selects preset radio stations

Operations accessible through the option menu

-Tuning in by entering the frequency (Direct Tune) (p. 100)
“RDS search" (p. 100)
- "PTY search" (p. 101)
- "TP search" (p.102)
"Radio Text" (p. 102)
- "Changing the tune mode (Tune Mode)" (p. 103)
-Tuning in to stations and presetting them automatically (Auto Preset Memory)"(p.103)
"Preseting the current broadcast station (Preset Memory)"(p.104)
- "Specify a name for the preset broadcast station (Preset Name)" (p. 105)
"Skipping preset broadcast stations (Preset Skip)" (p. 106)
- "Adjusting the volume of each channel to match the input source (Channel Level Adjust)" (p. 126)
- "Adjusting the tone (Tone)" (p. 127)
"Displaying your desired video during audio playback (Video Select)" (p. 128)
- "Playing the same music in all zones (All Zone Stereo)" (p. 130)

Tuning in by entering the frequency (Direct Tune)

You can enter the receiving frequency directly to tune in.

1 Press OPTION when the input source is "Tuner". The option menu screen is displayed.
2 Use to select "Direct Tune", then press ENTER. The screen that lets you enter the frequency is displayed.
3 Use to select a number, then press. If is pressed, the immediately preceding input is cancelled.
4 Repeat step 3 and enter the frequency of the radio station you want to hear.
5 When setting is completed, press ENTER. The preset frequency is tuned in.

RDS search

RDS is a broadcasting service which allows a station to send additional information along with the regular radio program signal.

Use this function to automatically tune to FM stations that provide the RDS service.

Note that the RDS function only works when receiving RDS compatible stations.

1 Press OPTION when the input source is "Tuner". The option menu screen is displayed.
2 Use to select "RDS Search", then press ENTER.
3 Press ENTER. The search for RDS stations begins automatically.

• If you use within 5 seconds after the broadcast station name is shown on the display, you can search for a different station.

PTY search

Use this function to find RDS stations broadcasting a designated program type (PTY).

PTY identifies the type of RDS program.

The program types and their displays are as follows:

NEWS	News	WEATHER	Weather
AFFAIRS	Current Affairs	FINANCE	Finance
INFO	Information	CHILDREN	Children's program
SPORT	Sports	SOCIAL	Social Affairs
EDUCATE	Education	RELIGION	Religion
DRAMA	Drama	PHONE IN	Phone In
CULTURE	Culture	TRAVEL	Travel
SCIENCE	Science	LEISURE	Leisure
VARIED	Varied	JAZZ	Jazz Music
POP M	Pop Music	COUNTRY	Country Music
ROCK M	Rock Music	NATION M	National Music
EASY M	Easy Listening Music	OLDIES	Oldies Music
LIGHT M	Light Classical	FOLK M	Folk Music
CLASSICS	Serious Classical	DOCUMENT	Documentary
OTHER M	Other Music

1 Press OPTION when the input source is "Tuner". The option menu screen is displayed.
2 Use to select "PTY Search", then press ENTER.
3 Use to call out the desired program type.
4 Press ENTER.

PTY search begins automatically.

• If you use within 5 seconds after the broadcast station name is shown on the display, you can search for a different station.

TP search

TP identifies programs that carry traffic announcements.

This allows you to easily find out the latest traffic conditions in your area before leaving home.

Use this function to find RDS stations broadcasting traffic programs (TP stations).

1 Press OPTION when the input source is "Tuner".

The option menu screen is displayed.

2 Use to select "TP Search", then press ENTER.
3 Press ENTER.

TP search begins automatically.

• If you use within 5 seconds after the broadcast station name is shown on the display, you can search for a different station.

Radio Text

RT allows RDS stations to send text messages that appear on the display. "Radio text" appears on the display when radio text data is received.

1 Press OPTION when the input source is "Tuner". The option menu screen is displayed.
2 Use to select "Radio text", then press ENTER.
3 Use to select "On", then press ENTER.

• While receiving an RDS broadcast station, the text data broadcast from the station is displayed.
• If no text data is being broadcast, "NO TEXT DATA" is displayed.

Changing the tune mode (Tune Mode)

You can change the mode for tuning into FM and AM broadcasts. If you cannot tune in automatically with "Auto" mode, change the mode to "Manual" and tune in manually.

1 Press OPTION when the input source is "Tuner".

The option menu screen is displayed.

2 Use to select "Tune Mode", then press ENTER.
3 Use to select the tune mode, then press ENTER.

Auto:	Automatically search for and tune to a receivable radio station.
Manual:	Manually change the frequency one step at a time each time the button is pressed.

Tuning in to stations and presetting them automatically (Auto Preset Memory)

A maximum of 56 radio stations can be automatically preset.

1 Press OPTION when the input source is "Tuner".
The option menu screen is displayed.
2 Use to select "Auto Preset Memory", then press ENTER.
3 Press ENTER.

The unit starts to tune in to radio stations automatically and preset them.

• When presetting is completed, "Completed" is displayed for about 5 seconds and the option menu screen turns off.

• The preset memory is overwritten.

Presetting the current broadcast station (Preset Memory)

Your favorite broadcast stations can be preset so that you can tune them in easily.

Up to 56 stations can be preset.

1 Tune in the broadcast station you want to preset. ("Listening to FM/AM broadcasts" (p. 98))
2 Press OPTION.

The option menu screen is displayed.

3 Use to select "Preset Memory", then press ENTER.
The list of already preset channels is displayed.
4 Use to select the channel you want to preset, then press ENTER.

The current broadcast station that is preset.

• To preset other stations, repeat steps 1 to 4.

Channel	Default settings
1 - 8	87.50 / 89.10 / 98.10 / 108.00 / 90.10 / 90.10 / 90.10 / 90.10 MHz
9 - 16	90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 MHz
17 - 24	90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 MHz
25 - 32	90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 MHz
33 - 40	90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 MHz
41 - 48	90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 MHz
49 - 56	90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 MHz

Listening to preset stations

1 Use CH/PAGE ▲▼ to select the desired preset channel.

• You can also select preset broadcast stations by pressing TUNER PRESET CH + or TUNER PRESET CH - on the main unit.

Specify a name for the preset broadcast station (Preset Name)

You can set the name to the preset broadcast station or change it. Up to eight characters can be input.

1 Press OPTION when the input source is "Tuner". The option menu screen is displayed.
2 Use to select "Preset Name", then press ENTER. The Preset Name screen is displayed.
3 Use to select the group of the broadcast station you want to name.
4 Use to select the broadcast station you want to name, then press ENTER.

5 Use to select a name label, then press ENTER.

The screen that lets you edit the Preset Name is displayed.

• If you select "Set Defaults", then the unit returns to displaying the frequency.

6 Enter the characters, then press "OK".

• For character input, see "Using the keyboard screen" (p. 165).

7 Press OPTION to return to the previous screen.

Skipping preset broadcast stations (Preset Skip)

Perform auto preset memory to save all the broadcasting stations that can be received in the memory. Selecting a broadcast station becomes easier by skipping unnecessary memories.

1 Press OPTION when the input source is "Tuner".

The option menu screen is displayed.

2 Use to select "Preset Skip", then press ENTER.

The "Preset Skip" screen is displayed.

3 To set the stations you want to skip by groups

① Use to select the group of broadcast stations you want to skip.
② Press to select "Set No. - * to Skip", then press ENTER. Skip all the broadcast stations that are included in the selected group "-*.

(* is the selected group number.)

To set the stations you want to skip by stations

① Use to select the group of broadcast stations you want to skip.
② Use to select the broadcast station you want to skip.
③ Use to select "Skip".

The station you selected is not displayed.

4 Press OPTION to return to the previous screen.

Cancelling Preset Skip

1 While the "Preset Skip" screen is displayed, use to select a group containing a broadcast station to cancel the skip for.
2 Use to select a broadcast station to cancel the skip for.
3 Use to select "On".

The skip is cancelled.

NOTE

• "Preset Skip" cannot be cancelled for groups.

Listening to Internet Radio

• Internet Radio refers to radio broadcasts distributed over the Internet.
  Internet Radio stations from around the world can be received.
• The Internet radio station list on this unit the database service provided by vTuner radio station.
• The audio format types and specifications supported by this unit for playback are as follows.

See "Playing back Internet Radio" (p. 276) for details.

WMA
MP3
- MPEG-4 AAC

Listening to Internet Radio

1 Prepare for playback.

• Check the network environment, then turn on this unit's power. ("Connecting to a home network (LAN)" (p. 76))

2 Press ONLINE MUSIC.

• You can also press INTERNET RADIO to select the input source "Internet Radio" directly.

3 Use to select "Internet Radio", then press ENTER.

4 Use to select the search method for the radio station that you wish to playback and then press ENTER.

Name of country:	Select the various regions. Displays typical Internet Radio stations.
Search Stations:	Displays all Internet Radio stations that this unit can tune in to.
Search Podcasts:	Displays Internet Radio stations in the podcasts that this unit can tune in to.
Recommended Stations:	Displays recommended Internet Radio stations.
radiomarantz.com:	Displays Internet Radio stations added to favorites in vTuner. For instructions on how to add to favorites in vTuner, see “Using vTuner to add Internet Radio stations to favorites” (p. 111).
Recently Played:	Displays recently played Internet Radio stations. Up to 20 stations can be stored in “Recently Played”.
Search by Keyword:	Displays Internet Radio stations searched by keyword. For character input, see “Using the keyboard screen” (p. 165).

5 Use to select the station, then press ENTER.

Playback starts once buffering reaches "100%".

Operation buttons	Function
►/■	Playback / Stop
ENTER	(Press and hold) Stop
CH/PAGE▲▼	Switch to the previous page/next page in the list display

• The display switches between track title and radio station name etc. each time the main unit's STATUS is pressed.
• Any characters that cannot be displayed are replaced with "." (period).

NOTE

• The radio station database service may be suspended or be otherwise unavailable without notice.

Playing the last played Internet Radio station

1 Press INTERNET RADIO.

The source switches to "Internet Radio" and the last played radio station plays.

Operations accessible through the option menu

• "Registering to Favorites (Save to Favorites)" (p. 122)
• "Searching content with keywords (Text Search)" (p. 123)
• "Playing back music and a favorite picture at the same time (Slideshow)" (p. 124)
• "Adjusting the volume of each channel to match the input source (Channel Level Adjust)" (p. 126)
• "Adjusting the tone (Tone)" (p. 127)
• "Displaying your desired video during audio playback (Video Select)" (p. 128)
• "Adjusting the picture quality for your viewing environment (Picture Mode)" (p. 129)
• "Playing the same music in all zones (All Zone Stereo)" (p. 130)

Using vTuner to add Internet Radio stations to favorites

There are many Internet Radio stations in the world, and this unit can tune into these stations. But finding the radio station you want to hear may be difficult, because there are too many stations. If this is the case, then please use vTuner, an Internet Radio station search website specifically designed for this unit. You can use your PC to search Internet Radio stations and add them as your favorites. This unit can play radio stations added to vTuner.

1 Check the MAC address of this unit. ("Information" (p. 224))

• The MAC address is necessary when you create an account for vTuner.

2 Use your PC to access the vTuner website (http://www.radiomarantz.com).
3 Enter the MAC address of this unit, then click "Go".

4 Enter your E-mail address and a password of your choice.
5 Select the search criteria (genre, region, language, etc.) of your choice.

• You can also enter a keyword to search for a station you want to hear.

6 Select the radio station of your choice from the list, and then click the Add to Favorites icon.
7 Enter the name of the favorite group, then click "Go".

A new favorite group that includes the selected radio station is created.

• Internet Radio stations added to favorites in vTuner can be played from "radiomarantz.com" with this unit. (p. 109)

• You can also add a radio station that is not in the vTuner list.

Playing back files stored on a PC or NAS

• This unit can play back music files and playlists (m3u, wpl) stored on a PC and on Network Attached Storage (NAS) that supports DLNA.
• The network audio playback function of this unit connects to the server using technologies shown below.

Windows Media Player Network Sharing Service

• The audio/video format types and specifications supported by this unit for playback are as follows.

For details, see "Playing back a file saved on a PC or NAS" (p. 275).

WMA
MP3
WAV
- MPEG-4 AAC
- FLAC
Apple Lossless
AIFF
DSD
JPEG

Applying media sharing settings

Here, we apply the settings to share music files stored on a PC and NAS on the network.

To use Windows Media Player as a music server, configure the settings below in advance.

To use a music server other than Windows Media Player, consult the help contents of your music server to configure settings.

When using Windows Media Player 12 (Windows 7 / Windows 8)

1 Start up Windows Media Player 12 on the PC.
2 Select "More streaming options..." in the "Stream".
3 Select "Allowed" in the "Marantz SR6011" drop-down list.
4 Select "Allowed" in the drop-down list for "Media programs on this PC and remote connections...".
5 Follow the screen instructions to end the setting.

When using Windows Media Player 11

1 Start up Windows Media Player 11 on the PC.
2 Select "Media Sharing" in the "Library".
3 Click the "Share my media" check box, select "Marantz SR6011", and then click "Allow".
As you did in step 3, select the icon of the device (other PCs and mobile devices) you want to use as a media controller, and then click "Allow".
5 Click "OK" to finish.

Sharing media stored in NAS

Change settings on the NAS to allow this unit and other devices (PCs and mobile devices) used as media controllers to access the NAS. For details, see the owner's manual that came with the NAS.

Playing back files stored on a PC or NAS

Use this procedure to play music files, image files or playlists.

1 Prepare for playback.

① Check the network environment, then turn on this unit's power. ("Connecting to a home network (LAN)" (p. 76))
② Prepare the computer. (Computer's operating instructions)

2 Press ONLINE MUSIC.

3 Use to select "Media Server", then press ENTER.

4 Use to select the server including the file to be played, then press ENTER.

5 Use to select the file, then press ENTER.

Playback starts once buffering reaches "100%".

Operation buttons	Function
►/■	Playback / Pause
←►→	Skip to previous track / Skip to next track
	(Press and hold) Fast-reverse / Fast-forward
ENTER	Playback / Pause
	(Press and hold) Stop
Δ∇	Skip to previous track / Skip to next track
	(Press and hold) Fast-reverse / Fast-forward
CH/PAGE▲▼	Switch to the previous page/next page in the list display

• The display switches between track title, artist name, and album title each time the main unit's STATUS is pressed.
• When a WMA (Windows Media Audio), MP3 or MPEG-4 AAC file includes album art data, the album art can be displayed while the music files are playing.
• If you use Ver.11 or later of Windows Media Player, the album art for WMA files can be displayed.
• WMA Lossless files can be played when using a server supporting transcoding, such as Windows Media Player (Ver.11 or later).
• This unit plays back picture (JPEG) files in the order in which they are stored in the folder.

NOTE

• When playing back music files with your PC or NAS connected through wireless LAN, audio may be interrupted depending on your wireless LAN environment. In this case, connect using a wired LAN.
• Depending on the size of the still picture (JPEG) file, some time may be required for the file to be displayed.
• The order in which the tracks/files are displayed depends on the server specifications. If the tracks/files are not displayed in alphabetical order due to the server specifications, searching by the first letter may not work properly.

Operations accessible through the option menu

• "Performing repeat playback" (R2 p. 121)
• "Performing random playback" (p.121)
• "Registering to Favorites (Save to Favorites)" (p. 122)
• "Searching content with keywords (Text Search)" (p. 123)
• "Playing back music and a favorite picture at the same time (Slideshow)" (p. 124)
• Setting the Slideshow Interval (p. 125)
• "Adjusting the volume of each channel to match the input source (Channel Level Adjust)" (p. 126)
• "Adjusting the tone (Tone)" (p. 127)
  "Displaying your desired video during audio playback (Video Select)" (p. 128)
• "Adjusting the picture quality for your viewing environment (Picture Mode)" (p. 129)
• "Playing the same music in all zones (All Zone Stereo)" (p. 130)

AirPlay function

Music files stored on your iPhone, iPod touch, iPad or iTunes can be played on this unit via the network.

• is displayed on the menu screen while AirPlay is being operated.
• Source input will be switched to "Online Music" when AirPlay playback is started.
• You can stop AirPlay playback by pressing or choosing other input source.
• To see song and artist names together, press STATUS on the main unit.
• For information about how to use iTunes, also see the Help for iTunes.
• The screen may differ depending on the OS and software versions.

Playing songs from your iPhone, iPod touch or iPad

If you update your "iPhone/iPod touch/iPad" to iOS 4.2.1 or later, you can stream music stored in your "iPhone/iPod touch/iPad" directly to this unit.

1 Connect your iPhone, iPod touch or iPad Wi-Fi to the same network as this unit.

• For details, see your device's manual.

2 Play the song on your iPhone, iPod touch or iPad.

is displayed on the iPhone, iPod touch or iPad screen.

3 Tap the AirPlay icon.

4 Select the speaker (devices) you want to use.

Playing iTunes music with this unit

1 Install iTunes 10, or later, on a Mac or Windows PC that is connected to the same network as this unit.
2 Turn this unit ON.

Set "Network Control" to "Always On" for this unit. (p. 230)

NOTE

• When "Network Control" is set to "Always On", the unit consumes more standby power.
  3 Start iTunes and click the AirPlay icon to select the main unit.

4 Choose a song and click play in iTunes.

The music will stream to this unit.

Selecting multiple speakers (devices)

It is possible to play iTunes songs on your home's AirPlay compatible speakers (devices) other than those of this unit.

1 Click the AirPlay icon and select "Multiple".
2 Check the speakers you want to use.

NOTE

• In playback using the AirPlay function, the sound is output at the iPhone, iPod touch, iPad or iTunes volume setting level. You should turn down the iPhone, iPod touch, iPad or iTunes volume prior to playback and then adjust it to a suitable level.

Perform iTunes playback operations with the remote control unit of this unit

With this unit's remote control unit, you can perform iTunes song play, pause, and auto search (cue) operations.

1 Select the "Edit" - "Preferences..." in the iTunes menu.
2 Select "Devices" in the iTunes setting window.
3 Check "Allow iTunes audio control from remote speakers", and then click "OK".

• This does not need to be set if using version 12 or later of iTunes.

Spotify Connect function

Spotify is the world's most popular streaming service. If you subscribe to Spotify Premium, you can control your new speaker with your phone or tablet. Because Spotify is built-in to your speaker, you can still take calls or use other apps - the music never stops.
For information on how to set up and use Spotify Connect please visit www.spotify.com/connect

Playing Spotify music with this unit

Download the "Spotify App" onto your Android or iOS device beforehand. To play a Spotify track in this unit, you need to register in the Spotify premium account first.

1 Connect the Wi-Fi settings of the iOS or Android device in the same network as this unit.
2 Launch the Spotify App.
3 Play back the Spotify track.
4 Tap the 念 icon to select the unit. The music will stream to this unit.

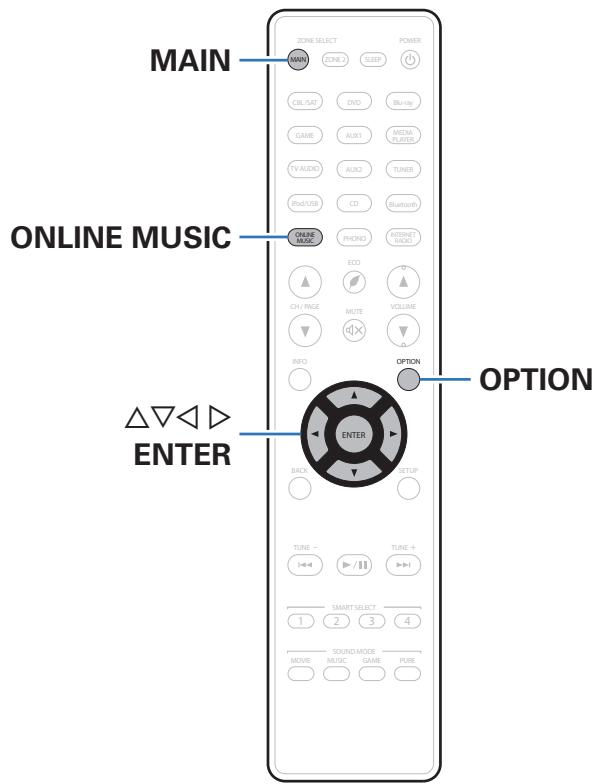

Convenience functions

• This section explains how to use convenient functions that can be used for each input source.
  These functions can only be set in the MAIN ZONE.

Performing repeat playback

Supported input sources: USB / Media Server / Bluetooth

1 While content is playing, press OPTION. The option menu screen is displayed.
2 Use to select "Repeat", then press ENTER.
3 Use to select repeat playback mode.

Off (Default):	Repeat playback mode is canceled.
One:	A file being played is played repeatedly
All:	All files in the folder currently being played are played repeatedly.

4 Press ENTER.

The display returns to the playback screen.

• This cannot be set up if the Bluetooth device does not support the repeat setting under the AVRCP profile.
• "Repeat" settings are stored for each input source.

Performing random playback

Supported input sources : USB / Media Server / Bluetooth

1 While content is playing, press OPTION. The option menu screen is displayed.
2 Use to select "Random", then press ENTER.
3 Use to select random playback mode.

Off (Default):	Disable random playback.
On:	Randomly play back all tracks in the current playback folder.

4 Press ENTER.

The display returns to the playback screen.

• During random playback, each time playback of a track is completed, another track is randomly selected for playback from tracks in the folder. Therefore, it's possible that you may hear a track played back more than once during random playback.
• This cannot be set up if the Bluetooth device does not support the random setting under the AVRCP profile.
• "Random" settings are stored for each input source.

Registering to Favorites (Save to Favorites)

You can register a total of 100 favorites.

Supported input sources: Internet Radio / Media Server

1 While content is playing, press OPTION.

The option menu screen is displayed.

2 Use to select "Save to Favorites", then press ENTER.

"Favorite added" is displayed, and the current content is added to favorites.

• The display returns to the playback screen when the procedure is completed.

Playing back content added to Favorites

1 Press ONLINE MUSIC.
2 Use to select "Favorites", then press ENTER.

3 Use to select the content you want to play, then press ENTER.

Playback starts.

Deleting content added to favorites

1 Press ONLINE MUSIC.
2 Use to select "Favorites", then press ENTER.
3 Use to select the content you want to delete from favorites, then press OPTION.

The option menu screen is displayed.

4 Use to select "Remove from Favorites", then press ENTER.

"Favorite removed" is displayed, and the selected content is deleted from favorites.

• The screen returns to the previous screen when the delete process is complete.

Searching content with keywords (Text Search)

Supported input sources :USB / Internet Radio / Media Server

1 While the content is playing, press OPTION. The option menu screen is displayed.
2 Use to select "Text Search", then press ENTER. The keyboard input screen is displayed.
3 Enter the first character of the Internet Radio station or file you want to search for, and then press "OK".

• For character input, see "Using the keyboard screen" (p. 165).

4 Use to select the content you want to play, then press ENTER.

Playback starts.

• "Text Search" searches for Internet Radio stations or files that start with the entered first character from the displayed list.

NOTE

Text Search may not work for some lists.

Playing back music and a favorite picture at the same time (Slideshow)

Supported input sources : USB

1 Play back a still picture.
- Playing back still pictures stored on USB memory devices. (p. 89)
2 Play back a music file. (p. 89)
3 Press OPTION.

The option menu screen is displayed.

4 Use to select "Slideshow", then press ENTER.

The option menu disappears, and the picture you were viewing is shown on the screen.

Supported input sources :Internet Radio / Media Server

1 Play back a still picture.
- Play back still pictures stored on Media Server. (p. 112)

2 Play back a music file of Media Server or Internet Radio station.

• "Listening to Internet Radio" (p. 108)
• "Playing back files stored on a PC or NAS" (p. 112)

3 Press OPTION.

The option menu screen is displayed.

4 Use to select "Slideshow", then press ENTER.

The option menu disappears, and the picture you were viewing is shown on the screen.

Setting the Slideshowhow Interval

Set the playback interval when playing back a slideshow of still picture (JPEG) files stored on a USB memory device or media server.

Supported input sources: USB / Media Server

1 While the list is displayed, press OPTION. The option menu screen is displayed.
2 Use to select "Slideshow Interval", then press ENTER.
3 Use to set the display time.

Off:	The slide show is not played back.
5s - 60s (Default: 5s):	Set the time for displaying a single picture when playing back images in the slide show.

4 Press ENTER.

• The "Slideshow Interval" settings are reflected for all input sources.

Adjusting the volume of each channel to match the input source (Channel Level Adjust)

The volume of each channel can be changed while listening to music. You can set this for each input source.

1 Press OPTION.

The option menu screen is displayed.

2 Use to select "Channel Level Adjust", then press ENTER.

The "Channel Level Adjust" screen is displayed.

3 Use to select the channel that you wish to adjust.
4 Use to adjust the volume.

-12.0 dB - +12.0 dB (Default: 0.0 dB)

5 Use to select "Exit", then press ENTER.

• Select "Reset" and press ENTER if you want to restore the adjustment values of the various channels to "0.0 dB" (Default).
• Headphone volume can be adjusted when a headphone is connected.
• "Channel Level Adjust" settings are stored for each input source.
• You can only set this for speakers that output audio. In addition, you cannot set this when in the menu "HDMI Audio Out" is set to "TV". (p.181)

Adjusting the tone (Tone)

Adjusts the tonal quality of the sound.

1 Press OPTION.

The option menu screen is displayed.

2 Use to select "Tone", then press ENTER.

The "Tone" screen is displayed.

3 Use to set the tone control function to on/off.

On:	Allow tone adjustment (bass, treble).
Off (Default):	Playback without tone adjustment.

4 Select "On" in step 3 and press to select the sound range to be adjusted.

Bass:	Adjust bass.
Treble:	Adjust treble.

5 Use to adjust the tone, then press ENTER.

-6 dB +6 dB (Default: 0 dB)

• "Tone" settings are stored for each input source.
• This cannot be set when the sound mode is set to "Direct" or "Pure Direct".
• This item cannot be set when "Dynamic EQ" is set to "On". (p. 175)
• You cannot set this when no audio signal is input or in the menu "HDMI Audio Out" is set to "TV". (p. 181)
• This cannot be set when the input mode is set to "7.1CH IN".

Displaying your desired video during audio playback (Video Select)

This unit can display video from a different source on TV during audio playback. You can set this for each input source.

Supported input sources:

iPod/USB / CD* / Tuner / Online Music / Bluetooth / Phono

• This cannot be set when any of the HDMI, component video or video connectors are assigned.

1 Press OPTION during audio playback.

The option menu screen is displayed.

2 Use to select "Video Select", then press ENTER.

3 Use to select the Video Select mode.

Off

(Default):

Disable Video Select mode.

On:

Enable Video Select mode.

4 If you selected "On" in step 3, press and select "Source".
5 Use to select the input source for video you want to play back, then press ENTER.

• "Video Select" settings are stored for each input source.

Adjusting the picture quality for your viewing environment (Picture Mode)

Supported input sources : CBL/SAT / DVD / Blu-ray / Game / AUX1 / AUX2 / Media Player / iPod/USB / Online Music / CD / TV Audio

• You can set the picture mode when an HDMI, component video or video is assigned.

1 Press OPTION during video playback.
The option menu screen is displayed.
2 Use to select "Picture Mode", then press ENTER.

3 Use to select the picture mode.

Off:	No picture quality adjustment is done with this unit.
Standard:	The standard mode suited for most living room viewing environments.
Movie:	A mode suited for watching movies in a dark room such as a theater room.
Vivid:	A mode that makes graphic images for games, etc. brighter and more vivid.
Streaming:	A mode suited for low bit rate video sources.
ISF Day:	A mode suited for watching movies in a bright room during the day.
ISF Night:	A mode suited for watching movies in a dark room at night.
Custom:	Adjusts the picture quality manually.

4 Press ENTER.

• "Picture Mode" settings are stored for each input source.

Playing the same music in all zones (All Zone Stereo)

You can play back the music being played back in MAIN ZONE simultaneously in ZONE2 (separate room).

It is useful when you want to enjoy the same music at the same time in multiple rooms during home party or when you want to play back the same BGM in the entire house.

1 Press OPTION.

The option menu screen is displayed.

2 Use to select "All Zone Stereo", then press ENTER.
3 Select "Start", then press ENTER.

The input source for ZONE2 is switched to the same input source as for MAIN ZONE, and playback starts in the All Zone Stereo mode.

- Stopping the All Zone Stereo mode

1 During playback in All Zone Stereo mode, press OPTION.

The option menu screen is displayed.

2 Use to select "All Zone Stereo", then press ENTER.
3 Select "Stop", then press ENTER.

• The All Zone Stereo mode is canceled even when the power supply of the MAIN ZONE is turned off.
• In the All Zone Stereo mode, only the "Multi Ch Stereo" and "Stereo" sound modes can be selected.
• When "HDMI Audio Out" is set to "TV", the All Zone Stereo mode is not available. (19 p. 181)
• When "Input Mode" is set to other than "7.1CH IN", the All Zone Stereo mode is available. (p. 197)

Selecting a sound mode

This unit allows you to enjoy various kinds of surround and stereo playback modes.

Disc formats such as Blu-ray Disc and DVD, as well as being supported by digital broadcasting, and even by streaming movies and music from internet-based subscription services.

This unit supports playback of almost all of these multi-channel audio formats. It also supports surround playback of audio formats other than multi-channel audio such as 2-channel stereo audio.

For audio formats recorded on a disc, see the disc jacket or label.

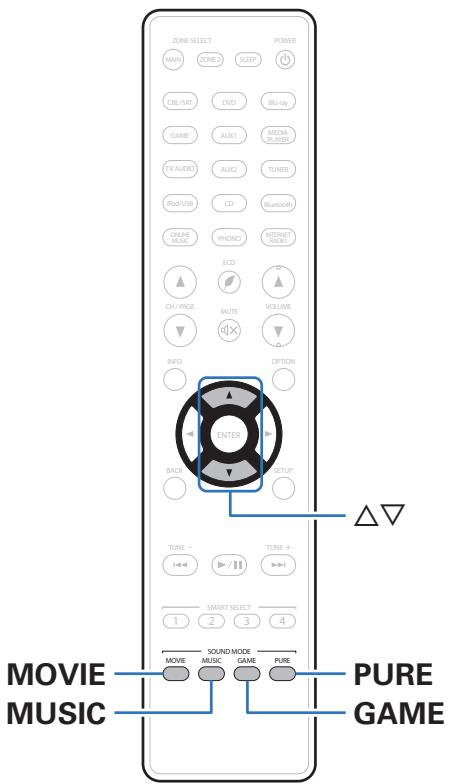

Selecting a sound mode

1 Press MOVIE, MUSIC or GAME to select a sound mode.

MOVIE :	Switches to the sound mode suitable for enjoying movies and TV programs.
MUSIC :	Switches to the sound mode suitable for enjoying music.
GAME :	Switches to the sound mode suitable for enjoying games.

• The MOVIE, MUSIC, or GAME button memorizes the last sound mode selected for its button. Pressing MOVIE, MUSIC, or GAME recalls the same sound mode as the one selected at the previous playback.
• If the content played back does not support the previously selected sound mode, the most appropriate sound mode for the content is automatically selected.
• You can also press SOUND MODE on the main unit to switch the sound mode.

Switching the sound mode

• Press MOVIE, MUSIC or GAME to display a list of the sound modes that can be selected. Each time you press MOVIE, MUSIC or GAME, the sound mode changes.
• While the list is displayed, you can also use to select a sound mode.
• Try out various sound modes and enjoy sound mode in your favorite mode.

[Example] When MOVIE is pressed

Direct playback

Sound recorded in source is played as is.

1 Press PURE to select "Direct".

Direct playback begins.

• While DSD signals are played back, "DSD Direct" is displayed.
• This can also be set by pressing PURE DIRECT on the main unit.

Pure Direct playback

This mode is for playback with higher sound quality than in Direct playback mode.

This mode turns off the main unit display and analog video circuit. Doing so suppresses noise sources that affect sound quality.

1 Press PURE to select "Pure Direct".

The display goes dark, and Pure Direct playback begins. The PURE DIRECT indicator lights.

• In Direct and Pure Direct sound modes, the following items cannot be adjusted.

Tone (p. 127)
M-DAX (p. 171)
- MultEQ® XT32 (174)
Dynamic EQ (p. 175)
Dynamic Volume (p. 176)
- Graphic EQ (p.177)

• This can also be set by pressing PURE DIRECT on the main unit.

NOTE

• Video signals are only output when HDMI signals are played in the Pure Direct mode.
• When the Pure Direct mode has been selected, the display turns off after about 5 seconds.

Auto surround playback

This mode detects the type of input digital signal, and automatically selects the corresponding mode for playback.

Perform stereo playback when the input signal is PCM. When the input signal is Dolby Digital or DTS, the music is played back according to the respective channel number.

1 Press PURE to select "Auto".

Auto surround playback begins.

• This can also be set by pressing PURE DIRECT on the main unit.

Description of sound mode types

Dolby sound mode

Sound mode type	Description
Dolby Surround	This mode uses Dolby Surround Upmixer to extend various sources to natural and realistic multi channels for playback. Use ceiling speakers such as top middle speakers to realize a three-dimensional sound field.
Dolby Digital	This mode can be selected when playing sources recorded in Dolby Digital.
Dolby TrueHD	This mode can be selected when playing sources recorded in Dolby TrueHD.
Dolby Digital Plus	This mode can be selected when playing sources recorded in Dolby Digital Plus.
Dolby Atmos*	This mode can be selected when playing back content encoded with Dolby Atmos. It decodes Dolby Atmos content and its positioning data in real time and outputs audio from the appropriate speakers, creating natural audio images regardless of the speaker layout. Use ceiling speakers and Dolby Atmos Enabled speakers to realize a three-dimensional sound field.

• This mode is not supported in a 5.1ch or less speaker configuration.

DTS sound mode

Sound mode type	Description
DTS Surround	This mode can be selected when playing sources recorded in DTS.
DTS ES Dscrt6.1*	This mode is suitable for playing discs recorded in DTS-ES.The surround back channel added using the discrete method is played as an independent channel.Since all channels are independent, the 360-degree spacial expressiveness and sound localization are enhanced.
DTS ES Mtrx6.1*	This mode is suitable for playing discs recorded in DTS-ES.The surround back channel added to the surround-left and surround-right channels by a matrix encoder at software recording time is decoded by this unit's matrix decoder and played from each channel (surround left, surround right, surround back).
DTS 96/24	This mode can be selected when playing sources recorded in DTS 96/24.
DTS-HD	This mode can be selected when playing sources recorded in DTS-HD.
DTS Express	This mode can be selected when playing sources recorded in DTS Express.
DTS:X	This mode can be selected when playing back content encoded with DTS:X.It decodes DTS:X content and its positioning data in real time and outputs audio from the appropriate speakers, creating natural audio images regardless of the speaker layout. Use height speakers to realize a three-dimensional sound field.
DTS Neural:X	This mode uses DTS Neural:X Upmixer to extend various sources to natural and realistic multi channels for playback.Use height speakers such as front height speakers to realize a three-dimensional sound field.

• This can be selected when "Speaker Config." - "Surr. Back" is not set to "None". (p.216)

PCM multi-channel sound mode

Sound mode type	Description
Multi Ch In	This mode can be selected when playing multi-channel PCM/DSD sources.

Original sound mode

Sound mode type	Description
Multi Ch Stereo	This mode is for enjoying stereo sound from all speakers.
Virtual	This mode lets you experience an expansive surround sound effect when playing back through just the front (L/R) speakers only, and when listening with stereo headphones.

Auto sound mode

Sound mode type

Description

Auto

In this mode, the type of digital signal input, such as Dolby Digital, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Atmos, DTS, DTS-HD, DTS:X, DTS-ES, PCM (multi-channel) is detected, and the playback mode switches automatically to the corresponding mode. If the input signal is analog or PCM (2-channel), stereo playback is used. For Dolby Digital or DTS, the music is played back according to the respective channel number.

Stereo sound mode

Sound mode type	Description
Stereo	This mode plays 2-channel stereo audio with no additional surround sound processing. • Sound is output from the front left and right speakers, and subwoofer if connected. • When multi-channel signals are inputted, they are mixed down to 2-channel audio and are played back with no additional surround sound processing.

Direct sound mode

Sound mode type	Description
Direct	This mode plays back audio as recorded in the source.
Pure Direct	This mode plays back an even higher quality sound than the “Direct” mode. The following circuits are stopped in order to further improve sound quality. • Display indicator circuit of the main body (display will go off.) • The analog video input/output switcher and processor is disabled.

Sound mode that can be selected for each input signal

• The following sound modes can be selected using the MOVIE, MUSIC and GAME buttons.
• Adjust the sound field effect with the menu "Surround Parameter" to enjoy surround sound the way you like it. (p. 167)

Input signal	Sound mode	MOVIE button	MUSIC button	GAME button
2-channel *1	Stereo	○	○	○
	Dolby Surround *2	○	○	○
	DTS Neural:X *2	○	○	○
	Multi Ch Stereo	○	○	○
	Virtual	○	○	○

*1 2-channel also includes analog input.
*2 This mode plays back 2-channel sources in 5.1, 7.1, 9.1 or 11.1-channel playback. It cannot be selected when headphones are used or when the speaker configuration is front speakers only.

Input signal		Sound mode	MOVIE button	MUSIC button	GAME button
Multi-channel *3		Stereo	○	○	○
	Dolby Digital	Dolby Digital	○	○	○
		Dolby Digital + Dolby Surround	○	○	○
		Dolby Digital + Neural:X	○	○	○
	Dolby TrueHD	Dolby TrueHD	○	○	○
		Dolby TrueHD + Dolby Surround *4	○	○	○
		Dolby TrueHD + Neural:X	○	○	○
		Dolby Atmos *5	○	○	○
	Dolby Digital Plus	Dolby Digital Plus	○	○	○
		Dolby Digital Plus + Dolby Surround *4	○	○	○
		Dolby Digital Plus + Neural:X	○	○	○
		Dolby Atmos *5	○	○	○
	Dolby Atmos	Dolby Atmos	○	○	○
	DTS	DTS Surround	○	○	○
		DTS ES Dscrt 6.1	○	○	○
		DTS ES Mtrx 6.1	○	○	○
		DTS 96/24	○	○	○
		DTS + Dolby Surround	○	○	○
		DTS + Neural:X	○	○	○

3 The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels. For details, see "Types of input signals, and corresponding sound modes" (p. 282).
4 This can be selected when the input signal does not contain Dolby Atmos.
*5 This can be selected when the input signal contains Dolby Atmos.

Input signal		Sound mode	MOVIE button	MUSIC button	GAME button
DTS-HD / DTS Express		DTS-HD HI RES	○	○	○
		DTS-HD MSTR	○	○	○
		DTS Express	○	○	○
		DTS-HD + Dolby Surround	○	○	○
		DTS-HD + Neural:X	○	○	○
DTS:X		DTS:X	○	○	○
		DTS:X MSTR	○	○	○
PCM multi-channel		Multi Ch In	○	○	○
		Multi Ch In 7.1	○	○	○
		Multi In + Dolby Surround	○	○	○
		Multi Ch In + Neural:X	○	○	○
Multi-channel *3		Multi Ch Stereo	○	○	○
		Virtual	○	○	○

*3 The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels. For details, see "Types of input signals, and corresponding sound modes" (p. 282).

Views on the display

1 Shows a decoder to be used.
- In the case of the Dolby Digital Plus decoder, "Dolby D+" is displayed.
2 Shows a decoder that creates sound output.
- "DOS" indicates that the Dolby Surround decoder is being used.

HDMI control function

A recent addition to the HDMI standard is CEC (Consumer Electronics Control), which allows control signals from one device to communicate with another device via the HDMI cable connection.

Setting procedure

1 Enable the HDMI Control function of this unit.

Set "HDMI Control" to "On". (p. 183)

2 Turn the power on for all the devices connected by HDMI cable.
3 Set the HDMI Control function for all devices connected by HDMI cable.

• Please consult the operating instructions for the connected devices to check the settings.
• Carry out steps 2 and 3 should any of the devices be unplugged.

4 Switch the television input to the HDMI input connected to this unit.

5 Switch the input source of this unit to check that video from the player connected by HDMI is played back correctly.
6 When you turn the TV's power to standby, check that the power of this unit also goes to standby.

NOTE

• Some functions may not operate depending on the connected TV or player. Check the owner's manual of each device for details beforehand.
• The HDMI ZONE2 function is not compatible with the HDMI Control function.
• When the HDMI ZONE2 function is used with "HDMI Control" in the menu set to "On", the HDMI ZONE2 function may not fully work.

Smart Menu function

This function can be used to configure the settings of this unit, select an input source and set Tuner and Internet Radio stations using the TV remote control.

1 Enable the HDMI Control function of this unit and the TV. (p. 183)
2 Set "Smart Menu" to "On" on this unit. (p. 186)
3 Select "AV Receiver" in a TV menu such as "Input" or "Operate Connected HDMI Device".

The Smart Menu of this unit is displayed on the TV.

• This unit can be operated with the TV remote control while the Smart Menu is displayed.

• The selection method differs depending on your TV.

Now Playing

Enjoy content from the input source currently selected on this unit.

Source

Switch the input of this unit.

If you select "Online Music", "iPod/USB" or "Tuner", you can continue to operate this unit using the TV remote control.

Sound Mode

Change the sound mode of this unit.

You can select from the following three sound modes.

Surround:	Surround sound playback according to the input signal.
Stereo:	Stereo playback.
Multi Ch Stereo:	Multi-channel stereo playback.

Setup Menu

Displays a setup menu for configuring the settings of this unit.

Smart Select

Calls up the SMART SELECT items registered to this unit.

NOTE

• If the "HDMI Control" or "Smart Menu" settings have been changed, always reset the power to connected devices after the change.
• The Smart Menu function may not work properly depending on the specifications of your TV. In this case, set "Smart Menu" to "Off". (p. 186)

Sleep timer function

You can have the power automatically switched to standby once a set time has elapsed. This is convenient for viewing and listening while going to sleep. The sleep timer function can be set for each zone.

Using the sleep timer

1 Press MAIN or ZONE2 to select the operating zone with the remote control.

The button for the selected zone is lit.

2 Press SLEEP and display the time you want to set.

• The sleep timer indicator lights up on the display and the sleep timer starts.
• You can set the sleep timer in the range from 10 to 120 minutes in steps of 10 minutes.

Checking the remaining time

Press SLEEP when the sleep timer is in operation.

The remaining time appears on the display.

To cancel the sleep timer

Press SLEEP to select "Off".

The sleep timer indicator on the display turns off.

• The sleep timer setting is canceled when the unit switches to standby mode.

NOTE

• The sleep timer function cannot turn off the power of devices connected to this unit. To turn off the power of those connected devices, set up sleep timers on the connected devices themselves.

Smart select function

Settings such as the input source, volume level and sound mode can be registered to the SMART SELECT 1 - 4 buttons.

You can simply press one of the registered SMART SELECT buttons in subsequent playbacks to switch to the group of saved settings in a batch. By saving frequently used settings at the SMART SELECT 1 - 4 buttons, you will always be able to easily call up the same playback environment.

The Smart Select function can be memorized for each zone.

Calling up the settings

1 Press MAIN or ZONE2 to select the operating zone with the remote control.

The button for the selected zone is lit.

2 Press SMART SELECT.

The Smart Select settings registered to the button you pressed are called up.

• The default settings for the input source and volume are as shown below.

【MAIN ZONE】/【ZONE2】

Button	Input source	Volume
SMART SELECT 1	CBL/SAT	40
SMART SELECT 2	Blu-ray	40
SMART SELECT 3	Media Player	40
SMART SELECT 4	Online Music	40

Changing the settings

1 Set the items below to the settings you want to register.

The following settings from ① to ⑧ can be memorized for MAIN ZONE, and settings ① and ② can be memorized for ZONE2.

① Input source (p.82)
② Volume (p. 83)
③ Sound mode (p. 131)
④ Audyssey (Audyssey MultEQ® XT32, Audyssey Dynamic EQ®, Audyssey Dynamic Volume®, Audyssey LFC™) (p. 174)
⑤ “M-DAX” (p. 171)
⑥ "Adjusting the volume of each channel to match the input source (Channel Level Adjust)" (p. 126)
⑦ "Displaying your desired video during audio playback (Video Select)" (p. 128)
⑧ "Adjusting the picture quality for your viewing environment (Picture Mode)" (p. 129)

• Press and hold SMART SELECT while a radio station is being received or a track is being played back with any of the following sources, the current radio station or track is memorized.
• Tuner / Internet Radio / Media Server / Favorites / iPod/USB

2 Press MAIN or ZONE2 to select the operating zone with the remote control.

The button for the selected zone is lit.

3 Press and hold the desired SMART SELECT until "Smart* Memory" or "Z2 Smart* Memory" appear on the display.

The current settings will be memorized.

• is displayed the number for the SMART SELECT button you pressed.

Changing the Smart Select Name

The MAIN ZONE Smart Select name displayed on the TV screen or display of this unit can be changed to a different name.

For the name change method, see "Smart Select Names" (p. 238).

Web control function

You can control this unit from a web control screen on a web browser.

Tablet

• This unit and the PC or tablet need to be connected correctly to the network in order to use the web control function. ("Connecting to a home network (LAN)" (12 p. 76))
• Depending on the settings of your security-related software, you may not be able to access this unit from your PC. If this is the case, then change the settings of the security-related software.

Controlling the unit from a web control

1 Switch the "Network Control" setting to "Always On". (p. 230)
2 Check the IP address of this unit with "Information". (p. 224)

3 Start up the web browser.

4 Enter the IP address of this unit in browser's address box.

For example, if the IP address of this unit is "192.168.100.19", enter "http://192.168.100.19".

http://192.168.100.19

File Edit View Favorites Tools Help

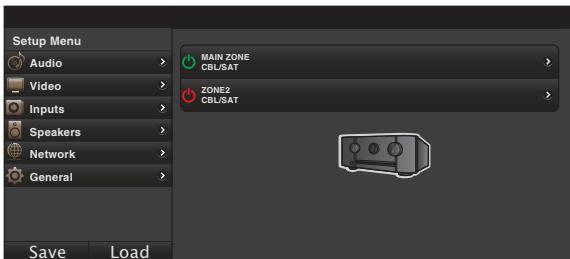

5 When the top menu is displayed, click on the menu item you want to operate.

• You can use the "Save" and "Load" functions to store or recall various function settings using web control from a PC.
• To memorize settings, click "Save" on the Setup Menu screen.
• To call up settings, click "Load" on the Setup Menu screen.
• We recommend using one of the following web browsers.
  Internet Explorer 10 and above
  Mozilla Firefox 24 and above
  Google Chrome 29 and above
  Safari 5.x and above

Panel lock function

To prevent accidental operation of this unit, you can disable operation of the buttons on the front panel.

Disabling all key button operations

Press while you press and hold M-DAX and DIMMER with the unit in standby mode.
2 Use TUNER PRESET CH + or TUNER PRESET CH - to select "P/V LOCK On".
3 Press STATUS to enter the setting. All button operations except 已 are disabled.

Disabling all button operations except VOLUME

Press while you press and hold M-DAX and DIMMER with the unit in standby mode.
2 Use TUNER PRESET CH + or TUNER PRESET CH - to select "FP LOCK On".
3 Press STATUS to enter the setting. All button operations except and VOLUME are disabled.

Canceling the Panel lock function

1 Press while you press and hold M-DAX and DIMMER with the unit in standby mode.
2 Press TUNER PRESET CH + or TUNER PRESET CH - to select "FP LOCK *Off".

(*The currently set mode.)

3 Press STATUS to enter the setting.

The Panel lock function is canceled.

• Even when the Panel lock function is set, you can operate the unit using the remote control unit.

Remote lock function

When connecting an IR receiver, enable the Remote lock function. When the function is enabled, you can not perform operations with the remote control unit.

By default, this function is disabled.

Disabling the sensor function of the remote control unit

Press while you press and hold M-DAX and DIMMER with the unit in standby mode.
2 Use TUNER PRESET CH + or TUNER PRESET CH - to select "RC LOCK On".
3 Press STATUS to enter the setting. The infrared light receiving function is disabled.

Enabling the remote sensor function

Press while you press and hold M-DAX and DIMMER with the unit in standby mode.
2 Press TUNER PRESET CH + or TUNER PRESET CH - to select "RC LOCK Off". ( The currently set mode.)
3 Press STATUS to enter the setting. Infrared light receiving function on the main unit is enabled.

Playback in ZONE2 (Separate room)

You can operate this unit to enjoy video and audio in a room (ZONE2) that is different from the room where this unit is placed (MAIN ZONE).

You can simultaneously play back the same source in both the MAIN ZONE and ZONE2. You can also play back separate sources in the MAIN ZONE and ZONE2.

Connecting ZONE2

You can use the following three methods to play back video and audio in ZONE2.

"Connection through the HDMI ZONE2 connector" (p. 156)
"Connecting using a speaker output terminal" (p. 157)
"Connecting using an external amplifier" (p. 157)

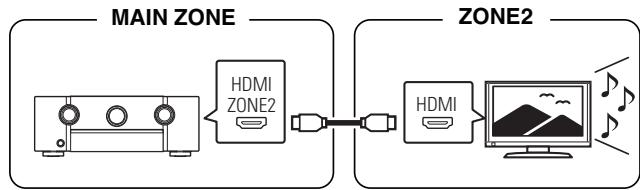

■ Connection 1: Connection through the HDMI ZONE2 connector

When a TV is connected to the HDMI ZONE2 OUT connector, you can play back a video or audio from the device connected to the HDMI 1-7 IN connector in ZONE2 (HDMI ZONE2 function).

• When a TV is connected to the HDMI ZONE2 OUT connector, and the MAIN ZONE and ZONE2 are set to the same input source, the MAIN ZONE audio may be mixed down to 2-channel audio.

■ Connection 2: Connecting using a speaker output terminal

When "Assign Mode" is set to "ZONE2" in the menu, ZONE2 audio is output from the SURROUND BACK speaker terminal. (p. 209)

■ Connection 3 : Connection using an external amplifier (ZONE2)

The audio signals of this unit's ZONE2 audio output connectors are output to the ZONE2 amplifiers and played on these amplifiers.

• The analog audio signal and the 2-channel PCM signal input from HDMI connector or digital connectors (OPTICAL/COAXIAL) can be played back in ZONE2.
• If you want to play back HDMI signals other than 2-channel PCM in ZONE2, set "HDMI Audio" to "PCM". (14 p. 236) The output from a device connected to the input source selected for ZONE2 can be automatically converted to 2-channel PCM.

In this case, the MAIN ZONE audio will also be converted to 2-channel PCM if the MAIN ZONE and ZONE2 are set to the same input source. However, depending on the playback device, the playback signal may not be converted to PCM even if this setting is configured.

Playback in ZONE2

1 Press ZONE2 to set the operating zone to ZONE2 with the remote control.

The ZONE2 button lights.

2 Press POWER to turn on the ZONE2 power.

The ZONE2 power indicator on the display lights.

• Power in ZONE2 can be turned on or off by pressing ZONE2 ON/OFF on the main unit.

3 Press the input source select button to select the input source to be played.

The audio signal of the selected source is output to ZONE2.

• You can also select ZONE2 as the input source by pressing ZONE2 SOURCE and then turning the INPUT SELECTOR.

Adjusting the volume (ZONE2)

Use VOLUME to adjust the volume.

• At time of purchase, "Volume Limit" is set to "70 (-10 dB)".

(p.236)

• Turn VOLUME after pressing ZONE2 SOURCE on the main unit to adjust the volume.

- Turning off the sound temporarily (Muting) (ZONE2)

Press MUTE X

The sound is reduced to the level set at "Mute Level" in the menu.

（p.237)
- To cancel mute, either adjust the sound volume or press MUTE X again.

Menu map

When using menu operations, connect this unit to a TV and operate this unit while viewing the TV.

The recommended settings are configured for this unit by default. You can customize this unit based on your existing system and your preferences.

Setting items	Detailed items	Description	Page
Audio	Dialog Level Adjust	This setting adjusts the output level to clarify the dialogue output from the center channel.	166
	Subwoofer Level Adjust	This setting adjusts the volume level for the subwoofer.	166
	Surround Parameter	Adjusts surround sound parameters.	167
	M-DAX	Expands the low and high frequency components of compressed audio content such as MP3 files to enable richer audio playback.	171
	Audio Delay	Compensates for incorrect timing between video and audio.	172
	Volume	Sets the MAIN ZONE (room where the unit is located) volume setting.	173
	Audyssey	Makes Audyssey MultEQ® XT32, Audyssey Dynamic EQ®, Audyssey Dynamic Volume® and Audyssey LFC™ settings.	174
	Graphic EQ	Uses the graphic equalizer to adjust the tone of each speaker.	177
Video	Picture Adjust	Adjusts picture quality.	179
	HDMI Setup	Makes settings for HDMI Audio Out, HDMI Pass Through and HDMI Control settings.	181
	Output Settings	Makes settings for video output.	187
	On Screen Display	Configs the on-screen display settings.	191
	TV Format	Sets the video signal format to be output for the TV you are using.	192
Inputs	Input Assign	Changes input connector assignment.	193
	Source Rename	Changes the display name for input source.	195
	Hide Sources	Removes from the display input sources that are not used.	196
	Source Level	Adjusts the playback level of the audio input.	196
	Input Select	Sets the audio input mode.	197
Speakers	Audyssey® Setup	The acoustic characteristics of the connected speakers and listening room are measured and the optimum settings are made automatically.	198
	Manual Setup	Sets up the speakers manually or changes the Audyssey® Setup settings.	209
Network	Information	Displays network information.	224
	Connection	Selects whether to connect the home network to a wireless LAN or a wired LAN.	224
	Settings	Used for manually setting the IP address or when using a proxy server.	228
	Network Control	Enables network communication in standby power mode.	230
	Friendly Name	The “Friendly Name” is the name of this unit displayed on the network. You can change the Friendly Name according to your preferences.	230
	Diagnostics	Used to check the network connection.	231
General	Language	Changes the language of the display on the TV screen.	232
	ECO	Configs the ECO Mode and Auto Standby energy-saving functions.	232
	ZONE2 Setup	Makes settings for audio playback with ZONE2.	235
	Zone Rename	Changes the display title of each zone to one you prefer.	237
	Smart Select Names	Changes the Smart Select Name display title to one you prefer.	238
	Trigger Out	Select the conditions for activating trigger out function.	238
	Front Display	Makes settings related to the display on this unit.	239
	Firmware	Checks for the latest firmware information about updates and upgrades, updates the firmware, and sets up the notification message display.	240
	Information	Shows information about this unit settings, input signals, etc.	242
	Usage Data	Selects whether or not to send anonymous usage data to Marantz.	244
	Setup Lock	Protects settings from inadvertent changes.	244
Setup Assistant	Begin Setup...	Performs basic installation/connections/settings from the beginning according to the guidance indicated on the TV screen.	Page 9 of the separate manual “Quick Start Guide”
	Language Select	Sets individual setting items according to the guidance displayed on the TV screen.
	Speaker Setup
	Speaker Calibration
	Network Setup
	TV Audio Connection
	Input Setup

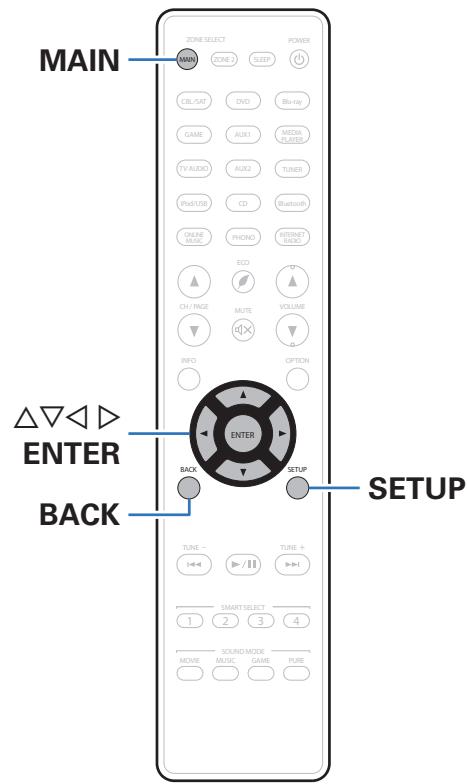

Menu operations

1 Press MAIN on the remote control unit to set the operating zone to the MAIN ZONE.

The MAIN button lights.

2 Press SETUP.

The menu is displayed on the TV screen.

3 Use to select the menu to be set or operated, then press ENTER.
4 Use to change to desired setting.
5 Press ENTER to enter the setting.

• To return to the previous item, press BACK.
• Exiting the menu, press SETUP while the menu is displayed. The menu display disappears.

Inputting characters

On this unit, you can change the name displayed on the following screens to the names that you prefer.

• Preset Name (R B p. 105)
  Text Search (p. 123)
  Source Rename (p. 195)
• Friendly Name (p. 230)
  Zone Rename (p. 237)
  Smart Select Names (p. 238)
• Character input for the network functions

Using the keyboard screen

1 Display the screen for inputting characters.

【Example】"Source Rename" screen

Inputs/Source Rename

Changes the display name for this source

2 Use to select or .

3 Press ENTER to move the cursor to the character that you wish to change.
Each time ENTER is pressed, the cursor moves by one character.
4 Select a character to be input with then press ENTER.
5 Repeat steps 2 - 4 to change the name.
6 Use to select "OK", then press ENTER.

Audio

Make audio-related settings.

Dialog Level Adjust

This setting adjusts the output level to clarify the dialogue output from the center channel.

■ Dialog Level Adjust

Set whether to adjust the dialog level or not.

On:	Enables the adjustment of the dialog level.
Off (Default):	Disables the adjustment of the dialog level.

Level

Adjusts the volume output from the center channel.

-12.0 dB - +12.0 dB (Default: 0.0 dB)

Subwoofer Level Adjust

This setting adjusts the volume level for the subwoofer.

Subwoofer Level Adjust

Set whether to adjust the subwoofer level.

On:	Enables the adjustment of the subwoofer level.
Off (Default):	Disables the adjustment of the subwoofer level.

Subwoofer 1 Level / Subwoofer 2 Level

Adjusts the volume level for the Subwoofer 1 and Subwoofer 2.

-12.0 dB - +12.0 dB (Default: 0.0 dB)

Surround Parameter

You can adjust the surround audio sound field effects to match your preferences.

The items (parameters) that can be adjusted depend on the signal being input and the currently set sound mode. For details on the adjustable parameters, see "Sound modes and surround parameters" (p. 279).

• Some setting items cannot be set while playback is stopped. Make the settings during playback.
• "Surround Parameter" settings are stored for each sound mode.

Cinema EQ

Gently softens the upper treble range of movie soundtracks to reduce possible harshness and improve clarity.

On:	“Cinema EQ” is used.
Off (Default):	“Cinema EQ” is not used.

Loudness Management

This sets whether to output as specified in "Dynamic Compression" or output directly without compressing the dynamic range of audio recorded in the disc.

On(Default):	Outputs are given based on enabling the settings made in “Dynamic Compression” and Dialogue normalization function.
Off:	“Dynamic Compression” settings and Dialogue normalization are disabled, and the signals on the disc are output as is.

• "Loudness Management" can be set when Dolby Digital, Dolby Digital Plus, Dolby TrueHD and Dolby Atmos signal is input.

Dynamic Compression

Compress dynamic range (difference between loud and soft sounds).

Auto:	Automatic dynamic range compression on/off control according to source.
Low / Medium / High:	These set the compression level.
Off:	Dynamic range compression is always off.

• "Dynamic Compression" can be set when Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos or DTS signal is input.
• The default setting is "Off". When the input signal is the Dolby TrueHD or Dolby Atmos source, the default setting is "Auto".
• "Auto" cannot be set when inputting a DTS signal.

■ Dialog Control

Adjust the volume of dialog in movies, vocals in music, etc. so these can be heard more easily.

0-6(Default:0)

• This can be set when a DTS:X signal that is compatible with the Dialog Control function is input.

Low Frequency Effects

Adjust the low frequency effects level (LFE).

When "Input Mode" is set other than to "7.1CH IN"

-10 dB - 0 dB (Default: 0 dB)

When "Input Mode" is set to "7.1CH IN"

0 dB / +5 dB / +10 dB / +15 dB (Default: +10 dB)

• For proper playback of the different sources, we recommend setting to the values below.
• Dolby Digital sources: 0 dB
• DTS movie sources : 0 dB
• DTS music sources: -10 dB

Center Spread

Center Spread expands the center channel signal to left and right front speakers to create a wider frontal audio image for the listener. It is optimized and designed primary for playback of stereo music content.

On:	Use “Center Spread”.
Off (Default):	Do not use “Center Spread”.

• You can set this when sound mode is "Dolby Surround".

DTS Neural:X

DTS Neural:X Expands the non-object based audio signals and optimizes them for your speaker configuration.

On (Default):	Use “DTS Neural:X”.
Off:	Do not use “DTS Neural:X”.

• You can set this when sound mode is "DTS:X" or "DTS:X MSTR".

Speaker Select

Makes settings for the speakers outputting sound.

Floor (Default):	Plays back without height speakers.
Floor & Height:	Plays back with height speakers.

• This can be set when the sound mode is the original sound mode.

Subwoofer

Turn subwoofer output on and off.

On

(Default):

The subwoofer is used.

Off:

The subwoofer is not used.

• You can set this when the sound mode is "Direct" or "Stereo" and in the menu "Subwoofer Mode" is set to "LFE+Main". (p.222)

Set Defaults

The "Surround Parameter" settings are returned to the default settings.

M-DAX

Compressed audio formats such as MP3, WMA (Windows Media Audio) and MPEG-4 AAC reduce the amount of data by eliminating signal components that are hard for the human ear to hear. The "M-DAX" function generates the signals eliminated upon compression, restoring the sound to conditions near those of the original sound before compression. It also restores the original bass characteristics for a rich and expanded tonal range.

Mode

High:	Optimized mode for compressed sources with very weak highs (64 kbps and under).
Medium:	Apply suitable bass and treble boost for all compressed sources (96 kbps and under).
Low:	Optimized mode for compressed sources with normal highs (96 kbps and over).
Off:	Do not use “M-DAX”.

• The M-DAX indicator lights.
• This item can be set with analog signals or PCM signal (Sample Rate = 44.1/48 kHz) is input.
• This item default setting for "Online Music", "iPod/USB" and "Bluetooth" is "Low". All others are set to "Off".
• This cannot be set when the sound mode is set to "Direct" or "Pure Direct".
• This cannot be set when the input mode is set to "7.1CH IN".
• "M-DAX" settings are stored for each input source.
• This can also be set by pressing M-DAX on the main unit.

Audio Delay

Compensates for incorrect timing between video and audio.

• Audio Delay for game mode can be set when "Video Mode" is set to "Auto" or "Game". (p. 187)
• "Audio Delay" settings are stored for each input source.
• This cannot be set when the input mode is set to "7.1CH IN".

Auto Lip Sync

Automatically adjusts the audio processing time to compensate for delays in audio/video timing from TV compatible with Auto Lip Sync.

On (Default):	Correct automatically.
Off:	Do not correct automatically.

• Automatic correction may not be performed depending on the specifications of your TV even when "Auto Lip Sync" is set to "On".

Adjust

The timing mismatch between the picture and sound needs to be corrected manually.

0 ms - 500 ms (Default: 0 ms)

• You can also finely adjust the delay correction value set by "Auto Lip Sync".
• Adjust for game mode can be set when "Video Mode" is set to "Auto" or "Game". (p. 187)

Volume

Set the MAIN ZONE (room where the unit is located) volume setting.

Scale

Set how volume is displayed.

0 - 98 (Default):	Display in the range 0 (Min) to 98.
-79.5 dB – 18.0 dB:	Display ---dB (Min), in the range -79.5 dB to 18.0 dB.

• "Scale" settings are reflected in all the zones.

Limit

Make a setting for maximum volume.

60 (-20 dB) / 70 (-10 dB) / 80 (0 dB)

Off (Default)

• The dB value is displayed when the "Scale" setting is " -79.5 dB - 18.0 dB". (p. 173)

Power On Level

Define the volume setting that is active when the power is turned on.

Last (Default):	Use the memorized setting from the last session.
Mute:	Always use the muting on condition when power is turned on.
1 – 98 (−79 dB – 18 dB):	The volume is adjusted to the set level.

• The dB value is displayed when the "Scale" setting is " -79.5 dB - 18.0 dB". (p. 173)

Mute Level

Set the amount of attenuation when muting is on.

Full (Default):	The sound is muted entirely.
-40 dB :	The sound is attenuated by 40 dB down.
-20 dB :	The sound is attenuated by 20 dB down.

Audyssey®

Set Audyssey MultEQ® XT32, Audyssey Dynamic EQ®, Audyssey Dynamic Volume® and Audyssey LFC™. These can be selected after Audyssey® Setup has been performed.

For additional information on Audyssey technology, please see "Explanation of terms" (p. 285).

• "MultEQ® XT32", "Dynamic EQ", "Reference Level Offset", "Dynamic Volume", "Audyssey LFC™" and "Containment Amount" settings are stored for each input source.
• When the sound mode is in the "Direct" or "Pure Direct" mode, "MultEQ® XT32", "Dynamic EQ" and "Dynamic Volume" settings cannot be configured.
• This cannot be set when the input mode is set to "7.1CH IN".

MultEQ® XT32

MultEQ® XT32 compensates for both time and frequency characteristics of the listening area based on Audyssey® Setup measurement results. Selection is done from three types of compensation curves. We recommend the “Reference” setting.

Reference (Default):	Selects the default calibrated setting with a slight roll off at high frequencies, which is optimized for movies.
L/R Bypass:	Selects the reference setting, but bypasses MultEQ® XT32 on the front left and right speakers.
Flat:	Selects the calibrated setting which is optimized for small rooms where your listening position is closer to the speakers.
Off:	Do not use “MultEQ® XT32”.

• When using headphones, "MultEQ® XT32" is automatically set to "Off".

Dynamic EQ

Solves the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics.

Works with MultEQ XT32.

On

(Default):

Use Dynamic EQ.

Off:

Do not use Dynamic EQ.

• When the menu "Dynamic EQ" setting is "On", it is not possible to do "Tone" adjustment. (p. 127)

Reference Level Offset

Audyssey Dynamic EQ® is referenced to the standard film mix level. It makes adjustments to maintain the reference response and surround envelopment when the volume is turned down from 0 dB. However, film reference level is not always used in music or other non-film content. Dynamic EQ Reference Level Offset provides three offsets from the film level reference (5 dB, 10 dB, and 15 dB) that can be selected when the mix level of the content is not within the standard. Recommended setting levels for content are shown below.

0 dB (Film Reference) (Default):	Optimized for content such as movies.
5 dB :	Select this setting for content that has a very wide dynamic range, such as classical music.
10 dB :	Select this setting for jazz or other music that has a wider dynamic range. This setting should also be selected for TV content as that is usually mixed at 10 dB below film reference.
15 dB :	Select this setting for pop/rock music or other program material that is mixed at very high listening levels and has a compressed dynamic range.

• Setting is enabled when "Dynamic EQ" is "On". (p. 175)

Dynamic Volume

Solves the problem of large variations in volume level between TV, movies and other content (between quiet passages and loud passages, etc.) by automatically adjusting to the user's preferred volume setting.

Heavy:	Most adjustment to softest and loudest sounds.
Medium:	Medium adjustment to loudest and softest sound.
Light:	Least adjustment to loudest and softest sounds.
Off (Default):	Do not use Dynamic Volume.

• If "Dynamic Volume" is set to "Yes" in "Audyssey® Setup", the setting is automatically changed to "Medium". (p. 198)

Audyssey LFC™

Adjusts the low frequency band to prevent bass and vibration from being conveyed to neighboring rooms.

On:	Use “Audyssey LFC™”.
Off (Default):	Do not use “Audyssey LFC™”.

Containment Amount

Adjusts the amount of low frequency containment. Use higher settings if you have close neighbors.

1-7(Default:4)

• This can be set when "Audyssey LFC™" in the menu is set to "On".

Graphic EQ

Uses the graphic equalizer to adjust the tone of each speaker.

• Speakers for which "Graphic EQ" can be set differ according to the sound mode.
• This can be set when the "MultEQ® XT32" setting is "Off". (p. 174)
• This cannot be set when the sound mode is set to "Direct" or "Pure Direct".
• If you are using headphones, you can set the equalizer for headphones. (p. 177)
• This cannot be set when the input mode is set to "7.1CH IN".

Graphic EQ/Headphone EQ

Set whether to use the graphic equalizer or not.

On:	Use the graphic equalizer.
Off (Default):	Do not use the graphic equalizer.

• "Headphone EQ" is set in the menu when headphones are used.

■ Speaker Selection

Select whether to adjust tones for individual speakers or for all speakers.

All:	Adjust all speaker tones together.
Left/Right (Default):	Adjust the left and right speaker tones together.
Each:	Adjust the tone for each speaker.

Adjust EQ

Adjust tonal balance for each frequency band.

1. Select the speaker.
2. Select the adjustment frequency band. 63 Hz / 125 Hz / 250 Hz / 500 Hz / 1 kHz / 2 kHz / 4 kHz / 8 kHz / 16 kHz
3. Adjust the level. -20.0 dB - +6.0 dB (Default: 0.0 dB)

• Front Dolby, Surround Dolby and Back Dolby speakers can only be set when 63Hz / 125Hz / 250Hz / 500Hz / 1kHz .

Curve Copy

Copy the Flat correction curve created in the Audyssey® Setup.

• "Curve Copy" is displayed after Audyssey® Setup has been performed.
  "Curve Copy" cannot be used when using headphones.

Set Defaults

The "Graphic EQ" settings are returned to the default settings.

Video

Make video-related settings.

Picture Adjust

Picture quality can be adjusted.

• Can be set when the "Video Conversion" setting is "On". (p. 188)
• Can be set when "HDMI", "COMP" or "VIDEO" is assigned for each input source. (194)
• "Contrast", "Brightness", "Saturation", "Noise Reduction" and "Enhancer" can be set when "Picture Mode" is set to "Custom". (p. 179)
• "Picture Adjust" settings are stored for each input source.
• "Picture Adjust" cannot be set when 4K signals are input.

Picture Mode

Select the desired picture mode according to the video content and your viewing environment.

Standard:	The standard mode suited for most living room viewing environments.
Movie:	A mode suited for watching movies in a dark room such as a theater room.
Vivid:	A mode that makes graphic images for games, etc. brighter and more vivid.
Streaming:	A mode suited for low bit rate video sources.
ISF Day:	A mode suited for watching movies in a bright room during the day.
ISF Night:	A mode suited for watching movies in a dark room at night.
Custom:	Adjusts the picture quality manually.
Off:	No picture quality adjustment is done with this unit.

• The two special adjustment modes, "ISF Day" and "ISF Night", should be used by a certified technician to adjust the color calibration to match the installation conditions.
  We recommend that the settings and adjustments be carried out by an ISF-certified technician.
  These settings can also be configured using "Picture Mode" in the option menu. (p. 179)

• The default settings are as follows.

• For "Online Music" and "iPod/USB" input sources: Streaming

• For input sources other than "Online Music" and "iPod/USB": Off

Contrast

Adjust picture contrast.

-50-+50(Default:0)

Brightness

Adjust picture brightness.

-50 + 50 (Default:0)

Saturation

Adjust picture chroma level (color saturation).

-50 + 50 (Default:0)

Noise Reduction

Reduce overall video noise.

Low / Medium / High / Off (Default:Off)

Enhancer

Emphasize picture sharpness.

0- +12(Default:0)

HDMI Setup

Make settings for HDMI Audio Out, HDMI Pass Through and HDMI Control settings.

NOTE

• When "HDMI Pass Through" and "HDMI Control" is set to "On", it consumes more standby power. ("HDMI Pass Through" (12 p. 182), "HDMI Control" (12 p. 183)) If you are not using this unit for an extended period, it is recommended that you unplug the power cord from the power outlet.

HDMI Audio Out

Select HDMI audio output device.

AVR (Default):	Play back through speakers connected to the unit.
TV:	Play back through TV connected to the unit.

• When the HDMI Control function is activated, priority is given to the TV audio setting. (p. 143)
• When the power of this unit is on and "HDMI Audio Out" is set to "TV", audio is output as 2-channel from the HDMI OUT connector.

HDMI Pass Through

Selects how this unit will transmit HDMI signals to the HDMI output in standby power mode.

On:	Transmits the selected HDMI input through the AV receiver's HDMI output when this unit is in standby power mode.
Off (Default):	No HDMI signals are transmitted through this unit's HDMI output in standby power mode.

Pass Through Source

Sets the HDMI connector that inputs HDMI signals when in standby.

Last (Default):	The most recently used input source will go into standby mode.
CBL/SAT / DVD / Blu-ray / Game / AUX1 / AUX2 / Media Player / CD*:	Pass through the selected input source.

*“Pass Through Source” can be set when any of the HDMI connectors is assigned to “CD” for the input source in the “Input Assign” setting. (p. 193)

• "Pass Through Source" can be set when "HDMI Control" is set to "On" or "HDMI Pass Through" is set to "On". ("HDMI Pass Through" (p. 182), "HDMI Control" (p. 183))

RC Source Select

Set whether to allow this unit to be turned on by the input source select button on the remote control when this unit is on standby.

Power On + Source (Default):	The power of this unit is turned on and the input source changes.
Source Select Only:	The HDMI input source changes while this unit is on standby. The power display of this unit blinks when the input source select button of the remote control is pressed.

• "RC Source Select" can be set when "HDMI Control" is set to "On" or "HDMI Pass Through" is set to "On". ("HDMI Pass Through" (p. 182), "HDMI Control" (p. 183))

HDMI Control

You can link operations with devices connected to HDMI and compatible with HDMI Control.

On:	Use HDMI Control function.
Off (Default):	Do not use HDMI Control function.

• If using the HDMI control function, connect a TV compatible with HDMI control to the HDMI MONITOR connector.
• Please consult the operating instructions for each connected device to check the settings.
  Refer to "HDMI Control function" for more information about the HDMI Control function. (p. 143)

NOTE

• If the "HDMI Control" settings have been changed, always reset the power to connected devices after the change.

ARC

On the TV connected to the HDMI MONITOR connector, set whether to receive sound from the TV via HDMI.

On:	Use ARC function.
Off (Default):	Do not use ARC function.

• You can adjust the volume of this unit using the TV remote control.
• If using this function, use a TV compatible with ARC (Audio Return Channel) and enable the HDMI Control function of the TV.
• When "HDMI Control" is set to "On", the "ARC" settings automatically switch "On". (p. 183)

NOTE

• If the "ARC" settings have been changed, always reset the power to connected devices after the change.

TV Audio Switching

Sets automatic switching to the "TV Audio" input when a TV connected via HDMI sends an appropriate CEC control command to the AVR.

On (Default):	Select the “TV Audio” input automatically when receiving a command from the TV.
Off:	Do not select the “TV Audio” input automatically when receiving a command from the TV.

• "TV Audio Switching" can be set when "HDMI Control" is set to "On". (附 p.183)

Power Off Control

Links the power standby of this unit to external devices.

All (Default):	If power to a connected TV is turned off independently of the input source, power to this unit is automatically set to standby.
Video:	With an input source being selected that is assigned either “HDMI”, “COMP” or “VIDEO”, when you turn the power of the TV off, power to this unit is automatically set to standby. (ICP p. 194)
Off:	This unit does not link with power to a TV.

• "Power Off Control" can be set when "HDMI Control" is set to "On". (p. 183)

Power Saving

If "TV Speaker" is set as the audio output setting of your TV, this unit is automatically set to standby mode to reduce power consumption.

This function is activated in the following cases.

• When "TV Audio" is selected as the input source of this unit
• When playing content from a device connected by HDMI

On:	Use Power Saving function.
Off (Default):	Do not use Power Saving function.

• "Power Saving" can be set when "HDMI Control" is set to "On". (p. 183)

Smart Menu

This function can be used to configure the settings of this unit, select an input source and set Tuner and Internet Radio stations using the TV remote control.

On:	Use Smart Menu function.
Off:	Do not use Smart Menu function.

• "Smart Menu" can be set when "HDMI Control" is set to "On". (p. 183)

NOTE

• If the "Smart Menu" settings have been changed, always reset the power to connected devices after the change.
• The Smart Menu function may not work properly depending on the specifications of your TV. In this case, set "Smart Menu" to "Off".

Output Settings

Makes settings for video output.

• Can be set when "HDMI", "COMP" or "VIDEO" is assigned for each input source. (194)
• “Resolution”, “Progressive Mode” and “Aspect Ratio” can be set when “i/pScaler” is set to anything other than “Off”. (“Resolution” (p. 189), “Progressive Mode” (p. 190), “Aspect Ratio” (p. 190))
• "Output Settings" cannot be set when 4K signals are input.
• "Video Conversion", "i/pScaler", "Resolution", "Progressive Mode" and "Aspect Ratio" settings are stored for each input source. ("Video Conversion" (i p. 188), "i/pScaler" (i p. 188), "Resolution" (i p. 189), "Progressive Mode" (i p. 190), "Aspect Ratio" (i p. 190))

Video Mode

Configure the video processing method to match the type of video content.

Auto (Default):	Process video automatically based on the HDMI content information.
Game:	Always process video for game content. Minimize the video delay when the video is delayed compared to the button operations on the controller of the game console.
Movie:	Perform image processing that is suitable for contents other than games.

• If "Video Mode" is set to "Auto", the mode is switched according to the input contents.

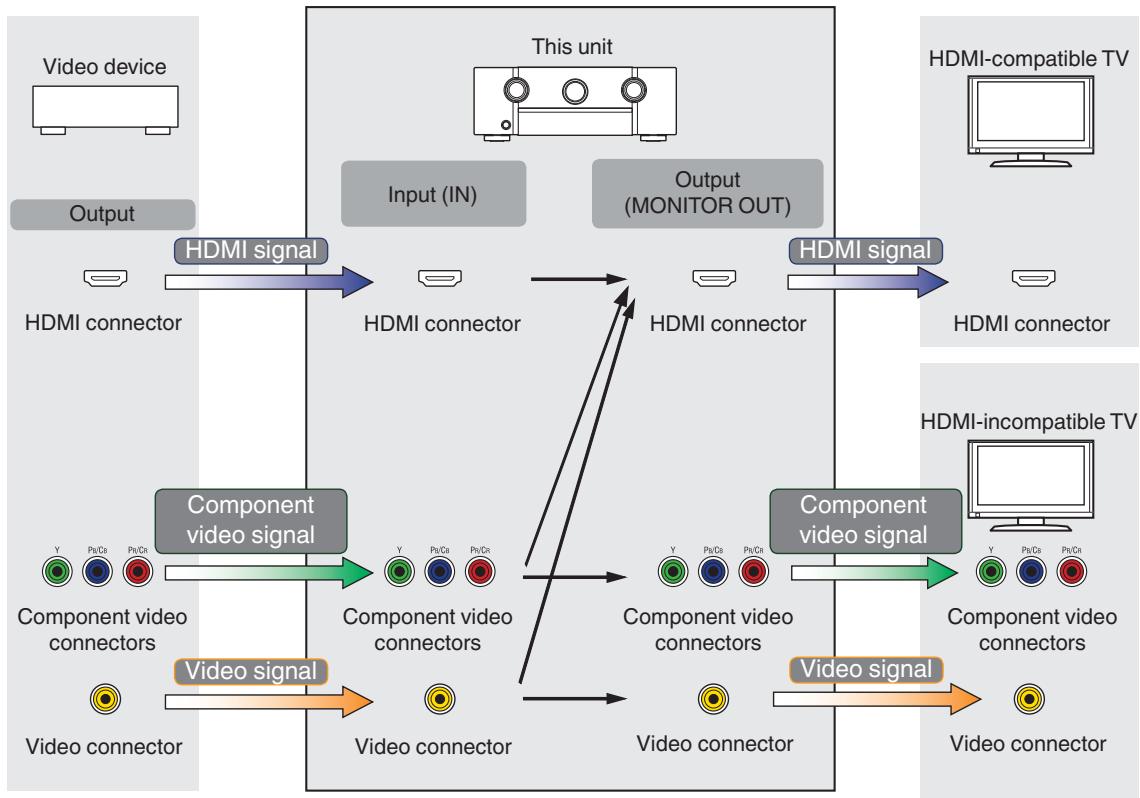

Video Conversion

The input video signal is converted automatically in conjunction with the connected TV. (p. 271)

On (Default):	The input video signal is converted.
Off:	The input video signal is not converted.

i/pScaler

Set the video input signal to be subjected to i/pScaler processing. i/pScaler will convert the resolution of the input video signal to the value set in "Resolution". (p. 189)

□ When the input source is set other than to "iPod/USB" and "Online Music"

Analog (Default):	Use i/p (interlace-to-progressive)Scaler function for analog video signals.
Analog & HDMI:	Use i/pScaler function for analog and HDMI video signal.
HDMI:	Use i/pScaler function for HDMI video signals.
Off:	Do not use i/pScaler function.

□ When the input source is set to "iPod/USB" and "Online Music"

On (Default):	Use i/pScaler function.
Off:	Do not use i/pScaler function.

• "Analog & HDMI" can be set for input sources for which an HDMI input connector is assigned.
• Which items can be set depend on the input source assigned to each input connector.
• This function is not effective when the input signal is "x.v.Color", 3D, sYCC601 color, Adobe RGB color, Adobe YCC601 color or computer resolutions.

Resolution

Set the output resolution. You can set "Resolution" separately for HDMI output of the analog video input and HDMI input.

Auto (Default):	The resolution supported by the TV connected to the HDMI MONITOR OUT connector is detected automatically and the appropriate output resolution is set.
480p/576p / 1080i / 720p / 1080p / 1080p:24Hz / 4K / 4K (60/50) :	Set the output resolution.

• When "i/pScaler" is set to "Analog & HDMI", the resolution of both the analog video input signal and HDMI input signal can be set. (p. 188)
• When set to "1080p:24Hz", you can enjoy film-like pictures for film sources (in 24 Hz). For video sources and mixed sources, we recommend setting the resolution to "1080p".
• It is not possible to convert a 50Hz signal into 1080p / 24Hz . It is output at a resolution of 1080p / 50Hz .

Progressive Mode

Set an appropriate progressive conversion mode for the source video signal.

Auto (Default):	The video signal is automatically detected and the appropriate mode is set.
Video:	Select mode suitable for video playback.
Video and Film:	Select mode suitable for video and 30-frame film material playback.

• This item can be set when "i/pScaler" is set to anything other than "Off". (p. 188)

Aspect Ratio

Set the aspect ratio for the video signals output to the HDMI.

16:9 (Default):	Output at 16:9 aspect ratio.
4:3 :	Output at 4:3 aspect ratio with black bars on the sides of a 16:9 TV screen. (except for 480p/576p output)

• This item can be set when "i/pScaler" is set to anything other than "Off". (p. 188)

On Screen Display

Select the on-screen display user interface preferences.

Volume

Sets where to display the volume level.

Bottom (Default):	Display at the bottom.
Top:	Display at the top.
Off:	Turn display off.

• When the master volume display is hard to see when superimposed text (closed captioning) or movie subtitles are present, set to "Top".

Info

Displays status of operation temporarily when the input source is switched.

On(Default):	Turn display on.
Off:	Turn display off.

Now Playing

Sets the display time for the playback display when the input source is "Online Music", "iPod/USB", "Bluetooth" or "Tuner".

Always On (Default):	Show display continuously.
Auto Off:	Show display for 30 seconds after operation.

TV Format

Set the video signal format to be output for the TV you are using.

Format

PAL (Default):	Select PAL output.
NTSC:	Select NTSC output.

• "Format" can also be set by the following procedure. However, the menu screen is not displayed. Following the display content to make the setting.

• Press and hold the main unit's ZONE2 SOURCE and STATUS at the same time for at least 3 seconds. "Video Format " appears on the display.

• Use the main unit's TUNER PRESET CH + or TUNER PRESET CH - and set the video signal format.
• Press the main unit's STATUS to complete the setting.

NOTE

• When a format other than the video format of the connected TV is set, the picture will not be displayed properly.

Inputs

Perform settings related to input source playback.

You do not have to change the settings to use the unit. Make settings when needed.

Input Assign

By making connections as indicated by the input sources printed on the audio/video input connectors of this unit, you can just press one of the input source select buttons to easily play back audio or video from a connected device.

Please change the assignment of the HDMI input connector, digital audio input connector, analog audio input connector, component video input connector and video input connector when connecting an input source that differs from that printed to the audio/video input connectors of this unit.

Set Defaults	HDMI	DIGITAL	ANALOG	COMP	VIDEO
CBL/SAT	1	COAX1	1	1	1
DVD	2	COAX2	2	2	2
Blu-ray	3	-	3	-	3
Game	4	-	4	-	-
Media Player	5	-	-	-	-
TV Audio	-	OPT1	-	-	-
AUX1	Front	-	Front	-	Front
AUX2	6	-	-	-	-
CD	-	OPT2	5	-	-

• By default, each item is set as follows.

Input source	Input connector
	HDMI	DIGITAL	ANALOG	COMP	VIDEO
CBL/SAT	1	COAX1	1	1	1
DVD	2	COAX2	2	2	2
Blu-ray	3	-	3	-	3
Game	4	-	4	-	-
Media Player	5	-	-	-	-
TV Audio	-	OPT1	-	-	-
AUX1	Front	-	Front	-	Front
AUX2	6	-	-	-	-
CD	-	OPT2	5	-	-

TV set top box/satellite users please note

When using the digital audio output on a TV/satellite box:

To play the video signal assigned to "HDMI" combined with the audio signal assigned at "Input Assign" - "DIGITAL", you will also need to select "Digital" in the "Input Mode". (p. 197)

HDMI

Set this to change the HDMI input connectors assigned to the input sources.

1/2/3/4/5/6/7/ Front:	Assign an HDMI input connector to the selected input source.
-:	Do not assign an HDMI input connector to the selected input source.

• When "HDMI Control" or "ARC" is set to "On" in the menu, "HDMI" cannot be assigned to "TV Audio". ("HDMI Control" (p. 183), "ARC" (p. 184))

DIGITAL

Set this to change the digital audio input connectors assigned to the input sources.

COAX1 (Coaxial) / COAX2 / OPT1 (Optical) / OPT2:	Assign a digital audio input connector to the selected input source.
- :	Do not assign a digital audio input connector to the selected input source.

ANALOG

Set this to change the analog audio input connectors assigned to the input sources.

1 / 2 / 3 / 4 / 5 / Front:	Assign a analog audio input connector to the selected input source.
- :	Do not assign a analog audio input connector to the selected input source.

COMP (Component video)

Set this to change the component video input connectors assigned to the input sources.

1 / 2:	Assign the component video input connector to the selected input source.
- :	Do not assign a component video input connector to the selected input source.

VIDEO

Set this to change the composite video input connectors assigned to the input sources.

1 / 2 / 3 / Front:	Assign the video input connector to the selected input source.
- :	Do not assign a video input connector to the selected input source.

Set Defaults

The "Input Assign" settings are returned to the default settings.

Source Rename

Change the display name for input source.

This is convenient when the name of your device and the input source name of this unit are different. You can change the name to suit your needs. When the renaming is completed, the name is displayed on this unit's display and on the menu screen.

CBL/SAT / DVD / Blu-ray / Game / AUX1 / AUX2 / Media Player / CD / TV Audio / Phono:	Change the display name for input source.
Set Defaults:	The Source Rename settings are returned to the default settings.

• Up to 12 characters can be input. For character input, see "Using the keyboard screen" (p. 165).

Hide Sources

Remove from the display input sources that are not used.

Show

(Default):

Use this source.

Hide:

Do not use this source.

• The "Bluetooth" function can be disabled by setting Bluetooth to "Hide".

Source Level

This function corrects the playback level of the selected input source's audio input.

Make this setting if there are differences in the input volume levels between the different sources.

-12 dB - +12 dB (Default: 0 dB)

• "Source Level" settings are stored for each input source.

Input Select

Set the audio input mode of each input source.

The input modes available for selection may vary depending on the input source.

• "Input Select" settings are stored for each input source.

■ Input Mode

Set the audio input modes for the different input sources.

It is normally recommended to set the audio input mode to "Auto".

Auto (Default):	Automatically detect input signal and perform playback.
HDMI:	Play only signals from HDMI input.
Digital:	Play only signals from digital audio input.
Analog:	Play only signals from analog audio input.
7.1CH IN:	Only signals input from the 7.1CH IN connector will be played back.

• If "HDMI Control" is set to "On" and a TV compatible with the ARC is connected via the HDMI MONITOR connectors, the input mode whose input source is "TV Audio" is fixed to ARC.
• The sound mode cannot be set if the input mode is set to "7.1CH IN".

Speakers

The acoustic characteristics of the connected speakers and listening room are measured and the optimum settings are made automatically. This is called "Audyssey® Setup".

You do not have to perform Audyssey® Setup when you have already performed "Speaker Calibration" in "Setup Assistant".

To set up the speakers manually, use "Manual Setup" on the menu. (p.209)

Audyssey® Setup

To perform measurement, place the Sound calibration microphone in multiple locations all around the listening area. For best results, we recommend you measure in six or more positions, as shown in the illustration (up to eight positions).

When measuring the second and subsequent positions, install the Sound calibration microphone within 60~cm of the first measurement position (main listening position).

• If you perform the Audyssey® Setup, the Audyssey MultEQ® XT32, Audyssey Dynamic EQ®, Audyssey Dynamic Volume® and Audyssey LFC™ functions are enabled. (p. 174)

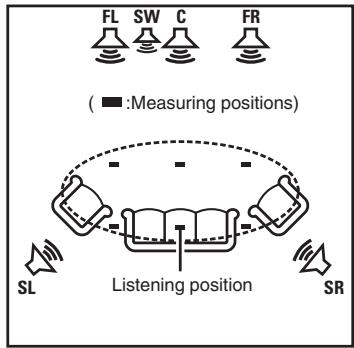

FL Front speaker (L)
FR Front speaker (R)
C Center speaker
SW Subwoofer
SL Surround speaker (L)
SR Surround speaker (R)

About the main listening position

The main listening position is the position where listeners would normally sit or where one would normally sit alone within the listening environment. Before starting Audyssey® Setup, place the Sound calibration microphone in the main listening position.

Audyssey MultEQ® XT32 uses the measurements from this position to calculate speaker distance, level, polarity, and the optimum crossover value for the subwoofer.

About Audyssey Sub EQ HT™

Audyssey Sub EQ HT™ makes the integration of dual subwoofoers seamless by first compensating for any level and delay differences between the two subwoofoers and then applying Audyssey MultEQ® XT32 to both subwoofoers together.

To run Audyssey Sub EQ HT™ you must select "Measure (2 spkrs)" in "Channel Select". (p. 201).

NOTE

• Make the room as quiet as possible. Background noise can disrupt the room measurements. Close windows and turn off the power on electronic devices (radios, air conditioners, fluorescent lights, etc.). The measurements could be affected by the sounds emitted by such devices.
• During the measurement process, place cell phones outside the listening room. Cell phone signals could disrupt the measurements.
• Do not stand between the speakers and Sound calibration microphone or allow obstacles in the path while the measurements are being made. Also, install the Sound calibration microphone at least 50~cm away from the wall. Failure to do so will result in inaccurate readings.
• During the measurement process, audible test tones will come from the speakers and subwoofer(s), but this is part of normal operation. If there is background noise in the room, these test signals will increase in volume.
• Operating VOLUME on the remote control unit or VOLUME on the main unit during the measurements will cancel the measurements.
• Measurement cannot be performed when headphones are connected. Unplug the headphones before performing Audyssey® Setup.

Procedure for speaker settings (Audyssey® Setup)

1 Attach the Sound calibration microphone to the supplied microphone stand or own tripod and install it at the main listening position.

When installing the Sound calibration microphone, point the tip of the microphone toward the ceiling and adjust the height to match the height of the ears of a listener in a seated position.

2 If using a subwoofer capable of the following adjustments, set up the subwoofer as shown below.

When using a subwoofer with a direct mode

Set the direct mode to "On" and disable the volume adjustment and crossover frequency setting.

• When using a subwoofer without a direct mode

Make the following settings:

Volume:12 o'clock position
Crossover frequency : Maximum/Highest Frequency
- Low pass filter : Off
- Standby mode: Off

3 Connect the Sound calibration microphone to the SETUP MIC jack of this unit.

When the Sound calibration microphone is connected, the following screen is displayed.

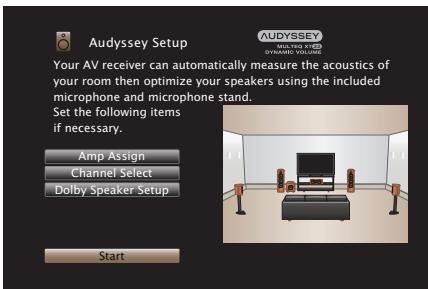

4 Select "Start", then press ENTER.

Audyssey® Setup can also make the following settings.

• Amp Assign

The signals output from the HEIGHT1 and HEIGHT2 speaker terminals can be switched in accordance with your speaker environment. ("Amp Assign" (p. 209))

• Channel Select

If channels that are not to be used are set in advance, measurement for the set channels is skipped, and measuring time can be reduced. You can also change the number of surround back speakers and subwoofer.

• Dolby Speaker Setup

Set the distance between the Dolby Atmos Enabled speaker and the ceiling.

This can be set when using the Front Dolby Atmos Enabled, Surround Dolby Atmos Enabled or Back Dolby Atmos Enabled speaker.

5 Follow the instructions on the screen display and press "Next" to proceed further.

6 When the following screen is displayed, select "Begin Test" and then press ENTER.

Start the measurement of the first position.

• Measurement requires several minutes.

NOTE

• If "Caution!" is displayed on TV screen:

• Go to "Error messages" (p. 206). Check any related items, and perform the necessary procedures.

• If the volume level for the subwoofer is not appropriate, an error message is displayed. See "Subwoofer level error message and how to adjust" (ICB p. 207).

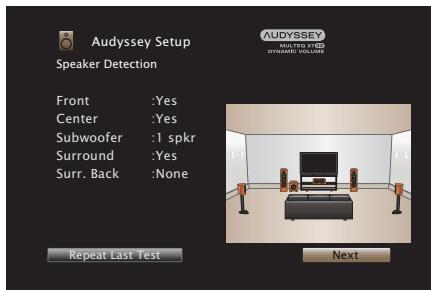

7 When the detected speaker is displayed, select "Next" and then press ENTER.

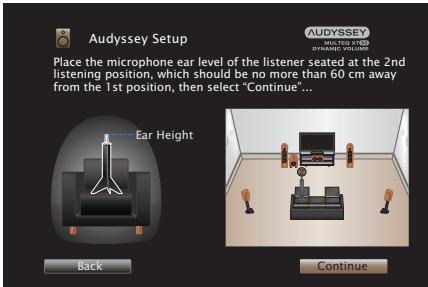

8 Move the Sound calibration microphone to position 2, select "Continue", then press ENTER.

The measurement of the second position starts.

Measurements can be made in up to eight positions.

Stopping Audyssey® Setup

① Press BACK to display the popup screen.
② Press to select "Yes", then press ENTER.

9 Repeat step 8, measuring positions 3 to 8.

• To skip measuring the fourth and subsequent listening position, press to select "Complete" and press ENTER to proceed to step 11.

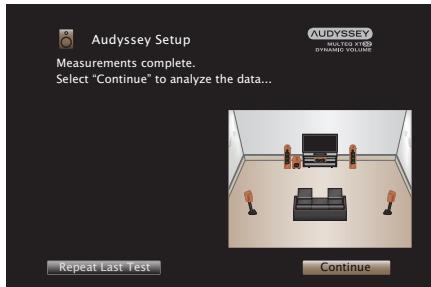

10 Select "Continue", then press ENTER.

Start the analysis and storage of the measurement results.

• Analysis takes several minutes to complete.

The more speakers and measurement positions that there are, the more time it takes to perform the analysis.

NOTE

• When the measurement results are being saved, make sure the power is not turned off.

11 Perform the settings for Audyssey Dynamic EQ® and Audyssey Dynamic Volume®.

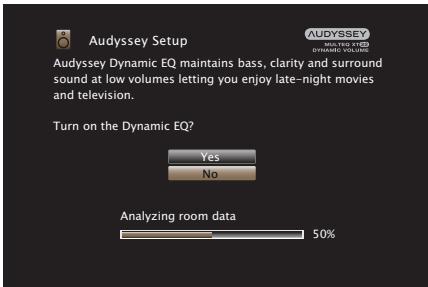

The following screen is displayed during the analysis. Configure the settings as preferred.

• Dynamic EQ corrects the frequency response in consideration of the audio characteristics of the room and human hearing ability so that sound can be heard even at low volume.

This is recommended when using the unit with the volume turned down, e.g. when enjoying a movie or TV program in the middle of the night.

• Dynamic Volume adjusts the output volume to the optimal level while constantly monitoring the level of the audio input to the unit. Optimal volume control is performed automatically without any loss in the dynamism and clarity of the sound when, for example, the volume suddenly increases for commercials shown during television programs.

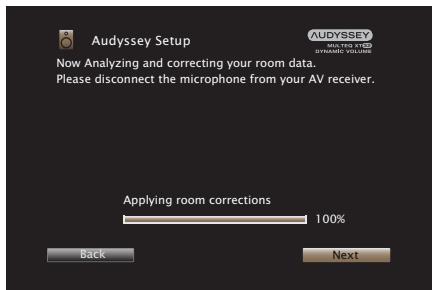

12 When the analysis and storage ends, unplug the Sound calibration microphone from the SETUP MIC jack on the main unit and then press "Next".

13 Select "Details" and press ENTER to verify the measurement results.

• Subwoofoers may measure a greater reported distance than the actual distance due to added electrical delay common in subwoofoers.

NOTE

• Do not change the speaker connection or subwoofer volume after Audyssey® Setup. If these are changed, run Audyssey® Setup again in order to configure the optimum equalizer settings.

Error messages

An error message is displayed if Audyssey® Setup could not be completed due to speaker placement, the measurement environment, etc. If an error message is displayed, check the relevant items and perform the necessary measures. Be sure to turn off the power before checking speaker connections.

Examples	Error details	Measures
No speakers found.	·Sound calibration microphone is not detected. ·Not all speakers could be detected.	·Connect the included Sound calibration microphone to the SETUP MIC jack of this unit. ·Check the speaker connections.
Ambient noise is too high or level is too low	·There is too much noise in the room. ·Speaker or subwoofer sound is too low.	·Either turn off any device generating noise or move it away. ·Perform again when the surroundings are quieter. ·Check the speaker installation and the direction in which the speakers are facing. ·Adjust the subwoofer's volume.
Front R: None	·The displayed speaker could not be detected.	·Check the connections of the displayed speaker.
Front R: Phase	·The displayed speaker is connected with the polarity reversed.	·Check the polarity of the displayed speaker. ·For some speakers, this error message may be displayed even if the speaker is properly connected. If you are sure the connection is correct, press > to select “Ignore”, then press ENTER.

Subwoofer level error message and how to adjust

The optimal level of each subwoofer channel for Audyssey® Setup measurement is 75 dB.

During subwoofer level measurement, an error message is displayed when one level of subwoofoers is outside the 72 - 78 dB range.

When using a subwoofer with built-in amplifier (active type), adjust the subwoofer volume so that the subwoofer level is within the 72 to 78 dB range.

【Error message】

1 Select "SW Level Matching" and then press ENTER.
2 Adjust the volume control on your subwoofer so that the measured level is within the 72 to 78 dB range.
3 When the measured level is within the 72 to 78 dB range, select "Next" and then press ENTER.

• If you use two subwoofer, the second subwoofer's adjustment will be started. Repeat the operation from step 2, 3.

Retrieving Audyssey® Setup settings

If you set "Restore..." to "Restore", you can return to Audyssey® Setup measurement result (value calculated at the start by MultEQ® XT32) even when you have changed each setting manually.

Manual Setup

Perform when setting the speakers manually or when changing settings made in Audyssey® Setup.

• If you add or remove a speaker after performing Audyssey® Setup, you will no longer be able to select Audyssey MultEQ® XT32, Audyssey Dynamic EQ® or Audyssey Dynamic Volume®. (p. 174)
• "Manual Setup" can be used without changing the settings. Please set if necessary.

Amp Assign

Select the power amplifier usage method to match your speaker system.

■ Assign Mode

Select how to use the power amp.

You need to configure the detailed settings for the speaker configuration in accordance with the selected mode. Select Assign Mode configure the corresponding detailed settings.

11.1ch:	• Setting to use the 9-channel power amplifier in this unit and an external power amplifier connected to PRE OUT to play back up to 11.1-channels. • You can connect speakers for up to 11.1-channels for MAIN ZONE.
9.1ch (Default):	• Settings to assign all power amplifier within this unit to MAIN ZONE to play back up to 9.1-channels. • You can connect speakers for up to 11.1-channels for MAIN ZONE. Speakers to output audio are automatically switched for playing back up to 9.1-channels in accordance with the input signal and sound mode.
7.1ch + ZONE2:	• Setting to assign the power amplifiers in this unit for ZONE2 to 2-channels. • You can connect speakers for up to 9.1-channels for MAIN ZONE. Speakers to output audio are automatically switched for playing back up to 7.1-channels in accordance with the input signal and sound mode.
7.1ch (Bi-Amp):	• Setting to assign the power amplifiers in this unit for front speaker bi-amp connection to 2-channels. • You can connect speakers for up to 9.1-channels for MAIN ZONE. Speakers to output audio are automatically switched for playing back up to 7.1-channels in accordance with the input signal and sound mode.

5.1ch (Bi-Amp) + ZONE2:

• Setting to assign the power amplifiers in this unit for front speaker bi-amp connection to 2-channels.
• Setting to assign the power amplifiers in this unit for ZONE2 to 2-channels.

7.1ch + Front B:

• Setting to assign the power amplifiers within this unit for connecting the second set of front speakers.
• You can switch between the desired combination of front speakers A and front speakers B.

Switch the front speaker using the "Front Speaker" setting. (p. 223)
- You can connect speakers for up to 9.1-channels for MAIN ZONE.

Speakers to output audio are automatically switched for playing back up to 7.1-channels in accordance with the input signal and sound mode.

• When "Assign Mode" is set to "7.1ch + ZONE2", "7.1ch (Bi-Amp)" or "7.1ch + Front B" in the menu, the assigned channels are output from HEIGHT2 speaker terminals.
• When Assign Mode is set to "5.1ch (Bi-Amp) + ZONE" in the menu, the front channels for Bi-Amp connection are output from HEIGHT1 speaker terminals, and the ZONE2 channels are output from HEIGHT2 speaker terminals.

Floor

□ Layout

Select the floor speakers location.

5ch & SB (Default):	This layout combines a surround back speaker with the basic 5-channel layout.
5ch:	This is a basic 5-channel layout that uses front speakers, center speakers and surround speakers.

Height

Height Sp

Select the number of the height speakers and ceiling speakers used in MAIN ZONE.

None:	Uses no height and ceiling speakers.
2ch(Default):	Uses a set of (two) height speakers or ceiling speakers.
4ch:	Uses two sets of (four) height speakers or ceiling speakers.

Dolby Sp

Select the number of the Dolby Atmos Enabled speakers used in MAIN ZONE.

None (Default):	Uses no Dolby Atmos Enabled speakers.
2ch:	Uses a set of (two) Dolby Atmos Enabled speakers.
4ch:	Uses two sets of (four) Dolby Atmos Enabled speakers.

□ Layout

Select the height, ceiling, or Dolby Atmos Enabled speaker location.

The layouts that can be selected differ depending on the combinations of "Assign Mode" and "Floor" - "Layout" in the menu. ("Assign Mode" (p. 209), "Floor" - "Layout" (p. 211))

Settings				AUDIO OUT connectors
Height Speakers	Dolby Speakers	NOTE	Layout	HEIGHT1	HEIGHT2
None	None		-	-	-
2ch	None		Front Height (Default)	Front Height	-
			Top Front	Top Front	-
			Top Middle	Top Middle	-
			Top Rear	Top Rear	-
			Rear Height	Rear Height	-
4ch	None	*1	Front Height & Top Middle	Front Height	Top Middle
			Front Height & Top Rear	Front Height	Top Rear
			Front Height & Rear Height	Front Height	Rear Height
			Top Front & Top Rear	Top Front	Top Rear
			Top Front & Rear Height	Top Front	Rear Height
			Top Middle & Rear Height	Top Middle	Rear Height
None	2ch		Front Dolby	Front Dolby	-
			Surround Dolby	Surround Dolby	-
			Back Dolby*2	Back Dolby	-

1 This can be selected when "Assign Mode" is set to "11.1ch" or "9.1ch" in the menu.
2 This can be selected when "Assign Mode" is set to "11.1ch" and "Floor" - "Layout" is set to "5ch & SB" in the menu.

Settings				AUDIO OUT connectors
Height Speakers	Dolby Speakers	NOTE	Layout	HEIGHT1	HEIGHT2
2ch	2ch	*1	Front Dolby & Top Rear	Front Dolby	Top Rear
			Front Dolby & Rear Height	Front Dolby	Rear Height
			Front Height & Surr. Dolby	Front Height	Surround Dolby
			Front Height & Back Dolby*3	Front Height	Back Dolby
			Top Front & Surround Dolby	Top Front	Surround Dolby
			Top Front & Back Dolby*3	Top Front	Back Dolby
None	4ch	*1	Front Dolby & Surround Dolby	Front Dolby	Surround Dolby
			Front Dolby & Back Dolby*3	Front Dolby	Back Dolby

1 This can be selected when "Assign Mode" is set to "11.1ch" or "9.1ch" in the menu.
3 This can be selected when "Assign Mode" is set to "11.1ch" and "Floor" - "Layout" is set to "5ch & SB" in the menu.

Pre-out

When "Assign Mode" is set to "11.1ch", selects the PRE OUT connector the external power amplifier used in MAIN ZONE.

The PRE OUT connectors that can be selected differ depending on the combination of "Floor" - "Layout" and "Height" - "Layout" settings configured in the menu.

View Terminal Config.

This shows how to connect the speaker terminals and PRE OUT connectors for your "Amp Assign" setting on the menu screen.

Speaker Config.

Select whether or not speakers are present, playback capacity for low bass frequencies and speaker size.

• When speakers for which you assigned Height1 in "Amp Assign" are set to "None", "None" is automatically set for Height2.

Front

Set the front speaker size.

Large (Default):	Use a large speaker that can adequately play back very low bass frequencies.
Small:	Use a small speaker that has inadequate playback capacity for very low bass frequencies.

• When "Subwoofer" is set to "No", "Front" is automatically set to "Large".
• When "Front" is set to "Small", you cannot set speakers other than "Front" to "Large".

Center

Set the presence and size of the center speaker.

Large:	Use a large speaker that can adequately play back very low bass frequencies.
Small (Default):	Use a small speaker that has inadequate playback capacity for very low bass frequencies.
None:	Select when a center speaker is not connected.

Subwoofer

Set the presence of a subwoofer.

2 spkrs:	Use two subwoofer.
1 spkr (Default):	Use only one subwoofer.
None:	Select when a subwoofer is not connected.

• When "Subwoofer" is set to "None" and you set "Front" to "Small", "Subwoofer" is automatically set to "1 spkr".

Surround

Set the presence and size of the surround speakers.

Large:	Use a large speaker that can adequately play back very low bass frequencies.
Small (Default):	Use a small speaker that has inadequate playback capacity for very low bass frequencies.
None:	Select when the surround speakers are not connected.

• When "Surround" is set to "None", "Surr. Back", "Surround Dolby" and "Back Dolby" are automatically set to "None".

Surr. Back

Set the presence, size and number of surround back speakers.

Large:	Use a large speaker that can adequately play back very low bass frequencies.
Small (Default):	Use a small speaker that has inadequate playback capacity for very low bass frequencies.
None:	Select when the surround back speakers are not connected.

2 spkrs (Default):	Use two surround back speakers.
1 spkr:	Use only one surround back speaker. Connect to the L terminal to SURROUND BACK when this setting is selected.

• When "Surr. Back" is set to "None" or "1 spkr", "Back Dolby" is automatically set to "None".

Front Height

Set the presence and size of the front height speakers.

Large:	Use a large speaker that can adequately play back very low bass frequencies.
Small (Default):	Use a small speaker that has inadequate playback capacity for very low bass frequencies.
None:	Select when the front height speakers are not connected.

Front Dolby

Set the presence and size of the front Dolby speakers.

Large:	Use a large speaker that can adequately play back very low bass frequencies.
Small (Default):	Use a small speaker that has inadequate playback capacity for very low bass frequencies.
None:	Select when the front Dolby speakers are not connected.

Top Front

Set the presence and size of the top front speakers.

Large:	Use a large speaker that can adequately play back very low bass frequencies.
Small (Default):	Use a small speaker that has inadequate playback capacity for very low bass frequencies.
None:	Select when the top front speakers are not connected.

Top Middle

Set the presence and size of the top middle speakers.

Large:	Use a large speaker that can adequately play back very low bass frequencies.
Small (Default):	Use a small speaker that has inadequate playback capacity for very low bass frequencies.
None:	Select when the top middle speakers are not connected.

Surround Dolby

Set the presence and size of the surround Dolby speakers.

Large:	Use a large speaker that can adequately play back very low bass frequencies.
Small (Default):	Use a small speaker that has inadequate playback capacity for very low bass frequencies.
None:	Select when the surround Dolby speakers are not connected.

Top Rear

Set the presence and size of the top rear speakers.

Large:	Use a large speaker that can adequately play back very low bass frequencies.
Small (Default):	Use a small speaker that has inadequate playback capacity for very low bass frequencies.
None:	Select when the top rear speakers are not connected.

Rear Height

Set the presence and size of the rear height speakers.

Large:	Use a large speaker that can adequately play back very low bass frequencies.
Small (Default):	Use a small speaker that has inadequate playback capacity for very low bass frequencies.
None:	Select when the rear height speakers are not connected.

Back Dolby

Set the presence and size of the back Dolby speakers.

Large:	Use a large speaker that can adequately play back very low bass frequencies.
Small (Default):	Use a small speaker that has inadequate playback capacity for very low bass frequencies.
None:	Select when the back Dolby speakers are not connected.

• When speakers for which you assigned Height1 in "Amp Assign" are set to "None", "None" is automatically set for Height2.

Distances

Set distance from listening position to speakers.

Measure beforehand the distance from the listening position to each speaker.

Unit

Set the unit of distance.

Meters (Default)

Feet

Step

Set the minimum variable width of the distance.

0.1 m/0.01 m (Default: 0.1 m)

1 ft / 0.1 ft

Set the distance

0.00 m - 18.00 m / 0.0 ft - 60.0 ft

• The speakers that can be selected differ depending on the "Amp Assign" and "Speaker Config." settings. ("Amp Assign" (p. 209), "Speaker Config." (p. 214))
• Default settings: Front L / Front R / F. Height L / F. Height R / Center / Front Dolby L / Front Dolby R / Subwoofer 1 / Subwoofer 2: 3.60 m (12.0 ft) Speakers other than the above: 3.00 m (10.0 ft)
• Set the difference in the distance between the speakers to less than 6.00m (20.0 ft).

Dolby Speaker Setup

Set the distance between the Dolby Atmos Enabled speaker and the ceiling.

0.90 m - 3.30 m / 3.0 ft - 11.0 ft (Default: 1.80 m / 6.0 ft)

• This can be set when "Front Dolby", "Surround Dolby" or "Back Dolby" is set to "Large" or "Small" in "Speaker Config".

Set Defaults

The "Distances" settings are returned to the default settings.

Levels

Set the volume of the test tone to be the same at the listening position when it is output from each speaker.

Test Tone Start

A test tone is output from the selected speaker.

While listening to the test tone, adjust the volume output from the selected speaker.

-12.0 dB - +12.0 dB (Default: 0.0 dB)

• The set "Levels" are reflected in all sound modes.
• If you wish to adjust the channel level for each input source, carry out the settings in "Channel Level Adjust". (p. 126)
• When headphones are connected to the PHONES connector on this unit, you cannot set "Levels".

Set Defaults

The "Levels" settings are returned to the default settings.

Crossovers

Set in accordance with the lower limit frequency of the base frequencies that can be played back through each speaker. See the speaker manual for information concerning speaker crossover frequency.

■ Speaker Selection

Selects how to set the crossover frequency.

All (Default):	Sets the same crossover frequency for all speakers.
Individual:	Selects the crossover points for each speaker individually.

Set the crossover frequency

40 Hz / 60 Hz / 80 Hz / 90 Hz / 100 Hz / 110 Hz / 120 Hz / 150 Hz / 200 Hz / 250 Hz (Default: 80 Hz)

• "Crossovers" can be set when the "Subwoofer Mode" setting is "LFE+Main", or when you have a speaker that is set to "Small". (p. 222)
• The default crossover frequency is "80 Hz", which will work best with the widest variety of speakers. We recommend setting to a higher frequency that the crossover frequency when small speakers are used. For example, set to "250 Hz" when the frequency range of the speakers is 250 Hz - 20 kHz.
• Sound below the crossover frequency is cut off from the output of the speakers set in "Small". This cut off bass frequency is output from the subwoofer or front speakers.

• The speakers that can be set when "Individual" is selected differ depending on to the "Subwoofer Mode" setting. (p. 222)

• When "LFE" is selected, speakers set to "Small" at "Speaker Config." can be set. If the speakers are set to "Large", "Full Band" is displayed and the setting cannot be made. (p.214)

• When "LFE+Main" is selected, speakers can be set regardless of the "Speaker Config." setting. (12 p. 214)

Bass

Set subwoofer and LFE signal range playback.

Subwoofer Mode

Select low range signals to be reproduced by subwoofer.

LFE (Default):	The low range signal of the channel set to “Small” speaker size is added to the LFE signal output from the subwoofer.
LFE+Main:	The low range signal of all channels is added to the LFE signal output from the subwoofer.

• "Subwoofer Mode" can be set when "Speaker Config." - "Subwoofer" in the menu is set to other than "None". (10 p. 215)
• Play music or a movie source and select the mode offering the strongest bass.
• If "Speaker Config." - "Front" and "Center" are set to "Large", and "Subwoofer Mode" is set to "LFE", no sound may be output from the subwoofer, depending on the input signal or selected sound mode. (p.214) Select "LFE+Main" if you want the bass signals to always be produced from the subwoofer.

LPF for LFE

Set LFE signal playback range. Set this when you want to change the playback frequency (low pass filter point) of the subwoofer.

80 Hz/90 Hz/100 Hz/110 Hz/120 Hz/150 Hz/200 Hz/250 Hz (Default: 120 Hz)

Front Speaker

Set the front speaker A/B to use for every sound mode.

A

Front speaker A is used.

(Default):

B:

Front speaker B is used.

A+B:

Both front speakers A and B are used.

• This can be set when "Assign Mode" is set to "7.1ch + Front B". (p. 210)

Network

To use this unit by connecting it to a home network (LAN), you must configure network settings.

If you set up your home network (LAN) via DHCP, set "DHCP" to "On". (Use the default setting.) This allows this unit to use your home network (LAN). When assigning an IP address to each device manually, you need to assign an IP address to this unit using the "IP Address" settings, and enter information about your home network (LAN) such as the gateway address and subnet mask, etc.

Information

Display network information.

Friendly Name / Connection / SSID / DHCP / IP Address / MAC Address

• MAC Address is required to create a vTuner account.

Connection

Choose whether to connect the home network to a wireless LAN or a wired LAN.

When connecting to the network using wired LAN, select "Wired (Ethernet)" after connecting a LAN cable,

When connecting to the network using wireless LAN, select "Wireless (Wi-Fi)" and configure the "Wi-Fi Setup". (p. 225)

Wi-Fi

You can stop the Wi-Fi function when connecting this unit to the network using Wired LAN.

Enabled (Default):	The Wi-Fi function is used.
Disabled:	The Wi-Fi function is stopped.

Connect Using

Select the method for connecting to the home network (LAN).

Wired (Ethernet):	Use a LAN cable to connect to a network.
Wireless (Wi-Fi) (Default):	Use the wireless LAN (Wi-Fi) function to connect to a network.

• This can be set when "Wi-Fi" is set to "Enabled". (p. 224)

Wi-Fi Setup

Connect to a wireless LAN (Wi-Fi) router.

The router can be connected in the following ways. Select the connection method to suit your home environment.

Scan Networks

Select the network you wish to connect to from the list of possible networks shown on the TV screen.

1. Select the network you wish to connect to from the list of wireless networks.

Select "Rescan" if the network cannot be found.
2. Enter your password and select "OK".

Use iOS Device

Use your iOS device (iPhone/iPod/iPad) to connect to the network. By connecting your iOS device to this unit, the unit can be automatically connected to the same network as your device.

This unit can be connected to your iOS device in two ways, using a USB cable and using Wi-Fi.

When connecting using Wi-Fi

1. Select "Wireless connection" on the TV screen.
2. Check that your iOS device is connected to the wireless LAN (Wi-Fi) router and select "Marantz SR6011" from "SET UP NEW AIRPLAY SPEAKER..." at the bottom of the Wi-Fi configuration screen of your iOS device.
3. Tap "Next" on the screen of the iOS device.

• The iOS device firmware version needs to support iOS 7 or later.

When using a USB cable

1. Select "USB cable" on the TV screen.
2. Check that your iOS device is connected to the wireless LAN (Wi-Fi) and connect it to the USB port on the front panel using a USB cable.
3. Select "Connect" on the TV screen.
4. Tap "Allow" when the connection message appears on the screen of your iOS device.

• The iOS device firmware version needs to support iOS 5 or later.

WPS Router

Use a WPS-compatible router to connect.

There are two ways to connect, using the push button method or the PIN code method. Select the connection method to match your router.

- When connecting using the push button method

1. Select "Push Button" on the TV screen.

2. Switch to the WPS mode by pressing the WPS button of the router you wish to connect to.

3. The time for pressing the button varies depending on the router.

4. Select "Connect" on the TV screen within 2 minutes.

When connecting using the PIN code method

1. Select "PIN" on the TV screen.
2. Register the PIN code of the unit in the router.

Manual

Enter the name (SSID) and password of the network you wish to connect to.

1. Set the following items.

SSID:	Input the name of the wireless network (SSID).
Security:	Select the encryption method according to the encryption setting of the access point you are using.
Password:	Input the password.
Default Key:	Select the Default Key. When connecting to a “WEP” encrypted network, “Default Key” menu is displayed.

1. Select "Connect" at the end of the setting.

• The wireless LAN (Wi-Fi) settings of this unit can also be configured from a PC or tablet that supports wireless LAN connection.

• When using a device that has a firmware version of iOS 7 or later, "When connecting using Wi-Fi" (iB p.226) in "Use iOS Device".

• Press and hold the ZONE2 SOURCE and TUNER PRESET CH + buttons on the main unit for at least 3 seconds when the power of the unit is on.

• Connect the wireless LAN of the PC or tablet used to "Marantz SR6011" when the message "Connect your Wi-Fi device to Wi-Fi network called "Marantz SR6011"" appears in the display.
• Start up the browser and enter "192.168.1.16" in the URL.
• Use the browser to enter the settings, select "Connect" and then exit the settings.

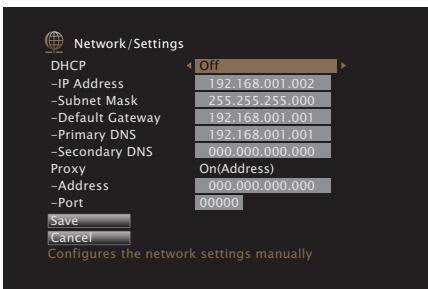

Settings

Configure the proxy settings and IP address.

• If you are using a broadband router (DHCP function), the information required for network connection such as the IP address will be automatically configured since the DHCP function is set to "On" in the default settings of this unit.
• Set up the IP Address, Subnet Mask, Default Gateway and DNS server information only when assigning a fixed IP address or when connecting to a network without DHCP function.
• Configure the proxy settings when using a proxy server to connect to the Internet.

DHCP

Selects how to connect to the network.

On (Default):	Configure the network settings automatically from your router.
Off:	Configure the network settings manually.

IP Address

Set the IP address within the ranges shown below.

• The Network Audio function cannot be used if other IP addresses are set.

CLASS A: 10.0.0.1 - 10.255.255.254

CLASS B: 172.16.0.1 - 172.31.255.254

CLASS C: 192.168.0.1 - 192.168.255.254

Subnet Mask

When connecting an xDSL modem or connector adapter directly to this unit, input the subnet mask indicated in the documentation supplied by your provider. Normally input 255.255.255.0.

Default Gateway

When connected to a gateway (router), input its IP address.

Primary DNS, Secondary DNS

If there is only one DNS address indicated in the documentation supplied by your provider, input it at "Primary DNS". If two or more DNS are provided by your provider, enter both "Primary DNS" and "Secondary DNS".

Proxy

Make this setting when connecting to the Internet via a proxy server.
Make the proxy settings only when you connect to the Internet via a proxy server that is on your internal network or provided by your provider, etc.

On(Address):	Select when inputting by address.
On(Name):	Select when inputting by domain name.
Off (Default):	Disables the proxy server.

Port

Enter port number.

• If you cannot connect to the Internet, recheck the connections and settings. (p. 76)
• If you do not understand about Internet connection, contact your ISP (Internet Service Provider) or the store from which you purchased your computer.

Network Control

Enables network communication in standby power mode.

Off In Standby (Default):	Suspend network function during standby.
Always On:	Network is on during standby. Main unit operable with a network compatible controller.

• When using the web control function or Marantz 2016 AVR Remote App, use with the "Network Control" setting set to "Always On".

NOTE

• When "Network Control" is set to "Always On", the unit consumes more standby power.

Friendly Name

The Friendly Name is the name of this unit displayed on the network. You can change the Friendly Name according to your preferences.

■ Friendly Name

Selects Friendly Name from the list.

When you select "Other", you can change the Friendly Name according to your preferences.

Home Theater / Living Room / Family Room / Guest Room / Kitchen / Dining Room / Master Bedroom / Bedroom / Den / Office / Other

• Up to 63 characters can be input. For character input, see "Using the keyboard screen" (p. 165).
• The default Friendly Name on first use is "Marantz SR6011".

Set Defaults

Restores Friendly Name, which you had changed, to the default setting.

Diagnostics

Used to check the network connection.

Physical Connection

Checks the physical LAN port connection.

OK

Error:

The LAN cable is not connected. Check the connection.

• When connected using a wireless LAN, "Connection Wireless (Wi-Fi)" will be displayed.

Router Access

Checks the connection from this unit to the router.

OK
Error:	Failed to communicate with the router. Check the router settings.

Internet Access

Checks whether this unit has access to the Internet (WAN).

OK
Error:	Failed to connect to the Internet. Check the Internet connection environment or router settings.

General

Make various other settings.

Language

Set the language for display the menu on the TV screen.

English / Deutsch / Français / Italiano / Espanol / Nederlands / Svenska / Рүснй / Polski (Default: English)

• "Language" can also be set up by the following operation. However, the menu screen is not displayed. Watch the display while configuring the settings.

• Press and hold the main unit's ZONE2 SOURCE and STATUS at the same time for at least 3 seconds.

"Video Format " appears on the display.

1. Press the main unit's DIMMER.
   "GUI Language ENGLISH" appears on the display.
2. Use the main unit's TUNER PRESET CH + or TUNER PRESET CH - and set the language.
3. Press the main unit's STATUS to complete the setting.

ECO

Configure the settings of the ECO Mode and auto standby mode.

ECO Mode

This mode can reduce the power consumption when the power of the unit is on.

On:	Reduce the power consumption.
Auto:	The power consumption is automatically reduced to match the volume.
Off (Default):	Do not reduce the power consumption.

• When you want to output audio at a high volume level, it is recommended to set "ECO Mode" to "Off".
• ECO Mode can also be switched by pressing ECO on the remote control unit.

Power On Default

Set the mode to ECO when the power is on.

Last(Default):	The ECO Mode will be set to the previous setting before the power was switched off.
On:	When power is turned on, the mode will always be switched to the ECO Mode in “On”.
Auto:	When power is turned on, the mode will always be switched to the ECO Mode in “Auto”.
Off:	When power is turned on, the mode will always be switched to the ECO Mode in “Off”.

On Screen Display

Display the power consumption of this unit using a meter on the TV screen.

Always On:	Always display the meter on the TV screen.
Auto (Default):	Display the meter when changing the mode or volume.
Off:	Do not display the meter.

Auto Standby

Set so the unit power automatically switches to standby.

MAIN ZONE

Sets the time for switching to auto standby when there are no audio or video signals input into this unit.

Before the unit enters standby mode, "Auto Standby" is displayed on the unit display and the menu screen.

60 min:	The unit goes into standby after 60 minutes.
30 min:	The unit goes into standby after 30 minutes.
15 min (Default):	The unit goes into standby after 15 minutes.
Off:	The unit does not go into standby automatically.

ZONE2

When there are no operations for a certain period of time as set here, the power is automatically shut off even if there is audio or video input.

8 hours:	Switches ZONE2 in the standby state after about 8 hours.
4 hours:	Switches ZONE2 in the standby state after about 4 hours.
2 hours:	Switches ZONE2 in the standby state after about 2 hours.
Off (Default):	Does not automatically switch ZONE2 to the standby state.

ZONE2 Setup

Makes settings for audio playback with ZONE2.

• Values set for "Volume Limit" and "Power On Volume" are displayed according to the setting specified for the volume "Scale". (12 p. 173)

Bass

Adjust bass.

-10 dB - +10 dB (Default: 0 dB)

Treble

Adjusttreble.

-10 dB - +10 dB (Default: 0 dB)

High Pass Filter

Make settings for cutting the low range to reduce distortion in the bass.

On:	The low range is attenuated.
Off (Default):	The low range is not attenuated.

Lch Level

Adjust the left channel output level.

-12 dB - +12 dB (Default: 0 dB)

Rch Level

Adjust the right channel output level.

-12 dB - +12 dB (Default: 0 dB)

Channel

Set whether to playback in stereo or monaural.

Stereo (Default):	Stereo playback.
Mono:	Monaural playback.

HDMI Audio

Selects the audio signal format for playing an HDMI source in ZONE2.

Through(Default):	The HDMI audio signal is passed through this unit to the device in ZONE2.
PCM:	The HDMI audio signal input into this unit is converted to a PCM signal that can be output from the ZONE2 PRE OUT connectors or speaker terminals.

Volume Level

Set the volume output level.

Variable (Default):	Volume can be adjusted.
1 – 98	Volume is fixed at the desired level. The volume cannot be adjusting using the remote control unit.
(-79.5 dB – 18.0 dB):

• The dB value is displayed when the "Scale" setting is " -79.5 dB - 18.0 dB". (p. 173)

Volume Limit

Make a setting for maximum volume.

60 (-20 dB) / 70 (-10 dB) / 80 (0 dB) (Default: 70 (-10 dB))
Off:	Do not set a maximum volume.

This can be set when "Volume Level" is set to "Variable". (p. 236)
- The dB value is displayed when the "Scale" setting is " -79.5 dB - 18.0 dB". (p. 173)

Power On Volume

Define the volume setting that is active when the power is turned on.

Last (Default):	Use the memorized setting from the last session.
Mute:	Always mute when power is turned on.
1 – 98 (-79.5 dB – 18.0 dB):	The volume is adjusted to the set level.

This can be set when "Volume Level" is set to "Variable". (p. 236)
- The dB value is displayed when the "Scale" setting is " -79.5 dB - 18.0 dB". (附註 p.173)

Mute Level

Set the amount of attenuation when muting is on.

Full (Default):	The sound is muted entirely.
-40 dB :	The sound is attenuated by 40 dB down.
-20 dB :	The sound is attenuated by 20 dB down.

Zone Rename

Change the display title of each zone to one you prefer.

MAIN ZONE / ZONE2
Set Defaults:	The default setting is restored for the edited zone name.

• Up to 10 characters can be input. For character input, see "Using the keyboard screen" (p. 165).

Smart Select Names

Change the smart select name that appears on the TV screen to one you prefer.

Smart Select 1 / Smart Select 2 / Smart Select 3 / Smart Select 4
Set Defaults:	The default setting is restored for the edited smart select name.

• Up to 16 characters can be input.

For character input, see "Using the keyboard screen" (p. 165).

Trigger Out

Select the conditions for activating trigger out.

For details about how to connect the DC OUT jack, see "DC OUT jack" (p. 79).

When setting for zone (MAIN ZONE/ZONE2)

Trigger out is activated through linkage to the power of the zone set to "On".

When setting for input source

Activate trigger out when the input source set to "On" is selected.

On:	Activate trigger on this mode.
---:	Do not activate trigger on this mode.

Front Display

Makes settings related to the display on this unit.

Dimmer

Adjust the display brightness of this unit.

Bright (Default):	Normal display brightness.
Dim:	Reduced display brightness.
Dark:	Very low display brightness.
Off:	Turns the display off.

• You can also adjust the display by pressing DIMMER on the main unit.

Firmware

Checks for the latest firmware information about updates and upgrades, updates the firmware, and sets up the notification message display for updates and upgrades.

Update

Updates the firmware of this unit.

Update:

Execute the update process. When the update starts, the menu screen is shut down. During the update, the progress is shown on the display.

• This unit automatically retries updating if updating fails. If an update still cannot be performed, an "Update Error" message appears in the display, followed by one of the following messages. Check the conditions according to the message and try the update again.

Display	Description
Please check your network, then try again	The network connection is unstable.Connection to the server failed Check your network environment and try the update again.
Please check your network, unplug and reconnect the power cord, and try again	The download of the firmware failed. Check your network environment. Press and hold the Ⓞ on the main unit for more than 5 seconds, or remove and re-insert the power cord. The update restarts automatically.
Please try again	The update failed. Try the update again.
Please unplug and reconnect the power cord, and try again	The update failed. Press and hold the Ⓞ on the main unit for more than 5 seconds, or remove and re-insert the power cord. The update restarts automatically.
Please contact customer service in your area.	This unit may be broken. Contact our Customer Service Center in your area.

Notifications

When the latest firmware is available, a notification message is displayed on the TV screen at power on.

The notification message is displayed for about 40 seconds when the power is turned on.

Update

On (Default):	Display update message.
Off:	Do not display update message.
Upgrade
On (Default):	Display upgrade message.
Off:	Do not display upgrade message.

Add New Feature

Display new features that can be downloaded to this unit and perform an upgrade.

Upgrade Package:	Display the items to be upgraded.
Upgrade Status:	Display a list of the additional functions provided by the upgrade.
Upgrade Start:	Execute the upgrade process. When the upgrade starts, the menu screen is shut down. During the upgrade, the amount of upgrade time which has elapsed is displayed.

• See the Marantz website for details about upgrades.
• When the procedure is complete, "Registered" is displayed in this menu and upgrades can be carried out. If the procedure has not been carried out, "-----" is displayed.

The ID number shown on this screen is needed when carrying out the procedure.

The ID number can also be displayed by pressing and holding the main unit's STATUS and SOUND MODE for at least 3 seconds.

• If the upgrade is not successful, an error message identical to those in "Firmware" - "Update" will appear on the display. Check the settings and network environment and then perform the upgrade again.

Notes concerning use of "Update" and "Add New Feature"

• In order to use these functions, you must have the correct system requirements and settings for an Internet connection. (p. 76)
• Do not turn off the power until updating or upgrading is completed.
• Approximately 1 hour is required for the updating/upgrading procedure to be completed.
• Once updating/upgrade starts, normal operations on this unit cannot be performed until updating/upgrading is completed. Furthermore, there may be cases where backup data is reset for the parameters, etc., set on this unit.
• If the update or upgrade fails, press and hold the on the main unit for more than 5 seconds, or remove and re-insert the power cord. "Update retry" appears on the display and update restarts from the point at which update failed. If the error continues despite this, check the network environment.

• Information regarding the "Update" function and "Add New Feature" will be announced on the Marantz web site each time related plans are defined.

Information

Show information about this unit settings, input signals, etc.

Audio

Show the audio information for MAIN ZONE.

Sound Mode:	The currently set sound mode.
Input Signal:	The input signal type.
Format:	The number of input signal channels (presence of front, surround, LFE).
Sample Rate:	The input signal's sampling frequency.
Offset:	The dialogue normalization correction value.
Flag:	This is displayed when inputting signals including a surround back channel. “MATRIX” is displayed with DTS-ES Matrix input signals, “DISCRETE” with DTS-ES Discrete signals. In addition, “Headphone:X” is displayed when Headphone:X signals, which are optimal for playback with headphones, are input.

Video

Show the HDMI input/output signals and HDMI monitor information for MAIN ZONE.

HDMI Signal Info.

Resolution / Color Space / Pixel Depth

HDMI Monitor

Interface / Resolutions

■ ZONE

Show information about current settings.

MAIN ZONE:	This item shows information about settings for MAIN ZONE. The information displayed differs according to the input source.
ZONE2:	This item shows information about settings for ZONE2.

■ Firmware

Version:	Displays information for the current firmware.
DTS Version:	Displays the current DTS version.

Notifications

Displays and sets notifications.

Also, sets whether or not to display the notification when the power is turned on.

Notification Alerts

On (Default):

Notification messages are displayed.

Off: Notification messages are not displayed.

• Press INFO on the remote control unit to display current source name, volume, sound mode name, and other information at the bottom of the screen.

Usage Data

To help us improve our products and customer service, Marantz collects anonymous information about how you use your AV receiver (such as frequently used input sources and sound modes and speaker settings). Marantz will never provide any information we collect to third parties.

Yes:	Provide information on the operating status of this unit.
No:	Do not provide information on the operating status of this unit.

Setup Lock

Protect settings from inadvertent changes.

Lock

On:	Turn protection on.
Off (Default):	Turn protection off.

• When cancelling the setting, set "Lock" to "Off".

NOTE

• When "Lock" is set to "On", no setting items are displayed except for "Setup Lock".

Limiting the operating zone with the remote control

ZONE2 operations can be disabled using the remote control.

1 Press and hold ZONE2 and SETUP. The MAIN and ZONE2 buttons blink.
Canceling the settings
1 Press and hold ZONE2 and SETUP while configuring the setting. The MAIN and ZONE2 buttons blink and the setting is canceled.

Contents

Tips

I want the volume not to become too loud by mistake	247
I want to keep the volume at the same level when I turn the power on	247
I want to have the subwoofer always output audio	247
I want to make human voices in the movies clearer	247
I want to keep bass and clarity during playback at a lower volume level	247
I want to automatically adjust the volume level difference in content such as TV and movies	247
I want to set the optimized listening environment after changing the configuration/position of the speakers or changing a speaker to a new one	248
I want to combine a desired video with the current music	248
I want to skip unused input sources	248
I want to enjoy the same music in all zones at the home party, etc.	248
I want to minimize the delay in video signals when I'm playing a game on my game console	248
I want to operate this unit using the TV remote control	248

Troubleshooting

Power does not turn on / Power is turned off	250
Operations cannot be performed through the remote control unit	251
Display on this unit shows nothing	251
No sound comes out	252
Desired sound does not come out	253
Sound is interrupted or noise occurs	255
No video is shown on the TV	256
The menu screen is not displayed on the TV	258
iPod cannot be played back	259
USB memory devices cannot be played back	260
File names on the iPod/USB memory device are not displayed properly	261
Bluetooth cannot be played back	261
The Internet radio cannot be played back	262
Music files on PC or NAS cannot be played back	263
Various online services cannot be played	263
The HDMI Control function does not work	264
Cannot connect to a wireless LAN network	265
When using HDMI ZONE2, the devices does not function properly	266

Tips

I want the volume not to become too loud by mistake

• Set the volume upper limit for "Volume Limit" in the menu beforehand. This prevents children or others from increasing the volume too much by mistake. You can set this for each zone. ("Volume" (p. 173), "Volume Limit" (p. 236))
  I want to keep the volume at the same level when I turn the power on
• By default, the volume setting when power was previously set to standby on this unit is applied at next power on with no change. To use a fixed volume level, set the volume level at power on for "Power On Volume" in the menu. You can set this for each zone. ("Volume" (p.173), "Power On Volume" (p.236))
  I want to have the subwoofer always output audio
• Depending on the input signals and sound mode, the subwoofer may not output audio. When "Subwoofer Mode" in the menu is set to "LFE+Main", you can have the subwoofer always output audio. (p. 222)
  I want to make human voices in the movies clearer
• Use "Dialog Level Adjust" in the menu to adjust the level. (p. 166)
  I want to keep bass and clarity during playback at a lower volume level
• Set "Dynamic EQ" in the menu to "On". This setting corrects the frequency characteristics to allow you to enjoy clear sound without the bass being lost even during playback at a lower volume level. (p. 175)
  I want to automatically adjust the volume level difference in content such as TV and movies
• Set "Dynamic Volume" in the menu. Volume level changes (between quiet scenes and loud scenes) in TV shows or movies are automatically adjusted to your desired level. (p. 176)

I want to set the optimized listening environment after changing the configuration/position of the speakers or changing a speaker to a new one.

• Perform Audyssey® Setup. This automatically makes the optimized speaker settings for the new listening environment. (p. 198)

I want to combine a desired video with the current music

• Set "Video Select" in the option menu to "On". You can combine the current music with your desired video source from a Set-top Box or DVD, etc. while listening to music from the Tuner, CD, Phono, Internet radio, USB or Bluetooth. (p. 128)

I want to skip unused input sources

• Set unused input sources for "Hide Sources" in the menu. This allows you to skip unused input sources when turning the INPUT SELECTOR knob on this unit. (p. 196)

I want to enjoy the same music in all zones at the home party, etc.

• Set "All Zone Stereo" in the option menu to "Start". This allows you to simultaneously play back the music that is being played back in MAIN ZONE in ZONE2. (p. 130)

I want to minimize the delay in video signals when I'm playing a game on my game console

• When the video is delayed against button operations with the controller, set "Video Mode" in the menu to "Game". (p. 187)

I want to operate this unit using the TV remote control

• Select "AV Receiver" in a TV menu such as "Input" * or "Operate Connected HDMI Device"*. The Smart Menu of this unit is displayed on the TV. This Smart Menu can be operated using the remote control of your TV.

• The selection method differs depending on your TV. See the owner's manual of your TV for details.

Troubleshooting

If a problem should arise, first check the following:

1. Are the connections correct?
2. Is the set being operated as described in the owner's manual?
3. Are the other devices operating properly?

If this unit does not operate properly, check the corresponding symptoms in this section.

If the symptoms do not match any of those described here, consult your dealer as it could be due to a fault in this unit. In this case, disconnect the power immediately and contact the store where you purchased this unit.

Power does not turn on / Power is turned off

Symptom	Cause / Solution	Page
Power does not turn on.	Check whether the power plug is correctly inserted into the power outlet.	80
Power automatically turns off.	The sleep timer is set. Turn on the power again.	146
	“Auto Standby” is set. “Auto Standby” is triggered when there is no operation for a set amount of time. To disable “Auto Standby”, set “Auto Standby” on the menu to “Off”.	234
Power turns off and the power indicator flashes in red approx. every 2 seconds.	The protection circuit has been activated due to a rise in temperature within this unit. Turn the power off, wait about an hour until this unit cools down sufficiently, and then turn the power on again.	293
	Please re-install this unit in a place having good ventilation.	-
Power turns off and the power indicator flashes in red approx. every 0.5 seconds.	Check the speaker connections. The protection circuit may have been activated because speaker cable core wires came in contact with each other or a core wire was disconnected from the connector and came in contact with the rear panel of this unit. After unplugging the power cord, take corrective action such as firmly re-twisting the core wire or taking care of the connector, and then reconnect the wire.	35
	Turn down the volume and turn on the power again.	82
	This unit's amplifier circuit has failed. Unplug the power cord and contact our customer service center.	-
Power does not turn off even when the power button is pressed, and the display shows “ZONE2 On”.	The power supply of ZONE2 is turned to ON. To turn off the power supply of this unit (standby), press the ZONE2 ON/OFF on the main unit, or press the POWER button after pressing the ZONE2 button on the remote control unit to turn off the power supply of ZONE2.	-

Operations cannot be performed through the remote control unit

Symptom	Cause / Solution	Page
Operations cannot be performed through the remote control unit.	·Batteries are worn out. Replace with new batteries.	8
	·Operate the remote control unit within a distance of about 7 m from this unit and at an angle of within 30°.	8
	·Remove any obstacle between this unit and the remote control unit.	-
	·Insert the batteries in the proper direction, checking the ⊕ and Ⓢ marks.	8
	·The set's remote control sensor is exposed to strong light (direct sunlight, inverter type fluorescent bulb light, etc.). Move the set to a place in which the remote control sensor will not be exposed to strong light.	-
	·The operation target zone does not correspond to the zone setting specified on the remote control unit. Press the MAIN or ZONE2 button to select the operating zone of the remote control.	163
	·When using a 3D video device, the remote control unit of this unit may not function due to effects of infrared communications between units (such as TV and glasses for 3D viewing). In this case, adjust the direction of units with the 3D communications function and their distance to ensure they do not affect operations from the remote control unit of this unit.	-

Display on this unit shows nothing

Symptom	Cause / Solution	Page
Display is off.	• Set “Dimmer” on the menu to something other than “Off”.	239
	• When the sound mode is set to “Pure Direct”, the display is off.	133

No sound comes out

Symptom	Cause / Solution	Page
No sound comes out of speakers.	·Check the connections for all devices.	28
	·Insert connection cables all the way in.	—
	·Check that input connectors and output connectors are not reversely connected.	—
	·Check cables for damage.	—
	·Check that speaker cables are properly connected. Check that cable core wires come in contact with the metal part on speaker terminals.	35
	·Securely tighten the speaker terminals. Check speaker terminals for looseness.	35
	·Check that a proper input source is selected.	82
	·Adjust the volume.	83
	·Cancel the mute mode.	83
	·Check the digital audio input connector setting.	193
	·Check the digital audio output setting on the connected device. On some devices, the digital audio output is set to off by default.	—
	·When a headphone is plugged into the PHONES jack on the main unit, sound is not output from the speaker terminal and PRE OUT connector.	—
No sound comes out when using the DVI-D connection.	·When this unit is connected to a device equipped with a DVI-D connector, no sound is output. Make a separate audio connection.	—
No sound comes out of a TV that is connected via HDMI.	·Audio signals input to 7.1CH IN connectors on this unit cannot be output to the TV.	—

Desired sound does not come out

Symptom	Cause / Solution	Page
The volume does not increase.	· The maximum volume is set too low. Set the maximum volume using “Limit” on the menu.	173
	· Appropriate volume correction processing is performed according to the input audio format and settings, so the volume may not reach the upper limit.	—
No sound comes out with the HDMI connection.	· Check the connection of the HDMI connectors.	63
	· When outputting HDMI audio from the speakers, set “HDMI Audio Out” on the menu to “AVR”. To output from the TV, set “TV”.	181
	· When using the HDMI Control function, check that the audio output is set to the AV amplifier on the TV.	143
No sound comes out of a specific speaker.	· Check that speaker cables are properly connected.	—
	· Check that a selection other than “None” is set for the “Speaker Config.” setting in menu.	214
	· Check the “Assign Mode” setting in the menu.	209
	· When the sound mode is “Stereo” and “Virtual”, audio is only output from the front speakers and subwoofer.	—
No sound is produced from subwoofer.	· Check the subwoofer connections.	—
	· Turn on the subwoofer's power.	—
	· Set “Speaker Config.” - “Subwoofer” in the menu to “1 spkr” or “2 spkrs”.	215
	· When “Speaker Config.” - “Front” in the menu is set to “Large”, depending on the input signal and the sound mode, no sound may be output from the subwoofer.	215
	· When no subwoofer audio signal (LFE) is included in the input signals, no sound may be output from the subwoofer.	222
	· You can make the subwoofer always output sound by setting the “Subwoofer Mode” to “LFE+Main”.	222
DTS sound is not output.	· Check that the digital audio output setting on the connected device is set to “DTS”.	—
Dolby Atmos, Dolby TrueHD, DTS-HD, Dolby Digital Plus audio is not output.	· Make HDMI connections.	67
	· Check the digital audio output setting on the connected device. On some devices, “PCM” is set by default.	—
DTS Neural:X mode cannot be selected.	• DTS Neural:X cannot be selected when using the headphones.	—
Dolby Surround mode cannot be selected.	• Dolby Surround cannot be selected when using the headphones.	—
Sound modes other than "Stereo" or "Direct" cannot be selected.	• Only "Stereo" or "Direct" can be selected for the sound mode if Headphone:X signals are input.	242
Audyssey MultEQ® XT32, Audyssey Dynamic EQ®, Audyssey Dynamic Volume® and Audyssey LFC™ cannot be selected.	• These cannot be selected when you have not performed Audyssey® Setup.	198
	• Switch to a sound mode other than "Direct" or "Pure Direct".	133
	• These cannot be selected when using the headphones.	—
"M-DAX" cannot be selected.	• Check that an analog signal or PCM signal (Sample Rate = 44.1/48 kHz) is input. For playback of multichannel signals such as Dolby Digital or DTS surround, "M-DAX" cannot be used.	171
	• Switch to a sound mode other than "Direct" or "Pure Direct".	133
No audio is output from PRE OUT or speakers for ZONE2.	• In ZONE2, the audio can be played back when signals input from digital connectors (OPTICAL/COAXIAL) are in 2ch PCM format.	—
	• In ZONE2, the audio can be played back when signals input from the HDMI connector are in 2ch PCM format. To play back the audio in ZONE2 irrespective of the input signal format, set "HDMI Audio" in the menu to "PCM". Depending on the played back device, the audio may not be played back even with this setting. In that case, set the audio format to "PCM (2ch)" on the played back device.	236
	• When listening to the audio of a Bluetooth device in ZONE2, remove any obstructions between the Bluetooth device and this unit and use it within a range of about 10 m.	—

Sound is interrupted or noise occurs

Symptom	Cause / Solution	Page
During playback from the Internet radio or USB memory device, sound is occasionally interrupted.	·When the transfer speed of the USB memory device is slow, sound may occasionally be interrupted.	—
	·The network communication speed is slow or the radio station is busy.	—
When making a call on iPhone, noise occurs in audio output on this unit.	·When making a call, keep a distance of 20 cm or longer between iPhone and this unit.	—
Noise often occurs in FM/AM broadcasting.	·Change the antenna orientation or position.	74
	·Separate the AM loop antenna from the unit.	—
	·Use an outdoor antenna.	74
	·Separate the antenna from other connection cables.	74
The sounds appear to be distorted.	·Lower the volume.	83
	·Set “Off” to the ECO Mode. When “On” or “Auto” is in the ECO Mode, the audio may by distorted when the playback volume is high.	232
Sound cuts out when using Wi-Fi connection.	·The frequency band used by the wireless LAN is also used by microwave ovens, cordless telephones, wireless game controllers and other wireless LAN devices. Using such devices at the same time as this unit may cause sound to cut out due to electronic interference. Sound cut out can be improved using the following methods. - Install devices that cause interference away from this unit. - Turn off the power supply to devices that cause interference. - Change the settings of the router channel to which this unit is connected to. (See the instruction manual of the wireless router for details on how to change the channel.) - Switch to a wired LAN connection.	76
	·Particularly when you play back large music files, depending on your wireless LAN environment, the playback sound may be interrupted. In this case, make the wired LAN connection.	225

No video is shown on the TV

Symptom	Cause / Solution	Page
No picture appears.	·Check the connections for all devices.	63
	·Insert connection cables all the way in.	—
	·Check that input connectors and output connectors are not reversely connected.	—
	·Check cables for damage.	—
	·Match the input settings to the input connector of the TV connected to this unit.	193
	·Check that the proper input source is selected.	82
	·Check the video input connector setting.	193
	·Check that the resolution of the player corresponds to that of the TV.	243
	·Check whether the TV is compatible with copyright protection (HDCP). If connected to a device not compatible with HDCP, video will not be output correctly.	270
	·To enjoy content that is copyright protected by HDCP 2.2, use a playback device and TV compatible with HDCP 2.2 only.	—
	·The HDMI signal cannot be converted to an analog signal. Use analog connections.	271
	·To play back a 4K (60/50Hz) video, use a “High Speed HDMI Cable” or an “High Speed HDMI Cable with Ethernet”. In order to achieve a higher fidelity for 4K (60/50Hz) videos, it is recommended to use a “Premium High Speed HDMI Cables” or an “Premium High Speed HDMI Cables with Ethernet” that has an HDMI Premium Certified Cable label on the product package.	—
No video is shown on the TV with the DVI-D connection.	·With the DVI-D connection, on some device combinations, devices may not function properly due to the copy guard copyright protection (HDCP).	270
No video from an input source such as a game console is shown on the TV.	·When special video signals are input from a game console, etc., the Video Conversion function may not function. Connect the input connector to the monitor output connector of the same type.	—
While the menu is being displayed, no video is shown on the TV.	·The video being played will not appear in the background of the menu when the menu is operated during playback of the following video signals. - Some images of 3D video contents - Computer resolution images (example: VGA) - Video with an aspect ratio other than 16:9 or 4:3 - 4K video	—
When using HDMI ZONE2, the video output in MAIN ZONE is interrupted.	·When ZONE2 is operated with the same input source selected for MAIN ZONE and ZONE2, video in MAIN ZONE may be interrupted.	—

The menu screen is not displayed on the TV

Symptom	Cause / Solution	Page
The menu screen or status information screen is not displayed on the TV.	• The menu screen is only displayed on this unit and a TV connected with an HDMI cable. If this unit is connected to a TV using a different video output connector, operate while watching the display on this unit.	—
	• The status information will not appear on the TV when the following video signals are being played. - Some images of 3D video content - Computer resolution images (example: VGA) - Video with an aspect ratio other than 16:9 or 4:3	243
	• When a 2D video is converted to a 3D video on the TV, the menu screen or status information screen is not displayed properly.	243
	• In the pure direct playback mode, the menu screen or status information is not displayed. Switch to a sound mode other than the pure direct mode.	132
	• Set the "TV Format" setting in the menu to a selection that is appropriate for the TV.	192

iPod cannot be played back

Symptom	Cause / Solution	Page
iPod cannot be connected.	·When using iPod by connecting it to the USB port, some iPod variations are not supported.	72
	·When iPod is connected by using a USB cable other than the genuine cable, iPod may not be recognized. Use a genuine USB cable.	—
The AirPlay icon ☐ is not displayed on iTunes / iPhone / iPod touch / iPad.	·This unit and PC / iPhone / iPod touch / iPad are not connected to the same network (LAN). Connect it to the same LAN as this unit.	76
	·The firmware on iTunes / iPhone / iPod touch / iPad is not compatible with AirPlay. Update the firmware to the latest version.	—
Audio is not output.	·The volume on iTunes / iPhone / iPod touch / iPad is set to the minimum level. The volume on iTunes / iPhone / iPod touch / iPad is linked with the volume on this unit. Set a proper volume level.	—
	·The AirPlay playback is not performed, or this unit is not selected. Click the AirPlay icon ☐ on the iTunes / iPhone / iPod touch / iPad screen and select this unit.	117
Audio is interrupted during the AirPlay playback on iPhone / iPod touch / iPad.	·Quit the application running in the background of the iPhone/iPod touch/iPad, and then play using AirPlay.	—
	·Some external factors may be affecting the wireless connection. Modify the network environment by taking measures such as shortening the distance from the wireless LAN access point.	—
iTunes cannot be played back through the remote control unit.	·Enable the “Allow iTunes audio control from remote speakers” setting on iTunes. Then, you can perform playback, pause, and skip operations through the remote control unit.	—

USB memory devices cannot be played back

Symptom	Cause / Solution	Page
“No connection” is displayed.	·This unit cannot recognize the USB memory device. Disconnect and reconnect the USB memory device.	72
	·Mass storage class compatible USB memory devices are supported.	—
	·This unit does not support a connection through a USB hub. Connect the USB memory device directly to the USB port.	—
	·The USB memory device must be formatted to FAT16 or FAT32.	—
	·Not all USB memory devices are guaranteed to work. Some USB memory devices are not recognized. When using a type of portable hard disc drive compatible with the USB connection that requires power from an AC adapter, use the AC adapter that came with the drive.	—
Files on the USB memory device are not displayed.	·Files of a type not supported by this unit are not displayed.	89
	·This unit is able to display files in a maximum of eight folder layers. A maximum of 5000 files (folders) can also be displayed for each layer. Modify the folder structure of the USB memory device.	—
	·When multiple partitions exist on the USB memory device, only files on the first partition are displayed.	—
Files on a USB memory device cannot be played.	·Files are created in a format that is not supported by this unit. Check the formats supported by this unit.	273
	·You are attempting to play a file that is copyright protected. Files that are copyright protected cannot be played on this unit.	—
	·Playback may not be possible if the album art file size exceeds 2 MB.	—

File names on the iPod/USB memory device are not displayed properly

Symptom	Cause / Solution	Page
The file names are not displayed properly (“...”, etc.).	Characters that cannot be displayed have been used. On this unit, characters that cannot be displayed are replaced with a“. (period)”.	—

Bluetooth cannot be played back

Symptom	Cause / Solution	Page
Bluetooth devices cannot be connected to this unit.	• The Bluetooth function in the Bluetooth device has not been enabled. See the Owner's Manual of the Bluetooth device to enable the Bluetooth function.	—
	• Bring the Bluetooth device near to this unit.	—
	• The Bluetooth device cannot connect with this unit if it is not compatible with the A2DP profile.	—
	• Turn the power of the Bluetooth device off and on again, and then try again.	—
The sound is cut off.	• Bring the Bluetooth device near to this unit.	—
	• Remove obstructions between the Bluetooth device and this unit.	—
	• To prevent electromagnetic interference, locate this unit away from microwave ovens, wireless LAN devices and other Bluetooth devices.	—
	• Reconnect the Bluetooth device.	—

The Internet radio cannot be played back

Symptom	Cause / Solution	Page
A list of broadcasting stations is not displayed.	• The LAN cable is not properly connected, or the network is disconnected. Check the connection status.	76
	• Perform the network diagnostic mode.	—
Internet Radio cannot be played.	• The selected radio station is broadcasting in a format that is not supported by this unit. Formats that can be played back in this unit are MP3, WMA and AAC.	276
	• The firewall function is enabled on the router. Check the firewall setting.	—
	• The IP address is not properly set.	228
	• Check the power of the router is on.	—
	• To obtain the IP address automatically, enable the DHCP server function on the router. Also, set the DHCP setting to “On” on this unit.	228
	• To obtain the IP address manually, set the IP address and proxy on this unit.	228
	• Some radio stations broadcast silently during some time period. In this case, no audio is output. Wait for a while and select the same radio station, or select another radio station.	109
Cannot connect to favorite radio stations.	• Radio station is not currently in service. Register radio stations in service.	—
For some radio stations, “Connection down” is displayed and station cannot be connected to.	• The selected radio station is not in service. Select a radio station in service.	—

■ Music files on PC or NAS cannot be played back

Symptom	Cause / Solution	Page
Files stored on a computer cannot be played.	·Files are stored in a non-compatible format. Record in a compatible format.	275
	·Files that are copyright protected cannot be played on this unit.	—
	·The set's USB port cannot be used for connection to a computer.	—
	·Media sharing settings are not correct. Change media sharing settings so that the unit can access the folders on your computer.	113
Server is not found, or it is not possible to connect to the server.	·The computer's or router's firewall is activated. Check the computer's or router's firewall settings.	—
	·Computer's power is not turned on. Turn on the power.	—
	·Server is not running. Launch the server.	—
	·Set's IP address is wrong. Check the set's IP address.	224
Music files on PC cannot be played back.	·Even if PC is connected to the USB port on this unit, music files on it cannot be played back. Connect PC to this unit through the network.	76
Files on PC or NAS are not displayed.	·Files of a type not supported by this unit are not displayed.	275
Music stored on a NAS cannot be played.	·If you use a NAS in conformity with the DLNA standard, enable the DLNA server function in the NAS setting.	—
	·If you use a NAS that does not conform with the DLNA standard, play the music via a PC. Set Windows Media Player's media sharing function and add NAS to the selected play folder.	113
	·If connection is restricted, set audio equipment as the connection target.	—

Various online services cannot be played

Symptom	Cause / Solution	Page
Various online services cannot be played.	• The online service may have been discontinued.	—

The HDMI Control function does not work

Symptom	Cause / Solution	Page
The HDMI Control function does not work.	·Check that “HDMI Control” in the menu is set to “On”.	183
	·You cannot operate devices that are not compatible with the HDMI Control function. In addition, depending on the connected device or the settings, the HDMI Control function may not work. In this case, operate the external device directly.	143
	·Check that the HDMI Control function setting is enabled on all devices connected to this unit.	143
	·When you make connection related changes such as connecting an additional HDMI device, the link operation settings may be initialized. Turn off this unit and devices connected via HDMI, and turn them on again.	143

Cannot connect to a wireless LAN network

Symptom	Cause / Solution	Page
Cannot connect to the network.	· The network name (SSID), password and encryption setting have not been set up correctly. Configure the network settings according to the setting details of this unit.	227
	· Shorten the distance from the wireless LAN access point and remove any obstructions to improve access first before re-connecting again. Place the unit away from microwave ovens and other network access points.	—
	· Configure the access point channel settings away from channels that are being used by other networks.	—
	· This unit is not compatible with WEP (TSN).	—
	· The wireless router may be set to a channel that cannot be used by this unit. Switch the wireless router channel setting to a channel that can be used by this unit. See the instruction manual of the wireless router for details on how to change the channel. Compatible channels for this unit are as shown below. 2.4 GHz:1 - 13ch 5 GHz:36 - 48ch	—
Cannot connect to WPS.	· Check that the WPS mode of the router is operating.	—
	· Press the WPS button on the router and then press the “Connect” button displayed on the TV within 2 minutes.	—
	· A router/settings that are compatible with WPS 2.0 standards are required. Set the encryption time to “None”, “WPA-PSK (AES)” or WPA2-PSK (AES).	227
	· If the router encryption method is WEP/WPA-TKIP/WPA2-TKIP, you cannot connect by using the WPS button. In this case, use the “Scan Networks” or “Manual” method to connect.	—
Cannot connect to the network using iPhone/iPod touch/iPad.	· Update the iPhone/iPod touch/iPad firmware to the latest version.	—
	· When using a USB cable to configure the settings, the iOS device firmware version needs to support iOS 5 or later. When configuring the settings via a wireless connection, iOS 7 or later needs to be supported.	—

■ When using HDMI ZONE2, the devices does not function properly

Symptom	Cause / Solution	Page
When using MAIN ZONE, video output is interrupted in HDMI ZONE2.	With the same input source selected for MAIN ZONE and ZONE2, when you operate MAIN ZONE, video may be interrupted in HDMI ZONE2.	—
When using HDMI ZONE2, no video or audio is output from the TV in ZONE2.	Check that the power is on for ZONE2.	158
	Check the input source for ZONE2.	158
	The AUX1-HDMI connector on the front panel does not support the HDMI ZONE2 function.	—
	In ZONE2, playback is only possible when the input signals are HDMI signals.	—
	When the TV does not support the input audio format, audio is not output. Set the audio format to “PCM” on the playback device. Alternatively, set “ZONE2 Setup” - “HDMI Audio” in the menu to “PCM”.	236
	When the TV is not compatible with the resolution of the input video, no video is output. Set the output resolution on the playback device to a resolution that is compatible with the TV.	—
When using HDMI ZONE2, MAIN ZONE audio is played back as PCM.	When the same input source is selected for MAIN ZONE and ZONE2, the audio format is limited according to the specifications of the TV in ZONE2.	—

Resetting factory settings

Perform this procedure if the display is abnormal or if operations cannot be performed.

Various settings are reset to the factory default values. Make settings again.

ZONE2 SOURCE

1 Turn off the power using .
2 Press while simultaneously pressing M-DAX and ZONE2 SOURCE.
3 Remove your fingers from the two buttons when "initialized" appears on the display.

• Before restoring the default setting, the "Save" function of the web control function can be used to store the various settings of the unit. (p. 152)

However, account information for network content and information on registered favorites cannot be stored.

About HDMI

HDMI is an abbreviation of High-Definition Multimedia Interface, which is an AV digital interface that can be connected to a TV or amplifier.

With the HDMI connection, high definition video and high quality audio formats adopted by Blu-ray Disc players (Dolby Digital Plus, Dolby TrueHD, DTS-HD, DTS-HD Master Audio) can be transmitted, which is not possible with the analog video transmission.

Furthermore, in the HDMI connection, audio and video signals can be transmitted through a single HDMI cable, while in conventional connections it is necessary to provide audio and video cables separately for connection between devices. This allows you to simplify the wiring configuration that tends to be quite complex in a home theater system. This unit supports the following HDMI functions.

- Deep Color

An imaging technology supported by HDMI. Unlike RGB or YCbCr, which uses 8 bits (256 shades) per color, it can use 10 bits (1024 shades), 12 bits (4096 shades), or 16 bits (65536 shades) to produce colors in higher definition.

Both devices linked via HDMI must support Deep Color.

x.v.Color

This function lets HDTVs display colors more accurately. It enables display with natural, vivid colors.

"x.v.Color" is trademark of Sony Corporation.

3D

This unit supports input and output of 3D (3 dimensional) video signals of HDMI. To play back 3D video, you need a TV and player that provide support for the HDMI 3D function and a pair of 3D glasses.

4K

This unit supports input and output of 4K (3840 x 2160 pixels) video signals of HDMI.

- Content Type

It automatically makes settings suitable for the video output type (content information).

Adobe RGB color, Adobe YCC601 color

The color space defined by Adobe Systems Inc. Because it is a wider color space than RGB, it can produce more vivid and natural images.

sYCC601 color

Each of these color spaces defines a palette of available colors that is larger than the traditional RGB color model.

• Auto Lip Sync

This function can automatically correct delay between the audio and video.

Use a TV that is compatible with the Auto Lip Sync function.

HDMI Pass Through

Even when the power to this unit is set to standby, signals input from the HDMI input connector are output to a TV or other device that is connected to the HDMI output connector.

HDMI Control

If you connect the unit and an HDMI Control function compatible TV or player with an HDMI cable and then enable the HDMI Control function setting on each device, the devices will be able to control each other.

Power off link

This unit power off can be linked to the TV power off step.

Audio output destination switching

From the TV, you can switch whether to output audio from the TV or the AV amplifier.

Volume adjustment

You can adjust this unit's volume in the TV volume adjustment operation.

• Input source switching

You can switch this unit input sources through linkage to TV input switching.

When playing the player, this unit input source switches to the source for that player.

• ARC (Audio Return Channel)

This function transmits audio signals from the TV to this unit through the HDMI cable and plays back the audio from the TV on this unit based on the HDMI Control function.

If a TV without the ARC function is connected via HDMI connections, video signals of the playback device connected to this unit are transmitted to the TV, but this unit can not play back the audio from the TV. If you want to enjoy surround audio for TV program, a separate audio cable connection is required.

In contrast, if a TV with the ARC function is connected via HDMI connections, no audio cable connection is required. Audio signals from the TV can be input to this unit through the HDMI cable between this unit and the TV. This function allows you to enjoy surround playback on this unit for the TV.

Supported audio formats

2-channel Linear PCM	2-channel, 32 kHz – 192 kHz, 16/20/24 bit
Multi-channel Linear PCM	7.1-channel, 32 kHz – 192 kHz, 16/20/24 bit
Bitstream	Dolby Digital / DTS / Dolby Atmos / Dolby TrueHD / Dolby Digital Plus / DTS:X / DTS-HD Master Audio / DTS-HD High Resolution Audio / DTS Express
DSD	2-channel – 5.1-channel, 2.8 MHz

Supported video signals

480i
480p
- 576i
- 576p
- 720p 60/50Hz
1080i 60/50Hz
1080p 60/50/24Hz
- 4K 60/50/30/25/24 Hz

Copyright protection system

In order to play back digital video and audio such as BD video or DVD video via HDMI connection, both this unit and the TV or player must to support the copyright protection system known as HDCP (Highbandwidth Digital Content Protection System). HDCP is copyright protection technology comprised of data encryption and authentication of the connected AV devices. This unit supports HDCP.

• If a device that does not support HDCP is connected, video and audio are not output correctly. Read the owner's manual of your television or player for more information.

• When connecting this unit to a device that is compatible with the Deep Color, 4K and ARC functions, use a "High Speed HDMI cable with Ethernet" that bears the HDMI logo.

Video conversion function

This unit automatically converts the input video signals as shown in the diagram before outputting them to the TV.

• The MAIN ZONE Video Conversion function is compatible with the following formats: NTSC, PAL, SECAM, NTSC4.43, PAL-N, PAL-M and PAL-60.

This unit can convert the input video signals to the resolution that is set for "Resolution" in the menu before outputting them to the TV. (p. 189)

Input signal\Output signal		HDMI
		480i/576i	480p/576p	720p	1080i	1080p	1080p 24Hz	4K 30/25/24Hz	4K 60/50Hz
HDMI	480i/576i	✓	✓	✓	✓	✓	✓	✓	✓
	480p/576p		✓	✓	✓	✓	✓	✓	✓
	720p			✓	✓	✓	✓	✓	✓
	1080i			✓	✓	✓	✓	✓	✓
	1080p 24Hz					✓	✓	✓	✓
	1080p					✓	✓	✓	✓
	4K 30/25/24Hz							✓
	4K 60/50Hz								✓*
Component Video	480i/576i	✓	✓	✓	✓	✓	✓	✓	✓
	480p/576p		✓	✓	✓	✓	✓	✓	✓
	720p			✓	✓	✓	✓	✓	✓
	1080i			✓	✓	✓	✓	✓	✓.
	1080p					✓	✓	✓	✓
Video	480i/576i	✓	✓	✓	✓	✓	✓	✓	✓

• The HDMI connector on the front panel supports YCbCr 4:2:0 format only.

Playing back a USB memory devices

• This unit is compatible with MP3 ID3-Tag (Ver. 2) standard.
• This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver. 2.3 or 2.4.
• This unit is compatible with WMA META tags.
• If the image size (pixels) of an album artwork exceeds 500 × 500 (WMA/MP3) or 349 × 349 (MPEG-4 AAC), then music may not be played back properly.

Compatible formats

	Sampling frequency	Bit rate	Extension
WMA*1	32/44.1/48 kHz	48 – 192 kbps	.wma
MP3	32/44.1/48 kHz	32 – 320 kbps	.mp3
WAV	32/44.1/48/88.2/96/176.4/192 kHz	-	.wav
MPEG-4 AAC*1	32/44.1/48 kHz	16 – 320 kbps	.aac/.m4a/.mp4
FLAC	32/44.1/48/88.2/96/176.4/192 kHz	-	.flac
Apple Lossless*2	32/44.1/48/88.2/96 kHz	-	.m4a
DSD	2.8/5.6 MHz	-	.dsf/.dff
AIFF	32/44.1/48/88.2/96/176.4/192 kHz	-	.aif/.aiff

1 Only files that are not protected by copyright can be played on this unit. Content downloaded from pay sites on the Internet are copyright protected. Also, files encoded in WMA format when ripped from a CD, etc. on a computer may be copyright protected, depending on the computer's settings.
2 Copyright [2012] [D&M Holdings. Inc.] Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.apache.org/licenses/License-2.0

• In ZONE2, it is not possible to play the DSD signal.

Maximum number of playable files and folder

The limits on the number of folders and files that can be displayed by this unit are as follows.

Item\Media	USB memory device
Memory capacity	FAT16 : 2 GB, FAT32 : 2 TB
Number of folder directory levels *1	8 levels
Number of folders	500
Number of files*2	5000

1 The limited number includes the root folder.
2 The allowable number of files may differ according to the USB memory device capacity and the file size.

Playing back a Bluetooth device

This unit supports the following Bluetooth profile.

• A2DP (Advanced Audio Distribution Profile):

When a Bluetooth device that supports this standard is connected, monaural and stereo sound data can be streamed at a high quality.

AVRCP (Audio/Video Remote Control Profile):

When a Bluetooth device that supports this standard is connected, the Bluetooth device can be operated from this unit.

About Bluetooth communications

Radio waves broadcast from this unit may interfere with the operation of medical devices. Make sure you turn off the power of this unit and Bluetooth device in the following locations as radio wave interference may cause malfunctions.

• Hospitals, trains, aircraft, petrol kiosks and places where flammable gases are generated
  Near automatic doors and fire alarms

Playing back a file saved on a PC or NAS

• This unit is compatible with MP3 ID3-Tag (Ver. 2) standard.
• This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver. 2.3 or 2.4.
• This unit is compatible with WMA META tags.
• If the image size (pixels) of an album artwork exceeds 500 × 500 (WMA/MP3/WAV/FLAC) or 349 × 349 (MPEG-4 AAC), then music may not be played back properly.
• A server or server software compatible with distribution in the corresponding formats is required to play music files via a network.

■ Specifications of supported files

	Sampling frequency	Bit rate	Extension
WMA*1	32/44.1/48 kHz	48 – 192 kbps	.wma
MP3	32/44.1/48 kHz	32 – 320 kbps	.mp3
WAV	32/44.1/48/88.2/96/176.4/192 kHz	-	.wav
MPEG-4 AAC*1	32/44.1/48 kHz	16 – 320 kbps	.aac/.m4a/.mp4
FLAC	32/44.1/48/88.2/96/176.4/192 kHz	-	.flac
Apple Lossless*2	32/44.1/48/88.2/96 kHz	-	.m4a
DSD	2.8/5.6 MHz	-	.dsf/.dff
AIFF	32/44.1/48/88.2/96/176.4/192 kHz	-	.aif/.aiff

1 Only files that are not protected by copyright can be played on this unit. Content downloaded from pay sites on the Internet are copyright protected. Also, files encoded in WMA format when ripped from a CD, etc. on a computer may be copyright protected, depending on the computer's settings.
2 Copyright [2012] [D&M Holdings. Inc.] Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.apache.org/licenses/License-2.0

• In ZONE2, it is not possible to play the DSD signal.

Playing back Internet Radio

■ Playable broadcast station specifications

	Sampling frequency	Bit rate	Extension
WMA	32/44.1/48 kHz	48 – 192 kbps	.wma
MP3	32/44.1/48 kHz	32 – 320 kbps	.mp3
MPEG-4 AAC	32/44.1/48 kHz	16 – 320 kbps	.aac/.m4a/.mp4

Personal memory plus function

The most recently used settings (input mode, HDMI output mode, sound mode, tone control, channel level, MultEQ® XT32, Dynamic EQ, Dynamic Volume, M-DAX and audio delay, etc.) are saved for each input source.

• "Surround Parameter" settings are stored for each sound mode.

Last function memory

This function stores the settings which were made before going into the standby mode.

Sound modes and channel output

This indicates the audio output channels or surround parameters that can be set.
© This indicates the audio output channels. The output channels depend on the settings of "Speaker Config." (p. 214)

Sound mode

Channel output

Front L/R

Center

Surround L/R

Surround Back L/R

Front Height L/R

Top Front L/R

Top Middle L/R

Top Rear L/R

Rear Height L/R

Front Dolby Atmos Enabled L/R

Surround Dolby Atmos Enabled L/R

Back Dolby Atmos Enabled L/R

Subwoofer

Direct/Pure Direct (2-channel)

○

◎*6

Direct/Pure Direct (Multi-channel)

○

◎

◎

◎*3

◎*3

◎*3

◎*3

◎*3

◎*3

◎*3

◎*3

◎*3

◎

DSD Direct (2-channel)

○

◎*6

DSD Direct (Multi-channel)

○

◎

◎

◎

Stereo

○

◎

Multi Ch In

○

◎

◎

◎*3

◎

Dolby Surround *1

○

◎

◎

◎*4

◎

◎

◎

◎

◎

◎

◎

◎

◎

DTS Neural:X *2

○

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

Dolby Digital

○

◎

◎

◎

Dolby Digital Plus

○

◎

◎

◎*3

◎*3

◎

Dolby TrueHD

○

◎

◎

◎*3

◎*3

◎

Dolby Atmos

○

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

DTS Surround

○

◎

◎

◎

◎

DTS 96/24

○

◎

◎

◎

◎

DTS-HD

○

◎

◎

◎*3

◎*3

◎

DTS Express

○

◎

◎

◎

◎

DTS:X

○

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

Multi Ch Stereo

○

◎

◎

◎*5

◎*5

◎*5

◎*5

◎*5

◎*5

◎*5

◎*5

◎*5

◎

Virtual

○

◎

1 - 6: "Sound modes and channel output" (p. 278)

1 The applicable sound mode includes "Dolby Surround" and sound modes that have "+"Dolby Surround" in the sound mode name.
2 The applicable sound mode includes "DTS Neural:X" and sound modes that have "+"Neural:X" in the sound mode name.
3 A signal for each channel contained in an input signal is output as audio.
4 Audio is not output when "Speaker Config." - "Surr. Back" in the menu is set to "1 spkr". (p. 216)
5 Audio is output from the speakers specified in the "Surround Parameter" - "Speaker Select" settings. (p. 169)
6 Audio is output when "Subwoofer Mode" in the menu is set to "LFE+Main". (12 p. 222)

Sound modes and surround parameters

Sound mode	Surround Parameter
	Dialog Level Adjust	Subwoofer Level Adjust	Cinema EQ	Loudness Management *1	Dynamic Compression *2	Dialog Control *3	Low Frequency Effects *4	Speaker Select
Direct/Pure Direct (2-channel) *5		○*6		○	○
Direct/Pure Direct (Multi-channel) *5	○	○		○	○		○
DSD Direct (2-channel)		○*6
DSD Direct (Multi-channel) *5	○	○					○
Stereo		○		○	○
Multi Ch In	○	○	○				○
Dolby Surround	○	○	○	○	○
DTS Neural:X	○	○	○		○
Dolby Digital	○	○	○	○	○		○
Dolby Digital Plus	○	○	○	○	○		○
Dolby TrueHD	○	○	○	○	○		○
Dolby Atmos	○	○	○	○	○		○
DTS Surround	○	○	○		○		○
DTS 96/24	○	○	○				○
DTS-HD	○	○	○				○
DTS Express	○	○	○				○
DTS:X	○	○	○			○	○
Multi Ch Stereo	○	○		○	○		○	○
Virtual	○	○		○	○		○

1 - 6: "Sound modes and surround parameters" (R. p. 281)

Sound mode	Surround Parameter		Tone*7	Audyssey				M-DAX*11
	Center Spread	DTS Neural:X		MultEQ® XT32*8*9	Dynamic EQ*10	Dynamic Volume*10	Audyssey LFC™*10
Direct/Pure Direct (2-channel) *5
Direct/Pure Direct (Multi-channel) *5
DSD Direct (2-channel)
DSD Direct (Multi-channel) *5
Stereo			○	○	○	○	○	○
Multi Ch In			○	○	○	○	○
Dolby Surround	○		○	○	○	○	○	○
DTS Neural:X			○	○	○	○	○	○
Dolby Digital			○	○	○	○	○
Dolby Digital Plus			○	○	○	○	○
Dolby TrueHD			○	○	○	○	○
Dolby Atmos			○	○	○	○	○
DTS Surround			○	○	○	○	○
DTS 96/24			○	○	○	○	○
DTS-HD			○	○	○	○	○
DTS Express			○	○	○	○	○
DTS:X		○	○	○	○	○	○
Multi Ch Stereo			○	○	○	○	○	○
Virtual			○	○	○	○	○	○

5, 7 - *11: "Sound modes and surround parameters" (R2 p. 281)

1 This item can be selected when a Dolby Digital, Dolby Digital Plus, Dolby TrueHD or Dolby Atmos signal is played.
2 This item can be selected when a Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS:X or DTS signal is played.
3 This item can be selected when a DTS:X signal that is compatible with the Dialog Control function is input.
4 This item can be selected when a Dolby Digital or DTS signal or DVD-Audio is played.
5 During playback in Pure Direct mode, the surround parameters are the same as in Direct mode.
6 This setting is available when "Subwoofer Mode" in the menu is set to "LFE+Main". (p. 222)
7 This item cannot be set when "Dynamic EQ" is set to "On". (p. 175)
8 This item cannot be set when Audyssey® Setup (Speaker Calibration) has not been performed.
9 This item cannot be selected when a DTS:X format with a sampling frequency of over 48 kHz is input.
10 This item cannot be set when "MultEQ® XT32" in the menu is set to "Off". (p. 174)
*11 This item can be set when the input signal is analog, PCM 48 kHz or 44.1 kHz.

Types of input signals, and corresponding sound modes

This indicates the default sound mode.
This indicates the selectable sound mode.

Sound mode

NOTE

2-channel signal

Multi-channel signal

Analog / PCM

Dolby Digital (+/HD)

DTS (-HD)

DSD (Super Audio CD)

PCM Multi

DTS:X

DTS-HD

DTS Express

DTS ES Dscrt6.1

DTS ES Mtrx6.1

DTS

Dolby Atmos

Dolby TrueHD

Dolby Digital Plus

Dolby Digital (EX)

DSD (Super Audio CD)

DTS Surround

DTS:X MSTR / DTS:X

●

DTS-HD MSTR

●*3

DTS-HD HI RES

●*4

DTS ES Dscrt6.1

*2

●

DTS ES Mtrx6.1

*2

●

DTS Surround

○

○

●

DTS 96/24

●*5

DTS Express

●

DTS (-HD) + Dolby Surround

○

○

○

○

○

DTS (-HD) + Neural:X

*11

○

○

○

○

○

DTS Neural:X

*11

○

○

●

○

Dolby Surround

Dolby Atmos *1

●

Dolby TrueHD

○*6

○

Dolby Digital+

○*7

○

Dolby (D+) (HD) + Dolby Surround

●

●

●

Dolby (D+) (HD) + Neural:X

○*10

○

○

○

Dolby Digital

○

Dolby Surround

○

●

○

○

1 - 7, 10, 11: "Types of input signals, and corresponding sound modes" (p. 284)

Sound mode

NOTE

2-channel signal

Multi-channel signal

Analog / PCM

Dolby Digital (+/HD)

DTS (-HD)

DSD (Super Audio CD)

PCM Multi

DTS:X

DTS-HD

DTS Express

DTS ES Dscrt6.1

DTS ES Mtrx6.1

DTS

Dolby Atmos

Dolby TrueHD

Dolby Digital Plus

Dolby Digital (EX)

DSD (Super Audio CD)

Multi Ch In

Multi Ch In

●

●

Multi Ch In + Dolby Surround

○

○

Multi Ch In 7.1

*2

○*9

Multi Ch In + Neural:X

○

○

Direct

Direct

○*8

○

○

○

○

○

○

○

○

○

○

○

○

○

DSD Direct

○

○

Pure Direct

Pure Direct

○

○

○

○

○

○

○

○

○

○

○

○

○

○

DSD Pure Direct

○

○

Original sound mode

Multi Ch Stereo

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

Virtual

○

○

○

○

○

○

○

○

○

○

○

○*10

○

○

○

○

Stereo

Stereo

●

○

○

●

○

○

○

○

○

○

○

○

○

○

○

○

2, 8 - *10 : "Types of input signals, and corresponding sound modes" (p. 284)

Contents

Connections

Playback

Settings

Tips

Appendix

*1 This item can be selected when using any of the Surround Back, Front Height, Top Front, Top Middle, Top Rear, Rear Height, Front Dolby, Surround Dolby or Back Dolby speaker.
2 This item can be selected when surround back speakers are used.
3 This item can be selected when the input signal is DTS-HD Master Audio.
4 This item can be selected when the input signal is DTS-HD Hi Resolution.
5 This item can be selected when the input signal is DTS 96/24.
6 This can be selected when the Dolby Atmos signal contains the Dolby TrueHD signal.
7 This can be selected when the Dolby Atmos signal contains the Dolby Digital Plus signal.
8 The default sound mode for the AirPlay playback is "Direct".
9 This item can be selected when the input signals contain surround back signals.
10 This can be selected when the Dolby Atmos signal contains the Dolby TrueHD or Dolby Digital Plus signal.
11 This item cannot be selected when a DTS(-HD) format with a sampling frequency of over 48kHz is input.

Explanation of terms

Audyssey

Audyssey Dynamic EQ®

Dynamic EQ solves the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics.

Audyssey Dynamic EQ® works in tandem with Audyssey MultEQ® XT32 to provide well-balanced sound for every listener at any volume level.

Audyssey Dynamic Volume®

Dynamic Volume solves the problem of large variations in volume level between television programs, commercials, and between the soft and loud passages of movies. Audyssey Dynamic EQ® is integrated into Dynamic Volume so that as the playback volume is adjusted automatically, the perceived bass response, tonal balance, surround impression, and dialog clarity remain the same.

Audyssey LFC™ (Low Frequency Containment)

Audyssey LFC™ solves the problem of low frequency sounds disturbing people in neighboring rooms or apartments. Audyssey LFC™ dynamically monitors the audio content and removes the low frequencies that pass through walls, floors and ceilings. It then applies psychoacoustic processing to restore the perception of low bass for listeners in the room. The result is great sound that no longer disturbs the neighbors.

Audyssey MultEQ XT32

Audyssey MultEQ® XT32 is a room equalization solution that calibrates any audio system so that it can achieve optimum performance for every listener in a large listening area. Based on several room measurements, MultEQ® XT32 calculates an equalization solution that corrects for both time and frequency response problems in the listening area and also performs a fully automated surround system setup.

Dolby

Dolby Atmos

Introduced first in the cinema, Dolby Atmos brings a revolutionary sense of dimension and immersion to the Home Theater experience. Dolby Atmos is an adaptable and scalable object based format that reproduces audio as independent sounds (or objects) that can be accurately positioned and move dynamically throughout the 3 dimensional listening space during playback. A key ingredient of Dolby Atmos is the introduction of a height plane of sound above the listener.

Dolby Atmos Stream

Dolby Atmos content will be delivered to your Dolby Atmos enabled AV receiver via Dolby Digital Plus or Dolby TrueHD on Blu-ray Disc, downloadable files and streaming media. A Dolby Atmos stream contains special metadata that describes the positioning of sounds within the room. This object audio data is decoded by a Dolby Atmos AV receiver and scaled for optimum playback through Home Theater speaker systems of every size and configuration.

Dolby Digital

Dolby Digital is a multi-channel digital signal format developed by Dolby Laboratories.

A total of 5.1-channels are played: 3 front channels ("FL", "FR" and "C"), 2 surround channels ("SL" and "SR") and the "LFE" channel for low frequency effects.

Because of this, there is no crosstalk between channels and a realistic sound field with a "three-dimensional" feeling (sense of distance, movement and positioning) is achieved. This delivers a thrilling surround sound experience in the home.

Dolby Digital Plus

Dolby Digital Plus is an improved Dolby Digital signal format that is compatible with up to 7.1-channels of discrete digital sound and also improves sound quality thanks to extra data bit rate performance. It is upwardly compatible with conventional Dolby Digital, so it offers greater flexibility in response to the source signal and the conditions of the playback device.

Dolby Surround

Dolby surround is a next generation surround technology that intelligently up mixes stereo; 5.1 and 7.1 content for playback through your surround speaker system. Dolby surround is compatible with traditional speaker layouts, as well as Dolby Atmos enabled playback systems that employ in-ceiling speakers or products with Dolby speaker technology.

Dolby Speaker Technology (Dolby Atmos Enabled speakers)

A convenient alternative to speakers built into the ceiling, Dolby Atmos Enabled speakers employ the ceiling above you as a reflective surface for reproducing audio in the height plane above the listener. These speakers feature a unique upward firing driver and special signal processing. These features can be built into a conventional speaker or standalone speaker module. The features minimally impact the overall speaker footprint while providing an immersive listening experience during Dolby Atmos and Dolby surround playback.

Dolby TrueHD

Dolby TrueHD is a high definition audio technology developed by Dolby Laboratories, using lossless coding technology to faithfully reproduce the sound of the studio master.

This format provides the facility to support up to 8 audio channels with a sampling frequency of 96kHz / 24 bit resolution and up to 6 audio channels with a sampling frequency of 192kHz / 24 bit resolution.

DTS

Dialog Control

Gives you control of the listening experience. You can lift the dialog out from the background sounds when clarity and intelligibility are desired. This requires that content has been authored to support Dialog Control.

DTS

This is an abbreviation of Digital Theater System, which is a digital audio system developed by DTS. DTS delivers a powerful and dynamic surround sound experience, and is found in the world's finest movie theaters and screening rooms.

DTS 96/24

DTS 96/24 is a digital audio format enabling high sound quality playback in 5.1-channels with a sampling frequency of 96kHz and 24 bit quantization on DVD-Video.

DTS Digital Surround

DTSTM Digital Surround is the standard digital surround format of DTS, Inc., compatible with a sampling frequency of 44.1 or 48kHz and up to 5.1-channels of digital discrete surround sound.

DTS-ES™ Discrete 6.1

DTS - ES^TM Discrete 6.1 is a 6.1-channel discrete digital audio format adding a surround back (SB) channel to the DTS digital surround sound. Decoding of conventional 5.1-channel audio signals is also possible according to the decoder.

DTS-ESTM Matrix 6.1

DTS - ES^TM Matrix 6.1 is a 6.1-channel audio format that inserts a surround back (SB) channel to the DTS digital surround sound through matrix encoding. Decoding of conventional 5.1-channel audio signals is also possible according to the decoder.

DTS Express

DTS Express is an audio format supporting low bit rates (max. 5.1-channels, 24 to 256 kbps).

DTS-HD

This audio technology provides higher sound quality and enhanced functionality than the conventional DTS and is adopted as an optional audio for Blu-ray Disc.

This technology supports multi-channel, high data transfer speed, high sampling frequency, and lossless audio playback. Maximum 7.1-channels are supported in Blu-ray Disc.

DTS-HD High Resolution Audio

DTS-HD High Resolution Audio is an improved version of the conventional DTS, DTS-ES and DTS 96/24 signals formats, compatible with sampling frequencies of 96 or 48kHz and up to 7.1-channels of discrete digital sound. High data bit rate performance provides high quality sound. This format is fully compatible with conventional products, including conventional DTS digital surround 5.1-channel data.

DTS-HD Master Audio

DTS-HD Master Audio is a lossless audio format created by Digital Theater System (DTS). This format provides the facility to support up to 8 audio channels with a sampling frequency of 96kHz / 24 bit resolution and up to 6 audio channels with a sampling frequency of 192kHz / 24 bit resolution. It is fully compatible with conventional products, including conventional DTS digital surround 5.1-channel data.

DTS:X

DTS:X produces a hemisphere of audio, where flyovers as well as ambient backgrounds become truly enveloping. DTS:X objects enable audio to move smoothly from one speaker to any other creating life-like realism.

DTS Neural:X

Enables an immersive audio experience for older content. DTS Neural:X can upmix your stereo, 5.1 or 7.1 content to take full advantage of all speakers in your surround sound system.

Audio

Apple Lossless Audio Codec

This is a codec for lossless audio compression method developed by Apple Inc. This codec can be played back on iTunes, iPod or iPhone. Data compressed to approximately 60 - 70% can be decompressed to exactly the same original data.

FLAC (Free Lossless Audio Codec)

FLAC stands for Free lossless Audio Codec, and is a lossless free audio file format. Lossless means that the audio is compressed without any loss in quality.

The FLAC license is as shown below.

Copyright (C) 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 Josh Coalson

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

LFE

This is an abbreviation of Low Frequency Effect, which is an output channel that emphasizes low frequency effect sound. Surround audio is intensified by outputting 20 Hz to 120 Hz deep bass to the system subwoofer(s).

MP3 (MPEG Audio Layer-3)

This is an internationally standardized audio data compression scheme, using the "MPEG-1" video compression standard. It compresses the data volume to about one eleventh its original size while maintaining sound quality equivalent to a music CD.

MPEG (Moving Picture Experts Group), MPEG-2, MPEG-4

These are the names for digital compression format standards used for the encoding of video and audio. Video standards include "MPEG-1 Video", "MPEG-2 Video", "MPEG-4 Visual", "MPEG-4 AVC". Audio standards include "MPEG-1 Audio", "MPEG-2 Audio", "MPEG-4 AAC".

WMA (Windows Media Audio)

This is audio compression technology developed by Microsoft Corporation.

WMA data can be encoded using Windows Media® Player.

To encode WMA files, only use applications authorized by Microsoft Corporation. If you use an unauthorized application, the file may not work properly.

Sampling frequency

Sampling involves taking a reading of a sound wave (analog signal) at regular intervals and expressing the height of the wave at each reading in digitized format (producing a digital signal).

The number of readings taken in one second is called the "sampling frequency". The larger the value, the closer the reproduced sound is to the original.

Speaker impedance

This is an AC resistance value, indicated in (ohms).

Greater power can be obtained when this value is smaller.

Dialogue normalization function

This function operates automatically during playback of Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS or DTS-HD sources. It automatically corrects the standard signal level for individual program sources.

Dynamic range

The difference between the maximum undistorted sound level and the minimum discernible level above the noise emitted by the device.

Downmix

This function converts the number of channels of surround audio to a lower number of channels and plays back according to the system's configuration.

Video

ISF

ISF (Imaging Science Foundation) is an organization that certifies video technicians who are then qualified to carry out calibration and adjustment to match the installation conditions. It also sets quality standards for the optimization of device video performance.

Progressive (sequential scanning)

This is a scanning system of the video signal that displays 1 frame of video as one image. Compared to the interlace system, this system provides images with less flickering and jagged edges.

Network

AirPlay

AirPlay sends (plays) contents recorded in iTunes or on an iPhone/iPod touch/iPad to a compatible device via the network.

DLNA

DLNA and DLNA CERTIFIED are trademarks and/or service marks of Digital Living Network Alliance. Some contents may not be compatible with other DLNA CERTIFIED® products.

vTuner

This is a free online content server for Internet Radio.

For inquiries about this service, visit the vTuner site below.

vTuner website:

http://www.radiomarantz.com

This product is protected by certain intellectual property rights of Nothing Else Matters Software and BridgeCo. Use or distribution of such technology outside of this product is prohibited without a license from Nothing Else Matters Software and BridgeCo or an authorized subsidiary.

WEP Key (network key)

This is key information used for encrypting data when conducting data transfer. On this unit, the same WEP key is used for data encryption and decryption, so the same WEP key must be set on both devices in order for communications to be established between them.

Wi-Fi®

Wi-Fi Certification assures tested and proven interoperability by the Wi-Fi Alliance, a group certifying interoperability among wireless LAN devices.

WPA (Wi-Fi Protected Access)

This is a security standard established by the Wi-Fi Alliance. In addition to the conventional SSID (network name) and WEP key (network key), it also uses a user identification function and encrypting protocol for stronger security.

WPA2 (Wi-Fi Protected Access 2)

This is a new version of the WPA established by the Wi-Fi Alliance, compatible with more secure AES encryption.

WPA-PSK/WPA2-PSK (Pre-shared Key)

This is a simple authentication system for mutual authentication when a preset character string matches on the wireless LAN access point and client.

WPS (Wi-Fi Protected Setup)

This is a standard drawn up by the Wi-Fi Alliance to ease the task of setting up wireless LAN connections and configuring security.

Network Names (SSID: Service Set Identifier)

When forming wireless LAN networks, groups are formed to prevent interference, data theft, etc. These groups are based on "SSID (network names)". For enhanced security, a WEP key is set so that communication is unavailable unless both the "SSID" and the WEP key match. This is suitable for constructing a simplified network.

Others

HDCP

When transmitting digital signals between devices, this copyright protection technology encrypts the signals to prevent content from being copied without authorization.

MAIN ZONE

The room where this unit is placed is called the MAIN ZONE.

Pairing

Pairing (registration) is an operation that is required in order to connect a Bluetooth device to this unit using Bluetooth. When paired, the devices authenticate each other and can connect without mistaken connections occurring.

When using Bluetooth connection for the first time, you need to pair this unit and the Bluetooth device to be connected.

Protection circuit

This is a function to prevent damage to devices within the power supply when an abnormality such as an overload, excess voltage occurs or over temperature for any reason.

Trademark information

Made for

iPod

iPhone

AirPlay

"Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, or iPhone, may affect wireless performance. AirPlay, iPad, iPhone, iPod classic, iPod nano, iPod shuffle and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

• Individual users are permitted to use iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch for private copy and playback of non-copyrighted contents and contents whose copy and playback is permitted by law. Copyright infringement is prohibited by law.

AUDYSSEY

AUDYSSEY

MULTEQ XT62 DYNAMIC VOLUME

LFC

Manufactured under license from Audyssey Laboratories™. U.S. and foreign patents pending. Audyssey MultEQ® XT32, Audyssey Dynamic EQ®, Audyssey Dynamic Volume® and Audyssey LFC™ are registered trademarks of Audyssey Laboratories.

Bluetooth

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by D&M Holdings Inc. is under license. Other trademarks and trade names are those of their respective owners.

DOLBY ATMOS

Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, Dolby Surround, and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS in combination with the Symbol, DTS:X, and the DTSX logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

CERTIFIED

The Wi-Fi CERTIFIED logo is a registered trademark of the Wi-Fi Alliance. Wi-Fi Certification provides assurance that the device has passed the interoperability test conducted by the Wi-Fi Alliance, a group that certifies interoperability among wireless LAN devices.

Specifications

Audio section

Power amplifier

Rated output:

Front:

110 W + 110 W (8 Ω/ohms, 20 Hz - 20 kHz with 0.08 % T.H.D.)

150 W + 150 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)

Center:

110 W (8 Ω/ohms, 20 Hz - 20 kHz with 0.08 % T.H.D.)

150 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)

Surround:

110 W + 110 W (8 Ω/ohms, 20 Hz - 20 kHz with 0.08 % T.H.D.)

150 W + 150 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)

Surround back / Height1 / Height2:

110 W + 110 W (8 Ω/ohms, 20 Hz - 20 kHz with 0.08 % T.H.D.)

150 W + 150 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)

Output connectors:

4-16 Ω/ohms

- Analog

Input sensitivity: 200 mV

Frequency response: 10 Hz - 100 kHz — +1, -3 dB (Direct mode)

S/N: 100 dB (IHF-A weighted, Direct mode)

Distortion: 0.005% (20 Hz - 20 kHz) (Direct mode)

Rated output: 1.2 V

Digital

D/A output: Rated output—2 V (at 0 dB playback)

Total harmonic distortion — 0.008 % (1 kHz, at 0 dB)

S/N ratio - 102 dB

Dynamic range - 100 dB

Digital input: Format — Digital audio interface

- Phono equalizer

Input sensitivity: 2.5mV

RIAA deviation: ±1 dB (20 Hz to 20 kHz)

S/N: 74 dB (IHF-A)

Distortion factor: 0.03% (1 kHz, 3 V)

Video section

• Standard video connectors

Input/output level and impedance: 1 Vp-p, 75 Ω/ohms

Frequency response: 5 Hz - 10 MHz — 0, -3 dB

Color component video connector

Input/output level and impedance:

Frequency response:

Y signal — 1 Vp-p, 75 Ω/ohms

P_B / C_B signal 0.7 Vp-p, 75 Ω/ohms

PR / CR signal — 0.7 Vp-p, 75 Ω/ohms

5 Hz - 60 MHz — 0, -3 dB

Tuner section

Reception frequency range:

Effective sensitivity:

50 dB sensitivity:

S/N ratio:

Distortion:

[FM]

(Note: V at 75 /ohms 0dBf = 1× 10^-15W)

87.5 MHz - 108.0 MHz

1.2 V (12.8 dBf)

MONO- 2.8 V (20.2 dBf)

MONO - 70 dB (IHF-A weighted, Direct mode)

STEREO - 67 dB (IHF-A weighted, Direct mode)

MONO - 0.7% (1 kHz)

STEREO- 1.0% (1 kHz)

[AM]

522 kHz - 1611 kHz

18 V

■ Wireless LAN section

Network type (wireless LAN standard): Conforming to IEEE 802.11a

Conforming to IEEE 802.11b

Conforming to IEEE 802.11g

Conforming to IEEE 802.11n

(Wi-Fi® compliant) *1

Security: WEP 64 bit, WEP 128 bit

WPA/WPA2-PSK (AES)

WPA/WPA2-PSK (TKIP)

Radio frequency: 2.4 GHz, 5 GHz

No. of channels: 2.4 GHz: 1 - 13ch

5GHz:36-48ch

*1 The Wi-Fi® CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product Logo are registered trademarks of the Wi-Fi Alliance.

Bluetooth section

Communications system: Bluetooth Version 2.1 + EDR (Enhanced Data Rate)

Transmission power: Maximum 2.5 mW (Class 2)

Maximum communication range: Approx. 10m in line of sight*2

Frequency band: 2.4 GHz band

Modulation scheme: FHSS (Frequency-Hopping Spread Spectrum)

Supported profiles: A2DP (Advanced Audio Distribution Profile) 1.2

AVRCP (Audio Video Remote Control Profile) 1.4

Corresponding codec: SBC, AAC

Transmission range (A2DP): 20 Hz - 20,000 Hz

*2 The actual communication range varies depending on the influence of such factors as obstructions between devices, electromagnetic waves from microwave ovens, static electricity, cordless phones, reception sensitivity, antenna performance, operating system, application software etc.

General

Power supply: AC 230 V, 50/60 Hz

Power consumption: 680 W

Power consumption in standby mode: 0.2 W

Power consumption in CEC standby mode: 0.5 W

Power consumption in network standby mode: 2.7 W

For purposes of improvement, specifications and design are subject to change without notice.

Dimensions (Unit: mm)

Weight: 12.7kg

Index

Numerics

3D 268
4K 268
5.1-channel 32,41
7.1-channel 32,42
9.1-channel 46

A

AirPlay 116
All Zone Stereo 130
Audio formats 270, 273, 275, 276
Audio settings 160, 166
Audyssey Dynamic EQ® 285
Audyssey Dynamic Volume® 285
Audyssey MultEQ® XT32 285
Audyssey settings 174, 200
Audyssey® Setup 198
Auto sound mode 137
Auto Standby 234

3

Bi-amp 57
Bluetooth device 93
Blu-ray Disc player 68, 83

#

Cable TV 67

Direct sound mode 138
Display 18
DLNA 291
Dolby Atmos 286
Dolby sound mode 135, 286
DTS sound mode 136, 287
DVD player 68, 83

ECO Mode 232
External control device 78

F

Favorites 122, 123
Firmware Update 240
FM/AM antenna 74,98
Front panel 14

G

Game console 69
General settings 162, 232

H

HDCP 270
HDMI Control 143, 183

Input Assign 193

Input settings 161, 193

Input signal 282

Input source 82

Inputting characters 164

Internet Radio 108

iPod 72,84

iPodBrowseMode 86

JPEG 89,112

Listening position 198

M-DAX 171

Menu map 160

Muting 83

NAS 112

Network settings 224

Original sound mode 137

Pairing 93, 95

PC 112

PCM multi-channel sound mode 137

Protection circuit 293

Pure direct 133

Random playback 88, 121

Rear panel 20

Remote control unit 24

Repeat playback 88, 121

Resetting factory settings 267

Satellite tuned 67

Set-top box 67

Setup Assistant 162

Sleep timer 146

Slideshow 124

Smart select 148, 148

Sound mode 132, 277, 279

Speaker connection 28

Speaker settings 161, 198

Spotify 119

Stereo sound mode 138

Text Search 123

Tips 247

Troubleshooting 249

TV 63,64,65

USB memory device 72,89

Video camcorder 69

Video Conversion 188, 271

Video Select 128

Video settings 160, 179

Volume 83,126

Web control 151

Wi-Fi settings 225

Wired LAN 76,225

ZONE2 59,156

License

This section describes software license used for this unit. To maintain the correct content, the original (English) is used.

Boost

http://wwwBOOST.org/

Boost Software License - Version 1.0 - August 17th, 2003

Permission is hereby granted, free of charge, to any person or organization obtaining a copy of the software and accompanying documentation covered by this license (the "Software") to use, reproduce, display, distribute, execute, and transmit the Software, and to prepare derivative works of the Software, and to permit third-parties to whom the Software is furnished to do so, all subject to the following:

The copyright notices in the Software and this entire statement, including the above license grant, this restriction and the following disclaimer, must be included in all copies of the Software, in whole or in part, and all derivative works of the Software, unless such copies or derivative works are solely in the form of machine-executable object code generated by a source language processor.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTYES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE AND NON-INFRINGEMENT. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR ANYONE DISTRIBUTING THE SOFTWARE BE LIABLE FOR ANY DAMAGES OR OTHER LIABILITY, WHETHER IN CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Expat

http://www.jclark.com/XML/expat.html

Expat License. Copyright (c) 1998, 1999, 2000 Thai Open Source Software Center Ltd

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

FastDelegate

http://www.codeproject.com/KBcpp/FastDelegate.aspx

THE WORK (AS DEFINED BELOW) IS PROVIDED UNDER THE TERMS OF THIS CODE PROJECT OPEN LICENSE ("LICENSE"). THE WORK IS PROTECTED BY COPYRIGHT AND/OR OTHER APPLICABLE LAW. ANY USE OF THE WORK OTHER THAN AS AUTHORIZED UNDER THIS LICENSE OR COPYRIGHT LAW IS PROHIBITED.

BY EXERCISING ANY RIGHTS TO THE WORK PROVIDED HEREIN, YOU ACCEPT AND AGREE TO BE BOUND BY THE TERMS OF THIS LICENSE. THE AUTHOR GRANTS YOU THE RIGHTS CONTAINED HEREIN IN CONSIDERATION OF YOUR ACCEPTANCE OF SUCH TERMS AND CONDITIONS. IF YOU DO NOT AGREE TO ACCEPT AND BE BOUND BY THE TERMS OF THIS LICENSE, YOU CANNOT MAKE ANY USE OF THE WORK.

Definitions. "Articles" means, collectively, all articles written by Author which describes how the Source Code and Executable Files for the Work may be used by a user.

"Author" means the individual or entity that offers the Work under the terms of this License.

"Derivative Work" means a work based upon the Work or upon the Work and other pre-existing works.

"Executable Files" refer to the executables, binary files, configuration and any required data files included in the Work.

"Publisher" means the provider of the website, magazine, CD-ROM, DVD or other medium from or by which the Work is obtained by You.

"Source Code" refers to the collection of source code and configuration files used to create the Executable Files.

"Standard Version" refers to such a Work if it has not been modified, or has been modified in accordance with the consent of the Author, such consent being in the full discretion of the Author.

"Work" refers to the collection of files distributed by the Publisher, including the Source Code, Executable Files, binaries, data files, documentation, whitepapers and the Articles.

"You" is you, an individual or entity wishing to use the Work and exercise your rights under this License.

Fair Use/Fair Use Rights. Nothing in this License is intended to reduce, limit, or restrict any rights arising from fair use, fair dealing, first sale or other limitations on the exclusive rights of the copyright owner under copyright law or other applicable laws. License Grant. Subject to the terms and conditions of this License, the Author hereby grants You a worldwide, royalty-free, non-exclusive, perpetual (for the duration of the applicable copyright) license to exercise the rights in the Work as stated below: You may use the standard version of the Source Code or Executable Files in Your own applications.

You may apply bug fixes, portability fixes and other modifications obtained from the Public Domain or from the Author. A Work modified in such a way shall still be considered the standard version and will be subject to this License.

You may otherwise modify Your copy of this Work (excluding the Articles) in any way to create a Derivative Work, provided that You insert a prominent notice in each changed file stating how, when and where You changed that file.

You may distribute the standard version of the Executable Files and Source Code or Derivative Work in aggregate with other (possibly commercial) programs as part of a larger (possibly commercial) software distribution.

The Articles discussing the Work published in any form by the author may not be distributed or republished without the Author's consent. The author retains copyright to any such Articles. You may use the Executable Files and Source Code pursuant to this License but you may not repost or republish or otherwise distribute or make available the Articles, without the prior written consent of the Author.

Any subroutines or modules supplied by You and linked into the Source Code or Executable Files this Work shall not be considered part of this Work and will not be subject to the terms of this License.

Patent License. Subject to the terms and conditions of this License, each Author hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable (except as stated in this section) patent license to make, have made, use, import, and otherwise transfer the Work.

Restrictions. The license granted in Section 3 above is expressly made subject to and limited by the following restrictions: You agree not to remove any of the original copyright, patent, trademark, and attribution notices and associated disclaimers that may appear in the Source Code or Executable Files.

You agree not to advertise or in any way imply that this Work is a product of Your own.

The name of the Author may not be used to endorse or promote products derived from the Work without the prior written consent of the Author.

You agree not to sell, lease, or rent any part of the Work. This does not restrict you from including the Work or any part of the Work inside a larger software distribution that itself is being sold. The Work by itself, though, cannot be sold, leased or rented.

You may distribute the Executable Files and Source Code only under the terms of this License, and You must include a copy of, or the Uniform Resource Identifier for, this License with every copy of the Executable Files or Source Code You distribute and ensure that anyone receiving such Executable Files and Source Code agrees that the terms of this License apply to such Executable Files and/or Source Code. You may not offer or impose any terms on the Work that alter or restrict the terms of this License or the recipients' exercise of the rights granted hereunder. You may not sub license the Work. You must keep intact all notices that refer to this License and to the disclaimer of warranties. You may not distribute the Executable Files or Source Code with any technological measures that control access or use of the Work in a manner inconsistent with the terms of this License.

You agree not to use the Work for illegal, immoral or improper purposes, or on pages containing illegal, immoral or improper material. The Work is subject to applicable export laws. You agree to comply with all such laws and regulations that may apply to the Work after Your receipt of the Work.

Representations, Warranties and Disclaimer. THIS WORK IS PROVIDED "AS IS", "WHERE IS" AND "AS AVAILABLE", WITHOUT ANY EXPRESS OR IMPLIED WARRANTY OR CONDITIONS OR GUARANTEES. YOU, THE USER, ASSUME ALL RISK IN ITS USE, INCLUDING COPYRIGHT INFRINGEMENT, PATENT INFRINGEMENT, SUITABILITY, ETC. AUTHOR EXPRESSLY DISCLAIMS ALL EXPRESS, IMPLIED OR STATUTORY WARRANTYES OR CONDITIONS, INCLUDING WITHOUT LIMITATION, WARRANTYES OR CONDITIONS OF MERCHANTABILITY, MERCHANTABLE QUALITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ANY WARRANTY OF TITLE OR NONINFRINGEMENT, OR THAT THE WORK (OR ANY PORTION THEREOF) IS CORRECT, USEFUL, BUG-FREE OR FREE OF VIRUSES. YOU MUST PASS THIS DISCLAIMER ON WHENEVER YOU DISTRIBUTE THE WORK OR DERIVATIVE WORKS.

Indemnity. You agree to defend, indemnify and hold harmless the Author and the Publisher from and against any claims, suits, losses, damages, liabilities, costs, and expenses (including reasonable legal or attorneys' fees) resulting from or relating to any use of the Work by You.

Limitation on Liability. EXCEPT TO THE EXTENT REQUIRED BY APPLICABLE LAW, IN NO EVENT WILL THE AUTHOR OR THE PUBLISHER BE LIABLE TO YOU ON ANY LEGAL THEORY FOR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES ARISING OUT OF THIS LICENSE OR THE USE OF THE WORK OR OTHERWISE, EVEN IF THE AUTHOR OR THE PUBLISHER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Termination.

This License and the rights granted hereunder will terminate automatically upon any breach by You of any term of this License. Individuals or entities who have received Derivative Works from You under this License, however, will not have their licenses terminated provided such individuals or entities remain in full compliance with those licenses. Sections 1, 2, 6, 7, 8, 9, 10 and 11 will survive any termination of this License.

If You bring a copyright, trademark, patent or any other infringement claim against any contributor over infringements. You claim are made by the Work, your License from such contributor to the Work ends automatically.

Subject to the above terms and conditions, this License is perpetual (for the duration of the applicable copyright in the Work). Notwithstanding the above, the Author reserves the right to release the Work under different license terms or to stop distributing the Work at any time; provided, however that any such election will not serve to withdraw this License (or any other license that has been, or is required to be, granted under the terms of this License), and this License will continue in full force and effect unless terminated as stated above.

Publisher. The parties hereby confirm that the Publisher shall not, under any circumstances, be responsible for and shall not have any liability in respect of the subject matter of this License. The Publisher makes no warranty whatsoever in connection with the Work and shall not be liable to You or any party on any legal theory for any damages whatsoever, including without limitation any general, special, incidental or consequential damages arising in connection to this license. The Publisher reserves the right to cease making the Work available to You at any time without notice

Miscellaneous

This License shall be governed by the laws of the location of the head office of the Author or if the Author is an individual, the laws of location of the principal place of residence of the Author.

If any provision of this License is invalid or unenforceable under applicable law, it shall not affect the validity or enforceability of the remainder of the terms of this License, and without further action by the parties to this License, such provision shall be reformed to the minimum extent necessary to make such provision valid and enforceable.

No term or provision of this License shall be deemed waived and no breach consented to unless such waiver or consent shall be in writing and signed by the party to be charged with such waiver or consent.

This License constitutes the entire agreement between the parties with respect to the Work licensed herein. There are no understandings, agreements or representations with respect to the Work not specified herein. The Author shall not be bound by any additional provisions that may appear in any communication from You. This License may not be modified without the mutual written agreement of the Author and You

■ libogg

http://www.xiph.org/ogg/

Copyright (c) 2002, Xiph.org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTYES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE Liable FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

libvorbis

http://www.xiph.org/vorbis/

Copyright (c) 2002-2004 Xiph.org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTYES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Tremolo

http://wss.co.uk/pinknoise/tremolo

Copyright (C) 2002 - 2009 Xiph.org Foundation Changes Copyright (C) 2009 - 2010 Robin Watts for Pinknoise Productions Ltd

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

■ Tremor

http://wiki.xiph.org/index.php/Tremor

Copyright (c) 2002, Xiph.org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

■ Mersenne Twister

http://www.math.sci.hiroshima-u.ac.jp/~m-mat/MT/MT2002/CODES/mt19937ar.c

Copyright (C) 1997 - 2002, Makoto Matsumoto and Takuji Nishimura,

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

The names of its contributors may not be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTYES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

■ zlib

http://www.zlib.net/

zlib.h -- interface of the " zlib" general purpose compression library version 1.2.3, July 18th, 2005

Copyright (C) 1995 - 2004 Jean-Ioup Gailly and Mark Adler

This software is provided "as-is", without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software.

Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions:

The origin of this software must not be misrepresented; you must not claim that you wrote the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required.

Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software.

This notice may not be removed or altered from any source distribution.

Jean-loup Gailly [e-mail], Mark Adler [e-mail]

cURL

http://curl.haxx.se

COPYRIGHT AND PERMISSION NOTICE

Copyright (c) 1996 - 2011, Daniel Stenberg, [e-mail].

All rights reserved.

Permission to use, copy, modify, and distribute this software for any purpose with or without fee is hereby granted, provided that the above copyright notice and this permission notice appear in all copies.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Except as contained in this notice, the name of a copyright holder shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Software without prior written authorization of the copyright holder.

c-ares

http://c-ares.haxx.se

Copyright 1998 by the Massachusetts Institute of Technology.

Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation, and that the name of M.I.T. not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. M.I.T. makes no representations about the suitability of this software for any purpose. It is provided "as is" without express or implied warranty.

License information for the software used in the unit

About GPL (GNU-General Public License), LGPL (GNU Lesser General Public License) License

This product uses GPL/LGPL software and software made by other companies.

After you purchase this product, you may procure, modify or distribute the source code of the GPL/LGPL software that is used in the product.

Marantz provides the source code based on the GPL and LPGL

licenses at the actual cost upon your request to our customer service center.

However, note that we make no guarantees concerning the source code.

Please also understand that we do not offer support for the contents of the source code.

www.marantz.com

You can find your nearest authorized distributor or dealer on our website.

marantz* is a registered trademark.
