FR-330 - Réfrigérateur DAEWOO - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Réfrigérateur-congélateur
Marque	DAEWOO
Modèle	FR-330
Volume total	282 litres
Volume utile	268 litres
Surface de clayette	1,20 m²
Consommation électrique	1,9 kWh/24h
Tension d'alimentation	220 V ~ 50/60 Hz
Puissance moteur	160 W
Courant de dégivrage	0,7 A
Réfrigérant	R-12 (110 g)
Production de glace	4,0 kg/24h
Classe climatique	T (tropical)
Fonction No Frost	Oui (compartiment congélation)
Clayettes	Amovibles
Bac à légumes	Oui (avec couvercle)
Compartiment à œufs	Oui
Éclairage intérieur	Ampoule 15W (SES E14)
Pieds réglables	Oui
Dégivrage automatique	Oui (réfrigérateur)
Entretien	Nettoyer avec chiffon doux et eau savonneuse
Sécurité	Débrancher avant nettoyage, éviter sprays inflammables

FOIRE AUX QUESTIONS - FR-330 DAEWOO

Comment régler la température de mon réfrigérateur DAEWOO FR-330 ?

Utilisez les boutons de contrôle de température situés à l'intérieur. Pour le compartiment congélation, tournez le bouton de MIN à WINTER. Pour le réfrigérateur, de même. Le mode WINTER est recommandé si la température ambiante est inférieure à 10°C. Après réglage, attendez environ 12 heures pour que la température se stabilise.

Que faire si mon réfrigérateur ne refroidit pas du tout ?

Vérifiez que la fiche est bien branchée et que le disjoncteur n'a pas sauté. Assurez-vous que la température ambiante n'est pas trop élevée. Si le problème persiste, contactez un service agréé.

Comment nettoyer le joint de la porte ?

Nettoyez-le au moins deux fois par an avec de l'eau savonneuse douce. Rincez et séchez. Appliquez une fine couche de vaseline pour le garder souple.

Le réfrigérateur fait un bruit inhabituel, que faire ?

Vérifiez que l'appareil est de niveau et qu'il ne touche pas un mur ou un meuble. Assurez-vous que les plats sur les clayettes ne vibrent pas. Si le bruit persiste, contactez le service après-vente.

Puis-je changer l'ampoule intérieure moi-même ?

Oui, débranchez d'abord l'appareil. Remplacez l'ampoule par une ampoule de type 15W SES E14. Remettez en place et rebranchez.

Comment dégivrer le congélateur ?

Le compartiment congélation est No Frost, donc le dégivrage est automatique. Aucune action manuelle n'est nécessaire.

Quelle est la capacité de production de glaçons ?

Le réfrigérateur peut produire jusqu'à 4,0 kg de glace par jour. Utilisez le bac à glaçons fourni.

Comment installer mon réfrigérateur DAEWOO FR-330 ?

Placez-le sur un sol dur et de niveau, à l'écart des sources de chaleur et de l'humidité. Laissez un espace d'environ 6 cm à l'arrière pour la ventilation. Réglez les pieds pour le stabiliser. Après installation, attendez environ une heure avant de brancher.

Que faire en cas de panne de courant prolongée ?

Évitez d'ouvrir les portes. Si la panne dure plus de quelques heures, vous pouvez transférer les aliments dans une glacière. Après le retour du courant, vérifiez l'état des aliments.

Comment entretenir mon réfrigérateur pour prolonger sa durée de vie ?

Nettoyez régulièrement l'intérieur et l'extérieur avec un chiffon doux et de l'eau savonneuse. Évitez les produits abrasifs. Débranchez l'appareil lors du nettoyage. Vérifiez les joints de porte et graissez-les avec de la vaseline si nécessaire.

MODE D'EMPLOI FR-330 DAEWOO

REFRIGERATOR

Instruction Manual

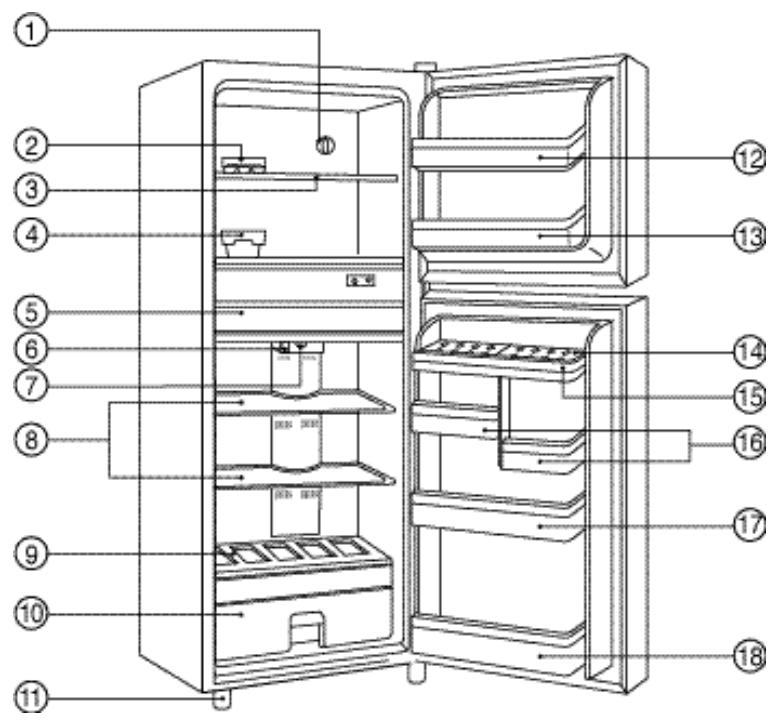

① FREEZER TEMPERATURE
CONTROL KNOB
ICE TRAY
③ F SHELF
④ ICE BOX
⑤ CHILLED CORNER
LAMP COVER
⑦ REFRIGERATOR
TEMPERATURE
CONTROL SWITCH
⑧ R SHELF

CRISPER COVER
10 CRISPER
1ADJUSTABLE FOOT
12 F POCKET (SM)
13 F POCKET (SM)
14 EGG CASE
15 EGGPOCKET
16 R POCKET (SM)
17 R POCKET (MEDIUM)
18 R POCKET (BG)

HERE ARE THE FEATURES OF YOUR NEW REFRIGERATOR

Take a moment to know all the features and convenience. Numbers match those in the illustration on page 1.

Ice Tray

Fill tray 3/4 full to allow expansion of water during freezing. Place tray in freezer chest. To release cubes, twist lid slightly.

Removable Shelf

Both shelves can be removed by pulling forward.

Crisper

Use for fruit and vegetable storage. Both the crisper and its cover shelf are removable for easy cleaning. Simply slide forward to remove.

Egg Pocket

Egg supporter in this pocket can be turned upside down.

Use for small size goods.

No Frost

No frost in freezing-room.

CAUTION

1. Be sure to check with your voltage, before inserting the power supply cord into the socket.
2. Contact the earthing conductor to this unit with an attachment earthing screws.
3. Don't spill to this unit.
4. Don't work with flammable spray, such as painting, near this unit.
5. Don't put ignitable materials, such as benzine, L .P . Gas, alcohol, etc., into this unit.
6. Be careful of the leakage of any gas equipment near this unit.
7. Be sure not to hold to the door of this unit by children.
8. Be sure not to reinsert the power supply, cord with 5 minutes after releasing it from socket. If not, a trouble may be occurred to compressor.

HOW TO OPERATE

1. TEMPERATURE CONTROL

Temperature is controlled by thermostat automatically. The Temperature Control inside the refrigerator controls the degree of cooling for each compartment.

Freezer Temperature Control

The control has four settings form MIN to WINTER. The WINTER mode is available only if atmosphere temperature is below 10^ .

Refrigerator Temperature Control

The control has the four settings from MIN to WINTER. The WINTER mode is available only if atmosphere temperature is below 10^ .

Starting your new refrigerator

1. Clean the refrigerator thoroughly. Wipe the outside with a dry cloth, and the inside with a damp cloth.
2. Set the temperature control knob at normal position.
3. Connect the power supply cord.

To control temperature

Many factors may influence the internal temperature of the refrigerator and freezer compartments.

The temperature and humidity of the surrounding environment.
The opening frequency of the doors and the amount of warm food placed in the refrigerator.
The combination of food and containers stored in the refrigerator. For these reasons, you may want to adjust the control to suit the season and your needs.

METHODS OF SAFE INSTALLATION

1. SAFE INSTALLATION PLACE FOR YOUR REFRIGERATOR

• Place the refrigerator on hard and level floor.

• Place your refrigerator where there is no heat source nearby. High surrounding temperature will lower cooling efficiency and increases your electricity bill.

• Place the refrigerator in an area with low moisture.
  Splashing water or a high moisture area may cause a short circuit and make rusting easier.

• Avoid places that are exposed to smoke. The discoloring can occur to the refrigerator.

• For good ventilation place refrigerator with the spaced specified on the figure. This helps cooling efficiency and lowers the electricity bill.

• Placing the refrigerator on the carpet may cause heat to develop and discolor the appliance. In such a case put a hard wooden board or a rubber mat between the refrigerator and the carpet.

2. INSTALLATION STEPS

• Select a safe place to install your refrigerator.

• Level the refrigerator by using the adjustable foot.

Install the parts to their own place.

• In case the evaporation tray is sticking out, insert it in completely.

• Insert the front grill into the fastening holes and press it in until a locking sound is heard.

• Check if the doors are completely shut.

• Check the voltage and wait about an hour before plugging the power cord into an outlet.

• After running the refrigerator for 2 - 3 Hours put food in the refrigerator.

3. THINGS TO KNOW BEFORE MOVING OR RELOCATING THE REFRIGERA!

• Unplug the power cord.

• Remove water from the evaporation tray.

Take food out of the refrigerator compartments.

• Fasten the interior components with tape.

• For relocating indoors use the wheels.

• When moving have two people carry the refrigerator for safety

• Fasten the doors with tape while moving to prevent them from opening.

4. CLEANING YOUR REFRIGERATOR

• When cleaning your refrigerator, unplug the power cord and use a soft cloth and dishwashing liquid to clean.

• The refrigerator can smell on its initial operation, but the odor will be away when the refrigerator is cooled sufficiently.

• Use a soft cloth for cleaning the interior and exterior of the refrigerator.

• Do not splash water directly on the refrigerator itself.

• Put the parts back to their original position.

Turn the temperature control in the refrigerator and freezer compartment toward WINTER for colder temperature and toward MIN for warmer temperature.
- Allow approximately 12 hours or overnight for the temperature to stabilize, Then check to see if further adjustments are necessary.

To turn off the refrigerator

Disconnect the power supply cord. Remove ice tray and food. Leave doors ajar for air circulation and dehumidification of both sections.

DEFROSTING THE REFRIGERATOR

It is defrosted automatically in the refrigerator.

CAUTION

To Avoid The Risk of Electrical Shock or Death unplug the power cord before replacing a burned out light bulb or cleaning.

Cleaning

Remove all food from the freezer and refrigerator sections.

Exterior

: Wash with warm, soapy water, rinse and dry.

Use appliance polish or wax periodically to keep the exterior looking like new.

Door gasket

: Clean at least twice a year with mild soap and water. Rinse and dry.

Apply a light film of petroleum jelly to the gaskets to keep them soft.

Interior

: Wash the liner with warm, soapy water, rinse and dry.

Interior and Exterior

1. DO NOT USE abrasive, heavy-duty Powders, etc.

These can scratch and dull the surface, depending on their abrasiveness and the cleaning pressure applied.

Avoid metal pads and abrasive impregnated plastic, nylon and cloth pads, etc.

1. DO NOT USE concentrated liquid dishwashing detergent (dissieve in warm water before using.), abrasive cleaners, solvents or polishing agents on plastic parts. These cleaners may cause cracking or discoloring.

WHAT TO DO…

When out of operating for a long time

Remove the power supply cord.
Dry your refrigerator, opening the door for 2-3 days.

When you get ready to move

• Securely fasten removable interior parts (or move and package them separately).
• Do not lay your refrigerator horizontally, or compressor may be damaged.

Before you calling for service check a few things as below for yourself first.

If refrigerator is not operating:

■ Is the power supply cord unplugged?
Is home fuse blown or circuit breaker off?

If refrigerator is warmer than usual:

Has the door been open frequently or for a long period?
If refrigerator overcrowded preventing good air circulation?
■ Is the hot thing stored without cooling?
■ Is the clearance between side and rear plate of the refrigerator and the wall allowed sufficiently?

If these are unusual sounds:

■ Is refrigerator placed on the level?
Are foreign objects behind the refrigerator?
Are dishes on refrigerator shelves vibrating? If so, rearrange the dishes.

HOW TO INSTALL

Location

Install refrigerator in a convenient location away from extreme heat and cold. Allow sufficient clearance about 6 cm between the refrigerator and rear wall so it is easy for refrigerator to radiate heat.

Leveling

Level refrigerator so it rests solidly on the floor without rocking.

NOTE

Make sure all packing material is removed. If the shipping tape has left a residue on the door, clean it with isopropyl alcohol (most rubbing alcohol is this type).

The electric plug must be accessible without moving the set.
- Changing the internal light bulb.
- Disconnect the refrigerator from the main supply by removing the plug. Replace the bulb with one of the correct type and size (15Watt SES E14 Base).

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similary qualified person in order to avoid a hazard.

SPECIFICATION

Specification

Model	: FR-330
Voltage	: AC 127V
Frequency	: 50/60 Hz
Motor Input	: 180W
Defrosting Current	: 1.4A
Refrigerant	: R-12
Charge	: 110g
Gross Volume	: 282ℓ
Storage Volume	: 268ℓ
Shelf Area	: 1.20㎡
Electric Power Consumption	: 1.9 KWh/24 hours
Percentage Running Time	: 50%
Quantity of Ice Produced	: 4.0kg/24 hours
Tropical Design	: T

Wiring Diagram

Manufacturer: DAEWOO ELECTRONICS CO., LTD.

Made in Korea

SPECIFICATION

Specification

Model : FR-330

Voltage : AC 220V

Frequency : 50/60 Hz

Motor Input : 160W

Defrosting Current : 0.7A

Refrigerant : R-12

Charge : 110g

Gross Volume : 282ℓ

Storage Volume : 268ℓ

Shelf Area : 1.20㎡

Electric Power Consumption : 1.9 KWh/24 hours

Percentage Running Time : 50%

Quantity of Ice Produced : 4.0kg/24 hours

Tropical Design : T

Wiring Diagram

Manufacturer: DAEWOO ELECTRONICS CO., LTD.

Made in Korea
