KFX 450R - Quad KAWASAKI - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Quad sport (ATV)
Marque	Kawasaki
Modèle	KFX 450R
Année du modèle	2009
Dimensions (L x l x h)	1806 x 1171 x 1064 mm
Poids à sec	165 kg
Alimentation (carburant)	Injection électronique, essence sans plomb
Capacité du réservoir	10 litres
Fonctions principales	Injection numérique, cadre aluminium, suspension réglable, démarrage électrique, boîte 5 vitesses avec marche arrière
Moteur	Monocylindre 4 temps, 449 cm³, refroidissement liquide
Distribution	DOHC, 4 soupapes par cylindre
Embrayage	Manuelle multidisque à bain d'huile
Boîte de vitesses	5 rapports manuels avec marche arrière
Suspension avant	Double triangle, amortisseurs réglables en précharge (5 positions)
Suspension arrière	Bras oscillant aluminium, amortisseur réglable en précharge, détente et compression haute/basse vitesse
Freins	Avant doubles disques hydrauliques, arrière simple disque
Pneus	Avant AT 21x7-10, arrière AT 20x10-9 (tubeless radial)
Débattement suspension	Avant 215 mm, arrière 254 mm
Garde au sol	108 mm
Hauteur de selle	786 mm
Entretien et nettoyage	Suivre le manuel, nettoyer après utilisation, contrôler les pneus et la chaîne régulièrement
Sécurité	Porter casque et protections, jamais de passager, ne pas rouler sur route, âge minimum 16 ans
Pièces détachées et réparabilité	Pièces d'origine Kawasaki chez les concessionnaires agréés, extension de garantie (plan Good Times)
Informations générales	Quad sportif prêt pour la compétition, cadre aluminium léger, moteur puissant

FOIRE AUX QUESTIONS - KFX 450R KAWASAKI

Quelle est la cylindrée du moteur du KAWASAKI KFX 450R ?

Le moteur du KAWASAKI KFX 450R est un monocylindre 4 temps de 449 cm³.

Le KFX 450R dispose-t-il d'une marche arrière ?

Oui, la boîte de vitesses manuelle à 5 rapports inclut une marche arrière pour faciliter les manœuvres.

Quel est le poids à sec du KFX 450R ?

Le poids à sec est d'environ 165 kg (364 livres).

Quelle est la capacité du réservoir de carburant ?

Le réservoir peut contenir 10 litres (2,1 gallons) d'essence.

À partir de quel âge peut-on conduire ce quad ?

Kawasaki recommande ce quad pour les personnes de 16 ans et plus en raison de sa puissance et de ses performances.

Peut-on rouler sur route avec le KFX 450R ?

Non, ce quad est conçu pour une utilisation uniquement hors route. Il ne doit pas être utilisé sur les routes publiques ou les trottoirs.

Est-il possible de transporter un passager ?

Non, le KFX 450R est un quad monoplace ; ne jamais transporter de passager.

Quelle est la suspension avant du KFX 450R ?

La suspension avant est à double triangle avec amortisseurs réglables en précharge sur 5 positions.

Quel type de freins équipe le KFX 450R ?

Il est équipé de freins à disque hydraulique : double disque à l'avant et simple disque à l'arrière.

Quelles sont les couleurs disponibles pour le KFX 450R ?

Les couleurs proposées sont le Vert lime et le Rouge soleil.

MODE D'EMPLOI KFX 450R KAWASAKI

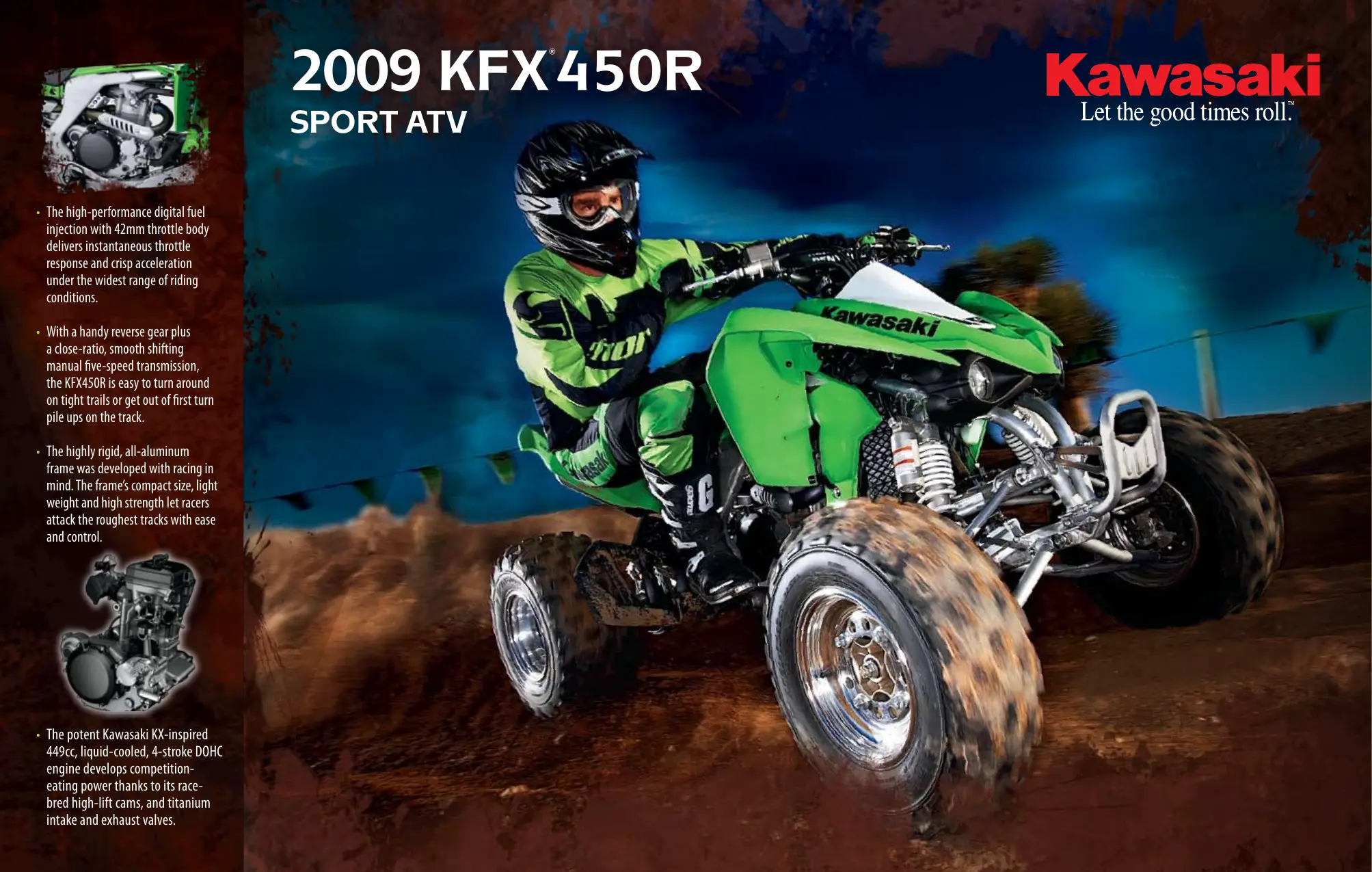

• The high-performance digital fuel injection with 42mm throttle body delivers instantaneous throttle response and crisp acceleration under the widest range of riding conditions.
• With a handy reverse gear plus a close-ratio, smooth shifting manual five-speed transmission, the KFX450R is easy to turn around on tight trails or get out of first turn pile ups on the track.
• The highly rigid, all-aluminum frame was developed with racing in mind. The frame's compact size, light weight and high strength let racers attack the roughest tracks with ease and control.

• The potent Kawasaki KX-inspired 449cc, liquid-cooled, 4-stroke DOHC engine develops competition-eating power thanks to its race-bred high-lift cam, and titanium intake and exhaust valves.

2009 KFX®450R

SPORT ATV

Kawasaki

Let the good times roll.

GUTS AND GLORY. The rush of blasting past the competition on your 2009 KFX®450R. It's not just racy—it's a genuine race replica that's ready to win right out of the crate. Fire up the starter and feel the fuel injected 4-stroke engine come to life, then tap the 5-speed close-ratio transmission into low. With its lightweight all-aluminum chassis and racetrack-quality suspension, the KFX450R will go as big as you want. Now tag the throttle and feel the KFX450R rocket you into the lead and onto the podium. The KFX450R is race-shop tuned, and race-track ready.

Lime Green

Sunbeam Red

Engine type	Liquid-cooled, 4-stroke Single
Displacement	449cc
Bore x stroke	96 x 62.1mm
Valve system	DOHC, 4 valves per cylinder
Fuel system	Digital fuel injection with 42mm throttle body
Ignition	Digital CDI
Starting	Electric
Clutch	Manual, wet multi-disc
Transmission	5-speed manual with reverse
Final drive	Chain
Frame type	All-aluminum frame with Single-spar front section
Suspension, front	Independent, dual A-arms with 5-way preload shocks
Suspension, rear	Aluminum swingarm, single shock with spring preload, rebound and high/low speed compression damping adjustment
Wheel travel, front/rear	215/254mm (8.5/10.0 inches)
Tires, front/rear	AT 21 x 7-10 tubeless radial / AT 20 x 10-9 tubeless radial
Brakes, front/rear	Dual hydraulic discs/Single hydraulic disc
Dimensions (L x W x H)	1806 x 1171 x 1064mm (71.1 x 46.1 x 41.9 inches)
Seat height	786mm (30.9 inches)
Ground clearance	108mm (4.3 inches) (at rear axle)
Fuel capacity	10 litres (2.1 gallons)
Dry weight	165 kg (364 pounds)

One Year Warranty

Your new KFX comes with a 12-month limited factory warranty. Read the next paragraph to find out how you can extend your coverage inexpensively, or ask your dealer for details about the factory warranty and available extended coverage.

Up to Three Years

Additional Coverage*

Let Kawasaki protect yournew machine for years tocome* with the exclusive

Good Times™ Protection Plan. This plan repairs or replaces most components free of charge if found defective in material or workmanship. Everything about the plan is easy: There's no deductible. It's honored at every authorized Kawasaki KFX dealer nationwide. It's transferable to another owner with no fee. Just ask your dealer how you can buy additional coverage of 24 or 36 months. Imagine, for just pennies a day, you can ride with no worry and no hassle. Just tell your dealer you want the Good Times Protection Plan.

*Depending on the program purchased.

WARNING: ATVs can be hazardous to operate.

Kawasaki ATVs with engines over 90cc are recommended for use only by persons 16 years of age or older. For your safety: Always wear a helmet, eye protection, and protective clothing. Never carry a passenger. Never ride under the influence of drugs or alcohol. Never ride on public roads or pavement. Avoid excessive speeds and stunt driving. Be extra careful on difficult terrain.

To view our complete accessory catalog, find your nearest dealer or take an in-depth tour of this machine visit:

kawasaki.ca/kfx450

Kawasaki subscribes to the guidelines of Tread Lightly!, a program dedicated to protecting the great outdoors through education and fostering responsible enjoyment of public lands.

tread lightly!

LEAVING A GOOD IMPRESSION

All ATV Models Ride responsibly.

Kawasaki believes safety begins with us and continues with you. Protect the environment. Obey laws and regulations that control the use of your ATV. For off-road use only. Riding is more fun on a well-maintained ATV ... follow the instructions in your owner's manual.

Remember, riding safe is smart.

Action Photography: Professional riders on a closed course. For off-highway use only. Specifications subject to change without notice Availability may be limited. Some models shown with available accessories. Vehicle may not be exactly as shown.
