DiMAGE Image Viewer Utility

9224-2766-21 H-B109 (V11) E INSTRUCTION MANUAL

- This instruction manual may not be copied either in part or in its entirety without the prior permission of Minolta Co., Ltd.

© 2001 Minolta Co., Ltd.

- Every precaution has been taken to ensure the accuracy of this material Please contact Minolta if you have any questions, find any mistakes or notice missing information.

- Minolta cannot accept responsibility for any loss, damage or other problems caused by use of this software.

- With the exception of personal, home or equivalent use No part of book, magazine, music, or other copyrighted material may be used, copied or revised without the prior permission of the author or copyright holder.

This instruction manual does not provide instructions for the basic operation of the personal computers, or the basic operation of Windows® or Mac OS operating systems.

Please refer to the manual that came with your computer for information on the above mentioned topics.

• Microsoft® and Windows® are registered trademarks in the United States and other countries of Microsoft Corporation.
• The official name of Windows® is Microsoft® Windows® Operating System.
• Pentium® is a registered trademark of Intel Corporation.
• Apple, the Apple logo, Macintosh, Power Macintosh, Mac OS and the Mac OS logo are registered trademarks of Apple Computer, Inc.
• Other company and product names are the trademarks or registered trademarks of their respective owners.

TABLE OF CONTENTS......4

BEFORE YOU BEGIN....6

TERMS USED IN THIS MANUAL....6

SYSTEM REQUIREMENTS (Windows ^® )......8

INSTALLING THE SOFTWARE (Windows®)......10

INSTALLING THE SOFTWARE (Macintosh) 13

STARTING THE SOFTWARE....16

For Windows 16

For Macintosh ....17

USING THE SOFTWARE – THUMBNAILS......18

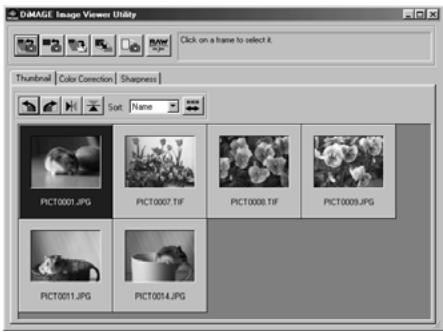

To Display Thumbnails of All Images in the Folder....19

To Display a Thumbnail of a Certain Image in the Folder ....21

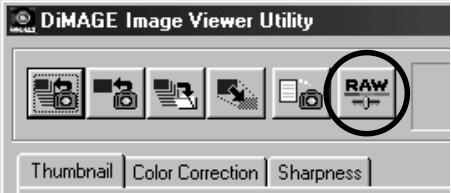

To Open Minolta-RAW Files....23

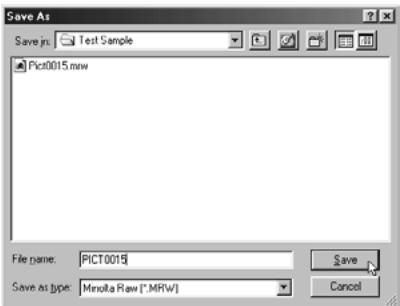

To Save in the Minolta-RAW File Format (RAW File Processing) 28

To Rotate, Flip and Sort Thumbnails ....30

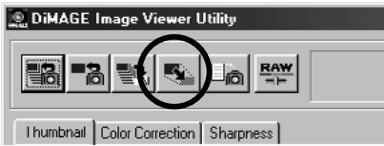

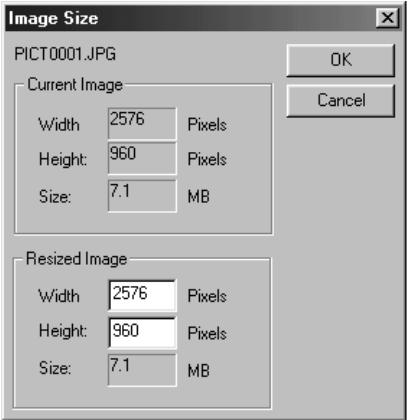

To Change the Image Size ....31

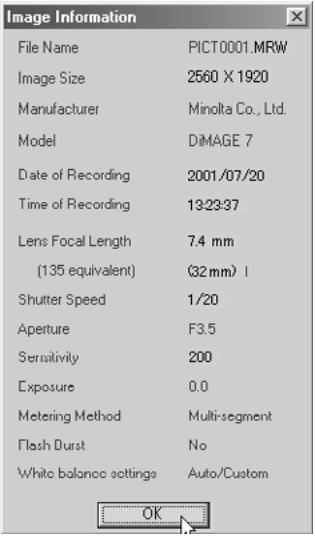

To Display the Image (Recording) Information 32

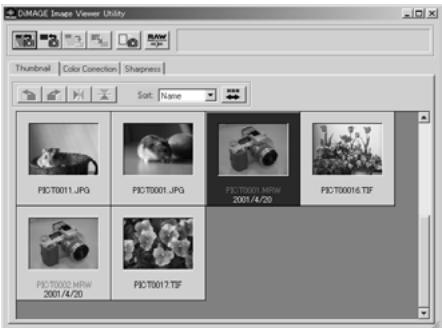

To Delete Thumbnails ....33

USING THE SOFTWARE – COLOR MATCHING 34

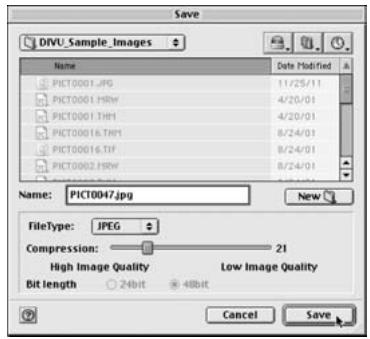

USING THE SOFTWARE – SAVING IMAGES....38

To Save an Image File ....38

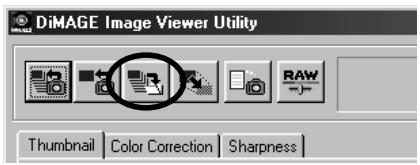

To Save Multiple Images at One Time....41

COLOR CORRECTION......46

Corrections using the tone curves....47

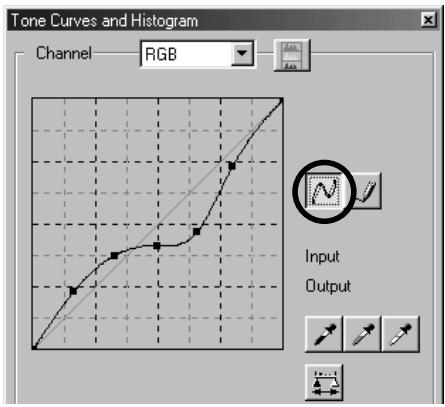

To Draw a Free Hand Tone Curve ....48

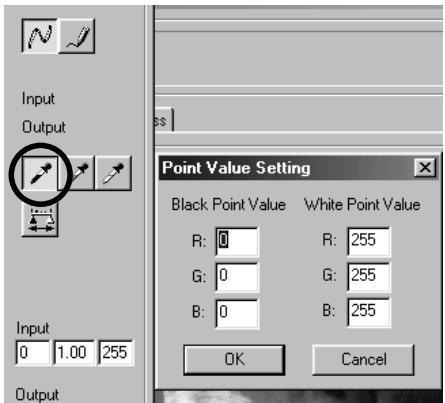

To Correct Images Using the "Black Point" Button....49

To Correct Images Using the "White Point" Button 50

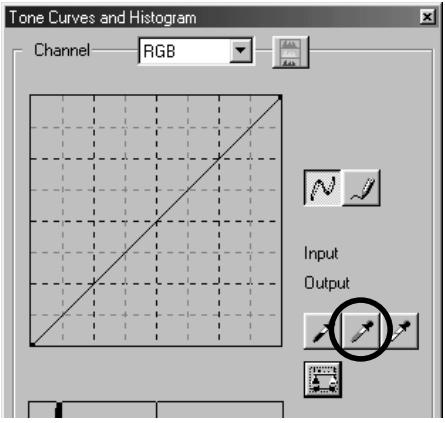

To Correct Images Using the "Gray Point" Button....51

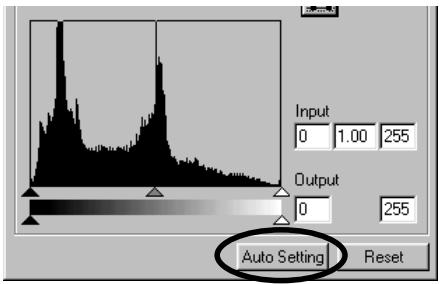

Histogram Correction – Auto Setting 52

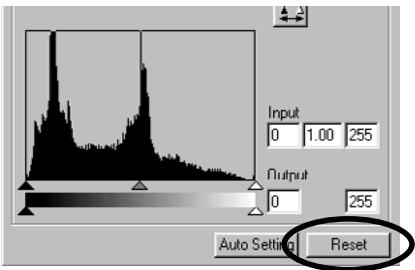

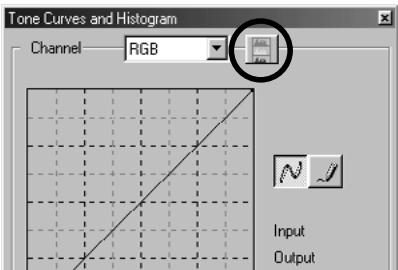

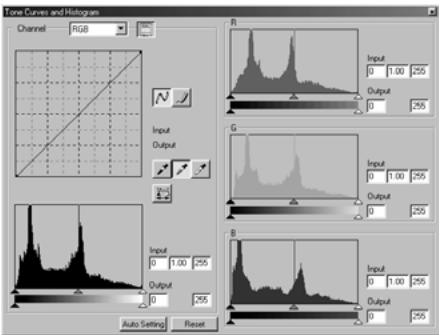

Histogram Correction – To Correct RGB Channels Separately 53

To Correct Brightness, Contrast and Color Balance....54

To Correct Hue, Saturation and Lightness....56

Variation Correction 58

Variation Correction – Color Balance....59

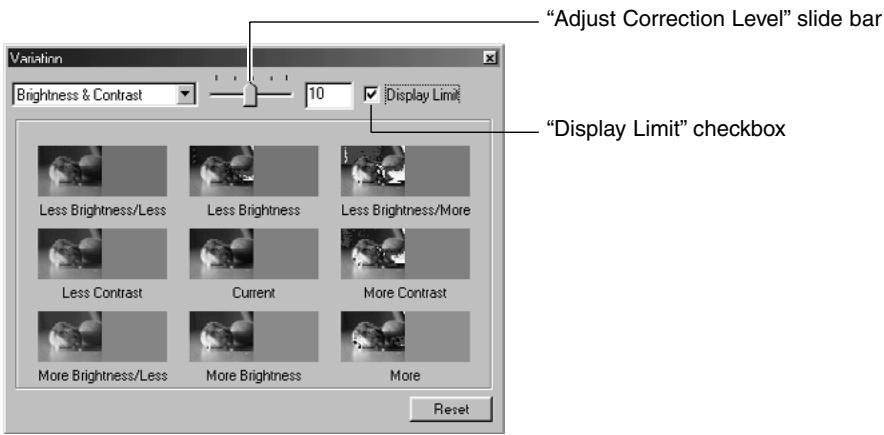

Variation Correction – Brightness & Contrast......60

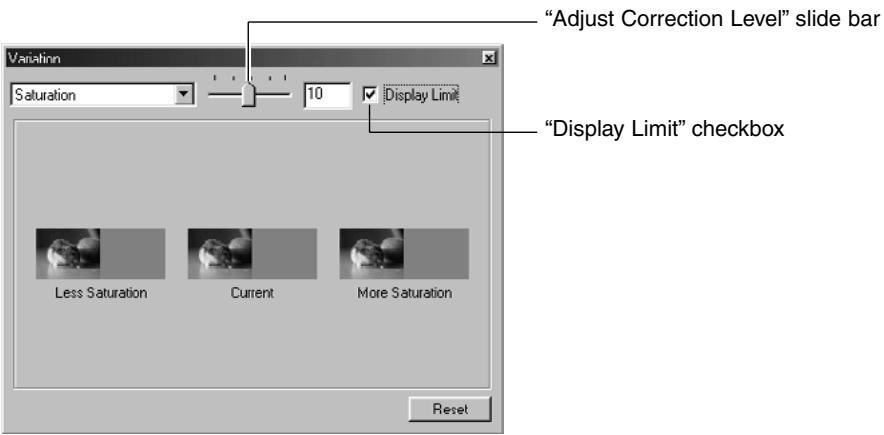

Variation Correction – Saturation....61

To Undo the Correction....62

To Redo the Canceled Correction....62

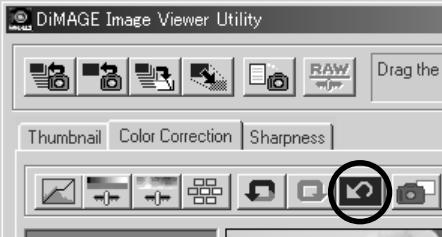

To Undo All Color Corrections ....62

Snapshot....63

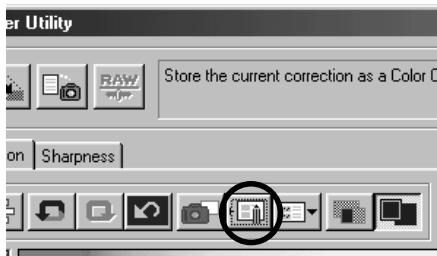

Color Correction Job....64

To Compare the Pre/Post Correction Images 66

To Display the Whole Post-Correction Image 67

Thumbnail Number Display....68

RGB Value Display....69

SHARPNESS....70

QUITING THE SOFTWARE....72

TERMS USED IN THIS MANUAL

• This manual assumes that your computer's operating system (Windows®95/98/98 Second Edition/Me/2000/NT 4.0 or Mac OS) as well as other necessary software such as device drivers have been installed, and are operating properly.
• In general, the descriptions in this manual are illustrated by the displays for the Windows® version. There are no major differences between the displays for the Windows® and Macintosh versions except for some of the button layouts and other cosmetic features.
• This manual assumes the use of a two-button, right-handed mouse for Windows®. The terms 'click' and 'double-click' refer to a single or double click of the left mouse button. The term 'drag' refers to the action of holding down the left mouse button while moving the mouse.

- If you are using Macintosh OS, the term ‘Command Key’ refers to the key located next to the Space Bar.

- Command names shown in this manual which are common both to the Windows® and Macintosh systems do not indicate any of the shortcut keys found in Windows® command names.

Example No. 1: The File command appears as “File” on Windows® and “File” on Macintosh menus, but in this manual it is shown as merely as “File.”

Example No. 2: The Save command appears as “Save” on Windows® and “Save” on Macintosh menus, but in this manual it is shown merely as “Save.”

The system requirements for the operation of this software are as shown below:

	IBM PC/AT and their compatible computers
CPU	Intel Pentium® Processor 133MHz or higher
OS	Windows®2000 Professional, Windows®Me, Windows®98 / 98 Second Edition, Windoes®95, Windows®NT4.0 (Service Pack 6 or later)
RAM	A minimum of 64MB of RAM
Hard Disk Space	100MB or more of free hard disk space for use as workspace after the software installation
Monitor	Resolution: VGA (640 X 480 dots) or higherXGA (1024 X 768 dots) or higher is recommendedColor Depth: True Color (24 bit) or higher
CD-ROM Drive	Required for software installation
Interface	USB port* that each PC maker guarantees to operate without problem

* You need a USB port when you connect a USB mass storage class supported digital camera such as DiMAGE 7 or DiMAGE 5 to your PC with a USB cable and use (a CF card in) the digital camera as a removable disc with this software. If you use Windows®98/98 Second Edition, you must install the USB driver software in the attached CD-ROM to execute this operation. (See the digital camera's instruction manual for details.) If you use Windows®95/NT 4.0, you can not execute the above operation (because USB pots are not normally supported), however, you can still operate image files copied on PC hard disks since the software also runs on Windows®95/NT 4.0.

The system requirements for the operation of this software are as shown below:

	Apple Macintosh Series computers
CPU	PowerPC 100MHz or higher(except a non-Macintosh Mac OS-compatible computer)
OS	Mac OS 8.6 / 9 / 9.0.2 / 9.0.4 / 9.1
RAM	64MB or more of free memory
Hard Disk Space	100MB or more of free hard disk space for use as workspace after the software installation
Monitor	Resolution: 640 dots X 480 dots or higher1024 dots X 768 dots or higher is recommendedColor Depth: 24 bit Color or higher
CD-ROM Drive	Required for software installation
Interface	Standard built-in USB port*

* You need a USB port when you connect a USB mass storage class supported digital camera such as DiMAGE 7 or DiMAGE 5 to your Macintosh with a USB cable and use (a CF card in) the digital camera as a removable media with this software. If you use Mac OS 8.6, you must first download the dedicated driver software from Apple Computer's Web site, and then install the downloaded software on your Macintosh to execute this operation. (See the digital camera's instruction manual for details.) If you do not download/install the dedicated driver software, you can not execute the above operation, however, you can still operate image files copied on Macintosh hard disks since the software also runs on Mac OS 8.6.

Follow the procedure below to install the software on your Windows PC.

RAM stationed programs such as anti-virus programs or installation monitoring programs may cause the installer to fail. Uninstall those programs from your system or temporarily disable them before starting the installation, and then put them back on your system after completing the installation.

For Windows®:

* In the procedure below, the hard disk drive for system startup is assumed as “drive C”, and the CD-ROM drive as “drive D”.
- You should install the software on the Windows®2000/NT4.0 PC with the Administrator privilege.

1. Turn on your PC to start Windows®.

2. Insert the attached "DiMAGE Software CD-ROM" into the CD-ROM drive.

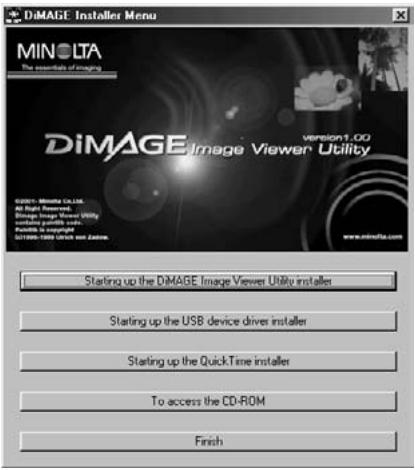

DiMAGE Installer Menu MINOLTA The essentials of imaging diMAGE version1.00 Image Viewer Utility 2021 - Microsoft Office, All rights reserved. Storage Image Viewer Utility including utility plus Filelist to install S1189-1000 Quick Time Installers www.minolta.com Starting up the DiMAGE Image Viewer Utility installer Starting up the USB device driver installer Starting up the QuickTime installer To access the CD-ROM Finish

After a short time, the "DiMAGE Installer Menu" window (figure-left) appears.

3. Click the "Starting up the DiMAGE Image Viewer Utility installer" button.

The “InstallShield Wizard” program starts automatically, and the “Welcome” window appears. See the digital camera’s instruction manual for details of the “Starting up the USB device driver installer” (this button is active if you use Windows®98/98 Second Edition) or the “Starting up the QuickTime installer” button.

InstallShield Wizard License Agreement Please read the following license agreement carefully. Press the PAGE DOWN key to see the rest of the agreement. This is a license agreement and not an agreement for sale. Minolta owns, or has been licensed from other owners, copyrights in the computer programs ("Software"). You obtain no rights to the intellectual property in the Software other than the license granted to you regarding the Software under this agreement. The title to be enclosed copy of the copy the Software and any copy made from it is retained by Minolta or such other owners. 1. LICENSE You may: (1) install and use the Software on only one computer at any one line. (2) make a copy of the Software for backup or installation purposes only in support of the normal and intended use of the Software. Do you accept all the terms of the preceding License Agreement? If you choose No. the setup will close. To install DMASE Image Viewer Utility, you must accept this agreement. InstallShield... < Back Yes No

InstallShield Wizard Choose Destination Location Select folder where Setup will install files. Setup will install DIMAGE Image Viewer Utility in the following folders. To install to this folder, click Next. To install to a different folder, click Browse and select another folder. Destination Folder C:\Program Files\DIMAGE Image Viewer Utility Browse... InstallShield c Back Next > Cancel

4. Click "Next >".

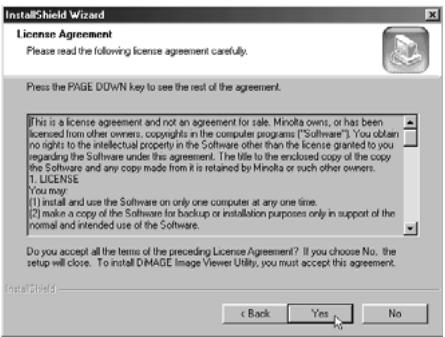

The “License Agreement” (figure-left) appears. Read the entire “License Agreement” carefully before continuing the installation

If you do not agree to the terms of the “License Agreement”, click “No”. The installation procedure will be terminated.

5. Click "Yes".

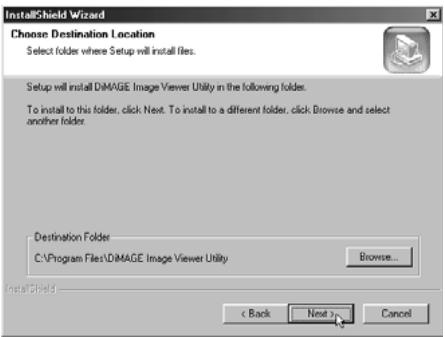

The window that lets you select a destination folder of the software (figure-left) appears.

6. To install the software in the default folder (C:\Program Files\DiMAGE Image Viewer Utility), click "Next >".

Subsequent parts of this document assume that the software has been installed in the default folder described above.

To install the software in a different folder, click "Browse..." The "Choose Folder" window will appear. Select the folder where you wish to install the software, and then click "OK".

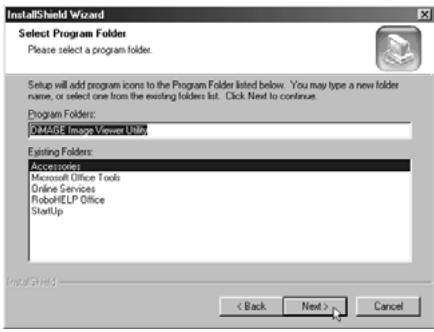

InstallShield Wizard Select Program Folder Please select a program folder. Setup will add program icons to the Program Folders listed below. You may type a new folder name, or select one from the existing folders list. Click Next to continue. Program Folders: OMASE Image Viewer Utility Existing Folders: Accessories Microsoft Office Tools Online Services RoboHELP Office StartUp < Back Next > Cancel

Click "Next >", and the "Select Program Folder" window (figure-left) will appear.

1. The name of the program folder where you will add the program icon is shown in the window. Click “Next >” to add the icon in the default (reversed) folder.

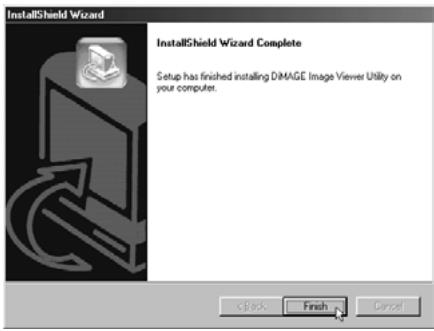

InstallShield Wizard InstallShield Wizard Complete Setup has finished installing DIMAGE Image Viewer Utility on your computer. < Back Finish Cancel

To add the program icon in a new folder, type the folder name in the box under "Program Folders:" and then click "Next >". To add the program icon in an existing folder, select the folder from the folder list in the box under the "Existing Folders:" and click "Next>".

After you click "Next >", the software installation will start.

When the software installation has been completed, a completion window of "InstallShield Wizard" (figure-left) appears.

1. Click "Finish", then click "Finish" in the DiMAGE Installer Menu window.

The software installation procedure is complete.

Follow the procedure below to install the software on your Macintosh computer.

Functional expansion programs such as anti-virus programs or control panel documents may cause the installer to fail. Remove those programs/documents from your system using the utility such as the functional expansion manager or temporarily disable them before starting the installation, and then put them back on your system after completing the installation.

For Macintosh:

1. Turn on your Macintosh to start Mac OS.
2. When the desktop appears, insert the attached "DiMAGE software CD-ROM" into the CD-ROM drive.

The contents of the CD-ROM appear automatically.

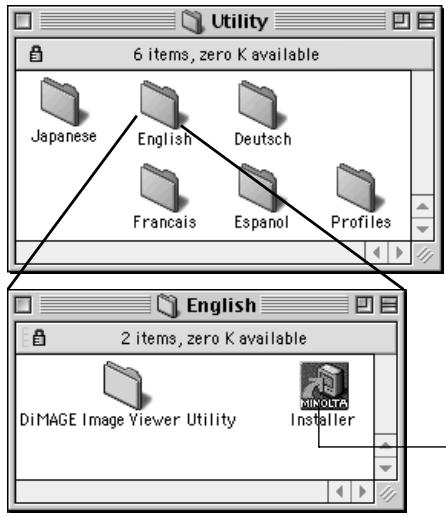

Utility 6 items, zero K available Japanese English Deutsch Francais Espanol Profiles English 2 items, zero K available DiMAGE Image Viewer Utility Minolta Installer

When the contents of the CD-ROM do not appear automatically, double-click the CD-ROM icon on the desktop (named "DiMAGE Software") to open it.

1. Double-click the "Utility" folder to open it, and then double-click the "English" folder.

The "DiMAGE Software Installer" icon appears.

1. Double-click the "DiMAGE Software Installer" icon.

The Installer program starts and the initial window appears.

"DiMAGE Software Installer" icon

Utility Installer MINOLTA The essentials of imaging DiMAGE version1.00 Image Viewer Utility ©2015- Minola Cxclm. All rights reserved. Through Image Tools (1987) version utility needs. Fileto & Complete ©2015- 1987 WLS vs Salam www.minolta.com License Agreement Please read the following license agreement carefully. CAREFULLY READ THE LICENSE AGREEMENT BELOW BEFORE OPENING THIS PACKAGED SOFTWARE. OPENING THIS PACKAGE INDICATES YOUR ACCEPTANCE TO THE TERMS AND CONDITION BELOW. IF YOU DO NOT AGREE WITH THEM YOU SHOULD PROMPTLY RETURN THE PACKAGE UNOPENED. This is a license agreement and not an agreement for sale. Do you accept all the terms of the preceding License Agreement? If you choose No, the setup will close. To install DiMAGE Image Viewer Utility, you must accept this agreement. << Back Yes No

Utility Installer MINOLTA The essentials of imaging DiMAGE version 1.00 Image Viewer Utility Choose Destination Location [Please click a [Reference] button and choose the folder in which an setup installs a file. A click of a [Next >>] button starts installation. Destination Folder Reference The availability of the selected disk : Capacity required for installation : 3500600 k << Back Next >> Cancel

6. Click "Next >>" in the Installer's initial window.

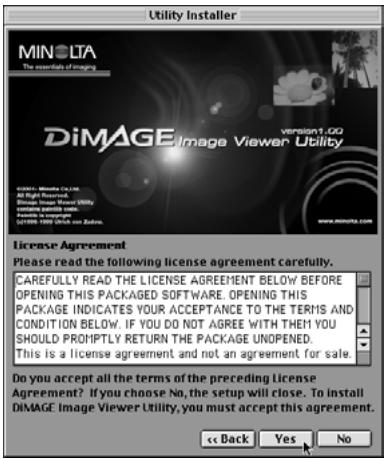

The “License Agreement” (figure-left) appears. Read the entire “License Agreement” carefully before continuing the installation.

If you do not agree to the terms of the “License Agreement”, click “No”. The installation procedure will be terminated.

7. Click "Yes".

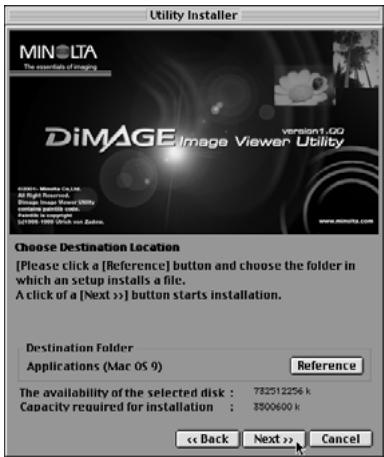

The window that lets you select a destination folder of the software (figure-left) appears.

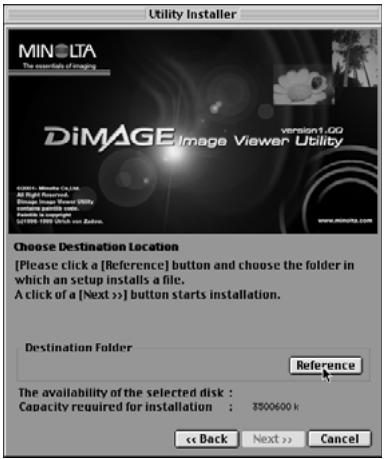

If you click "Reference", the Mac OS standard folder selection dialog box (figure-below) will appear. Select the folder where you wish to install the software, and then click "Choose" at the bottom right-hand corner of the dialog box.

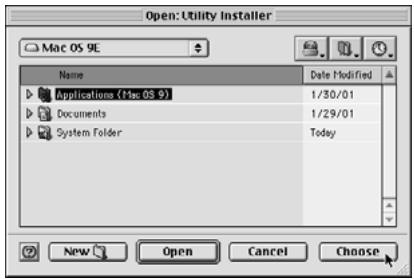

Open: Utility Installer Mac OS 9E Name Date Modified Applications (Mac OS 9) 1/30/01 Documents 1/29/01 System Folder Today New Open Cancel Choose

Utility Installer MINOLTA The essentials of imaging DiMAGE Image Viewer Utility Version 1.00 ©2016-Minola Co Ltd. All rights reserved. Through Image Window (IVis) version: 3500000000 Access to: 9878-1000-9878-0000 S10198-1000-9878-0000 www.minolta.com Choose Destination Location [Please click a [Reference] button and choose the folder in which an setup installs a file. A click of a [Next >>] button starts installation. Destination Folder Applications (Mac OS 9) Reference The availability of the selected disk : 732512256 k Capacity required for installation : 3500600 k << Back Next >> Cancel

Utility Installer MINOLTA The essentials of imaging DiMAGE Image Viewer Utility Version 1.00 ©2016 - Minolta Co Ltd. All rights reserved. Through Image View Utility consulting utility info. Exhibit & Update S17895-1009 VISA vs Zuluin. www.minolta.com Completion of Install Wizard The setup completed installation of DiMAGE Image Viewer Utility to a computer. Quit

1. Make sure that you have selected a proper folder for installation, and then click "Next >>".

The software installation starts. Follow the instructions shown on the screen.

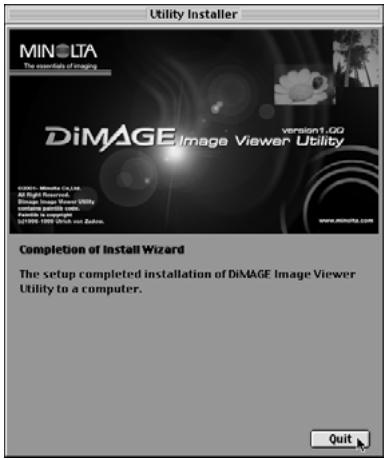

When the software installation has been completed, the window shown in the lower left-hand corner (Operation 9.) appears.

1. Click "Quit".

The software installation procedure is complete.

For Windows®:

1. Turn on your PC to start Windows®.

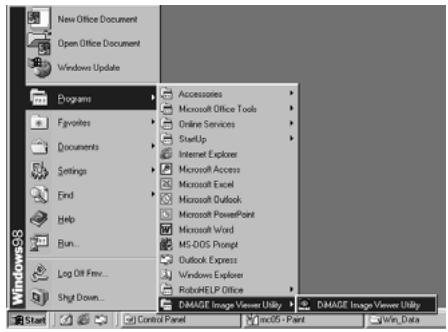

2. Select “Start” → “Programs(P)” → “DiMAGE Image Viewer Utility” → “DiMAGE Image Viewer Utility”.

New Office Document Open Office Document Windows Update Programs Favorites Documents Settings End Help Run... Log Off Fenv... Shyf Down... Accessories Microsoft Office Tools Online Services Startup Internet Explorer Microsoft Access Microsoft Excel Microsoft Outlook Microsoft PowerPoint Microsoft Word MS DOS Prompt Outlook Express Windows Explorer RoboHELP Office DAMAGE Image View Utility DAMAGE Image View Utility Start Control Panel InOS - Plant Win Data

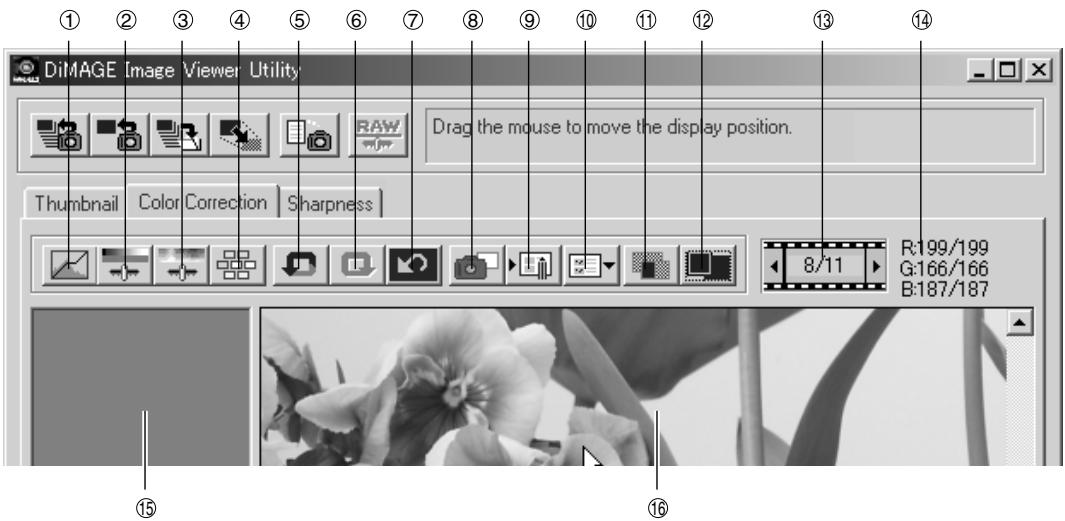

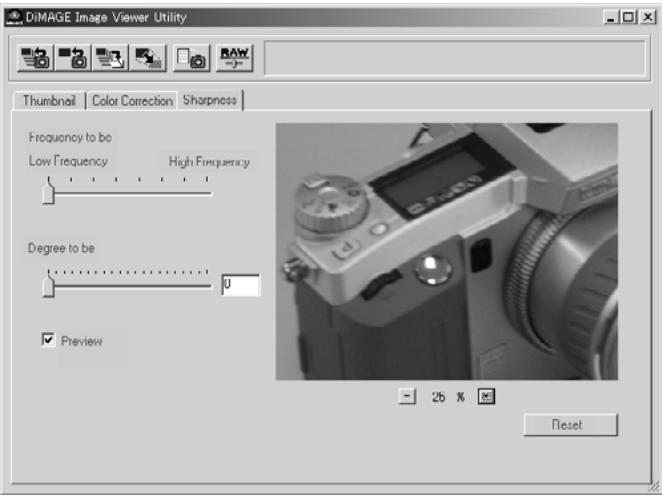

DIMAGE Image Viewers Utility Thunbal | Color Correction | Sharpness | Sort Name: 0.000000

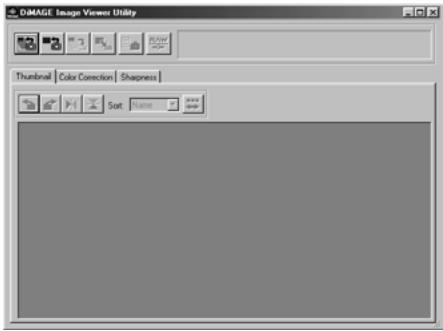

The main window of the utility (figure-left) appears.

For Macintosh:

1. Turn on your Macintosh to start Mac OS.
2. Open the folder where you installed the application software (the folder that you selected or created during the software installation), and open the "DiMAGE Image Viewer Utility" folder in the same way.

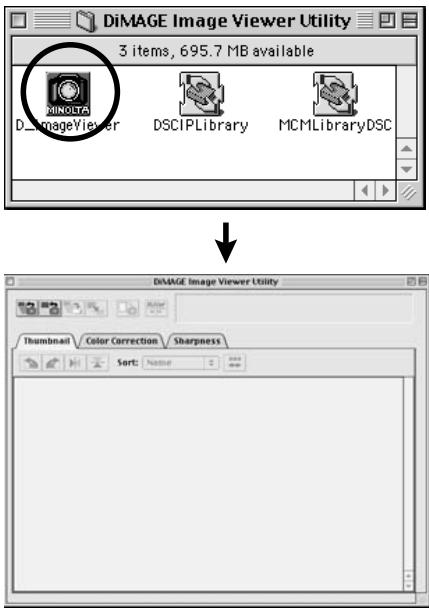

3. Double-click the "DiMAGE Image Viewer Utility" software application icon.

DiMAGE Image Viewer Utility 3 items, 695.7 MB available MINOUTA D_ImageViewer DSCIPLibrary MCMLibraryDSC DiMAGE Image Viewer Utility Thumbnail Color Correction Sharpness Sort: None

Double-click the "DiMAGE Image Viewer Utility" software application icon (the icon circled in the left-hand figure).

The main window of the utility appears.

This software reads all image files (or one file) in the selected folder, and displays their thumbnails (100 x 75 pixels) on the screen. Since the software also has color matching capability, you can select the output color space when image files are read so that you can control colors for the monitor or the color space that you use.

Note: Subsequent parts of this document assume the following three items:

① The computer and digital camera are connected by the USB cable.
② The computer recognizes the CF card in the digital camera as a “removable disk (or a removable media)”.
③ Images in the “removable disk (or the removable media)” are (directly) handled by this software.

If you use Windows®98/98 Second Edition, you must install the driver software from the attached CD-ROM to execute the above operation. If you use Mac OS 8.6, you must first download the dedicated driver software from Apple Computer's Web site and then install it on your Macintosh. See the digital camera's instruction manual about how to install the software or download the software.

If you use Windows®95/NT4.0, you can not execute the above operation, however, the software also runs on Windows®95/NT4.0. So, you can still use this software to image files after copying those files in your selected folder from the CF card by using a CF card reader.

1. Set the CF card to the digital camera according to the digital camera's instructions. Set the digital camera to the computer connection mode, and then connect it to your computer using the USB cable.

2. Start the "DiMAGE Image Viewer Utility" application software.

The main window of the utility appears.

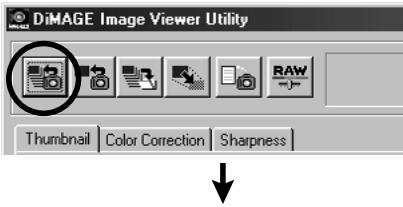

To Display Thumbnails of All Images in the Folder:

DiMAGE Image Viewer Utility Thumbnail Color Correction Sharpness

Select Folder Desktop My Computer 3N Floppy (A:) Win9Bo (C:) Data (D:) Win9Fg (F:) Removable Disk (F:) Dcim 100mlU3 Misc Root (G:) Printless Control Panel Color Matching Color Matching UN Output Color Space sRGB Monitor ICC Profile Name Load... Select Cancel

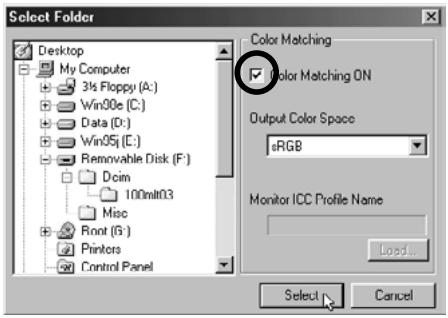

To execute the color matching process, click here and select the output color space from the drop-down list (or specify the monitor ICC profile).

See page 34 for details about the color matching (process).

3. Click the "Load All Images" button of the main window.

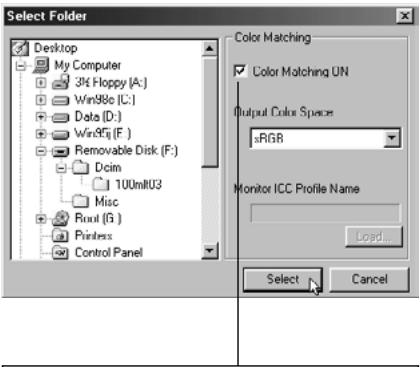

The OS (operating system) standard folder selection dialog box appears. (The left-hand figure is for Windows®.)

4. Select the folder where image files are stored, and then click "Select".

For Windows®:

① Click the plus (+) sign located on the left of the disk icon described as Removable Disk.
② Click the plus (+) sign located on the left of the folder named Dcim.
③ Select the folder named 100mlt03 for DiMAGE 7, 100mlt04 for DiMAGE 5.

For Macintosh:

① Double-click the removable media icon described as Unknown.
② Double-click the folder icon named Dcim.
③ Select the folder named 100mlt03 for DiMAGE 7, 100mlt04 for DiMAGE 5, and then click “Choose” in the bottom of the dialog box.

DIMAGE Image Viewers Utility Click on a frame to select it. Thumbnail Color Correction Sharpness Sort Name PICT0001.JPG PICT0007.TIF PICT0008.TIF PICT0009.JPG PICT0011.JPG PICT0014.JPG

If many image files exist in the selected folder and the display area is filled with those thumbnails when they are loaded, the display area is scrolled downward automatically to show all of them within that area (the thumbnail of the last loaded image file is displayed at the last place).

5. Image files in the selected folder are read, and their thumbnails are displayed (figure-left).

* If Minolta-RAW files (image files with the .mrw extension) exist in the selected folder, thumbnail filenames of Minolta-RAW files that the "RAW File Processing" (see page 23) has not been performed are shown in "red".
* If you click a thumbnail of a Minolta-RAW file and then click the "RAW File Process" button, the "Open the Minolta-RAW File" window appears so that you can adjust its saturation, contrast or sharpness. See page 24 of this document for details.
* Thumbnails for animation files (files with the .avi extension) will not be displayed.
* See the DiMAGE 7/DiMAGE 5 instruction manual about "Minolta-RAW files".

If you selected a folder (folder where image files exist) on the computer hard disk rather than a folder in the CF card, only following kinds of image files can be read and displayed as thumbnails.

① Image files recorded by DiMAGE 7/DiMAGE 5/DiMAGE S304 (excluding animations).
② Minolta-RAW files stored by this software.
③ JPEG and TIFF files stored by this software.

To Display a Thumbnail of a Certain Image in the Folder:

(continued from page 18, Operation 2)

DiIMAGE Image Viewer Utility I thumbnail Color Correction Sharpness

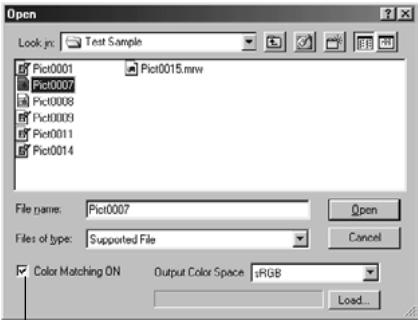

Open Look in: Test Sample Plot0001 Plot0015.mrw Plot0007 Plot0008 Plot0009 Plot0011 Plot0014 File name: Plot0007 Files of type: Supported File Color Matching ON Output Color Space sRGB Load...

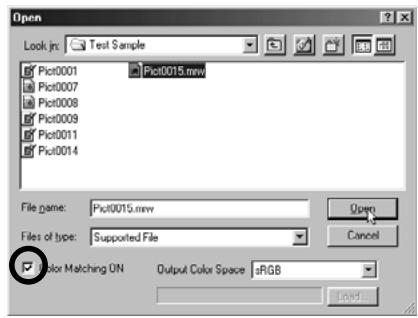

To execute the color matching process, click here and select the output color space from the drop-down list (or specify the monitor ICC profile).

See page 34 for details about the color matching (process).

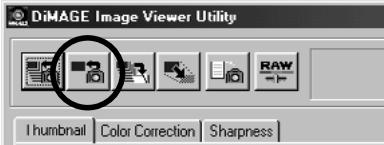

3. Click the "Load an Image" button in the main window.

The OS (operating system) standard folder selection dialog box appears. (The left-hand figure is for Windows®.)

4. Select the image file that you wish to see, and click "Open".

In case of Windows ^® , follow “Removable Disk”, “Dcim (folder)” from the drop-down list of the “Look in:” selection box until the folder named “100mlt03” (for DiMAGE 7) is displayed in the box (“100mlt04” for DiMAGE 5).

In case of Macintosh, follow “untitled (removable media)”, “Dcim (folder)” from the pop-up menu in the top of the dialog box until the folder named “100mlt03” (for DiMAGE 7) is displayed in the box (“100mlt04” for DiMAGE 5).

* If you select Minolta-RAW files (image files with the .mrw extension), thumbnail filenames of Minolta-RAW files that the "RAW File Processing" (see page 23) has not been performed are shown in "red".
* If you click a thumbnail of a Minolta-RAW file and then click the "RAW File Process" button, the "Open the Minolta-RAW File" window appears so that you can adjust its saturation, contrast or sharpness. See page 24 of this document for details.
* Thumbnails for animation files (files with the .avi extension) will not be displayed.
* See the DiMAGE 7/DiMAGE 5 instruction manual about "Minolta-RAW files".

If you selected an image file copied in a certain folder on the computer hard disk rather than a file in the CF card, only the following kinds of image files can be read and displayed as thumbnails.

① Image files recorded by DiMAGE 7/DiMAGE 5/DiMAGES304 (excluding animations).
② Minolta-RAW files stored by this software.
③ JPEG and TIFF files stored by this software.

If JPEG or TIFF files are retouched and overwritten with image processing applications that do not support Exif files such as Adobe® Photoshop®, they can not be read or displayed in the DiMAGE Image Viewer Utility (an error message "File not supported" appears).

To Open Minolta-RAW Files (RAW File Processing):

When thumbnails are displayed, Minolta-RAW files that their thumbnail filenames are shown in red indicate that the "RAW File Processing" has not been performed yet. Minolta-RAW files that the "RAW File Processing" has not been performed are files in the special image format, so you can not use following features of this software to those files:

• You can not use the “Save” or “Save As” (see page 28) feature after you change each correction information such as the white balance/saturation/contrast/sharpness set by the digital camera during recording.
• You can not rotate or flip (see page 30) images or change image sizes (see page 31), either.
• You can not save those as image files in the TIFF or JPEG format (see page 38 – 44).
• You can not perform various corrections in the “Color Correction” tab (see page 46 – 69) or the sharpness correction (see page 70).

You can use above features after you performed the “RAW File Processing” to those images. Once the “RAW File Processing” has been performed to those images, their thumbnail filenames are shown in “black” indicating that the “RAW File Processing” has been done.

* If you wish to perform the professional image processing such as handling Minolta-RAW files directly, you do not always have to perform the “RAW File Processing”.

“Minolta-RAW files” are in image file format for more professional image processing than TIFF or JPEG that DiMAGE 7/DiMAGE 5 supports.

Therefore, corrections, such as white balance, saturation, contrast, or sharpness, set by the digital camera during recording are not reflected to recorded images. They are just recorded as file header information.

You can modify the header information of recorded “Minolta-RAW files” by using this software to display thumbnails, to save files or to save them with different names.

1. Click the thumbnail image of the Minolta-RAW file that you wish to perform the RAW File Processing.

If you wish to select more than one thumbnail image of the Minolta-RAW file, press and hold the Ctrlkey (the Command key in case of Macintosh), and then click those thumbnail images.

If you wish to cancel a selection when more than one thumbnail image has been selected, press and hold the Ctrl key (the Command key in case of Macintosh), and then click the selected thumbnail image again. If you click any one of selected thumbnail images, all those selected thumbnail images are cancelled.

DiMAGE Image Viewer Utility RAW Thumbnail Color Correction Sharpness

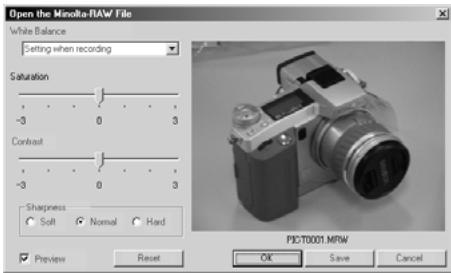

Open the Minolta-RAW File White Balance Setting when recording Saturation ~3 0 3 Contrast ~3 0 3 Sharpness Soft Normal Hard Preview Reset OK Save Cancel PICT0001 MFW

2. Click the "RAW File Processing" button in the main window.

The “Open the Minolta-RAW File” window (lowerleft figure) appears. When you have selected more than one thumbnail image of the Minolta-RAW file, this window is displayed one by one as many times as the number of thumbnail images that you selected.

In the Operation 2 described above, if you click the "RAW File Processing" button with pressing and holding the Ctrl key (the Command key in case of Macintosh), files are processed according to the white balance/saturation/contrast/sharpness set during recording without the "Open the Minolta-RAW File" window to be displayed.

In the “Open the Minolta-RAW File” window, you can perform the different processing to Minolta RAW files for their white balance/saturation/contrast/sharpness settings.

If you wish to perform the RAW File Processing according to the white

balance/saturation/contrast/sharpness set by the digital camera during recording, skip the Operation 3 and 4, and go to the Operation 5.

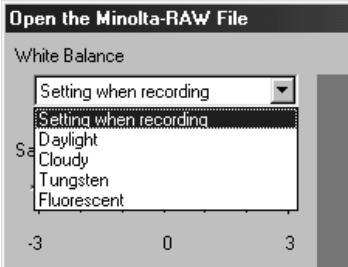

3. Select a white balance option to apply from the white balance selection menu.

Open the Minolta-RAW File White Balance Setting when recording Setting when recording Daylight Cloudy Tungsten Fluorescent Sa -3 0 3

If you select “Setting when recording”, the white balance set by the digital camera is applied (including “AUTO” and “CUSTOM”). You can change the setting intentionally by selecting the different white balance from that set during recording.

If you check the “Preview” checkbox in the lowerleft corner of the window, you can execute the real time reflection of the adjusted contents to preview images so that you can check finished images.

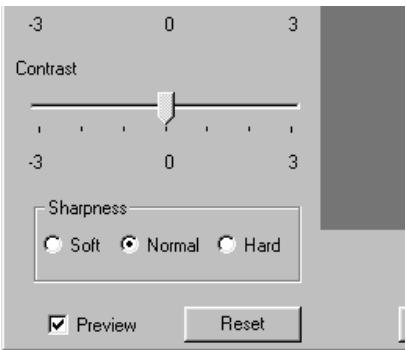

4. Adjust the saturation and contrast level with slide bars if necessary, and then select the sharpness level.

Contrast Sharpness Soft Normal Hard Preview Reset

Slide bar controls are defaulted to the same saturation/contrast levels set by the digital camera during recording. The sharpness radio button is also marked (•) according to the same setting during recording. If you did not change any settings, these settings during recording are applied to images. You can change settings intentionally by operating these slide bars or radio buttons.

If you check the “Preview” checkbox in the lowerleft corner of the window, you can execute the real time reflection of the adjusted contents to preview images so that you can check finished images.

Contrast Sharpness Soft Normal Hard Preview Reset

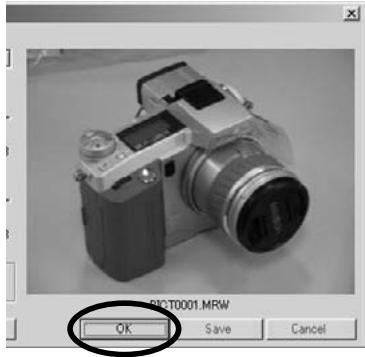

3. Click "OK".

OK Save Cancel

If you click "Reset", you can clear all settings you set in this dialog box.

If you checked the "Color Matching ON" checkbox when you opened the folder/file, saturation/contrast slide bars are inactive.

If you used the “Portrait” or “Night portrait” option of the digital subject program selection, the sharpness buttons are inactive.

Image files are processed according to the setting in the "Open the Minolta-RAW File" window, and thumbnail images of Minolta-RAW files are updated (thumbnail filenames will be shown in "black"). When the process is finished, the "Open the Minolta-RAW File" window is closed automatically.

If you changed the saturation, contrast or sharpness level at the Operation 3 and 4 in the previous page, the following message appears when you click "OK.

D: IMAGEVIEWER Save in file with current setting ? Yes No

If you click "Yes", the header information (correction information) of the Minolta-RAW file you are previewing will be renewed and thumbnail images will be updated and displayed.

Progress Processing 1/4:"PICT0002.MRw"... Cancel

The dialog box shown in the left appears during the "RAW File Processing" (the left-hand dialog box shows the case when 4 Minolta-RAW files are processed).

If you click "Cancel", all the "RAW File Processing" from that time on are stopped, the software closes the "Open the Minolta-RAW File" window and the procedure is put back to the main window.

If you click “Cancel” in the “Open the Minolta-RAW File” window, all the “RAW FileProcessing” from that time on are stopped, the software closes the “Open the Minolta-RAW File” window and the procedure is put back to the main window. Even if you have selected more than one Minolta- RAW file, all the “RAW File Processing” from that time on are stopped by clicking “Cancel” once.

If you click “Save” in the “Open the Minolta-RAW File” window, you can save Minolta RAW files that header information is renewed with names and in folders of your choice according to the setting in the “Open the Minolta-RAW File” window. See the next page for details.

The following options are available for more professional image processes.

* If you click “OK” while holding the “Ctrl” key for Windows® or the “Command (✗)” key for Macintosh, the sharpness setting in the “Open the Minolta-RAW File” window will become invalid, and images without sharpness corrections are thumbnailled.
* If you click “OK” while holding the “Ctrl” and “Shift” keys for Windows® or the “Command (⌘)” and “Shift” keys for Macintosh simultaneously, images without sharpness corrections and with the linear value ( = 1 ) are thumbnailled. The contrast adjustment also becomes invalid at this time. Moreover, even if you have checked the “Color Matching ON”, the setting becomes invalid.

(continued →)

To Save in the Minolta-RAW File Format:

Save As Save in: Test Sample PICT0015.new File name: PICT0015 Save As type: Mnolita Raw (*.MRW) Save Cancel

If you click “Save” instead of “OK” in the “Open the Minolta-RAW File” window, the OS (operating system) standard file save dialog appears. (The left-hand figure is for Windows®.)

If you select the place (folder) to save the file, type the filename and click "Save" in the dialog box, the Minolta-RAW file that header information is renewed according to the setting in the "Open the Minolta-RAW File" window will be saved with the typed filename and in the selected place (folder).

* If you saved it with a different name from that of the opened "Minolta-RAW file", a thumbnail file (file with .thm extension) with the same file name as the saved file will be created automatically.
* If you saved it with the same name and in the same folder as the opened "Minolta-RAW file", the header information will be updated and saved.
* If the TIFF file with the same name already exists in the folder to save, the warning message, "Tiff files and Minolta-RAW Files cannot be saved with the same name", will appear. In this case, you should either change the folder or save the file with a different name from that of the TIFF file.

To Rotate, Flip and Sort Thumbnails:

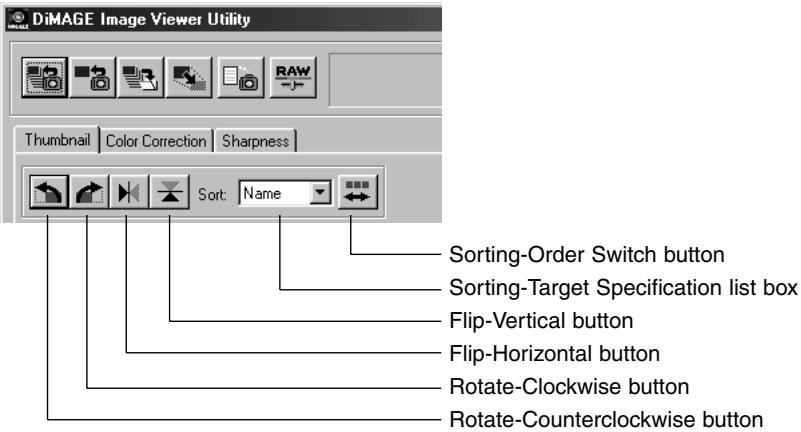

DiMAGE Image Viewer Utility Thumbnail Color Correction Sharpness Sort: Name Sorting-Order Switch button Sorting-Target Specification list box Flip-Vertical button Flip-Horizontal button Rotate-Clockwise button Rotate-Counterclockwise button

[Rotate] Select a thumbnail and click either the “Rotate-Counterclockwise” or the “Rotate-clockwise” button.

If you click the “Rotate-Counterclockwise” button once, the thumbnail will be rotated by 90 degrees counterclockwise. If you click the “Rotate-Clockwise” button once, the thumbnail will be rotated by 90 degrees clockwise.

[Flip] Select a thumbnail and click either the “Flip-Horizontal” or the “Flip-Vertical” button.

If you click the "Flip-Horizontal" button, the thumbnail will be flipped horizontally. If you click the "Flip-Vertical" button, the thumbnail will be flipped vertically.

[Sorting] Click the “Sorting-Target Specification” list box and select either “Name” or “Date” or “Extension”. The sorting order switches between “Ascending” and “Descending” every time you click the “Sorting-Order Switch” button.

To Change the Image Size:

DiMAGE Image Viewer Utility I 扪明面 Color Correction Sharpness

Image Size PICT0001.JPG Current Image Width 2576 Pixels Height: 960 Pixels Size: 7.1 MB Resized Image Width 2576 Pixels Height: 960 Pixels Size: 7.1 MB

1. Select the thumbnail that you wish to re-size, and then click the "Image Size" button in the main window.

The "Image Size" window appears.

1. Type the width or the height value of the re-sized image in pixels.

If you change either the width or the height value, the other value will be changed automatically according to the width/height ratio of the current (before resizing) image.

When you re-size the image, you can only reduce the size. You can not enlarge the current image.

1. Click "OK".

The image will be actually re-sized when you save it. (See page 36.)

To Display the Image (Recording) Information:

DiMAGE Image Viewer Utility Thunbnail Color Correction Sharpness

Image Information File Name PICT0001.MRW Image Size 2560 X 1920 Manufacturer Minolta Co., Ltd. Model DiMAGE 7 Date of Recording 2001/07/20 Time of Recording 13:23:37 Lens Focal Length 7.4 mm (135 equivalent) (32mm) I Shutter Speed 1/20 Aperture F3.5 Sensitivity 200 Exposure 0.0 Metering Method Multi-segment Flash Burst No White balance settings Auto/Custom OK

1. Select the thumbnail for which you wish to see image information, and then click the "Image Information" button in the main window.

The “Image Information” window appears (lower-left figure). If you have selected more than one thumbnail image, this window appears as many times as the number of thumbnail images that you selected. See page 41 for how to select more than one thumbnail image.

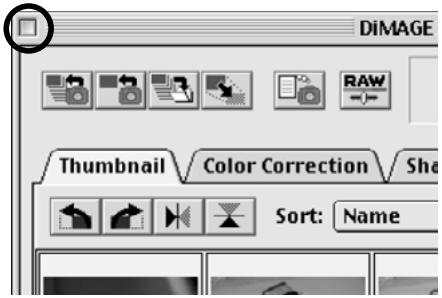

Click "OK" (☐ in the left corner of the window title bar in case of Macintosh) to close the "Image Information" window.

To Delete Thumbnails:

DIMAGE Image Viewer Utility Thumbnail Color Correction Sharpness Sort: Name PICT0011.JPG PICT0001.JPG PICT0001 MRW 2001/4/20 PICT00016 TIF PICT0002 MRW 2001/4/20 PICT0017 TIF

1. Select the (thumbnailed) image that you wish to delete in the thumbnail display area of the main window.

2. Press the "Delete" key on your keyboard.

The selected thumbnail will be deleted.

This only removes the selected thumbnail from the thumbnail display area of the main window, and does not have any influence on the actual image file. (The image file exists as it is.)

The color matching function of this software is to reproduce a subject's color on your monitor screen or on the specified color space.

If you wish to reproduce a subject for photography as close to original colors as possible, you should select the “Color Matching ON” option.

* If you selected the “Color Matching ON” option, the software will reproduce images as close to the subjects’ original colors as possible. Images will be reproduced in different colors from those on the electronic viewfinder or on the LCD monitor during recording.
* If you correct images using the digital camera's functions such as "Digital Effect Control" during recording, those corrections will be reflected in the images (excluding Minolta-RAW images (files)). Therefore, if you wish to capture images reproduced as close to the subjects' original colors as possible, do not use the correction function (of the digital camera) during recording.

1. Click the "Load All Images" or the "Load an Image" button, and then check the "Color Matching ON" option of the "Select Folder" window or the OS standard dialog box to open an image file.

Select Folder Desktop My Computer 3½ Floppy (A:) Win00e (C:) Data (D:) Win05j (E:) Removable Disk (F:) Dcim 100mln03 Misc Root (G:) Printers Control Panel Color Matching ✓ Color Matching ON Output Color Space sRGB Monitor ICC Profile Name Load... Select Cancel

Open Look in: Test Sample Plot0001 Plot0015.mov Plot0007 Plot0008 Plot0009 Plot0011 Plot0014 File name: Plot0015.mov Files of type: Supported File Color Matching ON Output Color Space sRGB Open Cancel

Output Color Space sRGB sRGB AppleRGB SMPTE-C PAL/SECAM ColorMatchRGB AdobeRGB Wide Range RGB NTSC CIE RGB Use ICC profile PICT0014.JPG

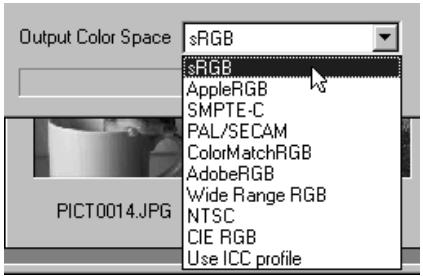

2. Select the desired color space from the "Output Color Space" drop-down list.

If you wish to reproduce images on your monitor as close to the subjects' original colors as possible, select the "Use ICC profile" option from the "Output Color Space" drop-down list, and then set the ICC profile of your monitor properly.

* ICC profiles are the files that describe color monitors' color reproduction characteristics, and they are provided by the monitor manufacturers.
* See your color monitor's instruction manual about how to install the ICC profile.
* You can create color monitor ICC profiles by using one of the profile creation tools on the market. You can also create them by the OS attached “Monitor Adjustment Assistant” function for Macintosh or by “Adobe Gamma” included in Adobe PhotoShop (version 5.0 or later) for Windows®. You may be also able to download them from the Web site of the monitor manufacturers.

If you use Windows, follow the procedure below.

1. Select the "Use ICC profile" option from the "Output Color Space" drop-down list.

2. Click "Load...".

The Windows ^® standard file open dialog box appears.

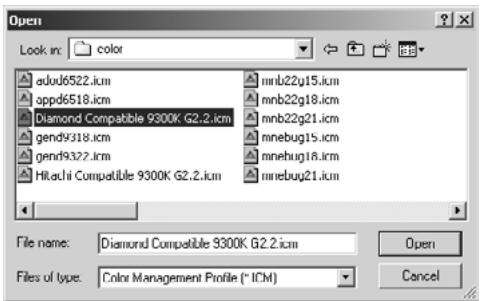

Open Look in: color adu6522.icm appd6518.icm Diamond Compatible 9300K G2.2.icm gend9318.icm gend9322.icm Hita.hi Compatible 9300K G2.2.icm mnb22g15.icm mnb22g18.icm mnb22g21.icm mnebug15.icm mnebug18.icm mnebuy21.icm File name: Diamond Compatible 9300K G2.2.icm Files of type: Color Management Profile (* ICM) Open Cancel

3. Select your color monitor's ICC profile, and then click "Open".

ICC profiles are normally stored in the following folders (if your system startup disk drive is C):

• Windows®95/98/98SE/Me
  C:\Windows\System\Color
• Windows®NT4.0
  C:\WINNT\system32\Color
• Windows®2000

C:\WINNT\system32\spool\drivers\color

If you use Macintosh, follow the procedure below.

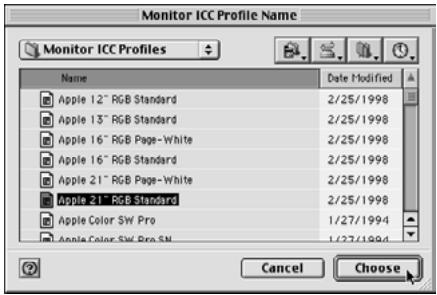

1. Select the “Use ICC profile” option from the “Output Color Space” pop-up menu.

Monitor ICC Profile Name Monitor ICC Profiles Name Date Modified Apple 12" RGB Standard 2/25/1998 Apple 13" RGB Standard 2/25/1998 Apple 16" RGB Page-White 2/25/1998 Apple 16" RGB Standard 2/25/1998 Apple 21" RGB Page-White 2/25/1998 Apple 21" RGB Standard 2/25/1998 Apple Color SW Pro 1/27/1994 Apple Color SW Pro SW 1/27/1994 Cancel Choose

2. Click "Choose" of the folder selection dialog box or "Open" of the file selection dialog box.

The folder selection or the file selection dialog box is closed automatically, and the Mac OS standard file open dialog box (figure-left) appears.

3. Select your color monitor's ICC profile, and then click "Choose".

If you save images (thumbnails) displayed with the "Color Matching ON" function set to active, the ICC profile of the color space selected by the color matching function is embedded to those saved TIFF/JPEG files (as the tag information). If you open those image files by applications with color matching functions (e.g. Adobe Photoshop version 5.0 or later), embedded profile information is read and correct color information is transferred to applications. See application software manuals for details.

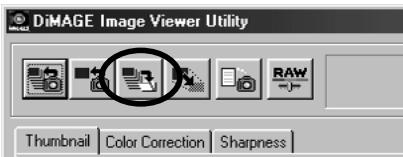

The following describes how to save thumbnailled images as image files in your desired location.

To Save an Image File:

1. Select the thumbnail that you wish to save.

DiMAGE Image Viewer Utility Thumbnail Color Correction Sharpness

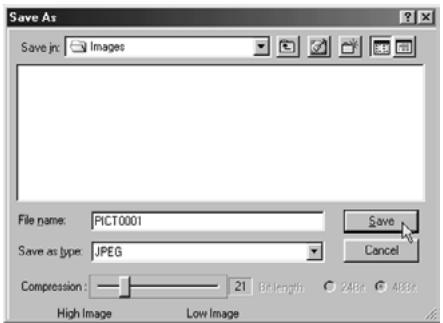

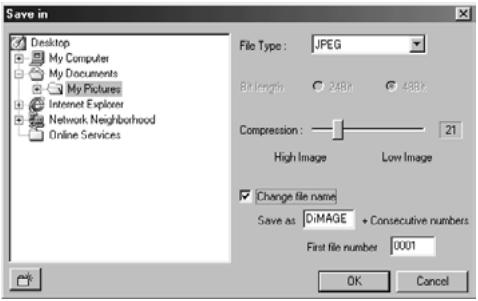

Save As Save jx: Images File name: PICT0001 Save as type: JPEG Compression: 21 Bit length 248x 463x High Image Low Image Save Cancel

2. Click the "Save an Image" button in the main window.

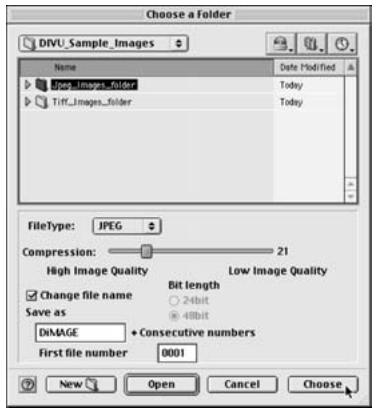

The OS (operating system) standard file save dialog appears. (The figure in the lower left-hand is for Windows® and that in the lower right-hand for Macintosh.)

Save DIVU_Sample_Images Name Date Modified PICT0001.JPG 11/25/11 PICT0001.TRW 4/20/01 PICT0001.TH1 4/20/01 PICT00016.TW1 8/24/01 PICT00016.TIF 8/24/01 PICT0002.TRW 8/24/01 Name: PICT0047.jpg New FileType: JPEG Compression: 21 High Image Quality Low Image Quality Bit length 24bit 48bit Cancel Save

3. Select the location to save the image file from the "Save in:" drop-down list (the pop-up menu on the top of the dialog for Macintosh), and then type the file name to save in the textbox next to "File name:" ("Name:" for Macintosh).

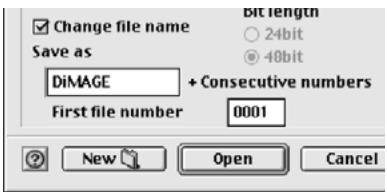

If you do not type the extension here, the corresponding extension to the type of image file that you will select in the following Operation 4. will be automatically added at the end of the filename (.tif for TIFF, or .jpg for JPEG). Therefore, in the case of Macintosh, type the filename not more than 27 characters; if you type the filename of more than 28 characters, the warning message will be displayed and you will not be able to save the image file due to the Mac OS restriction on the number of characters that you can use to a filename.

If you attach the extension not corresponding to the type of image file, the correct extension will be automatically added to it. For example, if you type "image_01.jpg" as the filename to save an image file in theTIFF format, the image file will be saved as "image_01.jpg.tif".

4. Select the type of image file to save from the "Save as type:" drop-down list ("File Type:" pop-up menu for Macintosh).

Select either "TIFF" or "JPEG"

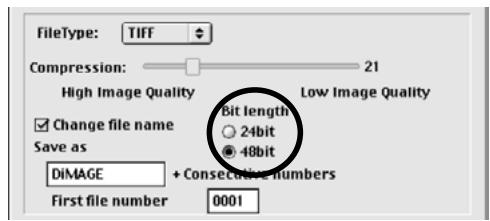

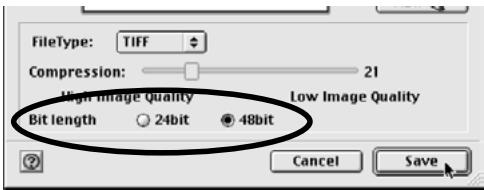

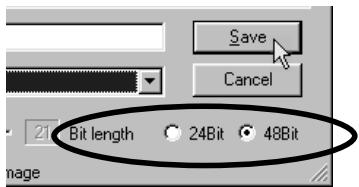

Select the TIFF format Bit length (number of colors) by clicking either the "24Bit" or the "48Bit" radio button when you save 48bit TIFF images (TIFF image/RGB 16bit each) or (processed) Minolta-RAW image files in TIFF format.

24bit – RGB 8bit each, save as a 24bit image.

48bit – RGB 16bit each, save as a 48bit image.

A 48bit image is an image with a finer tone and a higher quality, but its file size is larger. Some application software may not support a 48bit image.

Save Cancel 21 Bit length 24Bit 48Bit Image

FileType: TIFF Compression: 21 High Image Quality Low Image Quality Bit length 24bit 48bit Cancel Save

(continued

If you selected “JPEG”, set the compression ratio within the range of 1 (“High Image”) through 100 (“Low Image”) by dragging the slide bar with the mouse.

File name: PICT0008 Save as type: JPEG Compression : 21 Bit length

Name: PICT0047.jpg FileType: JPEG Compression: 21 High Image Quality Low Image Quality Bit length 24bit 48bit

5. Click "Save".

To Save Multiple Images at One Time:

1. Select the thumbnails that you wish to save.

If you wish to select more than 2 (thumbnail) images, click those (thumbnail) images while holding the "Ctrl" key ("Command" key for Macintosh).

If you wish to select more than 2 (thumbnail) images listed continuously, click the first and the last (thumbnail) images while holding the "Shift" key ("shift" key for Macintosh).

If you wish to cancel an image selection, click that image with pressing and holding the Ctrl key (the Command key in case of Macintosh) or just click any one of selected images.

DiMAGE Image Viewer Utility Thumbnail Color Correction Sharpness

Save in Desktop My Computer My Documents My Pictures Internet Explorer Network Neighborhood Online Services File Type: JPEG Bin length 248h 480h Compression: 21 High Image Low Image Change file name Save as: DiMAGE + Consecutive numbers First file number 0001 OK Cancel

2. Click the "Save an Image" button in the main window.

The OS (operating system) standard (destination) folder selection dialog appears. (The figure in the lower left-hand is for Windows ^® , and that in the lower right-hand for Macintosh.)

Choose a Folder DIVU_Sample_Images Name Date Modified Tiff_Images_folder Today Tiff_Images_folder FileType: JPEG Compression: 21 High Image Quality Low Image Quality Bit length Change file name 24bit Save as 48bit DiMAGE + Consecutive numbers First file number 0001 New Open Cancel Choose

1. Select the destination folder to save images.
2. Select the type of image files to save from the "File Type:" drop-down list ("File Type:" pop-up menu for Macintosh).

Select either "TIFF" or "JPEG".

Select the TIFF format Bit length by clicking either the "24Bit" or the "48Bit" radio button when you save 48bit TIFF images (TIFF image/RGB 16bit each) or (processed) Minolta-RAW image files in TIFF format.

24bit – RGB 8bit each, save as a 24bit image.

48bit – RGB 16bit each, save as a 48bit image.

A 48bit image is an image with a finer tone and a higher quality, but its file size is larger. Some application software may not support a 48bit image.

File Type : TIFF Bit length 24Bit 48Bit

FileType: TIFF Compression: 21 High Image Quality Low Image Quality ✓ Change file name Bit length ○ 24bit ● 48bit Save as DiMAGE + Consecutive numbers First file number 0001

If you selected “JPEG”, set the compression ratio within the range of 1 (“High Image”) through 100 (“Low Image”) by dragging the slide bar using a mouse.

File Type: JPEG Bit Length 240x 400x Compression: High Image Low Image

FileType: JPEG Compression: High Image Quality 21 Low Image Quality Bit length Change file name 24bit Save as 48bit

All images selected at Operation 1 in the previous page will be saved as image files with the fil type (and the compression ratio) specified in this window. You can not specify those to each image separately.

If you save multiple images at one time, those filenames will be original names (without original extensions) plus specified file type (.tif for "TIFF" and .jpg for "JPEG"). In the case of Macintosh files without extensions, those extensions will be added to the ends of the original names.

Therefore, the “Selecting a few files with the same name” warning message will be displayed if you try to save multiple files with the same name excluding extensions at one time. In this case, the “Change file name” check box shown below is marked after you close the warning message window by clicking “OK” (you can not cancel this check mark in this case). After this, you can save multiple files with the same name excluding extensions as different filenames by entering the prefix characters and the first consecutive number to be used to those filenames.

5. To save as the different filename, mark the “Change file name” check box, and enter the prefix characters and the first consecutive number to be used to those filenames in the “Save as” box and in the “First file number” box respectively.

The prefix characters should be within “10 single-byte characters”.

The consecutive numbers should be within “5 digits”.

Compression : 21 High Image Low Image ✓ Change file name Save as DiMAGE + Consecutive numbers First file number 0001 OK Cancel

Change file name Save as DiMAGE First file number Bit length 24bit 40bit + Consecutive numbers 0001 New Open Cancel

For example, if you save 10 image files at one time in JPEG format as shown in the above figure, the will be saved as "DiMAGE0001.jpg", "DiMAGE0002.jpg", "DiMAGE0003.jpg", ..... and "DiMAGE0010.jpg".

6. Click "OK" (click "Choose" for Macintosh).

Progress Saving 3/4: " PICT0003. JPG " Cancel

The saving process is started. The dialog box shown in the left appears during the saving process (the left-hand dialog box shows the case when 4 image files are saved at one time).

If you click "Cancel", all the image saving processes from that time on are stopped. If you click "Cancel" when it shows as "Saving 3/4 "PICT0003.JPG"..." in the left-hand dialog box example, the 3rd and the 4th images will not be saved.

If you click the “Color Correction” tab, the following “Color Correction” window appears. You can add various corrections (retouches) using tone curves and histograms, or corrections of brightness, color balance, saturation, lightness and so on.

DiMAGE Image Viewer Utility Drag the mouse to move the display position. Thumbnail Color Correction Sharpness 8/11 R:199/199 G:166/166 B:187/187

① Tone curves/histogram correction button
② Brightness, contrast and color balance correction button
③ Hue, saturation and lightness correction button
④ Variation correction button
⑤ Undo previous operation button
⑥ Redo canceled operation button
⑦ Reset all color corrections button
⑧ Snapshot button

⑨ Store a color correction job button
⑩ Select a color correction job button
⑪ Pre/post correction comparison button
⑫ Whole image button

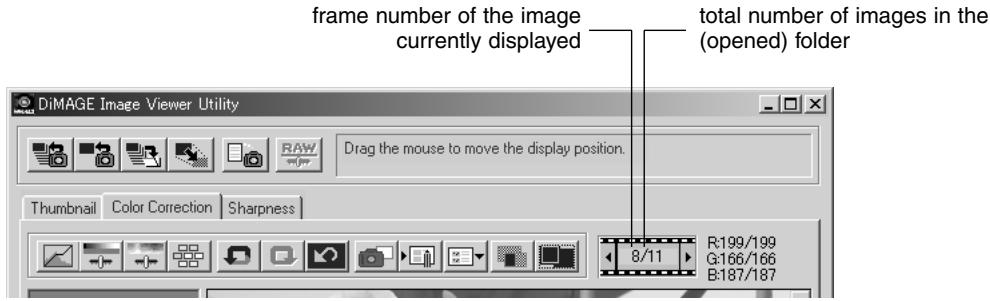

⑬ Thumbnail number display

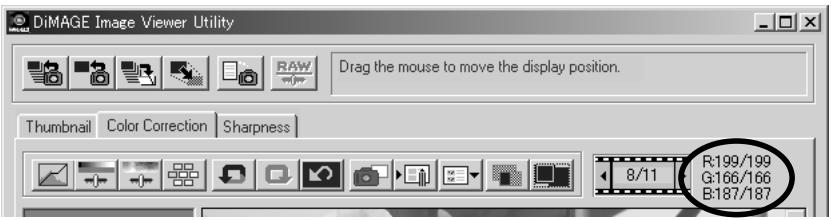

⑭ RGB value display
⑮ Snapshot display area
⑯ Corrected image display area

Corrections using the tone curves

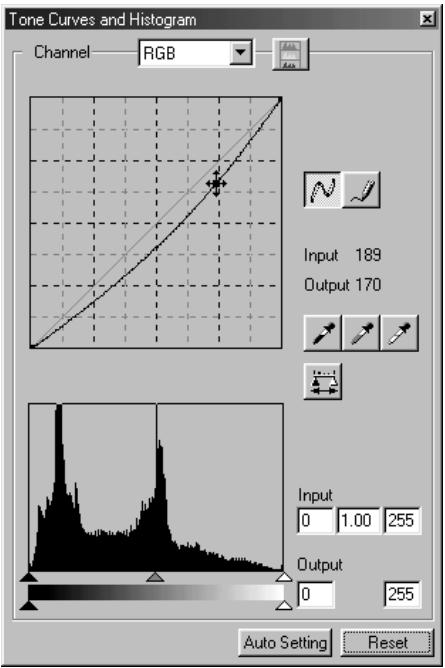

1. Click the "Tone Curves/Histogram Correction" button.

The “Tone Curves and Histogram” window (figure-below) appears.

Tone Curves and Histogram Channel RGB Input 189 Output 170 Input 0 1.00 255 Output 0 255 Auto Setting Reset

2. Select the desired tone curve channel to correct from the "Channel" drop-down list.

If you select the "RGB" channel, each color will be corrected based on the same ratio. If you select "R", "G" or "B", you can correct each color separately.

You can also select the channel from your keyboard (shortcut).

“Ctrl” (“Command” for Macintosh) key + 0 (zero)

→ RGB

“Ctrl” (“Command” for Macintosh) key + 1 → R

“Ctrl” (“Command” for Macintosh) key + 2 → G

“Ctrl” (“Command” for Macintosh) key + 3 → B

3. Move the mouse cursor over the tone curve, and then drag it to the location where you wish to make corrections.

The tone curve correction result will be reflected in the preview image in the corrected image display area.

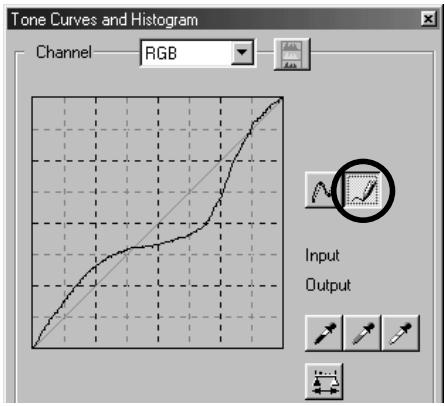

To Draw a Free Hand Tone Curve:

1. Click the "Tone Curves/Histogram Correction" button.
2. Select the desired tone curve channel to correct from the "Channel" drop-down list.

Tone Curves and Histogram Channel: RGB Input Output

1. Click the "Draw Tone Curves" button, and then move the mouse cursor over the tone curve.

The mouse cursor changes to a pen shape.

1. Drag the mouse to draw the tone curve.

The tone curve correction result will be reflected in the preview image in the corrected image display area.

Tone Curves and Histogram Channel RGB Input Output

If the drawn tone curve is discontinuous, click the "Smooth Tone Curves" button to smoothen it.

To Correct Images Using the "Black Point" Button:

You can correct images by specifying the shadow point (the point that you wish to reproduce in black) on the preview image in the corrected image display area.

Input Output Input 0 1.00 255 Output Point Value Setting Black Point Value White Point Value R: 0 R: 255 G: 0 G: 255 B: 0 B: 255 OK Cancel

1. Double-click the "Black Point" button.

The “Point Value Setting” window (figure-left) appears.

Initial values of black point values are all set to zero for “R”, “G” and “B” (deep-black).

1. Type values for the shadow point correction in the "Black Point Value" fields, and then click "OK".

2. Click the "Black Point" button.

The mouse cursor changes to a syringe shape.

1. Click the shadow point (the point that you wish to reproduce in black) on the preview image in the corrected image display area.

The image is corrected so that the clicked point becomes a shadow point. The shadow point color will be the "Black Point Value" entered at Operation 2.

The correction result will be reflected in the preview image in the corrected image display area.

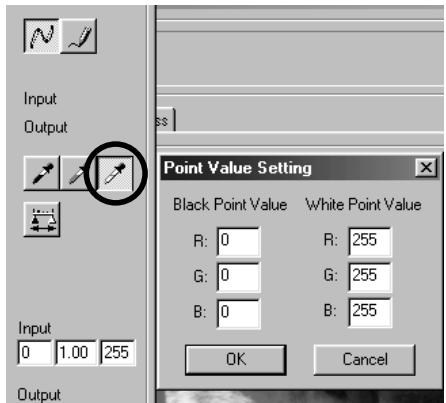

To Correct Images Using the "White Point" Button:

You can correct images by specifying the highlight point (the point that you wish to reproduce in white) on the preview image in the corrected image display area.

Input Output Input 0 1.00 255 Output Point Value Setting Black Point Value White Point Value R: 0 R: 255 G: 0 G: 255 B: 0 B: 255 OK Cancel

1. Double-click the "White Point" button.

The “Point Value Setting” window (figure-left) appears.

Initial values of white point values are all set to 255 for “R”, “G” and “B” (pure white).

1. Type values for the highlight point correction in "White Point Value" fields, and then click "OK".

2. Click the "White Point" button.

The mouse cursor changes to a syringe shape.

1. Click the highlight point (the point that you wish to reproduce in white) on the preview image in the corrected image display area.

The image is corrected so that the clicked point becomes a highlight point. The highlight point color will be the “White Point Value” entered at Operation 2.

The correction result will be reflected in the preview image in the corrected image display area.

To Correct Images Using the "Gray Point" Button:

You can correct images by specifying the gray point (the point that you wish to reproduce in monochrome) on the preview image in the corrected image display area.

Tone Curves and Histogram Channel RGB Input Output

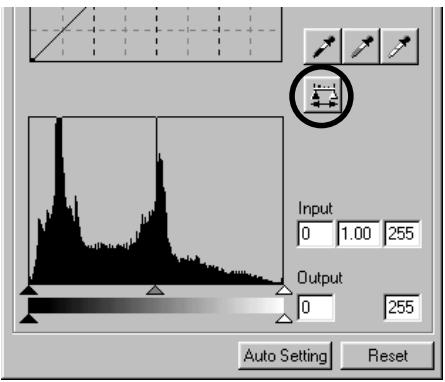

1. Click the "Gray Point" button.

The mouse cursor changes to a syringe shape.

1. Click the point that you wish to reproduce in monochrome (gray) on the preview image in the corrected image display area.

The image is corrected so that the clicked point keeps the brightness as it is and becomes monochrome (gray) with a well-proportioned color balance.

The correction result will be reflected in the preview image in the corrected image display area.

Input 0 1.00 255 Output 0 255 Auto Setting Reset

If you click and hold (keep pressing the mouse button) the "Apply" button, the histogram after correction performed by one of the point buttons appears.

When you release the mouse button, the histogram before the correction appears again.

Histogram Correction – Auto Setting:

You can correct images by specifying the "Input Level" and the "Output Level" ranges in the "Histogram" palette in the corrected image display area, where the color level distribution of the preview image is displayed. The color level is divided into 256 levels from 0 through 255.

Input 0 1.00 255 Output 0 255 Auto Setting Reset

You can find the “Input Level Setting” slide bar under the “Histogram” palette, and the “Output Level Setting” slide bar under the “Input Level Setting” slide bar. The “Input Level Setting” slide bar has three kinds of controls (▲ or △ buttons); the “Upper Limit Setting” control (right), the “Gamma Setting” control (middle) and the “Lower Limit Setting” control (left). The “Output Level Setting” slide bar has two kinds of controls (▲ or △ buttons); the “Upper Limit Setting” control (right) and the “Lower Limit Setting” control (left). You can correct images by dragging each control with the mouse or typing an appropriate number in each box of the “Input” and the “Output” fields directly.

Abstract black-and-white graphic with sharp peaks and a downward trend, no text or symbols present.

For example, if you take away the deep-black and the pure white parts where no picture elements exist by sliding the “Upper Level Setting” control a little to the left and the “Lower Level Setting” control a little to the right as the histogram figure in the left-hand shows, you will be able to create a rich-colored image making the best use of the color levels that the image primarily has.

Input 0 1.00 255 Output 0 255 Auto Setting Reset

Click "Auto Setting".

This will automatically take away the parts where no information (picture elements) exist from the histogram and correct the image to use every color level from 0 through 255.

The correction result will be reflected in the preview image in the corrected image display area.

Histogram Correction – To Correct RGB Channels Separately:

Tone Curves and Histogram Channel: RGB Input Output

Tone Curves and Histograms Channel RGB Input Output Input Output Auto Setting Reset R Input 0 1.00 255 Output 0 255 G Input 0 1.00 255 Output 0 255 B Input 0 1.00 255 Output 0 255

Input 0 1.00 255 Output 0 255 Auto Setting Reset

1. Click the "RGB Histograms" button.

The “Tone Curves and Histogram” window is expanded to the right and each histogram for “R”, “G” and “B” (figure-lower left) appears.

You can close the histogram for each channel by click the "RGB Histograms" button again.

2. Drag the “Upper Limit Setting” (△ in the right-hand) and the “Lower Limit Setting” (▲ in the left-hand) controls of the “Input Level” slide bar with the mouse for each channel, or type an appropriate number in each box of the “Input Level” and the “Output Level” fields directly.

The correction result will be reflected in the preview image in the corrected image display area.

You can cancel all kinds of correction performed in the "Tone Curves and Histogram" window by clicking "Reset". The preview image in the corrected image display area will return to the original status where no corrections are performed.

To Correct Brightness, Contrast and Color Balance:

DiMAGE Image Viewer Utility Thumbnail Color Correction Sharpness

Brightness. Contrast and Color Balance Correction Brightness 0 Contrast 0 Red(R) 0 Green(G) 0 Blue(B) 0 Auto Setting Reset

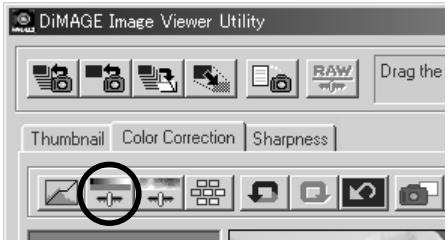

1. Click the "Brightness, Contrast and Color Balance Correction" button.

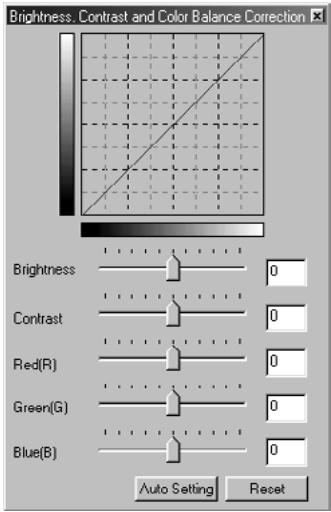

The “Brightness, Contrast and Color Balance Correction” window (figure-lower left) appears.

2. Drag the control of each slide bar with the mouse, or type an appropriate number in each box.

For each control, the farther you move the control to the right from the center (the larger a positive number you type in the box is), the larger the effect of the correction is.

On the contrary, the farther you move the control to the left from the center (the larger a negative number (absolute value) you type in the box is), the larger the effect of the opposite correction is. For example, the farther you move the control of “Brightness” to the left from the center, the darker the entire image becomes. Or the farther you move the “Green(G)” control to the left from the center, the less green element the image has, and the entire image becomes purplish.

You can enter a number from -100 through 100.

The correction result will be reflected in the preview image in the corrected image display area.

Brightness Contrast Red(R) Green(G) Blue(B) Auto Setting Reset 0 0 0 0 0 0 Auto Setting Reset

If you click "Auto Setting", "Brightness" and "Contrast" will be automatically adjusted based on the lightness information holding the RGB color balance.

You can cancel all kinds of correction performed in the "Brightness, Contrast and Color Balance Correction" window by clicking "Reset".

The preview image in the corrected image display area will return to the original status where no corrections are performed.

To Correct Hue, Saturation and Lightness:

DiMAGE Image Viewer Utility Thumbnail Color Correction Sharpness

Hue,Saturation,Lightness Correction Hue 0 Saturation 0 Lightness 0 Auto Setting Reset "Adjusted Color Sample Before Corrections" (hue) "Adjusted Color Sample After Corrections" (hue)

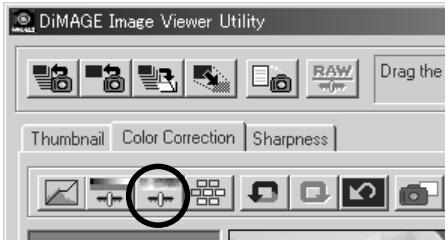

1. Click the "Hue, Saturation and Lightness Correction" button.

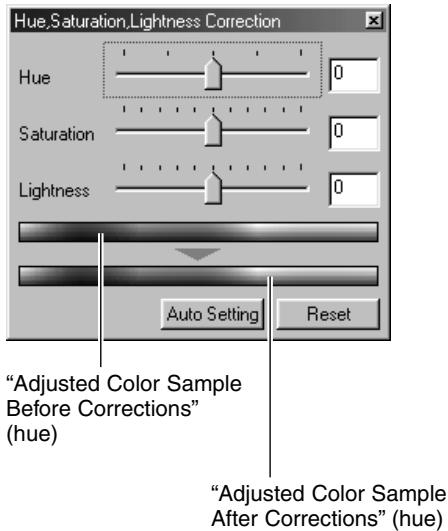

The “Hue, Saturation, Lightness Correction” window (figure-lower left) appears.

2. Drag the control of each slide bar with the mouse, or type an appropriate number in each box.

If you move the “Hue” control, the hue shown by the “Adjusted Color Sample Before Corrections” in red, blue and green changes to the status shown by the “Adjusted Color Sample After Corrections”.

The farther you move the “Saturation” control to the right from the center (the larger a positive number you type in the box is), the more vivid the image becomes. The farther you move it to the left from the center (the larger a negative number (absolute value) you type in the box is), the less vivid the image becomes, and it raises the screen effect.

If you move the "Lightness" control, the lightness of the entire image is adjusted.

You can enter values from -180 through 180 for "Hue" and from -100 through 100 for "Saturation" and "Lightness".

The correction result will be reflected in the preview image in the corrected image display area.

Hue,Saturation,Lightness Correction Hue 0 Saturation 0 Lightness 0 Auto Setting Reset

If you click “Auto Setting”, “Saturation” will be automatically corrected focusing on conspicuous parts of the image and holding “Hue” and “Lightness” as they are.

You can cancel all kinds of correction performed in the "Hue, Saturation, Lightness Correction" window by clicking "Reset".

The preview image in the corrected image display area will return to the original status where no corrections are performed.

Variation Correction:

You can perform corrections of “Color Balance”, “Brightness & Contrast” and “Saturation” while checking the finishing (the image after corrections) on simulation images.

DiMAGE Image Viewer Utility Thumbnail Color Correction Sharpness

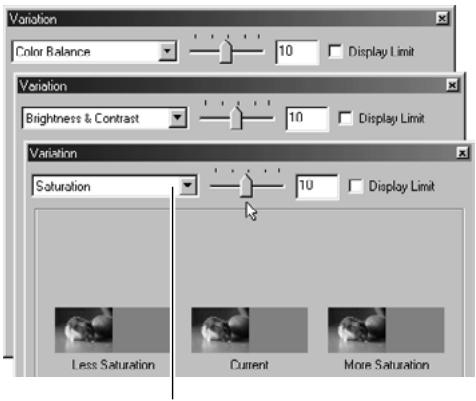

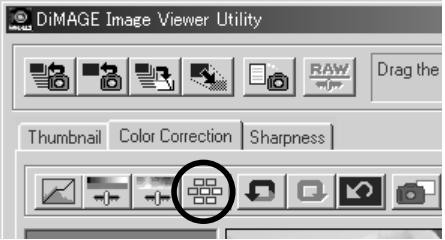

1. Click the "Variation Correction" button.

The “Variation” window (figure-lower left) appears.

Variation Color Balance 10 Display Limit Variation Brightness & Contrast 10 Display Limit Variation Saturation 10 Display Limit Less Saturation Current More Saturation

"Select Variations" combo box

2. Select the desired variation option from the drop-down list of the "Select Variations" combo box.

You can choose one out of three kinds; "Color Balance", "Brightness & Contrast" and "Saturation".

A variety of images appear depending on the selected variation option (see page 59 through 61).

Variation Correction – Color Balance:

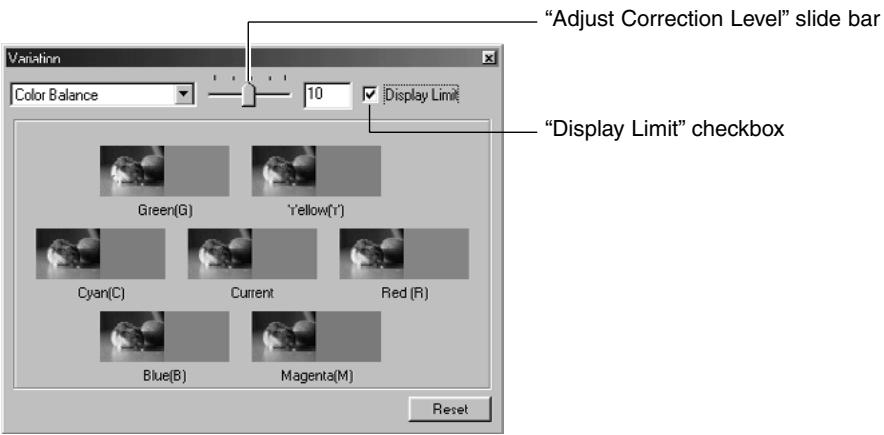

"Adjust Correction Level" slide bar "Display Limit" Color Balance 10 Green(G) 'Yellow(') Cyan(C) Current Red (R) Blue(B) Magenta(M) Reset

If you selected the “Color Balance” variation option, showing the “Current” image in the center, six other simulation images are displayed for “Red (R)”, “Magenta (M)”, “Blue (B)”, “Cyan (C)”, “Green (G)” and “Yellow (Y)”, where each simulation image has been corrected by one level up to the “Current” image. If you click one desired simulation image, newly simulated images are displayed by replacing the current image with the selected simulation image.

If you drag the control of the “Adjust Correction Level” slide bar with the mouse, you can change the degree of the correction by one level from the initial value (10) to another within the range of 1 through 20.

If you check the “Display Limit” checkbox, parts of simulation images that exceeded their display limits (0 or 255) will be reversed when you correct each color balance for “Red (R)”, “Magenta (M)”, “Blue (B)”, “Cyan (C)”, “Green (G)” and “Yellow (Y)”.

You can cancel all kinds of correction performed in the “Color Balance” variation by clicking “Reset”. The current image in the center and six simulation images will return to the status when this “Variation” window appeared for the first time.

Variation Correction – Brightness & Contrast:

"Adjust Correction Level" slide bar "Display Limit" "Display Limit" checkbox Variation Brightness & Contrast 10 Less Brightness/Less Less Brightness Less Brightness/More Less Contrast Current More Contrast More Brightness/Less More Brightness More Reset

If you selected the “Brightness & Contrast” variation option, showing the “Current” image in the center, eight other simulation images are displayed, where each simulation image has been corrected by one level (“Less”, “Current” and “More”) for “Brightness” holding the same status in the horizontal direction and for “Contrast” in the vertical direction to the “Current” image.

If you click one desired simulation image, newly simulated images are displayed by replacing the current image with the selected simulation image.

If you drag the control of the “Adjust Correction Level” slide bar with the mouse, you can change the degree of the correction by one level from the initial value (10) to another within the range of 1 through 20.

If you check the “Display Limit” checkbox, parts of simulation images that exceeded their display limits (0 or 255) will be reversed when you correct “Brightness & Contrast”.

You can cancel all kinds of correction performed in the “Brightness & Contrast” variation by clicking “Reset”. The current image in the center and eight simulation images will return to the status when this “Variation” window appeared for the first time.

Variation Correction – Saturation:

"Adjust Correction Level" slide bar Saturation 10 Display Limit "Display Limit" checkbox Less Saturation Current More Saturation Reset

If you selected the “Saturation” variation option, showing the “Current” image in the center, two other simulation images are displayed in the horizontal direction, where each simulation image has been corrected by one level (“Less” and “More”) to the “Current” image.

If you click one desired simulation image, newly simulated images are displayed by replacing the current image with the selected simulation image.

If you drag the control of the “Adjust Correction Level” slide bar with the mouse, you can change the degree of the correction by one level from the initial value (10) to another within the range of 1 through 20.

If you check the “Display Limit” checkbox, parts of simulation images that exceeded their display limits (0 or 255) will be reversed when you corrected “Saturation”.

You can cancel all kinds of correction performed in the “Saturation” variation by clicking “Reset”. The current image in the center and two simulation images will return to the status when this “Variation” window appeared for the first time.

To Undo the Correction:

DiMAGE Image Viewer Utility Thumbnail Color Correction Sharpness

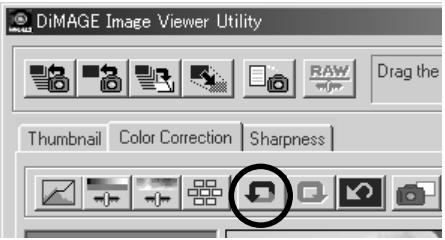

Click the "Undo" button.

You can cancel the current image correction and return the image to the previous status. You can keep cancelling corrections you made by clicking the button repeatedly as far as your computer memory capacity allows.

To Redo the Canceled Correction:

DiMAGE Image Viewer Utility Drag the Thumbnail Color Correction Sharpness

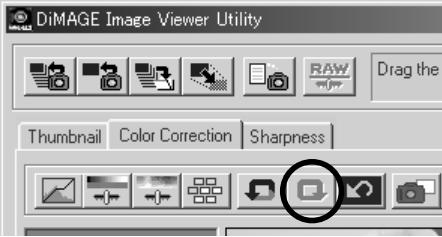

Click the "Redo" button.

You can perform the canceled operation again.

To Undo All Color Corrections:

DiMAGE Image Viewer Utility Drag the Thumbnail Color Correction Sharpness

Click the "Reset All" button.

You can cancel all color corrections.

Snapshot:

You can save the preview image displayed in the corrected image display area temporarily in the snapshot display area. If you save the snapshot at each phase of correction, you can quickly preview the image under each correction status.

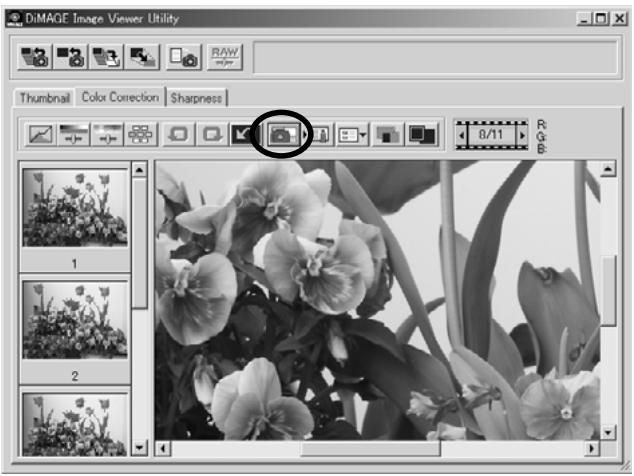

Click the "Snapshot" button.

DiMAGE Image Viewer Utility Thumbnail Color Correction Sharpness 8/11 R: G: B:

The current preview image is temporarily saved and thumbnailled in the snapshot display area.

If you click one of the thumbnails in the snapshot display area, you can preview the image in the corrected image display area.

You can add images in the snapshot display area as far as your computer memory capacity allows.

If you wish to delete thumbnails in the snapshot display area, select the thumbnail to delete and then press the "Delete" key (press the "Command" and "D" keys simultaneously in the case of Macintosh).

If you quit the software, all images in the snapshot display area are deleted.

Color Correction Job:

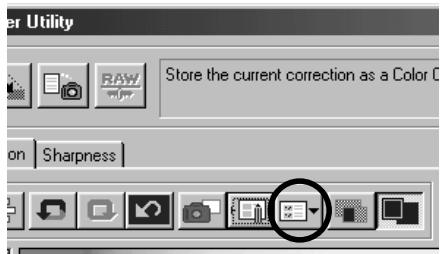

You can register color correction contents in each correction window as the “Color Correction Job”. If you have a fixed correction pattern (to some extent), you can easily perform the fixed color correction pattern by registering the series of correction contents as the color correction job and simply selecting the job.

User Utility Store the current correction as a Color C on Sharpness

Store a Color Correction Job Job Name: For_HP_Upload OK Cancel

1. Perform desired corrections to the preview image in the “Correction Image Display” area.
2. Click the "Store a Color Correction Job" button.

The “Store a Color Correction Job” window appears.

1. Type the job name, and then click "OK".

The series of the correction contents performed at Operation 1 are registered as a color correction job.

To apply the registered color correction job to other images, perform the following operations:

User Utility Store the current correction as a Color C on Sharpness

1. Display the image that you wish to apply the series of color corrections in the “Correction Image Display” area.

2. Click the "Select a Color Correction Job" button.

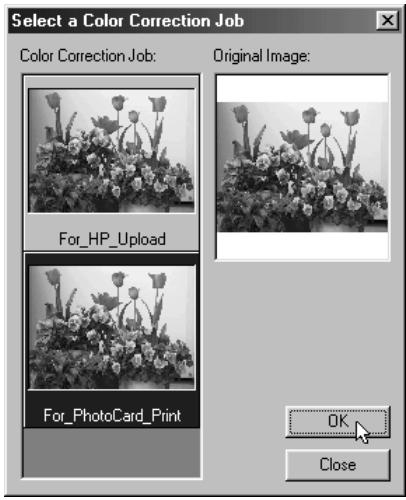

The “Select a Color Correction Job” window appears.

Select a Color Correction Job Color Correction Job: Original Image: For_HP_Upload For_PhotoCard_Print OK Close

1. Select the color correction job that you wish to apply, and then click "OK".

The series of registered correction contents are applied to the preview image currently displayed.

To Compare the Pre/Post Correction Images:

Click the “Pre/Post Correction Comparison” button.

DiMAGE Image Viewer Utility Thunbrial Color Correction Sharpness 8/11 R: G: B:

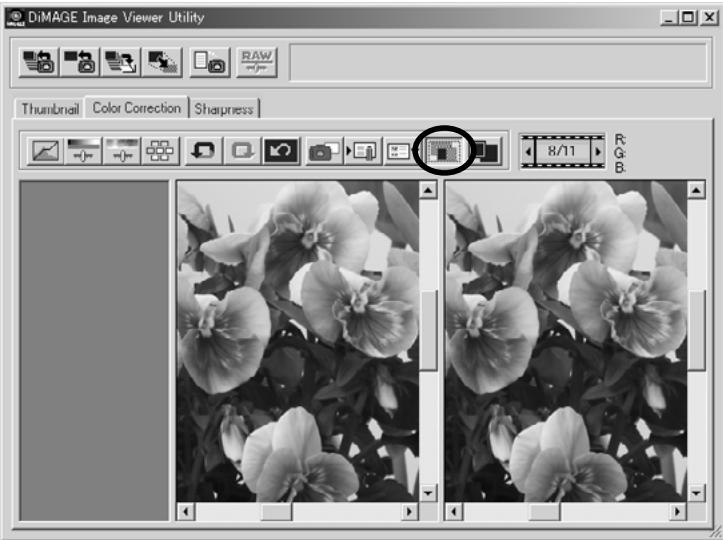

You can check the correction result by comparison with the pre-correction image that appears in the left with the post-correction image in the right.

If you click the “Pre/Post Correction Comparison” button again, the pre-correction image disappears and only the post-correction image remains.

To Display the Whole Post-Correction Image:

Click the "Whole Image" button.

DiMAGE Image Viewer Utility Thumbnail Color Correction Sharpness 8/11 R: G: B:

The whole post-correction image is expanded or shrunken according to the main window size, and displayed in the corrected image display area.

If you click the "Whole Image" button again, it returns to the original-sized image.

Thumbnail Number Display:

If you selected the image folder (see page 19), the total number of images in the folder and the frame number of the image currently displayed.

frame number of the image currently displayed total number of images in the (opened) folder DiMAGE Image Viewer Utility Drag the mouse to move the display position. Thumbnail Color Correction Sharpness 8/11 R:199/199 G:166/166 B:187/187

If you click “◀”, the previous frame is displayed.

If you click “▶”, the next frame is displayed.

RGB Value Display:

The RGB values are displayed for the current mouse pointer location on the preview image in the corrected image display area.

DiMAGE Image Viewer Utility Drag the mouse to move the display position. Thumbnail Color Correction Sharpness R:199/199 G:166/166 B:187/187

If you click the “Sharpness” tab, the following sharpness correction window appears. You can set the frequency to be emphasized or the degree to be emphasized while checking those effects on the preview image.

DiMAGE Image Viewer Utility Thumbnail Color Correction Sharpness Frequency to be Low Frequency High Frequency Degree to be Preview 25 % Reset

1. Drag the "Frequency to be" slide bar control with the mouse to select the frequency that you wish to emphasize the sharpness.

You can not set the control between graduations.

1. Drag the “Degree to be” slide bar control with the mouse to select the degree that you wish to emphasize the sharpness. Or type the value directly in the right-hand box.

You can not set the control between graduations (only in the case of Windows®).

You can set the value by "0.1" at a time within the range of 0.0 through 2.0.

The slide bar control is linked to the value in the box. If you change either one, the other value (location) is also changed correspondingly.

If you check the “Preview” checkbox, you can execute the real time reflection of the correction effect to the preview image in the sharpness correction window.

You can select display magnification out of six options; 100%, 66.7%, 50%, 33.3%, 25% and 16.7%. If you click the “+” button under the preview image, the display magnification of the preview image becomes larger. If you click the “-” button, it becomes smaller.

If you move the mouse pointer over the preview image, the mouse cursor changes to a hand shape. You can scroll the preview image to see the other part of the image by dragging it with the hand-shaped mouse cursor.

You can cancel all kinds of correction performed in the sharpness correction window by clicking "Reset". The "Degree to be" slide bar control is reset to the "0" location, and it is shown as 0 in the right-hand box.

-About Image Frequency (High-Frequency, Low-Frequency):

a (certain) fixed width in a image high brightness low high brightness low

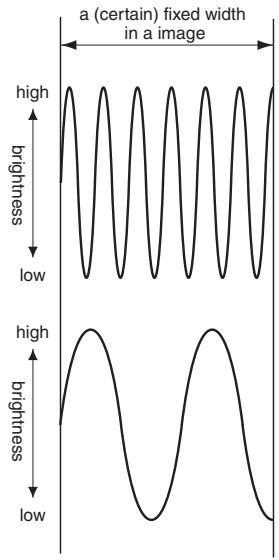

Within a (certain) fixed width in a image, when the brightness change is shown as the left-hand figure, the number of waves included within a (certain) fixed width is called “Frequency”.

The part where peaks and troughs appear frequently creating fine pitches as the upper left-hand figure shows is called “High-Frequency”, and, within the same width, the part where peaks and troughs appear less frequently creating coarse pitches as the lower left-hand figure shows is called “Low-Frequency”.

Therefore, you can get the target effect by selecting the frequency contained the most in the part where you wish to emphasize with the “Frequency to be” slide bar control. It is recommended to work on your image while checking the preview image in the sharpness correction window because the frequency with which you can get the optimum effect depends on subjects for photography or image sizes.

Software interface screenshot showing a dialog box with an open button and two grayscale flower images below (no text or symbols on the flower images)

DiMAGE Thumbnail Color Correction Sha Sort: Name

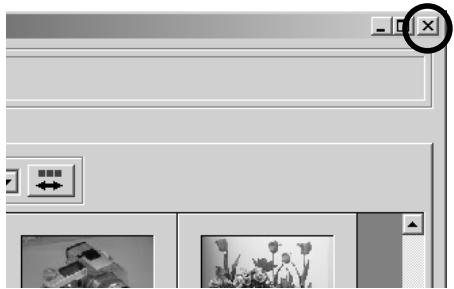

Click the “Close” box in the main window (the “X” button on the upper right-hand corner of the main window for Windows®, and the “☐” button on the far left corner of the title bar for Macintosh).

The main window is closed and the software quits.
