The Scirocco
Introduction | Design | Models | Safety | Optional equipment | Colours & Upholstery | Engines | Technology | Service Print | Exit | Page 1 | Page 2 | Page 3 | Page 4 | Page 5
Once started, there's no stopping you.
Introduction | Design | Models | Safety | Optional equipment | Colours & Upholstery | Engines | Technology | Service Print | Exit | Page 1 | Page 2 | Page 3 | Page 4 | Page 5
Introduction | Design | Models | Safety | Optional equipment | Colours & Upholstery | Engines | Technology | Service Page 1 | Page 2 | Page 3 | Page 4 | Page 5
Introduction | Design | Models | Safety | Optional equipment | Colours & Upholstery | Engines | Technology | Service Print | Exit | Page 1 | Page 2 | Page 3 | Page 4 | Page 5
Body-coloured door mirrors with integrated indicators contribute to the streamlined, sporty look.
Darkened rear side and rear
windows reduce the amount of
sunlight entering the cabin by
up to 65% from the B pillar back,
contributing to a pleasant interior
temperature and enhancing the
sports appeal of the Scirocco.
Standard on GT and optional on
Scirocco models.
The chrome twin exhaust
tailpipe adds charisma and
presence, hinting at the power
beneath the bonnet.
GT 2.0 TSI 200 PS only.
The sleek shaped body-coloured
door handles complement the
Scirocco's sleek profile.
The distinctive rear light clusters
blend perfectly with the lines of
the Scirocco, complementing its
striking design. Its powerful profile
is further accentuated by the
horizontal, flat surface of the
with their dynamic contours.

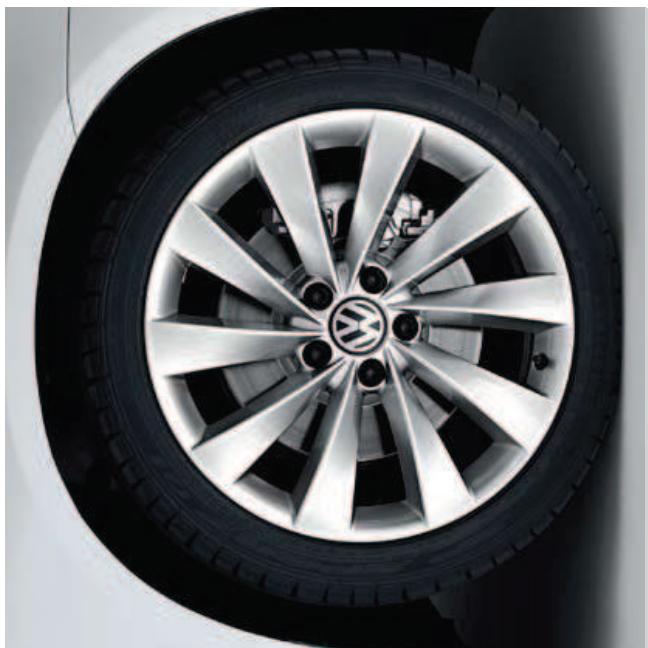

17 inch 'Donington' alloy wheels
create a sporty and stylish look
for your Scirocco. Standard on
Scirocco models.
responsiveness. Standard on GT and optional on Scirocco models.
With its streamlined body shape and flowing contours, the Scirocco exudes style, while dynamic details such as the curved design of the halogen clear headlights, enhances its sporting character. Naturally, first class workmanship and high quality materials throughout go without saying.
The Scirocco is a pleasure to drive as it is. But with its distinctive
18 inch 'Interlagos' alloy wheels it creates an even sportier and
individual look. It is made exclusively as a one-piece cast aluminium
wheel, which lowers the weight while ensuring greater suspension
responsiveness. Standard on GT and optional on Scirocco models.

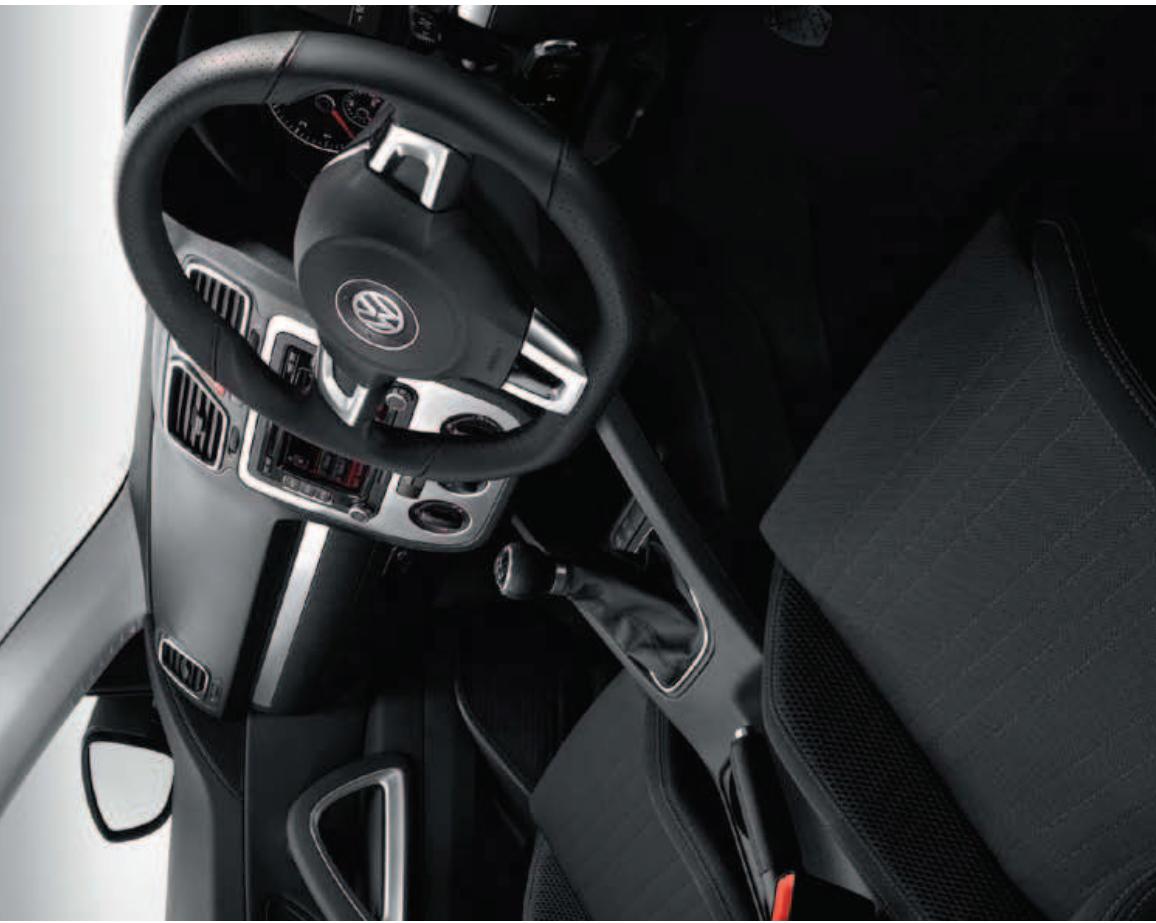

The luxurious interior combines ergonomics with visual appeal and practicality. Front sports
seats provide maximum support when cornering, while the leather trimmed three-spoke steering
wheel, gear knob and handbrake grip offer optimum grip, an essential requirement for such an
agile performer. Stylish matt chrome decorative inserts provide the perfect finishing touch to the
distinctive interior design.
'Donington' 7 12 x 17 alloy wheels
with 235/45 R17 tyres and
anti-theft wheel bolts enhance
the look of the Scirocco leaving
a lasting impression.
Adaptive Chassis Control (ACC)
allows you to select Normal.
Comfort or Sport settings for your
journey, enabling the electrically
journey, enabling the electrically
regulated data
adapt optimally to conditions and
driving style.
'Climatic' semi-automatic air
conditioning system is extremely
user-friendly, providing your
required cabin temperature quickly
and efficiently , while maintaining
Scirocco | Scirocco GT
PSL 160 PSL 2.0 litre TDL 140 PS
Introduction | Design | Models | Safety | Optional equipment | Colours & Upholstery | Engines | Technology | Service
Some parts of leather interior contain artificial leather.
The Scirocco GT
The GT builds over the already high specification of the Scirocco and adds some
additional styling to the exterior that undoubtedly makes the GT stand out from
the crowd. Inside, a higher level of speci-journey is made even more enjoyable.
The chroma twin exhaust tailpine
that features on the GT 2 . 0 TSI 200 PS
adds charisma and presence.

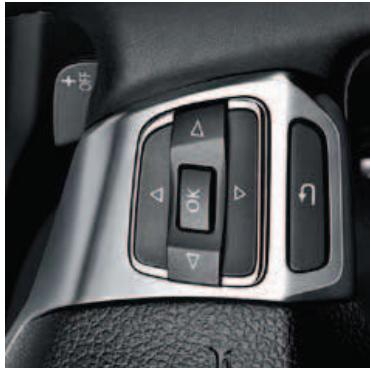

Specify a DSG gearbox and the
leather trimmed multifunction
steering wheel features paddle shift
as standard, to allow quick gear
changes without taking your hands
The multifunction computer
(Highline) can be operated easily
via the multifunction steering wheel,
providing useful information such as
average and current fuel consumption,
journey time, outside temp range left in the fuel tank.
2Zone electronic climate control with automatic air recirculation, courtesy of an air
quality sensor, provides temperature controls that can be individually adjusted by
the driver and front passenger, enabling them to set their own desired temperature.
The system ensures all passengers enjoy a comfortable journey and the temperature
selected is displayed accurately, within half a degree Celsius.

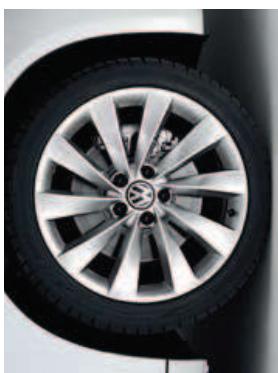

Interlagos' 8J x 18 alloy wheels with
235/40 R18 tyres and anti-theft wheel
bolts confirm the Scirocco GT's
pedigree sports performance.
sian | Models | Sof
Scirocco | Scirocco GT
Introduction | Design | Models | Safety | Optional equipment | Colours & Upholstery | Engines | Technology | Service
2.0 litre TSI 200 PS | 2.0 litre TDI 140 PS | 2.0 litre TDI 170 PS
Naturally, as a sports coupé, the Scirocco offers impressive power and performance. But it also offers intelligence too.
as demonstrated by its first class safety specification, designed
to help you manage such occurrences as bad weather, sharp
bends and tight parking spaces.

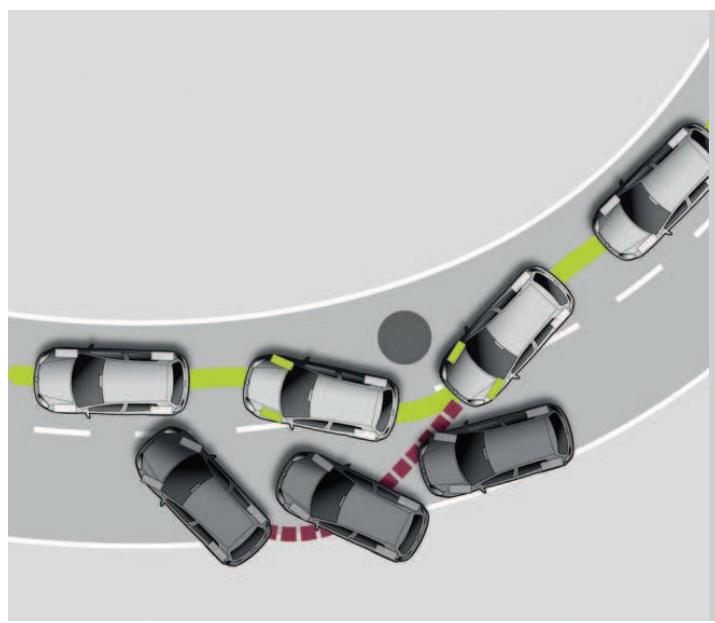

The sensor-controlled Electronic Stabilisation Programme (ESP) recognises critical driving situations and reacts in milliseconds by controlling the speed of individual wheels, helping to bring the vehicle under control.
Introduction | Design | Models | Safety | Optional equipment | Colours & Upholstery | Engines | Technology | Service Page 1 | Page 2 | Page 3
Optional equipment
Practical extras can be an extremely useful way of creating exactly the Scirocco you desire. With this in mind, a selection of different options are available, each one ensuring your Scirocco meets your individual requirements. This reflection of your personality and lifestyle makes the Scirocco more irresistible than ever. So, why fight the temptation?
The DVD touch-screen navigation/radio system will guide you to your destination using all but the last two digits of a UK postcode and includes a 6 12 colour display, 3D representation and touch-screen operation. It also plays videos (when the vehicle is stationary) and music from the DVD drive, 30 GB hard drive or via the MDI (Multi Device Interface) or AUX-in socket. Optional on all models.

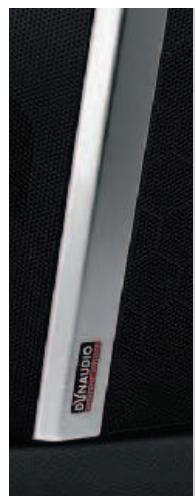

Another addition to improve your journey's
soundtrack is the ‘Dynaudio’ sound system
incorporating an eight channel digital amplifier . It
provides impressive acoustics and the highest levels
provides impressive cost estimates and the highest levelsof audio pleasure , delivering 300 watts through eight
of audio pleasure , delivering 300 watts through eightkiddens of sound . Options include :
The 2Zone electronic climate control maintains a constant preset temperature, providing an extremely controllable air conditioning in favor
temperature , providing separately controllable an conditioning forthe higher and feature requirements without a need to be
the driver and front passenger, practically without a draught. The transportation information system shows that
automatic an acculturation mode also ensures that passengers areautomatically protected from any potential stress or strain
automatically protected from any unpleasant odours. Standard onGT and optional on Scirocco models. Heated front seats form part
of the optional Winter pack, which also includes headlight washers,
heated windscreen washer jets and low washer fluid warning light.
Optional on all models.
For relaxed motorway driving,
cruise control is the perfect answer. Operational at speeds above
approximately 20 mph, the system
can be set to maintain a constant
speed. Optional on all models.

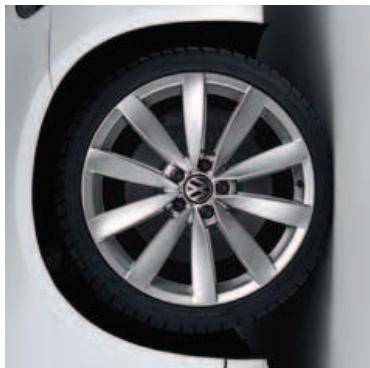

Lugano'8J x 19 alloy wheels with 235/35 R19 tyres and anti-theft wheel bolts provide a sporty and dynamic addition to the exterior of the GT. Optional on GT models.
Specify the leather upholstery
option and you will also benefit from heated leather front sports seats with five individual preset temperature settings for both the driver and front seat passenger.

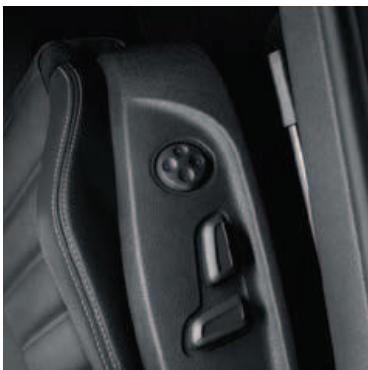

When ordered in conjunction withleather upholstery, the 12-wayelectrically-adjustable driver's seatoffers adjustments for your seatingposition, enabling you to enjoy themost ergonomic and beneficial sup
Some parts of leather interior contain artificial leather.

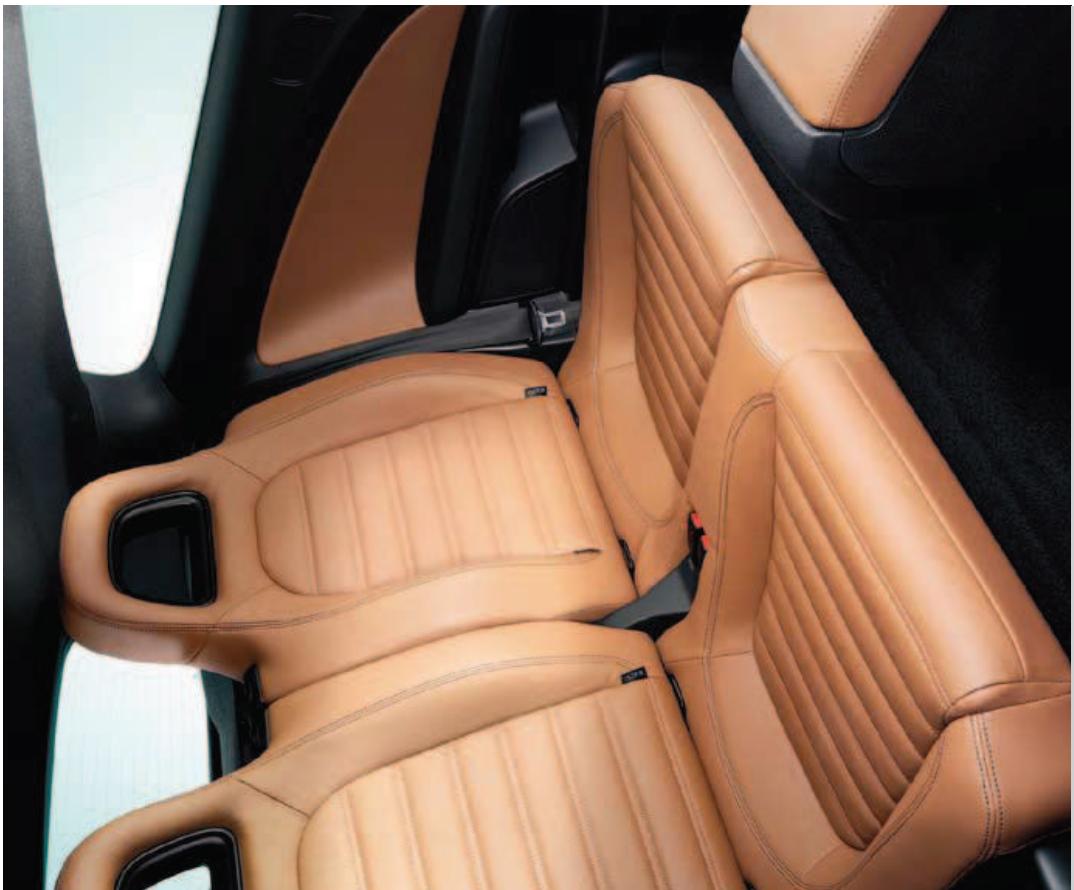

Luxurious 'Vienna' leather upholstery in Truffle or Black includes heated front sports seats
which provide optimum lateral support on tight bends ensuring maximum driving fun.
The electrically-adjustable driver's seat lumbar support will ensure the best possible seating
position on every journey. Optional on all models.
interior with additional natural light,
providing an uninterrupted view of the
sky overhead. Optional on all models.
Some parts of leather interior contain artificial leather.
14
Introduction | Design | Models | Safety | Optional equipment | Colours & Upholstery | Engines | Technology | Service Paint | Upholstery & Combinations
Please note: Screen technology does not allow for exact reproduction of the paint colours.
Introduction | Design | Models | Safety | Optional equipment | Colours & Upholstery | Engines | Technology | Service Paint | Upholstery & Combinations
Standard Optional at extra cost
Paint | Upholstery & Combinations
Upholstery
* Some parts of leather interior will contain artificial leather. Please note: Screen technology does not allow for exact reproduction of the upholstery colours.
| Combinations |
| Seat upholstery | Carpet | Dashboard | Salsa Red 4Y | Candy White B4 | Rising Blue metallic 4C* | Viper Green metallic 6B* | Sumatra metallic 7C* | Reflex Silver metallic 8E* | Opal Silver metallic 9A* | Pewter Grey metallic M8* | Shadow Blue metallic P6* | Deep Black pearl effect 2T* |
| 'Merlin' cloth | | | | | | | | | | | | |
| Black (AZ) | Anthracite | Anthracite/Anthracite | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Sports seats in 'Vienna' leather*† | | | | | | | | | | | | |
| Black (QX) | Anthracite | Anthracite/Anthracite | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| Truffle (TL) | Anthracite | Anthracite/Anthracite | - | ○ | - | - | ○ | ○ | ○ | ○ | ○ | ○ |
- Metallic and pearl effect paints and Vienna'leather upholstery are optional at extra cost. † Some parts of leather interior will contain artificial leather.
Engines and gearboxes
Whichever engine or gearbox combination you select for your Scirocco, you can besure of outstanding performance , excellent torque and efficient fuel consumption .
That's because advanced Volkswagen engine technology delivers phenomenal results, whatever the length of your journey – long distance or a quick spin, whether you opt
for a petrol or diesel variant.

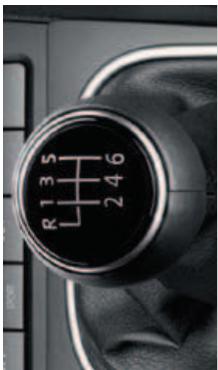

The fully synchronised six speed
manual gearbox is easy to use, giving
you total control.
The Adaptive Chassis Control (ACC) adapts the damping control and shock absorption rate to the road
conditions and driving style you require within milliseconds. At the touch of a button, you decide how firm
or comfortable you wish to set the suspension, with a choice of three settings: Normal, Comfort or Sport.
In Normal mode, the principal advantage of the system is that the dampers are constantly adjusted to
the road and the driving conditions. In Sport mode, the dampers are considerably stiffer and the steering
becomes more responsive. A direct contrast is Comfort mode where the suspension is adjusted to maximise
passenger comfort, particularly when travelling on poor road surfaces or long motorway journeys.
Image shown is for illustration purposes only and may not necessarily reflect UK specification.
The TDI diesel engine with common
rail technology is fitted with a Diesel
Particulate Filter (DPF) which filters
out exhaust elements that are harmful
to health and the environment,
significantly reducing diesel emissions
as a result.
as a result.
The DSG gearbox offers a genuine alternative to a manual gearbox because it is able to change gear faster than a manual gearbox and more smoothly than a conventional automatic. The DSG gearbox also features an auto hold function which prevents your Scirocco from rolling back when pulling away or during a hill start, making every journey just that little bit easier.
Scirocco - 1.4 litre TSI 160 PS Technical specification
Notes.
| Manual | Automatic DSG | NOTES: |
| Engine | Engine type | Four cylinder petrol | Four cylinder petrol | 01) The maximum power output figures are quoted in PS (or Pferdestärke, which is the metric equivalent of horsepower). To convert from metric to imperial horsepower, divide the PS figure by 1.0139. |
| Cubic capacity, ltrs/cc | 1.4/1390 | 1.4/1390 |
| Max. output, PS (01)/kW at rpm | 160/118 | 160/118 | 02) Figures are calculated in accordance with manufacturer's criteria. The individual unladen weight depends on the specification of the vehicle, this then reduces the possible payload accordingly. |
| Max. torque, lbs.ft/Nm at rpm | 5800 | 5800 | 03) With increasing altitude the engine performance diminishes. From 1,000 m above sea level and for every 1,000 m thereafter 10% of the vehicle/trailer weight (trailer weight + gross vehicle weight) must be deducted. |
| Gearbox | Six speed manual | Seven speed auto DSG |
| Weights, kgs | Unladen weight (02) | 1346 | 1360 | 04) Thanks to the knock control, unleaded four star (at least 95 RON) can be used instead of unleaded Super plus. In order to achieve maximum fuel consumption benefits on the TSI engine, Ultra Low Sulphur Petrol (ULSP) must be used. |
| Gross vehicle weight | 1720 | 1730 |
| Payload (02) | 449 | 445 |
| Axle load limit: Front Rear | 1000 | 1010 | 05) The use of RME and FAME (bio diesel) is not possible. |
| 770 | 770 |
| Load limits, kgs (03) | Max. roof load | 75 | 75 | 06) Official fuel consumption according to EU Directive 99/94. The consumption calculation according to 1999/100/EC is based on the actual unladen weight of the vehicle. Additional specifications can lead to a higher weight class and hence to consumption figures of this higher weight class. The driving style, road and traffic conditions, environmental influences and vehicle condition can in practice lead to consumption figures, which may differ from those calculated with this standard. |
| Performance | Top speed (where the law permits), mph (km/h) | 135 (218) | 135 (218) | 07) The weight of a vehicle will influence the level of CO2 emission it produces; as a result, vehicles with higher levels of specification and factory-fitted options may emit higher levels of CO2. |
| Acceleration, secs 0 - 62 mph | 8.0 | 8.0 | 08) VDA measuring method using 200 x 100 x 50 mm blocks. |
| ABI insurance group, 1 - 20 (1 - 50)† | 14E (25E) | 14E (25E) |
| Environmental information | Fuel grade, minimum | Unleaded, 95 RON (04) | Unleaded, 95 RON (04) | |
| Fuel tank capacity, galls/ltrs | 11/50 | 11/50 |
| Official fuel consumption, mpg/ltr per 100 km (06) Urban | 32.5/8.7 | 35.3/8.0 |
| Extra-urban | 52.3/5.4 | 52.3/5.4 |
| Combined | 42.8/6.6 | 44.8/6.3 |
| Official CO2 emission, g/km (07) | 154 | 147 |
| Emission class | EURO 5 | EURO 5 |
| Noise, dB | 74.0 | 71.0 |
| Maximum luggage capacity (08) | With rear seat upright | 312 | 312 | |
Please note, from December 2009 the insurance industry will switch from the current rating system of groups 1 - 20 to a new 1 - 50 insurance scale.
GT - 2.0 litre TSI 200 PS
Technical specification
Notes.
| Engine | Engine type | Four cylinder petrol | Four cylinder petrol |
| Cubic capacity, ltrs/cc | 2.0/1984 | 2.0/1984 |
| Max. output, PS (01)/kW at rpm | 200/147 | 200/147 |
| 5100-6000 | 5100-6000 |
| Max. torque, lbs.ft/Nm at rpm | 207/280 | 207/280 |
| 1700-5000 | 1700-5000 |
| Gearbox | Six speed manual | Six speed auto DSG |
| Weights, kgs | Unladen weight (02) | 1373 | 1393 |
| Gross vehicle weight | 1740 | 1760 |
| Payload (02) | 442 | 442 |
| Axle load limit: Front Rear | 1020 | 1040 |
| 770 | 770 |
| Load limits, kgs (03) | Max. roof load | 75 | 75 |
| Performance | Top speed (where the law permits), mph (km/h) | 146 (235) | 145 (233) |
| Acceleration, secs 0 - 62 mph | 7.2 | 7.1 |
| ABI insurance group, 1 - 20 (1 - 50)† | 16E (32E) | 16E (32E) |
| Environmental information | Fuel grade, minimum | Unleaded, 95 RON (04) | Unleaded, 95 RON (04) |
| Fuel tank capacity, galls/ltrs | 11/50 | 11/50 |
| Official fuel consumption, mpg/ltr per 100 km (06) | | |
| Urban | 26.6/10.6 | 26.9/10.5 |
| Extra-urban | 47.9/5.9 | 47.9/5.9 |
| Combined | 37.2/7.6 | 37.2/7.6 |
| Official CO2 emission, g/km (07) | 179 | 179 |
| Emission class | EURO 4 | EURO 4 |
| Noise, dB | 75.0 | 74.0 |
| Maximum luggage capacity (08) | With rear seat upright | 312 | 312 |
Please note, from December 2009 the insurance industry will switch from the current rating system of groups 1 - 20 to a new 1 - 50 insurance scale.
Introduction | Design | Models | Safety | Optional equipment | Colours & Upholstery | Engines | Technology | Service
Overview | 1.4 litre TSI 160 PS | 2.0 litre TSI 200 PS | 2.0 litre TDI 140 PS | 2.0 litre TDI 170 PS
Scirocco, GT - 2.0 litre TDI 140 PS Technical specification
Notes.
| Manual | Automatic DSG | NOTES: |
| Engine | Engine type | Four cylinder diesel | Four cylinder diesel | 01) The maximum power output figures are quoted in PS (or Pferdestärke, which is the metric equivalent of horsepower). To convert from metric to imperial horsepower, divide the PS figure by 1.0139. |
| Cubic capacity, ltrs/cc | 2.0/1968 | 2.0/1968 |
| Max. output, PS (01)/kW at rpm | 140/103 | 140/103 | 02) Figures are calculated in accordance with manufacturer's criteria. The individual unladen weight depends on the specification of the vehicle, this then reduces the possible payload accordingly. |
| Max. torque, lbs.ft/Nm at rpm | 236/320 | 236/320 | 03) With increasing altitude the engine performance diminishes. From 1,000 m above sea level and for every 1,000 m thereafter 10% of the vehicle/trailer weight (trailer weight + gross vehicle weight) must be deducted. |
| Gearbox | Six speed manual | Six speed auto DSG |
| Weights, kgs | Unladen weight (02) | 1379 | 1395 | 04) Thanks to the knock control, unleaded four star (at least 95 RON) can be used instead of unleaded Super plus. In order to achieve maximum fuel consumption benefits on the TSI engine, Ultra Low Sulphur Petrol (ULSP) must be used. |
| Gross vehicle weight | 1750 | 1770 |
| Payload (02) | 446 | 450 |
| Axle load limit: Front Rear | 1030 | 1050 | 05) The use of RME and FAME (bio diesel) is not possible. |
| 770 | 770 |
| Load limits, kgs (03) | Max. roof load | 75 | 75 | 06) Official fuel consumption according to EU Directive 99/94. The consumption calculation according to 1999/100/EC is based on the actual unladen weight of the vehicle. Additional specifications can lead to a higher weight class and hence to consumption figures of this higher weight class. The driving style, road and traffic conditions, environmental influences and vehicle condition can in practice lead to consumption figures, which may differ from those calculated with this standard. |
| Performance | Top speed (where the law permits), mph (km/h) | 129 (207) | 127 (205) | 07) The weight of a vehicle will influence the level of CO2 emission it produces; as a result, vehicles with higher levels of specification and factory-fitted options may emit higher levels of CO2. |
| Acceleration, secs 0 - 62 mph | 9.3 | 9.3 | 08) VDA measuring method using 200 x 100 x 50 mm blocks. |
| ABI insurance group, 1 - 20 (1 - 50)† | 12E (24E) | 12E (24E) |
| Environmental information | Fuel grade, minimum | Diesel (05) | Diesel (05) | |
| Fuel tank capacity, galls/ltrs | 11/50 | 11/50 |
| Official fuel consumption, mpg/ltr per 100 km (06) Urban | 42.8/6.6 | 39.8/7.1 |
| Extra-urban | 673/4.2 | 61.4/4.6 |
| Combined | 55.4/5.1 | 51.4/5.5 |
| Official CO2 emission, g/km (07) | 134 | 145 |
| Emission class | EURO 5 | EURO 5 |
| Noise, dB | 72.0 | 73.0 |
| Maximum luggage capacity (08) | With rear seat upright | 312 | 312 | |
Please note, from December 2009 the insurance industry will switch from the current rating system of groups 1 - 20 to a new 1 - 50 insurance scale.
GT - 2.0 litre TDI 170 PS
Technical specification
Notes.
| Engine | Engine type | Four cylinder diesel | Four cylinder diesel |
| Cubic capacity, ltrs/cc | 2.0/1968 | 2.0/1968 |
| Max. output, PS (01)/kW at rpm | 170/125 | 170/125 |
| 4200 | 4200 |
| Max. torque, lbs.ft/Nm at rpm | 258/350 | 258/350 |
| 1750-2500 | 1750-2500 |
| Gearbox | Six speed manual | Six speed auto DSG |
| Weights, kgs | Unladen weight (02) | 1395 | 1421 |
| Gross vehicle weight | 1770 | 1800 |
| Payload (02) | 450 | 454 |
| Axle load limit: Front Rear | 1050 | 1080 |
| 770 | 770 |
| Load limits, kgs (03) | Max. roof load | 75 | 75 |
| Performance | Top speed (where the law permits), mph (km/h) | 138 (222) | 136 (220) |
| Acceleration, secs 0 - 62 mph | 8.1 | 8.1 |
| ABI insurance group, 1 - 20 (1 - 50)† | 14E (26E) | 14E (26E) |
| Environmental information | Fuel grade, minimum | Diesel (05) | Diesel (05) |
| Fuel tank capacity, galls/ltrs | 11/50 | 11/50 |
| Official fuel consumption, mpg/ltr per 100 km (06) Urban | 40.4/7.0 | 38.7/7.3 |
| 65.7/4.3 | 60.1/4.7 |
| Extra-urban | 53.3/5.3 | 50.4/5.6 |
| Combined | 139 | 147 |
| Official CO2 emission, g/km (07) Emission class | EURO 5 | EURO 5 |
| Noise, dB | 72.0 | 68.0 |
| Maximum luggage capacity (08) | With rear seat upright | 312 | 312 |
Please note, from December 2009 the insurance industry will switch from the current rating system of groups 1 - 20 to a new 1 - 50 insurance scale.
1.4 litre/160 PS (01) (118 kW) petrol engine: EU5 compliant four cylinder in-line engine with homogeneous mode (Lambda 1), stratified high-pressure start, turbocharger with waste gate, additional mechanical supercharger, intercooler and dual-circuit cooling system. Fuel system regulated according to requirements using high pressure fuel pump with integrated pressure limiting valve. Intake manifold flap change-over omitted, regulated duo-cer oil pump, metal cartridge oil filter and three way catalytic converter
- 2.0 litre/200 PS (^01) (147 kW) petrol engine: four cylinder in-line engine, aluminium cylinder head, four valves per cylinder with roller rocker finger valve drive, electronic direct injection, variable inlet valve timing, programmed ignition with cylinder-selective anti-knock control, four single spark ignition coils, longlife spark plugs, exhaust gas turbocharger, three-way close-coupled pre-catalyst and underbody catalyst, lambda control
- 2.0 litre/140 PS (^01) (103 kW) common rail diesel engine: EU5 emissions standard, four cylinder in-line engine, four valves per cylinder, aluminium-silicon alloy cylinder head, reduced piston crown volume (improves swirl generation in the cylinder), toothed backlash compensator, intake manifold with electric continual tumble flap control, electronically controlled common rail direct injection fuel system with Bosch high pressure pump (up to 1800 bar) and 8-hole piezo injector units, pre-supply electronic fuel pump, oil cooler, intercooler, low temperature exhaust gas recirculation, additional coolant pump, turbocharger with variable turbine geometry, catalytic converter and Diesel Particulate Filter (DPF)
- 2.0 litre/170 PS (01) (125 kW) common rail diesel engine: EU5 emissions standard, four cylinder in-line engine, four valves per cylinder, aluminium-silicon alloy cylinder head, reduced piston crown volume (improves swirl generation in the cylinder), toothed backlash compensator, intake manifold with electric continual tumble flap control, electronically controlled common rail direct injection fuel system with Bosch high pressure pump (up to 1800 bar) and 8-hole piezo injector units, pre-supply electronic fuel pump, oil cooler, intercooler, low temperature exhaust gas recirculation, additional coolant pump, turbocharger with variable turbine geometry, catalytic converter and Diesel Particulate Filter (DPF)
Steering
- Electro-mechanical steering rack
- Collapsible, height and length
Brakes
- Electronically controlled Anti-lock Braking System (ABS) with Electronic Brake-pressure Distribution (EBD)
- Diagonal twin-circuit brake system with front and rear disc brakes (front ventilated)
Asbestos-free brake pads
Hydraulic Brake Assist (HBA)
Dimensions
Volkswagen service
| The Volkswagen Warranty.
Three-year Warranty.
All Volkswagen Sciroccos come with a three-year/60,000 miles warranty, which protects your car against the failure of most mechanical and electrical components due to manufacturing defects. This comprises a two-year manufacturer's warranty with unlimited mileage plus a further one-year/60,000 miles (whichever is soonest) Retailer Warranty. Should the mileage exceed 60,000 miles within the first two years, the manufacturer's two-year warranty will still be valid. If an additional warranty for subsequent years or higher mileage is desired, it may be purchased from an authorised Volkswagen retailer or repairer; however, this additional warranty must be purchased before the mileage reaches 60,000*. Full details of the three-year warranty are available from your authorised Volkswagen retailer or repairer. * All warranty work must be completed by an authorised Volkswagen retailer or repairer. | Service Intervals.
Volkswagen are pleased to offer you a choice on how your Scirocc is serviced. The appropriate selection is entirely dependent on how the car is likely to be driven and its general use. To help you identify which type of service would be most suitable, please refer to the following guide.
The Time and Distance Service is recommended for vehicles that will cover less than 10,000 miles in 12 months and if the vehicle is likely to be used in the following way:
• Predominantly urban driving, short journeys with frequent cold starts.
• Activities regularly producing high engine loading, e.g. frequent hill climbs, driving with vehicle fully loaded and towing.
• Uneconomical driving style using high rpms with heavy acceleration and heavy braking.
The service intervals for the Time and Distance Service are as follows:
• Oil change service Every 10,000 miles/1 year (whichever is soonest).
• Interval service Every 20,000 miles/2 years (whichever is soonest).
• Inspection service Every 40,000 miles/3 years (whichever is soonest).
The LongLife Service is recommended for vehicles with a daily mileage of more than 25 miles where the vehicle is driven regularly mainly on longer distance journeys. The vehicle is driven mainly at a constant speed with minimum vehicle and engine loading, minimal towing and driven in an economical manner.
With the LongLife Service the vehicle can cover anywhere between 10,000† and a maximum of 18,000† miles or 24 months (whichever is soonest) between oil changes. Inspection service is typically in the third year of ownership and thereafter every second year, for vehicles with an approximate annual mileage of 10,000 miles.
† Please note that milestones are approximate as the service indicator system uses kilometres as the distance measurement. Please consult your authorised Volkswagen retailer or repairer for advice and full details. | Extended Warranty.
You may purchase additional protection from your authorised Volkswagen retailer or repairer, or contact 0870 9000 115.
Volkswagen Finance‡.
Volkswagen Finance specialises in providing funding solutions for Volkswagen drivers. Whether your Volkswagen is for private or business use, you can choose from a range of funding options.
• Solutions - a personal contract plan
• Hire purchase
• Lease purchase
• Finance lease
• Contract hire
With all Volkswagen Finance products you can choose a fixed-cost maintenance plan to help you budget for your servicing and maintenance costs.
No matter what finance product you choose, your local Volkswagen retailer will be able to provide you with a personalised quote that could meet your budget and vehicle needs.
‡ Volkswagen Finance is a trading name of Volkswagen Financial Services (UK) Limited. An offer of finance depends on certain conditions. Available to people over 18 in the UK only. | Volkswagen Roadside Assistance.
Every new car is registered for Volkswagen Roadside Assistance for one year. This provides vehicle home and roadside recovery in the unlikely event of a breakdown in the UK and Europe (subject to conditions). Volkswagen Roadside Assistance can also be purchased for subsequent years. For full details, please contact your authorised Volkswagen retailer or repairer.
Tax Free Sales.
For full details, please contact your authorised Volkswagen retailer.
CO2 Emission.
Increased weight of a vehicle, including higher trim levels and the addition of options will have a detrimental influence on the level of fuel consumption and CO2 emissions produced.
The CO2 and fuel consumption figures are obtained from tests on a representative vehicle of the type, conducted and approved in accordance with Council Directive 80/1268/EEC as amended by Directive 1999/100/EC (or later) on the approximation of the laws of the member states relating to the carbon dioxide emissions and the fuel consumption of motor vehicles.
Please Note:
Some illustrations in this brochure do not necessarily reflect UK specifications and may not be available. In particular, controls and some items of equipment are positioned differently for the UK.
The specifications contained in this brochure are for information purposes only and are subject to change. If you require any specific feature, you must consult your authorised Volkswagen retailer who is regularly updated with any change in specification. Please check model availability and full specification details with your authorised Volkswagen retailer prior to ordering.
Note: We would like to advise you that telephone calls to Volkswagen Customer Care may be monitored and recorded as part of our training and quality assurance processes. All our monitoring and recording processes meet Ofterl regulations. |
