NEW BEETLE - Voiture VOLKSWAGEN - Notice d'utilisation et mode d'emploi gratuit

Type de carrosserie	Berline 3 portes / Cabriolet
Années de production	1998 - 2011
Restylage	2006
Plateforme	VW PQ34
Motorisations essence	1.4 75 ch, 1.6 100 ch, 1.8 T 150 ch
Motorisations diesel	1.9 TDi 90 ch, 1.9 TDi 105 ch
Transmission	Traction avant
Boite de vitesses	Manuelle 5 rapports / Automatique 4 à 6 rapports
Longueur	4,13 m
Largeur	1,72 m
Hauteur	1,49 m
Empattement	2,51 m
Poids	1 250 kg
Volume du coffre	210 litres (769 litres sièges rabattus)
Capacité du réservoir	55 litres
Nombre de places	4
Vitesse maximale (1.8 T)	201 km/h
0 à 100 km/h (1.8 T)	9,5 secondes

FOIRE AUX QUESTIONS - NEW BEETLE VOLKSWAGEN

Quels carburants utiliser dans la Volkswagen New Beetle ?

Selon la motorisation, la New Beetle accepte de l'essence sans plomb (versions 1.4, 1.6 et 1.8 T) ou du gazole (versions 1.9 TDi). Ne jamais inverser les carburants sous peine d'endommager le moteur. La version 1.8 T est compatible SP95 ou SP98.

Quelle est la capacité du coffre de la New Beetle ?

La New Beetle dispose d'un coffre de 210 litres en configuration normale 4 places. En rabattant les dossiers des sièges arrière, le volume utile peut atteindre environ 769 litres. L'accès se fait par le hayon arrière.

Quelle est la contenance du réservoir de carburant ?

Le réservoir de la New Beetle a une capacité de 55 litres. Le voyant de réserve s'allume généralement lorsqu'il reste environ 7 à 8 litres, ce qui laisse une réserve de sécurité suffisante pour atteindre une station-service.

À quelle fréquence faut-il changer l'huile moteur ?

Volkswagen recommande une vidange tous les 15 000 km ou une fois par an. Utilisez une huile conforme à la spécification VW 502 00 pour les moteurs essence ou VW 505 00 pour les diesels. La contenance varie de 3,5 à 4,5 litres selon la motorisation.

Quelle pression de gonflage pour les pneus de la New Beetle ?

La pression recommandée est généralement de 2,2 bar à l'avant et 2,3 bar à l'arrière en charge normale. Ces valeurs peuvent varier selon la version et le chargement. Consultez l'étiquette collée sur le montant de la portière conducteur pour les valeurs exactes de votre véhicule.

Comment réinitialiser le voyant de service (révision) ?

Contact coupé, maintenez appuyé le bouton de remise à zéro du compteur kilométrique, puis mettez le contact sans démarrer. Maintenez le bouton enfoncé jusqu'à ce que l'affichage se modifie et confirme la remise à zéro. La procédure peut légèrement varier selon l'année du véhicule.

Quand faut-il remplacer la courroie de distribution ?

Volkswagen préconise un remplacement de la courroie de distribution tous les 90 000 km ou tous les 5 ans. Ce remplacement est critique : une courroie cassée en roulant peut provoquer des dommages moteur irréparables et coûteux.

La New Beetle ne démarre pas, que vérifier en premier ?

Commencez par contrôler la batterie, souvent déchargée après une longue immobilisation. Vérifiez ensuite les fusibles dans le boitier sous le tableau de bord. Si le démarreur tourne mais le moteur ne part pas, le capteur de vilebrequin ou la pompe à carburant peuvent être en cause.

Le chauffage souffle de l'air froid, quelle en est la cause ?

Cela indique souvent un niveau de liquide de refroidissement insuffisant ou un thermostat défaillant. Vérifiez le niveau dans le vase d'expansion à froid. Si le niveau est correct, un diagnostic électronique chez un professionnel est recommandé.

Où se trouve la roue de secours sur la New Beetle ?

La roue de secours (ou galette de dépannage selon les versions) est logée sous le plancher du coffre. Retirez le tapis de coffre et dévissez le boulon central pour y accéder. Vérifiez régulièrement la pression de cette roue même si elle ne sert pas.

La New Beetle existe-t-elle en version cabriolet ?

Oui, une version cabriolet (code carrosserie 1Y7) a été commercialisée de 2003 à 2010. La capote est électrique et s'actionne via un bouton situé entre les deux sièges avant. La manoeuvre doit être réalisée à l'arrêt, véhicule à l'arret complet.

Quelles sont les tailles de pneus d'origine de la New Beetle ?

Selon la version et l'année, les pneus d'origine sont en 195/65 R15 ou 205/55 R16. Consultez l'étiquette sur le montant de porte conducteur ou le manuel du véhicule pour confirmer la dimension exacte montée sur votre exemplaire.

MODE D'EMPLOI NEW BEETLE VOLKSWAGEN

The New Beetle

and New Beetle Cabriolet

A unique exterior and interior.

New Beetle driving is about enjoyment. So to maximise your enjoyment we thought you'd appreciate loads of great features. Like ESP, power steering, central locking, front electric windows and body-coloured door mirrors with integrated indicators which are also electrically heated and adjustable. The driver's side door mirror is also fitted with wide angle glass to make overtaking safer.
You'll also find a powerful 'Gamma' radio/CD player with six loudspeakers in the New Beetle, and 10 in the New Beetle Cabriolet. It not only provides terrific stereo sound – it also blends perfectly with the New Beetle's dashboard design.

• An extensive list of interior features includes a digital clock and exterior temperature gauge.
• The system maintains the above described temperature parameters.
  in the driver's door for easy
  A glance at the clear and easy to see
  with important data.
  Sporty 16" 'Houston' alloy wheels with 205/55 tyres are standard on
  the Luna 1.4 litre and

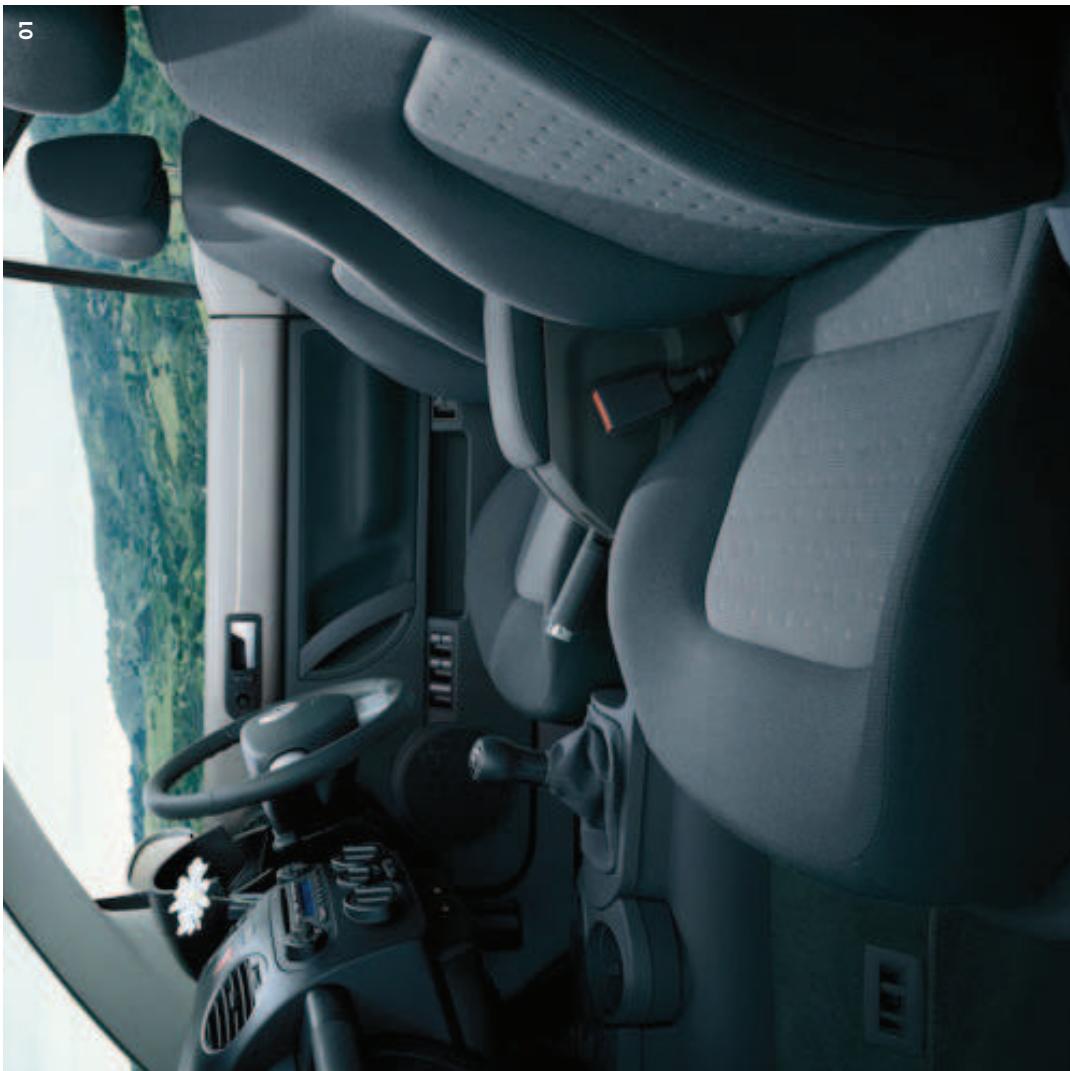

01 The attractive and durable seat upholstery in ‘Eclipse’ design comes in a range of appealing colours. Interior shown is New Beetle Cabriolet 1.9 TDI.	03 To improve all-round vision, the body-coloured door mirrors are both heated and electrically adjustable. Their simple operation makes adjustment for individual drivers a fast and easy process. These door mirrors also feature integrated indicators to make your intentions totally clear.	06 Amongst its extensive list of features, the ‘Gamma’ radio boasts a single CD player, 30 station presets, a scan facility and Traffic Information Memory (TIM).

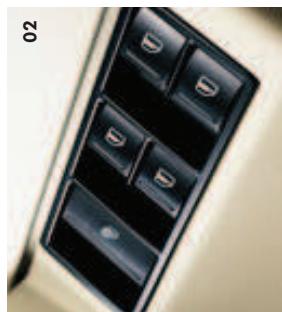

02 All models in the New Beetle Cabriolet range have electric front and rear windows as standard. Located in the driver's door, the controls can operate the windows individually or all at once. So it's easy to remove the last barrier between you and the feeling of pure freedom that only a cabriolet can deliver. For comfort and safety the front electric windows feature a one-touch open and close facility and anti-trapping protection, should anything be in the way.	04 The height and reach adjustable steering wheel ensures the optimum driving position.

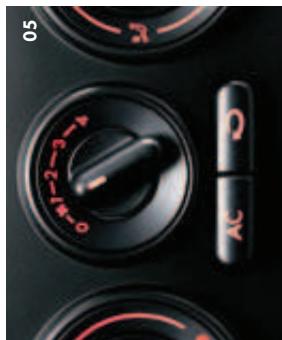

	05 Manual air conditioning provides year round comfort.
	Standard on 1.9 TDI, 2.0 litre and 1.8T models.

Wherever you sit in the New Beetle Cabriolet you'll always enjoy a comfortable place in the sun. It's all down to ergonomic design – the way that comfort and space are both achieved to maximum effect, ensuring the New Beetle Cabriolet is a fully accomplished four seater. The harmonious blend of design and function is also evident in the dashboard area, where the driver enjoys a clear view of the instruments and will find all controls within easy reach. In fact, all around you'll find proof of the New Beetle Cabriolet's high quality workmanship and attention to detail – even down to the unique vase for your favourite flower.

We hope you'll agree that the New Beetle and New Beetle Cabriolet are somewhat special when you compare them with other cars on the road today. Their individuality and practical solutions are part of their appeal. For example, as a two door, we designed some special front seats that lift up and away, so it's easy to get into the back. This simple task is almost effortless due to the design detail.
We've also included numerous features for your convenience, such as the two removable cup holders incorporated into the centre console. We allowed plenty of storage space, hence the net pockets on the front doors of the New Beetle, the door pockets in the front of the New Beetle Cabriolet, the document pockets on the rear of the front seats, the glove compartment and the front centre armrest (front centre armrest storage area is reduced if the optional front armrest-mounted six CD autochanger is fitted).
* Some parts of leather interior will contain artificial leather.

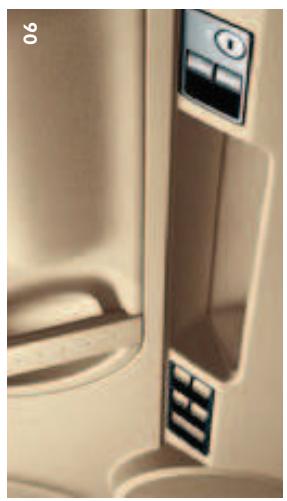

06 Always close to hand. The New

height adjustment will help youachieve the most comfortable

achieve the most comfortable seating position.

05 The standard front centre armrest

doubles as a handy storage

compartment and houses theoptional six CD autochanger

Interior shown features optional

Interior shown features optional leather* upholstery.

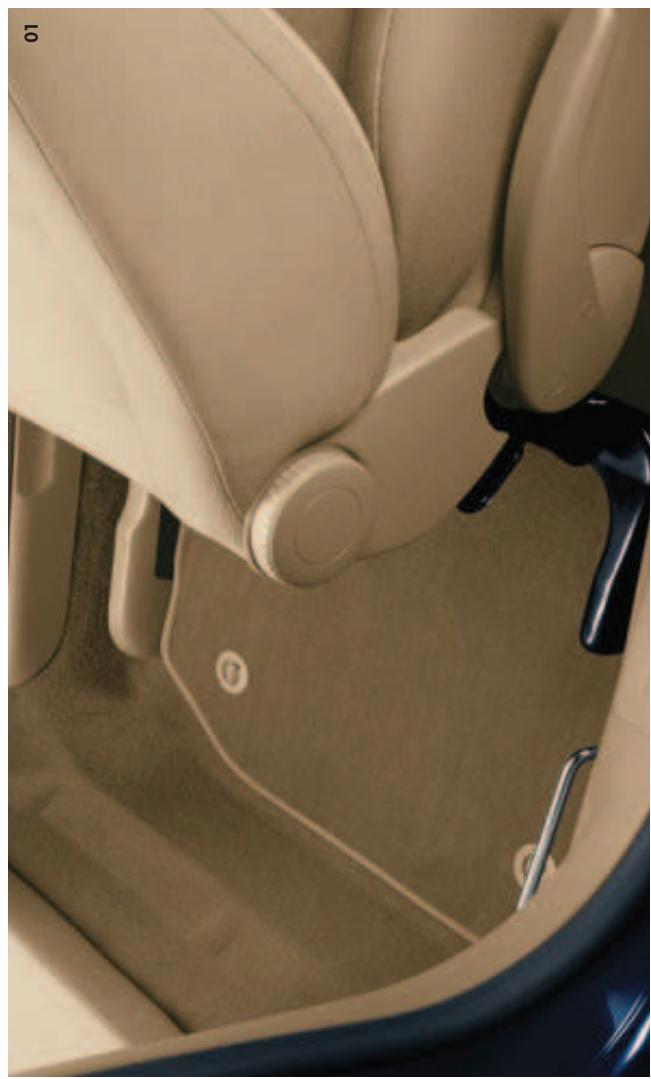

01 'Easy entry' seats make it easier for

rear passengers to get in and out.

As you unlock the backrest, the

front seats automatically slide

forwards. Carpet mats help prote

the interior and are standard on

1.9 TDI models and above, and

optional on all other models.

For night-time use, the vanity

mirror is illuminated.

The cup holders keep your drinks

safe and within easy reach.

Models | Quality | Safety | Colours & Upholstery | Equipment | Engines | Technology | Service
Page 1 | Page 2 | Page 3 | Page 4 | Page 5

Print | Exit |

The sun is rising.

Simply unlock the New Beetle Cabriolet's hood and

then hold the operating button as the electrically operated hood glides down.* As it concertinas and

folds flat, it comes to rest on the tail end. From start to finish, this elegant operation has taken just 13 seconds.

For neatness, it can then be tucked under the tailoredhood cover that is colour co-ordinated to the chosenwhelates color of your New Beetle Cabriolet .

Beauty needn't affect functionality.

01 - 04 The multilayered textile hood of the

New Beetle Cabriolet can be opened and

closed both quickly and easily. When closed,

its taut fit is a particularly impressive elementof the can's design , creating an atmosphere .

of the car's design, creating an atmosphere where outside noises can barely be heard.

It even features a glass, heated rear screen .The choice of fine quality materials and the

highest standards of workmanship help ensure

the hood's exceptional durability - against

abrasion, the weather and even the brushes

of a car wash.

05 Releasing the hood is simple. Just push and

Twist the handle to unlock, then leave the rest of the room in the center.

to the electric assistance.

06 If you are travelling briskly, wind buffeting can be heard and heard from the floor. Available

be reduced by a wind defector. Available as

optional extra, it can be fitted in seconds to

reduce air turbulence.

07 Fitted in the centre console, the control for

power hood can be easily reached.*

As a precautionary measure, a hood warning

light near the release handle will i

If the hood is not securely locked.

• Manual hood on Luna 1.4 litre models.

Performance-enhanced beauty.

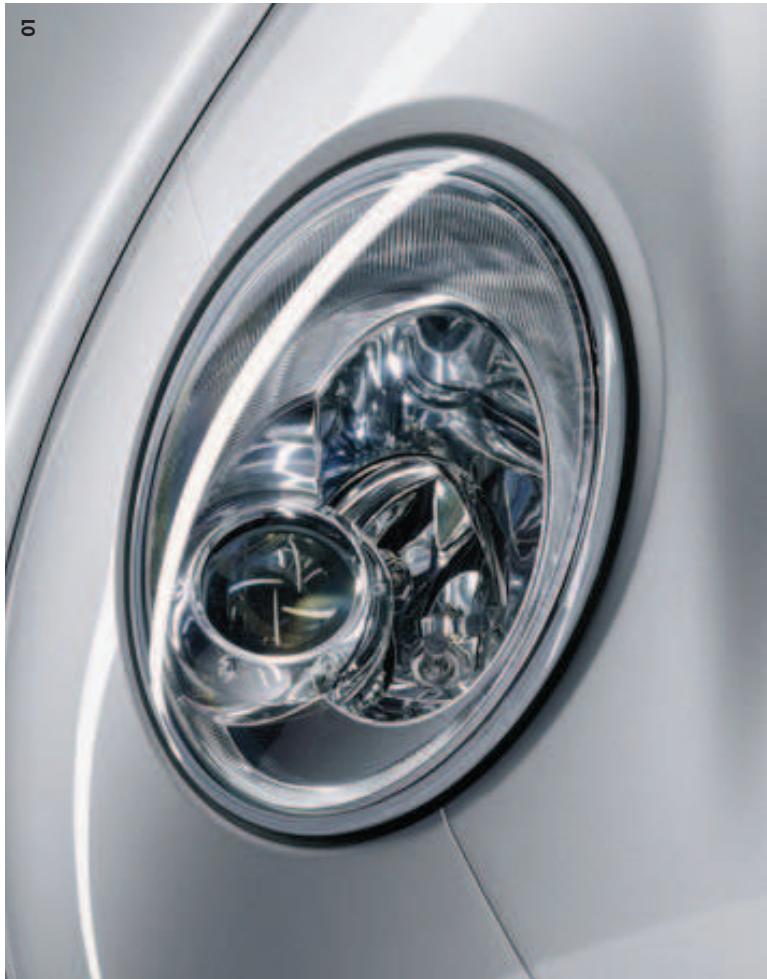

A galvanised body can be admired for years to come.

With the Volkswagen New Beetle and New Beetle Cabriolet, quality takes on a new importance. Because with a car that looks so good, you'll want to enjoy its classic design for as long as possible. The complete body of both models is therefore galvanised to protect against corrosion. Moreover, your Volkswagen retailer even gives you a 12-year warranty against rusting through.

The excellent build quality of the New Beetle and New Beetle Cabriolet is evident in many other ways, for example, the narrow and uniform gaps between the body panels. Such precision build is possible because of its great body rigidity achieved through special bonding techniques on areas of particular strain. Close fit panels have numerous benefits including reduced wind noise and improved aerodynamics which in turn lead to reduced fuel consumption. Not only is body strength an important safety measure, it's also key to great roadholding.

Impressive build quality is not only seen, it can be heard and felt as well. Like the sound the door makes as it closes or how the refined interior surfaces are pleasant to touch.

The excellent quality also shows in another, crucial field: repair friendliness. The wings and bumpers are made of resilient plastic and bolted to the body. Consequently, some panels can be exchanged in minutes, for example after parking damage.

01 The narrow tolerances between the panels highlight the exceptional build quality.
02 The use of computerised construction techniques helps ensure the precise fit of every panel.

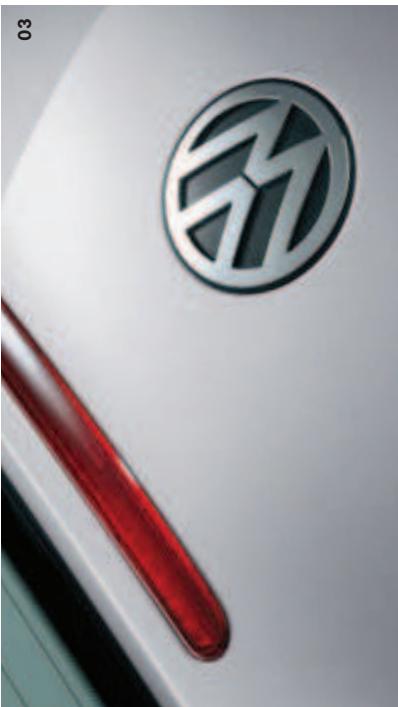

03 Perfect workmanship provides a perfect finish.

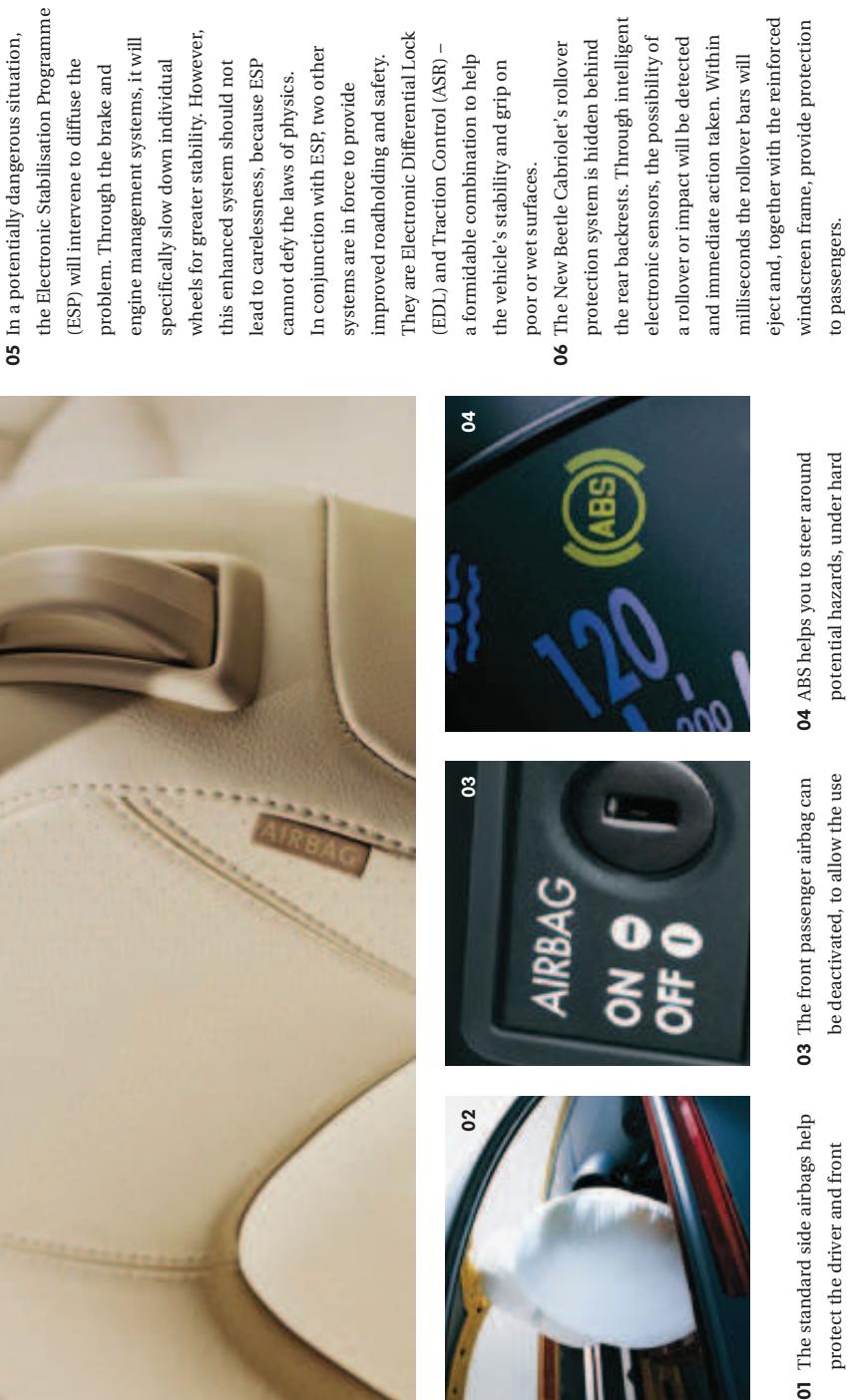

The epitome of modern day safety.

We know you'll enjoy driving the New Beetle, but we want you to feel totally safe and secure as well. The chassis, for example, is strengthened at important points across the bodywork. Such joints absorb energy, and help to keep the inner protective safety cell intact following a collision. You'll also notice that in the New Beetle Cabriolet there's no rollover bar to obstruct the view of the clear blue sky. You can be assured however that it's there if you need it. At the slightest hint of a roll or impact, rollover bars eject from the rear backrests and together with a reinforced windscreen frame provide exceptional protection to passengers.

In addition to front airbags (passenger's front airbag can be deactivated if required), the driver and front passenger have the reassurance of side airbags, an Electronic Stabilisation Programme (ESP) for exceptional roadholding on poor or wet surfaces and front active head restraints which help lower the risk of whiplash injuries in the event of an accident. The two rear passengers are protected by three-point seat belts and head restraints.

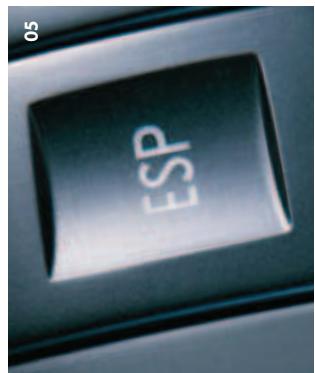

In fact, there are numerous electronic features that are constantly monitoring and assessing the driving situation and they are ready to react in milliseconds should the need arise. We believe that prevention is the safest form of protection. And when you feel safe, you can enjoy the touring experience of the New Beetle and New Beetle Cabriolet even more.
In addition, there is the innovative Isofix child seat mounting system. This allows children's seats, equipped with the Isofix system, to be fitted securely to the New Beetle and New Beetle Cabriolet's body via eyes between the rear seat backrest and seat base. Child seats with the Isofix system can be purchased from your Volkswagen retailer.

04 ABS helps you to steer around

potential hazards, under hard
braking, by preventing the wheels
from locking.

03 The front passenger airbag can

be deactivated, to allow the use.
of a rear facing child seat, by the
simple turn of a key.

02 Driver and front passenger

airbags are standard to help
protect the front seat occupants.

Life isn't just black and white...

• Sunflower, metallic and pearl effect paints are optional at extra cost.

Please note: Screen technology does not allow exact reproduction of the paint colours. For further details, please contact your Volkswagen retailer.

• 'Graffiti' cloth sports seats and leather upholstery are optional at extra cost.

1 For use in combination with harvest moon beige paint. 2.6.3.4. Use of the light that will not be completely absorbed
. Some parts of leather interior will contain artificial leather .Please note : Screen technology does not allow exact reproduction
Please note: Screen technology does not show exact reproduction of the upholstery colours. For further details, please contact your Volkswagen retailer.

Seat upholstery

Carpets

Dashboard

black A1

candy white B4

sunflower T1*

harvest moon beige VI

salsa red 4Y

shadow blue metallic P6*

platinum grey metallic 2R*

reflex silver metallic 8E*

gecko green metallic 8U*

heavenly blue metallic 9966*

laser blue pearl effect V3*

deep black pearl effect 2T*

All models - 'Eclipse' cloth

●

black (BS/BZ1)

black

black/black

●

●

●

●

●

●

●

●

●

●

●

cream (BU)

cream

black/cream

●

-

-

●

●

●

●

-

●

-

●

Optional 'Graffiti' cloth sports seats*

○

black (EU/GA1)

black

black/black

○

○

○

○

○

○

○

○

○

○

○

Optional perforated leather*,2

○

cream (ZD)

cream

black/cream

○

-

-

○

○

○

-

○

-

○

○

black (ZL/ZR1)

black

black/black

○

○

○

○

○

○

○

○

○

○

○

Optional leather sports seats*,2

○

cream (74)

cream

black/cream

○

-

-

○

○

○

-

○

-

○

○

black (75/791)

black

black/black

○

○

○

○

○

○

○

○

○

○

○

Standard Optional at extra cost Not available
* Sunflower, metallic and pearl effect paints, 'Graffic' cloth sports seats and leather upholstery are optional at extra cost.
1 For use in combination with harvest moon beige paint.
2 Some parts of leather interior will contain artificial leather.

• Sunflower, metallic and pearl effect paints are optional at extra cost.

Please note: Screen technology does not allow exact reproduction of the paint colours. For further details, please contact your Volkswagen retailer.

Cabriolet hood.

Seat upholstery

Carpets

Dashboard

Tailored hood cover

black A1

candy white B4

sunflower TI*

harvest moon beige VI

salsa red 4Y

shadow blue metallic P6*

platinum grey metallic 2R*

reflex silver metallic 8E*

gecko green metallic 8U*

heavenly blue metallic 9966*

laser blue pearl effect Y3*

deep black pearl effect 2T*

All models - 'Eclipse' cloth

●

black (BS/BZ1)

black

black/black

black

●

●

●

●

●

●

●

●

●

●

●

cream (BU)

cream

black/cream

cream

●

-

-

●

-

●

●

-

-

●

●

Option 'Graffiti' cloth sports seats*

○

black (EU/GA1)

black

black/black

black

●

●

●

●

●

●

●

●

●

●

●

Optional perforated leather*,2

○

cream (ZD)

cream

black/cream

cream

●

-

-

●

-

●

●

-

●

-

●

black (ZL/ZR1)

black

black/black

black

●

●

●

●

●

●

●

●

●

●

●

Optional leather sports seats*,2

○

cream (74)

cream

black/cream

cream

●

-

-

●

-

●

●

-

●

-

●

black (75/791)

black

black/black

black

●

●

●

●

●

●

●

●

●

●

●

Standard Optional at extra cost Not available
Cabriolet hoods in black and cream. Unless indicated with a coloured circle, the combination is not available.
Please note: The tailored hood covers are colour co-ordina
* Sunflower, metallic and pearl effect paints, 'Graffiti' cloth sports seats and leather upholstery are optional at extra cost.
1 For use in combination with harvest moon beige paint. 2 Some parts of leather interior will contain artificial leather.
Please note: The Volkswagen Warranty does not cover the cost of cleaning the cabriolet hood.

Model shown is 1.9 litre TDI with optional 17'' 'Acapulco' alloy wheels and pearl effect paint.

The optional equipment.

Individuality through variety.

We all enjoy different things in life, so shouldn't your New Beetle or New Beetle Cabriolet reflect your own personal taste? With a wide range of optional equipment available, we can help you create an individual specification to turn your dream car into reality.

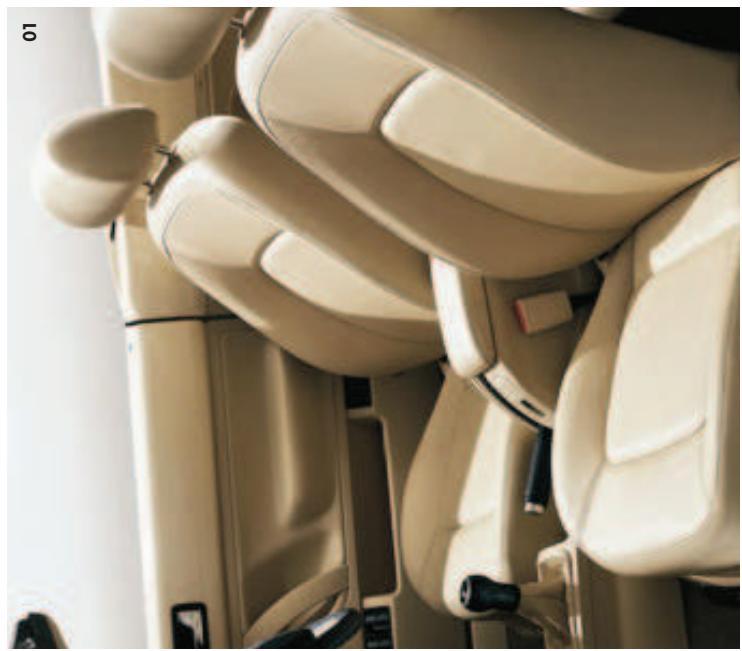

Leather upholstery.*

With leather upholstery, you can enjoy your New Beetle and New Beetle Cabriolet in a very special, exclusive atmosphere which can only be created by using the finest materials. Not only does leather have a unique, luxurious fragrance, it has practical benefits too. It's extremely durable, easy to clean and has breathable qualities to help your interior stay fresh. In addition, you can specify leather front sports seats which also include lumbar support. Optional on all models.
enjoyment of open-top driving.

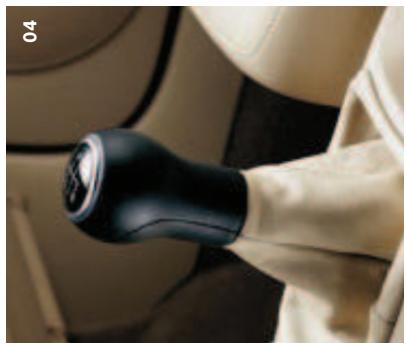

02-04 The leather interior provides an air of exclusivity with leather covered seats, steering wheel and gear knob.

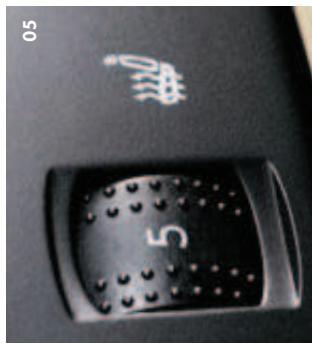

05 For chilly winter days, the leather package also features heated front seats with five temperature settings.

06 For hours of uninterrupted music listening, why not add a six CD autochanger? As it sits in the front centre armrest, it is particularly easy to reach. Optional on all models.

* Some parts of leather interior will contain artificial leather.

off the cruise control. Optional on all models except Luna 1.4 litre.

Models | Quality | Safety | Colours & Upholstery | Equipment | Engines | Technology | Service

Optional

Page 1 | Page 2

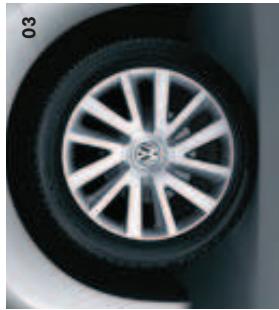

Wheels.

A choice of alternative designs are available to create a distinctive and individual finish to your New Beetleand New Beetle Cabriolet. All wheels are designed and constructed to the highest standards and are fitted with

anti-theft wheel bolts.

Split folding rear seats.

The optional split folding rear seats give greater flexibility should you need to carry bulky items of luggage and a rear seat passenger. Optional on all New Beetle models. Not available on New Beetle Cabriolet.

Sports seats (not shown).

Ergonomically shaped and equipped with integral lumbar supports, the optional sports seats offer superb comfort and excellent lateral support. The sports seats come with 'Graffic' upholstery and are optional on all New Beetle and New Beetle Cabriolet models.

The Winter pack.

Throughout the coldest months, this pack provides added safety and comfort. Front fog lights improve visibility on the road ahead and are neatly integrated under the front bumper. Further safety measures include heated windscreen washer jets to help prevent freezing in sub-zero temperatures. For your comfort this pack also contains heated front seats. Each seat is individually controlled

and quickly warms to one of the five pre-programmed temperature settings. The Winter pack is optional on all New Beetle and New Beetle Cabriolet mod

Electric glass sunroof.

The New Beetle's optional sunroof is easy to operate thanks to automatic

pre-selection. Just turn the dial and let the sunroof open to your desired setting. When the sunroof is open, a wind deflector automatically extends to reduce buffeting and a blind prevents dazzling from the sun. For added safety, an

anti-trapping device immediately stops the roof if it meets resistance. Spec

the electric glass sunroot and the driver's side grab handle is replaced with a convenient sunglasses case. Optional on all New Beetle models. Not available on New Beetle Cabriolet.

10 The convenience of an elec

cabriolet power hood is available

as an option on Luna 1.4 litre and

standard on all other New Beetle

Cabriolet models.

1. Classic 17" 'Screwset' allow wheels with 235/45 R17 tires and anti-theft
   64 Classic 17 - Sarasota - any wheels with 223/43 R17 tyres and anti-thrustdrail steering , and 1. 0 TDI - 2 . 0 lit - and 1 . 6T - rated
   wheel bolts are optional on 1.9 TDI, 2.0 litre and 1.81 models.
   05 Powerful front fog lights improve visibility in poor con
   Standard on 1.8T and optional on all other models.
   06 Split folding rear seats provide greater practicality. Optional on all
   New Beetle models. Not available on New Beetle Cabriolet.

01 Sporty 16" 'Houston' alloy

wheels with 205/55 R16 tyres

are standard on Luna 1.4 litre

and Luno 1 . filters models

and Luna 1.0 fibre models.

Optional on 1.9 TDI models.

"Stylish 16" "San Antonio' alloy

wheels with 205/55 R16 tyres

are standard on 2.0 litre and

1.8T models. Optional on

Luna 1.4 litre, Luna 1.6 litre

and optional at

Print | Exit |

Models | Quality | Safety | Colours & Upholstery | Equipment | Engines | Technology | Service

Optional

Page 1 | Page 2

01 A slick, five speed manual

gearbox is standard on all

New Beetle and New

Cabrjolet models.

02 Ideal for cruising: the 1.4 litre
75PS petrol engine
03 Refinement: the 2.0 litre 115 PS
petrol engine.

The gearbox:

All engines of the New Beetle and New Beetle Cabriolet are equipped with a five speed
manual gearbox, characterised by a smoothness of operation and powerful acceleration.
Alternatively, with the 2.0 litre engine, you could opt for a six speed automatic tiptronic in
the New Beetle or New Beetle Cabriolet . The innovative automatic tiptronic transmission
gives you the best of both worlds. When you fancy the involvement of a manual, you can
change gear by a simple ‘tipping’ action of the gear lever forwards or backwards. Should
you be faced with city traffic, you can then rely on the automatic function for more relaxed
driving . The automatic tiptronic gearbox even has several mode functions that interpret
your driving style, so should you be accelerating hard it will recognise this and amend the
shift pattern accordingly.

Luna 1.4 litre 75 PS.

Technical specification.

Manual

Engine	Engine type	Four cylinder in-line - petrol
	Cubic capacity, ltrs/cc	1.4/1390
	Max. output, PS (01)/kW at rpm	75/55 5000
	Max. torque, lbs.ftt/Nm at rpm	93/126 3300
	Gearbox	Five speed manual

Weights, kgs	Unladen weight (02)	1182
	Gross vehicle weight	1650
	Payload (02)	468
	Axle load limit: Front	910
	Rear	800

Trailer load limits, kgs (03)	Braked 12% incline	1000
	Unbraked	600
	Towbar load limit	75
	Max. roof load	50

Performance	Top speed†, mph (km/h)	100 (161)
	Acceleration, secs 0 - 62 mph	14.6
	ABI insurance group	5

Environmental information	Fuel grade, minimum	Unleaded, 95 RON (04)
	Fuel tank capacity, galls/ltrs	12/55
	Official fuel consumption, mpg/ltr per 100 km (06)
	Urban	30.1/9.4
	Extra-urban	48.7/5.8
	Combined	39.8/7.1
	Official CO2 emission, g/km (07)	169
	Emission class	EURO 4
	Noise, dB	72

Maximum luggage capacity, cu.ft (£tres)‡	With rear seat upright	7.4 (209)
	With rear seat folded	27.2 (769)

† Where the law permits.

VDA measuring method using 200× 100× 50 mm blocks.

Luna 1.6 litre 102 PS.

Technical specification.

Manual

12

Four cylinder in-line - petrol

1.6/1595

102/75

5692

5600

109/148

3800

Five speed manual

---

1998

1202

1680

478

940

800

---

---

1000

600

75

50

36

111 (179)

11.6

7

---

---

Downloaded 95 PON (04)

1. Unheated, 95 RON (64)
2. 147

12/55

27.4/10.3

47.9/5.9

377/7.5

180

EURO4

EOR0473

73

---

7.4 (209)

27.2 (769)

---

† Where the law permits.

VDA measuring method using 200 x 100 x 50 mm blocks.

Engine	Engine type	Four cylinder in-line - petrol
	Cubic capacity, ltrs/cc	1.6/1595
	Max. output, PS (01)/kW at rpm	102/75
		5600
	Max. torque, lbs.ft/Nm at rpm	109/148
		3800
	Gearbox	Five speed manual
Weights, kgs	Unladen weight (02)	1202
	Gross vehicle weight	1680
	Payload (02)	478
	Axle load limit: Front Rear	940 800
Trailer load limits, kgs (03)	Braked 12% incline	1000
	Unbraked	600
	Towbar load limit	75
	Max. roof load	50
Performance	Top speed+, mph (km/h)	111 (179)

Environmental information	Fuel grade, minimum	Unleaded, 95 RON (04)
	Fuel tank capacity, galls/ltrs	12/55
	Official fuel consumption, mpg/ltr per 100 km (06)
	Urban	27.4/10.3
	Extra-urban	47.9/5.9
	Combined	37.7/7.5
	Official CO2 emission, g/km (07)	180
	Emission class	EURO 4
	Noise, dB	73
Maximum luggage capacity, cu.ft (£tres)‡	With rear seat upright	7.4 (209)
	With rear seat folded	27.2 (769)
† Where the law permits. ‡ VDA measuring method using 200 x 100 x 50 mm blocks.

1.9 litre TDI 105 PS.

Technical specification.

Manual

Engine	Engine type	Four cylinder in-line - diesel
	Cubic capacity, ltrs/cc	1.9/1896
	Max. output, PS (01)/kW at rpm	105/774000
	Max. torque, lbs.ft/Nm at rpm	177/2401800
	Gearbox	Five speed manual
Weights, kgs	Unladen weight (02)	1291
	Gross vehicle weight	1720
	Payload (02)	429
	Axle load limit: Front Rear	1020800
Trailer load limits, kgs (03)	Braked 12% incline	1000
	Unbraked	600
	Towbar load limit	75
	Max. roof load	50
Performance	Top speed†, mph (km/h)	112 (180)
	Acceleration, secs 0 - 62 mph	11.5
	ABI insurance group	7
Environmental information	Fuel grade, minimum	Diesel (05)
	Fuel tank capacity, galls/ltrs	12/55
	Official fuel consumption, mpg/ltr per 100 km (06) Urban	41.5/6.8
	Extra-urban	61.4/4.6
	Combined	52.3/5.4
	Official CO2 emission, g/km (07)	143
	Emission class	EURO 4
	Noise, dB	71
Maximum luggage capacity, cu.ft (litres)‡	With rear seat upright	7.4 (209)
	With rear seat folded	27.2 (769)

07)

01)	The maximum power output figures are quoted in PS (or Pferdestärke, which is the metric equivalent of horsepower). To convert from metric to imperial horsepower, divide the PS figure by 1.0139.
02)	Figures are calculated in accordance with manufacturer's criteria. The individual unladen weight depends on the specification of the vehicle, this then reduces the possible payload accordingly.
03)	With increasing altitude the engine performance diminishes. From 1,000 m above sea level and for every 1,000 m thereafter 10% of the vehicle/trailer weight (trailer weight + gross vehicle weight) must be deducted.
04)	Thanks to the knock control, unleaded four star (at least 95 RON) can be used instead of Super plus unleaded.
05)	The use of RME and FAME (bio diesel) is not possible.
06)	Official fuel consumption according to EU Directive 99/94. The consumption calculation according to 1999/100/EC is based on the actual unladen weight of the vehicle. Additional specifications can lead to a higher weight class and hence to consumption figures of this higher weight class. The driving style, road and traffic conditions, environmental influences and vehicle condition can in practice lead to consumption figures, which may differ from those calculated with this standard.

† Where the law permits.
VDA measuring method using 200× 100× 50mm blocks.

2.0 litre 115 PS.

Technical specification.

† Where the law permits.

VDA measuring method using 200 × 100 × 50 ~mm blocks.

Notes.

Engine	Engine type	Four cylinder in-line - petrol	Four cylinder in-line - petrol
	Cubic capacity, ltrs/cc	2.0/1984	2.0/1984
	Max. output, PS (01)/kW at rpm	115/85	115/85
		5400	5400
	Max. torque, lbs.ft/Nm at rpm	127/172	127/172
		3200	3200
	Gearbox	Five speed manual	Six speed auto tiptronic
Weights, kgs	Unladen weight (02)	1246	1280
	Gross vehicle weight	1710	1730
	Payload (02)	464	450
	Axle load limit: Front Rear	970	1000
		800	800
Trailer load limits, kgs (03)	Braked 12% incline	1000	1000
	Unbraked	600	600
	Towbar load limit	75	75
	Max. roof load	50	50
Performance	Top speed†, mph (km/h)	115 (185)	113 (182)
	Acceleration, secs 0 - 62 mph	10.9	12.9
	ABI insurance group	8	8
Environmental information	Fuel grade, minimum	Unleaded, 95 RON (04)	Unleaded, 95 RON (04)
	Fuel tank capacity, galls/ltrs	12/55	12/55
	Official fuel consumption, mpg/ltr per 100 km (06) Urban	23.7/11.9	21.2/13.3
	Extra-urban	41.5/6.8	40.9/6.9
	Combined	32.5/8.7	30.7/9.2
	Official CO2 emission, g/km (07)	210	222
	Emission class	EURO 4	EURO 4
	Noise, dB	72	71
Maximum luggage capacity, cu.ft (litres)‡	With rear seat upright	7.4 (209)	7.4 (209)
	With rear seat folded	27.2 (769)	27.2 (769)

† Where the law permits.

1.8 litre Turbo 150 PS.

Technical specification.

Manual

Engine	Engine type	Four cylinder in-line - petrol
	Cubic capacity, ltrs/cc	1.8/1781
	Max. output, PS (01)/kW at rpm	150/110 5800
	Max. torque, lbs.ft/Nm at rpm	162/220 2000
	Gearbox	Five speed manual
Weights, kgs	Unladen weight (02)	1269
	Gross vehicle weight	1750
	Payload (02)	481
	Axle load limit: Front Rear	1010 800
Trailer load limits, kgs (03)	Braked 12% incline	1000
	Unbraked	600
	Towbar load limit	75
	Max. roof load	50
Performance	Top speed†, mph (km/h)	126 (203)
	Acceleration, secs 0 - 62 mph	8.7
	ABI insurance group	12
Environmental information	Fuel grade, minimum	Unleaded, 95 RON (04)
	Fuel tank capacity, galls/ltrs	12/55
	Official fuel consumption, mpg/ltr per 100 km (06) Urban	25.7/11.0
	Extra-urban	44.1/6.4
	Combined	34.9/8.1
	Official CO2 emission, g/km (07)	194
	Emission class	EURO 4
	Noise, dB	72
Maximum luggage capacity, cu.ft (litres)‡	With rear seat upright	7.4 (209)
	With rear seat folded	27.2 (769)

01)	The maximum power output figures are quoted in PS (or Pferdestärke, which is the metric equivalent of horsepower). To convert from metric to imperial horsepower, divide the PS figure by 1.0139.
02)	Figures are calculated in accordance with manufacturer's criteria. The individual unladen weight depends on the specification of the vehicle, this then reduces the possible payload accordingly.
03)	With increasing altitude the engine performance diminishes. From 1,000 m above sea level and for every 1,000 m thereafter 10% of the vehicle/trailer weight (trailer weight + gross vehicle weight) must be deducted.
04)	Thanks to the knock control, unleaded four star (at least 95 RON) can be used instead of Super plus unleaded.
05)	The use of RME and FAME (bio diesel) is not possible.
06)	Official fuel consumption according to EU Directive 99/94. The consumption calculation according to 1999/100/EC is based on the actual unladen weight of the vehicle. Additional specifications can lead to a higher weight class and hence to consumption figures of this higher weight class. The driving style, road and traffic conditions, environmental influences and vehicle condition can in practice lead to consumption figures, which may differ from those calculated with this standard.

† Where the law permits.

VDA measuring method using 200× 100× 50mm blocks.

Luna 1.4 litre 75 PS.

Technical specification.

Manual

Engine	Engine type	Four cylinder in-line - petrol
	Cubic capacity, ltrs/cc	1.4/1390
	Max. output, PS (01)/kW at rpm	75/55 5000
	Max. torque, lbs.ftt/Nm at rpm	93/126 3800
	Gearbox	Five speed manual

Weights, kgs	Unladen weight (02)	1276
	Gross vehicle weight	1750
	Payload (02)	474
	Axle load limit: Front	950
	Rear	830

Trailer load limits, kgs(03)	Braked 12% incline	1000
	Unbraked	600
	Towbar load limit	75

Performance	Top speed†, mph (km/h)	99 (160)
	Acceleration, secs 0 - 62 mph	15.6
	ABI insurance group	6

Environmental information	Fuel grade, minimum	Unleaded, 95 RON (04)
	Fuel tank capacity, galls/ltrs	12/55
	Official fuel consumption, mpg/ltr per 100 km (06)
	Urban	29.7/9.5
	Extra-urban	48.7/5.8
	Combined	39.8/7.1
	Official CO2 emission, g/km (07)	171
	Emission class	EURO 4
	Noise, dB	72

Maximum luggage capacity, cu.ft (litres)‡

With rear seat upright

7.1 (201)

† Where the law permits.
VDA measuring method using 200 x 100 x 50 mm blocks.

Luna 1.6 litre 102 PS.

Technical specification.

Manual

Four cylinder in-line - petrol
1.6/1595
102/75
5600
109/148
3800
Five speed manual

1300
1770
470
970
830

1000
600
75
110 (178)
12.3
8

Unleaded, 95 RON (04)
12/55
26.9/10.5
47.1/6.0
36.7/7.7
185
EURO 4
73

7.1 (201)

Engine	Engine type
	Cubic capacity, ltrs/cc
	Max. output, PS (01)/kW at rpm
	Max. torque, lbs.ft/Nm at rpm
	Gearbox

Weights, kgs	Unladen weight (02)
	Gross vehicle weight
	Payload (02)
	Axle load limit: Front Rear

Trailer load limits, kgs (03)	Braked 12% incline
	Unbraked
	Towbar load limit
Performance	Top speed†, mph (km/h)
	Acceleration, secs 0 - 62 mph
	ABI insurance group

Environmental information	Fuel grade, minimum
	Fuel tank capacity, galls/ltrs
	Official fuel consumption, mpg/ltr per 100 km (06) Urban
	Extra-urban
	Combined
	Official CO2 emission, g/km (07)
	Emission class
	Noise, dB

Maximum luggage capacity, cu.ft (litres)‡

With rear seat upright

† Where the law permits.

VDA measuring method using 200× 100× 50mm blocks.

1.9 litre TDI 105 PS.

Technical specification.

Manual

† Where the law permits.

VDA measuring method using 200 x 100 x 50 mm blocks.

Engine	Engine type	Four cylinder in-line - diesel
	Cubic capacity, ltrs/cc	1.9/1896
	Max. output, PS (01)/kW at rpm	105/774000
	Max. torque, lbs.ft/Nm at rpm	177/2401800
	Gearbox	Five speed manual
Weights, kgs	Unladen weight (02)	1351
	Gross vehicle weight	1840
	Payload (02)	489
	Axle load limit: Front Rear	1020840
Trailer load limits, kgs (03)	Braked 12% incline	1000
	Unbraked	600
	Towbar load limit	75
Performance	Top speed†, mph (km/h)	111 (179)
	Acceleration, secs 0 - 62 mph	12.0
	ABI insurance group	8
Environmental information	Fuel grade, minimum	Diesel (05)
	Fuel tank capacity, galls/ltrs	12/55
	Official fuel consumption, mpg/ltr per 100 km (06)
	Urban	40.9/6.9
	Extra-urban	60.1/4.7
	Combined	51.4/5.5
	Official CO2 emission, g/km (07)	145
	Emission class	EURO 4
	Noise, dB	71
Maximum luggage capacity, cu.ft (litres)‡	With rear seat upright	7.1 (201)

4 VBA measuring method

2.0 litre 115 PS.

Technical specification.

Engine type

Cubic capacity, ltrs/cc

Max. output, PS (01)/kW at rpm

Max. torque, lbs.ftt/Nm at rpm

Gearbox

Weights, kgs	Unladen weight (02)
	Gross vehicle weight
	Payload (02)
	Axle load limit: Front Rear

Trailer load limits, kgs (03)	Braked 12% incline
	Unbraked
	Towbar load limit

Performance	Top speed†, mph (km/h)
	Acceleration, secs 0 - 62 mph
	ABI insurance group

Environmental information	Fuel grade, minimum
	Fuel tank capacity, galls/ltrs
	Official fuel consumption, mpg/ltr per 100 km (06) Urban
	Extra-urban
	Combined
	Official CO2 emission, g/km (07)
	Emission class
	Noise, dB

Maximum luggage capacity, cu.ft (litres)‡

With rear seat upright

† Where the law permits.
VDA measuring method using 200× 100× 50mm blocks.

1.8 litre Turbo 150 PS.

Technical specification.

Manual

† Where the law permits.

VDA measuring method using 200 x 100 x 50 mm blocks.

Engine	Engine type	Four cylinder in-line - petrol
	Cubic capacity, ltrs/cc	1.8/1781
	Max. output, PS (01)/kW at rpm	150/110
		5800
	Max. torque, lbs.ft/Nm at rpm	162/220
		2000
	Gearbox	Five speed manual
Weights, kgs	Unladen weight (02)	1388
	Gross vehicle weight	1850
	Payload (02)	462
	Axle load limit: Front Rear	1040
		850
Trailer load limits, kgs (03)	Braked 12% incline	1000
	Unbraked	600
	Towbar load limit	75
Performance	Top speed†, mph (km/h)	125 (202)
	Acceleration, secs 0 - 62 mph	9.3
	ABI insurance group	13
Environmental information	Fuel grade, minimum	Unleaded, 95 RON (04)
	Fuel tank capacity, galls/ltrs	12/55
	Official fuel consumption, mpg/ltr per 100 km (06)
	Urban	25.4/11.1
	Extra-urban	43.5/6.5
	Combined	34.4/8.2
	Official CO2 emission, g/km (07)	196
	Emission class	EURO 4
	Noise, dB	72
Maximum luggage capacity, cu.ft (litres)‡	With rear seat upright	7.1 (201)

4 VDB measuring method

The technology.

Transmission- Front wheel drive

• Five speed manual: 1.4 litre 75 PS, 1.6 litre 102 PS, 1.9 litre TDI 105 PS,

2.0 litre 115 PS.

1.8 litre Turbo 1

• Six speed automatic tiptronic:

New Beetle 2.0 litre 115 PS,

New Beetle Cabriolet 2.0 litre 115 PS

Running gear

ESP (Electronic Stabilisation Programme)

including EDL (Electronic Differential Lock)

and ASR (Traction Control)

Front suspension uses coil springs with

telescopic shock absorbers; all elements

integrated in chassis legs. Rear suspension

with gas pressure shock absorbers

and separate springs

• Wheel control: front through chassis legs

and (lower) triangular wishbones (directionally

stabilising steering roll radius), at rear through

torsion beam trailing arm with track-correcting

bearings, with large-volume, directionally

stabilising bearings

Front and rear anti-roll bar

Broke system: APS Anti lock

Brake system: ABS Anti-lock brakes.

Diagonally split circuits. Servo assisted.

Front: Ventilated discs. Rear: Discs

Turning circle: 35.8 feet/10.9 metres

Steering

Power-assisted, maintenance-free

rack and pinion. Collapsible

steering column

New Beetle Cabriolet

New Beetle

Dimensions.

	New Beetle	New Beetle Cabriolet
Length, mm	4129	4129
Width – excluding door mirrors, mm	1721	1721
Width – opened front doors, mm	3605	3605
Height, mm	1498	1502
Height – opened bonnet/floor, mm	1732	1746
Height – opened tailgate/floor, mm	1891	1309
Wheelbase, mm	2515	2516

The Volkswagen Warranty. Three-year Warranty. All Volkswagen New Beetles and New Beetle Cabriolets come with a three-year/60,000 miles warranty, which protects your car against the failure of most mechanical and electrical components due to manufacturing defects. This comprises a two-year manufacturer's warranty with unlimited mileage plus a further one-year/60,000 miles (whichever is soonest) Retailer Warranty. Should the mileage exceed 60,000 miles within the first two years, the manufacturer's two-year warranty will still be valid. If an additional warranty for subsequent years or higher mileage is desired, it may be purchased from an authorised Volkswagen retailer or repairer; however, this additional warranty must be purchased before the mileage reaches 60,000*. Full details of the three-year warranty are available from your authorised Volkswagen retailer or repairer. * All warranty work must be completed by an authorised Volkswagen retailer or repairer. Three-year Paint Warranty. The paintwork of the New Beetle and New Beetle Cabriolet is covered against manufacturing defects for a period of three years. Naturally, the New Beetle and New Beetle Cabriolet must be cared for in compliance with the operating instructions which will be found in your vehicle handbook. Please consult your authorised Volkswagen retailer or repairer for full warranty details. 12-year Body Protection Warranty. The internal body sections and panels of the New Beetle and New Beetle Cabriolet are covered against rusting through from the inside for 12 years. Naturally, the New Beetle and New Beetle Cabriolet must be cared for in compliance with the operating instructions. Please consult your authorised Volkswagen retailer or repairer for full warranty details. Approved Accessories. A comprehensive range of accessories from alloy wheels to carpet mats is available to complement the factory-fitted option list. Volkswagen approved accessories purchased from and fitted by your authorised Volkswagen retailer at the point of vehicle sale will also benefit from the three-year vehicle warranty.

Service Intervals. Volkswagen are pleased to offer you a choice on how your New Beetle and New Beetle Cabriolet are serviced. The appropriate selection is entirely dependent on how the car is likely to be driven and its general use. To help you identify which type of service would be most suitable, please refer to the following guide. The Time and Distance Service is recommended for vehicles that will cover less than 10,000 miles in 12 months and if the vehicle is likely to be used in the following way: • Predominantly urban driving, short journeys with frequent cold starts. • Activities regularly producing high engine loading, e.g. frequent hill climbs, driving with vehicle fully loaded and towing. • Uneconomical driving style using high rpms with heavy acceleration and heavy braking. The service intervals for the Time and Distance Service are as follows: • Oil change service Every 10,000 miles/1 year (whichever is soonest). • Interval service Every 20,000 miles/2 years (whichever is soonest). • Interval service inspection Every 40,000 miles/4 years (whichever is soonest). The LongLife Service is recommended for vehicles with a daily mileage of more than 25 miles where the vehicle is driven regularly mainly on longer distance journeys. The vehicle is driven mainly at a constant speed with minimum vehicle and engine loading, minimal towing and driven in an economical manner. With the LongLife Service the vehicle can cover anywhere between 10,000t and a maximum of 20,000t miles or 24 months (whichever is soonest). † Please note that milestones are approximate as the service indicator system uses kilometres as the distance measurement. Please consult your authorised Volkswagen retailer or repairer for advice and full details.

Extended Warranty. You may purchase additional protection from your authorised Volkswagen retailer or repairer, or contact 0870 9000 115. Volkswagen Finance‡. Volkswagen Finance specialises in providing funding solutions for Volkswagen drivers. Whether your Volkswagen is for private or business use, you can choose from a range of funding options. • Solutions - a personal contract plan • Hire purchase • Lease purchase • Finance lease • Contract hire With all Volkswagen Finance products you can choose a fixed-cost maintenance plan to help you budget for your servicing and maintenance costs. No matter what finance product you choose, your local Volkswagen retailer will be able to provide you with a personalised quote that could meet your budget and vehicle needs. ‡ Volkswagen Finance is a trading name of Volkswagen Financial Services (UK) Limited. An offer of finance depends on certain conditions. Available to people over 18 in the UK only. Volkswagen Insurance‡. Competitive and comprehensive motor insurance designed especially for Volkswagen drivers. All new and Approved Used Volkswagen come with complimentary seven-day cover upon request - we'll e-mail a cover note straight to your retailer, enabling them to tax your car easily. This way, you can drive straight out of the showroom. Taking out annual cover is easy and it can start when the seven-day cover expires. For more information contact your local Volkswagen retailer or call 0800 051 3136. ± Volkswagen Insurance is underwritten and administered by Zurich Insurance Company. Volkswagen Insurance is a trading name of Volkswagen Insurance Service (Great Britain) Limited which is an appointed representative of Volkswagen Financial Services (UK) Limited. Zurich Insurance Company and Volkswagen Financial Services (UK) Limited are both authorised and regulated by the Financial Services Authority.

Volkswagen Roadside Assistance. Every new car is registered for Volkswagen Roadside Assistance for one year. This provides vehicle home and roadside recovery in the unlikely event of a breakdown in the UK and Europe (subject to conditions). Volkswagen Roadside Assistance can also be purchased for subsequent years. For full details, please contact your authorised Volkswagen retailer or repairer. Tax Free Sales. For full details, please contact your authorised Volkswagen retailer. CO2 Emission. Increased weight of a vehicle, including higher trim levels and the addition of options will have a detrimental influence on the level of fuel consumption and CO2 emissions produced. The CO2 and fuel consumption figures are obtained from tests on a representative vehicle of the type, conducted and approved in accordance with Council Directive 80/1268/EEC as amended by Directive 1999/100/EC (or later) on the approximation of the laws of the member states relating to the carbon dioxide emissions and the fuel consumption of motor vehicles. Please Note: Some illustrations in this brochure do not necessarily reflect UK specifications and may not be available. In particular, controls and some items of equipment are positioned differently for the UK. The specifications contained in this brochure are for information purposes only and are subject to change. If you require any specific feature, you must consult your authorised Volkswagen retailer who is regularly updated with any change in specification. Please check model availability and full specification details with your authorised Volkswagen retailer prior to ordering. Note: We would like to advise you that telephone calls to Volkswagen Customer Care may be monitored and recorded as part of our training and quality assurance processes. All our monitoring and recording processes meet Oftel regulations.
