TV-IP319PI - Caméra de surveillance TRENDNET - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Caméra de surveillance IP
Marque	TRENDnet
Modèle	TV-IP319PI
Résolution	1920 x 1080 pixels (Full HD)
Angle de vue	90° (horizontal)
Vision nocturne	Oui, jusqu'à 20 mètres avec LED IR
Alimentation	PoE (Power over Ethernet) IEEE 802.3af
Connectivité	Ethernet 10/100 Mbps
Protocoles pris en charge	IPv4, IPv6, TCP/IP, HTTP, RTSP, etc.
Indice de protection	IP66 (résistant aux intempéries)
Température de fonctionnement	-20°C à 50°C
Dimensions	70 x 70 x 130 mm
Poids	350 g
Stockage intégré	Slot pour carte microSD jusqu'à 256 Go
Fonctions audio	Microphone intégré et haut-parleur (audio bidirectionnel)
Détection de mouvement	Oui, avec notifications par e-mail
Application mobile	TRENDnetView Pro (iOS/Android)
Entretien et nettoyage	Nettoyer la lentille avec un chiffon doux et sec. Éviter les solvants.
Sécurité	Chiffrement SSL/TLS, authentification par mot de passe
Pièces détachées et réparabilité	Non applicable (appareil scellé). Consulter le support TRENDnet.

FOIRE AUX QUESTIONS - TV-IP319PI TRENDNET

Comment installer la caméra TV-IP319PI ?

Branchez la caméra à votre réseau via un câble Ethernet PoE. Utilisez l'application TRENDnetView Pro ou l'interface web pour la configuration initiale.

Puis-je utiliser cette caméra sans câble Ethernet ?

Non, le modèle TV-IP319PI nécessite une connexion Ethernet filaire. Il ne supporte pas le Wi-Fi.

Comment accéder à la caméra à distance ?

Téléchargez l'application TRENDnetView Pro sur votre smartphone, créez un compte, et ajoutez la caméra via son adresse IP ou QR code.

Quelle est la portée de la vision nocturne ?

La vision nocturne est effective jusqu'à 20 mètres grâce aux LED infrarouges intégrées.

La caméra est-elle résistante à l'eau ?

Oui, elle possède un indice de protection IP66, ce qui la rend adaptée à une utilisation en extérieur.

Comment enregistrer les vidéos ?

Vous pouvez enregistrer sur une carte microSD (jusqu'à 256 Go) ou sur un serveur NAS via le protocole ONVIF.

Que faire si la caméra ne s'allume pas ?

Vérifiez que le câble Ethernet est bien connecté et que votre switch PoE est actif. Testez avec un autre câble ou un injecteur PoE.

Comment réinitialiser la caméra aux paramètres d'usine ?

Maintenez le bouton reset (à l'arrière de la caméra) enfoncé pendant 10 secondes jusqu'à ce que les LED clignotent.

Puis-je utiliser la caméra avec un enregistreur NVR ?

Oui, la caméra est compatible ONVIF Profile S et peut être intégrée à la plupart des NVR tiers.

Quelle est la garantie de ce produit ?

TRENDnet offre une garantie limitée de 3 ans. Conservez votre facture pour faire valoir la garantie.

MODE D'EMPLOI TV-IP319PI TRENDNET

User's Guide

TRENDNET®

Indoor/Outdoor 8MP 4K H.265 WDR PoE IR Dome Network Camera

TV-IP319PI

TRENDnet User's Guide TV-IP319PI

Contents

1

Product Overview 4

Features....4

Specifications....4

Package Contents ....5

Front View 6

Angle Adjustment 6

Reset Button....6

Warnings....7

Cautions....7

Plan for installation location....8

Viewing angle 8

Weather Conditions 8

Hardware Installation....9

Cabling....9

Waterproof cap 9

Setup Your Camera with CD....9

Logging-in to the Camera for the First Time (Windows) 11

Logging-in to the Camera for the First Time (OS X) 13

Live View.... 17

Playback....18

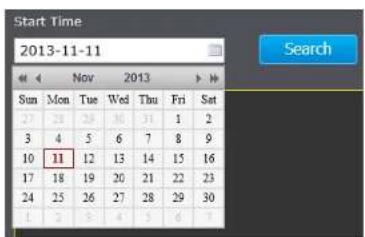

Search for video recordings.... 18

Time Line 18

Playback....19

Slice images from video playback.... 19

Download sections of video 20

Download snapshots....20

Log 21

Search for logs 21

System Information 22

System Configuration.... 23

Device Settings 23

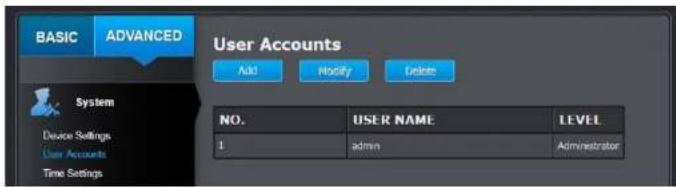

User Accounts 24

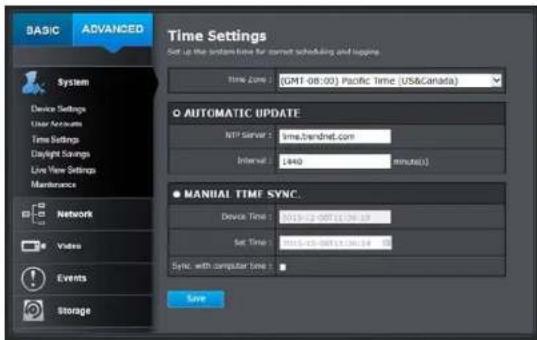

Time Settings 24

Daylight Savings 25

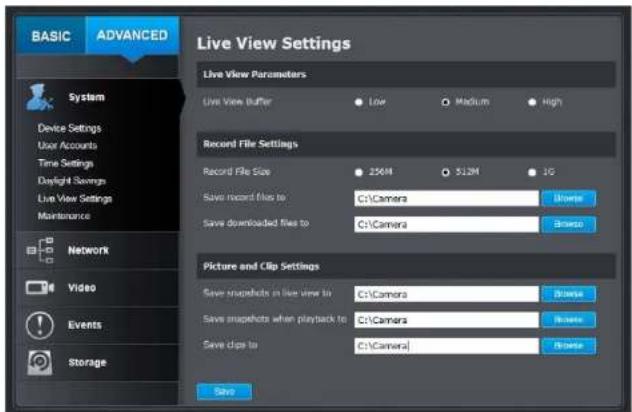

Live View Settings 25

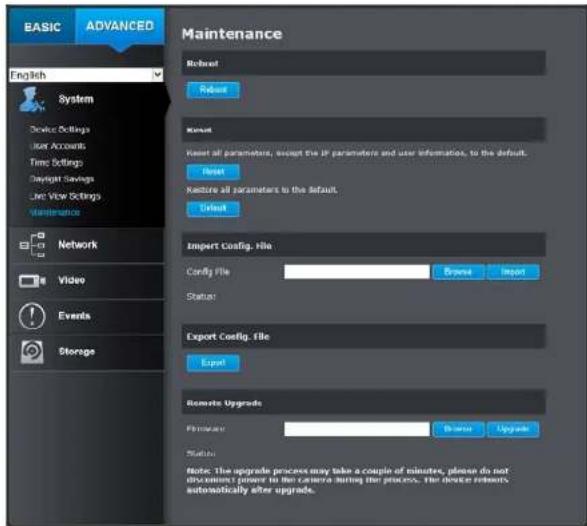

Maintenance 26

Network Settings 27

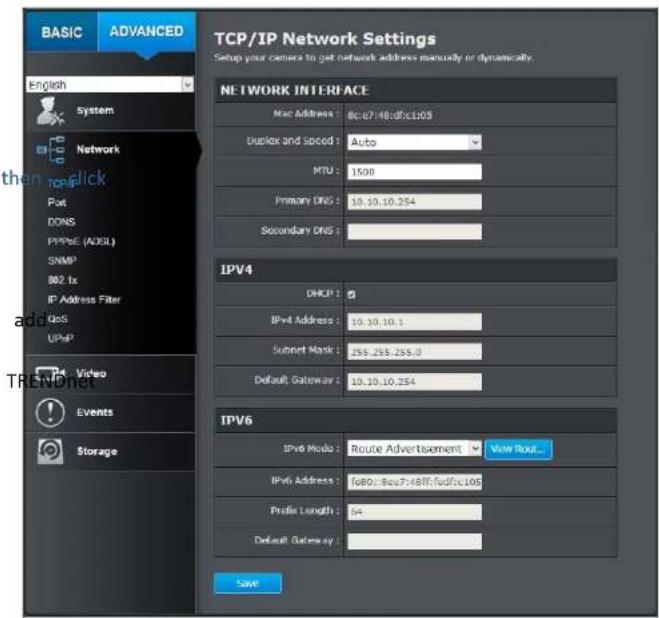

TCP/IP 27

Port 28

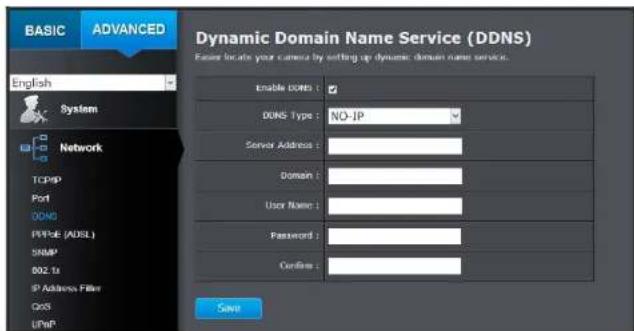

DDNS....29

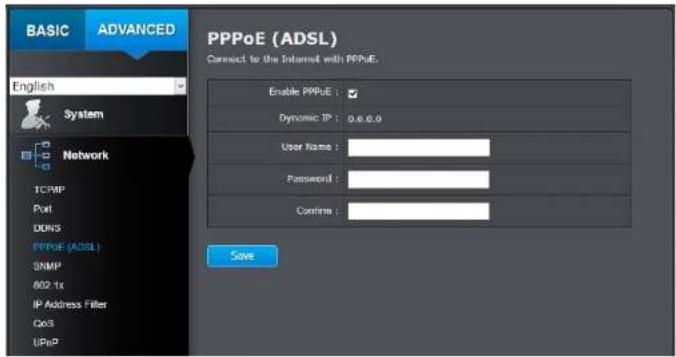

PPPoE 29

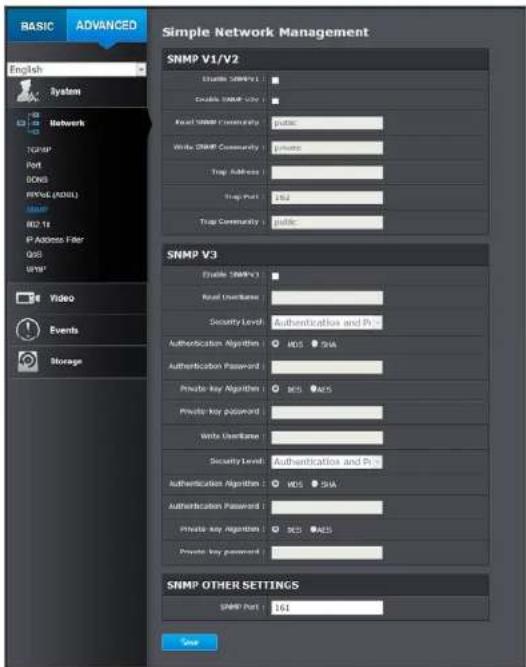

SNMP 30

802.1X....32

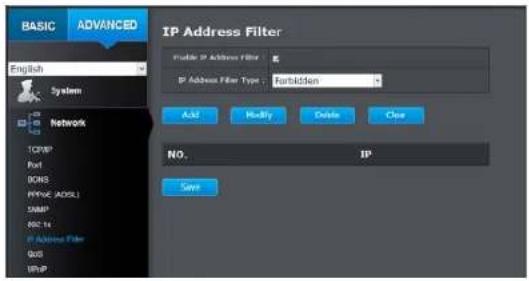

IP Address Filter 32

Quality of Service (QoS) 33

UPnP 33

Video Settings.... 34

Video Format 34

Display Settings.... 35

On Screen Display Settings 39

Text Overlay....39

Privacy Mask 40

TRENDnet User's Guide TV-IP319PI

Video Recording 40

Events....41

Motion Detection 41

Video Tampering 43

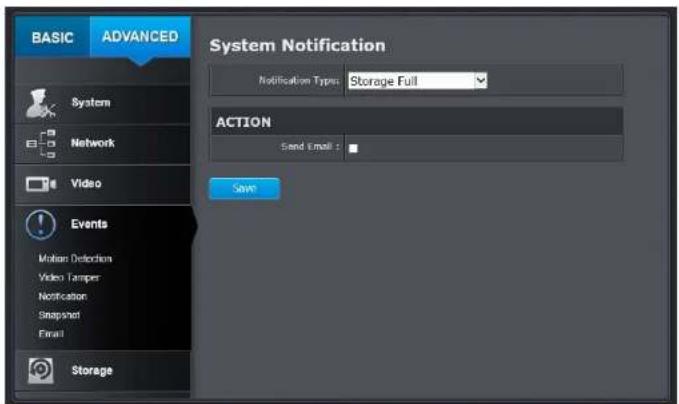

Notification.... 45

Snapshot 45

Email 46

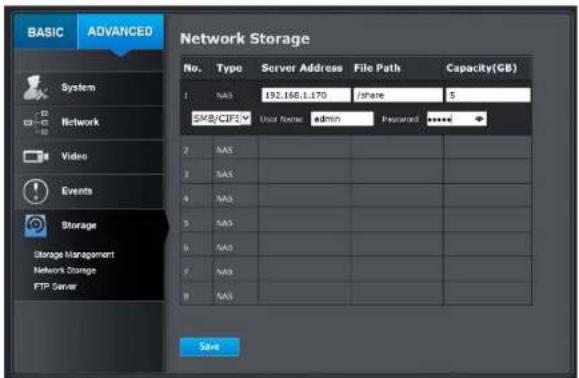

Network Storage....47

Network Storage 47

Storage Management 49

FTP Server 50

Appendix 51

Direct video access - RTSP 51

Regulations....51

Federal Communication Commission Interference Statement 51

RoHS 51

Europe – EU Declaration of Conformity 52

Limited Warranty....53

TRENDnet User's Guide

TV-IP319PI

Product Overview

Features

TRENDnet's Indoor/Outdoor 8MP 4K H.265 WDR PoE IR Dome Camera, model TV-IP319PI, provides day and night surveillance with a night vision range of up to 30 meters (98 ft.) This IR dome network camera delivers year-round surveillance with an IP67 weather rated housing to harsh environments. Record up to 8MP 4K UHD video at 20 fps in a space saving H.265 compression format. View live video with included complimentary software and mobile apps.

Specifications

8 Megapixel

Record up to 8MP 4K UHD video (3840 x 2160) at 20 fps in the space saving H.265 compression format

Night Vision

Masked IR LEDs provide covert night-time viewing invisible to the human eye, up to 30 meters (98 ft.).

Smart IR

Smart IR dynamically adjusts the IR LEDs by lowering the IR intensity when objects are near, and increasing IR intensity when objects are farther away.

Fixed Pan/Tilt

Manually pan and tilt the camera Network

Rotatable lens

Rotatable lens for wall mounting applications withstand

PoE

Save installation costs with Power over Ethernet (PoE)

Storage

Record video to a network storage device or to a Micro SD card (up to 128GB sold separately).

TRENDnet User's Guide

TV-IP319PI

Advanced Playback

Advanced in-camera archived video playback functionality

Motion Detection

Create custom motion detection zones to record video and send email notifications when a zone is triggered.

Tamper Detection

Create custom tamper detection zones to send an email notification when the camera view has been obstructed.

Wide Dynamic Range (WDR)

Adjustable 120dB WDR setting improves image quality and camera is exposed to high contrast lighting environments by enhancing the dark areas of the image to make them more visible.

Recording Flexibility

Define custom schedules using continuous (24/7) and event based recording modes.

ONVIF/PSIA

ONVIF Profile S, Profile G and PSIA compliant

Complimentary Software

Complimentary pro-grade software to manage TRENDnet cameras

Complimentary Apps

Live video to a mobile device with free iOS ^® and Android ^™ apps

Package Contents

TV-IP319PI package includes:

• T V - I P 3 1 9
- Weather seal
• Torx Security Allen Key
- Quick installation guide
- Camera mounting hardware

focus when a Drilling Template

Mounting Screws

Waterproof Accessories

If any package content is missing or damaged, please contact the retail store, online retailer, or reseller/distributor from which the product was purchased.

TRENDnet User's Guide

TV-IP319PI

Front View

1. Mounting base
2. Horizontal stand
3. Vertical stand
4. Lower dome
5. 10/100Mbps PoE network port
6. Power port (optional)
7. Infra-red lamps
8. Lens
9. Black Liner
10. Safety rope

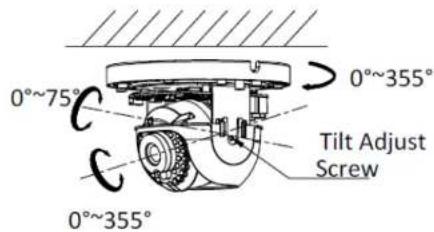

Angle Adjustment

Loosen the tilt lock screws, adjust the tilting position in a range, and tighten the tilt lock screws.

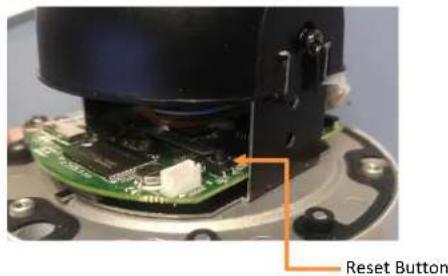

Reset Button

Push and hold the reset button then power on the camera. Keep holding the reset button for more than 10 seconds to reset configuration to factory default.

TRENDnet User's Guide TV-IP319PI

Warnings

Serious injury or death may be caused if any of these warnings are neglected. Follow these safety guards to prevent serious injury or death.

• If using the power adapter, please choose the power adapter that meets the safety extra low voltage (SELV) standard or IEC60950-1 and Limited Power Source standard.
• If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. Disassembling the product will void the warranty cause harm or injury.
• To reduce the risk of fire or electrical shock, do not expose this product to rain or water.
• The installation should be done by a qualified service person and should conform to all construction and electric regulations and other local codes.

Cautions

Injury or equipment damage may be caused if any of these can be neglected. Follow these precautions to prevent potential injury or material damage.

• Make sure the power supply voltage is correct before using the Camera.
• Do not drop the camera or subject to physical shock.
• Do not touch sensor modules with fingers. If cleaning is necessary, use a clean cloth with a bit of ethanol and wipe it gently. If the camera will not be used for an extended period of time, put on the lens cap to protect the sensor from dirt.
• Do not aim the camera lens at the strong light such as the Sun or an incandescent lamp. Strong light can damage the camera sensor.
• The sensor may be burned out by a laser beam, so when any laser equipment is being used, make sure that the surface of the sensor will not be exposed to the laser beam.
• Do not place the camera in extremely hot, cold temperatures (the operating temperature should be between -10°C to 60°C ), and damp environment, and do not expose it to high electron radiation.
• To avoid heat accumulation, good ventilation is required for a proper operating environment.
• Keep out of water and any liquid.
• While shipping, the camera should be packed in its original packing.

TRENDnet User's Guide

TV-IP319PI

Plan for installation location

Viewing angle

The TV-IP319PI is a dome camera with a focused viewing angle (81°) that provides non-distorted and detailed images. Choose the location where has good angle to shoot the image you expect to see. The motion detection area should also be considered when installing the camera.

Weather Conditions

The TV-IP319PI is a small dome camera, which fits most installations indoor and outdoor. The camera can work under a wide range of weather conditions.

For severe weather conditions, a camera housing with moisture control is recommended. Using the camera in milder conditions will help extend the camera's product life and preserve the quality of the video image.

• Moisture: Avoid damp or moist environments whenever you can. The
  TV-IP319PI is an IP66 grade water proof camera, and it will work in moist environments. However, rain may affect the picture quality, especially at night, water may reflect the light from the infra-red illumination and degrade picture quality.
  will work in quality, from the infra-red

- Temperature: TV-IP319PI works within a specified temperature range.

Areas with severe temperatures should be avoided when installing the camera. It's recommended that you use an enclosure with a heater and blower if you plan on using this camera outside of the specified temperature range.

• Sunlight: Avoid direct sun light exposure. Direct sun light will damage the image sensor. If sunlight is necessary for your viewing purposes, provide protection for the image sensor.
• Lighting: Consider installing your camera faces the same direction of the light sources. Shooting images with top-down position outdoor or next to the existing light source are good choices. Avoid the light source if it creates a shade that darkens the viewing area.

temperature and weather

the specified

TRENDnet User's Guide

TV-IP319PI

Hardware Installation

Cabling

It's recommended that the wiring the cable in your home professional. If you already have the cable deployed, make sure the cable and the connectors meet the category 5 Ethernet cable standards. At least 2 pairs of twisted lines are required for power and data. Poor cable quality may cause unexpected problems. Testing your cable or running a new cable is suggested for new camera installation.

Waterproof cap

The TV-IP319PI itself is IP66 grade water and dust proof. There is a set of network cable water proof caps that comes with the package as well. Run your cable going through the accessories, and then crimp the cable with an RJ45 module. Plug in the network cable and then tighten the waterproof cap to prevent water running into camera through the cable.

Setup Your Camera with CD

1. Please download the utility at http://www.trendnet.com/camerautility

or office by a

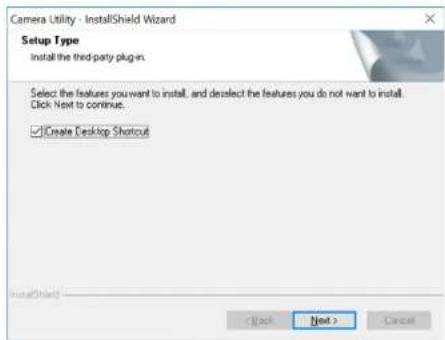

1. Extract the downloaded file and double click on the camera utility file to install

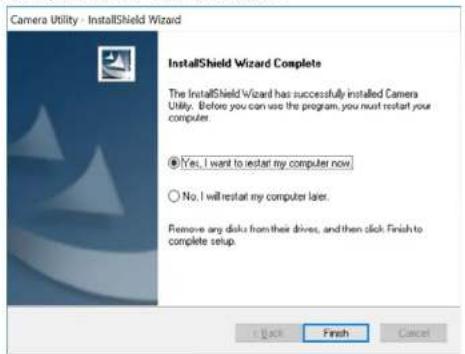

1. Last, click Next to finish the installation.

TRENDnet User's Guide

TV-IP319PI

1. This will also require you to Install WinPcap program if you don't have

this installed before, please follow the on screen Instructionsto launch the program.

Install It.

1. Restart the computer after the Installation.

1. After the computer has restarted, double click on the Camera Utility icon

2. Find the camera you would like to access and configure then double click on the IP address.

1. Continue to the next section Access your Camera with the Web Browser for detail configurations of the camera.

TRENDnet User's Guide

TV-IP319PI

Logging-in to the Camera for the First Time (Windows)

1. Find the camera from the Utility and double click on the IP address to open the browser.

1. Activate the admin User Account by entering your desired password, and then click OK.

1. The camera management page will detect if you installed the camera video streaming plug-in or not. Click the link to download the plug-in from the camera. (For Internet Explorer and Safari only)

1. Download the plug-in to your computer and then and close your browser. Launch the plug-in installation to install the plug-in.

TRENDnet User's Guide

TV-IP319PI

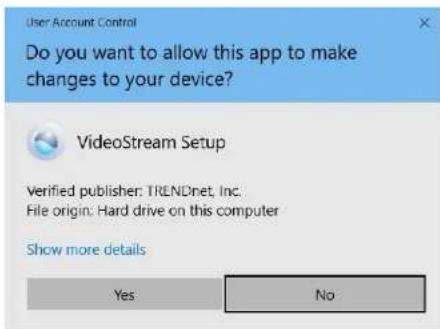

1. Permission request may show up depends on the Internet security settings on your computer. Click Yes to install the plug-in.

1. Click Next to install the plug-in.

1. Click Finish to finish the installation.

1. Open the browser and login again, enter the user name admin and new password again to start secured session.

TRENDnet User's Guide

TV-IP319PI

1. Refresh the browser and the Live View page will show up and begin streaming video

Logging-in to the Camera for the First Time (OS X)

1. Open the web browser on your computer. In the address bar, enter the default IP address of the camera 192.168.10.30. If the connected to a router/network, please use the Windows Camera Utility to find the exact IP address.

1. Enter the user name, admin, and the default password, admin, and then click OK.

TRENDnet User's Guide

TV-IP319PI

1. The camera management page will detect if you installed the camera webcomponent plug-in or not. Click the link to download the plug-in from the camera.

Note: Internet connection is required to download the plug-in. If you do not have Internet access, you can find the plug-in on the CD comes with the package under /Mac folder.

1. Quit your browser completely by command-Click on the browser icon and then click Quit before installing the plug-in.

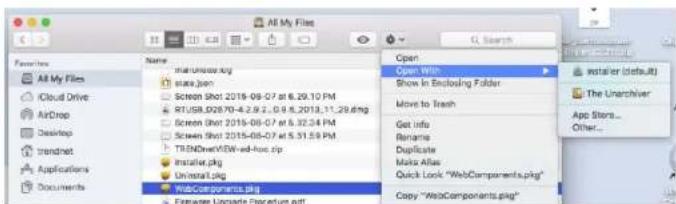

1. Go to the Finder and navigate to the Download folder. Command-Click the WebComponents.pkg and then click Open. (If you are install the plugin from the CD when you don't have internet connection, just browse to /Mac folder and double click the WebComponents.pkg file.)

1. Click Open with → Installer to start installation.

TRENDnet User's Guide

TV-IP319PI

7. Click Continue to install the plug-in.

8. Select a destination to install the plug-in. Then click Continue.

9. Use the default location and click Install.

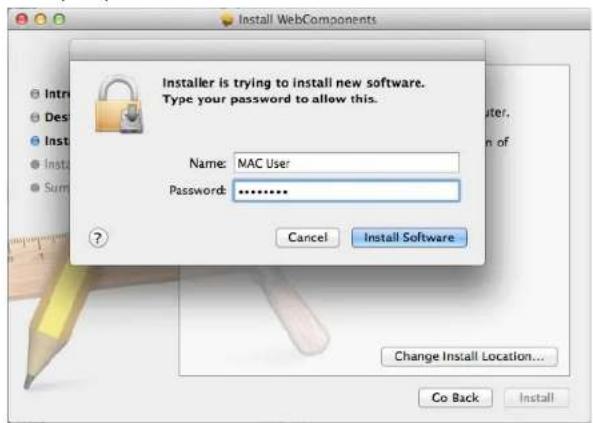

10. Enter your password and click Install Software

TRENDnet User's Guide

TV-IP319PI

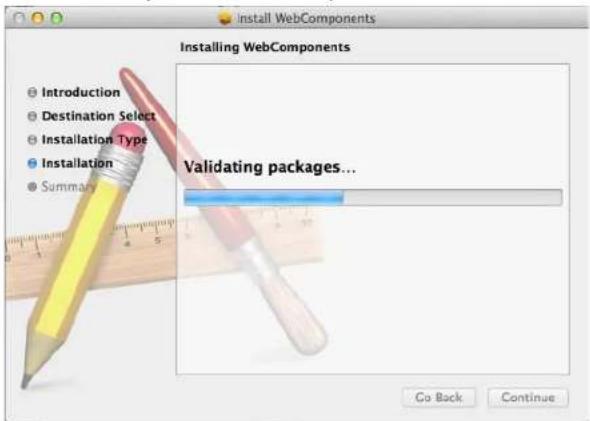

11. Installation will process automatically.

12. Click Close to exit the installation.

1. Open the browser and login again with the default IP 192.168.10.30 or the IP that was dynamically assigned by your router. Enter the user name, admin, and the default password, admin, and then click OK.

1. The Live View page shows up and the video starts to stream.

TRENDnet User's Guide

TV-IP319PI

Live View

After you log-in into the camera management page, you'll see the Live View page.

Snapshot

Click this icon to take a video snapshot.

Zoom

Click once to enable enabled, click and drag the area on the picture to zoom in. Right click resume 100% zoom. Click the again to disable zoom. The zo function works in full screen mode as well.

Recording

Click once to start recording. again to stop recording. The status bar will indicate if it is in recording state or not.

MJPEG

Video Stream

TV-IP319PI has two video streams. H.264 and MJPEG. Switch to view the different video streams by clicking this icon.

Full Screen Mode

Click the picture to view in full screen mode. Double click again or escape key on your keyboard to exit full screen mode.

Status Bar

The status bar shows the status you assess at, including enabled the zoom, recording video, and successfully taking a snapshot.

TRENDnet User's Guide

TV-IP319PI

Playback

You can playback the video recording on the network storage and download the video clip and snapshots to your local computer.

Search for video recordings

Click the date selection, and then choose a date as the date range of searching. Click Search to start searching.

Time Line

There is a play back head in the center of the time line represented in a yellow vertical line. To look for a specific video recording, move the time line by clicking and dragging it. If the recording is short, zoom in by click button. Click 🔒 to zoom out the time scale. If you know the exact time of the day you are looking for, click ➤ then enter the time you want to playback.

Different types of recordings are identified differently. The sched recordings are marked in blue, and the recordings tri detection are marked in red.

TRENDnet User's Guide

TV-IP319PI

Playback

Use playback controls to play back the video recording.

Click this button to play the video.

Click this button to pause video playback.

Click this button to stop playback.

Click this button increase playback speed*.

Click this button decrease playback speed*.

Click to playback video frame by frame. Click again for the next frame

* Note: There are 5 steps of playback speed you can choose from: 1/4, 1/2, 1, 2, and 4 times of original speed.

Slice images from video playback

You can take snapshots from playback video or make new video clips from the video you are playing back.

Click this button to enable zoom. Then click and drag on the video to define the area you want to zoom in. Click again to get back to 100% zoom.

Double click to show video in full screen and press ESC on keyboard to exit full screen mode.

Click this button to disable zoom.

Click this button to take a snapshot of current playback.

Click this button to start clipping a video from playback.

Click this button to stop clipping a video from playback.

TRENDnet User's Guide

TV-IP319PI

Download sections of video

To save complete video sections or snapshots, you can download the files directly.

Click 📄 button to download video sections.

Check the time of the recording, select the videos you want to download, and then click Download.

Download snapshots

Click a button to list snapshots to download

Schedule

Motion

Select the type of event that triggered the snap Choose the Start Time and End Time. Then, click Search to find the snapshot list. Check the time of the snapshot, and then select the snapshots you want to dow then click Download.

TRENDnet User's Guide TV-IP319PI

Log

The log of the TV-IP319PI will be saved on the network search the relevant records and save to your local computer. (See Network Storage on page 47 to setup the storage.)

Search for logs

Click the type of log and then the Start Time and End Time. Click Search to storage You can start searching.

Total 129 Items First Page Prev Page 1/2 Next Page Last Page

Click First Page, Prev Page, Next Page, and Last Page to show the logs. Click Save Log to save the logs to your computer.

TRENDnet User's Guide

TV-IP319PI

System Information

System Information page shows the camera's basic information.

Basic Information

Device Name:	Human readable device name for easy identification.
Firmware Version:	Firmware version
MAC Address:	The MAC address of Ethernet Interface
System Time:	The system time setup in the camera. Keeping this time correct is important for recording, scheduled control and logging accurately.
Device Name:	Human readable device name for easy identification.

Network Information

IP Address:	IP address of the TV-IP319PI
Subnet Mask:	Network range of IP address
Default Gateway:	The default route going from the TV-IP319PI subnet.
Primary DNS:	Primary DNS server address
Secondary DNS:	Secondary DNS server address

TRENDnet User's Guide

TV-IP319PI

System Configuration

Device Settings

Setup your camera name and location for easy identification. This name will also be recognized by other network camera software as the name of this camera. OSD, On Screen Display, camera name is refern setting as well.

Names

Camera Name:

Name of the camera. The camera name setup here can be discovered by other network camera software and OSD, On Screen Display. The default camera name is the model number: TV-IP319PI

Location: Label where you installed this camera for reference

Authentication

RTSP: TV-IP319PI's video stream can be accessed with RTSP, Real Time Streaming Protocol. Only the administrator and users can view this video stream Un-checking this box will allow everyone access to this video stream without authentication. Default: Checked.

Service

Enable TV-IP319PI embedded Telnet service for multiple camera Telnet: control for system developer. Default: disabled.

TRENDnet User's Guide

TV-IP319PI

User Accounts

You can setup up to 16 user accounts to access the camera's video stream with a web browser or real time video stream (RTSP). Only one administrator account can be setup to configure the TV-IP319PI and cannot be deleted.

User Accounts

Add: Click Add button to add one user account

Modify: To change a user's name and password, highlight the user by clicking on it. Then, click Modify button. You can change the user's name and password. You can also change the administrator's password here. But, the administrator's name is fixed, you cannot change that.

Click OK to save the changes.

Time Settings

The accuracy of the system clock is important for scheduling and accurate logging. You can synchronize the system time with your computer automatically check the time accuracy with a network to server).

Automatic Update

NTP Specify a time server (NTP server) to synchronize with.

Server: (e.g. pool.ntp.org)

Interval: The time interval that the TV-IP319PI will synchronize the time with NTP server. Default: 1440 minutes (24 hours)

Manual Time Sync

Device Time: The system time of this camera.

Set Time: Click the calendar icon and manually select the Check the Sync. with computer time to copy the time from your computer.

Click Save to save the changes

TRENDnet User's Guide

TV-IP319PI

Daylight Savings

Setup daylight savings.

Automatic Update

Enable DST:	Check this box if your time zone has daylight savings.
Start Time:	Enter the date that daylight savings starts
End Time:	Enter the date that daylight savings ends
DST Bias	Enter how much time the daylight saving daylight savings.

Click Save to save the changes

Live View Settings

Setup the live view video quality, file size and file saving directories.

adjusted by

Live View Parameters

Live View Configure the buffer size for live view video stream. With Buffer: low buffer size setting, you can get real-time a stream, but the video may be stop and go if the network is congested. With high buffer setting, a smooth video streaming, but the video is delayed from the time happening. Medium size can have mod video stream smoothness and time delay.

TRENDnet User's Guide

TV-IP319PI

Record File Settings

Record file size:	This size of live view video recording. You can choose 256MB, 512MB, or 1GB a file. Smaller file size is good for many short recordings.
Save record files to:	Click Browse and then choose a new destination if you want to save the file somewhere else.
Save downloaded files to:	Click Browse and then choose a new destination if you want to save the file somewhere else.

Picture and Clip Settings

Save snapshots in live view to:	Click Browse and then choose a new destination if you want to save the file somewhere else.
Save snapshots when playback to:	Click Browse and then choose a new destination if you want to save the file somewhere else.
Save clips to:	Click Browse and then choose a new destination if you want to save the file somewhere else.

Click Save to save the changes

Maintenance

You can restart, load camera settings and upgrade the camera firmware on this page.

Reboot

Reboot: Click this button to reboot this camera.

Reset

Reset: Reset all camera parameters, except the IP parameters and user information.

Default: Load complete factory default to the camera.

TRENDnet User's Guide

TV-IP319PI

Inport Config, File

Config File: To load previously saved settings, click Browse to find the configuration file and then click Import.

Status: Shows the status in loading configuration file.

Export Config. File

Export: Click Export to download configuration file. The file will be downloaded to the Download folder by default.

Remote Upgrade

Firmware: Click Browse to find the latest firmware and Upgrade.

Status: Shows the status in firmware upgrade.

TRENDnet may periodically release firmware upgrades that might features or fix problems associated with your camera. To find out if there is a firmware upgrade available for your device, please check your model and version using the link.

http://www.trendnet.com/downloads/

1. If a firmware upgrade is available, download the firmware to your computer.
2. Unzip the file to a folder on your computer.
3. Read the firmware upgrade instruction for specific version update information.
4. Log into the TV-IP319PI.
5. Getting to this Maintenance page to upgrade firmware.

Network Settings

TCP/IP

Setup your basic IPv4 and IPv6 network settings on this page.

TRENDnet User's Guide

TV-IP319PI

Network Interface

MAC Address:	Click this button to reboot this camera.
Duplex and Speed:	Choose one of the Ethernet duplex and match your network. Default: auto.
MTU:	Maximum transmission unit. The maximum field size in the Ethernet packet.
Primary DNS:	Enter your first IPv4 or IPv6 DNS server address
Secondary DNS:	Enter your second IPv4 or IPv6 DNS server address

IPv4

DHCP:	Check this box if the IP address is assigned by DHCP server.
IPv4 Address:	The IPv4 dynamic or static address
Subnet Mask:	Network range of the subnet
Default Gateway:	The default route going further from TV-IP319PI IPv4 subnet

IPv6

IPv6 Mode:	Choose Manual, DHCP, or Route Advertisement. Click View Route Advertisement to find a route advertisement.
IPv6 Address:	IPv6 address of TV-IP319PI
Prefix Length:	Length of network prefix
Default Gateway:	The default route going further from TV-IP319PI IPv6 subnet

Port

You can change the service port numbers of TV-IP319PI and enable/disable speRTSP or HTTPS services.

Port Numbers

HTTP Port:	The default web access port. You can change the port number. However, you cannot disable the wel service. The default port number is 80.
RTSP Port:	The Real-Time Streaming Protocol port for vid streaming. You can change the port number disable the service by uncheck the box. The default port number is 554.
HTTPS Port:	The secured web service port. You can change the port number, or you can disable the service uncheck the box. The default port number is 443.

Click Save to save the changes

TRENDnet User's Guide

TV-IP319PI

DDNS

Dynamic Domain Name Service, DDNS, allows you to find your camera from the Internet with an easy to remember domain name.

DDNS

Enable DDNS:	Check this box to enable DDNS Service.
DDNS Type:	Select a DDNS service provider.
NO-IP
IPServer
DynDNS
NO-IP
HIDDEN
Server Address:	Enter the DDNS server address.
Domain:	Enter your registered domain/host name on selected DDNS service.
User Name:	Enter the account name.
Password:	Enter the password.
Confirm:	Enter the password again.

Click Save to save the changes

PPPoE

Setup PPPoE (ADSL) connection to connect your camera with your ISP, Internet Service Provider.

PPPoE (ADSL)

Enable PPPoE:	Check this box to enable PPPoE connection.
Dynamic IP:	The IP address assigned by ISP
User Name:	Enter the account name.
Password:	Enter the password.
Confirm:	Enter the password again.

Click Save to save the changes

*Note: To view the camera remotely, please make sure the HTTP and RTSP ports are opened (port forwarded) on your network/router.

TRENDnet User's Guide

TV-IP319PI

SNMP

SNMP Settings allows you to assign the contact details, location, community name and trap settings of SNMP. This is a networking management protocol used to monitor network-attached devices. SNMP allows messages (called protocol data units) to be sent to various parts of a network. Upon receiving these messages, SNMP compatible devices (called agents) return data stored in their Management Information Bases.

SNMP V1/V2

Enable SNMPv1:	Check this box to enable SNMP v1 management.
Enable SNMPv2c:	Check this box to enable SNMP v2c management.
Read SNMP Community:	Specify the password to access the SNMP community for read only access.
Write SNMP Community:	Specify the password for access to the SNMP community with read/write access.

TRENDnet User's Guide

TV-IP319PI

Trap Address:	Specify the IP address for the SNMP trap community.
Trap Port:	Specify the port number for the SNMP trap community.
Trap Community:	Specify the name of SNMP trap community.

SNMP V3
Enable SNMPv3:	Check this box to enable SNMP v3 management.
Read User Name:	SNMP v3 member user name.
Security Level:	Choose one of the security levels.
	Authentication and Privacy
	Authentication only
	Privacy only

Authentication Algorithm:	Choose the authentication method to verify the source of information: MD5 or SHA.
Authentication Password:	Specify the authentication password between 8 to 32 letters.
Private-key Algorithm:	Choose the privacy key to encrypt SNMP messages: DES or AES.
Private-key Password:	Specify the privacy key between 8 to 32 letters.

Write User Name:

SNMP v3 manager user name.

Authentication and Privacy

Authentication only

Privacy only

Authentication Algorithm:	Choose the authentication method to verify the source of information: MD5 or SHA.
Authentication Password:	Specify the authentication password between 8 to 32 letters.

Private-key Algorithm:	Choose the privacy key to encrypt SNMP messages: DES or AES.
Private-key Password:	Specify the privacy key between 8 to 32 letters.

SNMP Other Settings
SNMP Port:	SNMP service port number.

Click Save to save the changes

TRENDnet User's Guide

TV-IP319PI

802.1X

Setup 802.1X for remote authentication service.

802.1X Authentication

Enable IEEE 802.1X:	Check this box to enable 802.1X authentication service.
EAPOL version:	Extensible Authentication Protocol (EAP) over LAP (EAPoL). Choose version 1 or 2. This version number has to match to your 802.1X service EAPOL version.
User Name:	Enter the account name.
Password:	Enter the password.
Confirm:	Enter the password again.

Click Save to save the changes

IP Address Filter

Set up a list of clients allow only the clients on the list to access this camera or to reject clients on the list from access this camera.

IP Address Filter

Enable IP Address Filter:	Check this box to enable IP address filtering service.
IP Address Filter Type:	Choose Forbidden to ban the listed IP addresses or Allowed to allow listed host to access this camera.
Add:	Click Add to add a user account
Modify:	To modify an entry on the list, highlight the entry by clicking on it. Then, click the Modify button.

Delete: To delete an entry on the list, highlight the entry by clicking on it. Then, click Delete
Clear: To clear all entries, click Clear
Click Save to save the changes

TRENDnet User's Guide

TV-IP319PI

Quality of Service (QoS)

UPnP

Setup traffic prioritization tags the video packets to go through Unimetwork Plug-and-Play is a device discovery protocol set. It all switches and routers with assigned priority. You can set the Differentiadora to easily be found, for example, on a Windows operation system.

Services Code Point (DSCP) bits on outgoing data streams. The QoS capable network device will forward different data in different priorities. The meaning of the value is different in different DiffServ domains. Consult your network manager for the setup details.

IP Address Filter

Video/Audio Enter Video/Audio DSCP. Default: 0. DSCP:

Event/Alarm Enter Event/Alarm DSCP. Default: 0. DSCP:

Management Enter Management DSCP. Default: 0. DSCP:

Click Save to save the changes

UPnP

Enable UPnP: Check this box to enable UPnP connection.

Friendly Name: The name that will be appeared when searched.

Port Mapping

Enable Port Check this box to enable UPnP connection. Mapping:

Port Mapping Choose Manual or Auto port mapping. Mode:

External Port: Choose the port number for mapping.

Click Save to save the changes

TRENDnet User's Guide

TV-IP319PI

Video Settings

Video Format

Choose the video stream you want to modify. H.264 and H.265 videos are always streaming and can be configured separately.

Higher compression option

Resolution:	H.264/H.265	MJPEG
Bitrate Type:	Choose between variable bit rate or constant bit rate for video compression. The default is variable rate.
Video Quality:	Choose the video quality. The default is medium quality.
Frame Rate:	Choose the capturing frame rate. The default value is 30 frames per second. Reduce the frame rate to reduce the capture file size.
Max. Bitrate:	Choose the maximum video sampling bit rate.Default: 2048
I Frame Interval	An I Frame is a frame that records a complete picture. Frames between I frames, (P frame or B frame) only records the image differences between two frames. Choose the I Frame Interval here. The default is 60.

Click Save to save the changes

Sub stream can be used for lower resolution needed application, for example mobile app streaming or NVR streaming.

Third stream is used for Live view only, it has resolution limitation on Chrome, Firefox and Safari. Max resolution can be supported under Internet Explorer.

Note: When H.264+/H.265+ is enabled, Live view on Chrome or Firefox will be disabled due to browser limitation, you can continue to Explorer or Safari to view the camera otherwise disable the H.265+ option.

TRENDnet User's Guide

TV-IP319PI

Display Settings

Adjust video image quality, lightness, and color settings here.

Brightness:	Use the slider or enter a number (0-100) to adjust the image brightness. Default: 50
Contrast:	Use the slider or enter a number (0-100) to adjust the image contrast. Default: 50
Saturation:	Use the slider or enter a number (0-100) to adjust the color saturation. The greater number means the color will be more saturated. Default: 50
Sharpness:	Use the slider or enter a number (0-100) to adjust the image sharpness. Default: 50

TRENDnet User's Guide

TV-IP319PI

Light sensitivities

Iris Mode:	This camera uses fixed lens, therefore the Iris function is not configurable.
Exposure Time:	Adjust this value for exposure time for each picture. You can choose a value between 1/3 second to 1/100,000 second. The default value is 1/30 second exposure time for each picture.
Gain	This value be manually configured from 0 to 100. The bigger the value is, the brighter would the image be, and the noise would also be amplified to a larger extent.
Day/Night Switch:		Choose whether you want the camera to be set to the day mode (color video) or night mode (IR enhanced black/white video). You can manually set it to day mode or night mode, adjust by lighting (Auto), or pre-define schedule.

Auto:

Sensitivity: The light sensor sensitivity.

Switch Time: The time delayed to switch between modes. Longer switch time can prevent unnecessary mode flipping if an object is blocking the light source temporarily. Range: 5-120 seconds, default: 5 seconds.

Schedule:

Use quick selection or enter the time down below. Click OK to confirm the time you want to set.

Start Time: The start time for day mode. Stop Time: The start time for day mode.

Smart Supplement Light	Set the supplement light as ON, and Auto and Manual are selectable for light mode.
	Select Auto, and the supplement light changes according to the actual luminance.
Mode	Adjust the image settings manually or automatically. If set to manual, the distance can be adjusted

BLC Area	If you focus on an object against strong backlight, the object will be too dark to be seen clearly. compensates light to the object in the front to make it clear. OFF, Up, Down, Left, Right, Center, A Custom are selectable.
WDR	Wide Dynamic Range can be used when the object is in front of a direct light.

TRENDnet User's Guide

TV-IP319PI

White Balance:

AWB2

MWB

AWB1

AWB2

Locked WB

Fluorescent Lamp

Incandescent Lamp

Warm Light Lamp

Natural Light

Choose a color temperature as the white color and compensate the color on the whole image.

Digital Noise

Reduction:

Choose the mode of noise reduction.

Normal Mode

Noise Reduction Level: Adjust the effect of noise reduction. Range: 0-100%, default : 100%

Expert Mode

Space DNR Level: Adjust the special digital reduction with adjacent pixels. Change the range (0-100%) to change the adjacency effect, default : 50%

Time DNR Level: Adjust the 3D digital noise reduction.

Compare and reduce noise between video Range: 0-100%, default : 100%

Noise

Reduction Level

Adjust the value of the noise reduction

Mirror

Adjust the image to change from left to right or up and down.

Rotate

To make a complete use of the 16:9 aspect ratio, you

can enable the rotate function when you use camera in a narrow view scene.

When installing, turn the camera to the 90 degrees or

rotate the 3-axis lens to 90 degrees, and set the rotate

mode as on, you will get a normal view of the scene

with 9:16 aspect ratio to ig

information such as the wall, and get more meaningful information of the scene.

digital

Scene Mode

Choose the scene as indoor or outdoor according to the real environment.

noise

Video

Standard

50 Hz and 60 Hz are selectable. Choose according to the different video standards; normally 50 Hz for PAL standard and 60 Hz for NTSC standard.

frames.

TRENDnet User's Guide

TV-IP319PI

(Scheduled-Switch mode)

Scheduled Image Settings :	Scheduled- Switch
Start Time :	06:00:00
End Time :	18:00:00
Working Mode :	Common
Iris Mode :	Manual
Day/Night Switch :	Scheduled- Switch
Start Time :	06:00:00
End Time :	18:00:00
Smart Supplement Light :	ON
Mode :	Auto
Mirror :	OFF
Rotate :	ON
Scene Mode :	Indoor
Video Standard :	PAL(50HZ)

To configure this section

1. Click the calendar icon to select the start time and the end time.

• The start time and end time refer to the valid time for day mode.
- The time period can start and end on two days in a row. For example, if you set start time as 10:00 and end time as 1:00, the day mode will be activated at 10 o'clock in the morning and stopped at 1 o'clock early in the next morning.

1. Click Working mode to configure common parameters applicable to the day mode and night mode.
2. Click Day tab to configure the parameters applicable for day mode.
3. Click Night tab to configure the parameters applicable for night mode.

Note: The settings are saved automatically when parameters are changed.

TRENDnet User's Guide

TV-IP319PI

On Screen Display Settings

Display the camera name and the time the video is shooting on the screen

Display Name:	Check this box to display the product name that was setup in the device settings
Display Date:	Check this box to display system time.
Display Week:	Check this box to display time of the week.
Time Format:	Select 12 or 24-hour time format.
Date Format:	Select the date format
Display Mode:	Choose how the text will show on the screen.
OSD Size:	Select the text size from 16 to 64 screen size automatically.

Move the red box to position the text. Click Save to save the changes.

Text Overlay

Display extra information on the screen over the image.

Check Box:	Check this box to enable text overlay.
Text Field:	Enter the text you want to display. You can enter your local language if you want. The text field allow maximum 44 English letters or 20 non-English characters.

Move the red box to position the text. Click Save to save the changes

TRENDnet User's Guide

TV-IP319PI

Privacy Mask

Create a masking area to keep your privacy. You can create up to four independent masking areas by clicking and dragging on the screen.

Enable Privacy Mask:	Check this box to enable privacy masking.
Stop Drawing:	Click this button to stop drawing.
Clear All:	Click this button to clear all the masking areas.

Click Save to save the changes

Video Recording

Pre-record:	Recording time before trigger event.
Post-record:	Recording time after trigger event.
Overwrite:	Select Yes to allow older recordings to be overwritten.
Enable Record Schedule:	Check this box and then click Save to enable video recording.

Click Save to save the changes

TRENDnet User's Guide

TV-IP319PI

Edit: Click Edit to edit the recording schedule. The Edit Schedule window will pop up.

1. Select day of the week you want to edit.
2. Select All Day or Customized schedule of the day.
3. Set the time period and the event you want to trigger the video recording continuous (always recording) or motion detection.
4. Click Select All or the weekday you want to have the same schedule on different day.
5. Click another day of the week by clicking on its tab to set the next schedule. Click OK when you have finished your settings.

Events

Motion Detection

Set up how the motion detection event will be triggered and what actions will be triggered.

TRENDnet User's Guide

TV-IP319PI

Enable Check this box to enable motion detection. Click Save Motion to save the choice. Detection: Enable Check this box to enable motion tracking. Motion tracking is a dynamic display that shows the current Tracking: status of motion detection. The motion tracking is displayed with grids in green. The grid area represents the camera motion is happening. Click Save to save the choices.

Draw Area: Click Draw Area button to start drawing. Click and drag on the area you want to set up the motion detection. You can draw up to 8 different areas. Click Stop Drawing to stop drawing motion detection areas. The red grids represent the motion detection area.

Sensitivity: Move the slider to adjust detection sensitivity.

Clear All: Click this button to clear all the set up areas.

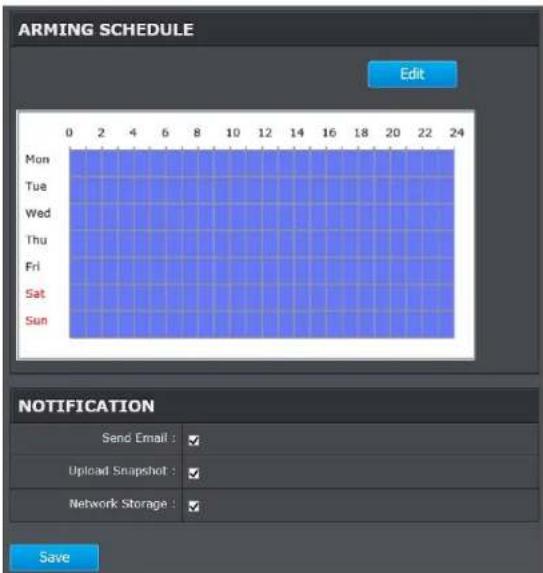

Arming Schedule

Edit: Click Edit to edit the recording schedule. The Edit Schedule window will pop up.

1. Select day of the week you want to edit.
2. Select All Day or Customized schedule of the day.

TRENDnet User's Guide

TV-IP319PI

1. Set the time period and the event you want to trigger the video recording continuous (always recording) or motion detection.
2. Click Select All or the weekday you want to have the same schedule on different day.
3. Click another day of the week by clicking on its tab to set the next schedule. Click OK when you have finished your settings.

Notification

Send Email:	Check this box to send an e-mail notification when motion is detected.
Network Storage:	Check this box to record video to network storage when motion is detected.
Upload to FTP:	Check this box to send snapshots to an FTP server when motion is detected.

Click Save to save the changes

Video Tampering

This is to detect if the camera has been tampered with and surveillance is compromised. You can set up tamper proof notifications to alert the system manager to check the camera.

TRENDnet User's Guide

TV-IP319PI

Enable Tamper Detection:	Check this box to enable tamper detection. Click Save to save the settings.
Draw Area:	Click Draw Area button to start drawing. Click and drag on the area you want to set up the tamper detection.You can setup only one area for tamper Click Stop Drawing to stop drawing motion detection areas. The gray block represents the detection area.
Sensitivity:	Move the slider to adjust detection sensitivity.
Clear All:	Click this button to clear all the set up areas.

Arming Schedule

Edit: Click Edit to edit the recording schedule. The Edit Schedule window will pop up.

Edit Schedule

Period	Start Time	End Time	Record Type
1	00:00	00:00	Continuous
2	00:00	00:00	Continuous
3	00:00	00:00	Continuous
4	00:00	00:00	Continuous
5	00:00	00:00	Continuous
6	00:00	00:00	Continuous
7	00:00	00:00	Continuous
8	00:00	00:00	Continuous

1. Select day of the week you want to edit.
2. Select All Day or Customized schedule of the day.
3. Set the time period and the event you want to trigger the video recording continuous (always recording) or motion detection.
4. Click Select All or the weekday you want to have the same schedule on different day.
5. Click another day of the week by clicking on its tab to set the next schedule. Click OK when you have finished your settings.

detection.

Notification

Send Email: Check this box to send an e-mail notification when motion is detected.

Click Save to save the changes

TRENDnet User's Guide

TV-IP319PI

Notification

Provide notifications for other system events, set up your notifications here.

Notification

Notification Type:	First, choose the exception type, and then choose the corresponding action.
Send Email:	Check this box to send an e-mail notification when motion is detected.

Click Save to save the changes

Snapshot

You can set up your camera to continuously taking snapshots snapshots only when events happening.

Continuous

Enable:	Check this box to take snapshots continuously.
Format:	Save snapshots in JPEG format
Resolution:	Uses the same resolution set in Video Format for the snapshot resolution.
Quality:	Choose a compression quality for snapshots.
Interval:	State the time interval between snapshots. The default interval is 10 seconds.

TRENDnet User's Guide

TV-IP319PI

Event triggered

Enable:	Check this box to take snapshots when an e occurred.
Format:	Save snapshots in JPEG format
Resolution:	Uses the same resolution set in Video Format for the snapshot resolution.
Quality:	Choose a compression quality for snapshot.
Interval:	State the time interval between this series of snapshots. The default interval is 1 second.
Capture Number:	State how many snapshots you want to take in a single triggered event. Default: 3 pictures.

Click Save to save the changes

Email

nt is

Set up email accounts for notifications.

Sender

Sender:	Enter the name to be appeared as the email sender.
Sender's Address:	Enter sender's email address.
SMTP Server:	Simple Mail Transportation Protocol Server address, the outgoing email server address. It may be

TRENDnet User's Guide

TV-IP319PI

	address as your incoming email server, maybe noPlease ask your email service provider for detail.
SMTP Port:	Service port number for outgoing email.*
Enable SSL:	Check this box if your service provider requires a SSL secured connection.
Attach Image/Interval:	Check Attach Image if you want to send a snapshot image with the email notification and select interval of snapshots in seconds.
Authentication:	Check this box if your server requires a password in order to send email. Most email servers re authentication when sending an email.
User name:	Enter the user name of outgoing email account
Password:	Enter the password
Confirm:	Enter the password again to confirm that password was entered correctly.

Click Save to save the changes

Receiver
Receiver 1:	The first receiver's name.
Receiver 1's Address:	The first receiver's email address.
Receiver 2:	The second receiver's name.
Receiver 2's Address:	The second receiver's email address.
Receiver 3:	The third receiver's name.
Receiver 3's Address:	The third receiver's email address.

Click Save to save the changes
*Note: Many ISPs does not allow service port 25 going through their network. Other popular ports are 587 and 465. Please consult your email service provider and ISP for detail.

Network Storage

Network Storage

Network Storage must be setup before it can be managed. For storage the management, please refer to the next section.

The TV-IP319PI supports two formats of network storage file systems: NFS and CIFS. NFS, Network File System, is natively supported by Linux computers and most NAS, Network Attached Storage. CIFS, Common Internet File System, is natively supported by Windows® systems and now is generally supported by Linux. (OS X® file sharing is not standard SMB and not compatible as a network storage disk here.)

You can add up to 8 network storages for your camera. The recordings will subsequently be stored in these spaces. Save video from the first storage and then the next when the first one is full. Click on the entry to change the settings and click Save to save the settings.

TRENDnet User's Guide

TV-IP319PI

No:	The sequential number of the network storage.
Type:	The type of storage.
Server Address:	Enter the IP address of your network storage.
File Path:	Enter the shared folder as file path for network storage. You can create a folder under the shared folder and make it a network volume here. Just create the folder and enter the correct path name here.
Capacity:	Enter the size of the disk space you want to assign i storage. The minimum disk space requirement is 8GB. If you do not want to limit the size and use the full physical disk space, put number 0 in this field.
File System:	Choose between NFS or CIFS for file system. If you assign the network storage on a Windows® computer, set it to CIFS.
User Name:	Enter the user name if the network storage name and password. Enter any non-blank letter authentication is required.

Password: Enter the password to access the network storage. Enter any non-blank letters if no authentication is required.

Network

Computer

Click Save to save the changes. The camera may reboot to make the network storage available. Go to the next section to format and manage your network storage.

Tip: To create a network storage on your Windows® based system, create a shared folder and then test your set up with another computer. Enter the IP address of the computer here and enter the shared folder in leading forward slash. For example, if you have a shared folder named "SMB", enter "/SMB" in the File Path.

TRENDnet User's Guide

TV-IP319PI

Storage Management

Network Storage must be setup before it can be managed. To setup storage, please refer to the previous section.

Format: Select a network storage volume and then click Format to format your network storage. This action will form network volume (shared folde Placeholder files (formatting files) will be created to make sure disk allocation is appropriate and the file searching is optimized.

The volume format is a proprietary user space's format. Meaning that you visit the shared folder and see some structured files. Please do not modify these files manually. Modifying these files may cause recording playback problems. Access your recording and system log via the web management user interface to download the recording and snapshots.

Capacity: The total capacity this network storage can use.

Free Space: The free space left for video recording, snapshot and log.

Status: The connection status to the network storage.

Property: This network storage is read only or can be read and write.

Progress: The progress of ongoing task.

Note: The formatting progress depends on the size of the storage and the network bandwidth. It takes a while if you are formatting a big volume or the network connection is not stable.

TRENDnet User's Guide

TV-IP319PI

FTP Server

Enable Snapshot to FTP:	Check this box if you want to store snapshots on the FTP.
Server Address:	Enter the FTP server IP address.
Port:	Enter the service port number of the FTP server.
User Name/Anonymous :	Check Anonymous if the FTP server does not require authentication. Enter the User Name if the FTP server requires authentication.
Password:	Enter the password of the FTP account.
Confirm:	Enter the password again to make sure the password was entered correctly.
Directory Structure:	When saving snapshots on an FTP server, they can be saved in a single place or organized with meaningful directory names.Save in root directory: You can choose to store all files in the same folder of FTP login.Save in directory: Structure your folders with camera name or IP address.
Directory:	Use Camera Name: Use the camera name to organize the saved files.Use Camera IP: Use the camera IP address to organize the saved files.

Click Save to save the changes

TRENDnet User's Guide

TV-IP319PI

Appendix

Direct video access - RTSP

To access the video directly through RTSP, just visit the camera IP address on port 554 by default. For example: 192.168.10.30:554 use the admin or user password the login.

Regulations

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an unwithtrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

The availability of some specific channels and/or operational frec bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user.

RoHS

This product is RoHS compliant.

TRENDnet User's Guide

TV-IP319PI

Europe – EU Declaration of Conformity

This device complies with the essential requirements of the Directive 2004/108/EC and 2006/95/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the Directive 2004/108/EC and 2006/95/EC:

Safety /EMC

EN 60950-1: 2006 + A11: 2010 + A12: 2011 + A2: 2013

EN 55024: 2010 + A1: 2015

EN 55032: 2015

EMC Directive 2014/30/EC / RoHS Directive 2011/65/EU

WEEE Directive 2012/19/EU / REACH Regulation (EC) No. 1907/2006

Low Voltage Directive 2014/35/EC

Česky [Czech]	TRENDnet tímto prohlašuje, že tento TV-IP319PI je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 2004/108/ES a 2006/95/ES.
Dansk [Danish]	Undertegnede TRENDnet erklærer herved, at følgende udstyr TV-IP319PI overholder de væsentlige krav og øvrige relevante krav i direktiv 2004/108/EF og 2006/95/EF.
Deutsch [German]	Hiermit erklärt TRENDnet, dass sich das Gerät TV-IP319PI in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 2004/108/EG und 2006/95/EG befindet.
Eesti [Estonian]	Käesolevaga kinnitab TRENDnet seadme TV-IP319PI vastavust direktlivyi 2004/108/EÜ ja 2006/95/EÜ pôhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, TRENDnet, declares that this TV-IP319PI is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC and 2006/95/EC.
Español [Spanish]	Por medio de la presente TRENDnet declara que el TV-IP319PI cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 2004/108/CE y 2006/95/CE.
Ελληνική [Greek]	ME THN ΠΑΡΟΥΣΑΤRENDnet ΔΗΛΩΝΕΙ ΟΤΙ TV-IP319PI ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΠΑΣ 2004/108/ΕΚ, 2006/95/ΕΚ καλ.

Français [French]	Par la présente TRENDnet déclare que l'appareil TV-IP319PI est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 2004/108/CE, 2006/95/CE et.
Italiano[Italian]	Con la presente TRENDnet dichiara che questo TV-IP319PI è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 2004/108/CE e 2006/95/CE.
Latviski [Latvian]	AršoTRENDnetdeklarē, ka TV-IP319PI atbilstDirektīvas 2004/108/EK un 2006/95/EK bütiskajämprasibām un citiemar to saistitajiemnoteikumiem.
Lietuvių[Lithuanian]	Šiuo TRENDnet deklaruoją, kad šis TV-IP319PI atitinka esminius reikalavimus ir kitas 2004/108/EB ir 2006/95/EB Direktyvos nuostatas.
Nederlands[Dutch]	Hierbij verklaart TRENDnet dat het toestel TV-IP319PI in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 2004/108/EG en 2006/95/EG.
Malti [Maltese]	Hawnhekk, TRENDnet, jiddikjara li dan TV-IP319PI jikkonforma mal-htigijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 2004/108/KE u 2006/95/KE.
Magyar[Hungarian]	Alulírott, TRENDnet nyilatkozom, hogy a TV-IP319PI megfelel a vonatkozó alapvető követelményeknek és az 2004/108/EK és a 2006/95/EK irányely egyéb előírásainak.
Polski [Polish]	Niniejszym TRENDnet oświadcza, że TV-IP319PI jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 2004/108/WE i 2006/95/.
Português[Portuguese]	TRENDnet declara que este TV-IP319PI está conforme com os requisitos essencials e outras disposições da Directiva2004/108/CE e 2006/95/CE.
Slovensko[Slovenian]	TRENDnet izjavlja, da je ta TV-IP319PI v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive2004/108/ES in 2006/95/ES.
Slovensky [Slovak]	TRENDnettýmtovyhlasuje, że TV-IP319PI spíñazákladnépožiadavky a všetkyprislušnéustanoveniaSmernice 2004/108/ES a 2006/95/ES.
Suomi [Finnish]	TRENDnet vakuuttaa täten että TV-IP319PI tyyppinen laite on direktiivin2004/108/EY ja 2006/95/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukalnen.
Svenska [Swedish]	Härmed Intygar TRENDnet att denna TV-IP319PI står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 2004/108/EG och 2006/95/EG.

TRENDnet User's Guide

TV-IP319PI

Limited Warranty

TRENDnet warrants its products against defects in material and workmanship, under normal use and service, for the following lengths of time from the date of purchase.

TV-IP319PI - 3 Years Warranty

If a product does not operate as warranted during the applicable warranty period, TRENDnet shall reserve the right, at its expense, to repair or replace the defect product or part and deliver an equivalent product or part to repair/replacement unit's warranty continues from the original date of purchase. All products that are replaced become the property of TRENDnet. Replacement products may be new or reconditioned. TRENDnet does not issue refunds or credit. Please contact the point-of-purchase for their return policies.

TRENDnet shall not be responsible for any software, fir memory data of customer contained in, stored on, or integrated with any products returned to TRENDnet pursuant to any warranty.

There are no user serviceable parts inside the product. Do not remove or attempt to service the product by any unauthorized service center. This warranty is voided if (i) the product has been modified or repaired by any unauthorized service center, (ii) the product was subject to accident, abuse, or improper use (iii) the product was subject to conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet within the warranty period and providing a copy of the dated proof of the proper submission of required documentation a Return Material Authorization (RMA) number will be issued. An RMA number is required in order to service support for all TRENDnet products. Products that are sent to TRENDnet for RMA service must have the RMA number marked on the outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment. Customers shipping from outside of the USA and Canada are responsible for return shipping fees. Customers shipping from outside of the USA custom charges, including but not limited to, duty, tax, and other fees.

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, THE CUSTOMER'S SOLE REMEDY SHALL BE, AT TRENDNET'S OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TRENDNET NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR USE OF TRENDNET'S PRODUCTS.

TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCUMBER, FIRELIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE FOR PROFITMENT OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT TRENDNET'S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of the state of California.

PuschstRENTner products include software code written by third party developers. These codes are subject to the GNU General Public License ("GPL") or GNU Less International Public license ("LGPL").

Go to http://www.trendnet.com/gpl or http://www.trendnet.com Download section and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. Are responsible for Please go to http://www.gnu.org/licenses/gpl.txt or http://www.gnu.org/licenses/

lgpl.txt for specific terms of each license.

7.20.17

TV-IP319PI 1.1

TRENDNET®

Product Warranty Registration

Please take a moment to register your product online. Go to TRENDnet's website at http://www.trendnet.com/register

TRENDnet

20675 Manhattan Place

Torrance, CA 90501. USA
