MODE D'EMPLOI XTK446 MOTOROLA
EVERYDAY, EVERYWHÉRE PERFORMANCE
Give your business a competitive edge with the lightweight Motorola XTK446. Stay in touch with staff, enhance productivity and boost security and customer satisfaction with clear and instant communications at the touch of a button. Weighing just 200 grams with battery, this is an easy to carry two way radio that's ready to go anywhere. It's also simple to use straight out of the box with a large backlit display, recessed keypad and ergonomically designed keys.
Light and compact: Ideal for daily use with a lightweight design that won't weigh you down. Small enough to carry in the hand or a pocket and tough enough to take knocks and shocks with high manufacturing standards for maximum durability and reliability.
Resists Dust and Splashes: No need to worry about dusty, damp environments. The XTK446 works efficiently anywhere with an IP54 rating to protect against dust and water ingression.
Easy to Use: Ready to go straight out of the box with no programming required. Simply power up and press to talk. Large 32x18mm backlit display and recessed keypad makes using the radio quick and easy.
Cost Free: Highly affordable with no license fee, contract or airtime call charges on PMR446 unlicensed frequencies.
Range: Communication coverage of up to 8km (5 miles) depending on terrain and conditions.
Hands Free Operation Using Advanced Voice
Activation (VOX): Use a compatible headset and talk hands free in voice activated mode. Gives you and your staff the freedom to carry on working while talking to colleagues.
Room Monitor: Position the radio to detect voices or sounds and transmit these back to the listening radio without having to press the PTT.
Interference Reduction: With 121 interference eliminator codes for each of the 8 channels, you get a wide range of settings for avoiding channel interference.
Never Miss a Call: Silent Vibrate Alert Mode provides discreet but reliable radio communications when you need to turn the volume down.
XTK466 GENERAL FEATURES:
- Range up to 8km (5 miles)
• 8 Channels with channel monitor/scan
• 10 Call Tones
• Top-mounted enterprise class speaker
- Group Call
- Keypad Lock
- Stop watch timer
• Two Pin professional headset jack
• Auto Squelch
• Up to 16 Hours battery life
- 500mW power transmission
• Supplied with rechargeable NiMH battery pack, charger, plug EU and UK power adapter, pack of 10 colour antenna rings and documentation
• Compatible with 2 pin headsets and earpieces
• Optional protective rubber case available
PRODUCT SPEC SHEET
XTK446


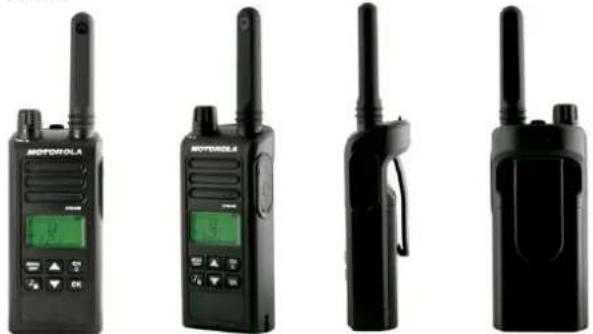

Four black motor walkiehels with green display screens, shown from different angles (no visible text or labels)FEATURES AND SPECIFICATIONS
| Model XTK | |
| Channel 8 channels | |
| Talk Range 8km | |
| Battery Life (@ 5/5/90 cycle) 16 hrs (NiMH) | |
| Private Code 121 codes(CTCSS:1-38, DCS:39-121) | |
| Key Lock On/Off | |
| Roger Beep On/Off | |
| Battery Strength Indicator 2 Levels 3 Stages | |
| Battery Type NiMH Pack | |
| Alkaline battery compatible YES | |
| Call Tone 10 Types | |
| Channel Scan Direction Only Upper Direction | |
| Memory Backup YES | |
| Auto Squelch Control | YES |
| Auto Repeat (Scrolling) | YES |
| Channel Monitor | YES |
| Battery Save | YES |
| Battery Low Alert | YES |
| Battery Low Sleep | YES |
| Tone (On/Off) | YES |
| LCD Backlight | YES |
| VOX/IVOX | YES |
| Room Monitor | YES |
| Auto Power Off | Off/60/120/180(min) |
| DC Jack (for charge) | YES |
| Direct Call (Caller ID Call) | YES |
| Auto Channel Change | YES |
| Group Call | YES |
| Up Timer/Stop-watch | YES |
| Accessory Jack | Motorola Two-pin |
| Removable belt clip | YES |
| Silent Alert (On/Off) | YES |
| Vibrate Alert | YES |
| Sealing | IP54 |
| DC car charger capability | YES |
| Rotary on/off knob | YES |
| TX power at PCB level | 28.5dBm |
| Frequency Range | 446.0 to 446.1 MHz |
| Operating temperature | -10 to +50 celsius (radio) |
| Handset W x H x D | 5.5 x 18.6 x 3.9 cm |
| Handset Weight | 140 grams |
| Charger Base W x H x D | 8.6 x 4.7 x 6.5 cm |
| Charger Base Weight | 50 grams |
| Giftbox W x H x D | 13 x 19.5 x 8.3 cm |
| Giftbox (Empty) Weight | 100 grams |
| Giftbox (full) Weight | 880 grams |
| Shipper Box Qty | 8 |
| Shipper Box W x H x D | 36.0 x 22.5 x 27.5 cm |
| Shipper Box (Empty) Weight | 370 grams |
| Shipper Box (Full) Weight | 5.58 kg |
| Qty Shipper Box Per Pallet | 32 |
| Qty Units Per Pallet | 256 pcs |
| Full Pallet W x H x D | 120 x 105.5 x 80 cm |
| Pallet (Full) Weight | 201.65 kg |
PART NUMBERS
| Sales Part No. | Description | EAN Number |
| P14MAA03A1AZ | XTK446 | 5031753006075 |
| ACCESSORIES | ||
| 00611 | XTK446 Unit Charger | |
| 00613 | XTK446 Bolt Clip | |
| 00615 | XTK446 Rubber Boot | |
| 00242 | XTR - TLKR NiMH Batt | |
For more information on how you can give your business that competitive edge, please visit us on the web at: www.motorolasolutions/XTK or access our global contact directory at: www.motorola.com/Business/XU-EN/Contact_Us
MOTOROLA, MOTI0, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2011 Motorola Solutions, Inc. All rights reserved. Specifications are subject to change without notice. All specifications shown are typical. XTK446_Data_Sheet_UK_10(11)
