BLUETOOTH HEADSET BH-606 - Casque audio NOKIA - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Casque audio Bluetooth
Modèle	Nokia Bluetooth Headset BH-606
Technologie sans fil	Bluetooth 2.0 + EDR
Profils Bluetooth supportés	Headset Profile 1.1, Hands-Free Profile 1.5
Dimensions (approx.)	45 x 22 x 12 mm
Poids (approx.)	12 g
Type de batterie	Lithium-ion rechargeable interne
Temps de charge	Jusqu'à 2 heures
Autonomie en conversation	Jusqu'à 8 heures
Autonomie en veille	Jusqu'à 280 heures
Fonctions principales	Passer et recevoir des appels, rejet d'appel, recomposition du dernier numéro, commande vocale, réglage du volume, sourdine du microphone
Entretien et nettoyage	Essuyer avec un chiffon doux et sec ; ne pas utiliser de produits chimiques agressifs
Sécurité	Ne pas exposer à l'humidité, aux températures extrêmes ; utiliser uniquement des chargeurs approuvés Nokia
Pièces détachées et réparabilité	Batterie non remplaçable par l'utilisateur ; contacter un centre de service agréé
Informations générales	Marque : Nokia ; Modèle : BH-606 ; Garantie : consulter les conditions du revendeur

FOIRE AUX QUESTIONS - BLUETOOTH HEADSET BH-606 NOKIA

Comment allumer et éteindre le casque ?

Pour allumer, maintenez enfoncée la touche marche/arrêt pendant environ 2 secondes jusqu'à ce que le voyant s'allume. Pour éteindre, répétez la même opération.

Comment associer le casque à mon téléphone ?

Assurez-vous que le casque est éteint. Maintenez enfoncée la touche marche/arrêt pendant environ 5 secondes jusqu'à ce que le voyant clignote rapidement. Activez le Bluetooth sur votre téléphone et recherchez les appareils. Sélectionnez le casque et entrez le code 0000.

Combien de temps faut-il pour charger la batterie ?

La charge complète prend environ 2 heures. Pendant la charge, le voyant reste allumé ; il s'éteint lorsque la batterie est pleine.

Quelle est l'autonomie du casque ?

L'autonomie en conversation est de 8 heures et en veille de 280 heures. Ces valeurs peuvent varier selon l'utilisation.

Comment répondre ou terminer un appel ?

Appuyez brièvement sur la touche réponse/fin pour répondre ou terminer un appel. Pour rejeter un appel, appuyez deux fois sur cette touche.

Peut-on utiliser la commande vocale avec ce casque ?

Oui, si votre téléphone le supporte. Maintenez enfoncée la touche réponse/fin pendant environ 2 secondes lorsque aucun appel n'est en cours pour activer la numérotation vocale.

Comment régler le volume ou couper le microphone ?

Faites glisser la touche de volume vers le haut ou le bas pour régler le volume. Pendant un appel, appuyez au centre de la touche volume pour activer ou désactiver le mode sourdine.

Que faire si le casque ne se connecte plus ?

Vérifiez que le casque est chargé, allumé et associé au téléphone. Si nécessaire, supprimez les associations en maintenant les touches marche/arrêt et réponse/fin enfoncées pendant 5 secondes, puis réappairez.

Comment réinitialiser le casque en cas de dysfonctionnement ?

Si le casque ne répond plus, connectez-le à un chargeur branché sur une prise secteur. Cela peut réinitialiser l'appareil.

Le casque est-il compatible avec tous les téléphones ?

Le casque utilise la technologie Bluetooth. Il est compatible avec tout téléphone supportant les profils Headset ou Hands-Free. Vérifiez la compatibilité auprès du fabricant de votre téléphone.

MODE D'EMPLOI BLUETOOTH HEADSET BH-606 NOKIA

Nokia Bluetooth Headset BH-606

DECLARATION OF CONFORMITY

Hereby, NOKIA CORPORATION declares that this HS-128W product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.nokia.com/phones/ declaration_of_conformity/.

C€0889

© 2008 Nokia. All rights reserved.

Nokia, Nokia Connecting People and the Nokia Original Accessories logo are trademarks or registered trademarks of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.

Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited.

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

Nokia operates a policy of ongoing development. Nokia reserves the right to

make changes and improvements to any of the products described in this document without prior notice.

To the maximum extent permitted by applicable law, under no circumstances shall Nokia or any of its licensors be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice.

The availability of particular products may vary by region. Please check with your Nokia dealer for details.

Export controls

This device may contain commodities, technology or software subject to export laws and regulations from the US and other

countries. Diversion contrary to law is prohibited.

Introduction

With the Nokia Bluetooth Headset BH-606, you can make and receive calls while on the move.

Read this user guide carefully before using the headset. Also, read the user guide for your phone. This product may contain small parts. Keep them out of the reach of small children.

Bluetooth wireless technology

Bluetooth wireless technology allowsyou to connect compatible deviceswithout cables . The phone and the

Get started

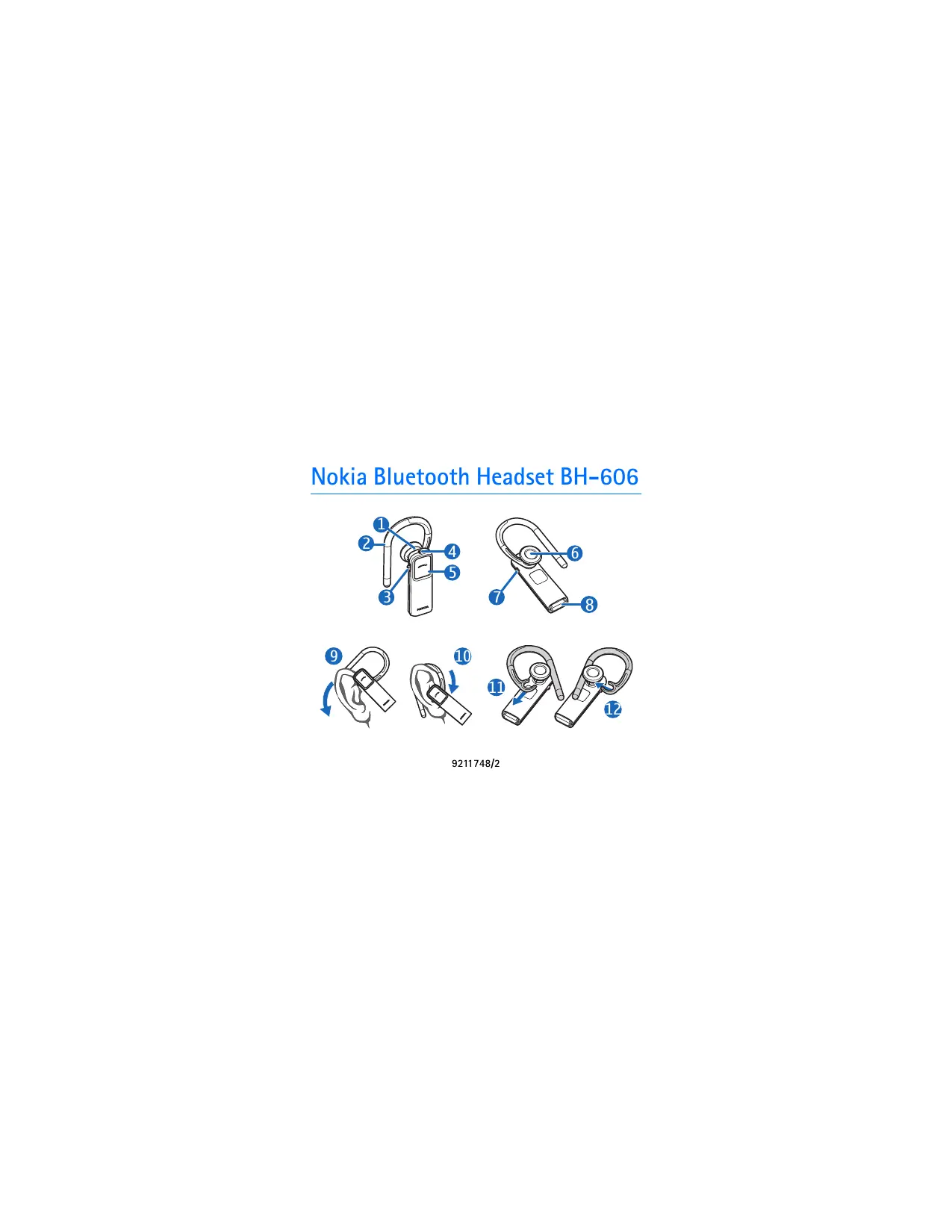

The headset contains the following parts shown on the title page: white indicator light (1),earloop (2),volume

headset do not need to be in line of sight, but they should be within 10 metres (33 feet) of each other.

Connections may be subject to interference from obstructions, such as walls, or other electronic devices.

The headset is compliant with the Bluetooth Specification 2.0 + EDR supporting the Headset Profile 1.1 and Hands-Free Profile 1.5. Check with the manufacturers of other devices to determine their compatibility with this device.

key (3), power key (4), answer/end key (5), earpiece (6), charger connector (7), and microphone (8).

Before using the headset, you must charge the battery and pair the headset with a compatible phone.

Parts of the device are magnetic. Metallic materials may be attracted to the device. Do not place credit cards or other magnetic storage media near the device, because information stored on them may be erased.

Charge the battery

Before charging the battery, carefully read "Battery and charger information".

Warning: Use only chargers approved by Nokia for use with this particular model.

The use of any other types may invalidate any approval or warranty, and may be dangerous.

When you disconnect the power cord of any accessory, grasp and pull the plug, not the cord.

1. Connect the charger to a wall outlet.

2. Connect the charger cable to the charger connector. During charging, the indicator light is on and the headset cannot be used. Charging the battery fully may take up to 2 hours.

3. When the battery is fully charged, the indicator light turns off. Disconnect the charger from the headset, then from the wall outlet. If the headset was connected to your phone before charging, the headset connects to it again.

The fully charged battery has power for up to 8 hours of talk time or up to 280 hours of standby time.

When the battery is discharged, the headset beeps every minute and the indicator light flashes quickly.

Switch on or off

To switch on, press and hold the power key for about 2 seconds. The headset beeps, and the indicator light is displayed. The headset tries to connect to a paired phone.

To switch off, press and hold the power key for about 2 seconds. The headset beeps, and the indicator light turns off.

Pair the headset

1. Ensure that your phone is on and the headset is off.
2. Press and hold the power key (for about 5 seconds) until the

indicator light starts to flash quickly.

1. Activate the Bluetooth feature on the phone, and set it to search for Bluetooth devices.
2. Select the headset from the list of found devices.
3. Enter the passcode 0000 to pair and connect the headset to your phone. In some phones, you may need to make the connection separately after pairing.

When the headset is connected to your phone and is ready for use, the indicator light flashes about every 5 seconds.

Basic use

Place the headset on the ear

Slide the earloop behind your ear, and point the headset toward your mouth

(9 and 10).Gently push the earpiece into your ear. To use the headset on

the left ear, detach the earloop (11), flip it, and push it into place (12).

Calls

To make a call, use your phone in the normal way when the headset is connected to it.

To redial the number you last called (if your phone supports this feature with the headset), when no call is in progress, press the answer/end key twice.

To activate voice dialling (if your phone supports this feature with the headset), when no call is in progress, press and hold the answer/end key for about 2 seconds. Proceed as described in the phone user guide.

To answer or end a call, press the answer/end key. To reject a call, press this key twice.

To set the headset volume, slide the volume key up or down.

To mute or unmute the microphone during a call, press the middle of the volume key.

To switch a call between the headset and a compatible phone, press and hold the answer/end key (or the power key) for about 2 seconds.

Clear settings or reset

To delete the pairings from the headset, switch off the headset, and press and hold the power key and the answer/end key for about 5 seconds.

To reset the headset if it stops functioning, even though it is charged, connect the headset to a charger that is connected to a wall outlet.

Troubleshooting

If you cannot connect the headset to your compatible phone, check that the headset is charged, switched on, and paired with the phone.

Battery and charger information

This device has an internal, nonremovable, rechargeable battery. Do not attempt to remove the battery from the device as you may damage the device. This device is intended for use when supplied with power from the following chargers: AC-3, AC-4, AC-5, and DC-4. The exact charger model number may vary depending on the type of plug. The plug variant is identified by one of the following: E, EB, X, AR, U, A, C, or UB. The battery can be charged and discharged hundreds of times, but it will eventually wear out. Recharge your battery only with Nokia approved chargers designated for this device. Use of an unapproved charger may present a risk of fire, explosion, leakage, or other hazard.

If a battery is being used for the first time or if the battery has not been used for a prolonged period, it may be necessary to connect the charger, then disconnect and

reconnect it to begin charging the battery. If the battery is completely discharged, it may take several minutes before the charging indicator light is displayed.

Unplug the charger from the electrical plug and the device when not in use. Do not leave a fully charged battery connected to a charger, since overcharging may shorten its lifetime. If left unused, a fully charged battery will lose its charge over time.

Always try to keep the battery between 15°C and 25°C (59°F and 77°F). Extreme temperatures reduce the capacity and lifetime of the battery. A device with a hot or cold battery may not work temporarily. Battery performance is particularly limited in temperatures well below freezing.

Do not dispose of batteries in a fire as they may explode. Batteries may also explode if damaged.

Never use any charger that is damaged.

Important: Battery talk and standby times are estimates only and depend on network

conditions, features used, battery age and condition, temperatures to which

battery is exposed, and many other factors. The amount of time a device is used for calls will affect its standby time. Likewise, the amount of time that the device is turned on and in the standby mode will affect its talk time.

Care and maintenance

Your device is a product of superior design and craftsmanship and should be treated with care. The following suggestions will help you protect your warranty coverage.

• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that will corrode electronic circuits. If your device does get wet, allow it to dry completely.

• Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can be damaged.

• Do not store the device in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.

• Do not store the device in cold areas. When the device returns to its normal temperature, moisture can form inside the device and damage electronic circuit boards.
• Do not attempt to open the device.

• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine mechanics.

• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.

• Do not paint the device. Paint can clog the moving parts and prevent proper operation.

These suggestions apply equally to your device, charger, or any accessory. If any device is not working properly, take it to the nearest authorised service facility for service.

Disposal

The crossed-out wheeled-bin symbol on your product, literature, or packaging reminds you that all electrical and

electronic products, batteries, and accumulators must be taken to separate collection at the end of their working life. This requirement applies to the European Union and other locations where separate collection systems are available. Do not dispose of these products as unsorted municipal waste.

By returning the products to collection you help prevent uncontrolled waste disposal and promote the reuse of material resources. More detailed information is available from the product retailer, local waste authorities, national producer responsibility organisations, or your local Nokia representative. For the product Eco-Declaration or instructions for returning your obsolete product, go to country-specific information at www.nokia.com.
