W1-811 - Tablette 2-en-1 ACER - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Tablette 2-en-1 (hybride)
Marque	ACER
Modèle	W1-811
Écran	8 pouces (diagonale), tactile capacitif
Processeur	Intel Atom (estimation)
Système d'exploitation	Windows 8.1 (estimation)
Batterie	Lithium-ion rechargeable, 17,2 Wh
Autonomie estimée	6 à 8 heures (usage modéré)
Dimensions	Env. 219 x 136 x 10,9 mm
Poids	Env. 350 g (tablette seule)
Mémoire vive (RAM)	2 Go (estimation)
Stockage interne	32 ou 64 Go eMMC (estimation)
Connectivité	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Appareil photo	Avant 2 MP, arrière 5 MP (estimation)
Clavier	Détachable (optionnel)
Alimentation	Adaptateur secteur USB 5V
Temps de charge	Environ 3-4 heures
Entretien	Nettoyer avec un chiffon doux et sec ; éviter l'humidité
Sécurité	Ne pas exposer à la chaleur, ne pas percer la batterie
Réparabilité	Pièces détachées disponibles ; batterie remplaçable par un professionnel
Température de fonctionnement	0°C à 35°C
Stockage	Lieu frais et sec
Normes	Conforme à la réglementation en vigueur, batterie testée UN38.3

FOIRE AUX QUESTIONS - W1-811 ACER

Quel système d'exploitation est installé sur l'Acer W1-811 ?

L'Acer W1-811 fonctionne sous Windows 8.1 (ou version ultérieure), offrant une interface tactile optimisée pour les écrans de petite taille.

Comment puis-je nettoyer l'écran de ma tablette ?

Utilisez un chiffon doux et non abrasif légèrement humide (pas mouillé). Évitez les produits chimiques agressifs. Nettoyez l'écran délicatement pour ne pas l'endommager.

Puis-je remplacer la batterie moi-même ?

La batterie est intégrée et son remplacement est déconseillé sans l'aide d'un professionnel. Faites appel à un service technique agréé pour éviter tout risque.

Que faire si la tablette ne s'allume pas ?

Vérifiez la charge de la batterie en branchant l'adaptateur secteur. Si elle ne s'allume toujours pas, essayez un reset matériel en maintenant le bouton d'alimentation enfoncé pendant 10 secondes.

L'Acer W1-811 est-il compatible avec un clavier Bluetooth ?

Oui, la tablette prend en charge le Bluetooth 4.0 et peut se connecter à un clavier sans fil. Assurez-vous que le clavier est appairé via les paramètres Bluetooth.

Comment puis-je augmenter l'autonomie de la batterie ?

Réduisez la luminosité de l'écran, désactivez le Wi-Fi ou Bluetooth inutilisés, et fermez les applications en arrière-plan. Utilisez le mode d'économie d'énergie dans les paramètres.

La tablette peut-elle être utilisée comme ordinateur portable ?

Oui, avec le clavier détachable (vendu séparément) et le système Windows, elle peut fonctionner comme un ultraportable pour la bureautique légère.

Quelles sont les précautions de sécurité pour la batterie ?

Ne pas exposer la batterie à des températures élevées (plus de 60°C), ne pas la percer, ne pas la démonter. En cas de gonflement, arrêtez d'utiliser l'appareil et contactez un professionnel.

Comment effectuer une réinitialisation d'usine ?

Allez dans Paramètres > Modifier les paramètres du PC > Mise à jour et récupération > Récupération, puis choisissez 'Tout supprimer et réinstaller Windows'. Sauvegardez vos données au préalable.

Quels ports sont disponibles sur l'Acer W1-811 ?

La tablette dispose d'un port micro-USB (pour charge et données), d'une prise casque 3,5 mm et d'un emplacement pour carte microSD (estimation).

MODE D'EMPLOI W1-811 ACER

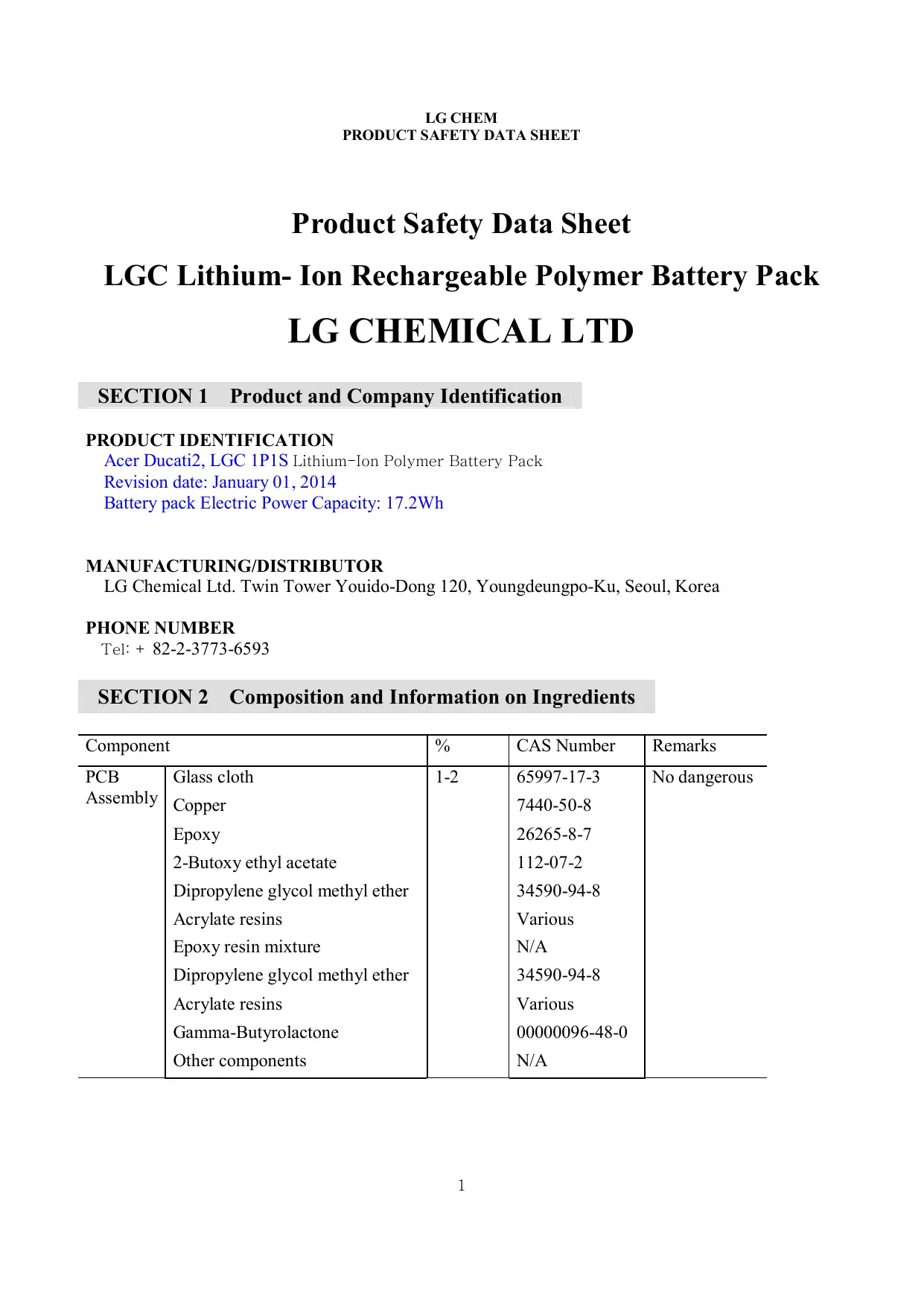

Product Safety Data Sheet

LGC Lithium- Ion Rechargeable Polymer Battery Pack

LG CHEMICAL LTD

SECTION 1 Product and Company Identification

PRODUCT IDENTIFICATION

Acer Ducati2, LGC 1P1S Lithium-Ion Polymer Battery Pack

Revision date: January 01, 2014

Battery pack Electric Power Capacity: 17.2Wh

MANUFACTURING/DISTRIBUTOR

LG Chemical Ltd. Twin Tower Youido-Dong 120, Youngdeungpo-Ku, Seoul, Korea

PHONE NUMBER

Tel: + 82-2-3773-6593

SECTION 2 Composition and Information on Ingredients

Component		%	CAS Number	Remarks
PCB Assembly	Glass cloth	1-2	65997-17-3	No dangerous
	Copper		7440-50-8
	Epoxy		26265-8-7
	2-Butoxy ethyl acetate		112-07-2
	Dipropylene glycol methyl ether		34590-94-8
	Acrylate resins		Various
	Epoxy resin mixture		N/A
	Dipropylene glycol methyl ether		34590-94-8
	Acrylate resins		Various
	Gamma-Butyrolactone		00000096-48-0
	Other components		N/A

LG CHEM PRODUCT SAFETY DATA SHEET

Lithium Ion Cell: LGC ICP359190L1

Hazardous Ingredients	%	CAS Number
Aluminum Foil	2-10	7429-90-5
Metal Oxide (proprietary)	20-50
Polyvinylidene Fluoride (PVDF)	<5	24937-79-9
Copper Foil	2-10	7440-50-8
Carbon (proprietary)	10-30	7440-44-0
Electrolyte (proprietary)	10-20
Stainless steel, Nickel and inert materials	Remainder	N/A

• Watt-hour : 17.2Wh

UNCLASS

1. Even classified as lithium batteries (UN3480), 2015 IATA Dangerous Goods Regulations 56th edition Packing Instruction 965 is applied. The product is handled as Non-Dangerous Goods by meeting the following requirements.

Lithium ion cells and batteries offered for transport are not subject to other additional requirements of the UN Regulations if they meet the following.

• . For cells, the Watt-hour rating is not more than 20Wh
• . For batteries, Watt-hour rating is not more than 100Wh

The Watt-hour rating must be marked on outside of the battery case except those manufactured before 1 January, 2009 which may be transported without this marking until 31 December 2014.
- . Each cell or battery is of the type proven to meet the requirements of each test in the UN Manual of Tests and Criteria part (subsection 38.3)
2. Even classified as lithium batteries packed with equipment (UN3481), 2015 IATA Dangerous Goods Regulations 56th edition Packing Instruction 966 section II is applied. The product is handled as Non-Dangerous Goods by meeting the following requirements.

Lithium ion cells and batteries offered for transport are not subject to other additional requirements of the UN Regulations if they meet the following.

• For cells, the Watt-hour rating is not more than 20Wh
• . For batteries, Watt-hour rating is not more than 100Wh

The Watt-hour rating must be marked on outside of the battery case except those manufactured before 1 January, 2009 which may be transported without this marking until 31 December 2014.

• Each cell or battery is of the type proven to meet the requirements of each test in the UN Manual of Tests and Criteria part (subsection 38.3)
• Maximum quantity : Minimum needed for the operation of the equipment, plus 2 spares.

And they are out of scope for Special Provision A154 and comply with Special Provision A164.

This product passed 1.2M drop test and comply with UN38.3.

LG CHEM PRODUCT SAFETY DATA SHEET

SECTION 3 Hazards Identification

EMERGENCY OVERVIEW

During a fire, may release irritating gases.

Use extinguishing media suitable for materials burning in fire.

POTENTIAL HEALTH EFFECTS

EYE

No effect under routine handling and use.

SKIN

No effect under routine handling and use. Nothing cause sensitization(allergic reaction)

INHALATION

No effect under routine handling and use.

CHRONIC EFFECTS

None known.

CARCINOGENICITY INFORMATION

The components of this product are not listed by IARC, NTP, OSHA, or ACGH as a carcinogen.

SECTION 4 First Aid Measures

If exposure to internal materials within cell due to damaged outer casing, the following actions are recommended.

EYE CONTACT

In case of eye contact, immediately flush eyes which plenty of water at least 15 minutes.

Get medical attention if irritation persists or develops later.

INHALATION

If exposed to excessive levels of DMAc, fiber dust or fly, remove to fresh air.

Get medical attention if cough or symptoms develop.

SKIN CONTACT

Wash with soap and water. Get medical attention if irritation develops or persists.

Use hand creams to soothe and moisten irritated skin.

LG CHEM

PRODUCT SAFETY DATA SHEET

INGESTION

Not a probable route. However, in case of gastro intestinal distress following accidental ingestion, call a physician.

SECTION 5 Fire Fighting Measures

FLAMMABLE PROPERTIES

Flash point	Not applicable
Flammable limits in air	Not applicable
Lower explosive limits	Not established
Upper explosive limits	Not established
Auto-ignition temperature	Not available

UNUSUAL FIRE AND EXPLOSION HAZARDS

During a fire, irritating and toxic gases and aerosols may be generated by thermal decomposition and Combustion.

EXTINGUISHING MEDIA

Use the following extinguishing media suitable for the materials that are burning.

: Water, Carbon Dioxide, Dry Chemical, Foam

FIRE FIGHTING INSTRUCTIONS

Keep personnel removed and upwind of fire.

Wear self-contained breathing apparatus.

Wear full protective equipment.(full Bunker gear)

SECTION 6 Accidental Release Measures

SAFEGUARDS(Personnel)

Review FIRE FIGHTING MEASURES and HANDING sections before proceeding with cleanup.

Use appropriate personal protective equipment during cleanup.

SPILL CLEANUP

Vacuum or sweep up material for salvage or disposal.

LG CHEM PRODUCT SAFETY DATA SHEET

ACCIDENTAL RELEASE MEASURES

Wash, shovel or mop up and place in solid waste containers.

Do not flush to drains.

SECTION 7 Handling and Storage

HANDLING

Use good material handling practice.

STORAGE

Store in a cool, dry place.

SECTION 8 Exposure Controls / Personal Protection

ENGINEERING CONTROLS

Keep away from heat and open flame.

Good general ventilation is recommended. Local exhaust ventilation is recommended where vapors are likely to be released.

PERSONAL PROTECTIVE EQUIPMENT

EYE PROTECTION

Not required beyond safety practices of employer.

But in the event of a fire, safety glasses with side-shields for general protection are recommended.

SKIN PROTECTION

None required normal operations.

If during a fire, wear gloves to prevent skin abrasion and irritation.

RESPIRATOR PROTECTION

Respirator use must be in accordance with OSHA Standard 29 CFR 1910.134

Wear a correctly fitted, NIOSH approved, respirator or industrial type canister mask in enclosed areas with poor or no ventilation areas, or where TLV levels are likely to be exceeded.

LG CHEM

PRODUCT SAFETY DATA SHEET

SECTION 9 Physical and Chemical Properties

Form	Solid
Odor	Not applicable
PH	Not applicable
Evaporation rate	Not applicable
Vapor pressure	Not applicable
Vapor density	Not applicable
Viscosity	Not applicable
Boiling point	Not applicable
Solubility in water	Insoluble
Specific gravity	Not applicable
Density	Not applicable

SECTION 10 Stability and Reactivity

CHEMICAL STABILITY

Stable at normal temperatures and storage conditions.

CONDITIONS TO AVOID

Avoid exposure to heat and open flame. Do not puncture, crush or incinerate.

INCOMPATIBILITY

None during normal operation. Avoid exposure to heat, open flame, and corrosives.

DECOMPOSITION

By fire or thermal decomposition, can produce irritating and toxic gases.

HAZARDOUS POLYMERIZATION

Will not occur.

LG CHEM PRODUCT SAFETY DATA SHEET

SECTION 11 Toxicological Information

IMMEDIATE (ACUTE) EFFECTS

None known

DELAYED(SUBCHRONIC & CHRONIC) EFFECTS

None known

OTHER DATA

Not available

SECTION 12 Ecological Information

No ecological information available

SECTION 13 Disposal Considerations

Store in impervious inert container and send to smelter for recycling. Must be treated as special waste. In general, this product may be discarded in accordance with the State and Local regulations.

SECTION 14 Transport Information

Lithium Ion batteries are considered to be "Rechargeable batteries" and meet the requirements of transportation by the U.S. Department of Transportation(DOT), International Civil Aviation Administration(ICAO), The 56th edition of International Air Transportation Association(IATA, 2015) special provision A154/A164 and belong to non-dangerous goods.

SECTION 15 Regulatory Information

This product is not hazardous under the criteria of the Federal Occupational Safety and Health Administration(OSHA) Hazard Communication Standard.(29 CFR 1910.1200)

IATA Dangerous Goods Regulations 56th Edition Effective 1 January 2015.

SECTION 16 Other Information

The data in this Product Safety Data Sheet relates only to the specific product designated herein and does not relate to use in combination with any other product or in any process. This PSDS may not meet regulatory requirements in other countries. This information is based on technical information believed to be reliable. It is subject to revision as additional knowledge and experiences are gained.

LG CHEM PRODUCT SAFETY DATA SHEET

REFERENCE

International Chemical Safety Cards(ICSCs) International Occupational Safety and Health Information Centre(CIS) 0710 March 1999

Opinion of the scientific committee on toxicity, ecotoxicity and the environment(CSTEE) Adopted by the CSTEE during the 55th plenary meeting of 28 May 2014

UN-Recommendations on the Transport of Dangerous Goods Model Regulations. (ST/SG/AC.10/11/Rev.5/Amend.2)
