BRUKSANVISNING CA-R-ISU.001 PIONEER

Steering wheel control interface installation kit for:

ISUZU

Model: D-MAX

Year: 2014>

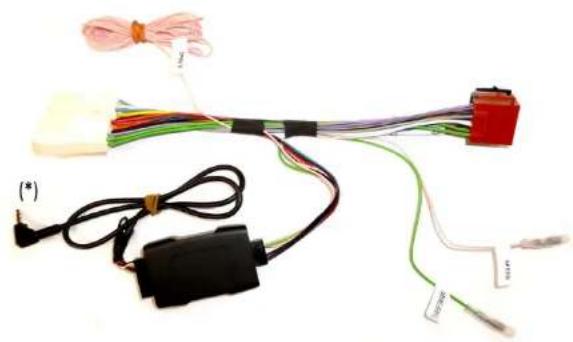

Kit content: SWC resistive interface wiring harness radio adapter (*) if included

Customer code: CA-R-ISU.001

Electrical wiring harness with various colored wires and connectors (no text or symbols visible)

INSTALLATION MANUAL

All installation work must be performed by a qualified professional installer only. The manufacturer / dealer is not liable for any kind of incidental or indirect damages. 02/2016 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.R0

All installation work must be performed by a qualified professional installer only. The manufacturer / dealer is not liable for any kind of incidental or indirect damages. 02/2016 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.

3* 4 1 2 3

ATTENTION!

In order to prevent ESD damage, the WHEEL REMOTE JACK must be connected before plugging in the connectors on car side.

Connect cables to the radio side as follow:

1- to ISO CONNECTOR (red and black housings)

2- to WIRED REMOTE SOCKET (NOTE: do not connect to microphone socket)

3- to SERVICE (if required); function is marked on wire:

Green - Brake

Pink - Speed

Connect cables to the car side as follow:

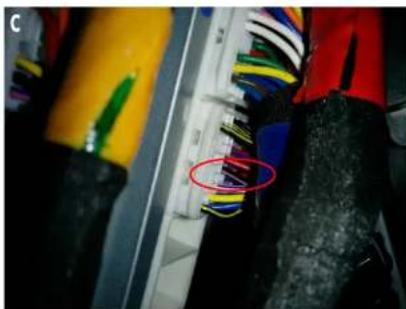

4- to CAR CONNECTOR

Interior view of a car showing a hand inserting a component into the dashboard, with no visible text or symbols.

3* connect to Black/Pink wire in the 3rd connector

Close-up of electrical connectors with multicolored wires and black insulation (no visible text or symbols)

Interior view of a car dashboard with numbered controls (no readable text or symbols)

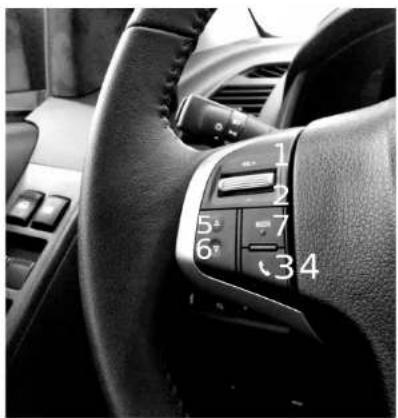

The steering wheel buttons perform the following functions:

1- Volume +
2- Volume -
3- Accept incoming call ( short press, < 0.5 sec)
4- Reject incoming call ( long press, approximately 1 sec)
5- Seek up
6- Seek down
7- Source
