BRUKSANVISNING CA-BC-NI.001 PIONEER
Steering wheel control interface installation kit for:
NISSAN
Model: Qashqai
Year: 2015>

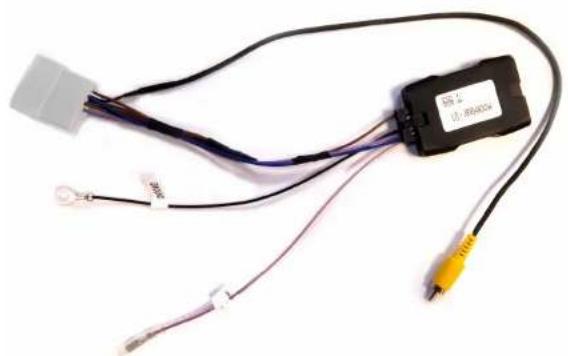

Kit content: OEM Rear View Camera Retention Kit
Customer code: CA-BC-NI.001
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidental or indirect damages.
10/2016 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints. RO
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidental or indirect damages.
10/2016 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.


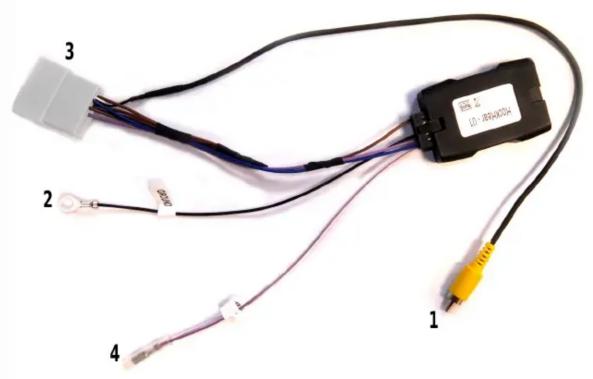

Electrical wiring diagram showing connections between components (no text or symbols visible)Connect cables to the side as follow:
1- to CAMERA CONNECTOR
2- to GND (CHASSIS)
3- to CAR CONNECTOR
4- REVERSE INPUT SIGNAL: to REVERSE GEAR SIGNAL
