BRUKSANVISNING CA-HM-NI.009BP PIONEER

Facia plate installation kit for:

NISSAN

Model: Navara NP300 only for "ACENTA" version;

Year: 2015>

Kit content: double DIN facia plate mounting brackets + screws

Compatibility: Compatible with double DIN device

Customer code: CA-HM-NI.009BP

Black plastic automotive enclosure with mounting brackets and central blank space (no text or symbols)

PIONEER CA-HM-NI.009BP - NISSAN - 2

PIONEER CA-HM-NI.009BP - NISSAN - 3

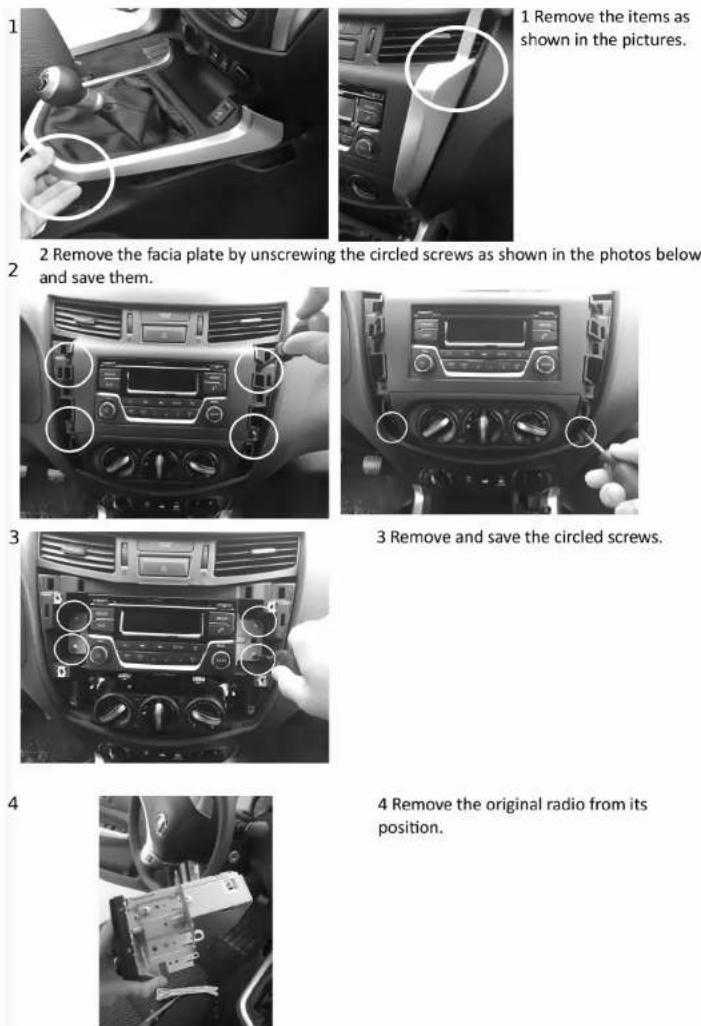

INSTALLATION MANUAL

1
Close-up of a car gear shift lever with hand and belt (no visible text or symbols)

Interior view of a car dashboard with a white circular annotation highlighting a component (no visible text or symbols)

1 Remove the items as shown in the pictures.

2
2 Remove the facia plate by unscrewing the circled screws as shown in the photos below and save them.
Interior view of a car dashboard with multiple hand gestures and control panels (no visible text or symbols)

Interior view of a car dashboard with air conditioners and a hand pointing to the dashboard (no visible text or symbols)

3
3 Remove and save the circled screws.

Interior view of a car dashboard with multiple controls and a hand pointing to the dashboard (no visible text or symbols)

5
Black-and-white photo of a CD-ROM drive with two circular insets, placed on a surface (no visible text or symbols)

5 Mount the supplied brackets of the kit on the aftermarket head-unit as shown in the picture.

6
Interior view of a car dashboard with visible electronics and control panels (no text or symbols)

6 Connect all the cables, check the correct operation.
Fix the new head unit, with the save screws.
Fix the supplied facia plate with the saved screws and mount all the others items previously removed.

7
Interior view of a car dashboard with a digital display and control panel (no visible text or symbols)

7 This is the final result.

4
Close-up of hands holding a small electronic device in a car interior (no visible text or symbols)

4 Remove the original radio from its position.
