CMP270112

Fully automatic espresso machine 200 series

Full glass door in Gaggenau Metallic Width 60 cm

controls at the top

Handless door / cushioned door closing system

Fixed inlet and outlet water connection

Continuous flow heater means no waiting time and constant brewing temperature

Aroma brewing technology for a full aroma

Single portion cleaning TFT touch display

Panel-free appliance with surface control module

One-touch operation

Personalisation function

Seven light settings

Electronic fill level control for milk, water and coffee to ensure a perfect result

Type of beverage

Ristretto / 2 x Ristretto. Espresso / 2

x Espresso. Espresso Macchiato / 2

x Espresso Macchiato. Coffee / 2 x

Coffee. Americano / 2 x Americano.

Caffe Latte / 2 x Caffe Latte. Latte

Macchiato / 2 x Latte Macchiato.

Cappuccino / 2 x Cappuccino. Flat

White / 2 x Flat White. Milk froth / 2 x

Milk froth. Warm milk / 2 x Warm milk. Hot water / 2 x Hot water.

Handling

Door with cushioned door closing system.

Rotary knob and TFT touch display operation.

Clear text display.

Personalisation function, up to 8

beverages can be personalised and memorised.

4 beverage size settings, volume can be individually adjusted to match the size of the cup.

8 coffee strength levels from very mild to extra strong.

Coffee: 3 levels.

Hot water: 10 grades.

4 coffee-milk ratio levels.

Adjustable grinding level.

Height-adjustable coffee dispenser 7 cm to 15 cm.

Easy access to water tank, milk and coffee bean container behind the door.

Features

Maintenance-free grinding unit with ceramic discs.

Separate drawer for second ground coffee type.

Water pump with 19 bar pressure.

Double grinding and brewing cycles for extra intensity for one beverage.

Double grinding and brewing cycles for two beverages.

Dispenser with integrated milk system. Insulated stainless steel milk container for up to 0.5 litres.

Integrated lightning with LEDs.

Removable bean container with aroma protecting lid for 500 g allows for an effortless exchange of different types of coffee beans.

Automatic adjustment of ground coffee quantity.

Removable 2.4 litre water tank.

Electronic water filter exchange indicator.

Fresh water-function to refill the water tank with fresh water.

Electronic fill level control for drip tray and container for coffee dregs.

Characteristics

Construction type

Built-in

Frothing nozzle

No

Display

No

Water protection system

Yes

Portion sizes

All cups

Dimensions of the product (mm)

455 × 590 × 519

Dimensions of the packed product

(HxWxD) (mm)

540 × 620 × 670

Required niche size for installation

(HxWxD)

449 × 558 × 356

EAN code

4242006278953

Consumption and connection features

Electrical connection rating (W)

1600

Current (A)

10

Voltage (V)

220-240

Frequency (Hz)

50/60

Plug type

Gardy plug w/ earthing

created on 2020-08-02

Page 1

Home network integration for digital services (Home Connect) either via cable connection LAN (recommended) or wireless via WiFi.

The availability of the Home Connect functionality depends on the availability of the Home Connect Services in your country. Home Connect Services are not available in every country – for further information please check: www.home-connect.com

Safety

Child lock.

Aqua stop.

Cleaning

Fully automatic rinse programme when machine is turned on/off.

Automatic steam cleaning of the milk system after every beverage.

Automatic cleaning and descaling programme.

Emptying programme to prepare the appliance for holiday or transportation.

Empty-grinding function to remove coffee residues from the system when switching bean types.

Removable brewing unit.

Coffee dregs container and drip tray dishwasher-safe.

Milk frother dishwasher-safe.

Planning notes

Necessary lateral gap between appliance front and furniture panel of min. 5 mm.

The door panel surface of the appliance extends 21 mm from the furniture cavity.

When installing in a corner a side clearance is required.

Door opening angle appr. 110° (delivery status) - mounting distance to the wall has to be at least 350 mm.

Door opening angle appr. 155° - mounting distance to the wall has to be at least 650 mm.

Door opening angle appr. 92° - mounting distance to the wall has to be at least 100 mm (spare part No. 00636455).

Installation directly above 14 cm high WS in 59 cm standardised niche.

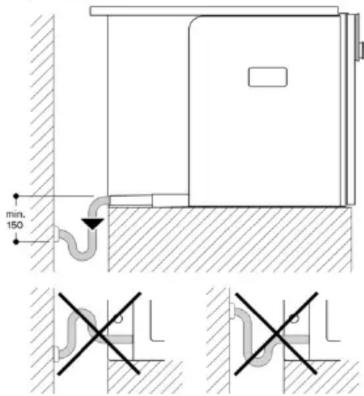

At no point may the outlet hose be positioned higher than the bottom edge of the appliance. The outlet hose must also be at least 150 mm lower than the appliance outlet (see drawing "drainage connection").

If the appliance is placed too far from the main siphon, the drain system has to be adjusted on-site (building installation).

The water connection (1) for the inlet hose must always be accessible and not located directly behind the appliance.

The connection of the outlet hose to the siphon (2) must not be directly behind the appliance and should be accessible.

The LAN port can be found at the back on the lower right side.

Special accessories (order as spare

parts): Part No. 17000705 Water filter

Part No. 00311819 Descaling tablets

Part No. 00311769 Cleaning tablets Part No. 00636455 Door hinge restrictor (92° opening angle) Part No. 11015223 Bean container with lid

Connection

Total connected load Total connected load 1.6 KW.

Connection cable 1.7 m, pluggable.

Only cold water connection.

Inlet hose 165 cm with 3/4" (26.4 mm) connection, extendable.

Outlet hose (ø 18 mm) 170 cm (HT-Hose).

Plan a LAN cable.

Power consumption standby/display on 1.0 W.

Power consumption standby/display off 0.5 W.

Power consumption standby/network 2 W.

Time auto-standby/display on 30 min. Time auto-standby/display off 30 min.

Time auto-standby/network 30 min.

Please check the user manual for how to switch off the WiFi module.

CMP270112

Fully automatic espresso machine 200 series

Full glass door in Gaggenau Metallic

Width 60 cm

controls at the top

created on 2020-08-02

Page 2

14h. 35 560" 480" min. 550 350 71 455 590 min. 450 ① ②

View from rear

(4) Water outlet (5) Cold water connection (6) Electric terminal box (7) LAN connection

Drainage connection

150 3/2

Left corner installation

min. 350 110°

If using the 92° door hinge restrictor (spare part no. 00636455), the minimum distance from the wall is only 100 mm.
