BRUKSANVISNING SA4P Speco Technologies

speco technologies®

SA4P – Weather-Resistant Alarm Siren

Thank you for your choice of Speco Technologies' SA4P Siren. This unit is designed and manufactured to provide a compact source for any alarm application. The weatherproof ABS construction ensures long-life in outdoor environments, but the SA4P is also suitable for indoor or mobile use.

INSTALLATION INSTRUCTIONS:

1) The SA4P is constructed with a pivoting, metal base.
2) Loosen the nut connecting the metal base to the horn to pivot the base to the desired angle.
3) Tighten the nut to lock the horn at the desired angle.
4) The base contains 3 holes for screws. Use screws with at least 14 " diameter head to ensure safe installation.
5) Connect the red (positive) and black (negative/ground) wires to the corresponding connections on your 6-12V DC power supply or source.

SPECIFICATIONS:

• Current Rating: 750mA
- dB Rating: 120
- Warbling Tone
• Operating Voltage: 6V to 12V AC
• Max Power: 20 W
• Weatherproof ABS construction
• Size: 4" Diameter x 4" Length

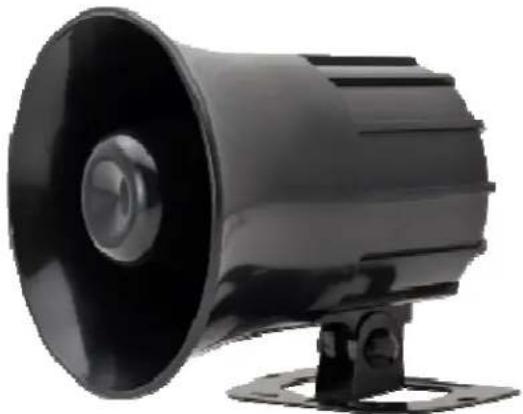

Black industrial megaphone with side mount (no visible text or symbols)

WARRANTY INFORMATION:

We warranty this product to be free from any manufacturing or material defects for two (2) years from the date of purchase.

This warranty will not extend to any products which have been subjected to misuse, neglect, accident, or improper installation, used in violation of instructions furnished by us; or to units which have been repaired or altered outside of the factory. This limited warranty does not apply to broken cases, batteries, or other physically damaged parts.

Upon request by the customer, Speco Technologies ("The Company") will, at the customer's expense, repackage merchandise in new cartons, replace missing accessories, and return in resalable condition. Unless requested, the company will replace and return all merchandise in the packaging in which it was received. This warranty is in lieu of all expressed warranties, expressed or implied, and of all obligations or liability on our part, and we neither assume nor authorize any representative or other person to assume for us any obligation or liability. In no event shall we be liable for incidental or consequential damages arising from the use of the product, or for any delay in the use of this product due to causes beyond our control. Some states do not allow limitations of how long an implied warranty lasts and/or do not allow the exclusion or limitation of consequential damages. The above limitations on implied warranty and consequential damages may not apply to you. This warranty gives you specific legal rights. You may have other rights which vary from state to state. See actual warranty statement included with product for limitations and exclusions where applicable. This limited warranty extends to products listed in the company's current price schedule.

Speco Technologies is constantly developing and improving products.

We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Speco Technologies • 200 New Highway • Amityville • NY • 11701 • www.specotech.com
