BRUKSANVISNING VLB1A Speco Technologies

User Manual

All-In-One HD Analog Camera

VLB1A

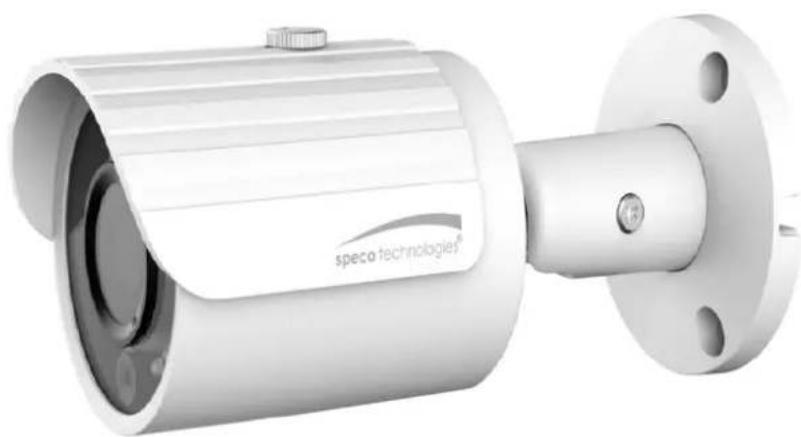

Exterior view of a white speco technologies security camera with mounting flange (no text or symbols visible on body)

Welcome

Thank you for purchasing our All in One HD-Analog Camera!

This user's manual is designed to be a reference tool for your system.

Please read the following safeguard and warnings carefully before you use this product!

Please keep this user manual for future reference!

Important Safeguards and Warnings

1. Electrical safety

All installation and operation here should conform to your local electrical safety codes.

Please check if the power supply is correct before operating the device.

The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the

Limited power source is rated DC 12V or AC24V in the IEC60950-1. (Power supply requirement is subject to the device label).

Please install easy-to-use device for power off before installing wiring, which is for emergent power off when necessary.

Please prevent the line cord from being trampled or pressed, especially the plug, power socket and the junction from the device.

Note: Do not connect these two power supplying sources to the device at the same time; it may result in device damage!

We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation.

We are not liable for any problems caused by unauthorized modification or attempted repair.

2. Environment

Please don't angle the device at strong light (such as lighting, sunlight etc) to focus; otherwise it may cause overexposure (It is not a device malfunction), which will affect the longevity of CCD or CMOS sensor.

Please transport, use and store the device within the range of allowed humidity and temperature.

Please don't keep the device in a place which is wet, dusty, extremely hot, and extremely cold and with strong electromagnetic radiation or unstable lighting.

Please do not allow water and other liquid falling into the camera in case that the internal components are damaged.

Please do not allow rain or damp to the indoor device in case fire or lightning may occur.

Please keep the sound ventilation in case of heat accumulation.

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and installation.

3. Operation and Daily Maintenance

Please do not touch the heat dissipation component of the device directly in order to avoid scald.

Please do not dismantle the device; it may cause water leakage or decrease image quality for the device due to unprofessional dismantling.

It is recommended to use the device with thunder proof device in order to improve thunder proof effect.

The grounding holes of the product are recommended to be grounded to further enhance the reliability of the camera.

Do not touch the CCD (CMOS) optic component directly. Please use a dry cloth wetted by alcohol to wipe away the dust gently if it is necessary to clean.

Always use the dry soft cloth to clean the device.

Warning

Please use the standard accessories and make sure the device is installed and fixed by professional engineers.

Please prevent the device surface from the radiation of laser beam when using laser beam device.

Please do not provide two or more power supply modes for the device, otherwise it may cause damage to the device.

Statement

Please refer to the actual product for more details; this manual is just for reference.

The manual will be regularly updated according to the product update; the updated content will be added in the manual without prior announcement.

Please contact Speco Technologies if there are any problems when using the device.

There may be deviation between the actual value of some data and the value provided in the manual due to the reasons such as the real environment is not stable and so on. Speco

Technologies is not liable for any loss caused by the operation which is not followed by the manual.

1 General Introduction

1.1 Features

● High-performance CMOS image sensor, megapixel definition.
● Support HD video, control signal coaxial transmission.
● Support HDTVI/AHD/CVI/CVBS output.
● Support OSD menu adjustment parameters.
● Support smart IR function.
● Support DWDR function.
● Support High speed, long distance real-time transmission.
● Support DC12V power supplying.
● Support IP67 compliance.
● Support ICR switch to realize surveillance both in the daytime and at night.
● Support photosensor IR control function.
- It can be applied to the various scenes such as a department store, supermarket, coffee shop, school, hotel, office, restaurant, garden, parking lot and etc.

Quick Installation Guide

Attention:

Please make sure the installation surface is thick enough to sustain at least 3X weight of the camera.

Note:

• If you want to install on a wood surface, expansion bolts are not necessary.
  ● The screw depth shall reserve 8mm-10mm to secure the bracket.

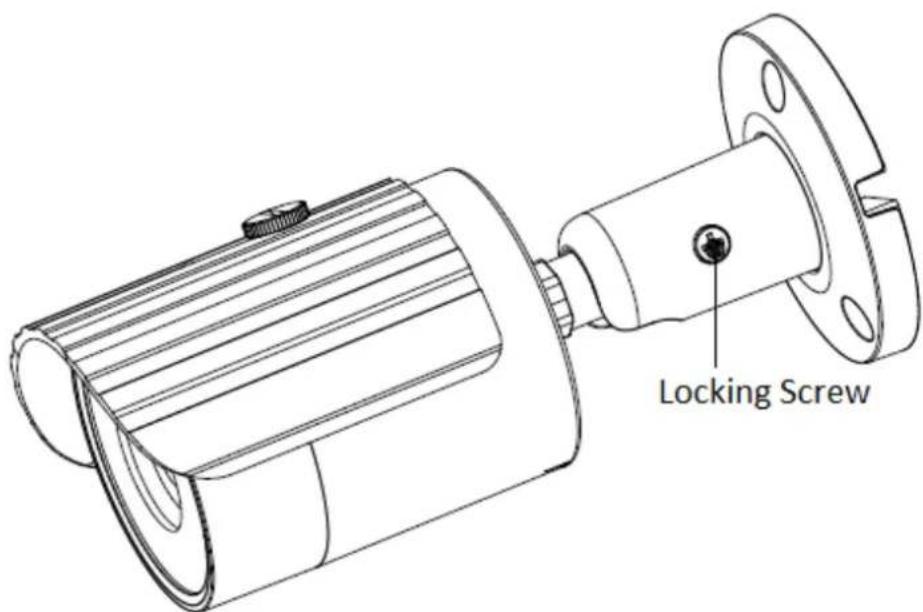

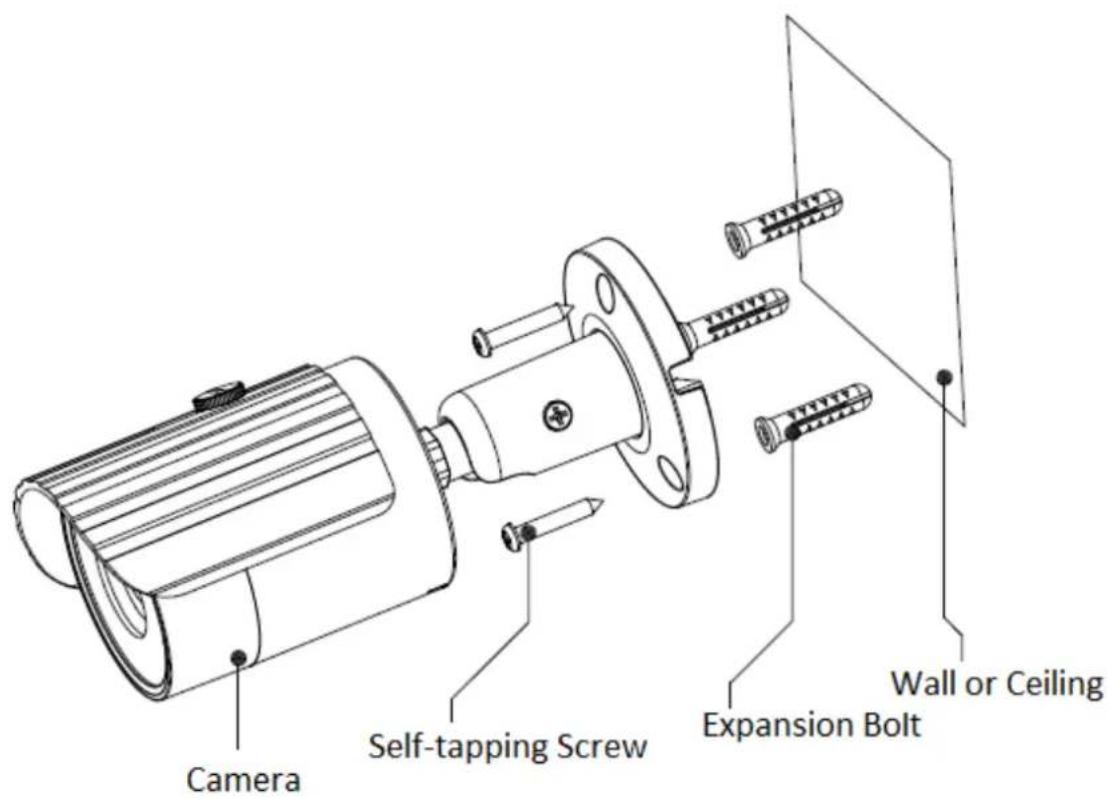

Figure 1-6

Figure 1-7

Note

- This manual is for reference only. Please visit our website at www.specotech.com or contact your local sales representative for more information.
