BRUKSANVISNING CAMMIC Speco Technologies


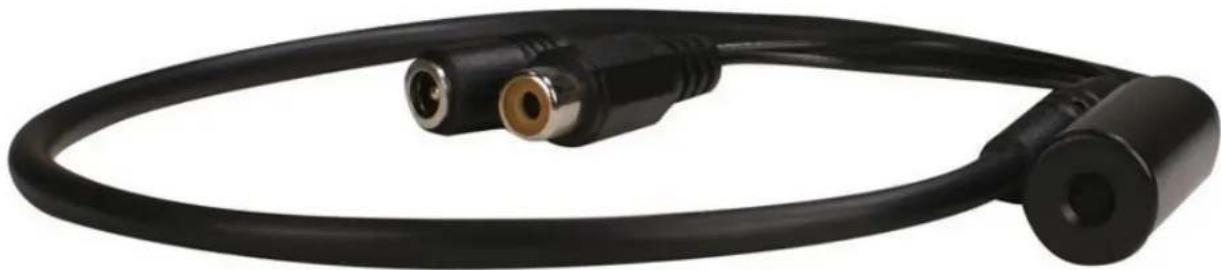

Black cable with two connectors, one metallic and one gold, shown against white background (no text or symbols)Speco Technologies' CAMMIC is a line level microphone that grants audio functionality to cameras and recorders with audio inputs.
Features:
● High sensitivity microphone with 17" power/audio cable.
● Easy to install and ideal for all indoor/sheltered security surveillance needs.
● DC12V power operation (Use PSW5 or other 12V power supply (not included)).
- Line level output.

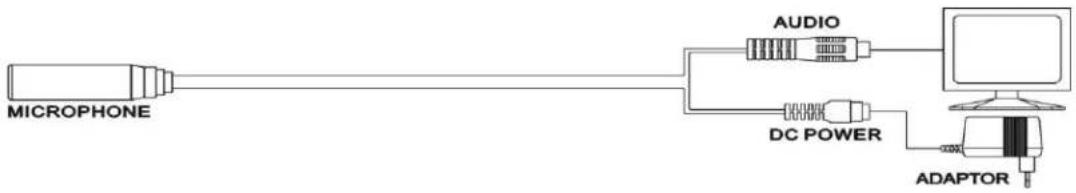

Installation View:

Specifications:
| ITEM NO. CAMMIC | |
| Audio Output | Max 2V p-p |
| Power Supply | DC12V (+/- 0.5V) |
| Power Consumption | 10 mA |
| Temperature | Operation: 14° to 113°F, Storage: -22° to 140°F, Humidity: up to 95° |
| Dimensions | 2" x 0.5" x 0.5" + 17" cable |
| Weight | 0.25 Lbs. |
RoHS CC FC
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Speco Technologies • 200 New Highway • Amityville • NY • 11701 • www.specotech.com
Rev. 03/31/20.
