BRUKSANVISNING TVIGL Speco Technologies
FEATURES
- IMPORTANT: The TVIGL does not support UTC function. Please make any adjustments between camera and recorder prior to installation of the TVIGL. UTC commands WILL NOT work after this has been installed.
• Prevents video-signal distortion caused by video ground loops.
• Prevents power cables from interfering with the HD camera signal. - Eliminates picture tearing, cross-talk and rolling.
• BNC male to BNC female with a 6" cable on each side.
• Passive, no power required.
• Supports resolutions up to 4K.
• Bandwidth: 25HZ to 50MHz (-3dB)
• Maximum distance: 7874' (200M)

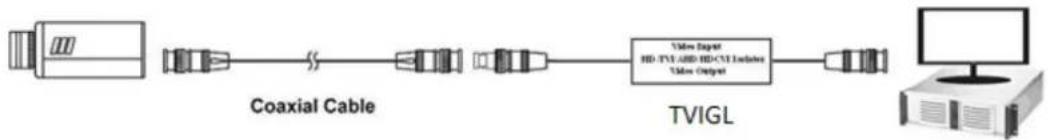

INSTALLATION VIEW
SPECIFICATIONS
| Frequency Response | 25Hz ~ 50MHz (0~3dB) |
| Coaxial Input/Output Resistance | 75 Ohms |
| Ground Isolation | >90dB @ >50Hz |
| Isolation Voltage | 500VAC / 600VDC |
| Insulation Resistance | >1M Ohm |
| CMRR | >60dB |
| Dimensions | 2.9 x 1.1 x 1" with 6" x 2 Cable |
| Weight | 3 oz. |
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Speco Technologies . 200 New Highway . Amityville . NY . 11701 . www.specotech.com
Rev. 12/08/20
