Producttype	Bewakingscamera
Merk	Marshall
Model	CV565-MGB
Beeldresolutie	Full-HD (1080p)
Video-uitgangen	SDI, HDMI
Genlock-functionaliteit	Ja, tri-level referentie
Lens type	ESC of DC IRIS (instelbaar)
Witbalans	Auto, ATW, Push, Handmatig
Belichtingsregeling	Helderheid, AGC, Sluiter, DSS (x2~64)
Backlight compensatie	WDR, BLC, Spot, ACE, Eclipse
Dag/nacht omschakeling	Automatisch (ICR), Kleur, Zwart-wit
Beeldstabilisatie	Ja, digitaal (10-30% bereik)
Audio-ingang	Microfoon, ingebed op SDI/HDMI
Camera ID	0-255 (RS-485)
Baudrate	2400-115200 bps
Privacy zones	Ja, tot 4 maskers
Spanningsvoorziening	12V DC (typisch)
Stroomverbruik	Ongeveer 5W (geschat)
Afmetingen (zonder lens)	44 x 44 x 44 mm (geschat)
Gewicht	Ca. 100 g (geschat)
Onderhoud	Lens reinigen met zachte, droge doek
Bedrijfstemperatuur	0°C tot 40°C (geschat)
Garantie	Raadpleeg leverancier

Veelgestelde vragen - CV565-MGB MARSHALL

Hoe stel ik de witbalans in op de CV565-MGB?

Ga naar het hoofdmenu en selecteer WB CONTROL. Kies uit AUTO, ATW, PUSH of MANUAL. Bij MANUAL kunt u handmatig de rode en blauwe versterking aanpassen.

Wat is genlock en hoe schakel ik het in?

Genlock synchroniseert de camera met een extern signaal. Ga naar GENLOCK in het menu en zet MODE op ON. Zorg voor een tri-level referentiesignaal.

Hoe pas ik de belichting aan bij tegenlicht?

Selecteer BACK LIGHT in het menu. Gebruik WDR, BLC, SPOT, ACE of ECLIPSE om het beeld te optimaliseren bij fel licht op de achtergrond.

Kan ik de camera in zwart-wit laten werken?

Ja, ga naar DAY / NIGHT en kies NIGHT voor constante zwart-wit modus. AUTO schakelt automatisch om bij weinig licht.

Hoe stel ik de beeldstabilisatie in?

Ga naar IMAGE STABILIZER en zet deze op ON. Kies RANGE (10-30%), FILTER en AUTO C voor het gewenste stabilisatieniveau.

Wat is DSS en wanneer gebruik ik het?

DSS (Digital Shutter Speed) verlengt de sluitertijd bij weinig licht tot 64x. Ga naar AE CONTROL en stel DSS in op gewenste factor.

Hoe zet ik privacyzones aan?

Ga naar DISPLAY CONTROL en kies PRIVACY. Stel MASK ACTIVE op ON, pas de grootte en positie aan van het masker.

Welke framerates worden ondersteund?

Ondersteunde framerates: 720p25/30/50/60, 1080p25/30/50/60, 1080i50/60, en 59.94 varianten. Instelbaar onder FRAME RATE.

Hoe reset ik de camera naar fabrieksinstellingen?

Ga naar RESET in het menu. Kies RESET MODE: FACTORY. Let op: framerate, camera-ID en baudrate blijven behouden.

Wat moet ik doen als er geen beeld is?

Controleer of alle apparaten zijn ingeschakeld, of de spanning correct is en of videokabels goed zijn aangesloten. Zie de probleemoplossing in de handleiding.

GEBRUIKSAANWIJZING CV565-MGB MARSHALL

Marshall Electronics

Operation Manual

Full-HD Miniature GENLOCK POV Cameras

CV565-MGB

CV365-CGB

Please read this guide carefully before installing and using the camera.

Please retain this guide for reference.

MENU STRUCTURE

SETUP SUB MENU
LENS	ESC
	DC IRIS
WBCONTROL	AUTO
	ATW
	PUSH
	MANUAL	COLOR TEMPERATURE
		RED GAIN
		BLUE GAIN
AE CONTROL(EXPOSURE)	BRIGHTNESS 0~20
	AGC LIMIT 0~20
	SHUTTER	AUTO
		MANUAL
		FLICKERLESS
	DSS (SENS-UP) OFF, x2~64
BACK LIGHT	BACK LIGHT	WDR
		BLC
		SPOT
	ACE LOW, MIDDLE	HIGH
	ECLIPSE	LEVEL
		COLOR
DAY/NIGHT	AUTO	ANTI-SAT.
		AGC LEVEL
		AGC MARGIN
		DWELL TIME
	COLOR
	NIGHT
IMAGESTABILIZER	RANGE 10%, 20%, 30%
	FILTER LOW, MIDDLE, HIGH
	AUTO C OFF, HALF, FULL

MENU STRUCTURE

SETUP SUB MENU
GENLOCK	MODE OFF, ON
	OUTPUT EN OFF, ON
	H-SYNC PHASE
	PHASE SET
AUDIO MIC	AUDIO LEVEL 0~143
	AUDIO AGC OFF, ON
	AGC MAX 0~119
	SAMPLE BITS 16, 20, 24, 32 BITS
IMAGECONTROL	COLOR LEVEL 0~20
	SHARPNESS 0~20
	MIRROR
	FLIP
	D-ZOOM 1.0X ~ 16.0X
	DEFOG	AUTO
		MANUAL
	DNR OFF, LOW, MIDDLE, HIGH
	MOTION
	SHADING
	GAMMA
	FRAME RATE

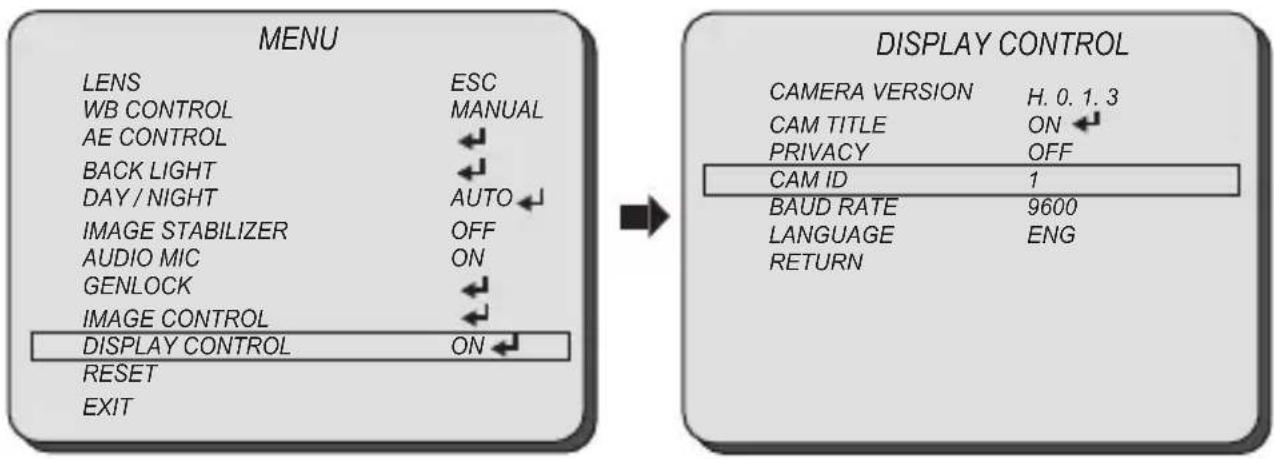

DISPLAYCONTROL	CAM VERSION
	CAM TITLE
	PRIVACY
	CAM ID 0~255
	BAUDRATE
	LANGUAGE

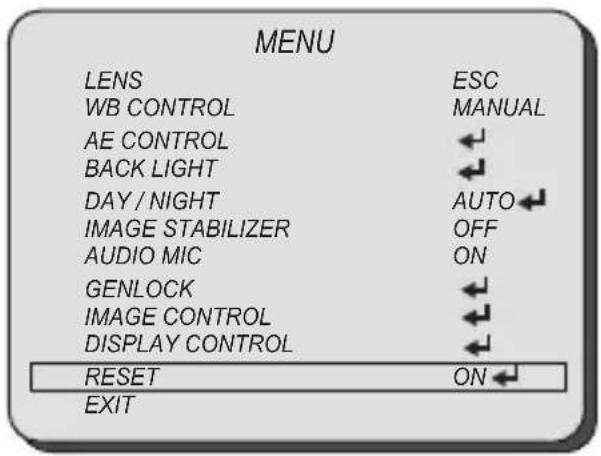

RESET ON/CHANGE USER/FACTORY
EXIT

OSD Joystick and Button

I/O Cable for CV-565/365

CV365

① SET Used to access the menu and confirm selection.
② UP Used to move the cursor up.
③ DOWN Used to move the cursor down
④ LEFT Used to move the cursor to left and change the value.
⑤ RIGHT Used to move the cursor to right and change the value.

Press SET button to access the MAIN MENU.

Use the UP & DOWN buttons to select the desired item.

Use the LEFT & RIGHT buttons to change the sub-item.

Icon indicates "Press OSD Button" or "Enter Sub Menu".

Select LENS using the UP or DOWN button.

You can change between ESC and DC IRIS using the LEFT or RIGHT button.

■ ESC: Manual IRIS Lens (Fixed IRIS lens)

Shutter will automatically control exposure if SHUTTER is set as AUTO.

■ DC IRIS: DC Auto IRIS Lens.

IRIS will automatically control exposure.

MENU
LENS	ESC
WB CONTROL	ATW
AE CONTROL
BACK LIGHT
DAY / NIGHT	AUTO
IMAGE STABILIZER	OFF
AUDIO MIC	ON
GENLOCK
IMAGE CONTROL
DISPLAY CONTROL
RESET	ON
EXIT

MENU
LENS	DC IRIS
WB CONTROL	ATW
AE CONTROL
BACK LIGHT
DAY / NIGHT	AUTO
IMAGE STABILIZER	OFF
AUDIO MIC	ON
GENLOCK
IMAGE CONTROL
DISPLAY CONTROL
RESET	ON
EXIT

Select WB CONTROL using the UP or DOWN button.

You can change between AUTO, ATW, PUSH, and MANUAL using the LEFT or RIGHT button.

■ AUTO: Controls the automatic adjustment of the light source's color temperature to 3,000°K \~ 8,000°K.
■ ATW: Continuously adjusts camera color balance in accordance with any change in color temperature. Compensates for color temperature changes within the range of 1,900°K to 11,000°K.
■ PUSH: Color temperature will be manually adjusted by pushing the OSD button. Place the white paper in front of the camera when OSD button is pressed to obtain the optimum result.
■ MANUAL: Select this to fine-tune White Balance manually.

You can adjust the blue and red tone level manually.

■ COLOR TEMP: Select color temperature from LOW, MIDDLE, or HIGH.
BLUE: Adjust the Blue tone of the image. (0\~20)
■ RED: Adjust the Red tone of the image. (0\~20)

■ Adjust White Balance first by using the AUTO or ATW mode before switching to MANUAL mode.
■ White Balance may not work properly under the following conditions. In this case, select the ATW mode.
- When the ambient illumination of the subject is dim.
- If the camera is directed towards a fluorescent light or is installed in place where illumination changes dramatically, the White Balance operation may become unstable.

Select AE CONTROL using the UP or DOWN button.

You can select one sub-mode from BRIGHTNESS, AGC LIMIT, SHUTTER, and DSS using the UP or DOWN button.

■ BRIGHTNESS: The brightness control function adjusts gain and iris to keep a brightness level.
■ AGC LIMIT: This function controls the amplification/gain process automatically if the illumination falls under the usable level.

Camera will raise up gain to the selected gain limit under dark conditions.

■ SHUTTER: This function control shutter speed.

■ MANUAL: Shutter speed will be fixed at the selected speed. (1/60\~40,000)
■ AUTO: Shutter controls exposure automatically when IRIS is manual. (NORMAL/DEBLUR)
FLICKERLESS: This function will help to decrease video flickers due to a conflict with the installed lighting frequency.

■ DSS (Digital Shutter Speed): When luminance condition is low, DSS can adjust the picture quality by maintaining the light level. Slow shutter speed limits to x64.

Select BACK LIGHT using the UP or DOWN button and enter using SEL button.

You can select one sub-mode from BACK LIGHT, ACE, and ECLIPSE using the UP or DOWN button.

■ BACK LIGHT

■WDR: Enable user to view both object and background more clearly when background is too bright.
●WDR-LEVEL: Select the WDR level from LOW, MIDDLE, and HIGH using the LEFT or RIGHT button.
■BLC: Enable a back light compensation feature.
■SPOT: Enable a user to select a desired area on a picture and view that area more clearly when background is too bright.

● AE HOR POS: Move the SPOT area horizontally using the LEFT or RIGHT button.
● AE VER POS: Move the SPOT area vertically using the UP or DOWN button.
●AE WIDTH: Change the width of SPOT area using the LEFT or RIGHT button.
●AE HEIGHT: Change the height of SPOT area using the UP or DOWN button.

Select BACK LIGHT using the UP or DOWN button and enter using SEL button.

You can select one sub-mode from BACK LIGHT, ACE, and ECLIPSE using the UP or DOWN button.

■ ACE: Brightness correction of the dark image area.

Select the GAIN level from OFF, LOW, MIDDLE, and HIGH using the LEFT or RIGHT button.

■ ECLIPSE: Highlight the bright area with a masking box with a selected color.

Enable/Disable ECLIPSE, selecting from OFF or ON using the LEFT or RIGHT button.

■ LEVEL: Select the masking level from 0\~20 using the LEFT or RIGHT button.
- COLOR: Select the color of masking from GRN, MAG, RED, BLUE, BLK, WHT, YEL, and CYN using the LEFT or RIGHT button.

Select DAY / NIGHT using the UP or DOWN button.

You can select one sub-mode from AUTO, COLOR, and NIGHT using the UP or DOWN button.

■AUTO: The camera will stay in DAY in a normal environment, but will switch to NIGHT mode when ambient illumination falls below this pre-set level. ICR(IR Cut) filter is removed when it switches to Black/White.

Select the AUTO mode using the LEFT or RIGHT button and enter into sub-menu using SEL button.

—ANTI-SAT.: Adjust the anti-saturation level manually.
This feature will reduce the saturation in which part of the camera receiving the light affected by the IR or light in Night mode. If the saturation is reduced the surroundings will be darker.
■ AGC LEVEL: Set the level of threshold for switching day to night. This level is same as the exposure gain level.
■AGC MARGIN: Set the margin between Day →Night switching level and Night →Day switching level.
■DWELL TIME: Select the dwell time between Day →Night and Night →Day change.

■ COLOR: The camera keeps color mode constantly.
■ NIGHT: The camera keeps Black/White mode constantly.

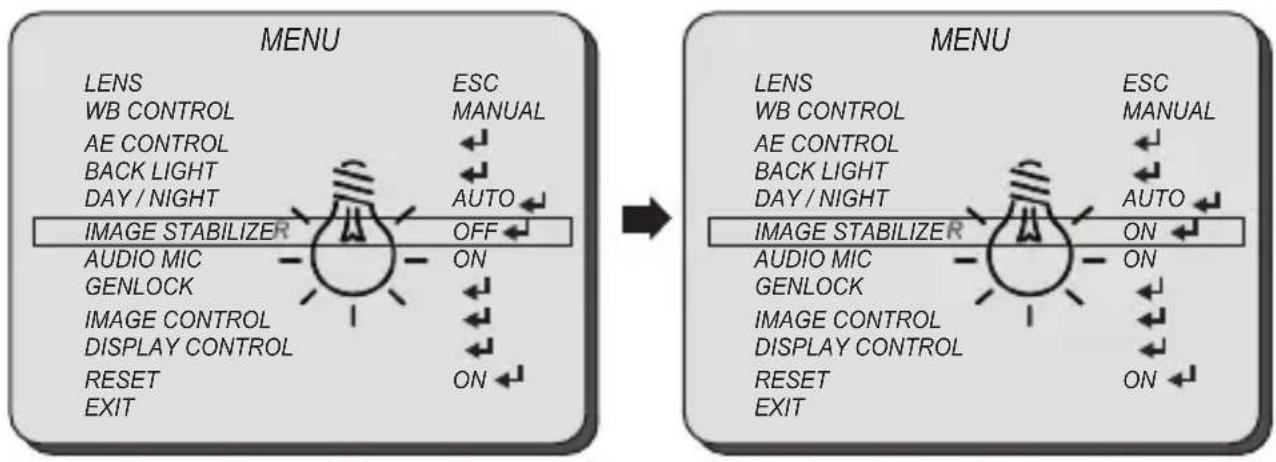

Select IMAGE STABILIZER using the UP or DOWN button and enter ON using SEL button.

You can select one sub-mode from RANGE, FILTER, and AUTO C using the UP or DOWN button.

■ IMAGE STABILIZER: This function will reduce image blurriness due to vibrations caused by hand shake or Pan/Tilt operation. The image will be digitally zoomed in to compensate the shifted pixels.

■RANGE: Set the digital zoom level for image stabilizing. (Max. 30%: x1.4 Digital Zoom)
- FILTER: Select the level of correction hold filter for the worst case of image.

●HIGH: Less image correction. ●Low: More image correction.

■ AUTO C: Select the image auto centering level according to a vibration type.

●FULL: The camera will correct the blurriness due to vibrations caused by both hand shake or Pan/Tilt operation.
●HALF: The camera will correct the blurriness due to vibrations caused by hand shake.
- OFF: Disable the auto centering function.

AUDIO MIC

Select AUDIO MIC using the UP or DOWN button and enter ON using SEL button.

You can select one sub-mode from AUDIO LEVEL, AUDIO AGC, AGC MAX, and SAMPLE BITS using the UP or DOWN button.

■ AUDIO MIC: The audio input will be embedded on SDI and HDMI output.

■AUDIO LEVEL: Enabled when AUDIO AGC is set OFF. Adjust the audio level manually.
—AUDIO AGC: Automatically adjusts the MIC gain as the input signal becomes too loud or too low.
■ AGC MAX: Enabled when AUDIO AGC is set ON. Set the maximum level of AUDIO AGC.
- SAMPLE BITS: Select the bit depth of audio.

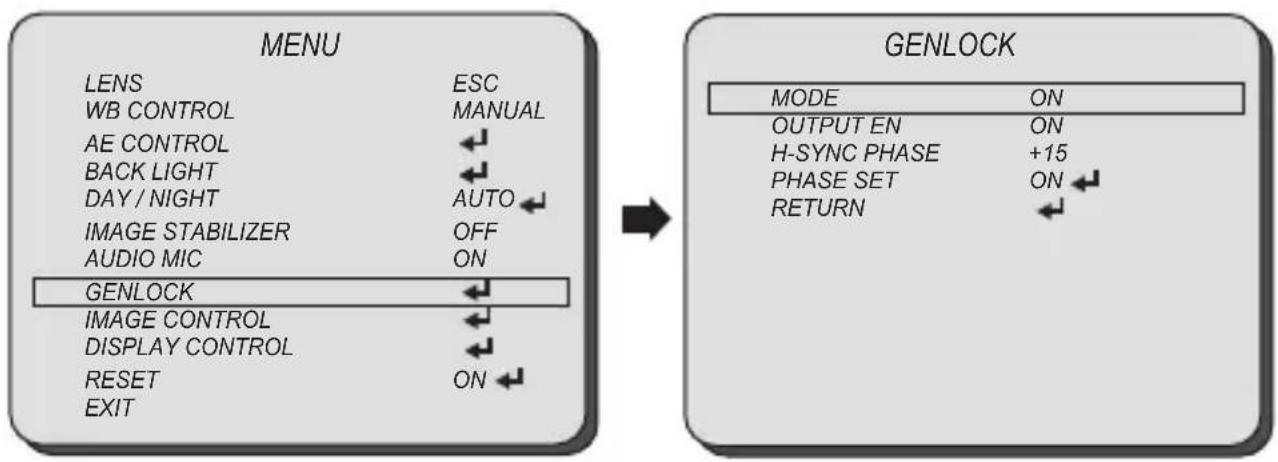

Select GENLOCK using the UP or DOWN button.

You can select MODE, OUTPUT EN, H-SYNC PHASE, and PHASE SET using the UP or DOWN button.

■ MODE: Enable or disable the genlock function.

Enable/Disable MODE, selecting from OFF or ON using the LEFT or RIGHT button.

■ OUTPUT EN: Enable or disable the reference signal loop out.

Enable/Disable OUTPUT EN selecting from OFF or ON using the LEFT or RIGHT button.

■ H-SYNC PHASE: Adjust H-sync pixel offset for a fine tuning.

Adjust the offset using the LEFT or RIGHT button.

■ PHASE SET: Apply the changes from "H-SYNC PHASE".

Select IMAGE CONTROL using the UP or DOWN button.

You can select COLOR LEVEL, SHARPNESS, MIRROR, AND FLIP using the UP or DOWN button.

■ COLOR LEVEL: Adjust the color level value for a fine color tune.
Adjust the color level from 00\~20 using the LEFT or RIGHT button.
■ SHARPNESS: Increasing this value, the picture outline becomes stronger and clearer.
Adjust the sharpness level from 00\~20 using the LEFT or RIGHT button.
■ MIRROR: Video output is rotated horizontally.
■ FLIP: Video output is rotated vertically.

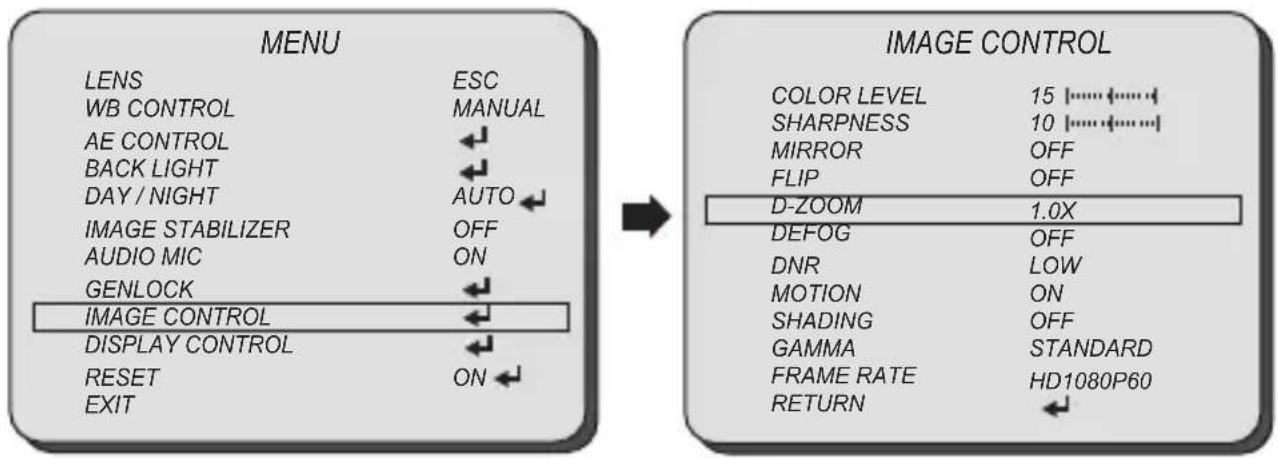

Select IMAGE CONTROL using the UP or DOWN button.

You can select D-ZOOM, DEFOG, and DNR using the UP or DOWN button.

■ D-ZOOM: Digitally zoom the video output up to 16X.

Adjust the digital zoom level from 1.0\~16.0X using the LEFT or RIGHT button.

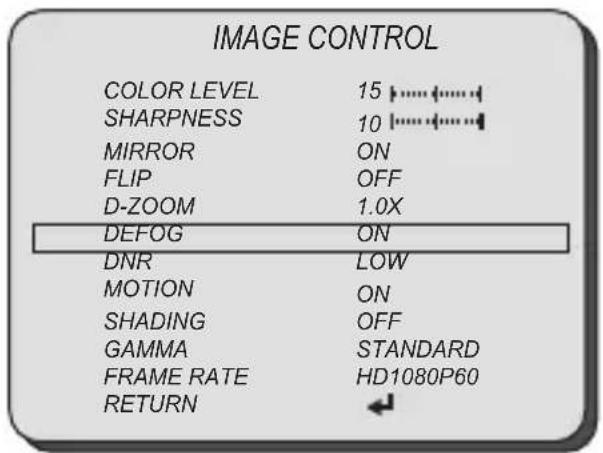

■ DEFOG: This feature will help increase visibility in extreme weather conditions, such as fog, rain or in a very strong luminous intensity.

■ MANUAL: Set the level of defoging function (LOW, MIDDLE, HIGH).
— AUTO: This feature will help increase visibility in extreme weather conditions, such as fog, rain or in a very strong luminous intensity.

■ DNR: This feature will reduce the video noise at low ambient light.

Select the DNR level from OFF, LOW, MIDDLE, and HIGH using the LEFT or RIGHT button.

Select IMAGE CONTROL using the UP or DOWN button.

You can select MOTION, SHADING, and GAMMA using the UP or DOWN button.

■ MOTION: This feature will observe the object movement by motion zone and sensitivity that are pre-set with sub menu. The motion detection icon can be displayed out.

- DET WINDOW: Set the motion detection window.

• WINDOW ZONE: Select the motion detection window.
• WIDOW USE: Enable/disable the motion detection window selected from WINDOW ZONE.
• DET H-POS: Move the motion detection mask area horizontally.
• DET V-POS: Move the motion detection mask area vertically.
• DET H-SIZE: Change the width of motion detection window.
• DET V-SIZE: Change the height of motion detection window.

■ SENSITIVITY: Set the motion detection sensitivity.
■ MOTION OSD: Enable/disable the motion detection OSD.

■ SHADING: This feature will correct the inconsistent brightness level in the image.
■ GAMMA: This feature will adjust video output brightness.

Select the GAMMA level from STANDARD, STRAIGHT, LOW, MIDDLE, and HIGH using the LEFT or RIGHT button.

Select IMAGE CONTROL using the UP or DOWN button.

You can select FRAME RATE using the UP or DOWN button.

■ FRAME RATE: Change video output specification.

Select the FRAME RATE using the LEFT or RIGHT button.

Abailable Frame Rate are;

720p25, 720p30, 720p50, 720p60, 1080p25, 1080p30, 1080i50, 1080i60, 1080p50, 1080p60.

720p59 (720p59.94), 1080p29 (1080p29.97), 1080i59 (1080i59.94), and 1080p59 (1080p59.94)

Select DISPLAY CONTROL using the UP or DOWN button.

You can select CAM VERSION, CAM TITLE, PRIVACY, CAMERA ID, BAUD RATE, and

LANGUAGE using the UP or DOWN button.

■ CAM VERSION: Display the firmware version of the camera.
■ CAMERA TITLE: The camera title can be entered and it will appear over the video output.

You can input the camera title from the virtual keyboard using the LEFT, RIGHT, UP, DOWN, and SET button.

DISPLAY CONTROL PRIVACY

Select DISPLAY CONTROL using the UP or DOWN button.

You can select PRIVACY using the UP or DOWN button.

■ PRIVACY: Mask an area you want to hide on the screen.

• MASK NO: Select the mask number to modify using the LEFT or RIGHT button.
• MASK ACTIVE: Enable/Disable the mask display using the LEFT or RIGHT button.
• WIDTH SIZE: Change the width of SPOT area using the LEFT or RIGHT button.
• HEIGHTSIZE: Change the height of SPOT area using the UP or DOWN button.
• HOR POS: Move the SPOT area horizontally using the LEFT or RIGHT button.
• VER POS: Move the SPOT area vertically using the UP or DOWN button.
• MASK COLOR: Select the mask color using the LEFT or RIGHT button.
• TRANS: Select the mask transparency using the LEFT or RIGHT button.

Select DISPLAY CONTROL using the UP or DOWN button.

You can select CAMERA ID, BAUDRATE, and LANGUAGE using the UP or DOWN button.

■ CAMERA ID: Select the camera ID number from 0\~255.
■ BAUDRATE: Set the baudrate of RS-485 communication (2400, 4800, 9600, 19200, 38400, 57600, 115200).
■ LANGUAGE: You can select the menu language according to your requirements.
Select the OSD language from ENGLISH, CHN, CHN(S), and JPN using the LEFT or RIGHT button.

Select RESET using the UP or DOWN button.

■ RESET: Reset the camera settings to the factory defaults or user setting value.

■ ON: Set the camera setting to either "FACTORY" or "USER" of "CHANGE" menu. Make sure to select the right mode from "CHANGE" before defaulting the camera.

■ RESET MODE: Select the desired setting mode.

Select from USER or FACTORY using the LEFT or RIGHT button.

■ USER: Select "USER" if setting value user saved last is needed.
■ FACTORY: Select "FACTORY" if factory default setting is needed. "FRAME RATE", "CAM ID", and "BAUDRATE" will not change.

Select EXIT using the UP or DOWN button.

■ SAVE: Exit the setup after saving the setting value changes.

MENU
LENS	ESC
WB CONTROL	MANUAL
AE CONTROL
BACK LIGHT
DAY / NIGHT	AUTO
IMAGE STABILIZER	OFF
AUDIO MIC	ON
GENLOCK
IMAGE CONTROL
DISPLAY CONTROL
RESET	ON
EXIT

TROUBLESHOOTING

Before sending the camera for repair, please check below to make sure that the camera is installed correctly. If it still does not perform adequately, please consult with your supplier.

Problem Solutions
Nothing appears on the screen.	a. Check that all connected devices are powered on.b. Confirm that the voltage is correct.c. Confirm that the power supply provides enough current to power the camera.d. Check that all video cables are correctly connected.
The picture is not clear.	a. Check that your monitor is correctly adjusted.b. Confirm that the glass in front of the lens is clean. If there is dust, dirt or fingerprints on the glass, the image quality will be affected.To clean the glass use a soft, dry and non-abrasive cloth or a commercially available lens cleaning set.c. Correctly adjust the focus.
The picture has interference.	a. The camera may be close to a high voltage source, such as a power generator.b. The BNC cable is not terminated properly.c. The video cables are not connected properly.
The picture is flickering continually.	a. Check the termination and set the impedance at 75Ω properly.b. Ensure that the camera is not pointing towards the Sun or any light source.c. Check if there is any intermediate device.d. Check if the distance of the video cable exceeds the maximum transferable limitation.
The camera is not synchronizing with the reference signal.	a. Make sure Tri-Level reference signal is used.b. Locking takes up to 1 minute depending on the signal strength.Make sure the sync LED is solid lit.c. Check if the cable and connectors used in reference sync are in good condition.d. Make sure the cable length used in reference sync does not exceed 100ft.e. Make sure OUTPUT EN is on when using the genlock output.

Marshall Electronics

1910 East Maple Ave. El Segundo, CA 90245

Tel: [phone]

Fax: [phone]

www.LCDracks.com

[e-mail]
