SPVP – Online Coaxial/Twisted Pair Surge Protection Device
Speco Technologies' SPVP protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offers protection from hazardous voltages that may occur. However, because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning and thus provides little to no protection to prevent high frequency surges from getting into a home and destroying CATV, TVs, cameras, etc. The SPVP can be a valuable addition to this setup to protect your equipment.
Features:
● A great compliment to installations that already meet UL grounding requirements.
● Protects equipment from high voltage surges from nearby lightning strikes.
● Two stage protection: 130V, AC/DC 12V
● Wide range of applications: CCTV systems, antennas, receivers (FM, Satellite), cameras, monitors, multiplexers/quads, VCRs, etc.
SPVP - Video & Power Surge Protection
● 3 pin terminal + BNC female to 4 pin terminal + BNC female.
- Two stage protection, AC/DC 130V, AC/DC12V
● Max power input AC 40V(MAX), DC 56V(MAX).
● Max current up to 2Amp.

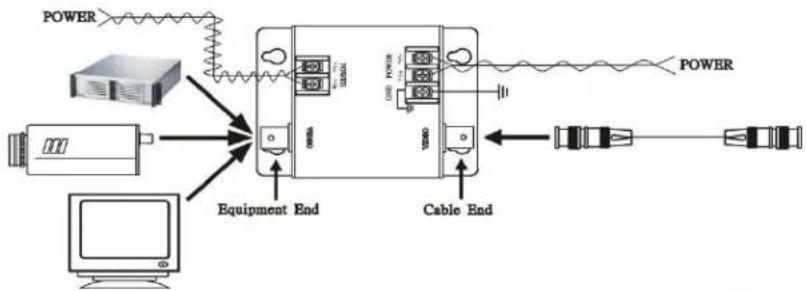

Installation View:


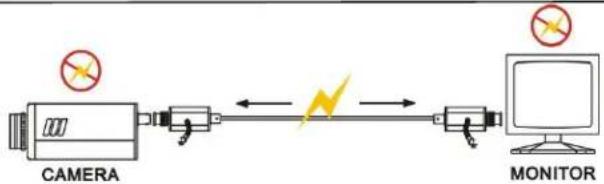

Note:
The cable must be grounded to ensure protection of equipment.
Specifications:
| ITEM NO. SPVP | |
| Surge Protection Attack Time 1 ns | |
| Maximum Surge Voltage 4 KV | |
| Surge Life 300 surges of 100Amps | |
| Normal Resistance Across Coax 10 | 000 MΩ |
| Surge Resistance Approx. 0Ω | |
| Band Pass | 0~1 GHZ |
| Power Passing Capability | 130V DC / AC, 65 Vrms at10 Amps |
| Insertion Loss | Less than 0.2 dB |
| Return Loss (75 ohms) | 16dB |
| Power IN Put | AC 40V(MAX), DC56V(MAX) |
| Connectors | Terminal |
| Dimensions L x W x H | 3.4" x 2.6" x 1" |
| Weight | 0.3 Lbs. |
RoHS CE FC
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Speco Technologies • 200 New Highway • Amityville • NY • 11701 • www.specotech.com
