GEBRUIKSAANWIJZING SP-6AWD Speco Technologies
User Installation and Assembly Instructions
All Weather Design Speakers
- Weatherproof high power two-way speaker systems.
- Speaker systems feature high impact plastic housings and aluminum grilles.
- Speakers include aluminum mounting brackets
Installation
A. Recommended wiring: 18 gauge copper wire (or heavier)
B. Ensure that the speakers are installed on a surface sturdy enough to support their weight. Fasten properly & securely.
C. Take into account the targeted listening area and potential safety hazards when choosing speaker installation and location.
D. Speco Technologies assumes no liability for misinstalled speakers.
E. Refer to below illustrations for assembly and installation instruction.

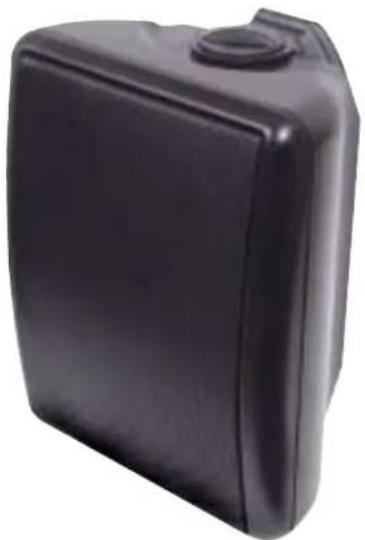

| Model SP-5AWD-W SP-5AWD/T-W SP-6AWD-W | SP-6AWD/T-W | |||
| Woofer | 5.25" Polypropylene Coated Rubber Surround | 5.25" Polypropylene Coated Rubber Surround | 6.5" Mica Coated Rubber Surround | 6.5" Mica Coated Rubber Surround |
| Tweeter | 1/2" PEI Tweeter | 1/2" PEI Tweeter | 1" Mylar Tweeter | 1" Mylar Tweeter |
| Frequency | 60Hz-20kHz | 60Hz-20kHz | 54Hz-20kHz | 54Hz-20kHz |
| SPL | 88 db 1w/1m | 88 db 1w/1m | 89dB 1w/1m | 89dB 1w/1m |
| RMS Wattage | 40 Watt | 40 Watt | 50 Watt | 50 Watt |
| Max Wattage | 80 Watt | 80 Watt | 100 Watt | 100 Watt |
| Impedance | 8 ohms | 8 ohms | 8 ohms | 8 ohms |
| Transformer | 70V/25V (30W/ 15W/ 7.5W/ 3.75W) | 70V/25V (30W/ 15W/ 7.5W/ 3.75W) | ||
