HASZNÁLATI ÚTMUTATÓ VT-1183 V-TAC

INSTRUCTION MANUAL

OUTDOOR SERIES WALL LAMP

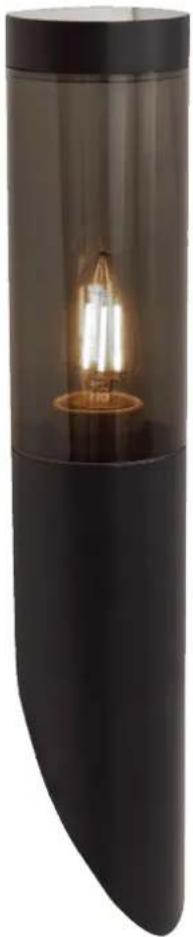

TECHNICAL DATA

MODEL VT-1183

SKU 10470

MAX. WATTS 18W

INPUT POWER AC: 220-240V, 50Hz

HOLDER E27 (Bulb not included)

MATERIAL Plastic+Stainless Steel

UNIT COLOUR BLACK

DIMENSION ∅76x400 mm

Close-up of a black incandescent lamp with a glowing filament, mounted on a curved black base (no text or symbols visible)

IP44

RATING

02 YEAR

WARRANTY*

INTRODUCTION & WARRANTY

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.

QR code image containing encoded data, no visible human-readable text

MULTI-LANGUAGE MANUAL QR CODE

Please scan the QR code to access the manual in multiple languages.

INSTRUCTIONS FOR THE LIGHT

• Please make sure to turn off the power before starting the installation.
  • Installation must be performed by a qualified electrician.
• Proper grounding should be ensured throughout the installation.

This marking indicates that this product should not be disposed of with other household wastes.

Caution, Risk of electric shock

INSTALLATION DIAGRAM

1 OFF

2 X2

3

4 X2

Diagram showing a light bulb being displaced from a cylindrical object, with a hatched background (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows indicating rotation or change.

INSTALLATION INSTRUCTIONS

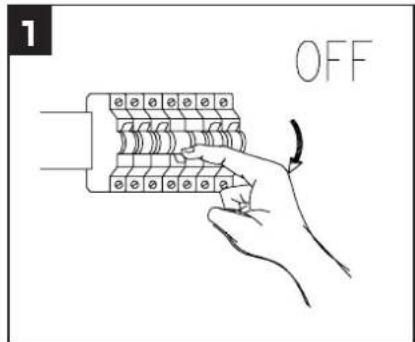

1. Turn off the power switch.
2. Disconnect the Lamp parts for fixing in wall.

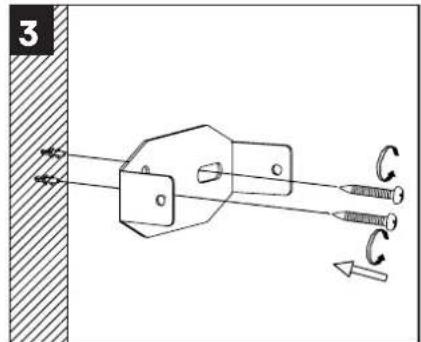

3. Fix the base to the wall with the screws.

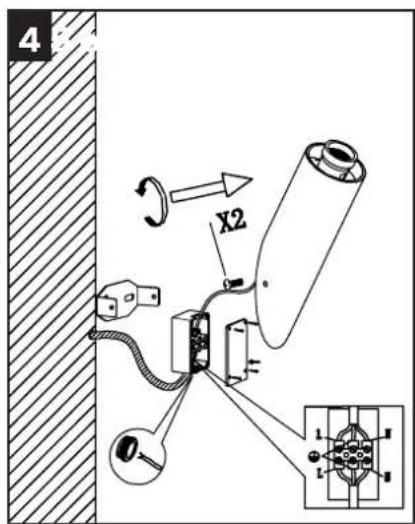

4. Connect to the power supply according to the drawing.
5. Install the bulb on the E27 holder (Bulb is not included).

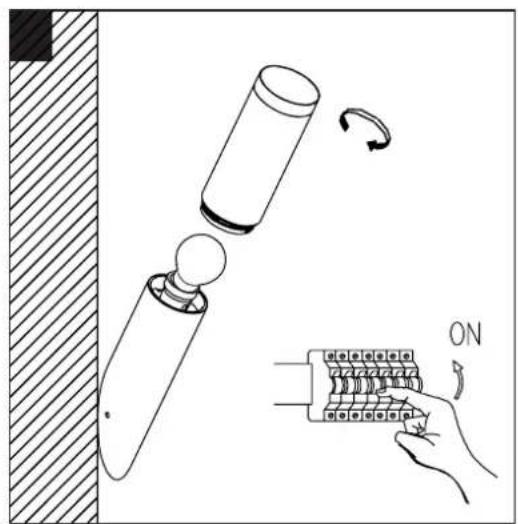

6. Close the Lamp and Switch on the power.

RoHS
