INSTALLATION & SPECIFICATIONS

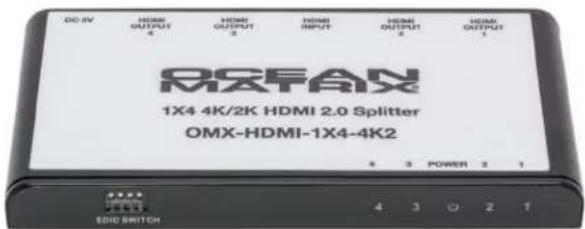

OMX-HDMI-1X4-4K2
Splitter-Distribution Amplifier Routes One HDMI Signal to Four HDMI Displays
Installation Requirements
- Source: HDMI video source
- Display: Display with HDMI port
- Cable: HDMI cable able to support 4Kx2K

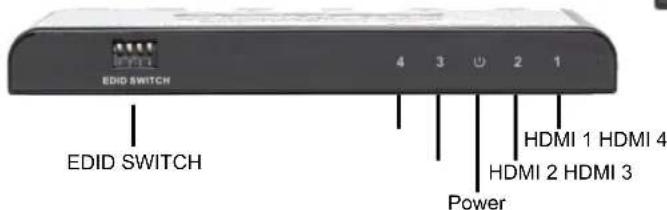

LED Indicators
| Specifications | |
| Input/Output | 1 HDMI Input, 4 HDMI Outputs |
| Compatibility | DVI1.0, HDMI1.4, HDMI2.0HDCP1.4, HDCP2.2 |
| Frequency Range | 25MHz-600MHz |
| Video Form | 12 Bit Full HD3D Video4Kx2K@ 30/60HZ UHD |
| TMDS Signal | 0.5-1.5Vp-p(TMDS) |
| DDC Signal 5Vp-p(TTL) | |
| Audio | StandardDSD (Direct Stream Digital)HD(HBR) |
| HDMI Resolution | 480i/480p/756i/756p/720p/1080i/1080p/4Kx2K@ 24/25/30/60Hz |
| Power Supply 5VDC/1A | |
| Power Consumption 8W | |
| Dimensions (LxWxH) 6 | 2x3.15x0.67in |
| Weight 6.9oz | |
Installation

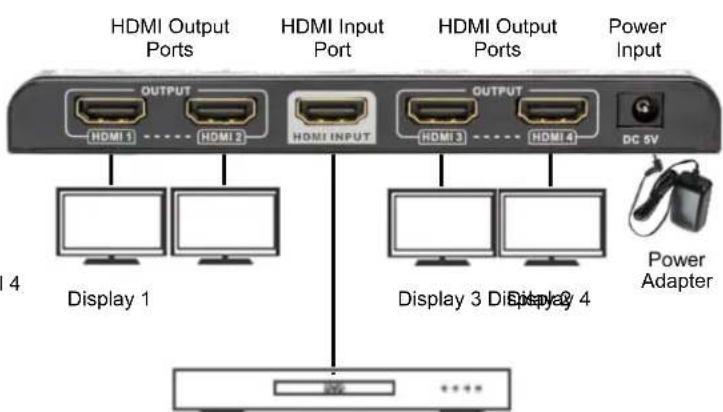

- Connect the HMDI video source output port to the splitter input port
- Connect the splitter output port to the HDMI display
- Set the display input to right HDMI channel
- Connect the power supply and turn the power on
Video Source
Features
- Distributes 1 HDMI source to 4 HDMI displays simultaneously
• Supports HDR, HDMI 2.0, HDMI 1.4, DVI 1.0, - and 4K x 2K@60Hz when both the input and output devices support 4K x 2K
• Supports 3D output when both HDMI source and HDMI displays support 3D
• Support bandwidth up to 18Gbps - HDMI2.0 compliant
- HDCP2.0 compliant
- Audio - Supports Standard, Direct Stream Digital, and HD/high bit-rate audio
Includes—5VDC/1A Power Supply
OCEAN MATRIX®
EDID INFORMATION
The splitter reads the EDID information of the connected displays and sends that information to the HDMI source in order to determine the output mode.
Switch is up for the 1 setting
Switch is down for the 0 setting
| EDID Information Switch Settings | ||||
| SWITCH | 1 | 2 | 3 | 4 |
| 4k@60Hz 2CH | 0 | 0 | 0 | 0 |
| 4k@60Hz 7.1CH | 1 | 0 | 0 | 0 |
| 4k@30Hz 2CH | 0 | 1 | 0 | 0 |
| 4k@30Hz 7.1CH | 1 | 1 | 0 | 0 |
| 1080p@60Hz 2CH | 0 | 0 | 1 | 0 |
| 1080p@60Hz 7.1CH | 1 | 0 | 1 | 0 |
| 1080i@60Hz 2CH | 0 | 1 | 1 | 0 |
| 1080i@60Hz 7.1CH | 1 | 1 | 1 | 0 |
| 1080p@50Hz 2CH | 0 | 0 | 0 | 1 |
| 1080P@50Hz 7.1CH | 1 | 0 | 0 | 1 |
| 4K@30Hz HDR | 0 | 1 | 0 | 1 |
| 4K@60Hz HDR | 1 | 1 | 0 | 1 |
| Copy Once: Reads EDID of first connected output only | 0 | 0 | 1 | 1 |
| MIX1: Lowest audio format & lowest video format | 1 | 0 | 1 | 1 |
| MIX2: Highest audio format & video downscaling from HDMI 4K@60Hz (YCbCr4:4:4 or YCbCr4:2:0) to 1080P@60Hz | 0 1 | 1 1 | ||
| MIX3: Lowest audio format & video downscaling from HDMI 4K@60Hz (YCbCr4:4:4 or YCbCr4:2:0) to 1080P@60Hz | 1 1 | 1 1 | ||
