KÄYTTÖOHJE CTT 82TVRU CANDY

INTRODUCTION

Read this manual carefully as it offers practical advice to help you get the most from your washing machine.

This Instruction Manual contains everything you need to know about the everyday running of your machine. Keep it for future reference.

An Installation and Maintenance Manual is also provided which you should consult during the installation and routine maintenance of your washing machine. The manual also contains information about possible working problems, advice about the wash load, an explanation of label symbols and hints about how to remove stubborn stains.

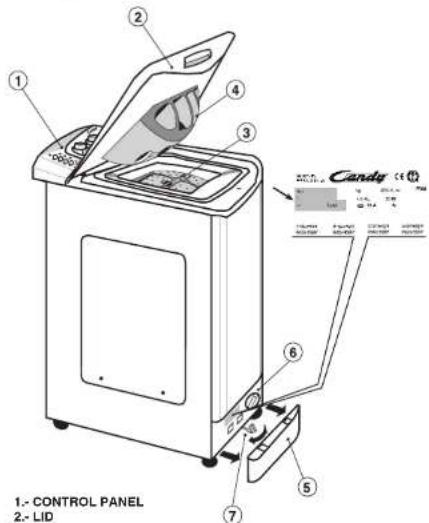

1.-CONTROL PANEL
2.-LID
3.- DRUM
4.- DETERGENT COMPARTMENT
5.- FILTER DOOR
6.- FILTER
7.- WHEEL TROLLEY

When contacting a CANDY or one of its Technical Assistance

Centre always refer to the model (see control panel) and the registration and series numbers which are indicated at the bottom of the machine under the lower panel or on the warranty certificate. That is to say, everything that appears in the box.

Providing this information will ensure a faster and more efficient service.

INDEX

page

GUARANTEE 29
TECHNICAL DATA 30
OPENING THE LID - LOADING 31
DETERGENT DISPENSER 32
VARIABLE CAPACITY 33
PROGRAMME SELECTION 33
CONTROL DESCRIPTION 34
TABLE OF PROGRAMMES 37

Place the adhesive label, in the corresponding language, in the support that slots into the back of the panel display.

GUARANTEE

1.

The appliance comes with a guarantee certificate.

2.

Complete part B and keep it in a safe place. It should be presented to the Technical Assistance Centre in the event of a repair being necessary along with the legal receipt issued by the dealer on purchase.

3.

Do not forget to send part A of the Guarantee Certificate to be validated within 15 days of purchase.

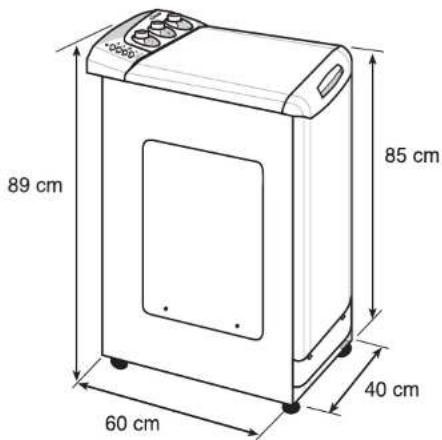

TECHNICAL DATA

CTT 82 TV

Load capacity ....kg.

4,5

Voltage V.

230

Wash motor power rating ....W.

175

Spin motor power rating W.

300

Electropump power rating W.

30

Heating element power rating ....W.

1.850

Max. power input W.

2.200

Fuse ......A.

10

Water pressure .... MPa

0,05 min.

Spin speed r.p.m./min

0,8

Water consumption (60 ^2 C programme) .... lit.

800

Energy consumption (60°C programme) kWh

59

Energy efficiency rating ....

0,85

OPENING THE DRUM

1.

Lift the lid (A) and open completely. Next open the drum door following these instructions:

2.

Press catch (B) and kept it pressed down.

Press the first shutter (C) to unlock the two shutters (C) and (D).

3.

Open the second shutter (D). Open the first shutter (C). Place the washing in the drum.

4.

Close the first shutter (C).

Close the second shutter (D) so that the catch on the first shutter fits correctly into the slot. Release.

5.

Ensure that both shutters are perfectly aligned and properly closed.

IMPORTANT: IT IS IMPORTANT TO MAKE SURE THAT THE DRUM IS CAREFULLY CLOSED BEFORE OPERATING THE MACHINE, OTHERWISE THE MACHINE OR LAUNDRY COULD GET DAMAGED.

2 min.

IMPORTANT: A SPECIAL SAFETY DEVICE PREVENTS THE LID FROM BEING OPENED IMMEDIATELY AFTER THE WASH HAS FINISHED. ONCE THE SPIN CYCLE HAS FINISHED, WAIT FOR 2 MINUTES BEFORE TRYING TO OPEN THE LID.

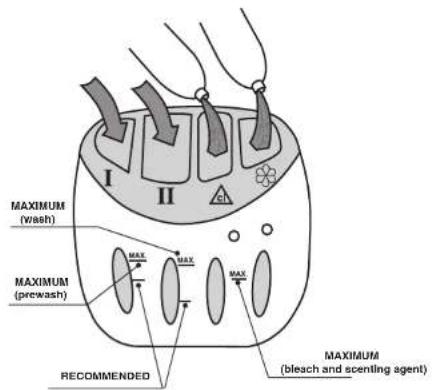

DETERGENT DISPENSER

The detergent dispenser is divided into 4 compartments:

• Compartment I, is for prewash powder detergent. The recommended quantity is 60 gm of detergent (for 4.5 kg of laundry).
• Compartment II, is for wash powder detergent. The recommended quantity is 120 gm of detergent (for 4.5 kg of laundry).
• The ⚠ compartment is for bleach. The recommended quantity is 70 c.c.
• The compartment is for fabric conditioners, scenting agents and special additives. The recommended quantity is 50 c.c.

The detergent compartment has two guidance lines:

• RECOMMENDED (lower line). This indicates the recommended level for the prewash and wash compartments.
• MAX. This indicates the maximum level which should never be exceeded.

VARIABLE CAPACITY

This washing machine automatically adapts the water level to the type and quantity of clothes to be washed. So it is possible to obtain a «customised» wash, even in terms of energy. This system reduces water and energy consumption and provides an appreciable reduction in wash time.

PROGRAMME SELECTION

WHEN SELECTING A PROGRAMME, ENSURE THAT THE START/STOP BUTTON IS NOT ACTIVATED.

To select a programme:

• Programmes are selected by means of the corresponding control knob (A). See the table of programmes.
• Select the wash temperature by means of the corresponding control knob.
• Select the spin speed by means of the corresponding control knob.
• Select the different options available by pressing the corresponding buttons.

CONTROL DESCRIPTION

Programme selector knob A

Temperature selector knob B

Spin speed selector knob C

Flot button (Anticreasing) D

Super-rinse button E

Super-rapid button F

ON/OFF pilot light G

ON/OFF button H

USE OF THE SELECTION CONTROLS

A. PROGRAMME SELECTOR KNOB

With this knob you can select the wash programme as you wish. Press the central knob and then pull out and turn until the programme (number or symbol) coincides with the marker point. Having made the selection, press the knob in again.

ALWAYS ROTATE the control in a clockwise direction, never in an anticlockwise direction. Do not press the "on" button (H) before selecting the programme.

If you wish to modify the position of the control or select another programme once a cycle has commenced, press the Start/Stop key. Press again to recommence once the modification has been completed.

B. TEMPERATURE SELECTOR KNOB

With this knob you can select the washing temperature as you wish. Press the central knob and then pull out and turn until the temperature selected coincides with the marker point. Having made the selection, press the knob in again.

If you wish to carry out a cold wash, turn the knob until the cold symbol 📄 coincides with the selector mark.

THE KNOB CAN BE TURNED IN BOTH DIRECTIONS.

Do not exceed the maximum temperature recommended for each cycle in the table of programmes.

C. SPIN SPEED SELECTOR KNOB

This control allows you to select the speed of the final spin.

To select a speed, press the centre of the control knob to release and turn it until the desired speed coincides with the selector mark. When you have selected a speed, press the control knob once again.

This knob selects the final spin speed. To select a speed, press down and turn until the desired speed coincides with the selector mark.

The final spin cycle reaches the maximum speed selected in non-delicate programmes. The middle and final spin cycles for mixed, synthetics and delicate programmes is carried out at 400 r.p.m.

If you do not want a spin cycle, coincide the spin exclusion symbol 📄 with the selector mark.

THE KNOB CAN BE TURNED IN BOTH DIRECTIONS.

USE OF THE SELECTION CONTROLS

D. FLOT BUTTON (Anticreasing)

The Flot button only works in programmes (5-6-7-8-9-10) for mixed, synthetic and very delicate fabrics.

When the button is pressed, the machine stops in the last rinse of these programmes, leaving the wash soaking with a high water level.

To complete these programmes, spin the wash by pressing the button again to release it.

E. SUPER-RINSE BUTTON

Pressing this button removes the last vestiges of soap powder from the fabrics, as the rinses are done with more water.

F. SUPER RAPID BUTTON

When this button is pressed the time for the wash programmes of this washing machine is reduced to a maximum of 50 minutes, according to the wash programme and temperature selected. The Super Rapid Button can be used for washes of from 1 to 4.5kg .

G. O'FF PILOT LIGHT

H.ON/OFF BUTTON

G. O'FF PILOT LIGHT
H.ON/OFF BUTTON

TABLE OF PROGRAMMES

TYPE OF FABRIC	PROGRAMME	MAX. LOAD IN KG	SEL. PROG.	SEL. T C^2	DETERGENT
					I	II	△	※
Cotton, linen	VERY DIRTYSheets, solid-block coloured and white tablecloths, napkins, underwear	4.5	1★	From old Ib...90°		●	●	●
	NORMAL DIRTYSheets, solid-block coloured and white tablecloths, napkins, underwear	4.5	2	From old Ib...60°		●	●	●
Cotton, mixed and non-delicates	Cotton resistant	3.5	3	From old Ib...50°		●		●
Cotton, mixed	Lightly soiled - Delicates colours	3.5	4	From old Ib...40°		●		●
	Organic stains	—	△	—			●	●
Cotton	Energetic rinse	—	△	—				●
Cotton, linen	Conditioner, fragrance, softener Energetic rinse	—	○	—				●
Mixed non-delicates	VERY DIRTYShirts, sheets, baby clothes, whites	2	5★	From old Ib...60°		●		●
Synthetics (Rayon, Acrylics)	NORMAL DIRTYNon-delicate shirts, blouses, coloured skirts	2	6	From old Ib...50°		●		●
Delicate synthetics	Colour fast	2	7	From old Ib...40°		●		●
	LIGHTLY SOILED	2	8	From old Ib...30°		●		●
Mixed, synthetics, delicates	Delicate rinse	—	△	—				●
	Conditioner, fragrance, softener Delicate spin	—	○	—				●
Clothes which do need to be spun	Water discharge		Z	—
Woolens	WOOL"machine washable"	1	9★	From old Ib...40°		●		●
Synthetics (Rayon, Acrylics)	Curtains, skirts, blouses, shirts	1.5	10	From old Ib...30°		●		●
Mixed, synthetics, wouollen delicates	Delicate rinse	—	△	—				●
	Conditioner, fragrance, softener Delicate spin	—	○	—				●
RAPID PROGRAMME		Rapid 32 minute super cycle 32-2			From old Ib...50°	●

RESISTANTS

△ MIXED SYNTHETICS

EXTREM. DELIC. FABRICS

RAPID PROGRAMME

Rapid 32 minute super cycle 32^2

Fon cold k_e...50^e

●

Programme *, according to EN 60456 Regulations
The first program in each group is the longest and thus ensures the most effective wash at a given temperature. The other programs should be selected for clothes which are only lightly soiled or are particularly delicate.

NOTE:

1. If the wash load is very dirty it is best to reduce the load weight to 3 kg.
2. Programmes 1, 2 have an automatic bleaching option. Simply place the bleaching agent in the compartment.
3. The washing machine is designed to incorporate fabric softener automatically in the last rinse of each washing cycle.

RAPID 32 MINUTE PROGRAMME

The rapid 32 minute programme enables a complete washing cycle for a maximum 2 kg wash at a temperature of 50^ C to be carried out in 30 minutes. The temperature of the wash can be reduced via the temperature selector knob.

The soap powder must be loaded into the pre-wash dispenser (compartment I).

The maximum amount of soap powder which can be used for this programme is indicated by the 32 minute mark in the dispenser.

The rapid 32 minute programme can also be used as a pre-wash cycle in the case of a heavily soiled wash, following with the main programme as desired.
