Product Type	Mini LED Video Projector
Brand	AAXA Technologies
Model	P2 Jr.
Dimensions (W x D x H)	4.5 x 3.5 x 1.5 inches (114 x 89 x 38 mm)
Weight	0.5 lbs (227 g)
Power Supply	DC 5V, 2A (USB-C)
Resolution	854 x 480 pixels (native)
Brightness	50 ANSI lumens
Contrast Ratio	1000:1
Light Source	LED, up to 20,000 hours
Projection Size	10 to 80 inches
Throw Ratio	1.2:1
Focus	Manual
Connectivity	HDMI, USB-A, MicroSD, 3.5mm audio out
Built-in Media Player	Supports video, audio, image formats
Built-in Speaker	1W mono
Battery	Built-in rechargeable Li-ion, 2000 mAh
Battery Life	Up to 1.5 hours
Key Functions	Portable cinema, presentations, gaming
Cleaning	Wipe with soft dry cloth; avoid liquids
Safety	Do not look directly at lens; keep away from heat sources
Spare Parts & Repairability	LED module not user-replaceable; contact AAXA for service
General Information	Compatible with smartphones, laptops, game consoles via HDMI adapter

Frequently Asked Questions - P2 Jr. AAXA Technologies

How do I charge the P2 Jr. projector?

Connect the included USB-C cable to a 5V/2A power adapter. The LED indicator will show charging status. Full charge takes about 2 hours.

Can I connect my iPhone to the P2 Jr.?

Yes, using a Lightning to HDMI adapter (not included). Plug the adapter into the projector's HDMI port and your iPhone. For some apps, screen mirroring may require an additional dongle.

What is the maximum projection size?

The projector can display up to 80 inches diagonally, depending on distance. For best brightness, use a darker room and smaller screen size.

How do I clean the lens?

Use a soft, lint-free microfiber cloth. Gently wipe the lens in a circular motion. Do not use any liquids or cleaning solutions.

Can I play media files directly from a USB drive?

Yes, insert a USB drive or MicroSD card with supported file formats (MP4, AVI, JPEG, etc.). Use the built-in media player to navigate and play.

Why is the image blurry?

Turn the focus ring on the lens to adjust sharpness. Ensure the projector is placed on a stable surface and at the correct distance from the screen.

How long does the battery last?

The built-in battery provides up to 1.5 hours of playtime at normal brightness. Battery life varies with volume and content.

Is the P2 Jr. compatible with a tripod?

Yes, the projector has a standard 1/4-inch thread mount at the bottom. It can be attached to any camera tripod or projector stand.

What should I do if the projector overheats?

Ensure vents are not blocked. Place the projector on a hard, flat surface. If it shuts down, let it cool for 10 minutes before restarting.

Can I use the projector while charging?

Yes, you can use it plugged in. However, the battery may charge more slowly or not at all during use, depending on power consumption.

USER MANUAL P2 Jr. AAXA Technologies

aaxa

TECHNOLOGIES

P2jr Pico Projector

User Guide

Caution!

WARNING: Please use this product as instructed. Misuse may cause injury or death.

DO NOT use while driving

DO NOT expose to water or wet surfaces. Electric shock may occur

DO NOT expose the LED to your eyes or the eyes of others

DO NOT block or restrict airflow from ventilation holes as this may cause the projector to overheat

Keep the projector, battery, or charger away from any heat sources

Caution for Battery Use

• Do not pierce or puncture the battery with sharp objects
• Do not heat the product or expose it to high temperature.
• Do not wet it or place it in any liquid

Table of Contents

Chapter 1: P2jr at a glance 18

Main Unit 20

Keypad 20

Accessories 21

Chapter 2: Getting Started 22

Powering On / OFF 24

Focus Adjustment / Throw 26

Distance 28

External Inputs /Output Sources 29

Connecting to a Computer 32

Connecting to Composite Video 32

Connecting to HDMI Video 34

Connecting a MicroSD Card

Connecting to a USB drive

Chapter 3: Menu Screens

Main menu

File Menu System

Video Player Menu

Photo Viewer Menu

Music Player Menu

Text Viewer Menu

Setup Menu

Chapter 4: Technical Details

Troubleshooting

Specifications

P2jr at a Glance

Chapter 1

Main Unit

Directional Pad

Confirm Selection

Charge Indicator

Power Input

Back Button

Cooling Fan

Power Button

Speaker

Projection Lens

Focus Adjustment

Mini HDMI

Mini A/V / VGA Input

USB Port

MicroSD Card Slot

Keypad

Exit/Back

This key allows you to return to the previous menu or exit from the media player option.

Directional Keypad

Use these keys in highlight the selection you which to choose.

Power ON / OFF

Holding down the power button for 3 seconds will either turn the P2Jr ON or OFF.

Confirm Selection

Use this key to select the current highlighted option.

*More detailed direction of the keypad will be discussed in individual subsections.

Accessories

Standard Accessories

Line drawing of a cable and plug assembly (no text or symbols)

Power Adapter

Line drawing of two connected I/O connectors (no text or symbols)

VGA Cable

Sold Separately

Illustration of two USB connectors with coiled cables (no text or symbols)

Mini-Full HDMI

Line drawing of a USB cable connector with multiple Ethernet ports (no text or symbols)

Composite A/V Cable

*Under various circumstances, the actual accessories may be different from those shown in the pictures above.

Getting Started

Chapter 2

Powering ON the projector

1. Connect the power cord to the P2jr.
2. Connect the wall plug into the wall power source.
3. Press the POWER button and hold for 2-3 seconds to switch on or switch off the power
   • The LED turns red while charging.
   • The LED turns green when charging is finished.
4. 4 hours of charge time is required to reach a full charge.

Powering OFF the projector

1. Press and hold the power button for 3 seconds.
2. The optical engine should power off and the fan should stop spinning.

Note: The P2jr Projector battery does not charge when it is in operation.

Focus Adjustment / Throw Distance

Focus Adjustment

1. Spin the focus wheel up or down until the image becomes clear.
2. The recommended focus distance for this projector is 12" to infinity.

Simple diagram showing a vertical bar inside an oval and two parallel lines (no text or symbols)

Throw Distance Chart

Distance inch (") Diagonal Inch (")
10	8
15	12
20	16
30	24
40	31
50	39
60	47
70	55

Throw Ratio 1.25:1

*minimum throw distance: 10 inches

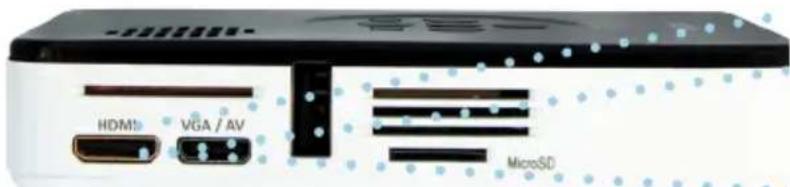

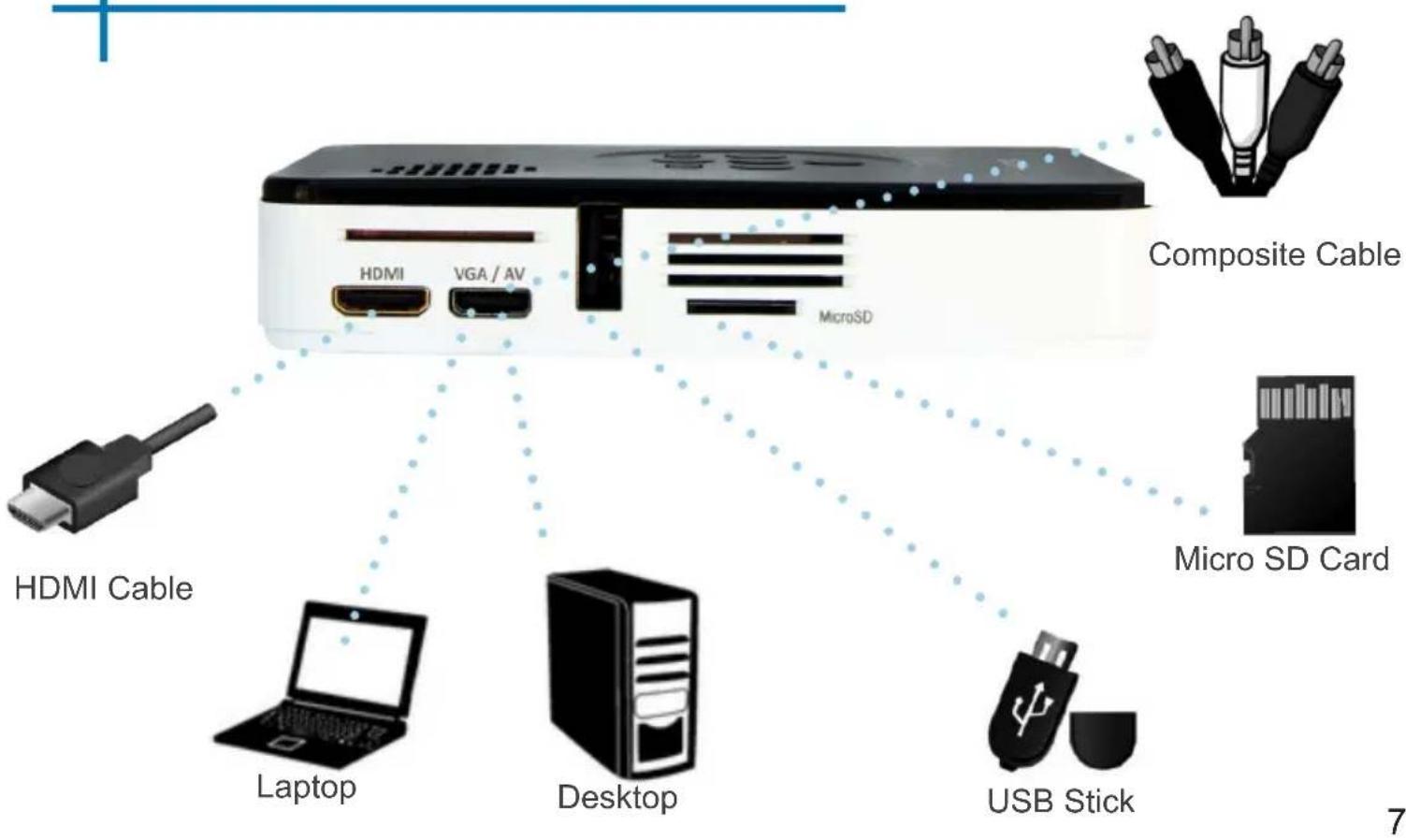

External Inputs/Outputs

Connecting to a Computer via VGA

Step 1:

Connect the large end of the

to your computer's

VGA Cord

VGA Adapter

Step 2:

Connect the small end of the

to your P2jr's

VGA Cord

VGA Adapter

Step 3:

In the Main Menu

Select "VGA" icon

Connecting to a Computer Cont.

Step 4:

Enabling VGA or HDMI output on your Computer – To enable VGA or HDMI output on your computer most computers require “turning on” the video output feature. Each computer is different. Please consult your owner’s manual for instructions to enable VGA or HDMI output. Below are standard instructions for a Windows XP computer – not all systems are the same.

Step 5:

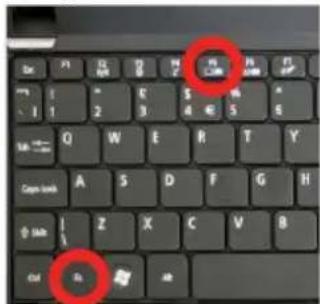

Press function & "F5" to instruct the computer to enable multiple displays.

You can also press Windows+P to toggle through display settings.

Step 6:

*NOTE: different operating systems may differ

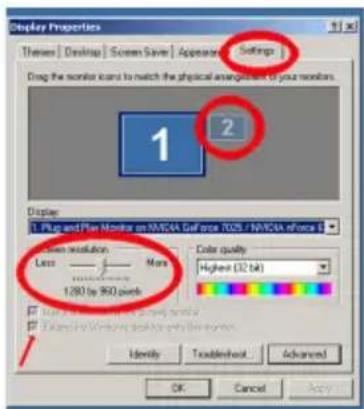

1. Right click on computer desktop and select "Properties"
2. Display Properties window will pop up
3. Click on the "Settings" Tab
4. If a secondary monitor is grayed out, click on it and check "Extend my Windows Desktop onto this monitor"
5. If the image is blurry or the text is not legible, adjust the screen resolution. We recommend 800x600 or 1024x768.

Connecting to a Computer via HDMI

Step 1:

Connect the large end of the

to your computer's

HDMI Cord

HDMI Adapter

Step 2:

Connect the small end of the

to your P2jr's

HDMI Cord

HDMI Adapter

Step 3:

In the Main Menu

Select "HDMI" icon

The P2jr requires a mini to full HDMI cable

Connecting to a Computer Cont.

Step 4:

Enabling VGA or HDMI output on your Computer – To enable VGA or HDMI output on your computer most computers require “turning on” the video output feature. Each computer is different. Please consult your owner’s manual for instructions to enable VGA or HDMI output. Below are standard instructions for a Windows XP computer – not all systems are the same.

Step 5:

Press function & "F5" to instruct the computer to enable multiple displays.

You can also press Windows+P to toggle through display settings.

Step 6:

*NOTE: different operating systems may differ

1. Right click on computer desktop and select "Properties"

2. Display Properties window will pop up

3. Click on the "Settings" Tab

4. If a secondary monitor is grayed out, click on it and check "Extend my Windows Desktop onto this monitor"

5. If the image is blurry or the text is not legible, adjust the screen resolution. We recommend 800x600 or 1024x768.

Connecting to Composite Video

Step 1:

Connect one end of the

to your P2jr's

Composite A/V Cord

A/V Adapter

Step 2:

Connect opposite end of

to your devices

Composite A/V Cord

Composite A/V Cord

Connecting to Composite Video Cont.

Step 3:

In the Main Menu

Select "A/V" icon

Step 4:

Turn on your multimedia device.

Connectivity with multimedia devices

The P2jr can connect to many media devices including: iPod, iPhone, iPad, VHS players, DVD players, smart phones, cameras, video game consoles and other peripherals with ease.

*Apps on smart phones require video out capabilities to be displayed with the P2jr.

Connecting to HDMI Video

Step 1:

Connect one end of the

Mini-HDMI

to your P2jr's

HDMI Adapter

Step 2:

Connect opposite end of

HDMI

to your devices

HDMI Adapter

Black Xbox gaming console with a handheld controller (no visible text or symbols)

Front view of a silver audio recording device with control knobs and a digital display (no visible text or symbols)

Black handheld gaming controller with control buttons and a blank screen (no visible text or symbols)

Connecting to HDMI Video Cont.

Step 3:

In the Main Menu

Select "HDMI" icon

Step 4:

Turn on your multimedia device.

Connectivity with multimedia devices

The P2jr can connect to many media devices including: iPod, iPhone, iPad, VHS players, DVD players, smart phones, cameras, video game consoles and other peripherals with ease.

*Apps on smart phones require video out capabilities to be displayed with the P2jr.

MicroSD Card

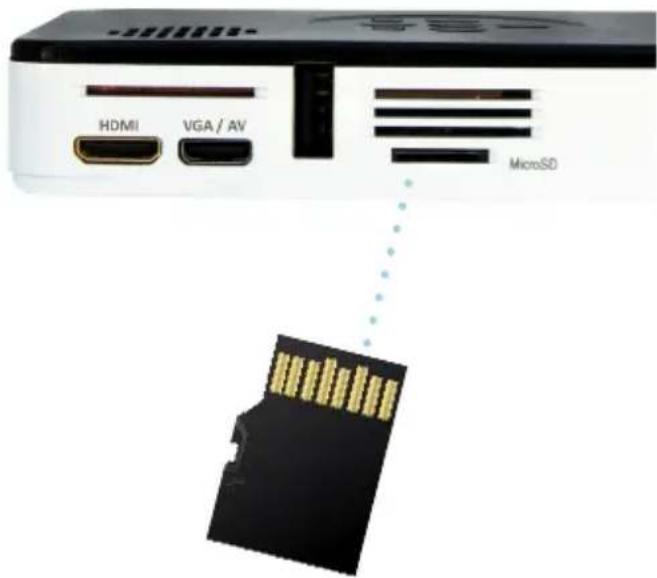

How to insert your MicroSD Card

• Slide in your SD card into the SD card slot on the side of the P2jr. (as shown in picture)
• Gently slide the SD card until it *clicks* into place.

How to access your MicroSD Card

• Once your SD card has been inserted, you can view the files located in SD card icon in the main menu.
  • After selecting SD card mode, you should now be able to access the data on the SD device through the onboard media player.

*Review the Specification section of this manual to read about the supported file formats.

MicroSD Card Cont.

1) 2)

Select the "MicroSD" icon

Media Player menu

• In the Media Player selection you can choose from the options: Photo, Music, Video, Text

- Select the appropriate menu for the type of file you wish to view.

File Menu System

• The P2jr will show all folders and files you have on your SD Card.
• Use the directional buttons to navigate to different folders or files.

Return: Brings you back to the main menu

Up Folder: Brings you back to the previous folder

USB Reader

How to insert your USB Drive

• Slide your USB Drive into P2jr. (as shown in picture)
  • Gently slide the drive until it cannot go in any further

How to access your USB Drive

• Once your USB Drive has been inserted, you can navigate to the USB icon in the main menu.
  • After selecting USB Drive Mode, you should now be able to access the data on the USB drive through the onboard media player.

*Review the Specification section of this manual to read about the supported file formats.

USB Reader Cont.

1)

Select the "USB" icon

Media Player menu

• In the Media Player selection you can choose from the options: Photo, Music, Video, Text
• Select the appropriate menu for the type of file you wish to view.

File Menu System

• The P2jr will show all folders and files you have on your USB Drive.
• Use the directional buttons to navigate to different folders or files.

Return: Brings you back to the main menu

Up Folder: Brings you back to the previous folder

Menu Screens

Chapter 3

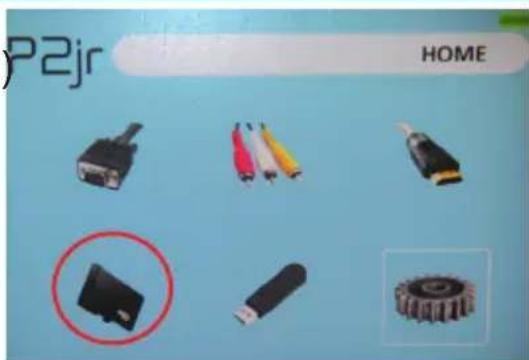

Main Menu

To access the main menu simply turn on the projector by pressing and holding the Power button for 3 seconds.

- Scroll Left/Right by pressing 📄 📅 buttons on the keypad.

- To select a submenu, highlight the desired submenu and press the located in the middle of the keypad.

• To go back to the previous page while in a submenu, press the back

button

button.

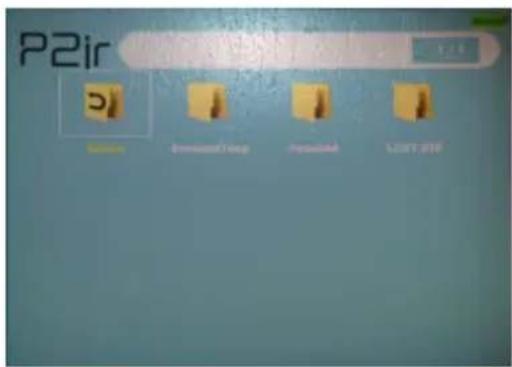

File Menu System

The P2jr will show all folders and files you have on your USB or MicroSD Drives. Use the directional buttons to navigate to different folders or files.

Return: Brings you back to the main menu

Up Folder: Brings you back to the previous folder

Opening a file:

• Choose Movie, Music, Photo or Text
• Select device file is stored on
• Select file from within folders, or current list

Previewing Files:

• Press the directional keys to highlight the item of interest
• Wait 2-3 seconds and a preview of the video will show on the screen

Video Player Menu

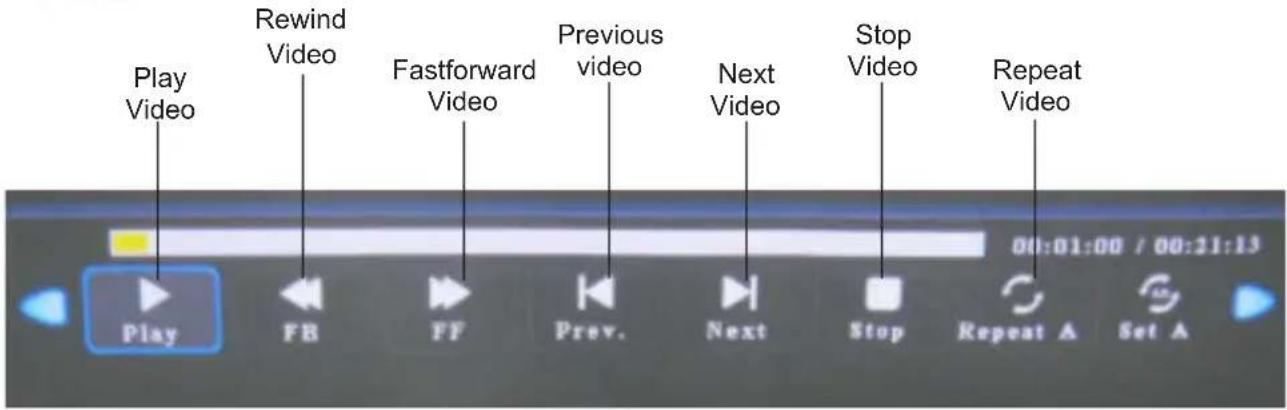

Viewing Videos

To adjust the volume simply press the more options, press the 📄 to reveal

keys on the projector. For

to reveal more options.

Move selection left

Move selection right

Confirm selection

- To open the video player menu, press "OK" on projector.

- To close the video player menu, hit "back" on projector.

Video Playback FAQ

How do I loop a video?

1. Choose either USB or SD Card for playback

1. Navigate the folders until you reach the file you wish to play.

2. Highlight the file you want to play, then confirm the selection.

3. Move selection on video player menu to "repeat", and confirm the selection.

4. The video will now loop after playback is finished.

How do I preview a video?

1. Choose the "video" option from the main menu
2. Navigate using onboard buttons to the file you wish to preview.
3. Highlight the file. *Do not select the file, just highlight it.
4. Wait for 3-4 seconds.
5. A preview screen will pop up on the lower right for the video.

Photo Menu

Viewing Pictures

To use the photo controls, use the directional keys to highlight the option you wish to choose.

Move selection left

- To open the photo player menu, press "OK" on projector.

Move selection right

- To close the photo player menu, hit "back" on projector.

Confirm selection

Photo Slideshow FAQ

How do I play a slideshow?

1. Choose either USB or SD Card for playback

1. Navigate to the folder that contains the pictures you wish to see in the slideshow

2. Confirm selection of the first picture.

3. Press "play" in the photo menu

4. Slideshow will not play.

5. NOTE: Selecting "repeat" will loop slideshow.

How do I manually control the slideshow?

1. After selecting the photo you wish to be displayed, you can press "play" to start the slideshow (as outlined in the previous FAQ).
2. To manually control the slideshow, you must stop the slideshow with the "stop" button.
3. Controls on top of the P2Jr allow you to manually flip through the pictures in the current playlist.

Music Player Menu

Listening to Audio

To adjust the volume simply press the more options, press the 📄 to reveal

or

keys on the projector. For

Move selection left

Move selection right

Confirm selection

- To open the music menu, press "OK" on projector.

- To close the music menu, hit "back" on projector.

Music Playback FAQ

How do I loop a song?

1. Choose either USB or SD Card for playback

1. Navigate the folders until you reach the file you wish to play.

2. Highlight the file you want to play, then confirm the selection.

3. Move selection on music player menu to "repeat", and confirm the selection.

4. The song will now loop after playback is finished.

How do I create a song playlist?

1. Insert your media device (either MicroSD card or USB) into computer.
2. Make a new folder on media device (folder name will be the name of the playlist).
3. Transfer songs from computer to the new folder, name accordingly.
4. Remove media device from computer and insert into projector.
5. Navigate to Audio section, then choose appropriate media device.
6. Navigate to your playlist folder.
7. Start at first song.
8. Playback will follow each successive song on the list.

Text Viewer Menu

Stacked books on a plain blue background (no visible text or symbols)

Opening a file:

• Choose "Open File" option
• Select device file is stored on
• Select file from list

The P2jr will show all folders and files you have on your USB or SD Drives. Use the directional buttons to navigate through different folders or files.

Previewing Files:

• Press the directional keys to highlight the item of interest
• Wait 2-3 seconds and a preview of the song will show on the screen

Viewing text files

The P2jr Pico Projector allows you to view text files. Select the file you want to view in the file menu for the particular storage device on which the file is stored. You can press the left and right arrow buttons on the directional pad to flip through the pages you have in the present folder.

*Review Specification section of this manual for supported Text formats.

Setup Menu

The Settings Menu can be accessed by selecting "Settings" on the main

Close-up of various electronic components including connectors and a gear-like device, displayed against a blue background (no text or symbols visible)

Within the Setting Options, there are a few sets of submenus including:


- Picture mode

Adjusts Contrast, Brightness, Color, Sharpness & Tint

• Color Temperature

Adjusts Color ratio of red, green, and blue

- Aspect Ratio

Choose between 16:9, 4:3, Zoom and more

- PC setup

Additional options are available when connected to PC via HDMI or VGA

- Backlight

Adjust low or high brightness modes. Higher brightness increases fan noise.

Setup Menu Cont.

Sound

• Sound Mode Adjust Treble and Bass levels

Time

- Clock Adjust current time - Off timer Adjust time when P2jr will turn off after being idle - Sleep timer Set timer for P2 to automatically turn off

Setup Menu Cont.

Option

• OSD Language
  Change Language to
  English, French, Dutch, Spanish,
  Portuguese or Chinese
• Restore Factory Default
  Reset P2jr back to default settings
• Blending
  Adjust the blending option
• OSD Duration
  Adjust automatic timer to return to main screen when idle.

Technical Details

Chapter 4

Troubleshooting

IMAGE IS BLURRED

Possible Causes Solution
The Projector is not in focus Adjust the focus with the	focus adjustment dialuntil the image comes into focus
The Projector is offset from plane / angle of operation	Move the projector so that it is both 180 degrees and on an even plane with the screen.

No Sync, No Signal

1. Be sure to setup the computer to enable a video signal output. On some laptops this is done by pressing and holding Function F5 key. If using the P2jr as an external monitor on Windows based systems, this can be done by selecting “extend my desktop to this monitor”.

2. Depending on the video driver different resolutions may need to be selected for proper output.

Technical Details

Troubleshooting

THE PROJECTOR DOES NOT TURN ON

Possible Causes Solution
There is no power Check to ensure the power outlet	or battery source is good. Check the power adapter to ensure a proper connection with the wall outlet as well as the projector. Confirm that the unit is charged and has enough power
The power button was not held long enough To power	on the projector, the power button needs to be depressed for a full 3 seconds. Try holding the power button until the optical engine turns on

NO PICTURE / FILE NOT SUPPORTED

Possible Causes Solution
The video source is not properly connected or selected	Check the video source signal to ensure that it is properly connected. Select the current input source by choosing the input desired from the main menu
Incorrect file extension / Video is encoded with incorrect codec	Please refer to “Specifications” page to see which file types and codec are supported. Verify that the file was encoded properly.

Specifications

Brightness

Maximum Resolution

Contrast Ratio

Projection Lens:

Battery life:

Image Size:

Lamp:

Video in:

55 Lumens

WXGA(1920x1080)

1000:1

Manual Focus

up to 120 minutes

10\~60 inches

15,000 hour RGB Triple LEDs

Composite A/V

VGA(mini-VGA)

HDMI(mini-HDMI)

Audio Output:

1.0 W stereo speaker

MicroSD Card:

MicroSD Card Slot

(16 GB maximum)

USB:

USB (Memory Sticks)

(16 GB maximum)

Dimensions:

4.2 x 2 9 x 0.82 inch

Weight:

0.3 lbs

Supported File Formats:

AVI, MPG, MP3, JPG, TXT

Please direct all customer service inquiries to:

AAXA Technologies, Inc.

1541 Parkway Loop Suite F

Tustin, CA 92780

[phone]

[e-mail]
