Uptown - Flat Screen Mount ATLANTIC - Free user manual and instructions

Product Type	Flat screen wall mount
Brand	Atlantic
Model	Uptown
VESA Compatibility	200x200 to 400x400 mm
Max Weight Capacity	50 kg
Material	Steel
Color	Black
Tilt Range	-5° to +15°
Swivel Range	180°
Distance from Wall	50 mm (low profile)
Overall Dimensions (WxHxD)	600 x 400 x 50 mm
Net Weight	2 kg
Installation	Solid wall mounting, hardware included
Safety Certification	GS or equivalent
Warranty	2 years
Recommended Use	Indoor, residential or commercial
Maintenance	Wipe with dry cloth; do not use solvents
Included in Package	Mount, screws, wall anchors, level, manual

Frequently Asked Questions - Uptown ATLANTIC

What is the maximum screen size supported by the Atlantic Uptown mount?

The mount supports screens up to 65 inches or 50 kg, whichever is limiting.

Is the VESA pattern compatible with my TV?

The mount fits VESA patterns from 200x200 mm to 400x400 mm. Check your TV's VESA specifications.

Can the mount tilt or swivel?

Yes, it offers -5° to +15° tilt and 180° swivel for optimal viewing angles.

What type of wall is required for installation?

Install on a solid concrete or brick wall. Drywall may need additional reinforcement (not included).

Does the mount come with all necessary hardware?

Yes, screws, wall anchors, and a level are included. Additional adapters may be required for some TVs.

How far from the wall will the TV sit?

The mount keeps the TV just 50 mm (2 inches) from the wall for a sleek profile.

Can I hide cables with this mount?

The mount has integrated cable management channels to route cables neatly.

What is the weight capacity of the Atlantic Uptown?

It supports up to 50 kg (110 lbs).

How do I clean and maintain the mount?

Use a soft dry cloth to wipe dust. Avoid harsh chemicals or abrasive materials.

Is the Atlantic Uptown mount easy to install?

Yes, with simple DIY steps. The included manual and level help ensure a straight installation.

USER MANUAL Uptown ATLANTIC

Item# 88335658/88335664

Uptown™ TV Stand

If parts are missing, DO NOT return to

the store.To order missing / replacement parts assembly assistance please

call 1-800-747-2660 or mail [e-mail].

Assembly Tips:

Become familiar with the instructions and all parts.

Make sure that all parts are in the box and in good condition.

Assemble the product on the open flat carton or a rug to protect the product and your floor.

Some heavy products need a second person to assist in the assembly.

Use of power tools is not recommended.

It is strongly recommended that at least two people carry out the assembly.

Assemble the product close to a wall.

With each step, first insert and hand-tighten all bolts and screws by hand. After ALL BOLTS are slightly screwed in, fully tighten bolts with Phillips screwdriver in sequential pattern (clockwise or counter clockwise).

Caution:

Never let children climb on furniture or play with furniture.

Do not sit or stand on furniture.

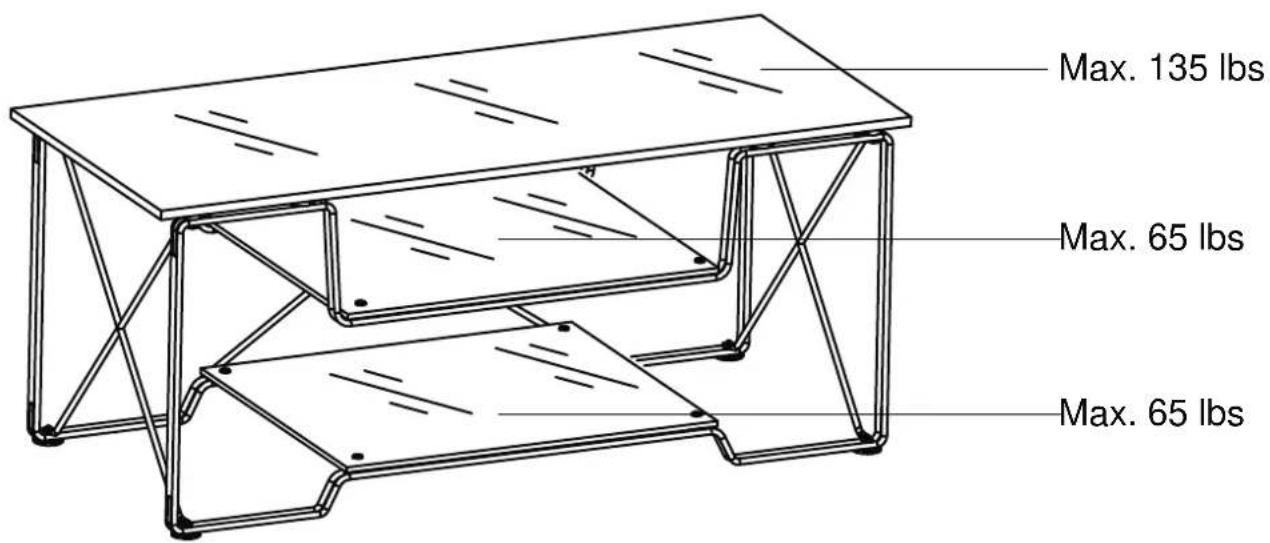

Do not place a TV that is heavier than the recommended load rating on the furniture surface.

Do not overload shelves.

Use care when moving furniture. Furniture can tip over if moved improperly.

Only move furniture when it is empty of TV or other electronic components.

Handle items with glass with extra care. Use eye and hand protection.

Improper handling can result in cuts and lacerations.

Do not install on sloping surface.

Care Instructions:

Use electrostatic dust cloths to clean furniture.

Do not set hot or cold containers directly on the furniture surface.

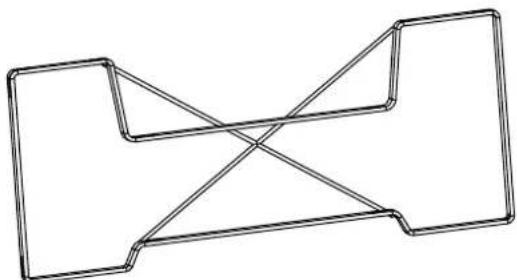

Part List

Item	Components parts list	Qty
A		1
B		1
C		2
D		1
E		2

Tool needed (not included)

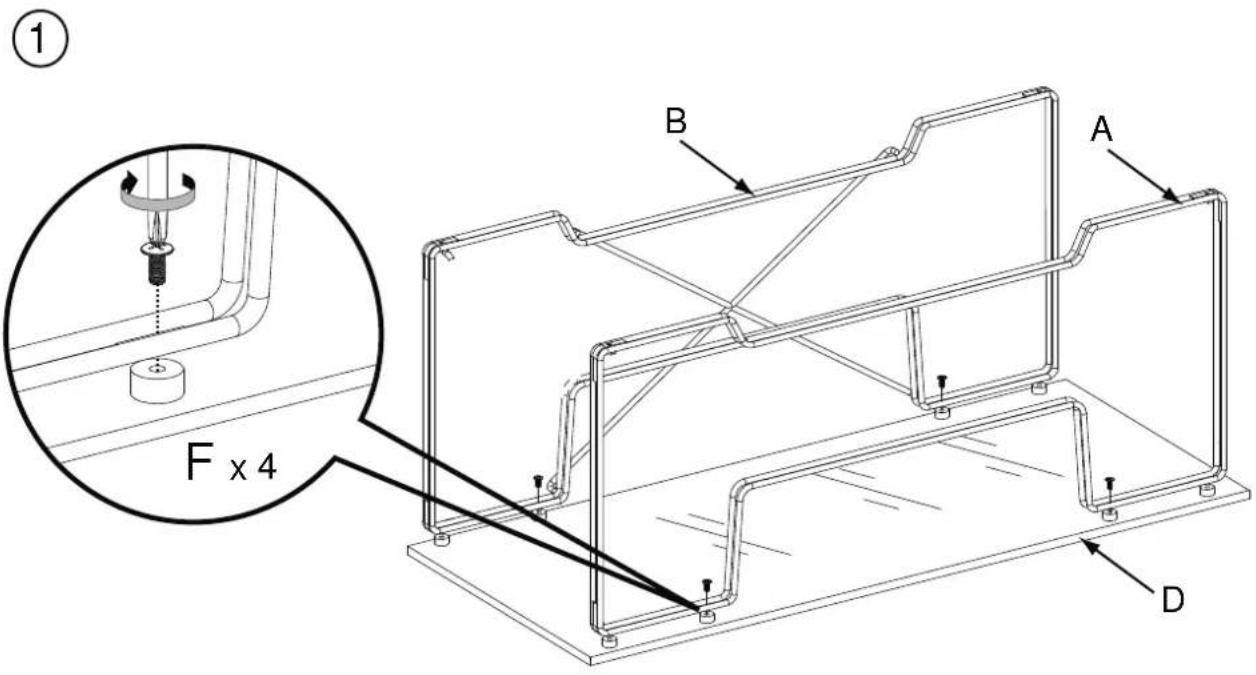

1-Fasten metal frame (A & B) to the top glass (D) with screws (F).

2-Fasten side metal frame (C) to the top glass (D) with screws (G).

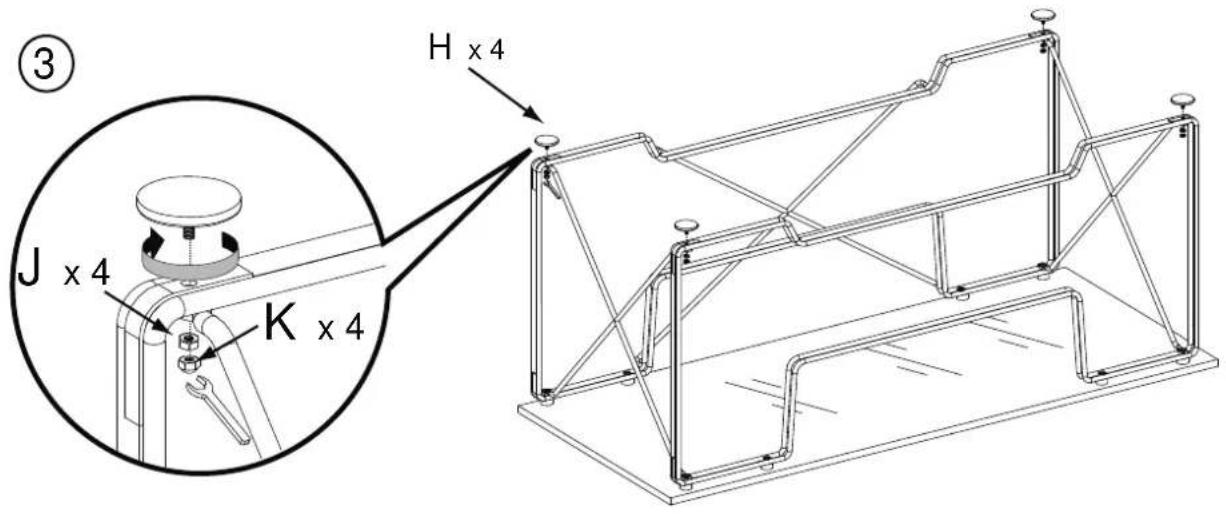

3-Fasten feet (H) to the frame (A & B) with nuts (J & K).

4-Fasten glass shelf (E) to the body with screws (L) & nuts (N & M) A second person may be needed to assist with this step

5-Fasten glass shelf (E) to the body with screws (L) & nuts (N & M) A second person may be needed to assist with this step

Product Warranty: Atlantic Inc., warrants to the original purchaser that its products are free from defect in materials or workmanship. If after inspection, we find that the product was defective in materials or workmanship, we shall repair or replace the product at our discretion. This warranty does not cover accidental damage, misuse, improper care or alteration and excludes claims for incidental or consequential loss. This limited warranty applies to product purchased in the U.S. and Canada. This warranty gives you specific legal rights and you may also have other rights which vary from State to State. This warranty duration will be last one year.

Keep this Instruction Manual for future reference.

Keep your original proof of purchase (store receipt).

If parts are missing, DO NOT return to the store.

To order missing / replacement parts or for assembly assistance please contact [e-mail].

Or call 1-800-747-2660 M-F, 8am-5pm, P.S.T.

ATLANTIC®

©2010 Atlantic Inc. Santa Fe Springs, CA. U.S.A.

U.S. and other foreign patents pending /
