USER MANUAL DS-TDSB00-EKT Hikvision

© 2022 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.

About this Manual

The Manual includes instrucons for using and managing the Product. Pictures, charts, images and all other informaon hereinaer are for descripon and explanaon only. The informaon contained in the Manual is subject to change, without noce, due to rmware updates or other reasons. Please nd the latest version of this Manual at the Hikvision website (hps://www.hikvision.com/).

Please use this Manual with the guidance and assistance of professionals trained in supporting the Product.

Trademarks

HIKVISION and other Hikvision's trademarks and logos are the properes of Hikvision in various jurisdicons.

Other trademarks and logos menoned are the properes of their respective owners.

Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS IS" AND "WITH ALL FAULTS AND ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.

YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATTER PREVAILS.

Symbol Convenons

The symbols that may be found in this document are dened as follows.

Symbol	Descripon
Note	Provides additional informaon to emphasize or supplement important points of the main text.
Caution	Indicates a potentially hazardous situaon, which if not avoided, could result in equipment damage, data loss, performance degradaon, or unexpected results.
Danger	Indicates a hazard with a high level of risk, which if not avoided, will result in death or serious injury.

TABLE OF CONTENTS

Chapter 1 Product Introducon .... 1

1.1 Introducon....1
1.2 Key Feature .... 1
1.3 Specicaon....1
1.4 Dimension and Appearance Overview ...... 2
1.5 Cables Descripon ...... 2
1.6 Installaon Requirements....3

Chapter 2 Soware Instrucon .... 4

2.1 Device Connecon 4
2.1.1 Connecon via Wi-Fi 4
2.1.2 Connecon via RS-485 5
2.2 Parameter Sengs ....5
2.2.2 Read Soware Version 6
2.2.3 Set Delay Time 6
2.2.4 Detecon Boundary 6
2.2.5 Set Radar Status....7

2.3 Falling Indicaon....7

2.4 Upgrade 7

2.5 Radar Network Conguraon....9

Chapter 1 Product Introducon

1.1 Introducon

Based on the 60 GHz frequency band, fall detecon radar (hereinaer referred to as “device”) adopts FMCW, MIMO, beamforming, deep learning, and other technologies. It can obtain target informaon, including person locaon, speed, posture, etc., and can provide non-contact and non-privacy fall detecon.

1.2 Key Feature

• No privacy disclosure.
  • High detection accuracy and low false alarm rate.
• Target tracking.
• Remote and non-contact posture detecon.
• Small size, light, and easy installaon.

1.3 Specicaon

Refer to the table below for the device specicaon.

Table 1-1 DS-TDSB00-EKT/4m Fall Detection Radar Specicaon

Parameters	Values
Working Frequency	60 to 64 GHz
Modulaon Wave	FMCW
Frequency Span	2 GHz
Horizontal FoV	-45° to +45°
Vercal FoV	-45° to +45°
Range Resoluon	0.08 m
Detecon Range	0.1 to 6 m
Speed Resoluon	0.10 m/s
Data Cycle	70 ms
Communicaon Interface	RS-485/Wi-Fi
Working Voltage	9 to 12 VDC
Working Electric Current	≤ 200 mA @ 12 VDC
Consumpon	< 2.4 W
Working Temperature	-40 °C to +50 °C (-40 °F to +122 °F)

1.4 Dimension and Appearance Overview

Refer to the gures below for the device dimension and appearance overview.

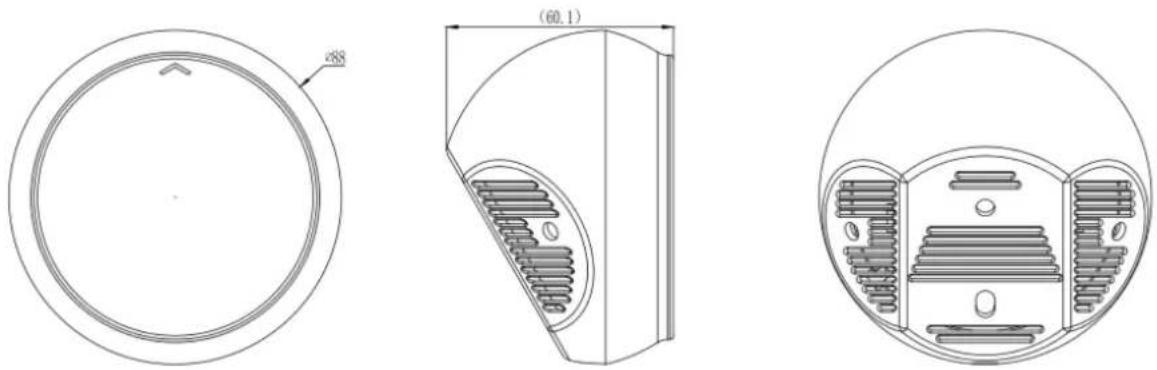

Figure 1-1 Dimension (unit: mm)

3D rendered white cylindrical object with a small protrusion on top (no text or symbols)

Figure 1-2 Appearance

1.5 Cables Descripon

Refer to the table below for the cables descripon.

Table 1-2 DS-TDSB00-EKT/4m Fall Detecon Radar Cables Descripon

No.	Color	Name	Funcon
1	Red	+12 V	12 VDC
2	Black	GND	Power ground
3	Green	RS-485A	RS-485 communicaon port
4	Blue	RS-485B
5	Yellow	OC controlled signal	VOH/VOL controller
6	Brown	GND	Power ground

1.6 Installaon Requirements

Install the device on the wall at a height of 2 m. Make sure that the device is centered horizontally in the detecon area and there is no obstrucon in front of it. Refer to the gures below for the device installaon overview.

White cylindrical object mounted on a blue wall against a solid blue background (no text or symbols)

White cylindrical object on a solid blue background (no text or symbols)

Figure 1-3 DS-TDSB00-EKT/4m Radar Installaon Overview

Chapter 2 Soware Instrucon

2.1 Device Connecon

You can connect the device via Wi-Fi or RS-485. Enter the corresponding informaon according to the dierent conncon modes.

2.1.1 Connection via Wi-Fi

You can connect the radar via Wi-Fi.

Before You Start

Power on the radar (12 V).

Step 1 Connect your computer to the radar AP hotspot.

Note

• SSID format: IRS60_xxxx.
  ● Default password: abcd1234.

Step 2 Use "ping" command to test if the computer is connected to the radar Wi-Fi.

1) Press the Win buon and R buon at the same me.
2) Enter "cmd" and click OK.
3) Enter "ping 192.168.4.1" in the command line.

Step 3 Open the IRS60-3 Radar PC tool and click On/OFF.

Step 4 Set the network port parameters.

Note

IP address: 192.168.4.1.
- Port No.: 20000.

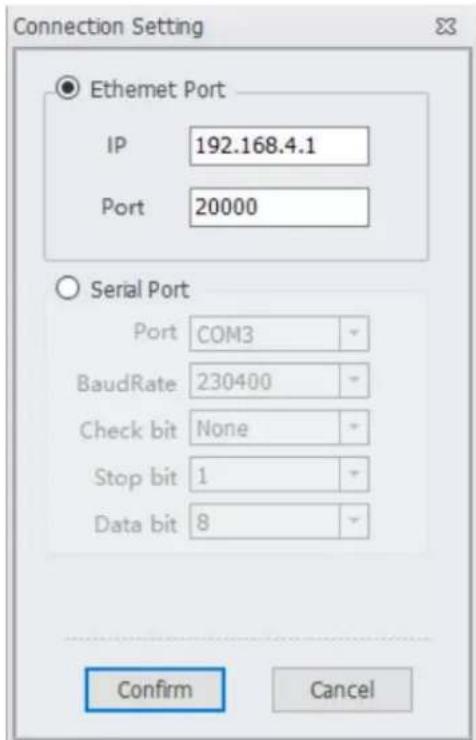

Figure 2-1 Connecon Seng

Step 5 Click Conrm.

2.1.2 Connection via RS-485

You can connect the radar via the serial port.

Step 1 Open the IRS60-3 Radar PC tool.

Step 2 Click Connecon Sengs.

Step 3 Select Serial Port.

Step 4 Select Port.

Step 5 Set BaudRate as 115200, Stop bit as 1, and Data bit as 8. No parity.

Step 6 Click Conrm.

2.2 Parameter Sengs

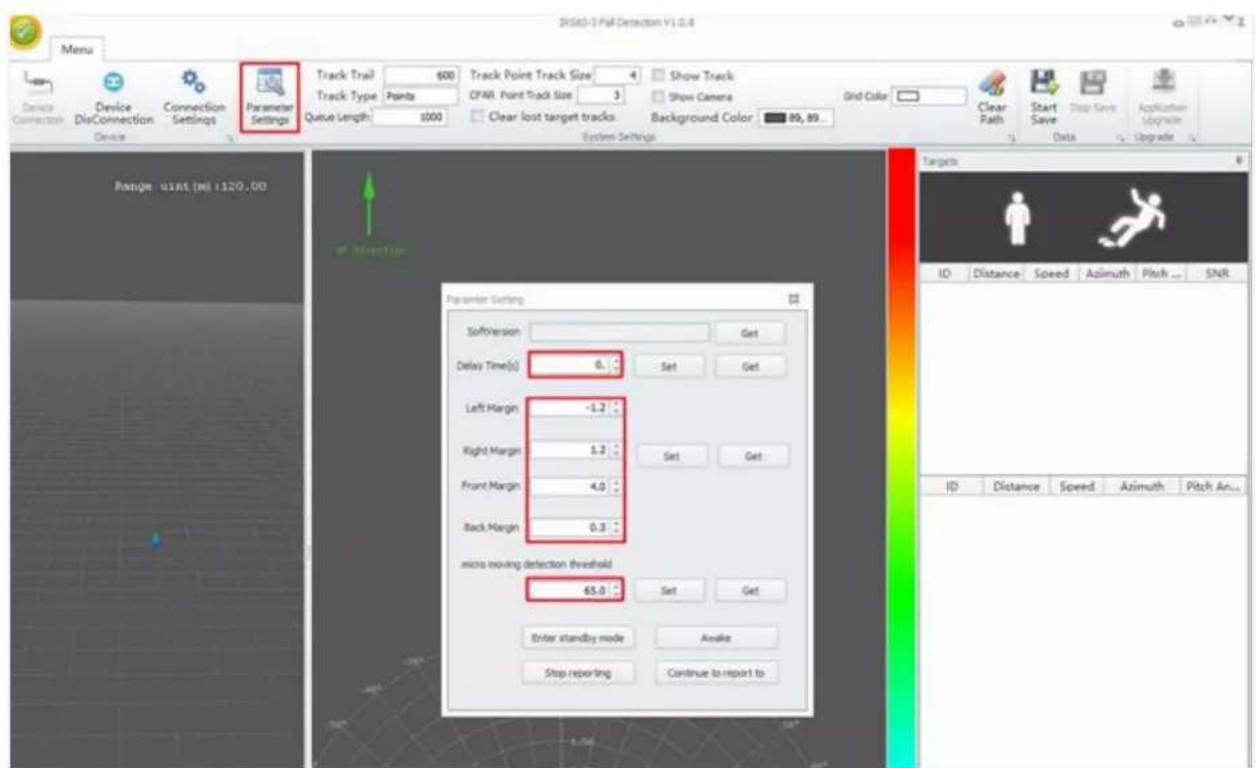

Click Parameter Sengs to view the radar rmware version and set the delay me and the radar detecon area.

Figure 2-2 Parameter Sengs

2.2.2 Read Software Version

Click Parameter Sengs and click Get aer SoVersion to view the soware version.

2.2.3 Set Delay Time

Go to Parameter Sengs → Delay Time to set the delay me. If the radar detects the target person fell and stood up within the set delay me, it will not alarm. Otherwise, it will report a falling alarm signal.

2.2.4 Detection Boundary

The radar only detects falling within the range of detecon boundary.

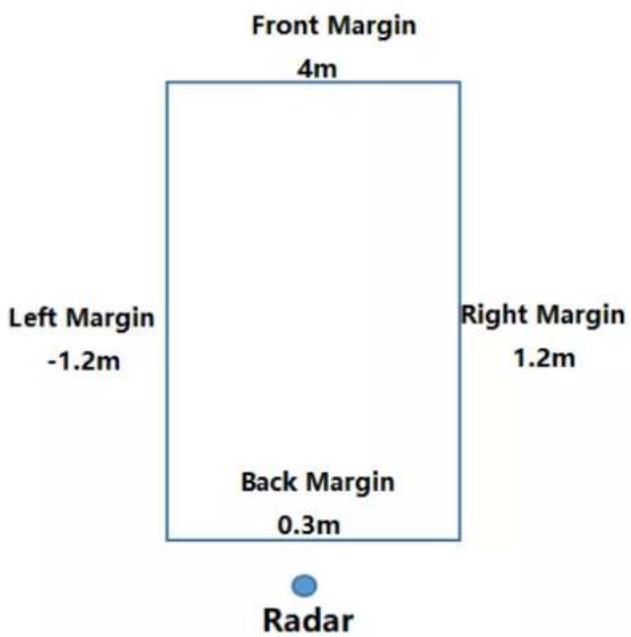

Figure 2-3 Detecon Boundary

2.2.5 Set Radar Status

Click Parameter Sengs to set the radar status.

Enter standby mode

The radar will be standby and stop eming electromagnec waves. If the radar is powered o and does not receive wakeup command aer powered on again, then it will sll be standby mode.

Awake

If the radar is powered o, the awake mode will be kept aer it is powered on again.

2.3 Falling Indicaon

When the radar detects a person, the le icon will be highlighted. When the radar detects the target falls, the right icon will be highlighted.

Two white human silhouettes on a dark background: one standing and one falling (no text or symbols)

Figure 2-4 Falling Indicaon

2.4 Upgrade

You can upgrade the rmware version.

Step 1 Open the IRS60-3 Radar PC tool.

Step 2 Press F1 buon on the keyboard.

Figure 2-5 Menu Page

Step 3 Enter IP Address and Radar Port (IP address: 192.168.4.1; radar port: 6666).

Step 4 Click Connect.

Step 5 Click Browse to select the rmware to be upgraded.

Step 6 Select Network Segment as the same network segment with radar and Mode as Auto.

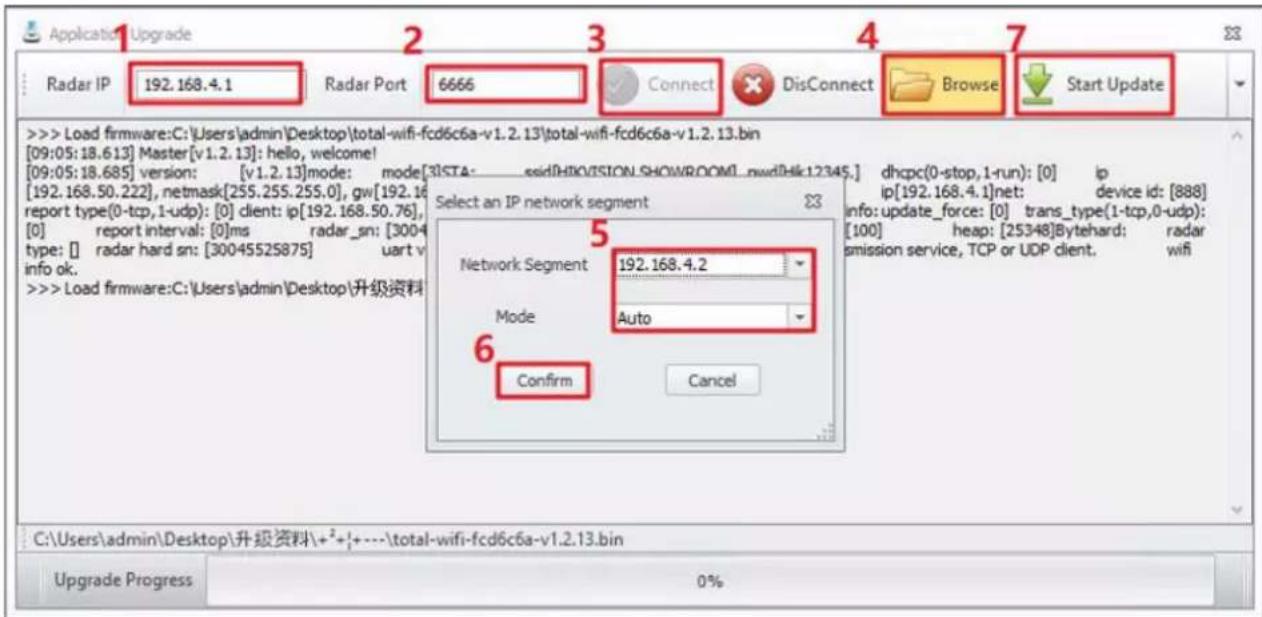

Figure 2-6 Applicaon Upgrade

Step 7 Click Conrm.

Step 8 Click Start Update.

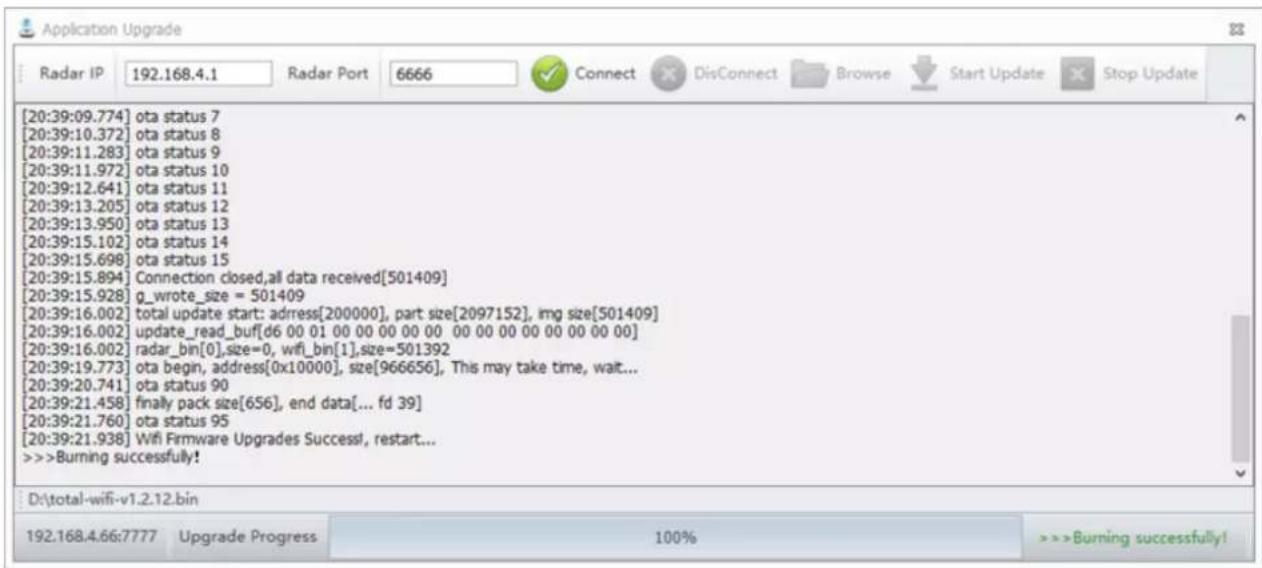

Figure 2-7 Upgrade

2.5 Radar Network Conguraon

You can set the radar network.

Step 1 Open IRS60-3 Radar PC tool.

Step 2 Press F2 buon on the keyboard.

Step 3 Enter IP Address and Port (IP address: 192.168.4.1; port: 6666).

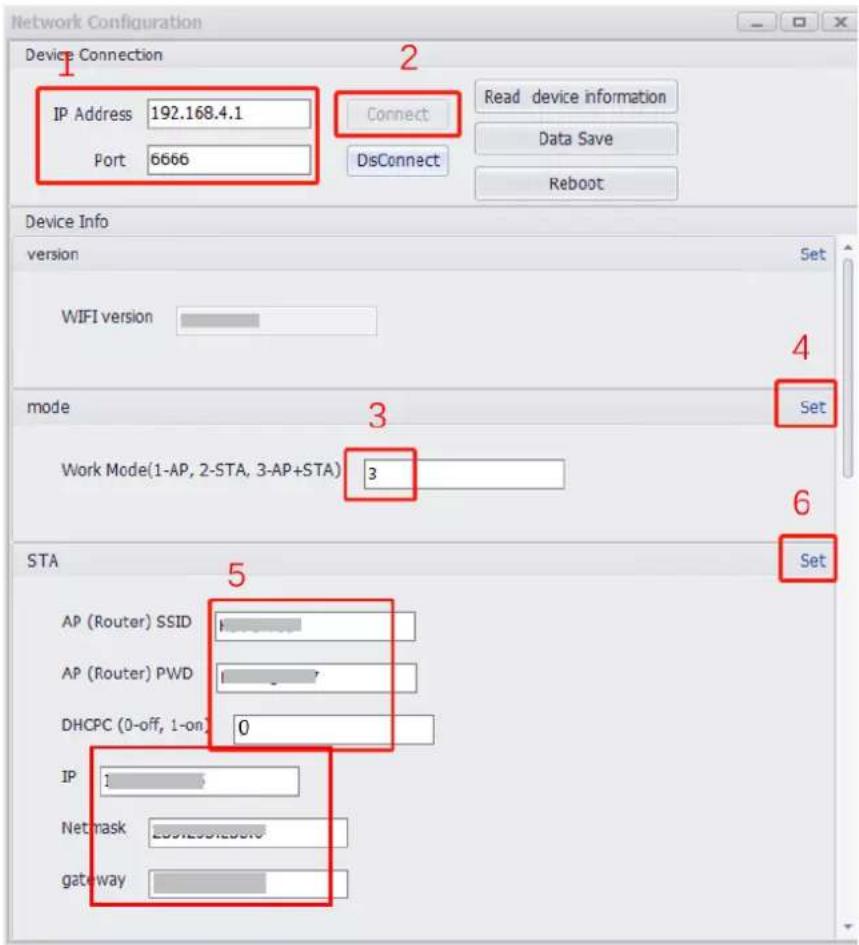

Figure 2-8 Network Conguraon

Step 4 Click Connect.

Step 5 Set Work Mode as 3.

Step 6 Click Set.

Step 7 Set AP (Router) SSID and AP (Router) PWD.

i Note

AP (Router) SSID means the router name. AP (Router) PWD means the router password.

Step 8 Set DHCPC as 0.

Step 9 Set IP, Netmask, and gateway.

Step 10 Click Set.

Step 11 Set AP SSID and AP PWD.

AP SSID means the Wi-Fi name. AP PWD means the Wi-Fi password.

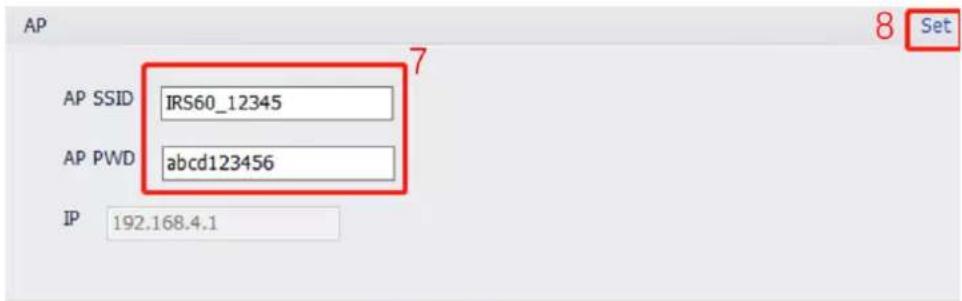

Figure 2-9 Set AP

Step 12 Click Set.

Step 13 Set Device ID as an integer (range: 1 to 999999999).

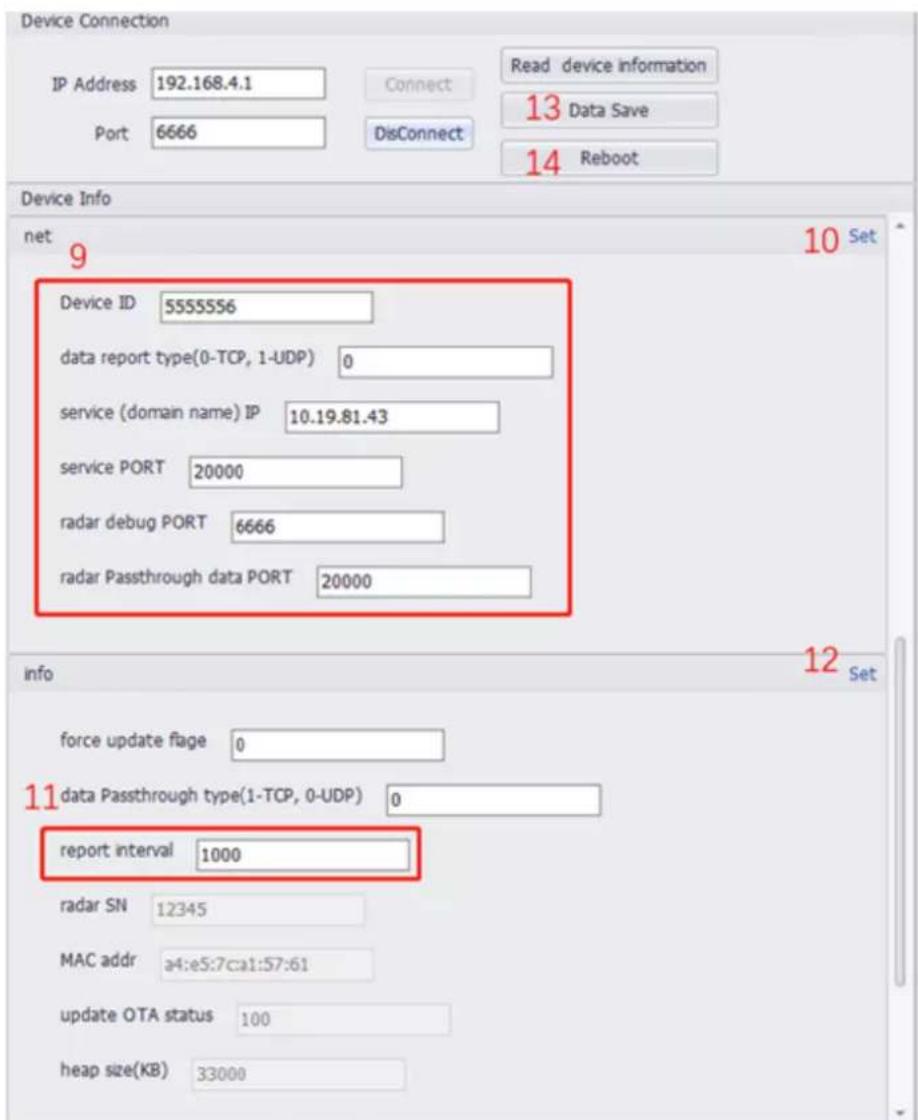

Figure 2-10 Set Device Informaon

Step 14 Set data report type as 0.

Step 15 Set service IP as Hikcentral Pro service IP.

Step 16 Set service PORT as 20000.

Step 17 Set radar debug PORT as 6666.

Step 18 Set radar Passthrough data PORT as 20000.

Step 19 Set report interval as 1000.

Step 20 Click Data Save.

Step 21 Click Reboot.
