Product Type	Passive Infrared Motion Detector
Model	DS-PDCL12-EG2-WB
Detection Method	Passive Infrared (PIR)
Detection Range	12 m (39 ft)
Detection Angle	360°
Number of Detection Zones	172
Detectable Speed	0.3 – 2 m/s
Sensitivity	Auto / Low
White Light Filter	6500 lux
Digital Temperature Compensation	Supported
Digital Processing	Supported
Tamper Protection	Front & Rear
Signal Strength Indicator	Supported (LED: Green/Orange/Red/Flashing Red)
Transmission Technology	Tri-X Wireless (Two-Way RF)
Transmission Frequency	868 MHz / 433 MHz
Transmission Security	AES-128 Encryption
Transmission Range (Open Area)	1600 m (868 MHz) / 800 m (433 MHz)
Enrollment Methods	Power Up, Remote ID, QR Code
Power Supply	Battery-powered (1 x CR123A, 3 V)
Battery Life	5 years (20 triggers/day)
Low Voltage Warning	At least 30 days of use remaining
LED Indicator	Blue (alarm), multi-color for signal strength
Operating Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature	-20 °C to 60 °C (-4 °F to 140 °F)
Operating Humidity	10% to 90%
Dimensions (Diameter × Height)	101.2 mm × 32.9 mm
Weight	109.5 g
Mounting Height	2.4 to 4 m (ceiling mount)
Application Scenario	Indoor
Mounting Method	Screws or Sponge Tape (sponge tape not EN compliant)
Maintenance	Keep dry; avoid extreme temperatures, shocks, and high electromagnetic radiation; clean with soft dry cloth
Safety Precautions	Do not swallow battery; keep away from children; replace only with same type; dispose of batteries according to local regulations
Spare Parts & Repairability	Battery replacement (CR123A); no user-serviceable parts; contact service center for repairs

Frequently Asked Questions - DS-PDCL12-EG2-WB Hikvision

How do I enroll the motion detector to the control panel?

To enroll, power on the detector after the control panel is in enrollment mode. You can enroll locally via the app or by scanning the QR code/serial number. The enrollment process typically takes 3-10 seconds but can take up to 3 minutes.

What does the LED indicator show during signal strength test?

During signal strength test, the LED lights: Solid Green for strong signal, Solid Orange for medium, Solid Red for weak, and Red flashing for failure.

What is the recommended mounting height and method?

The detector is designed for ceiling mounting at a height of 2.4 to 4 meters. It can be fastened with screws or attached with sponge tape (note: sponge tape is not EN compliant). The mounting surface must support at least three times the equipment weight (minimum 50 N).

How long does the battery last and when do I need to replace it?

The CR123A battery provides up to 5 years of life under typical usage (20 triggers per day). When the low voltage warning appears, you have at least 30 days of remaining use. Replace only with the same type of battery.

What should I do if the detector fails to enroll?

Hold the tamper button and power off then on the device to re-enter enrollment mode. Ensure the control panel is in enrollment mode and within range. If problems persist, check signal strength and reposition the detector.

What is the detection range and angle?

The detector covers a 12-meter range with a 360° angle, featuring 172 detection zones. It can detect movement speeds from 0.3 to 2 m/s.

How do I perform a walk test after installation?

After enrollment, the detector enters a 3-minute walk test mode. Walk across the detection area; if the LED turns blue, the position is correct. If the LED remains off, adjust the detector's location and retest.

Can I use this detector outdoors?

No, this model is designed for indoor use only. It should not be exposed to rain, moisture, or direct sunlight.

What safety precautions should I take regarding the battery?

The battery is a chemical burn hazard. Do not swallow; keep new and used batteries away from children. If swallowed, seek immediate medical attention. Replace only with the same type to avoid explosion risk, and dispose of batteries according to local regulations.

What does the 'Anti-masking' or tamper protection feature do?

The detector has front and rear tamper protection. It triggers an alarm if the device is removed from its mounting surface or if the cover is opened, providing security against tampering.

USER MANUAL DS-PDCL12-EG2-WB Hikvision

©2020 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.

About this Manual

The Manual Includes Instructions for using and managing the Product. Pictures, charts, images and all other Information hereinafter are for description and explanation only. The Information contained in the Manual is subject to change,

without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision website (https://www.hikvision.com/).

Please use this Manual with the guidance and assistance of professionals trained in supporting the Product.

HIKVISION and other Hikvision's trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned are the properties of their respective owners.

Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS IS" AND "WITH ALL FAULTS AND ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.

YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT BEARLY TO ANY NUCLEAR EXPOSING OR UNSAFE NUCLEAR FUEL-CYCLE OR UN SUPPORT OF HUMAN/RIGHTS BRUSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info

replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types):

- disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion:

– leaving a battery in an extremely high temperature surrounding environment that can

result in an explosion or the leakage of flammable liquid or gas; and -a battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info

1 Appearance

CAUTION

IF THE BATTERY COMPARTMENT DOES NOT CLOSE SECURELY, STOP USING THE PRODUCT AND KEEP IT AWAY FROM CHILDREN.

CAUTION

CHEMICAL BURNING DANGER DO NOT SWALLOW THE BATTERY KEEP NEW AND USED BATTERIES AWAY FROM THE CHILDREN.

IF YOU THINK BATTERIES MIGHT HAVE BEEN SWALLOWED OR PLACED INSIDE ANY PART OF THE BODY, SEEK IMMEDIATE MEDICAL ATTENTION.

Pure concentric circular diagram with a central grid pattern and a red vertical line (no text or symbols)

Indicator

Power Switch
Tamper Button

+ identifies the positive terminal(s) of equipment which is used with, or generates direct current. - identifies the negative terminal(s) of equipment which is used with, or generates direct current.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

REPLACEMENT OF A BATTERY WITH AN INCORRECT TYPE THAT CAN DEFEAT A SAFEGUARD.

CAUTION

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS AND LOCAL REGULATION.

2 Enrollment

Note: The enrollment progress will be completed in 3 to 10 seconds normally, and the maximum enrollment duration is 3 minutes.

1. Log in to the APP Store, download and install Hik-Pro.
2. Power on the security control panel.
3. Log in the APP and tap the icon "+" . Scan the QR code or input the control panel serial No. to add the control panel.

① Enroll the Peripheral Locally

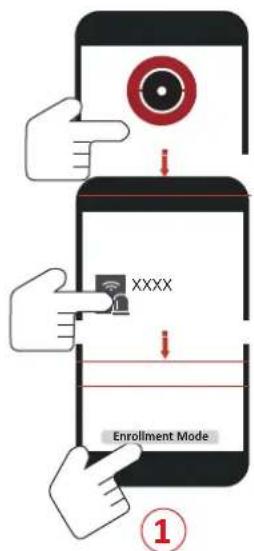

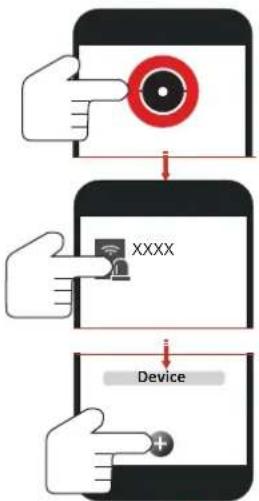

1. In the APP, tap the "Enrollment Mode" button on the control panel page to make the control panel enter the enrollment status.

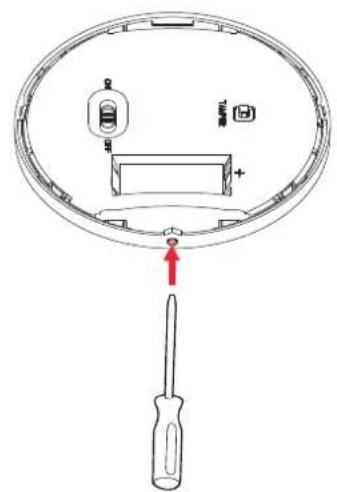

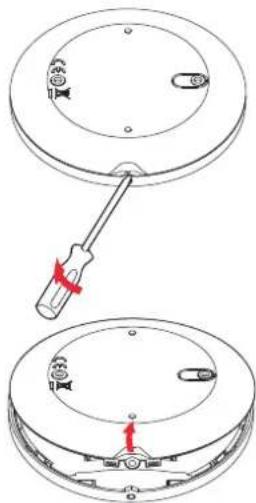

2. Remove rear panel.

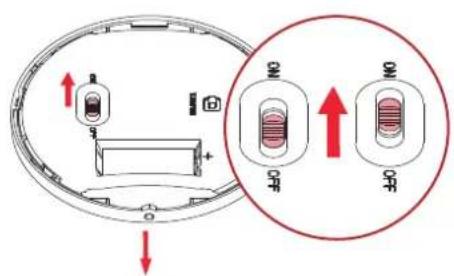

3. Power on the peripheral, and it will be automatically enrolled to the control panel.

2

3

2 Enroll the Peripheral with QR and serial No.

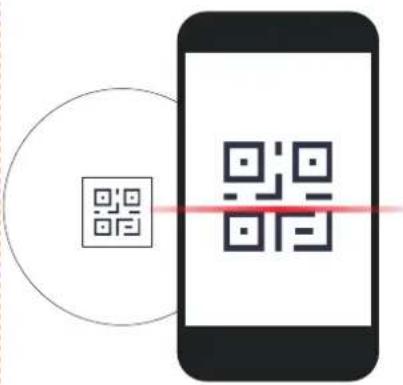

1. In the APP, tap the icon "+" and scan the QR code or serial No. on the peripheral.
2. Remove rear panel.
3. Power on the peripheral, and it will be automatically enrolled to the control panel.

1

2

Simple line drawing of a screwdriver holding a circular component with a dial indicator (no text or symbols)

Diagram of a circular device with internal components and a red arrow pointing to a central component (no text or symbols)

3

Simple line drawing of concentric circles with a green mesh pattern and a green checkmark (no text or symbols)

4
Note: Hold the tamper button, and make the device power off and then power on for re-enrollment.

3 Installation

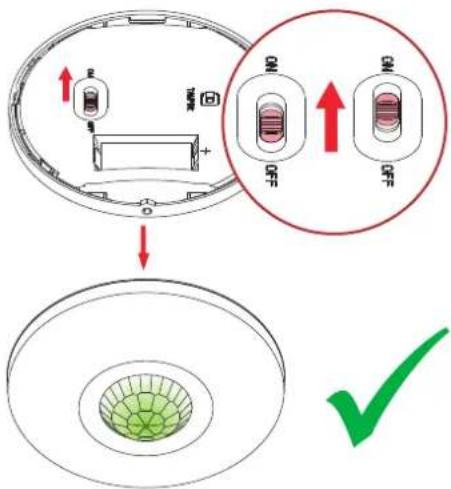

1. Check Signal Strength

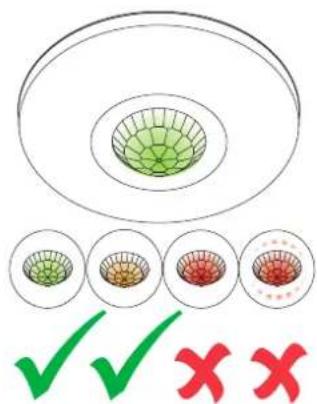

Enter the signal checking mode by operating on the control panel. Trigger the detector.

Solid Green for 3 s - Strong Signal

Solid Orange for 3 s - Medium Signal

Solid Red for 3 s - Weak Signal

Red light flashes for 3S - Failure

2. Install the Detector

Note: The additional force shall be equal to three times the weight of the equipment but not less than 50N. The equipment and its associated mounting means shall remain secure during the installation. After the installation, the equipment, including any associated mounting plate, shall not be damaged.

with Screws

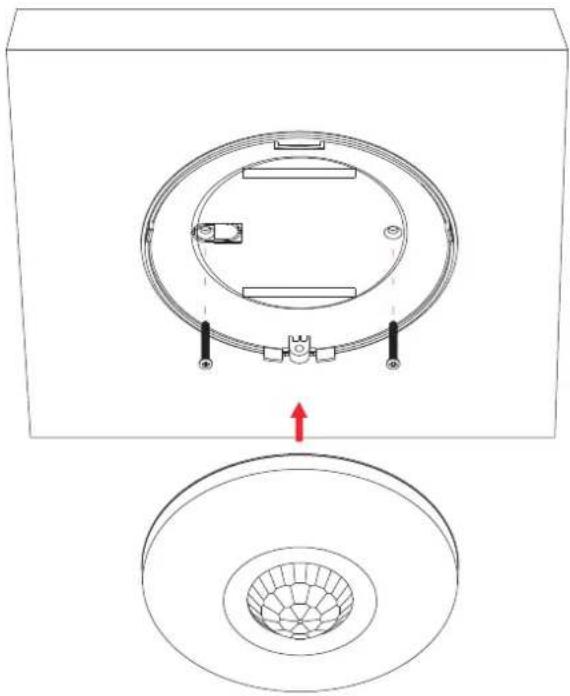

Secure the rear panel on the wall with four screws.

Technical diagram showing a circular component with internal components and a magnified view of its top circular structure (no text or symbols)

with the Sponge Tape

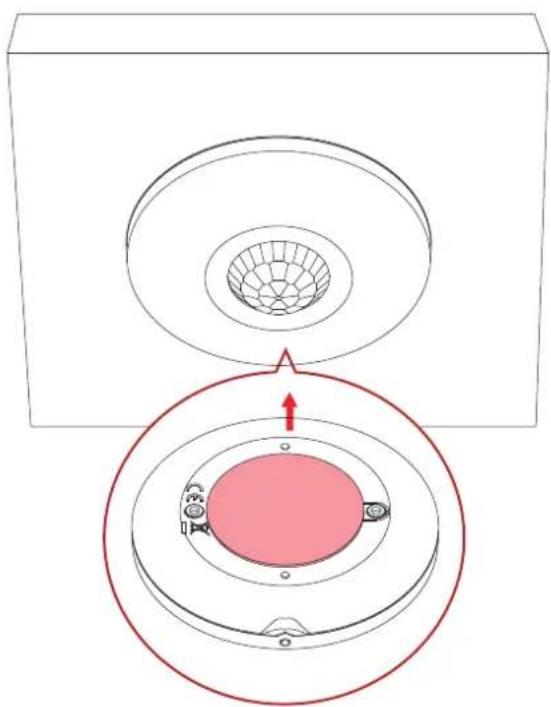

Paste the device on the wall with sponge tape.

Diagram showing a circular component with a meshed center and a red arrow pointing to a central pink oval, enclosed in a red circle (no text or symbols)

Note: Installing with sponge tape is non EN compliant.

Technical line drawing of a circular mechanical component with internal features and a red arrow indicating a specific part (no text or symbols present)

Diagram of a circular mechanical component with a central knob and a red upward arrow indicating motion (no text or symbols)

4 Test

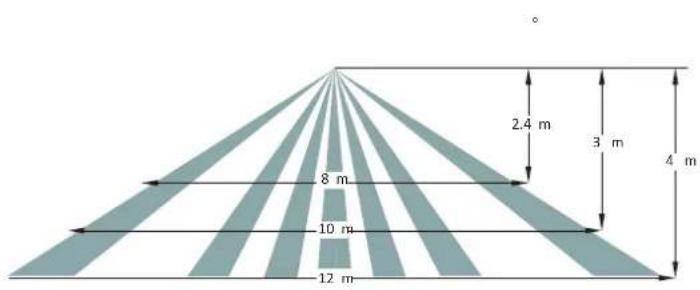

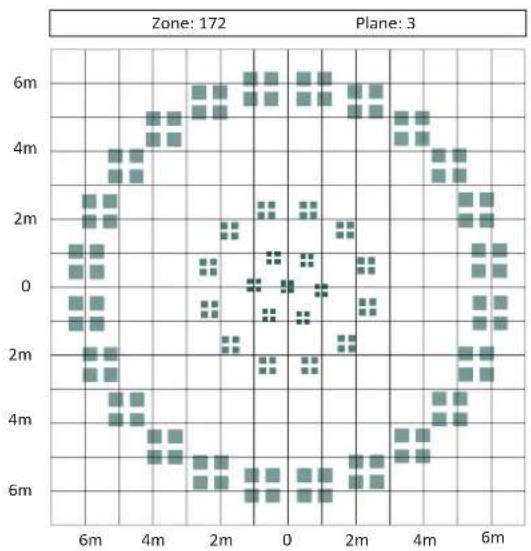

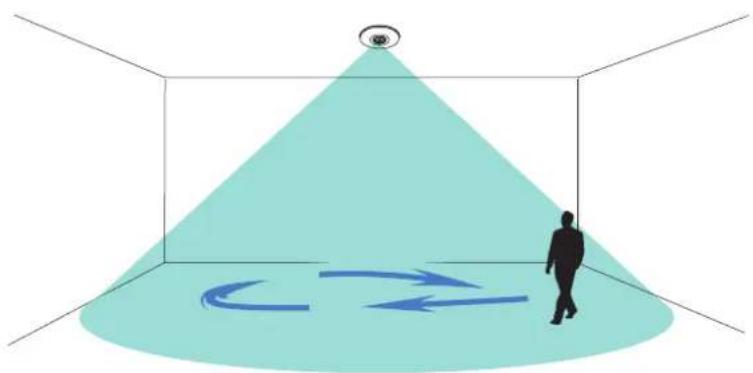

Detector zones and planes

The zones and plans of the detector are shown below.

The detector will enter the walk test mode (3 minutes) after being enrolled.

Trigger the detector within the detection range.

If the LED indicator turns blue, the installation position is properly. If the LED indicator is still off, adjust the position of the detector.

3min

Silhouette of a person walking toward a 3D cone with a circular eye symbol at the apex (no text or labels)

5 Formatting

Hold the tamper switch for 8 s and power the device on at the same time. The red LED flashes 3 times when the formatting operation is completed.

6 Set up with App

You can view the device status including temperature, signal intensity, battery level, lid, arming/disarming, etc., on the device page. Tap the button to enter the settings page.

Function	Description
Zone Type	Select the zone type of the detector.
Stay Arm Bypass	Slide to green to bypass the zone from stay arming.
Chime	Slide to green to enable the chime.
Enable Silent Zone	Slide to green to make the zone keep silent while alarm is triggered.
Sounder Delay Time	Set he sounder delay time up to
Double Knock	Slide to green to make the zone alarm with double knock.
Cross Zone	If the alarm triggered in both of the linked zones within the set time, two alarm messages will be reported.
Link Camera	Link with a camera for intruder
Sensitivity	Set the sensitivity of the detector.Higher sensitivity makes the intruder easier to be detected.
Swinger limit activation	Set the limit times of swinger activation .
LED	Turn On/Off the LED.
Polling Rate	Set the interval of heartbeat.
Signal Strength Test	Enter the test mode, and view the LED indication.
Detection Zone Test	Enter the test mode, and start walk test.
Find Me	Tap to enter the page and tap Start. The indicator of the device will then flashes.
Zone Bypass	By pass the zone.

6 Operation Caution and Device Maintenance

- All the electronic operation should be strictly compliance with the electrical safety regulations, fire prevention regulations and other related regulations in your local region.

- Do not drop the device or subject it to physical shock, and do not expose it to high electromagnetism radiation. Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment damage).

- Please make sure that the power has been disconnected before you wire, install or dismantle the device.

- If smoke, odors or noise rise from the device, turn off the power at once and unplug the power cable, and then please contact the service center.

- Do not drop the device or subject it to physical shock, and do not expose it to high electromagnetism radiation. Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment damage).

- Do not place the device in extremely hot (refer to the specification of the device for the detailed operation temperature), cold, dusty or damp locations, and do not expose it to high electromagnetic radiation.

- The device for indoor use shall be kept from rain and moisture.

Exposing the equipment to direct sun light, low ventilation or heat source such as heater or radiator is forbidden (ignorance can cause fire danger).

- Do not aim the device at the sun or extra bright places. A blooming or smear may occur otherwise (which is not a malfunction however), and affecting the endurance of sensor at the same time.

- Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or equivalent type only. Dispose of used batteries according to the instructions provided by the battery manufacturer.

- Do not expose the device to the corrosive gas. Otherwise the equipment damage may occur.

- Do not expose the device to the explosive situation.

7 Specification

DS-PDCL12-EG2-WE/WB
Detection Method	Passive Infrared
Sensor Model SBG4L46-711
Detection Range	12m
Detection Angle	360°
Detection Zones	172
Detectable Speed	0.3 ~ 2m/s
Sensitivity	Auto,Low
White Light Filter	6500lux
Digital Temperature Compensation	Support
Digital Processing	Support
Sealed Optics Support
Tamper Protection	Front,Rear
Environment Temperature Indicator	Support
Signal Strength Indicator	Support
Power Switch	Power Up Enrolling
LED Indicator	Blue(Alarm)
Transmission Technology	Tri-X Wireless
Transmission Method	Two-Way RF Wireless
Transmission Frequency	868 MHz/433 MHz
Transmission Security	AES-128 Encryption
Transmission Range (Open area)	1600 m (868 MHz)/800 m (433 MHz)
Frequency Hopping	Support
Enrolling Method	Power up,Remote ID,QR Code
Power Supply	Battery Powered
Battery Type	CR123A × 1
Typical Voltage	3V
Standard Battery Life	5 years in work status (being triggered 20 times per day)
Operation Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature	-20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity	10% to 90%
Dimension (D × D)	101.2 mm x 32.9 mm
Weight	109.5 g
Mounting Height	2.4 to 4m
Mounting Method	Ceiling
Application Scenario	Indoor

Note: when the low voltage message appears there will be at least 30 days of use.
