Product Type	Electric Oven
Brand	Becken
Model	MFD8F8F (also known as 65DEE30020)
Energy Efficiency Class	A
Energy Efficiency Index (EEIcavity)	106.1
Energy Consumption per Cycle (Forced Air Mode)	0.87 kWh/cycle
Energy Consumption per Cycle (Conventional Mode)	0.99 kWh/cycle
Number of Cavities	1
Heat Source per Cavity	Electricity
Volume of Cavity	65 L
Oven Functions	Oven light, Defrost, Bottom heat, Conventional, Conventional with fan, Radiant grilling, Double grilling, Double grilling with fan
Timer Functions	Manual mode, Minute minder, Semi-automatic (cooking time or finishing time), Full automatic
Temperature Setting	Adjustable via knob (range typically 50-250°C)
Maximum Cooking Time (Semi-Automatic)	10 hours
Oven Light Bulb	240V~25W, high temperature resistant, replaceable
Accessories	Wire grates, Universal pan
Installation	Built-in, requires heat-resistant kitchen unit, rear gap at least 45 mm
Power Supply	Mains voltage (230-240 V as typical)
Safety Features	Automatic standby after 10 hours, child safety (8+ years under supervision), residual heat warning
Cleaning	Wipe with damp cloth, mild detergent, avoid abrasives; door glass do not use metal scrapers
Warranty	2 years for manufacturing defects

Frequently Asked Questions - MFD8F8F Becken

How do I set the correct time of day on the oven?

Press the '+' or '-' button to adjust the hour, then press the '☐' button to confirm. Then adjust the minutes and confirm again. If the display does not flash, press both '+' and '-' simultaneously for more than 3 seconds to adjust.

What does the 'Minute Minder' function do?

It sets an audible alarm after a specified time, without affecting oven operation. Useful as a kitchen timer.

How can I program the oven to cook for a specific duration and stop automatically?

Press the '☐' button until 'Dur' appears. Use '+' or '-' to set the cooking time, then confirm. The oven will start and stop when the time is up.

How do I set the oven to finish cooking at a specific time?

Press '☐' until 'End' appears. Set the desired finishing time using '+' or '-', then confirm. The oven will calculate when to start and stop automatically.

What should I do if the oven does not heat up?

Check that the oven is properly connected to the power supply and that the timer is not in standby mode. Ensure the cooking function and temperature are set correctly. If problem persists, contact customer service.

How do I clean the oven?

Disconnect power and let it cool. Remove accessories. Use a damp cloth or sponge with mild detergent. Avoid abrasive cleaners or metal scrapers on glass. Do not use high pressure cleaners.

Can children use this oven?

Children aged 8 and above can use it under supervision. Children should not play with the appliance. Cleaning and maintenance should not be done by children without supervision.

What are the recommended oven functions for baking a cake?

Use the Conventional function with preheating. Place the cake in the center of the oven. For even baking, Conventional with fan can be used.

How do I replace the oven light bulb?

Disconnect the power. Unscrew the covering glass, replace with a 240V~25W high-temperature resistant bulb. Screw the glass back on.

How do I install the oven into a kitchen unit?

Fit the oven into the recess. Open the door and secure it using two anchors (screws) into the holes in the oven frame. Ensure adequate ventilation: the kitchen unit back should be removed and hob must have a rear gap of at least 45 mm.

USER MANUAL MFD8F8F Becken

Product: Electric Oven

Model: 65DEE30020

Instruction Manual

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instruction manual is provided to simplify the use of the appliance. The instructions guarantee quick and safe use.

Please read carefully the instructions and safety measures described in this manual.

We wish our clients great satisfaction in using their new appliance.

Index

1. Safety Instructions .... 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables 5
1.3. Humidity and Water 6
1.4. Cleaning 6
1.5. General Precautions ...... 7

1. Use and Operation....8

2.1. Introduction 8
2.2. Fitting the Oven into the Kitchen Unit 8
2.3. Product Description 9
2.4. Operation Instructions ....10
2.4.1. Oven On and Off....10
2.4.2. Time Function Setting 11
2.4.3. Audible Warning Time Adjustment.... 11
2.4.4. Semi-Automatic Programming According to Cooking Time ..... 12
2.4.5. Semi-Automatic Programming According to Finishing Time ..... 12
2.4.6.Full-Automatic Programming....13
2.4.7. Specifications 13

1. Accessories 14
2. Installation.... 15

4.1. Securing the Oven to the Unit 15
4.2. Oven Connection 16

1. Customer Service....16
2. Protection of the Environment....17

1. Safety Instructions

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance qualified personnel.

Important Warnings

Before using your appliance read this instruction manual carefully and keep it in a safe place as you may need to consult it in the future.

Before powering on your appliance, and to ensure correct use, do not use it if:

• It has fallen on the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards and deterioration of your appliance through incorrect use it is advisable to read the instructions carefully and attentively.

Your appliance must not be used for other purposes than those described in the instruction manual. Safety is only guaranteed for household use and not for commercial use. Incorrect use is not covered and automatically voids the warranty.

Assistance

If there is a malfunction take your appliance to a qualified technician for assistance.

This appliance can be used by children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children without supervision.

These instructions are also available on www.suporteworten.pt

1.1. Power Supply

Make sure the mains voltage is compatible with the appliance voltage. If this is not the case consult the vendor or Customer Support Service.

1.2. Power Cord and Other Cables

Turn off the device when not in use.

Do not roll up or pull the cord to disconnect the appliance, and do not use it to twine the appliance. Keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket, or if it is not working properly.

If the power cord is damaged, do not use your appliance. Take it to technical assistance for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. TO AVOID FIRE HAZARD OR ELECTRIC SHOCK DO NOT EXPOSE YOUR APPLIANCE TO HUMIDITY OR WATER. Do not place your appliance under water (for example to wash it).

1.4. Cleaning

• To keep the appliance in good condition and reliable, keep it clean. The unit's modern design keeps maintenance to a minimum. The parts of the unit which come into contact with food must be cleaned regularly.
• Before any maintenance and cleaning, disconnect the power. Set all controls to the OFF position.
• Before cleaning, remove all the accessories and excess spillage in the oven.
• Wait until the inside of the unit is not hot but only slightly warm - cleaning is easier than when it is hot.
• Clean the surface of the unit with a damp cloth, soft brush or fine sponge and then wipe dry. In case of heavy soiling, use hot water with non-abrasive cleaning product.
• To clean the oven door glass, do not use abrasive cleaners or sharp metal scrapers, these can scratch the surface or lead to the glass being damaged.
• Never leave acidic substances (lemon juice, vinegar) on stainless steel parts.
• Do not use a high pressure cleaner to clean the unit. The baking pans can be washed in mild detergent.

1.5. General Precautions

• When the oven is first switched on, it may give off an unpleasant smell.
  This is caused by the bonding agent used for the insulating panels within the oven. This is completely normal, if it does occur, just wait for the smell to clear before putting food in the oven.
• During use, the appliance becomes very hot. Care should be taken to avoid touching heating elements inside the oven.
• Make sure that the appliance is switched off before replacing the oven light to avoid the risk of an electric shock.
• The disconnection device must be built into the fixed wiring in accordance with the wiring specifications.
• Do not use the oven unless you are wearing something on your feet. Do not touch the oven with wet or damp hands or feet.
• Oven: The oven door should not be opened often while cooking is in progress.
• The appliance must be installed and commissioned by an authorized technician. The manufacturer is not liable for any damage that might be caused by defective placement, and installation by unauthorized personnel.
• When the door or drawer of the oven is open, do not leave anything on it, you may unbalance your appliance or break the door.
• Some parts of the appliance may remain hot for a long time; you must wait for it to cool down before touching the points that are exposed to the heat directly.
• If you do not use the appliance for a long time, it is advised to disconnect it.

2. Use and Operation

2.1. Introduction

If the oven is to work correctly, the kitchen unit housing must be suitable. The panels of the kitchen unit that are next to the oven must be made of a heat resistant material. Make sure that the adhesives of veneered wood units can withstand temperatures of at least 120^ C. Plastics or adhesives that cannot withstand such temperatures will melt and deform the unit. Once the oven has been housed inside the unit, electric parts must be completely insulated. This is a legal safety requirement. All guards must be firmly fixed into place so that it is impossible to remove them without using special tools. Remove the back of the kitchen unit to ensure an adequate air flow circulates around the oven. The hob must have a rear gap of at least 45 mm.

2.2. Fitting the Oven into the Kitchen Unit

Fit the oven into the space provided in the kitchen unit; it can be fitted underneath a work top or into an upright unit. Fix the oven in position by screwing it into place using the two fixture holes in the frame. To locate the fixture holes, open the oven door and look inside. To allow adequate ventilation, the measurements and distances must be respected when fixing the oven.

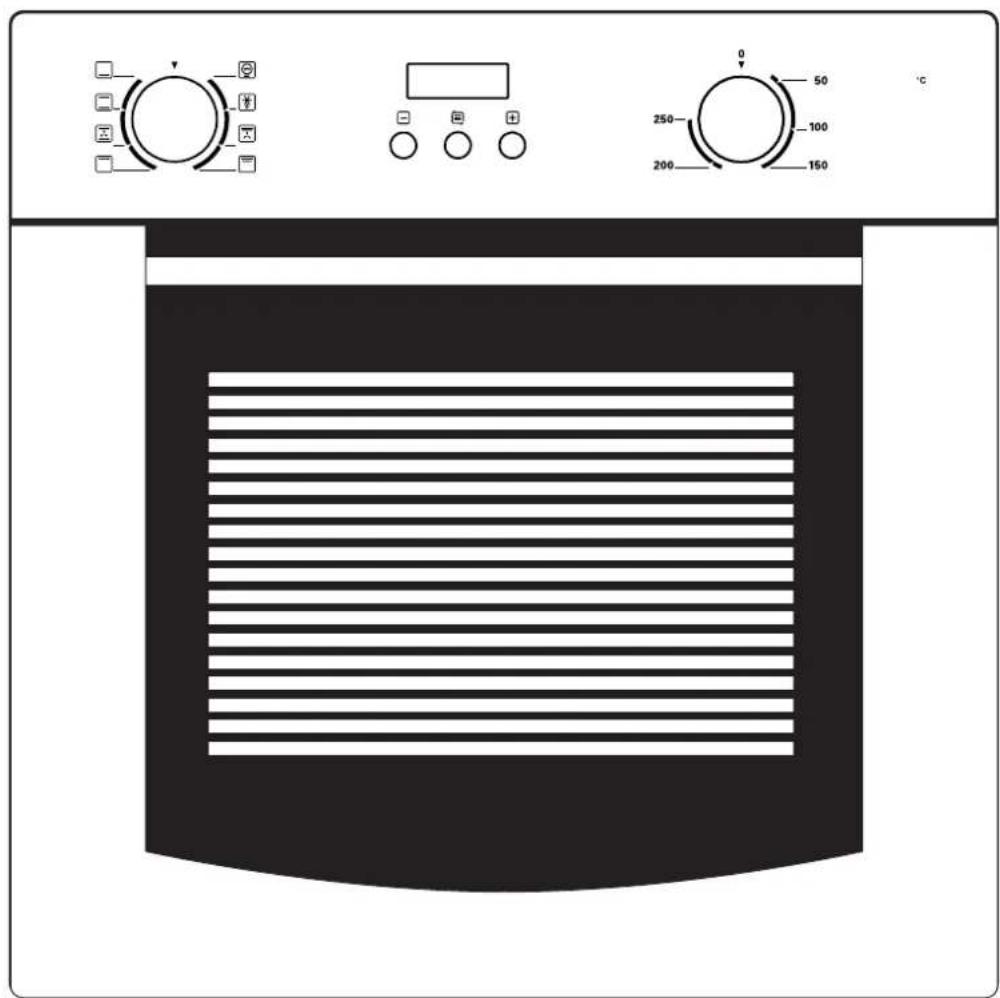

2.3. Product Description

Symbols	Function Description
	Oven light: allows the user to observe the progress of cooking without opening the door.
	Defrost: The circulation of air at room temperature allows quicker thawing of frozen food, (without the use of any heat). It is a gentle but quick way to speed up the defrosting time and thawing of ready-made dishes and cream filled produce etc.
	Bottom heat: A concealed element in the bottom of the oven provides more concentrate heat to the base of food without browning. This is ideal for slow cooking dishes such as casseroles, stews, pastries and pizzas where a crispy base is desired.
	Conventional: The top and bottom work together to provide convention cooking. The oven needs to be pre-heated to the required temperature and is ideal for single items, such as large cakes. Best results are achieved by placing food in the center of the oven.
	Conventional with fan: The combination of the fan and both heating elements provides more even heat penetration, saving up to 30-40% o energy. Dishes are lightly browned on the outside and still moist on th inside. Note: This function is suitable for grilling or roasting big pieces meat at a higher temperature.
	Radiant grilling: The inner grill element switches on and off to maintain temperature. Best results can be obtained using the top grate for sma items and lower grates for large items.
	Double grilling: The inner radiant element and top element are working.
	Double grilling with fan: The inner radiant element and top element are working with the fan.

2.4. Operation Instructions

When the oven is first connected to the electricity supply, wait for the display to automatically show "12.30", a beep sounds once and the "12-"flashes .make sure the correct time of the day is set before using the oven. Please note: that it is a 24 hour clock, for example 2PM is shown as 14.00.

To set the correct time of day

1> Press the "+" "-" button to adjust the hour setting.
2> Press the "☐" to confirm the hour setting.
3> Press the "+" "-" button to adjust the minute setting.
4> Press "☐" to confirm the minute setting and the timer will be in standby mode.

Note: If the display does not flash, adjust the time of day by pressing the "+" and "-" buttons at the same time for more than 3 seconds.

2.4.1. Oven On and Off

If the timer is in standby mode, press " ☐" for more than 3 seconds, the timer will enter manual mode and the symbol " √" will light continuously.

1>Set the desired cooking function and the temperature in degrees.
2>Set the time function, then the oven will switch on.

If you set Dur or End, after cooking, the oven will automatically turn off.

If you set manual or minute minder, after cooking is complete, turn the cooking function and oven temperature knob to the "0" position. Press the "☐" and "+" buttons for more than 3 seconds to return to standby mode.

2.4.2. Time Function Setting

In manual mode, pressing "☐" can enter the time function setting, the sequence of the function setting is Manual mode - Minute minder-Dur-End-Manual mode. Then selected the cooking function and adjust the temperature if required.

Manual mode:

In manual mode, only the time and the " 🔊" symbol lights. The cooking time is controlled by the user.

Notes: In manual mode, to make sure the oven is not left on accidentally, after 5 hours without any button being pressed, the timer will flash once a second to warn you the oven will enter standby mode. After a total of 10 hours, the timer will enter standby mode. When the timer is flashing in manual mode, press any button to reset it if you intend to continue using the oven. Or press " ☐" and "+" together for more than 3 seconds to enter standby mode if oven is not used.

2.4.3. Audible Warning Time Adjustment:

This function can be used to receive an audible warning on completion of the set time.

1>Press the "☐" button to select the minute minder function. The relevant "☐" "." symbol will flash.

2>Use the "+" - " button to adjust minute minder. (Refer to the instructions for setting the correct time of day.) Press the " ☐ " button to confirm. The " ☐ " symbol will light continuously. When the "☐" symbol lights continuously, the audible warning time setting is complete.

3>When the time is up, the timer gives an audible warning and the "☐" symbol begins to flash on the screen. Press any button less than 3 seconds to stop the audible warning and the "☐" symbol disappears from the screen. Audible warning time adjustment is for warning purposes only.

Press "☐" and "+" together for more than 3 seconds to enter standby mode if the oven is not used.

2.4.4. Semi-automatic Programming According to the Cooking Time:

This function is used to cook in the desired time range. The food to be cooked is put into the oven.

The oven is set to the desired cooking function and temperature in degrees.

The maximum cooking time is 10 hours.

1>Press the " ☐ " button until you see " Dur" on the timer screen. (Before setting the cooking time.)

2>Use the "+" "-" button to set the cooking time for the food you wish to cook. (Refer to the instructions for setting the correct time of day.) Press the "☐" button to confirm, the time will appear on the screen and the symbols "A" " will light on the screen. While doing this, the oven will also start to operate.

3>On completion of the set time, the timer will stop the oven and give an audible warning. Also, the "A" symbol will begin to flash on the screen. After turning the cooking function and oven temperature knob to the "0" position. Pressing any button less than 3 seconds will stop the audible warning.

Pressing " ☑" for more than 3 seconds sets the oven to Manual mode again to use the oven.

2.4.5. Semi-automatic Programming According to Finishing Time:

This function is used to cook according to the desired finishing time. The food to be cooked is put into the oven. The oven is set to the desired cooking function and temperature in degrees.

1>Press the " ☐" button until you see "End" on the timer screen. (Before setting the end time).

2>Use the "+" "-" button to set the finishing time. (Refer to the instructions for setting the correct time of day.)

3> Press the "☐" button to confirm, the time will appear on the screen and the symbols "A" "☐" will light on the screen. While doing this, the oven will also start to operate.

4>On completion of the set time, the timer will stop the oven and give an audible warning. Also, the "A" symbol will begin to flash on the screen. After turning the cooking function and oven temperature knob to the "0" position. Pressing any button less than 3 seconds will stop the audible warning.

Pressing " ☐" for more than 3 seconds sets the oven to Manual mode again to use the oven.

2.4.6. Full Automatic Programming

This function is used to cook after starting at a certain time and for a given duration. The food to be cooked is put into the oven. The oven is set to the desired cooking function. The oven temperature is adjusted to the desired degree depending on the food to be cooked.

First: Press the "☐" button until you see "Dur" on the timer screen. Use the "+" - " button to set the cooking time for the food you wish to cook. Press the "☐" button to confirm, the time will appear on the screen and the "A" symbol will continuously light on the screen.

Second: keep pressing on the "button until you see "End" on the timer screen. When you see "End" on the timer screen, use the "+" "-" button to set the finishing time. Press the "button to confirm, the time will appear on the screen and the "A" symbol will continuously light on the screen. The symbol "disappears until the time cooking starts.

You can set a time which can be up 23.59 hours after the time obtained by adding the cooking period to the time.

The oven will start operating at the time calculated by deducting the cooking period from the set finishing time, and will stop at the set finishing time. The timer will give an audible warning and the "A" symbol will begin to flash. After turning the cooking function and oven temperature knob to the "0" position, pressing any button less than 3 seconds will stop the audible warning.

Pressing "☐" for more than 3 seconds sets the oven to Manual mode again to use the oven.

Please note: Once full-automatic mode is set, the times cannot be changed. Changing the time cancels the automatic program and enters into the corresponding mode. If you need to reset automatic mode you must stop setting the current mode to set the automatic mode according to the above steps again.

2.4.7. Specification

1>A long press on "+" or "-" for more than 3 seconds will progressively and rapidly increase or decrease the date.

2>When setting each time function, if there is no operation for 5 minutes then it will return to manual mode.

3> When setting each time function, pressing on "☐" for more than 3 seconds cancels the current setting and enters manual mode.

4> When setting a function, pressing "+" and "☐" for more than 3 seconds sounds a beep. It cancels the current time function setting and enters standby mode.

5> We suggest that you run the oven elements for 15 minutes at 200 degrees to burn off any residue from their surfaces.

3. Accessories

Wire grates: For grilling, dishes, a cake pan with items for roasting and grilling.

Line drawing of a wire mesh basket (no text or symbols)

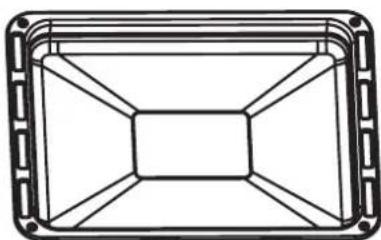

Universal pan: To cook large quantities of food such as moist cakes, pastries, frozen food etc., or to collect fat/ spillage and meat juices.

Pure geometric diagram of a rectangular frame with internal diagonal lines and no text or symbols

To make sure the oven grates are safe, it is imperative to place them between the side grooves. This will guarantee that during careful removal of the grate or tray, hot food items will not slide out.

Technical line drawing of a cabinet or oven with internal structure (no text or symbols)

Bulb replacement: The bulb in the light is a special bulb which is high temperature resistant (240V\~25W). To replace it, proceed as follows:

1) Disconnect the power supply from the mains outlet, or switch off the unit's mains outlet circuit breaker.
2) Unscrew the covering glass and replace the bulb with a new one of the same type.
3) Screw the covering g lass back in place.

Diagram showing a lamp with a curved arrow indicating rotation or cycle (no text or symbols)

4. Installation

4.1. Securing the Oven to the Unit

1. Fit the oven into the unit recess.
2. Open the oven door.
3. Secure the oven to the kitchen unit using two anchors "A" which fit the holes in the oven frame and the two wood screws "B".

4.2. Oven Connection

Technical line drawing of an electronic device rear panel with two inset circuit breakers (no text or symbols)

5. Technical Specifications

Supplier name	BECKEN
Model	65DEE30020
Energy efficiency index(EEIcavity)	106.1
Energy class	A
Energy consumption per cycle in forced air mode	0.87KWh/cycle
Energy consumption per cycle in conventional mode	0.99KWh/cycle
Number of cavities	1
The heat source per cavity	Electricity
Volume of each cavity	65L

6. Customer service

Becken has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs you may be able to determine its cause by following the procedures suggested in this section.

Do not attempt to open the appliance – there is a risk of electrical shock.

If you are not able to solve the problem please contact your seller or manufacturer.

All users must be familiar with this section. Knowing what could go wrong can help to prevent problems occurring.

WARNING: any attempt to repair the appliance without contacting the manufacturer will void the warranty.

If the problem persists take your appliance to the customer service of any Worten, Modelo or Continente store in order to solve the problem.

Worten Equipamentos para o Lar provides a 2 year warranty for manufacturing defects from the date of purchase of the appliance. The warranty is applicable for correct use and maintenance of the appliance, namely according to the instructions in this manual. Malfunctions caused by any other situations are not covered by the warranty.

The repair of electric appliances must only be made by qualified technicians in order to prevent future problems.

To avoid unnecessary risks, any malfunctions concerning wires or other components must be repaired in a specialized technical support workshop because suitable tools are required.

7. Protection of the environment

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic.

The appliance is manufactured using recyclable materials once disassembled by a specialized company. Comply with local regulations concerning recycling of all materials.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

BECKEN®

Line drawing of a rectangular metal grate with vertical slats (no text or symbols)

Pure geometric diagram of a rectangular frame with internal diagonal lines, no text or symbols present

Technical line drawing of an oven with internal structure (no text or symbols)

Diagram showing three stages of a mechanical or electrical component with no visible text or symbols

4. Instalación

Technical line drawing of an electronic device rear panel with two labeled terminal blocks (no text or symbols present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

BECKEN®

Simple line drawing of a rectangular grid structure with vertical lines, no text or symbols present.

Pure geometric diagram of a rectangular frame with internal diagonal divisions and no text or symbols

Technical line drawing of a portable oven with internal compartments (no text or symbols)

Diagram showing three stages of a mechanical or electrical component with no visible text or symbols

4. Instalação

4.1. Fixar o forno na unidade

PT-15

4.2. Ligar o forno

Technical line drawing of an electronic device rear panel with ports and connectors, showing internal components and a close-up inset (no text or symbols)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)
