Product Type	TV Stand
Compatible Screen Sizes	42 to 65 inches
Maximum Weight Capacity	80 lbs (36 kg)
Material	Steel frame with tempered glass shelves
Color	Black
Dimensions (W x D x H)	48 x 24 x 24 inches (122 x 61 x 61 cm)
Product Weight	25 lbs (11.3 kg)
Number of Shelves	3 adjustable shelves
Cable Management	Built-in cable routing holes
Assembly Required	Yes, includes hardware and instructions
VESA Compatible	No, designed for tabletop placement
Recommended TV Weight Limit	Up to 70 lbs (31.8 kg)
Floor Stand Type	Fixed height, non-tilting
Warranty	1 year limited warranty
Cleaning Instructions	Wipe with a dry, soft cloth; avoid harsh chemicals
Safety Features	Anti-tip bracket included for stability
Spare Parts Availability	Contact Tripp Lite support for replacement parts
Country of Origin	China

Frequently Asked Questions - DMCS4265WL Tripp Lite

What is the maximum TV size that fits the DMCS4265WL?

The DMCS4265WL is designed for televisions between 42 and 65 inches diagonal.

Can I mount my TV on this stand?

No, this is a tabletop TV stand. Your TV sits on the top surface; it does not use a VESA mount.

Does the stand require assembly?

Yes, some assembly is required. All necessary hardware and an instruction manual are included.

What is the weight limit for the TV?

The top shelf supports up to 70 lbs (31.8 kg), and the total stand capacity is 80 lbs (36 kg).

Are the shelves adjustable?

Yes, the three shelves can be adjusted to different heights to accommodate components.

How do I clean the TV stand?

Use a soft, dry cloth to wipe the frame and glass. Avoid abrasive cleaners or liquids.

Does it have cable management?

Yes, there are cutouts in the shelves to hide and route cables neatly.

What tools are needed for assembly?

A Phillips screwdriver is required. All other tools (e.g., Allen key) are provided.

Is the stand anti-tip?

Yes, an anti-tip bracket is included to secure the stand to the wall for safety.

What is the warranty on this product?

Tripp Lite offers a 1-year limited warranty against defects in materials and workmanship.

USER MANUAL DMCS4265WL Tripp Lite

Line drawing of a four-legged metal frame with wheels and support legs (no text or symbols)

TV Floor Cart with Wide Legs

Model: DMCS4265WL

CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

100 × 100 / 100 × 200 /

100×400/200×200/

200×300/200×400/

300×300/300×400/

400×400/600×400

132 lb. / 60 kg RATED

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2022 Tripp Lite. All rights reserved.

Safety Instructions

WARNING

NOTE: Read the entire instruction manual before you start assembly and installation.

• Do not begin the installation until you have read and understood the instructions and warnings contained in this manual. If you have questions regarding any of the instructions or warnings, please visit tripplite.com/support.
• This product was designed to be installed and utilized ONLY as specified in this manual. Improper installation of this product may cause damage or serious injury.
• This product should only be installed by someone of good mechanical ability, with basic building experience and a full understanding of this instruction manual.
• Make sure the unit can safely support the combined load of the equipment and all attached hardware and components.
  • Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and/or personal injury.

Warranty and Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

Component Checklist

IMPORTANT: Ensure you have received all parts according to the component checklist prior to installing. If any parts are missing or faulty, visit tripplite.com/support for service.

A
(x2)

B
(x2)

C
(x2)

D
(x2)

E
(x2)

F
(x1)

G
(x2)

H
(x2)

I
(x2)

J
(x1)

Package M

M-A
M8x45(x8)

M-B
M6x10 (x4)

M-C
M8 (x4)

M-D
M6x12 (x4)

M-E
M6x16x1 (x4)

M-F
(x2)

M-G
M8x16x1.5(x8)

M-H
M4 (x1)

M-I
M5 (x1)

M-J
13+14 (x1)

Plastic Washer
Steel Washer

Package P

P-A
M4x12 (x4)

P-B
M4x30 (x4)

P-C
M6x16 (x4)

P-D
M6x35 (x4)

P-E
M8x25 (x4)

P-F
M8x50 (x4)

P-G
(x4)

P-H
SP1 (x8)

P-1
SP2 (x8)

P-J
SP3 (x8)

Assembly

1

Technical line drawing of two curved mechanical components labeled A and B, with component D attached to the lower end (no text or symbols on the main structure)

2

Assembly

3

4

Assembly

5

Assembly

6

Measure the TV Fixing Holes Width and Height

If width X is greater than 1000 mm or height Y greater than 400 mm, STOP the installation and contact customer service.

You are provided with 6 sets of TV fixing screws. Determine the screw that fits.

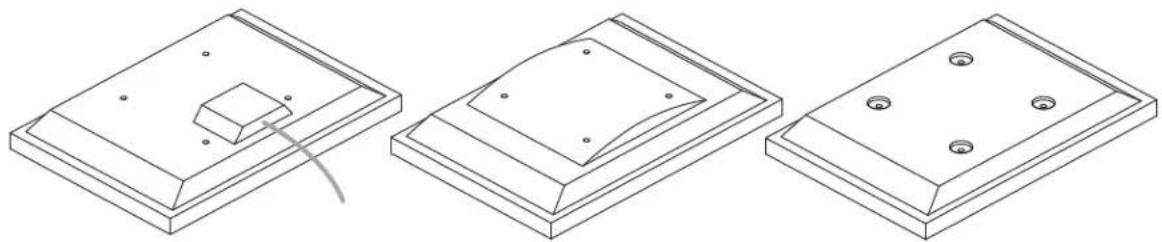

Spacers

For TVs with irregular/obstructed backs

Three technical line drawings of a mechanical component with mounting holes and a small central feature (no text or symbols)

No Spacers

For TVs with flat/unobstructed backs

Isometric line drawing of a rectangular plate with four circular holes, no text or symbols present

Assembly

Note: Choose the appropriate Screws, Washers and Spacers (if needed) according to the type of screen.

CAUTION: Do not over-tighten screws.

Assembly
