ZU550T - Projector OPTOMA - Free user manual and instructions
Find the device manual for free ZU550T OPTOMA in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product type | DLP laser projector |
| Brand | OPTOMA |
| Model | ZU550T |
| Display technology | DLP Texas Instruments |
| Native resolution | WUXGA (1920 x 1200) |
| Brightness | 5,500 ANSI lumens |
| Contrast ratio | 300,000:1 |
| Light source | Phosphor laser |
| Light source lifespan | Up to 20,000 hours (normal mode) |
| Dimensions (W x D x H) | 424 x 335 x 135 mm |
| Weight | 5.5 kg |
| Power supply | 100-240 V, 50/60 Hz |
| Power consumption | 340 W (normal mode), < 0.5 W standby |
| Keystone correction | Vertical and horizontal (30°) |
| Zoom | 1.8x motorized |

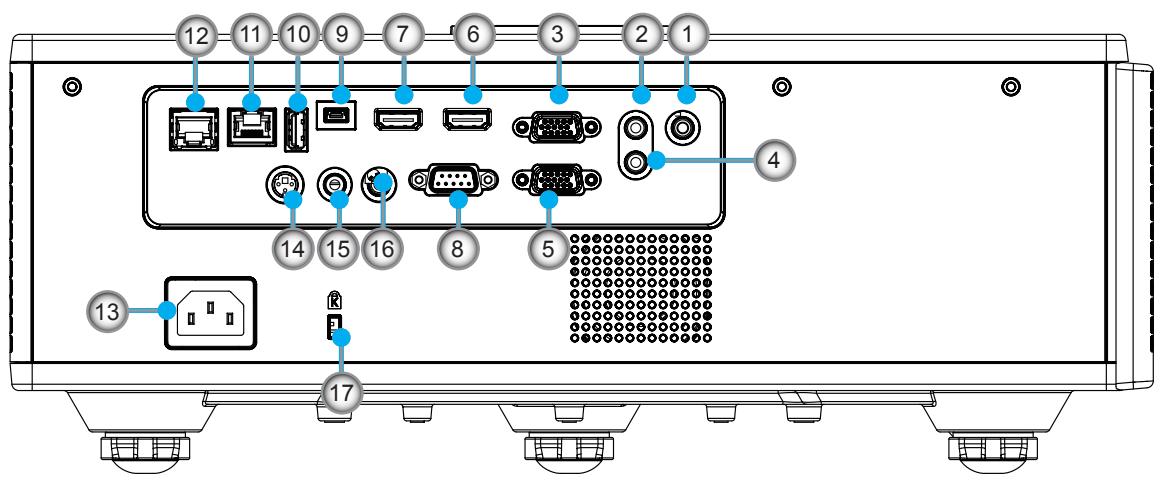

| Video inputs | 2x HDMI, 1x VGA, 1x composite |
| Control ports | RS-232, USB-A, Ethernet RJ45 |
| Network functions | Remote control via LAN, Crestron compatible |
| Built-in speakers | 2 x 10 W |
| Noise level | 33 dB (normal mode), 28 dB (eco mode) |
| Maintenance and cleaning | Washable air filter, clean every 1,000 hours |
| Security | Kensington lock, power-on password |
| Spare parts and repairability | Light source not user-replaceable, other parts available via after-sales service |
Frequently Asked Questions - ZU550T OPTOMA
How to install the OPTOMA ZU550T projector?
Place the projector on a flat, stable surface, at a distance of 1.5 to 10 meters from the screen. Connect the power cord and turn it on. Use the zoom and focus rings to adjust the image. If the image is distorted, enable keystone correction in the menu.
How to connect a computer to the projector?
Use an HDMI or VGA cable to connect your computer to the corresponding input on the projector. Then select the appropriate source using the Source button on the remote control or control panel.
How to clean the air filter of the projector?
Turn off the projector and unplug it. Open the filter cover on the side. Remove the filter and clean it with a vacuum cleaner. Do not wash it with water. Replace it every 1,000 hours of use.
What to do if the image is blurry?
Check the focus by turning the focus ring. Ensure the projector-to-screen distance is correct. Clean the lens with a soft, dry cloth. If the problem persists, reset the image settings.
How to replace the laser light source?
The laser light source is not user-replaceable. Its lifespan is approximately 20,000 hours. If it fails, contact OPTOMA after-sales service for repair.
The projector does not turn on, what should I do?
Check that the power cord is properly connected and the wall outlet works. Ensure the security lock is not activated. If the LED indicator flashes red, consult the manual for error codes.
How to use the network control function?
Connect the projector to your network via the Ethernet RJ45 port. Enable the LAN function in the network menu. You can then control the projector via a web browser or Crestron-compatible management software.
How to adjust brightness and contrast?
Press the Menu button on the remote control, go to the 'Image' submenu. Use the arrow keys to adjust brightness, contrast, and other parameters. Confirm with OK.
What is the difference between normal and eco modes?
The eco mode reduces the power of the light source, decreasing brightness (approximately 4,000 lumens) and fan noise, but extends laser lifespan. Normal mode provides full brightness of 5,500 lumens.
How to activate silent mode?
Silent mode corresponds to eco mode. Go to 'System' menu -> 'Operating mode' and select 'Eco'. The noise level drops to 28 dB instead of 33 dB.
