| Product Type | LED Moving Head Wash with Zoom |
| Dimensions (W x D x H) | 190 x 245 x 330 mm |
| Weight | 5 kg |
| Power Supply | 100-240 V AC, 50/60 Hz |
| Power Consumption | 80 W |
| DMX Control Channels | 15 |
| DMX Connection | 3-pin XLR |
| LEDs | 6 x 10W 4in1 RGBW |
| Beam Angle | 2-31° (motorized zoom) |
| Pan Movement | 540° (switchable to 360°) |
| Tilt Movement | 190° |
| Control Modes | DMX, Stand-alone, Master/Slave, Sound-controlled |
| Functions | RGBW color mixing, preset colors, strobe, dimmer, dimmer speed adjustment, auto program, position correction, 16-bit pan/tilt |
| Display | LCD control board with menu navigation |
| Power Connection | P-Con jack with feed-through for up to 8 devices |
| Sound Control | Built-in microphone with adjustable sensitivity (0-99%) |
| Strobe Rate | Up to 18 Hz |
| Maximum Ambient Temperature | 45°C |
| Minimum Distance from Flammable Surfaces | 0.5 m |
| Minimum Distance to Lighted Object | 0.1 m |
| Maintenance | Clean exterior with lint-free cloth; clean fan monthly; vacuum interior annually |
| Accessories Included | Power cable with safety plug; Omega holder (optional) |
| Protection Class | Class I (grounded) |
Frequently Asked Questions - TMH-16 Eurolite
User questions about TMH-16 Eurolite
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Machine à effets in PDF format for free! Find your manual TMH-16 - Eurolite and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TMH-16 by Eurolite.
USER MANUAL TMH-16 Eurolite
MASTER SLAVE
STAND ALONE
STROBE
RGBW
DMX
No. 51785978
www.eurolite.de
OPERATING DETERMINATIONS....20
DESCRIPTION OF THE DEVICE 21
Features 21
Overview 21
INSTALLATION 22
Rigging 22
DMX-512 connection / connection between fixtures.... 24
Connection with the mains 25
Connection between devices 25
OPERATION 25
Stand-alone operation....25
Master/Slave operation 25
Control Board 26
DMX-controlled operation 28
Addressing 28
DMX-protocol 29
CLEANING AND MAINTENANCE 30
TECHNICAL SPECIFICATIONS.... 31
This user manual is valid for the article number 51785978
You can find the latest update of this user manual in the Internet under:
www.eurolite.de
BEDIENUNGSANLEITUNG
eurolite®
LED TMH-16
Moving-Head Zoom Wash
ACHTUNG!

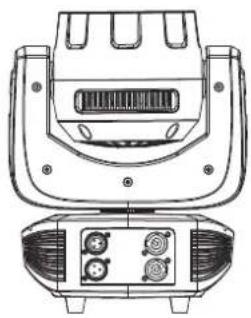

Projector 3
Starting address 31


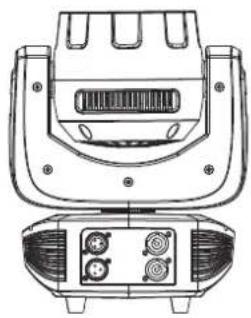

Starting address 16


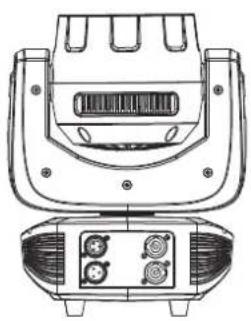

Starting address 1
Keep this device away from rain and moisture! Unplug mains lead before opening the housing!
For your own safety, please read this user manual carefully before you initially start-up.
Every person involved with the installation, operation and maintenance of this device has to
- be qualified
- follow the instructions of this manual
- consider this manual to be part of the total product
- keep this manual for the entire service life of the product
- pass this manual on to every further owner or user of the product
- download the latest version of the user manual from the Internet
INTRODUCTION
Thank you for having chosen a EUROLITE LED TMH-16. If you follow the instructions given in this manual, we are sure that you will enjoy this device for a long period of time.
Unpack your LED TMH-16.
SAFETY INSTRUCTIONS
CAUTION!
Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires!
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems.
English
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.
Please make sure that there are no obvious transport damages. Should you notice any damages on the A/C connection cable or on the casing, do not take the device into operation and immediately consult your local dealer.
This device falls under protection-class I. The power plug must only be plugged into a protection class I outlet. The voltage and frequency must exactly be the same as stated on the device. Wrong voltages or power outlets can lead to the destruction of the device and to mortal electrical shock.
Always plug in the power plug last. The power plug must always be inserted without force. Make sure that the plug is tightly connected with the outlet.
Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! Never touch them with wet hands, as this could lead to mortal electrical shock.
Never modify, bend, strain mechanically, put pressure on, pull or heat up the power cord. Never operate next to sources of heat or cold. Disregard can lead to power cord damages, fire or mortal electrical shock.
The cable insert or the female part in the device must never be strained. There must always be sufficient cable to the device. Otherwise, the cable may be damaged which may lead to mortal damage.
Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-cord from time to time.
If extension cords are used, make sure that the core diameter is sufficient for the required power consumption of the device. All warnings concerning the power cords are also valid for possible extension cords.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord. Otherwise, the cable or plug can be damaged leading to mortal electrical shock. If the power plug or the power switch is not accessible, the device must be disconnected via the mains.
If the power plug or the device is dusty, the device must be taken out of operation, disconnected and then be cleaned with a dry cloth. Dust can reduce the insulation which may lead to mortal electrical shock. More severe dirt in and at the device should only be removed by a specialist.
There must never enter any liquid into power outlets, extension cords or any holes in the housing of the device. If you suppose that also a minimal amount of liquid may have entered the device, it must immediately be disconnected. This is also valid, if the device was exposed to high humidity. Also if the device is still running, the device must be checked by a specialist if the liquid has reduced any insulation. Reduced insulation can cause mortal electrical shock.
There must never be any objects entering into the device. This is especially valid for metal parts. If any metal parts like staples or coarse metal chips enter into the device, the device must be taken out of operation and disconnected immediately. Malfunction or short-circuits caused by metal parts may cause mortal injuries.
HEALTH HAZARD!
Never look directly into the light source, as sensitive persons may suffer an epileptic shock (especially meant for epileptics)!
Keep away children and amateurs!
Never leave this device running unattended.
OPERATING DETERMINATIONS
This device is a LED moving-head lighting effect for creating decorative effects. This product is allowed to be operated with an alternating voltage of 100-240 V, 50/60 Hz and was designed for indoor use only.
This device is designed for professional use, e.g. on stages, in discotheques etc.
Lighting effects are not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects.
Do not shake the device. Avoid brute force when installing or operating the device.
Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always hold the fixture at the transport handles.
When choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust. There should not be any cables lying around. Please make sure that the unit cannot be touched or bumped. You endanger your own and the safety of others!
This device must never be operated or stockpiled in surroundings where splash water, rain, moisture or fog may harm the device. Moisture or very high humidity can reduce the insulation and lead to mortal electrical shocks. When using smoke machines, make sure that the device is never exposed to the direct smoke jet and is installed in a distance of 0.5 meters between smoke machine and device. The room must only be saturated with an amount of smoke that the visibility will always be more than 10 meters.
The ambient temperature must always be between -5^ C and +45^ C. Keep away from direct insulation (particularly in cars) and heaters.
The relative humidity must not exceed 50 % with an ambient temperature of 45^ C.
This device must only be operated in an altitude between -20 and 2000 m over NN.
Never use the device during thunderstorms. Over voltage could destroy the device. Always disconnect the device during thunderstorms.
The symbol -· -m determines the minimum distance from lighted objects. The minimum distance between light-output and the illuminated surface must be more than this value.
The device must only be installed on a non-flammable surface. In order to safeguard sufficient ventilation, leave 50 cm of free space around the device.
The housing must never touch surrounding surfaces or objects.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture.
For overhead use (mounting height >100 cm), always fix the fixture with an appropriate safety-rope. Fix the safety-rope at the correct fixation points only. The safety-rope must never be fixed at the transport handles!
Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.
The maximum ambient temperature T_a = 45^ C must never be exceeded.
Operate the device only after having become familiarized with its functions. Do not permit operation by persons not qualified for operating the device. Most damages are the result of unprofessional operation!
Please use the original packaging if the device is to be transported.
Please consider that unauthorized modifications on the device are forbidden due to safety reasons! Never remove the serial barcode from the device as this would make the guarantee void.
If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.
DESCRIPTION OF THE DEVICE
Features
RGBW Moving Head Wash with zoom
• Equipped with six 10W 4in1 LEDs in the colors red, green, blue and white
- Flicker-free projection
- Compact lightweight
- Functions: stepless RGBW color changing, preset colors, built-in program, strobe effect with variable speed, dimmer, sound-control, Master/Slave operation
- Motorized zoom with 2-31° beam angle
- Positioning within 540^ PAN and 190^ TILT
• PAN-angle switchable between 540° and 360°
- Dimmer speed (step response) adjustable
• Automatic position correction
- Exact positioning via 16 bit PAN/TILT movement resolution
- DMX-controlled operation or stand-alone operation with Master/Slave function
• Sound-controlled via built-in microphone
• Control board with LCD for adjusting the DMX-starting address, PAN/TILT reverse, reset
- Switch-mode power supply for operation between 100 and 240 volts
• Power connection via P-Con jack and included power cable with safety plug
- Feed-through output allows to power up to 8 devices
- DMX512 control possible via any commercial DMX controller

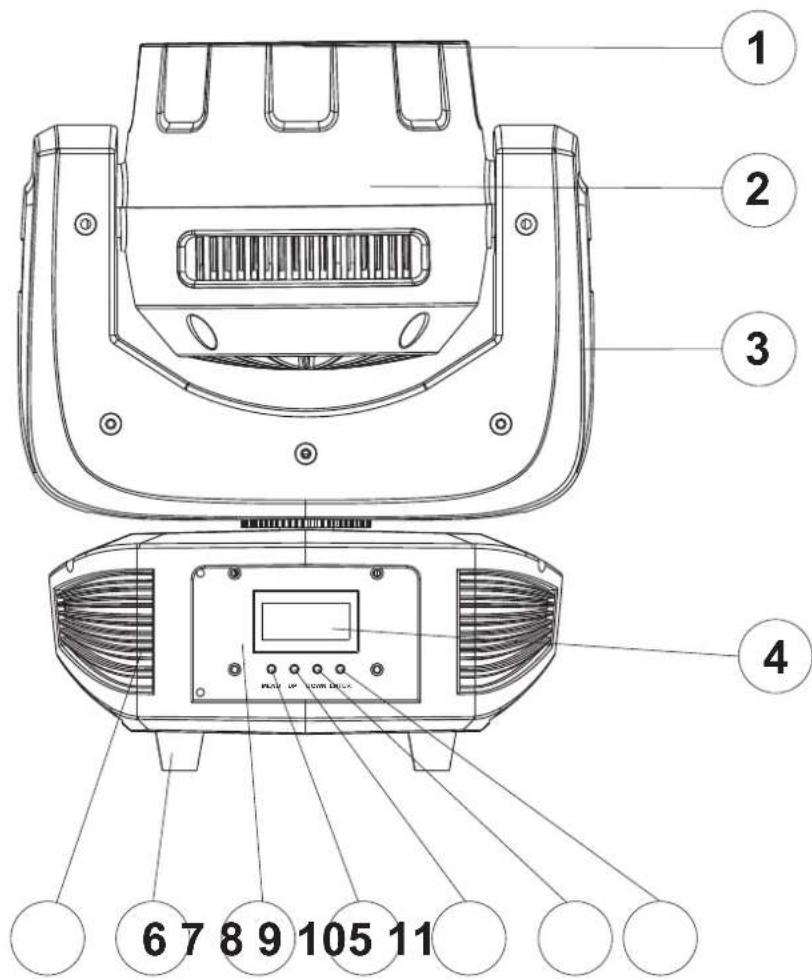

Overview
(1) LEDs/Lens
(2) Projector head
(3) Yoke
(4) Display
(5) Base
(6) Rubber foot
(7) Control Board
(8) Menu-button
(9) Down-button
(10) Up-button
(11) Enter-button
English

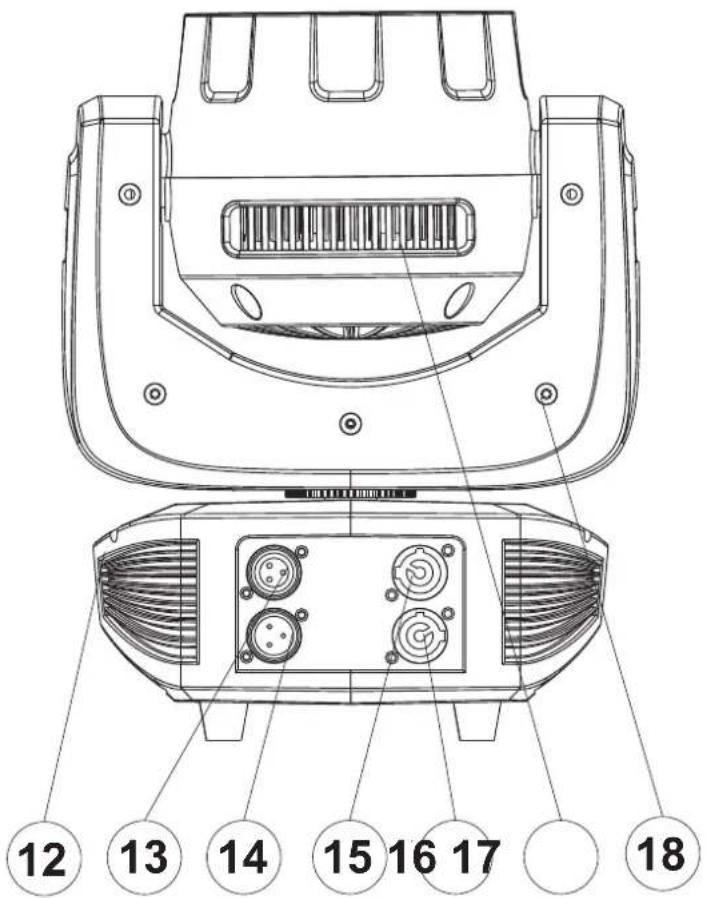

(12) Carrying handle
(13) 3-pin DMX output
(14) 3-pin DMX input
(15) Power input
(16) Power output
(17) Ventilation grille
(18) Housing screw
INSTALLATION
Rigging
DANGER TO LIFE!
Please consider the EN 60598-2-17 and the respective national norms during the installation! The installation must only be carried out by an authorized dealer!
The installation of the projector has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
When rigging, derigging or servicing the fixture staying in the area below the installation place, on bridges, under high working places and other endangered areas is forbidden.
The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time.
The operator has to make sure that safety-relating and machine-technical installations are approved by an expert after every four year in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year.
English
Procedure:
The projector should be installed outside areas where persons may walk by or be seated.
IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to) calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the projector. If you lack these qualifications, do not attempt the installation yourself, but instead use a professional structural rigger. Improper installation can result in bodily injury and or damage to property.
The projector has to be installed out of the reach of people.
If the projector shall be lowered from the ceiling or high joists, professional trussing systems have to be used. The projector must never be fixed swinging freely in the room.
Caution: Projectors may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do NOT install the projector!
DANGER OF FIRE!
When installing the device, make sure there is no highly-inflammable material (decoration articles, etc.) within a distance of min. 0.5 m.
CAUTION!
Use an appropriate clamp to rig the fixture on the truss. Make sure that the device is fixed properly! Ensure that the structure (truss) to which you are attaching the fixtures is secure.
The fixture's base enables to be mounted in two ways.
The Moving-Head can be placed directly on the stage floor or rigged in any orientation on a truss without altering its operation characteristics (see the drawing).
For overhead use (mounting height >100 cm), always install an appropriate safety bond.
You must only use safety bonds and quick links complying with DIN 56927, shackles complying with DIN EN 1677-1 and BGV C1 carbines. The safety bonds, quick links, shackles and the carbines must be sufficiently dimensioned and used correctly in accordance with the latest industrial safety regulations (e. g. BGV C1, BGI 810-3).
Please note: for overhead rigging in public or industrial areas, a series of safety instructions have to be followed that this manual can only give in part. The operator must therefore inform himself on the current safety instructions and consider them.
The manufacturer cannot be made liable for damages caused by incorrect installations or insufficient safety precautions!
Install the safety bond by inserting the quick link in the attachment eyelet on the bottom of the base. Pull the safety bond over the trussing system etc. Insert the end in the quick link and tighten the fixation screw.
The maximum drop distance must never exceed 20 cm.
A safety bond which already hold the strain of a crash or which is defective must not be used again.
DANGER TO LIFE!
Before taking into operation for the first time, the installation has to be approved by an expert!
Screw one clamp via a M10 screw and self-locking nut onto the Omega-holder.
English
Insert the quick-lock fasteners of the Omega-clamp into the respective holes on the bottom of the device. Tighten the quick-lock fasteners fully clockwise.
DMX-512 connection / connection between fixtures
The wires must not come into contact with each other, otherwise the fixtures will not work at all, or will not work properly.
Please note, the starting address depends upon which controller is being used.
Only use a DMX-cable and 3-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another.
Occupation of the XLR-connection:
DMX-output
XLR mounting-socket:
DMX-input
XLR mounting-plug:
If you are using controllers with this occupation, you can connect the DMX-output of the controller directly with the DMX-input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-outputs, you need to use adapter-cables.

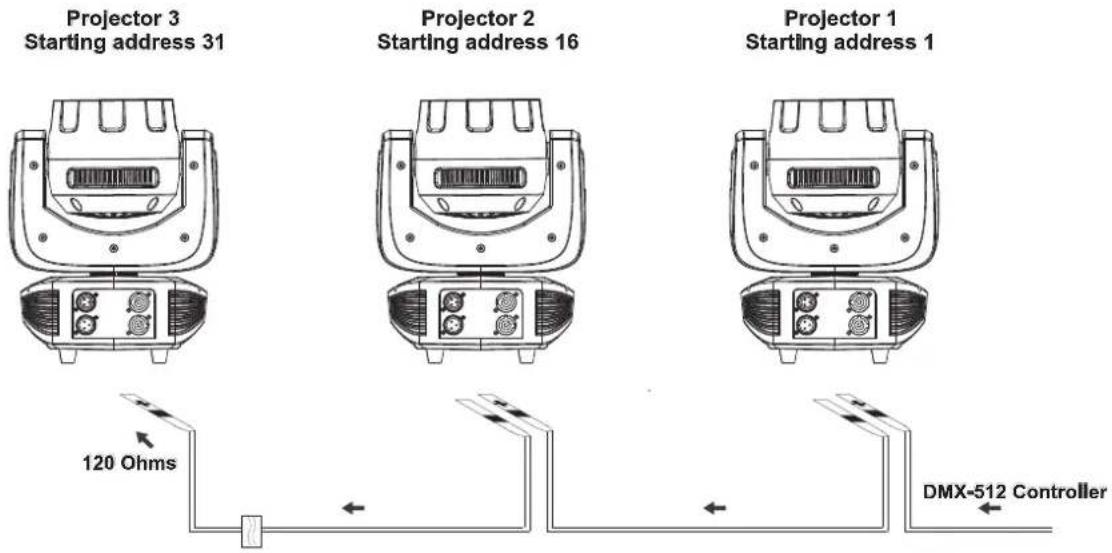

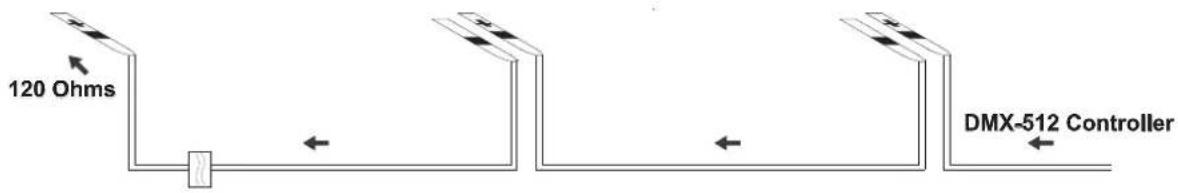

Building a serial DMX-chain:
Connect the DMX-output of the first fixture in the DMX-chain with the DMX-input of the next fixture. Always connect one output with the input of the next fixture until all fixtures are connected.
Caution: At the last fixture, the DMX-cable has to be terminated. Plug the terminator with a 120 Ω resistor between Signal (−) and Signal (+) in the DMX-output of the last fixture.
English
Connection with the mains
Connect the device to the mains with the enclosed power supply cable.
The occupation of the connection-cables is as follows:
| Cable | Pin | International |
| Brown Live L | ||
| Blue Neutral N | ||
| Yellow/Green Earth |
The earth has to be connected!
If the device will be directly connected with the local power supply network, a disconnection switch with a minimum opening of 3 mm at every pole has to be included in the permanent electrical installation.
The device must only be connected with an electric installation carried out in compliance with the IEC-standards. The electric installation must be equipped with a Residual Current Device (RCD) with a maximum fault current of 30 mA.
Lighting effects must not be connected to dimming-packs.
The device is equipped with a lockable power input connector. Plug in the power cord and turn it to the right until it locks. Plug the power cord into a grounded electrical outlet that matches the rated voltage of the machine.
Connection between devices
On the rear panel, there is a socket (Power Out). Connect the output with the mains input of the next fixture until all fixtures are connected.
Please note: A maximum of 8 devices may be linked together. After every 8 devices, the fixtures must have a renewed connection with the power mains.
OPERATION
After you connected the effect to the mains, the EUROLITE LED TMH-16 starts running. During the Reset, the motors are trimmed and the device is ready for use afterwards.
Stand-alone operation
In the Stand-alone mode, the LED TMH-16 can be used without controller.
Disconnect the LED TMH-16 from the controller and call the internal program. Please refer to the instructions under Control Board.
Master/Slave operation
The master/slave operation enables that several devices can be synchronized and controlled by one master device.
On the rear panel of the device you can find an XLR-jack (DMX Out) and an XLR-plug (DMX In), which can be used for connecting several devices.
Choose the device which is to control the effects. This device then works as master device and controls all other slave devices, which are to be connected to the master device via a DMX cable. Connect the DMX OUT-jack with the DMX IN-plug of the next device.
Set the desired master mode for the master device. Set the slave mode for all slave devices.
Please refer to the instructions under Control Board.
English
Control Board
The Control Board offers several features: you can simply set the starting address, run the pre-programmed program or make a reset.
The main menu is accessed by pressing the Menu-button (display flashing). Browse through the menu by pressing Up or Down. Press the Enter-button in order to select the desired menu. You can change the selection by pressing Up or Down. Confirm every selection by pressing the Enter-button. You can leave every mode by pressing the Menu-button. The functions provided are described in the following sections.
Default settings shaded.
| Main | menu | Sub menu | Display Function | |
| Function | Address 001-XXX | DMX address setting | ||
| CH Value | PAN ... DMX indicator | |||
| Slave Slave Slave setting | ||||
| Auto Master-A/Alone-A Auto program | ||||
| Music | Master-M/Alone-M | Music control | ||
| Info | Temp Inf | Head Temp | XXX°C/°F | Inside temperature |
| Soft Inf | V X.X.X ... | Software version | ||
| Person | Status | PAN Rev | ON/OFF | Reverse movement |
| TILT Rev | ON/OFF | |||
| P-Degree | 360/540 | Select PAN-angle 360° or 540° | ||
| M Speed Speed1/Speed2 | Adjust PAN/TILT speed | |||
| Mic Sens | 0~99% | Mic sensitivity | ||
| Temp C/F C/F switch | Select temperature designation °C or °F | |||
| Default | ON/OFF | Reload Default | ||
| Reset | Reset | Reset all | ||
| Adjust | CaliT CH | Password | Password=XXX | Calibration to standard position password „050“ |
| PAN | PAN=XXX | |||
| TILT | TILT=XXX | |||
English
Function
DMX address setting
With this function, you can adjust the desired DMX-address via the Control Board.
- Select "Address" by pressing Up or Down.
- Press the Enter-button, adjust the DMX address by pressing Up or Down.
- Press the Enter-button to confirm.
DMX indicator
With this function, you can display with which value the respective channel is sent.
Slave
With this function, you can define the device as slave.
Auto
With this function, you can run the internal program. The selection "Alone" means Stand Alone-mode and "Master" that the device is defined as master.
Music
With this function, you can run the internal program sound-controlled. The selection "Alone" means Stand Alone-mode and "Master" that the device is defined as master.
Info
Temperature
Near lamp Temp
With this function you can display the temperature in the projector-head in degree Celsius/degree Fahrenheit.
Software version
With this function you can display the software version.
Person
Status
PAN Reverse
With this function you can reverse the PAN-movement.
TILT Reverse
With this function you can reverse the TILT-movement.
PAN degree
With this function you can select the PAN-degree.
- Select "P-Degree" by pressing Up or Down.
- Press the Enter-button, the display shows "540".
- Press Up or Down to select the desired degree between "540" and "360".
- Press the Enter-button to confirm.
Adjust PAN/TILT speed
With this function you can define the PAN/TILT speed. You can select one of two different speeds.
Mic sensitivity
With this function, you can select the desired microphone sensitivity between 0 % and 99 %.
- Select "Mic Sens" by pressing Up or Down.
- Press the Enter-button.
- Press Up or Down to select the desired sensitivity.
- Press the Enter-button to confirm.
English
Select temperature designation
With this function you can select the temperature designation.
- Select "Temp C/F" by pressing Up or Down.
- Press Up or Down to select the desired degree between "Celsius" and "Fahrenheit".
- Press the Enter-button to confirm.
Reload Default
With this function you can restore the factory settings of the device. The different settings (marked in the table) will be set back to the default values (shaded).
Reset
With this function you can reset the device via the Control Board.
Adjust
Calibration (Calit CH)
With this function, you can calibrate PAN and TILT to their correct starting positions. The password for this function is „050“.
DMX-controlled operation
You can control the projectors individually via your DMX-controller.
Every DMX-channel has a different occupation with different features. The individual channels and their features are listed under DMX-protocol.
Addressing
The Control Board allows you to assign the DMX starting address, which is defined as the first channel from which the LED TMH-16 will respond to the controller.
If you set, for example, the address to channel 16, the device will use the channel 16 to 30 for control.
Please, be sure that you don't have any overlapping channels in order to control each LED TMH-16 correctly and independently from any other fixture on the DMX-chain.
If several LED TMH-16 are addressed similarly, they will work synchronically.
Press the Up/Down-buttons for setting the desired starting address. Now you can start operating the LED TMH-16 via your lighting controller.
Note:
After switching on, the device will automatically detect whether DMX 512 data is received or not. If there is no data received at the DMX-input, the display will flash.
This situation can occur if:
- the XLR plug (cable with DMX signal from controller) is not connected with the input of the device.
- the controller is switched off or defective, if the cable or connector is defective or the signal wires are swap in the input connector.
DMX-protocol
| Mode/CH Decimal | Hexad. | Percentage | S/F | Feature | ||||
| 1 | Horizontal movement (PAN) | |||||||
| 0 | 255 | 00 | FF 0% | 100% | F | Push slider up in order to move the head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be stopped at any position you wish. | ||
| 2 | PAN-movement with 16-bit resolution | |||||||
| 0 | 255 | 00 | FF 0% | 100% | F | Fine indexing | ||
| 3 | Vertical movement (TILT) | |||||||
| 0 | 255 | 00 | FF 0% | 100% | F | Push slider up in order to move the head vertically (TILT). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be stopped at any position you wish. | ||
| 4 | TILT-movement with 16-bit resolution | |||||||
| 0 | 255 | 00 | FF 0% | 100% | F | Fine indexing | ||
| 5 | PAN/TILT speed/function | |||||||
| 0 | 225 | 00 | E1 0% | 88% | F | Decreasing speed | ||
| 226 | 255 | E2 | FF 89% | 100% | S | No function | ||
| 6 | Strobe-effect | |||||||
| 0 | 9 | 00 | 09 0% | 4% | S | No function | ||
| 10 | 255 | 0A | FF 4% | 100% | F | Strobe-effect with increasing speed | ||
| 7 | Dimmer intensity | |||||||
| 0 | 255 | 00 | FF 0% | 100% | F | Gradual adjustment of the dimmer intensity from 0 to 100 % | ||
| 8 | Dimmer speed (step response) | |||||||
| 0 | 49 00 | 31 | 0% | 19% | S | Dimmer speed 1 | ||
| 50 | 99 32 | 63 | 20% | 39% | S | Dimmer speed 2 | ||
| 100 | 149 | 64 | 95 39% | 58% | S | Dimmer speed 3 | ||
| 150 | 255 | 96 | FF 59% | 100% | S | Dimmer speed 4 | ||
| 9 | Zoom-movement | |||||||
| 0 | 255 | 00 | FF 0% | 100% | F | Gradual adjustment from near to far | ||
| 10 | Red | |||||||
| 0 | 255 | 00 | FF 0% | 100% | F | Red 0 - 100 % increasing | ||
| 11 | Green | |||||||
| 0 | 255 | 00 | FF 0% | 100% | F | Green 0 - 100 % increasing | ||
| 12 | Blue | |||||||
| 0 | 255 | 00 | FF 0% | 100% | F | Blue 0 - 100 % increasing | ||
| 13 | White | |||||||
| 0 | 255 | 00 | FF 0% | 100% | F | White 0 - 100 % increasing | ||
| 14 | Color presets | |||||||
| 0 | 4 00 | 04 | 0% | 2% | S | No function | ||
| 5 | 29 05 | 1D | 2% | 11% | S | Red | ||
| 30 | 54 1E | 36 | 12% | 21% | Green | |||
English
| 55 | 79 37 | 4F | 22% | 31% | S | Blue | ||
| 80 | 104 | 50 | 68 31 | % | 41% | S | White | |
| 105 | 129 | 69 | 81 41 | % | 51% | S | Color preset 1 | |
| 130 | 154 | 82 | 9A 51 | % | 60% | S | Color preset 2 | |
| 155 | 174 | 9B | AE 61 | % | 68% | S | Color preset 3 | |
| 175 | 179 | AF | B3 69 | % | 70% | S | Color preset 4 | |
| 180 | 184 | B4 | B8 71 | % | 72% | S | Color preset 5 | |
| 185 | 189 | B9 | BD | 73% | 74% | S | Color preset 6 | |
| 190 | 194 | BE | C2 | 75% | 76% | S | Color preset 7 | |
| 195 | 199 | C3 | C7 | 76% | 78% | S | Color preset 8 | |
| 200 | 204 | C8 | CC | 78% | 80% | S | Color preset 9 | |
| 205 | 209 | CD | D1 | 80% | 82% | S | Color preset 10 | |
| 210 | 210 | D2 | D2 | 82% | 82% | S | No function | |
| 211 | 255 | D3 | FF | 83% | 100% | F | Color fade | |
| 15 | Reset | |||||||
| 0 79 00 | 4F 0% | 31% | S | No function | ||||
| 80 | 99 50 | 63 | 31% | 39% | S | Reset all motors | ||
| 100 | 255 | 64 | FF 39 | % | 100% | S | No function | |
CLEANING AND MAINTENANCE
The operator has to make sure that safety-relating and machine-technical installations are inspected by an expert after every four years in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are inspected by a skilled person once a year.
The following points have to be considered during the inspection:
1) All screws used for installing the devices or parts of the device have to be tightly connected and must not be corroded.
2) There must not be any deformations on housings, fixations and installation spots (ceiling, suspension, trussing).
3) Mechanically moved parts like axles, eyes and others must not show any traces of wearing (e.g. material abrading or damages) and must not rotate with unbalances.
4) The electric power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments. Further instructions depending on the installation spot and usage have to be adhered by a skilled installer and any safety problems have to be removed.
DANGER TO LIFE!
Disconnect from mains before starting maintenance operation!
We recommend a frequent cleaning of the device. Please use a moist, lint-free cloth. Never use alcohol or solvents!
The cooling-fan should be cleaned monthly.
The interior of the fixture should be cleaned at least annually using a vacuum-cleaner or an air-jet.
There are no serviceable parts inside the device. Maintenance and service operations are only to be carried out by authorized dealers.
Should you need any spare parts, please use genuine parts.
If the power supply cable of this device becomes damaged, it has to be replaced by a special power supply cable available at your dealer.
Should you have further questions, please contact your dealer.
TECHNICAL SPECIFICATIONS
| Power supply: 100-240 V AC, 50/60 Hz ~ | |
| Power consumption: 80 W | |
| DMX control channels: 15 | |
| DMX512 connection: 3-pin XLR | |
| Flash-rate: 18 Hz | |
| Sound-control: via built-in microphone | |
| Number of LEDs: 6 | |
| LED type: 10-W, 4in1 (RGBW) | |
| Maximum PAN-movement: 540° | |
| Maximum TILT-movement: 190° | |
| Beam angle: 2-31° | |
| Dimensions (WxDxH): 190 x 245 x 330 mm | |
| Weight: 5 kg | |
| Maximum ambient temperature T_a : | 45°C |
| Maximum housing temperature T_c (steady state): | 60°C |
| Min. distance from flammable surfaces: 0.5 m | |
| Min. distance to lighted object: | 0.1 m |
| Accessory: | |
| EUROLITE Omega Holder 3 | No. 51786515 |
| EUROLITE TPC-10 Coupler, silver | No. 59006856 |
| EUROLITE TPC-10 Coupler, black | No. 59006858 |
| EUROLITE Safety bond A 3x600mm up to 5kg, silver | No. 58010310 |
| EUROLITE Safety bond A 3x600mm up to 5kg, black | No. 58010342 |
| EUROLITE DMX cable XLR 3pin 3m bk | No. 3022785H |
| PSSO DMX cable XLR 3pin 3m bk Neutrik | No. 30227810 |
| SOMMER CABLE DMX cable XLR 3pin 3m bk Hicon | No. 30307457 |
| SOMMER CABLE DMX cable XLR 3pin 3m bk Neutrik | No. 3030746Z |
| PSSO PowerCon connection cable 3x1.5 3m | No. 3023503R |
| SOMMER CABLE Combi cable PowerCon/XLR 5m | No. 30307382 |
Please note: Every information is subject to change without prior notice. 09.08.2016 ©
eurolite®
- BEDIENUNGSANLEITUNG
- eurolite®
- LED TMH-16
- Moving-Head Zoom Wash
- ACHTUNG!
- INTRODUCTION
- SAFETY INSTRUCTIONS
- CAUTION!
- Important:
- English
- HEALTH HAZARD!
- OPERATING DETERMINATIONS
- DESCRIPTION OF THE DEVICE
- Features
- RGBW Moving Head Wash with zoom
- INSTALLATION
- Rigging
- DANGER TO LIFE!
- Procedure:
- DANGER OF FIRE!
- Building a serial DMX-chain:
- Connection with the mains
- Connection between devices
- OPERATION
- Stand-alone operation
- Master/Slave operation
- Control Board
- Function
- DMX address setting
- DMX indicator
- Slave
- Auto
- Music
- Info
- Temperature
- Near lamp Temp
- Software version
- Person
- Status
- PAN Reverse
- TILT Reverse
- PAN degree
- Adjust PAN/TILT speed
- Mic sensitivity
- Select temperature designation
- Reload Default
- Reset
- Adjust
- Calibration (Calit CH)
- DMX-controlled operation
- Addressing
- Note:
- CLEANING AND MAINTENANCE
Brand : Eurolite
Model : TMH-16
Category : Machine à effets
